PARTS CATALOGUE- LAND ROVER DEFENDER (90, 110, 130)
MY-2012 ON WARDS
Publication No: PC-LR-DEF-2012
DEC 11 1 1 DEC 11
Accessories
Accessories

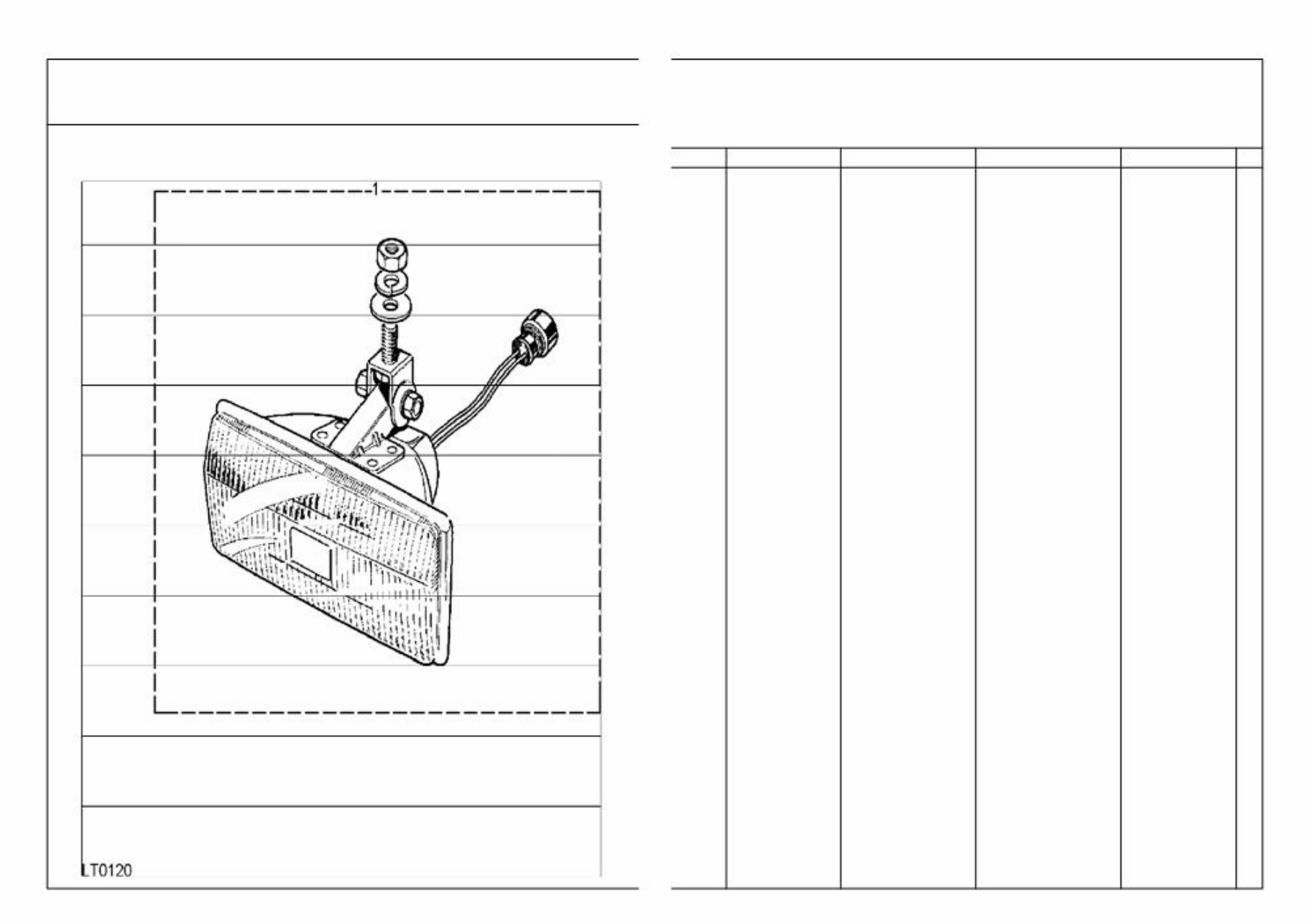

Auxiliary Lighting-Fog Lamps 1/1
Defender 12 MY-
(LT0120)
Defender 12 MY-
Accessories
Accessories
Auxiliary Lighting-Fog Lamps
Change point - VIN begin CA000001
Callout Name Application Remarks & Restrictions Service No. Qty
1 Kit-front lighting fog Pair, rectangular RTC8922 1
lamp
DEC 11
Accessories
Accessories

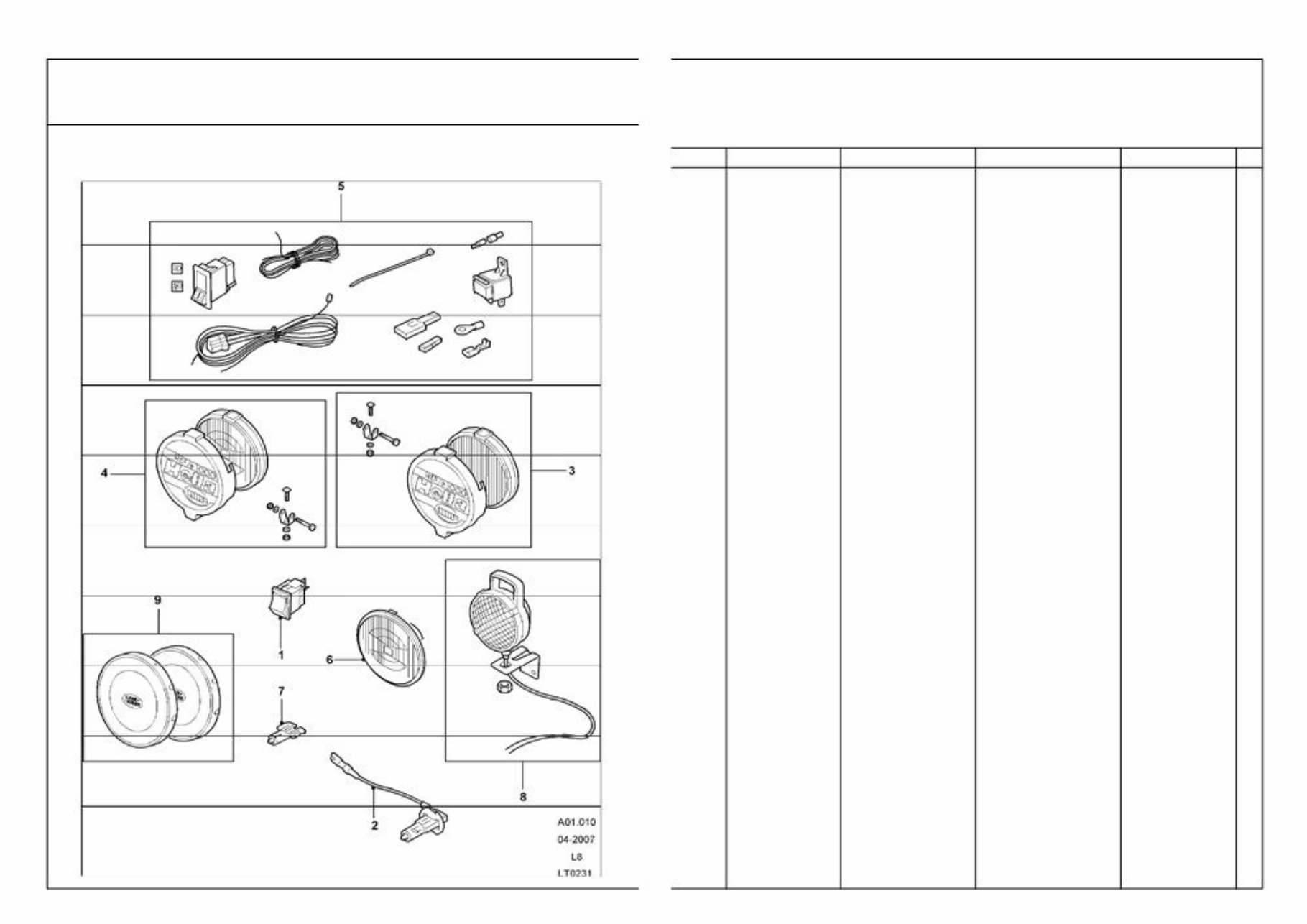

Auxiliary Lighting-Rally Lamps 1/1
2
Defender 12 MY-
(LT0231)
2
Defender 12 MY-
Callout Name
1 Switch-rocker
2 Bulb-headlamp-h3-55
Watt
3 Lamp-front lighting
fog
4 Lamp-front long
range driving
5 Kit-driving lamp
wiring
6 Lens-replacement
7 Bulb-headlamp
8 Lamp-auxiliary front
lighting
9 Protector
DEC 11
Accessories
Accessories
Auxiliary Lighting-Rally Lamps
Change point - VIN begin CA000001
Application Remarks & Restrictions Service No. Qty
STC8870 1
type H3 606178 1
Rally 1000 STC7643 1
Rally 1000 STC7644 1
Cewe RTC9586AA 1
Rally 1000 STC8107 1
Cewe, Quartz Halogen, type RTC9498 1
H2
RTC8921AA 1
VINYL, DRIVING LAMP, STC7661
Pair, Rally 1000
DEC 11
Accessories
Accessories

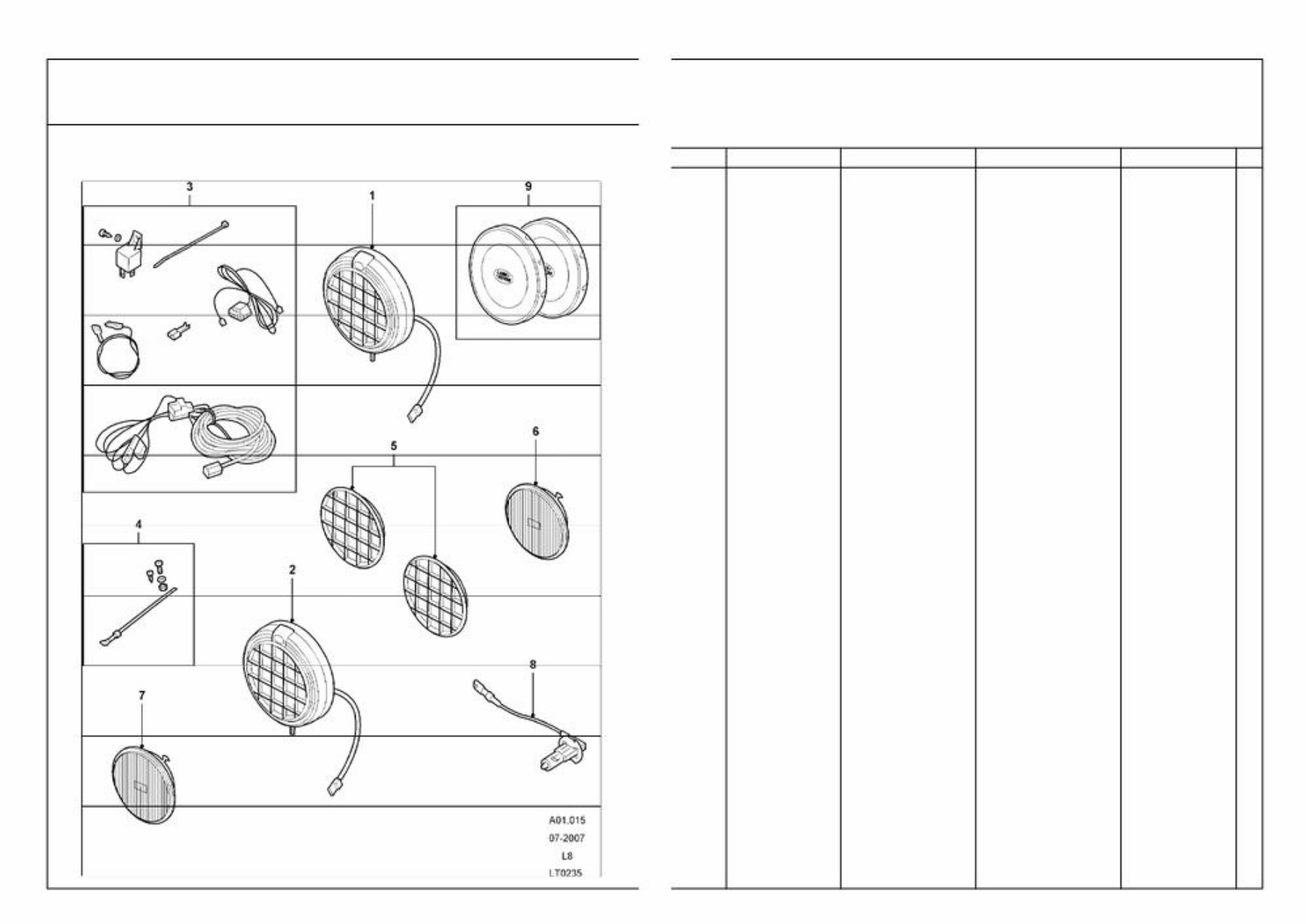

Auxiliary Lighting-Safari Lamps 1/1
3
Defender 12 MY-
(LT0235)
3
Defender 12 MY-
Callout Name
1 Lamp-front long
range driving
2 Lamp assembly-front
lighting fog
3 Kit-auxiliary
wiring-safari 500
4 Lamp steady bars
5 Protector-driving
lamp
6 Lens-replacement
7 Lens-fog
[8] Bulb-headlamp-h3-55
Watt
DEC 11
Accessories
Accessories
Auxiliary Lighting-Safari Lamps
Change point - VIN begin CA000001
Application Remarks & Restrictions Service No. Qty
Safari 5000 STC8480 1
Safari 5000 STC8481 1
STC8813 1
STC8813AA 1
Pair STC8814 1
Pair STC8842 1
STC8811 1
STC8812 1
type H3 606178 1
DEC 11
Accessories
Accessories

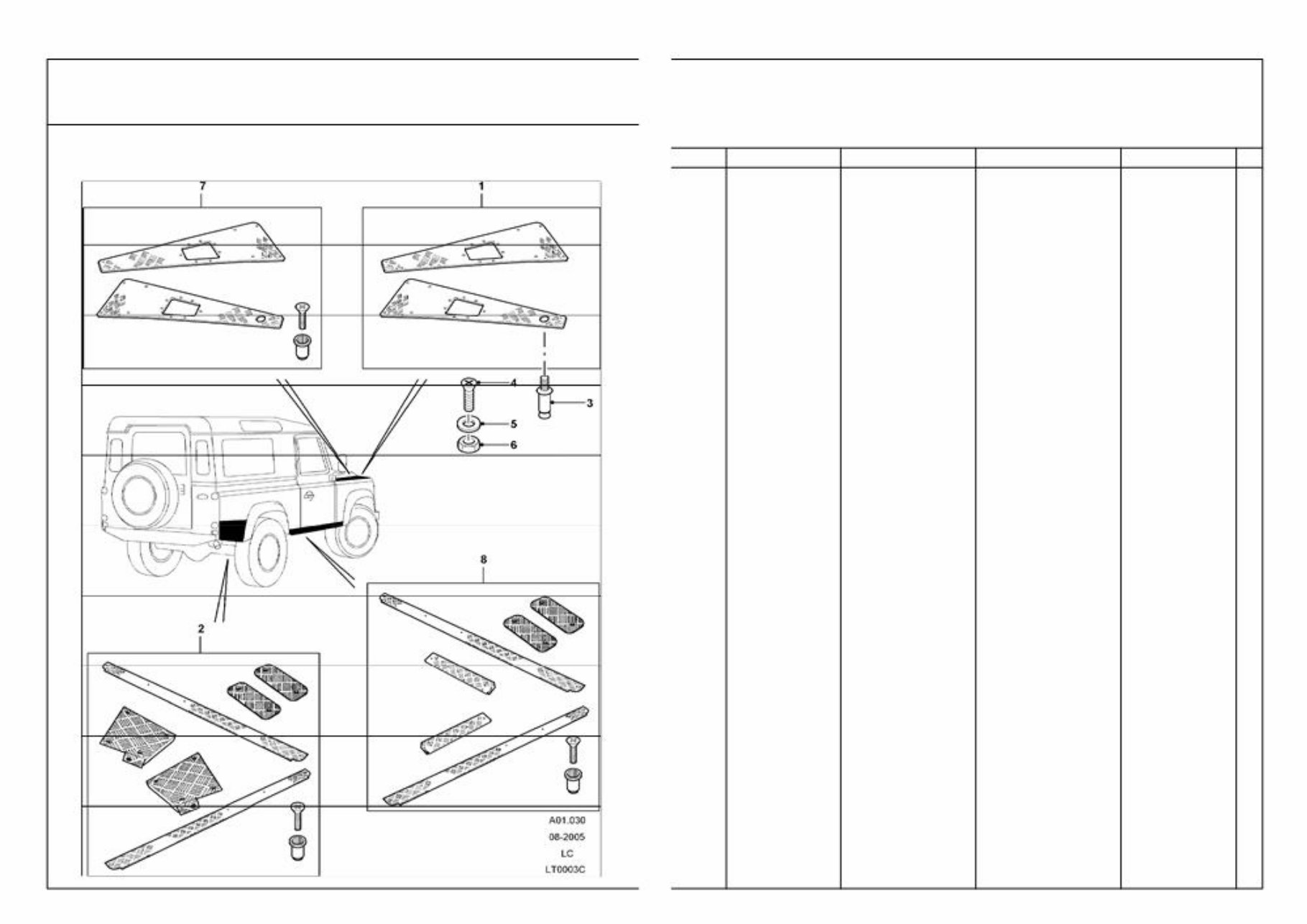

Chequer Plates 1/1
4
Defender 12 MY-
(LT0003C)
4
Defender 12 MY-
Callout Name
1 Treadplate
2 Kit-checker plate
3 Monobolt
4 Screw
5 Washer-Plain
6 Nut - Hex.
7 Treadplate
8 Treadplate
9 Treadplate
10 Treadplate
11 Treadplate
12 Treadplate
Change point - VIN begin CA000001
Application Remarks & Restrictions
Silver, Kit, Pair, front fender
90" Wheelbase
110" Wheelbase
3/16 dia
M6 X 16
M6
M6, hexagonal head, nyloc
Black, Kit, Pair, front fender
90" Wheelbase Black, Kit, Sill
110" Wheelbase Black, Kit, Sill
Silver, front fender, LH
Silver, RH, front fender
Black, front fender, LH
Black, RH, front fender
DEC 11
Accessories
Accessories
Chequer Plates
Service No. Qty
LR005230 1
STC50245 1
STC50381 1
AFU1843 X
SF106161L X
WJ106001L X
FY106046 X
LR005242 1
EBN500050 1
EBN500051 1
LR005232
LR005231
LR005234
LR005233
DEC 11
Accessories
Accessories

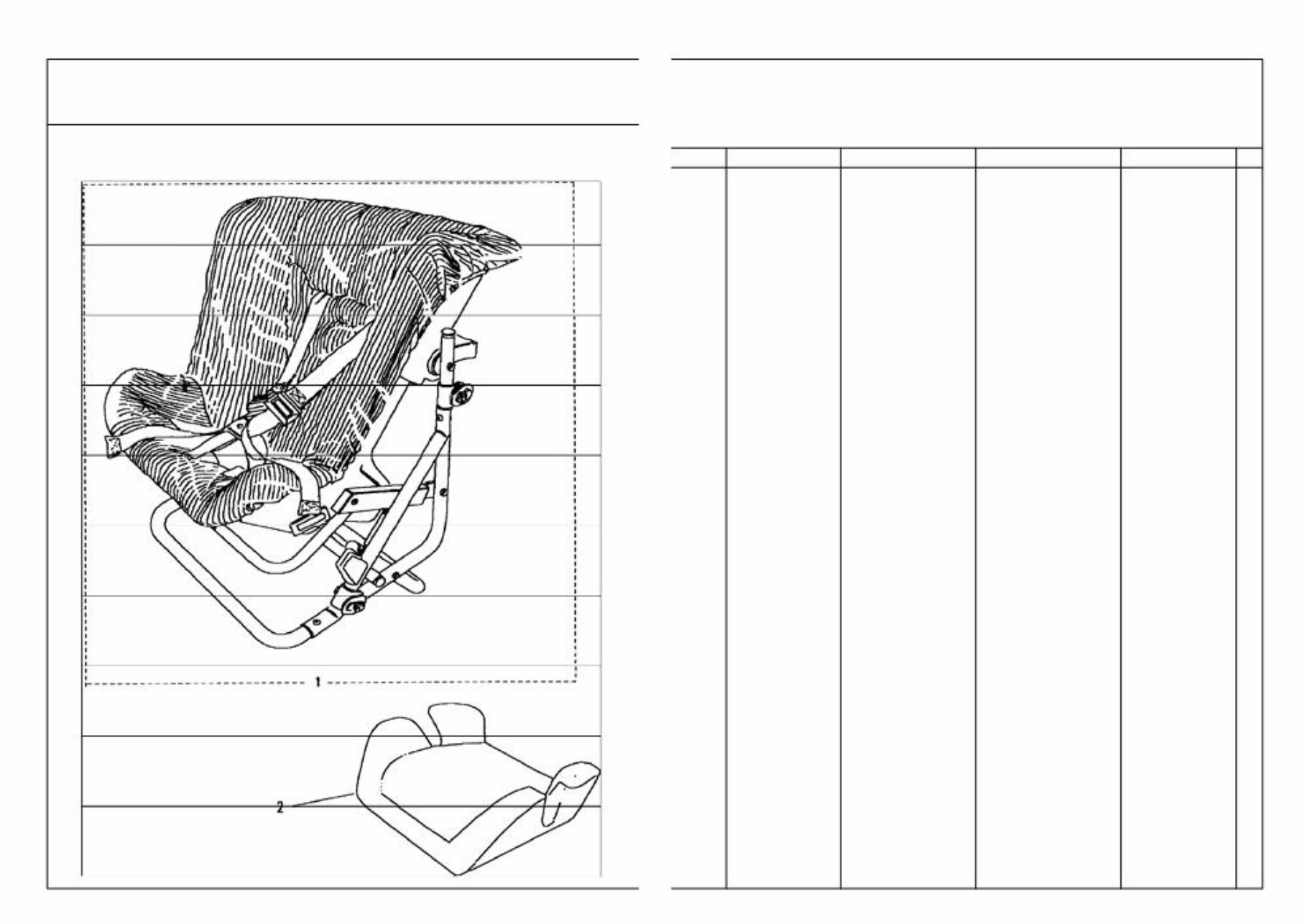

Child Seats 1/1
5
Defender 12 MY-
(CATXMA4A)
5
Defender 12 MY-
Callout Name
1 Seat-child restraint
2 Cushion-child
restraint booster
Change point - VIN begin CA000001
Application Remarks & Restrictions
DEC 11
Accessories
Accessories
Child Seats
Service No. Qty
VTN500020 1
STC8154 1
DEC 11
Accessories
Accessories

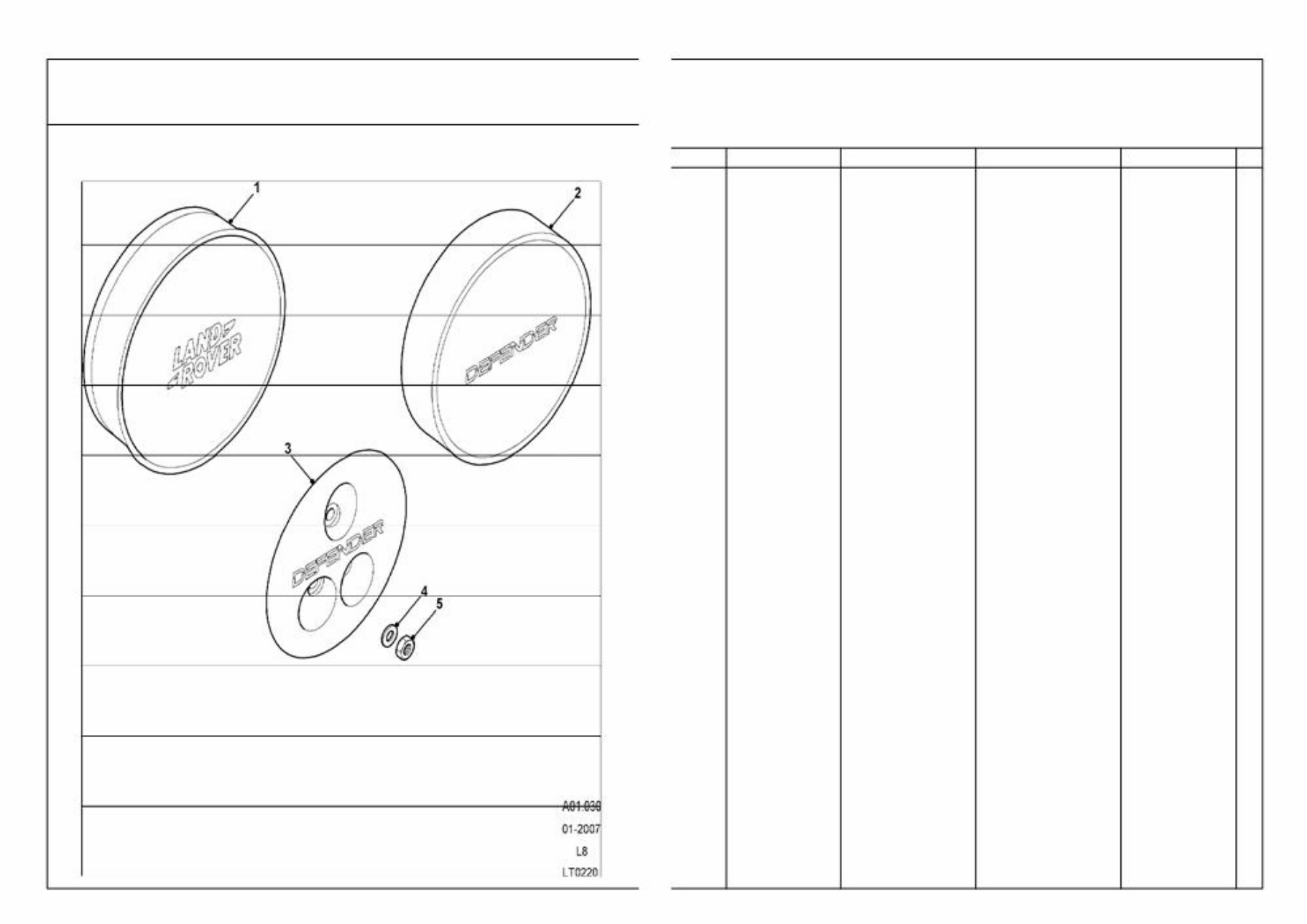

Covers-Spare Wheel 1/1
6
Defender 12 MY-
(LT0220)
6
Defender 12 MY-
Callout Name
1 Cover-Spare Wheel
2 Cover-Spare Wheel
3 Plate-spare wheel
retention
4 Washer-plastic
5 Nut - Hex.
Change point - VIN begin CA000001
Application Remarks & Restrictions
205 x 16, 600 x 16
265 x 16
750 x 16
235 x 16
265 x 16
Moulded
Alaska White (909)
Chawton White
M16
DEC 11
Accessories
Accessories
Covers-Spare Wheel
Service No. Qty
STC8485AA 1
STC8487AA 1
STC8488AA 1
STC7665AA 1
STC50266 1
STC7889 1
BTR2129NCL 1
BTR2129NAL 1
MXC7335 3
MXC7887 3
DEC 11
Accessories
Accessories

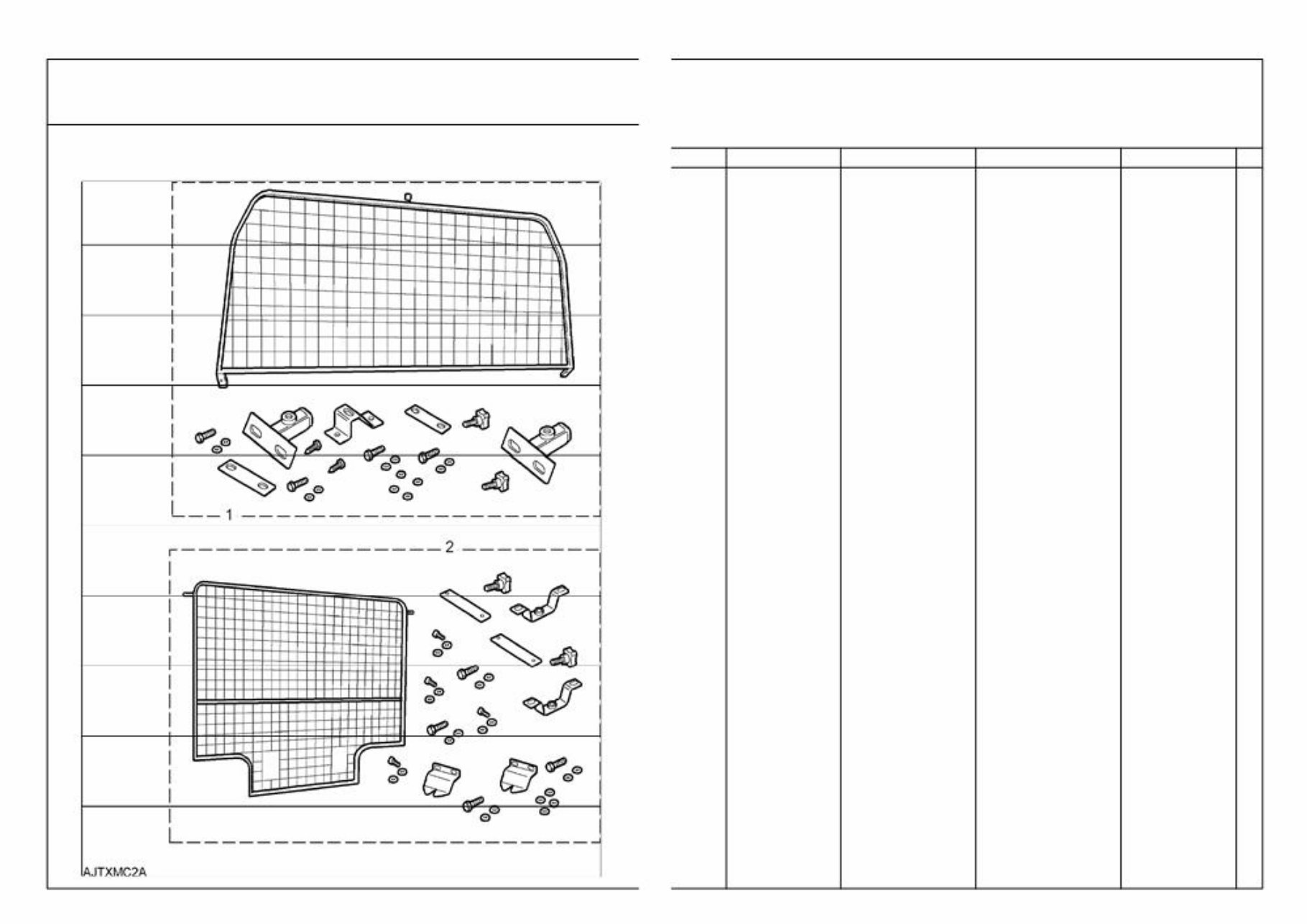

Dog Guard/Partition 1/1
7
Defender 12 MY-
(AJTXMC2A)
7
Defender 12 MY-
Change point - VIN begin CA000001
DEC 11
Accessories
Accessories
Dog Guard/Partition
Callout Name Application Remarks & Restrictions Service No. Qty
1 Kit - Dog Guard Hard Top, 90" Wheelbase Vehicle With Bulkhead, RTC8095 1
Mesh Type
Hard Top, Vehicle With Bulkhead, RTC8095 1
110" Wheelbase Mesh Type
2 Kit - Dog Guard Station Wagon - 3 Door, Mesh Type LR006448 1
Less Bulkhead,
90" Wheelbase
Station Wagon - 5 Door, Mesh Type LR006447 1
Less Bulkhead,
110" Wheelbase
3 Kit - Fixing Parts Less Bulkhead, LR006790 1
90" Wheelbase
4 Kit - Fixing Parts Less Bulkhead, LR006789 1
110" Wheelbase
5 Kit - Dog Guard Hard Top, Vehicle With Bulkhead LR006785 1
110" Wheelbase
Hard Top, 90" Wheelbase Vehicle With Bulkhead LR006785 1
6 Kit - Fixing Parts Hard Top, Vehicle With Bulkhead LR006791 1
110" Wheelbase
Hard Top, 90" Wheelbase Vehicle With Bulkhead LR006791 1
DEC 11
Accessories
Accessories

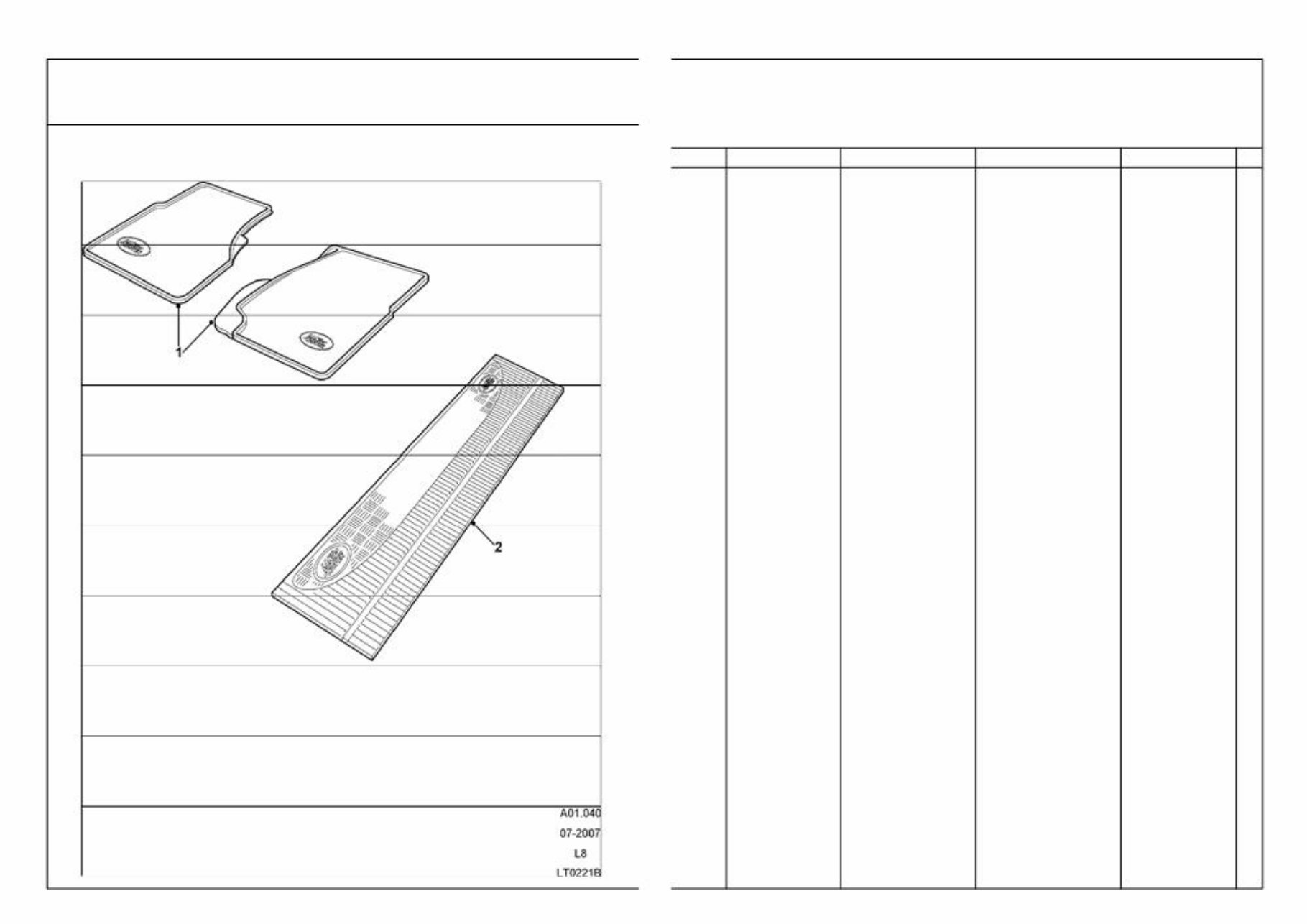

Interior Protection-Mats 1/1
8
Defender 12 MY-
(LT0221B)
8
Defender 12 MY-
Change point - VIN begin CA000001
DEC 11
Accessories
Accessories
Interior Protection-Mats
Callout Name Application Remarks & Restrictions Service No. Qty
1 Mat - Front Floor Accessory Fit, Pair, front LR005039 1
footwell.
2 Mat - Rear Floor Station Wagon - 5 Door, Rubber LR005041 1
110" Wheelbase
Crew Cab Pick Up, Rubber LR005042 1
110" Wheelbase
DEC 11
Accessories
Accessories

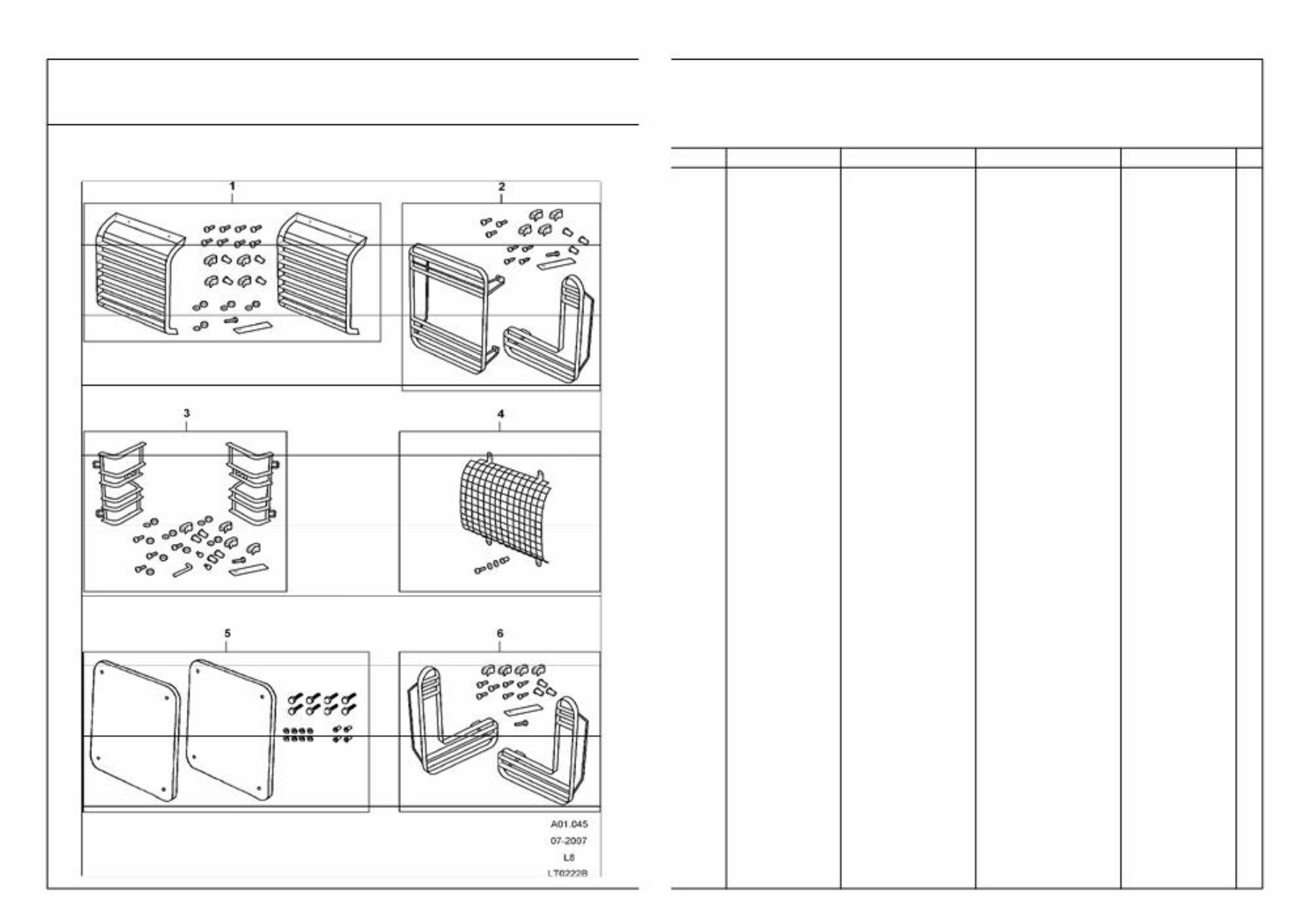

Lamp Guards 1/1
9
Defender 12 MY-
(LT0222B)
9
Defender 12 MY-
DEC 11
Accessories
Accessories
Lamp Guards
Change point - VIN begin CA000001
Callout Name Application Remarks & Restrictions Service No. Qty
1 Lamp guards-hinged Front, Pair STC53161 1
2 Lamp guards-hinged Rear, Pair, less door STC53158 1
mounted spare wheel
3 Lamp guards-hinged Rear, Pair STC8056 1
4 Lamp guards-fixed Front, Single 345985 1
5 Lamp guards-fixed 90" Wheelbase Rear, Pair VUB504110 1
Hard Top, Rear, Pair VUB504110 1
110" Wheelbase
Soft Top, 110" Wheelbase Rear, Pair VUB504110 1
Pick Up, 110" Wheelbase Rear, Pair VUB504110 1
Station Wagon - 5 Door, Rear, Pair VUB504110 1
110" Wheelbase
Crew Cab Pick Up, Rear, Pair VUB504110 1
110" Wheelbase
Station Wagon Utility - 5 Rear, Pair VUB504110 1
Door, 110" Wheelbase
High Capacity Pick Up, Rear, Pair STC8056 1
110" Wheelbase
Crew Cab HCPU, Rear, Pair STC8056 1
130" Wheelbase
6 Protector-headlamp Pair, perspex STC7561 1
7 Lamp guards-hinged Rear, Pair, with door STC53157 1
mounted spare wheel
