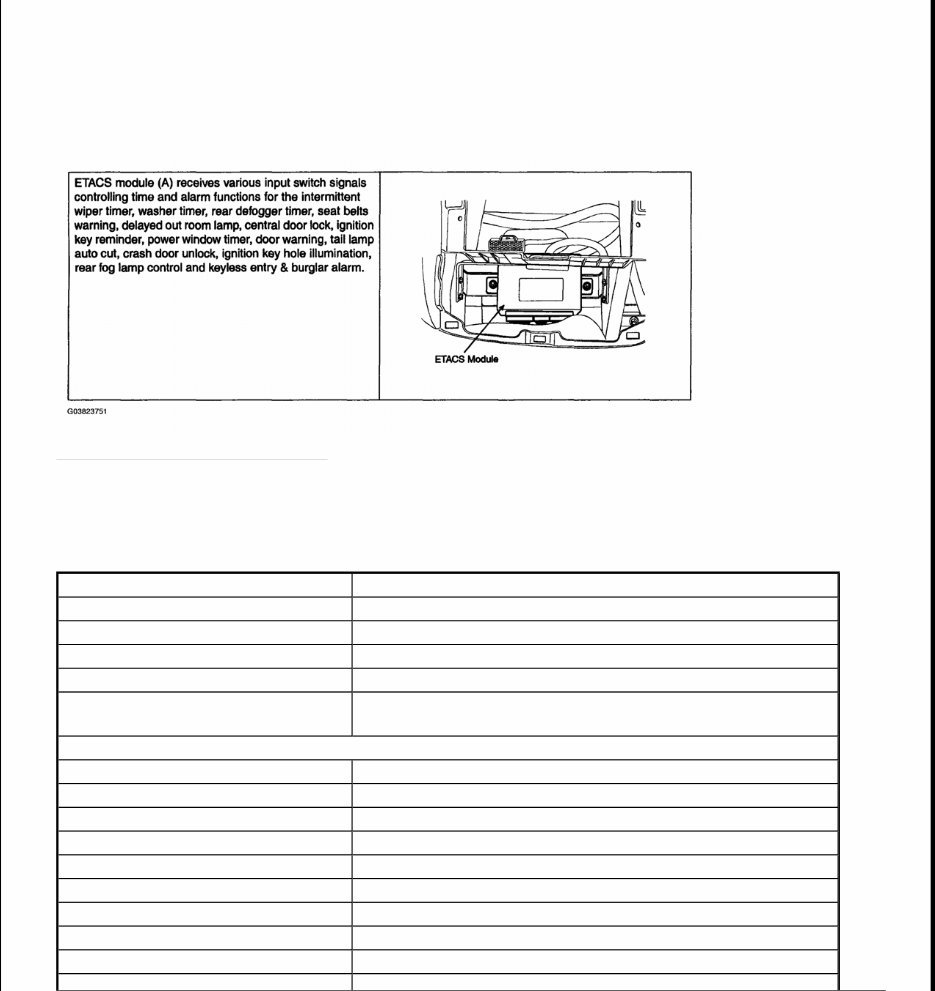

2005-06 ACCESSORIES & BODY, CAB ETACS (Electronic Time And Alarm Control System) - Sportage DESCRIPTION Fig. 1: Identifying ETACS Module Courtesy of KIA MOTORS AMERICA, INC. SPECIFICATIONS SPECIFICATIONS Items Specifications Rated voltage DC 12V Operating voltage DC 9 ~ 16V Operating temperature -22°F ~ 176°F(-30°C ~ 80°C) Insulation resistance 100Mohm or more Dark current Less than 6mA (12.8 V) - ETACS & Receiver Less than 4mA (12.8 V) - ETACS Rated load Burglar alarm horn DC 12V, 3.5A (Inductance load) Burglar alarm relay DC 12V, 200mA (Inductance load) Horn relay DC 12V, 200mA (Inductance load) Tail lamp relay DC 12V, 200mA (Inductance load) Front fog lamp relay DC 12V, 200mA (Inductance load) Rear defogger relay DC 12V, 200mA (Inductance load) Tail gate safety relay DC 12V, 200mA (Inductance load) Power window timer relay DC 12V, 200mA (Inductance load) Seat belt warning indicator DC 12V, 1.4W (Lamp load)
ELECTRONIC TIME AND ALARM CONTROL MODULE CIRCUIT DIAGRAM Key hole illumination lamp DC 12V, 2W (Lamp load) Room lamp DC 12V, 10W (Lamp load) Intermittent wiper relay DC 12V, 200mA (Inductance load) Central door actuator DC 12V, 25A (Actuator load): 5EA Rear wiper relay DC 12V, 200mA (Inductance load) Windshield deicer relay DC 12V, 200mA (Inductance load) Door lock relay DC 12V, 200mA (Inductance load) Door unlock relay DC 12V, 200mA (Inductance load) Hazard lamp relay DC 12V, 200mA (Inductance load) Driver door unlock relay DC 12V, 200mA (Inductance load)

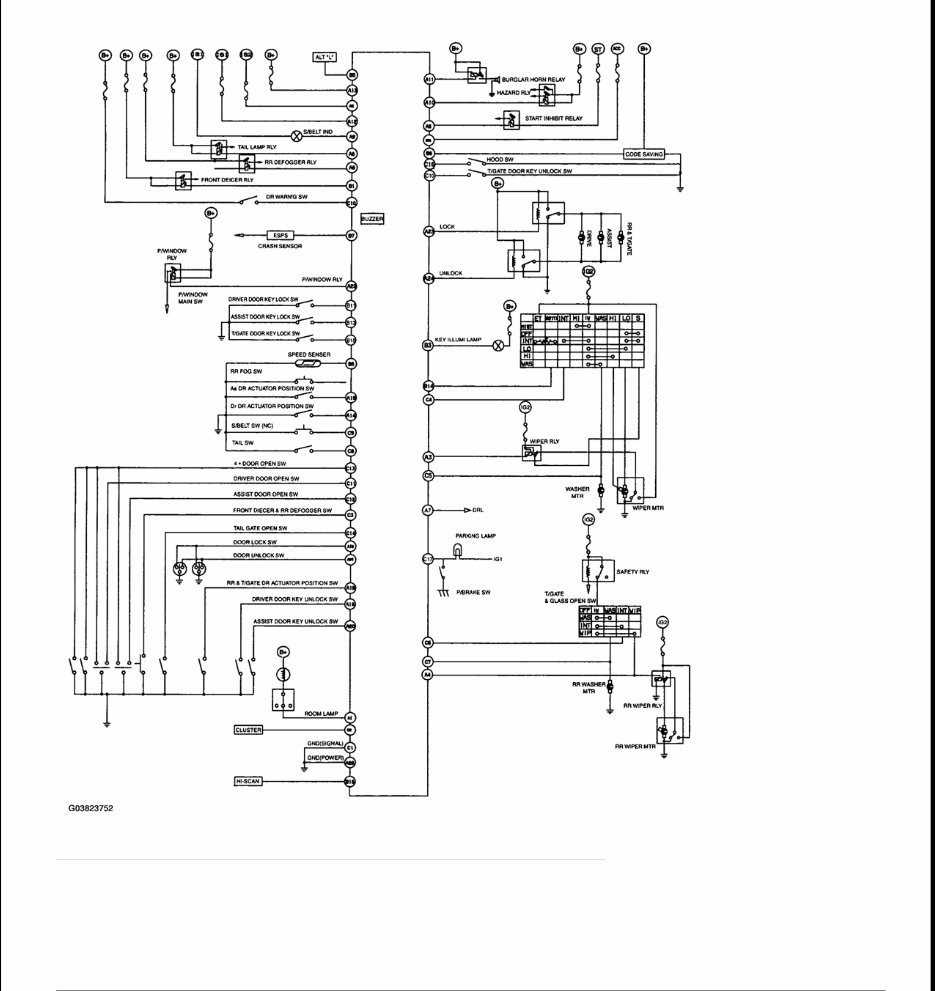

Fig. 2: Circuit Diagram - Electronic Time And Alarm Control Module Courtesy of KIA MOTORS AMERICA, INC. ETACS CONNECTOR TERMINALS

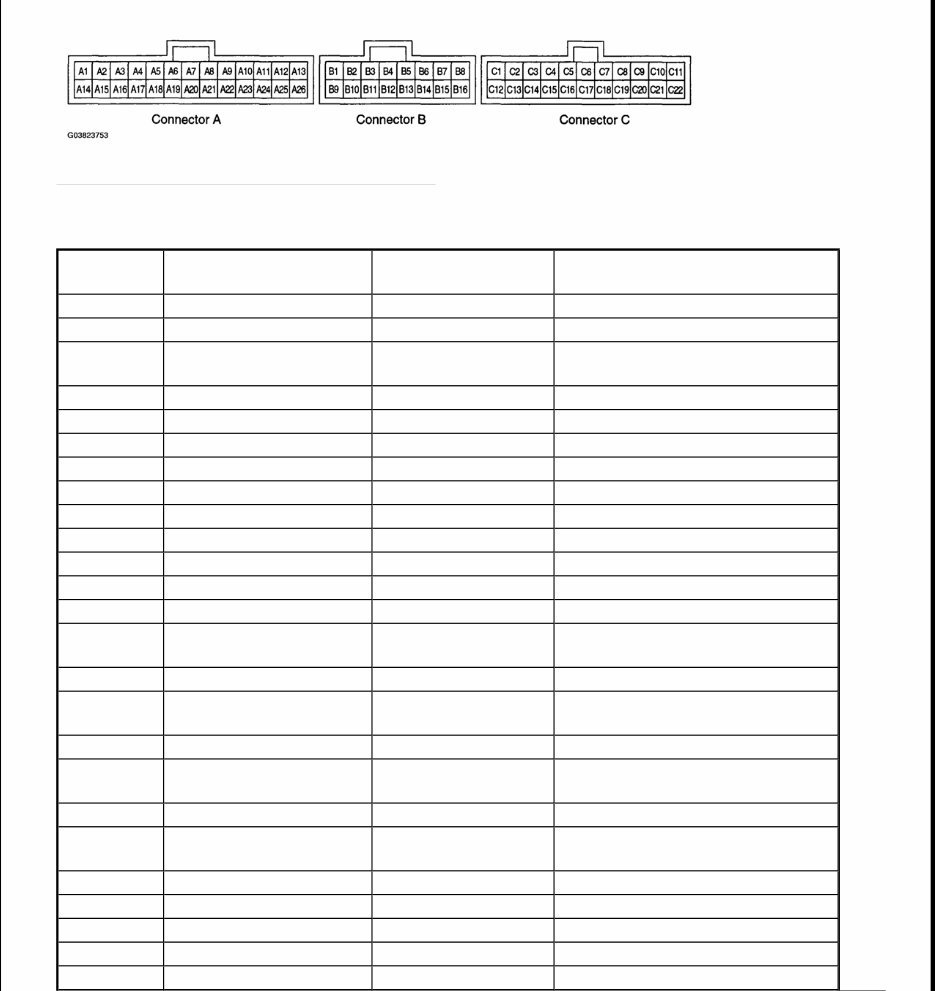

Fig. 3: Identifying ETACS Connector Terminals Courtesy of KIA MOTORS AMERICA, INC. ETACS CONNECTOR TERMINALS REFERENCE CHART Terminal No. Connector A Connector B Connector C 1 Room lamp Windshield deicer relay Ground 2 IGN 2 - Cluster 3 Wiper relay Key hole illumination Windshield deicer & Rear defogger switch 4 Rear wiper relay - Intermittent wiper switch 5 Start inhibit relay Alternator (L) Washer switch 6 Rear defogger relay Speed sensor Intermittent rear wiper switch 7 D.R.L Crash sensor Rear washer switch 8 Tail lamp relay Code saving Tail lamp switch 9 Seat belt indicator - Seat belt switch 10 Hazard lamp relay - Key warning switch 11 Burglar horn relay - Driver door open switch 12 IGN1 - Assist door open switch 13 B+ [For ETACS] - 4 door open switch 14 Driver door unlock switch Intermittent wiper volume Tailgate open switch 15 Assist door unlock switch - Hood switch 16 Rear & Tailgate unlock switch Diagnosis Tailgate door key unlock switch 17 - Parking brake switch 18 Driver door key unlock switch Head lamp switch 19 Door lock switch Front fog lamp switch 20 Assist door key unlock switch - 21 Door unlock switch ACC 22 Power window relay - 23 Door lock relay 24 Door unlock relay 25 -
ETACS MODULE INPUT SIGNAL TEST ETACS MODULE INPUT SIGNAL TEST 26 Ground Pin No. Input signal name Test condition Measured value Ordinary A1 Room lamp Door open 1V or less 10V or more A2 IGN 2 Ignition switch ON Battery voltage 1V or less A3 Wiper relay Intermittent wiper, washer switch ON 1V or less 10V or more A4 Rear wiper relay Rear intermittent wiper, washer switch ON Battery voltage 1V or less A5 Start inhibit relay Engine start condition 1V or less 10V or more A6 Rear defogger relay Windshield deicer switch & Rear defogger switch ON 1V or less 10V or more A7 D.R.L Tail lamp switch ON 1V or less 10V or more A8 Tail lamp relay Tail lamp switch ON 1V or less 10V or more A9 Seat belt indicator Seat belt is unbuckled 1V or less/10V or more (1 sec period) 1V or less A10 Hazard lamp relay Remote control LOCK/UNKOCK 1V or less/10V or more (1 sec period) 10V or more A11 Burglar horn relay Remote control LOCK/UNKOCK 1V or less/10V or more (1 sec period) 10V or more A12 IGN1 Ignition switch ON Battery voltage 1V or less A13 B+ [For ETACS] Constant Battery voltage 1V or less A14 Driver door unlock switch Driver door UNLOCK 5~12V 1V or less A15 Assist door unlock switch Assist door UNLOCK 5~12V 1V or less A16 Rear & Tailgate unlock switch Rear & Tail gate UNLOCK 5~12V 1V or less A17 - - - - A18 Driver door key unlock switch Driver door key UNLOCK switch ON 5~12V 1V or less A19 Door lock switch Door LOCK ON 5~12V 1V or less A20 Assist door key unlock switch Assist door key unlock switch ON 5~12V 1V or less A21 Door unlock switch Door unlock switch ON 5~12V 1V or less
