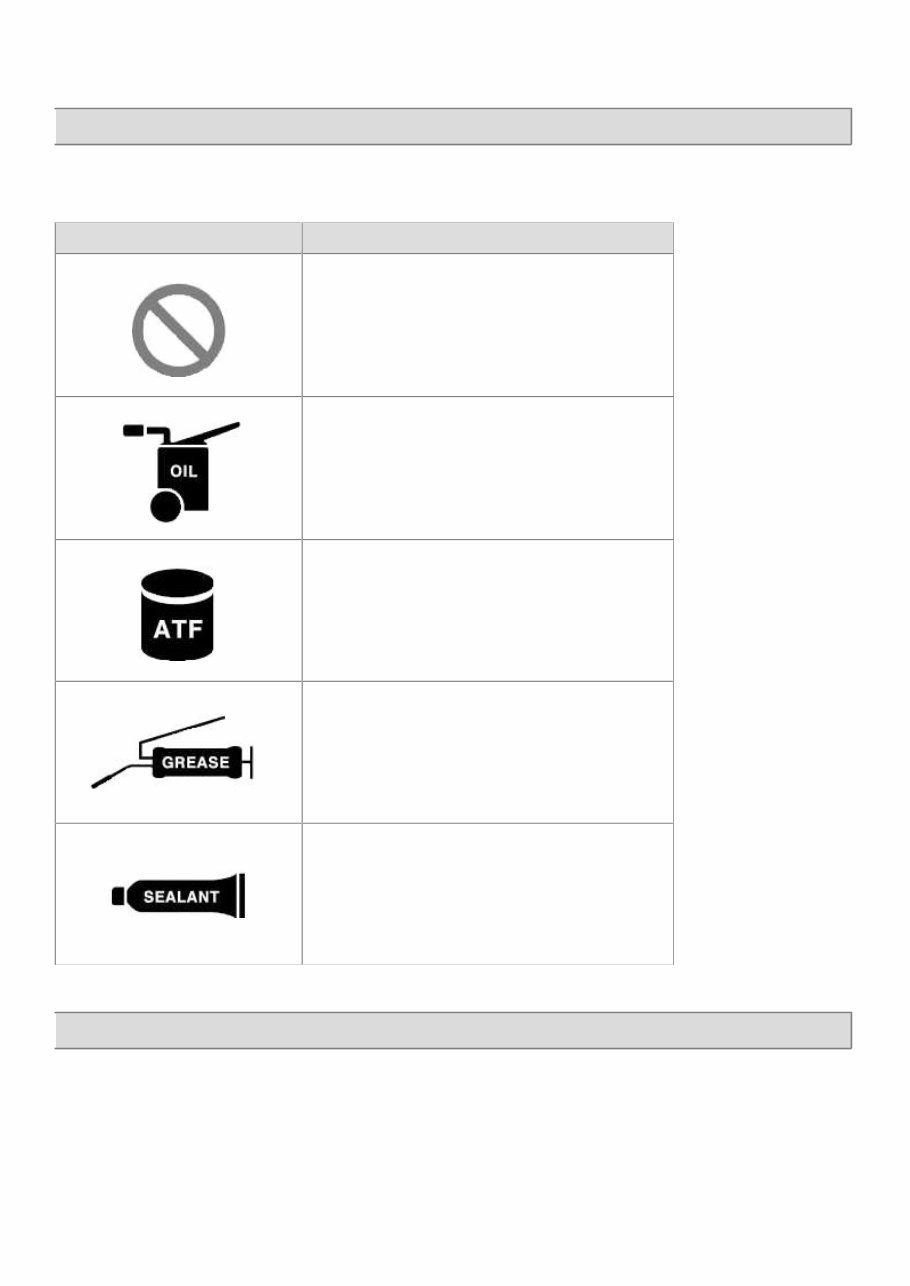

materials during service. SOUL(PS) > 2014 > G 2.0 NU GDI > General Information General Information > Basic Service Symbols > General Information Basic Service Symbols There are five primary symbols used to complement illustrations. These symbols indicate the part to apply such General Information > General Service Information > General Information General Service Information Protection Of The Vehicle Always be sure to cover fenders, seats, and floor areas before starting work. C:\Users\ej20\Desktop\Soul 2014\2.0 NU GDi\General Information.mht 2014-01-20 Symbol Meaning Do not reuse the part. Replace a new one. Apply engine oil or transmission oil to the part. Apply automatic transmission fluid (ATF) to the part. Apply grease to the part. Apply sealant to the part.

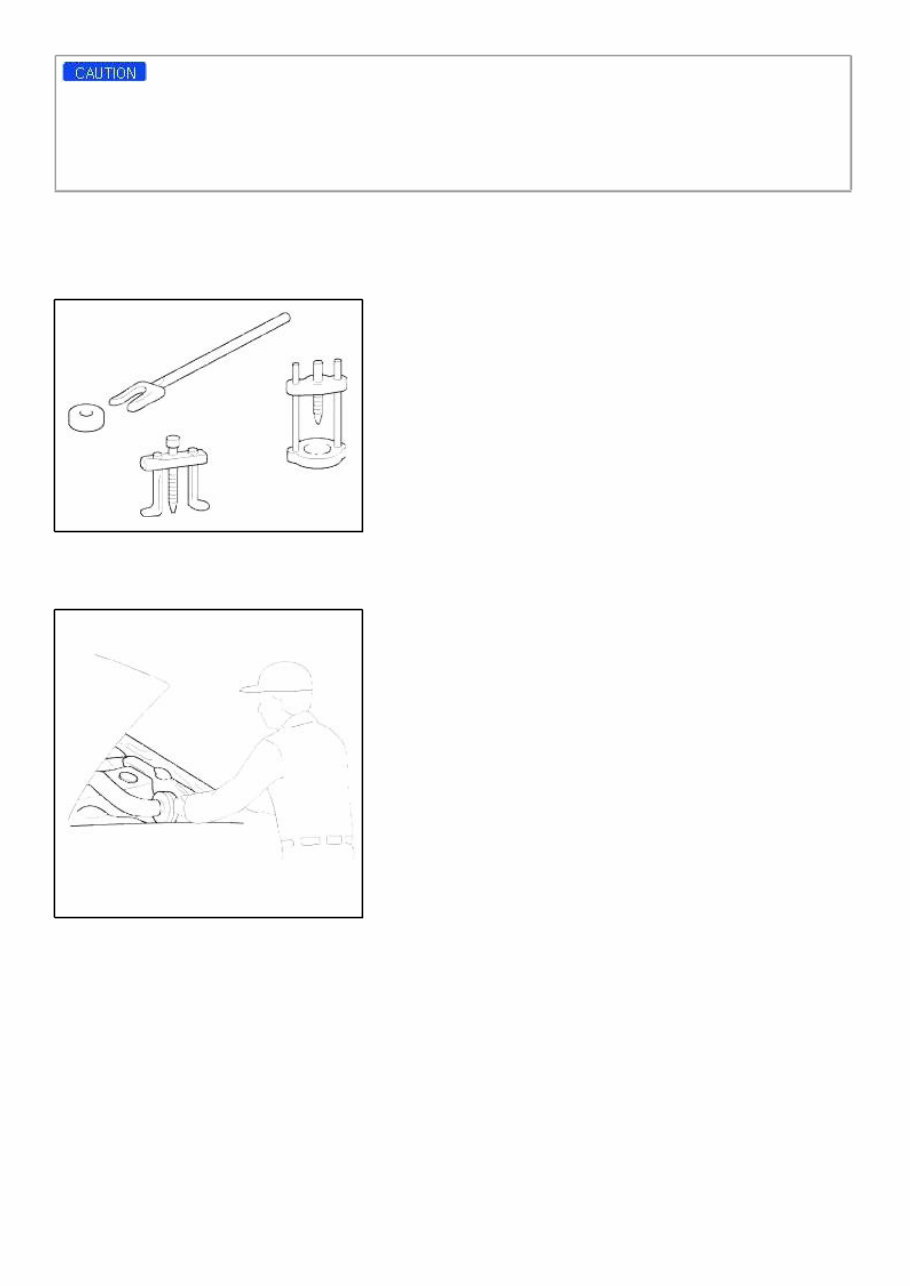

The support rod must be inserted into the hole near the edge of the hood whenever you inspect the engine compartment to prevent the hood from falling and causing possible injury. Make sure that the support rod has been released prior to closing the hood. Always check to be sure the hood is firmly latched before driving the vehicle. Preparation Of Tools And Measuring Equipment Be sure that all necessary tools and measuring equipment are available starting work. Special Tools Use special tools when they are required. Removal Of Parts First find the cause of the problem and then determine whether removal or disassembly before starting the job. Disassembly If the disassembly procedure is complex, requiring many parts to be disassembled, all parts should be disassembled in a way that will not affect their performance or external appearance. http://pasha.tradebit.com C:\Users\ej20\Desktop\Soul 2014\2.0 NU GDi\General Information.mht 2014-01-20

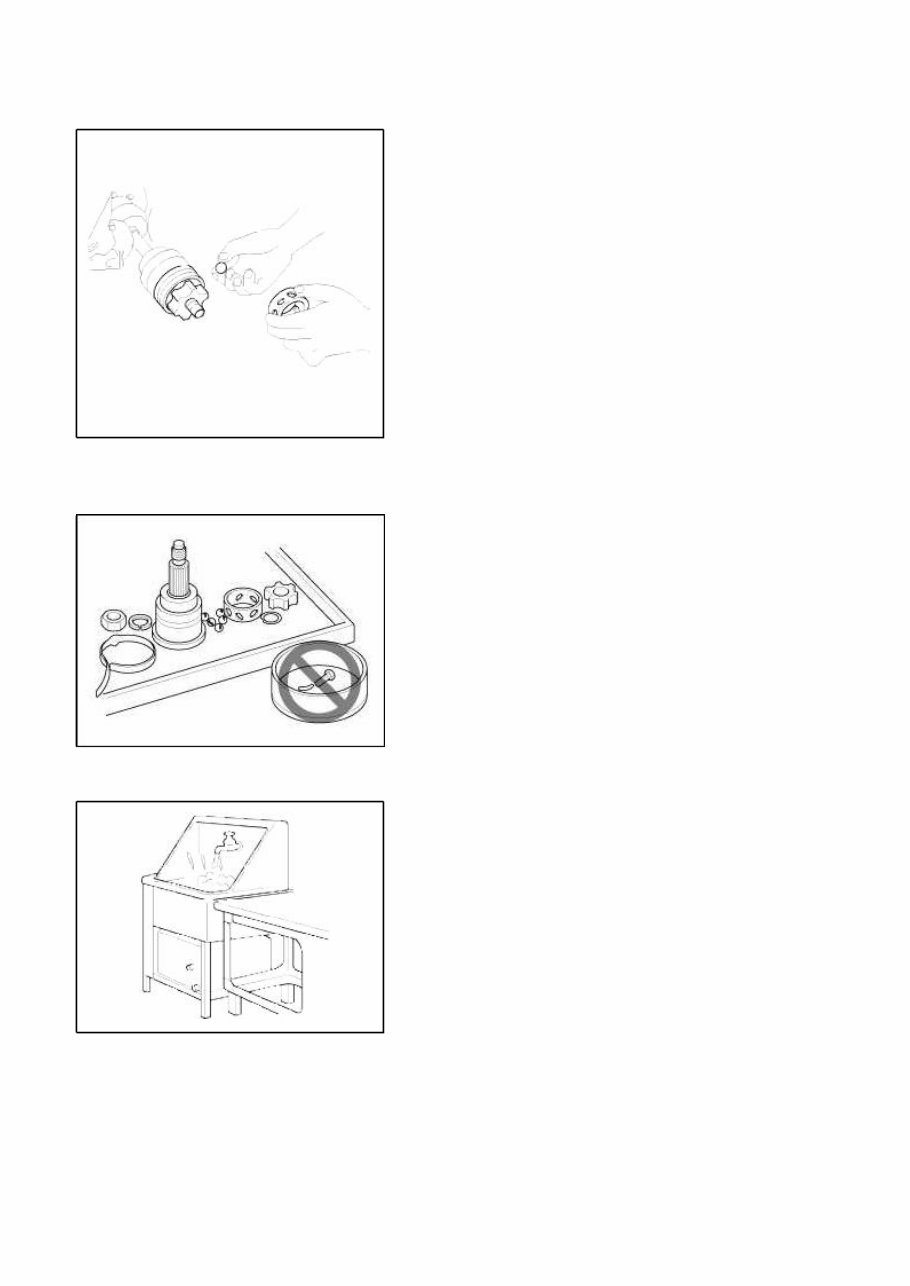

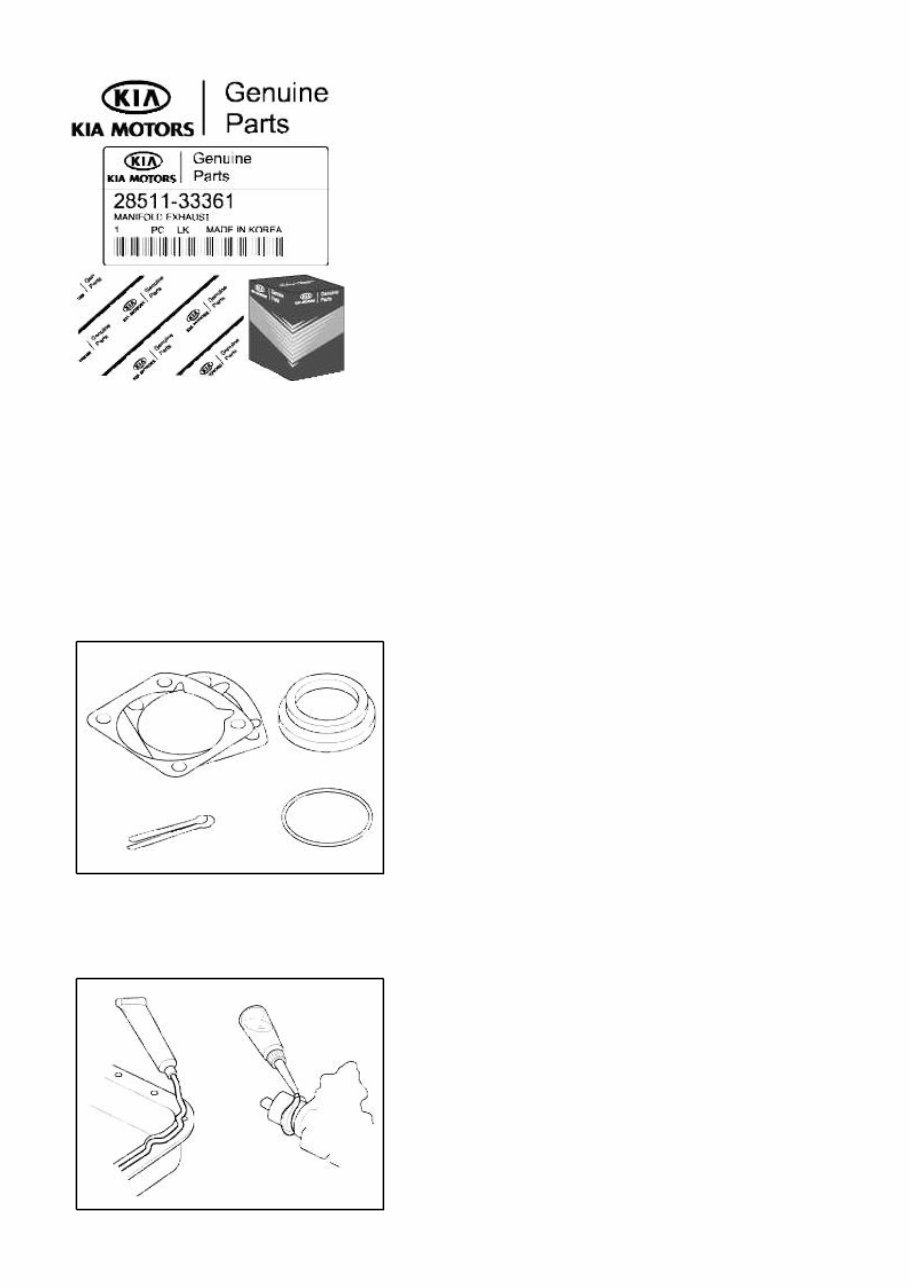

1. Inspection of parts Each part, when removed, should be carefully on suspected for malfunction, deformation, damage, and other problems. 2. Arrangement of parts All disassembled parts should be carefully arranged for effective reassembly. Be sure to separate and correctly identify the parts to be replaced from those that will be used again. 3. Cleaning parts for reuse All parts to be used again should be carefully and thoroughly cleaned by an appropriate method. Parts When replacing parts, use KIA MOTORS genuine parts. C:\Users\ej20\Desktop\Soul 2014\2.0 NU GDi\General Information.mht 2014-01-20

Replacement Standard values, such as torques and certain adjustments, must be strictly observed in the reassembly of all parts. If removed, the following parts should always be replaced with new ones. 1. Oil seals 2. Gaskets 3. O-rings 4. Lock washers 5. Cotter pins (split pins) 6. Plastic nuts Depending on their location. 7. Sealant should be applied to gaskets. 8. Oil should be applied to the moving components of parts. 9. Specified oil or grease should be applied to the prescribed locations (oil seals, etc) before assembly. http://pasha.tradebit.com C:\Users\ej20\Desktop\Soul 2014\2.0 NU GDi\General Information.mht 2014-01-20

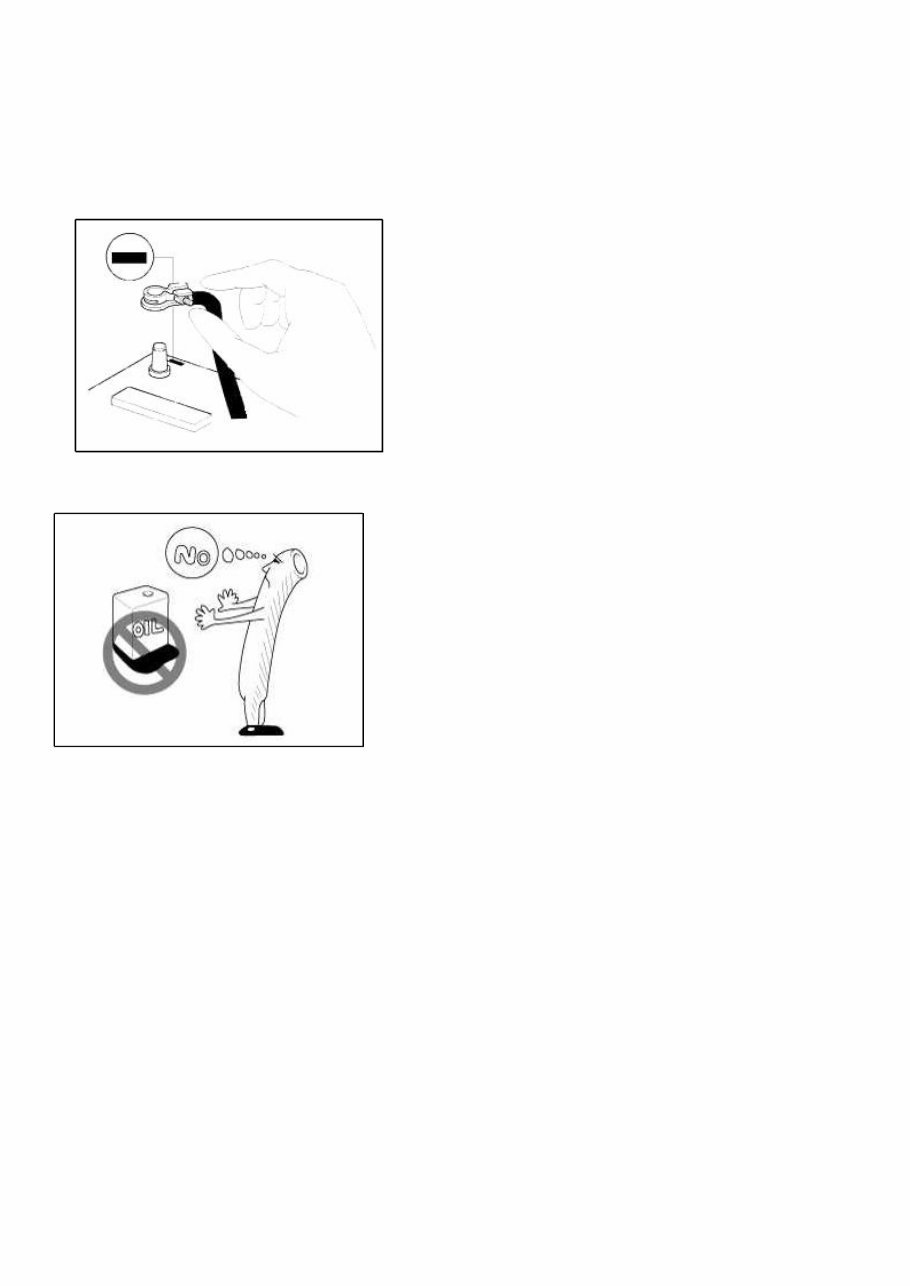

Adjustment Use gauges and testers to adjust correctly the parts to standard values correctly. Electrical System 1. Be sure to disconnect the battery cable from the negative (-) terminal of the battery. 2. Never pull on the wires when disconnecting connectors. 3. Locking connectors will click when the connector is secure. 4. Handle sensors and relays carefully. Be careful not to drop them against other parts. Rubber Parts And Tubes Always prevent gasoline or from touching rubber parts or tubing. Measuring Body Dimensions 1. Basically, all measurements in this manual are taken with a tracking gauge. 2. When a measuring tape is used, check to be sure there is no elongation, twisting or bending. 3. For measuring dimensions, both projected dimensions and actual - measurement dimensions are used in this manual. Dimensions Projected 1. These are the dimensions measured when the measurement points are projected from the vehicle's surface, and are the reference dimensions used for used for body alterations. C:\Users\ej20\Desktop\Soul 2014\2.0 NU GDi\General Information.mht 2014-01-20

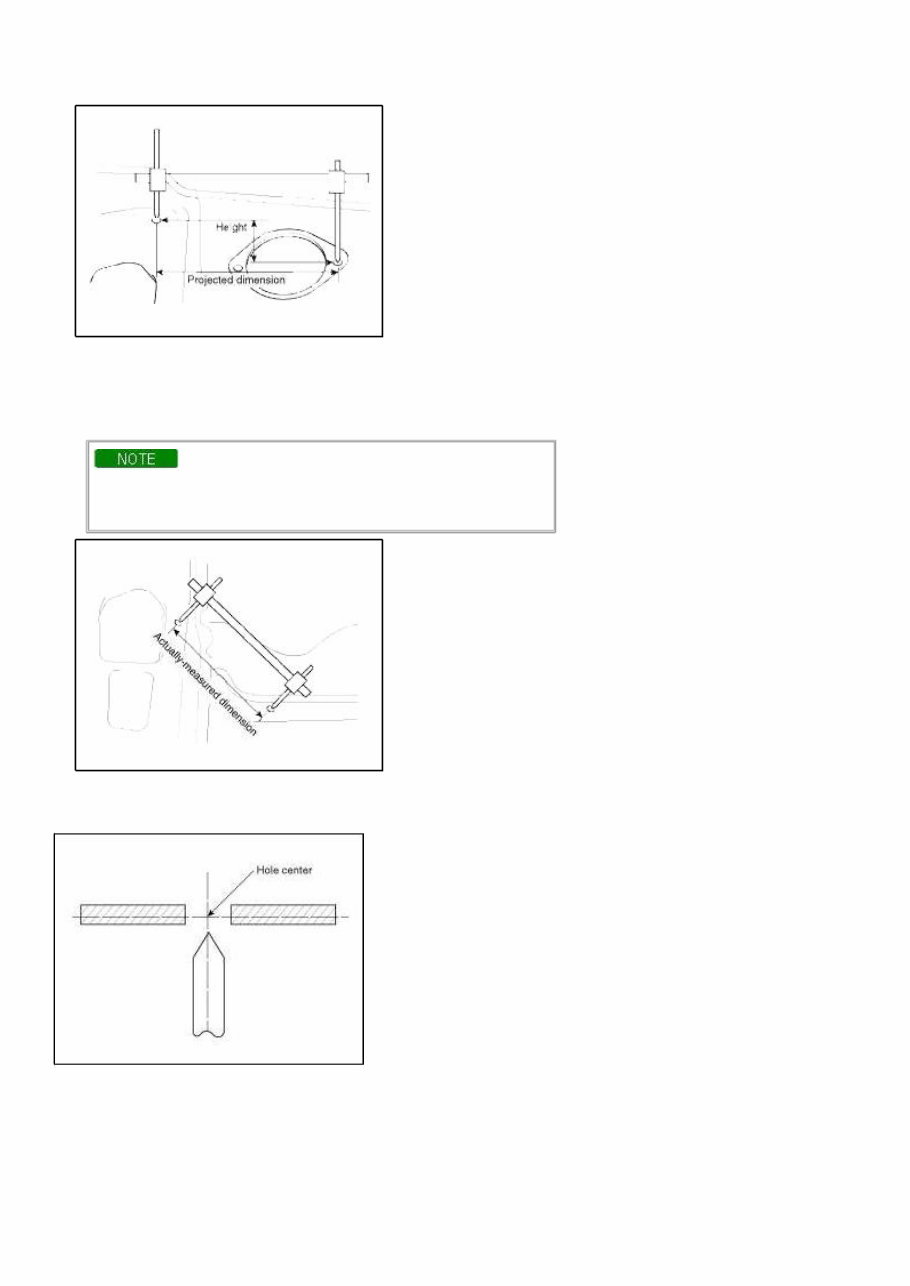

2. If the length of the tracking gauge probes is adjustable, measure it by lengthening one of two probes as long as the different value in height of the two surface. Measuring Actual Dimensions 1. These dimensions indicate the actual linear distance between measurement points, and are used as the reference dimensions when a tracking gauge is used for measurement. 2. First adjust both probes to the same length (A=A') before measurement. Check the probes and gauge itself to make sure there is no free play. Measurement Point Measurements should be taken at the center of the hole. Checking Cables And Wires 1. Check the terminal for tightness. 2. Check terminals and wires for corrosion from battery electrolyte, etc. 3. Check terminals and wires for open circuits. 4. Check wire insulation and coating for damage, cracks and degrading. 5. Check the conductive parts of terminals for contact with other metallic parts (vehicle body and other parts). http://pasha.tradebit.com C:\Users\ej20\Desktop\Soul 2014\2.0 NU GDi\General Information.mht 2014-01-20

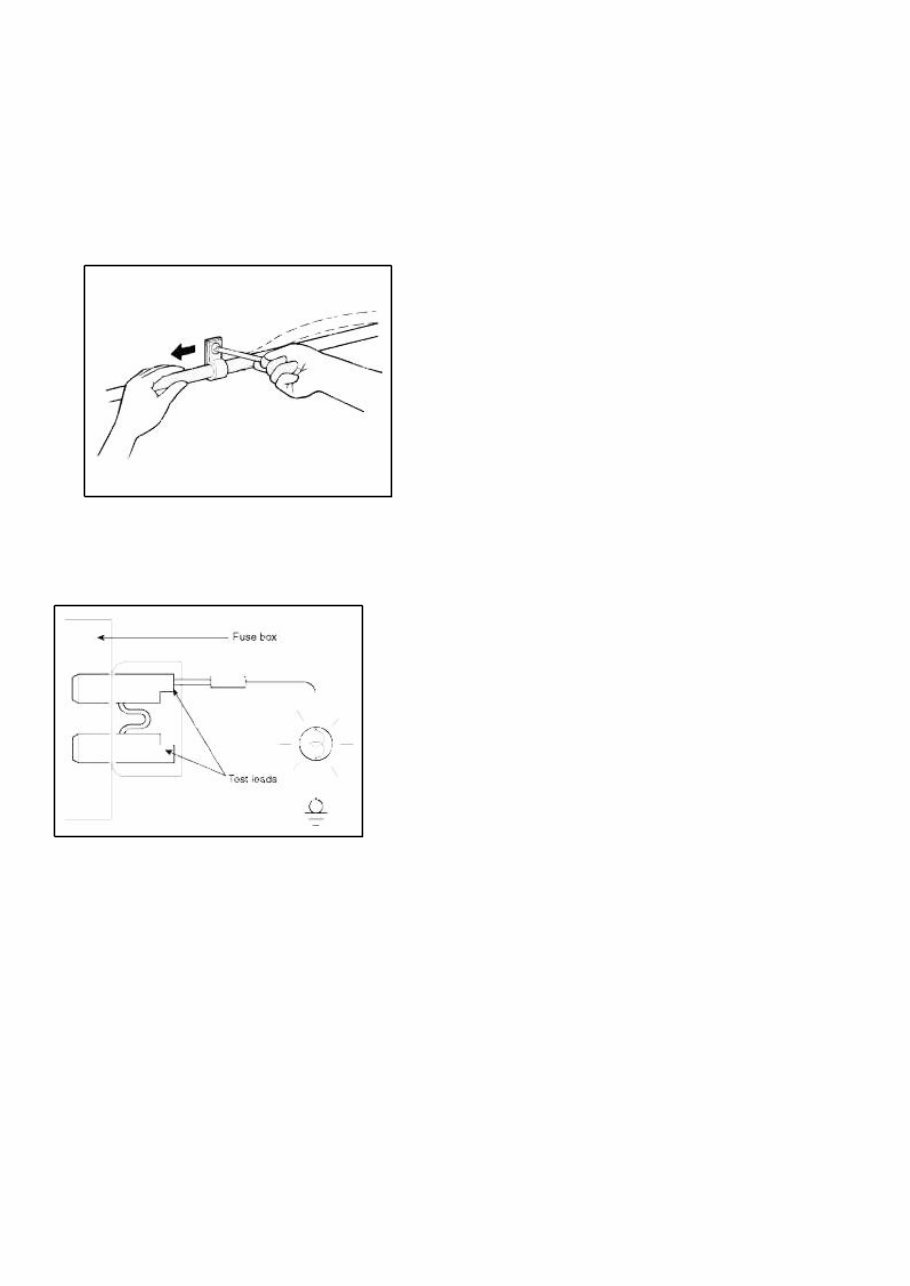

6. Check grounded parts to verify that there is complete continuity between their attaching bolt(s) and the vehicle's body. 7. Check for incorrect wiring. 8. Check that the wiring is so clamped to the prevent contact with sharp corners of the vehicle body, etc. or hot parts (exhaust manifold, etc.) 9. Check that the wiring is clamped firmly to provide enough clearance from the fan pulley, fan belt and other rotating or moving parts. 10. Check that the wiring has a little space so that it can vibrate between fixed and moving parts such as the vehicle body and the engine. Check Fuses A blade type fuse test taps provided to allow checking the fuse itself without removing if from the fuse box. The fuse is good if the test lamp lights up when one lead is connected to the test taps (one at a time) and the other lead is grounded. (Turn the ignition switch so that the fuse circuit becomes operative) Servicing The Electrical System C:\Users\ej20\Desktop\Soul 2014\2.0 NU GDi\General Information.mht 2014-01-20
