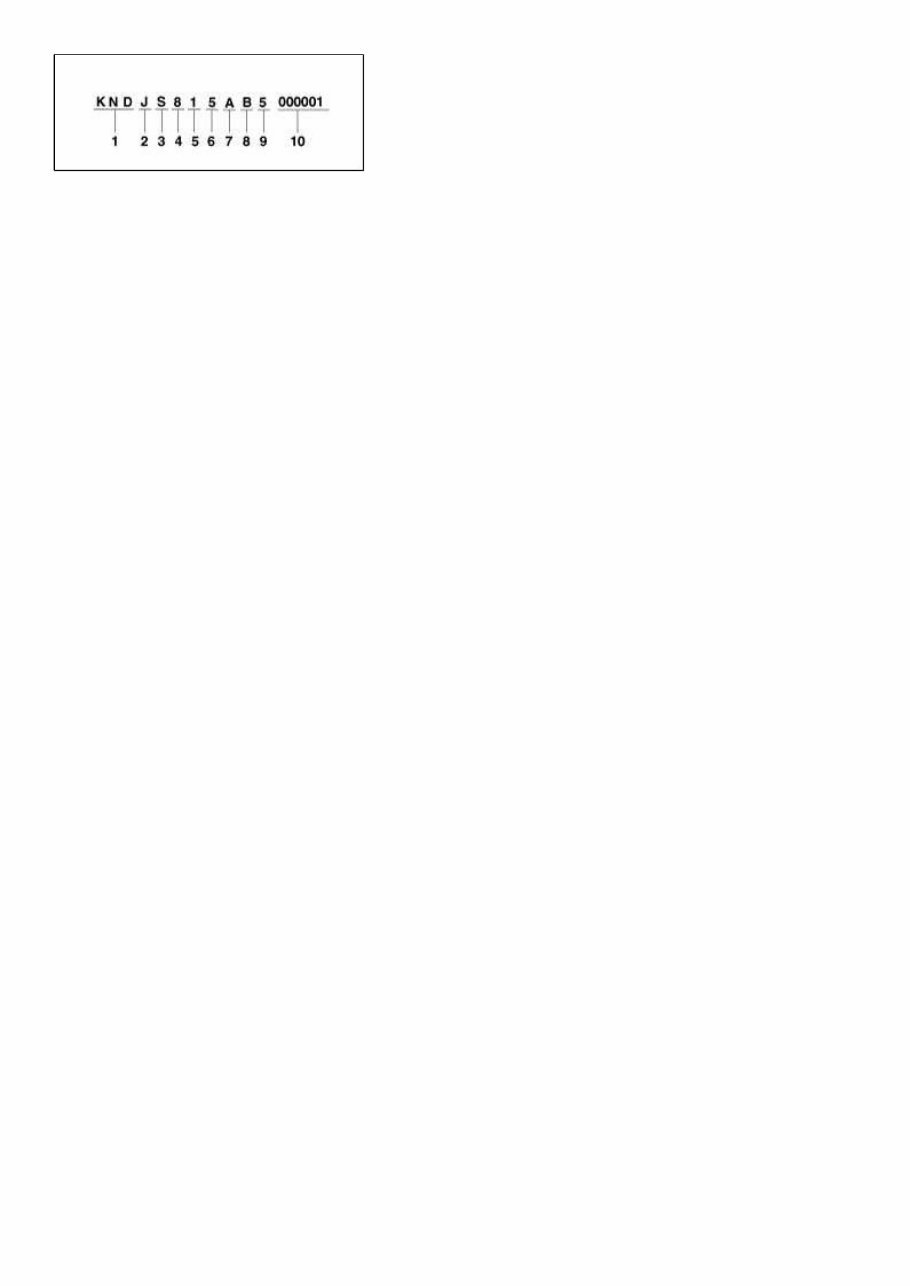

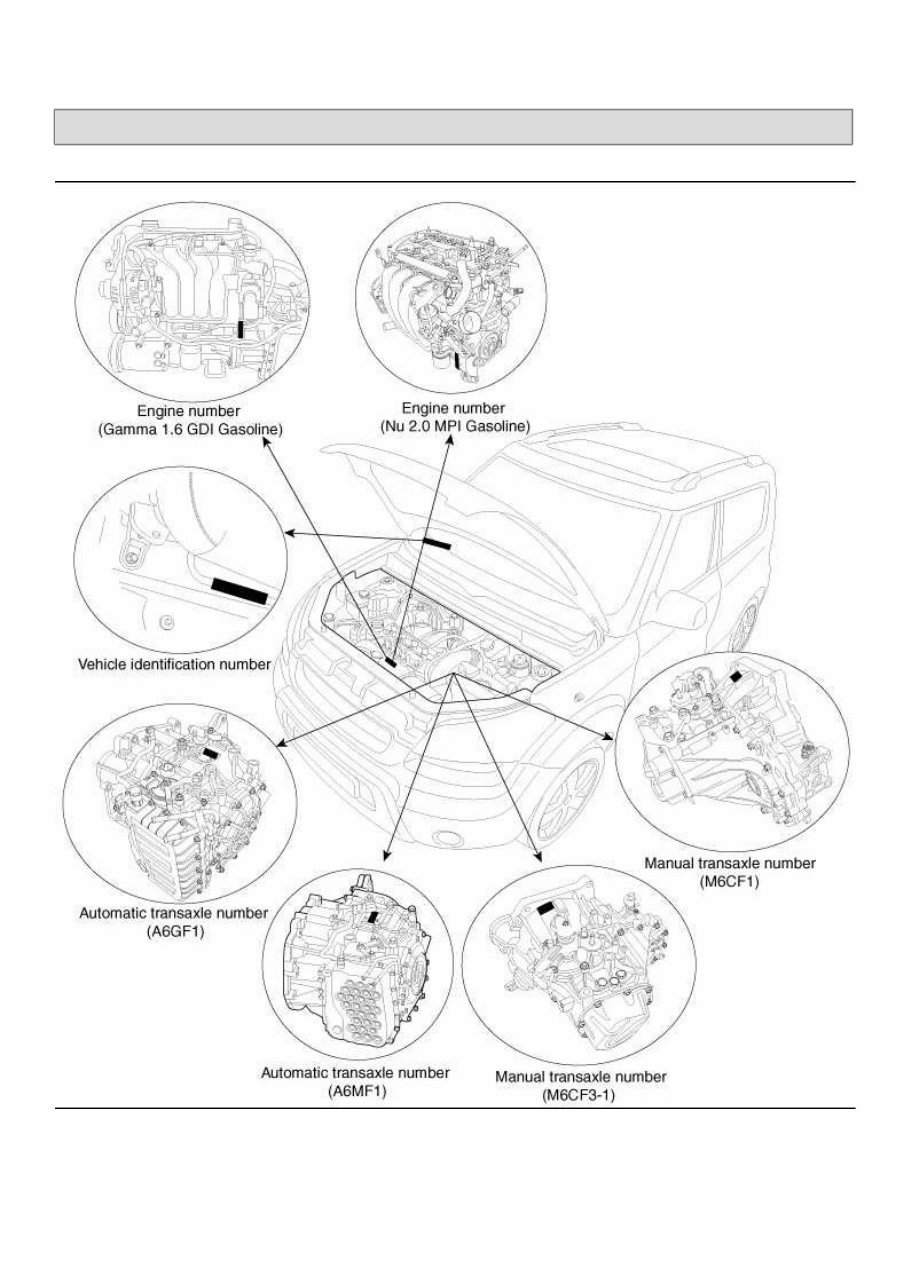

of 24 SOUL(AM) > 2012 > G 1.6 GDI > General Information General Information > General Information > General Information Identification Number Locations Identification Number Description Vehicle Identification Number http://pasha.tradebit.com

of 24 1. World Manufacturer Identifier (WMI) - KNA : Passenger vehicle, MPV(Multipurpose Passenger Vehicle)/SUV(Sports Utility Vehicle)/RV(Recreational Vehicle) - KNC : Commercial vehicle (Van) - KND: MPV/SUV/RV (For U.S.A, Canada, Mexico) - KNH: Van 2. Vehicle line - J : SOUL 3. Model & Series - S : Low grade (L) - T : Middle-Low grade (GL) - U : Middle grade (GLS, JSL, TAX) - V : Middle-High grade (HGS) - W : High grade (TOP) 4. Body/Cabin type, Gross Vehicle Weight Rating KNA - 1 : Limousine - 2 : Sedan - 2 door - 3 : Sedan - 3 door - 4 : Sedan - 4 door - 5 : Sedan - 5 door - 6 : Coupe - 7 : Convertible - 8 : Wagon - 9 : Commercial Van - 0 : Pick-Up KNC (Commercial vehicle / Van) Except U.S.A, Canada, Mexico, Gulf Cooperation Council, China - X : Standard Cabin / Semi-Bonnet - Y : Double Cabin / Bonnet - Z : Super Cabin / Box For U.S.A, Canada, Mexico, Gulf Cooperation Council, China - 2 : Standard Cabin Class-H 4×2 - 3 : Standard Cabin Class-E 4×2 / Semi-Bonnet Class-E 4×2 - 4 : Standard Cabin Class-E 4×4 / Semi-Bonnet Class-E 4×4 - 5 : Standard Cabin Class-F 4×2 / Semi-Bonnet Class-F 4×2 - 6 : Standard Cabin Class-F 4×4 / Semi-Bonnet Class-F 4×4 - 7 : Double Cabin Class-E 4×2 / Bonnet Class-E 4×2 - 8 : Double Cabin Class-E 4×4 / Bonnet Class-E 4×4 - 9 : Double Cabin Class-F 4×2 / Bonnet Class-F 4×2 - 0 : Double Cabin Class-F 4×4 / Bonnet Class-F 4×4 - A : Super Cabin Class-E 4×2 / Box Class-E 4×2 - B : Super Cabin Class-E 4×4 / Box Class-E 4×4 - C : Super Cabin Class-F 4×2 / Box Class-F 4×2http://pasha.tradebit.com

For U.S.A, Canada, Mexico Page 3 of 24 - D : Super Cabin Class-F 4×4 / Box Class-F 4×4 KND - 1 : Wagon 4×2 Class-A - 2 : Wagon 4×2 Class-B - 3 : Wagon 4×2 Class-C - 4 : Wagon 4×2 Class-D - 5 : Wagon 4×2 Class-E - 6 : Wagon 4×2 Class-F - 7 : Wagon 4×2 Class-G - A : Wagon 4×4 Class-A - B : Wagon 4×4 Class-B - C : Wagon 4×4 Class-C - D : Wagon 4×4 Class-D - E : Wagon 4×4 Class-E - F : Wagon 4×4 Class-F - G : Wagon 4×4 Class-G KNH - 1 : Box - 2 : Bonnet - 3 : Semi-Bonnet 5. Restraint system, Brake system KNA, KND Except U.S.A, Canada, Mexico - 0 : Both side - None - 1 : Both side - Active belt - 2 : Both side - Passive belt KNC, KNH Except U.S.A, Canada, Mexico - 7 : Hydraulic brake system - 8 : Pneumatic brake system - 9 : Mixed brake system http://pasha.tradebit.com Code Seat belt Front air bag Knee air bag Side air bag Curtain air bag Driver's Passenger's Driver's Passenger's 1st row 2nd row 3rd row 1st row 2nd row 3rd row A ○ ○ ○ × × ○ × × ○ ○ × B ○ ○ ○ × × × × × × × × C ○ ○ ○ × × ○ × × ○ ○ ○ D ○ ○ ○ × × ○ ○ × ○ ○ × E ○ ○ × × × × × × × × × F ○ ○ ○ × × ○ × × × × × J ○ ○ ○ ○ × ○ ○ × ○ ○ × L ○ ○ ○ ○ × ○ × × ○ ○ × N ○ × × × × × × × × × × H ○ ○ ○ ○ × ○ × × ○ ○ ○

Paint Code Page 4 of 24 For U.S.A, Canada, Mexico - X : Hydraulic brake system - Y : Pneumatic brake system - Z : Mixed brake system 6. Engine type - 5 : Gasoline engine 1.6 (Gamma GDI) - 6 : Gasoline engine 2.0 (Nu MPI) 7. Check digit or Driver‟s side & Transmission Except U.S.A, Canada, Mexico, Gulf Cooperation Council, China, Yemen - A : LHD & MT - B : LHD & AT - C : LHD & MT+Transfer - D : LHD & AT+Transfer - E : LHD & CVT - L : RHD & MT - M : RHD & AT - N : RHD & MT+Transfer - S : RHD & AT+Transfer - T : RHD & CVT For U.S.A, Canada, Mexico, Gulf Cooperation Council, China, Yemen - Check digit : 0 ~ 9, × 8. Model year - B : 2011, C : 2012, D : 2013, E : 2014... 9. Plant of production - 6 : Sohari (Korea) - 5 : Hwasung (Korea) - 7 : Kwangju (Korea) - T : Seosan (Korea) 10. Vehicle production sequence number - 000001 ~ 999999 Engine Number http://pasha.tradebit.com Code Color 9H Black Soul 1D, UD Clear White 3D, A3D Bright Silver IM Titanium Silver I2 Moonlight Blue 1E Tomato Red I7 Green Tea Latte A1, A1W Vanilla Shake BD5 Olive Green DT9 Saddle Brown ASE Misty Green

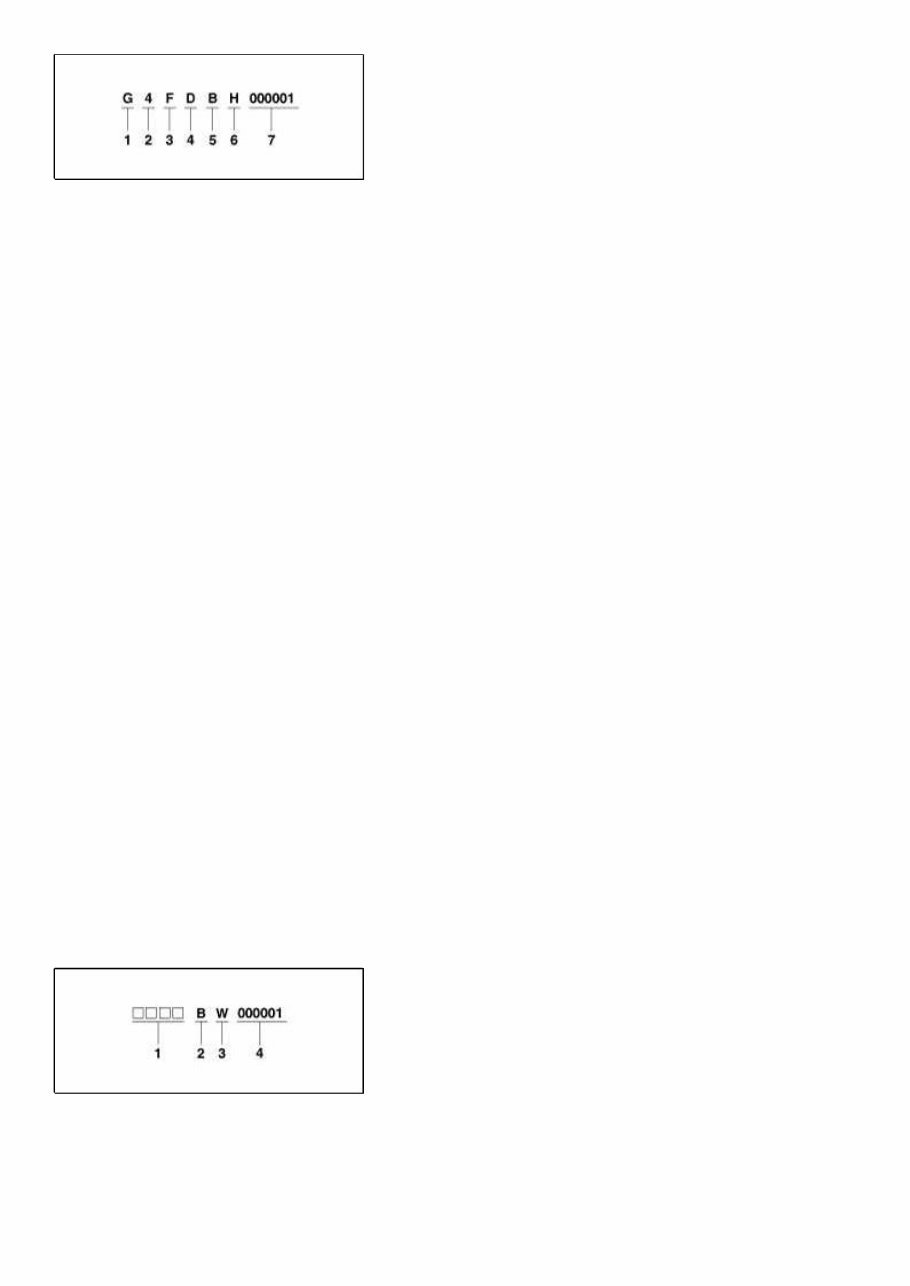

of 24 1. Engine fuel - G : Gasoline 2. Engine range - 4 : 4 cycle 4 cylinder 3. Engine development order and capacity - F : Gamma engine - N : Nu engine 4. Engine Capacity - D : 1591cc (Gamma GDI) - A : 1999cc (Nu MPI) 5. Production year - B : 2011, C : 2012, D : 2013, E : 2014 … 6. Plant of production - A : Asan (Korea) - B : Beijing (China) - H : Hwasung (Korea) - K : Montgomery (U.S.A) - M : Chennai (India) - P : Poseung (Korea) - S : Sohari (Korea) - T : Izmit (Turkey) - U : Ulsan (Korea) - W : Shandong (China) - Z : Zilina (Slovakia) - 1 : Yancheng (China) 7. Engine production sequence number - 000001 ~ 999999 Transaxle Number Manual (M6CF1) 1. Assembly code of plant 2. Production year - B : 2011, C : 2012, D : 2013, E : 2014 … http://pasha.tradebit.com

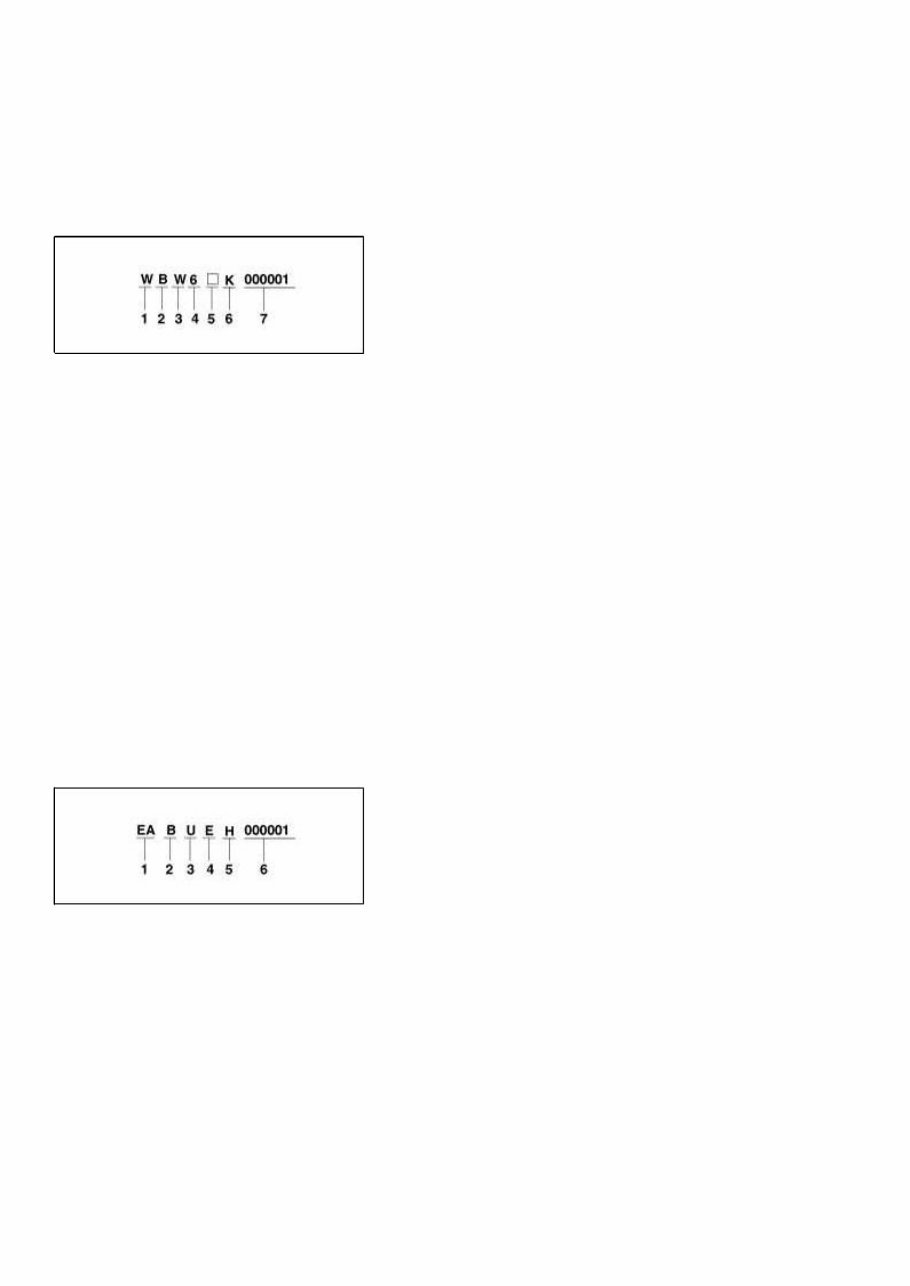

of 24 3. Plant of production - W : Hwasung (Korea) - J : Ostrava (Czech) 4. Transaxle production sequence number - 000001~999999 Manual (M6CF3-1) 1. Model - W : M6CF3-1 2. Production year - B : 2011, C : 2012, D : 2013, E : 2014 … 3. Plant of production - W : Hwasung (Korea) - J : Ostrava (Czech) 4. Speed 5. Reserve 6. Final gear ratio - K : 4.333 (Nu) 7. Transaxle production sequence number - 000001 ~ 999999 Automatic 1. Model - EA : A6MF1 - NA : A6GF1 2. Production year - B : 2011, C : 2012, D : 2013, E : 2014 … 3. Final gear ratio - T : 3.367 (Nu 15, 16 inch tire) - U : 3.510 (Nu 18 inch tire) - S : 3.796 (Gamma) http://pasha.tradebit.com

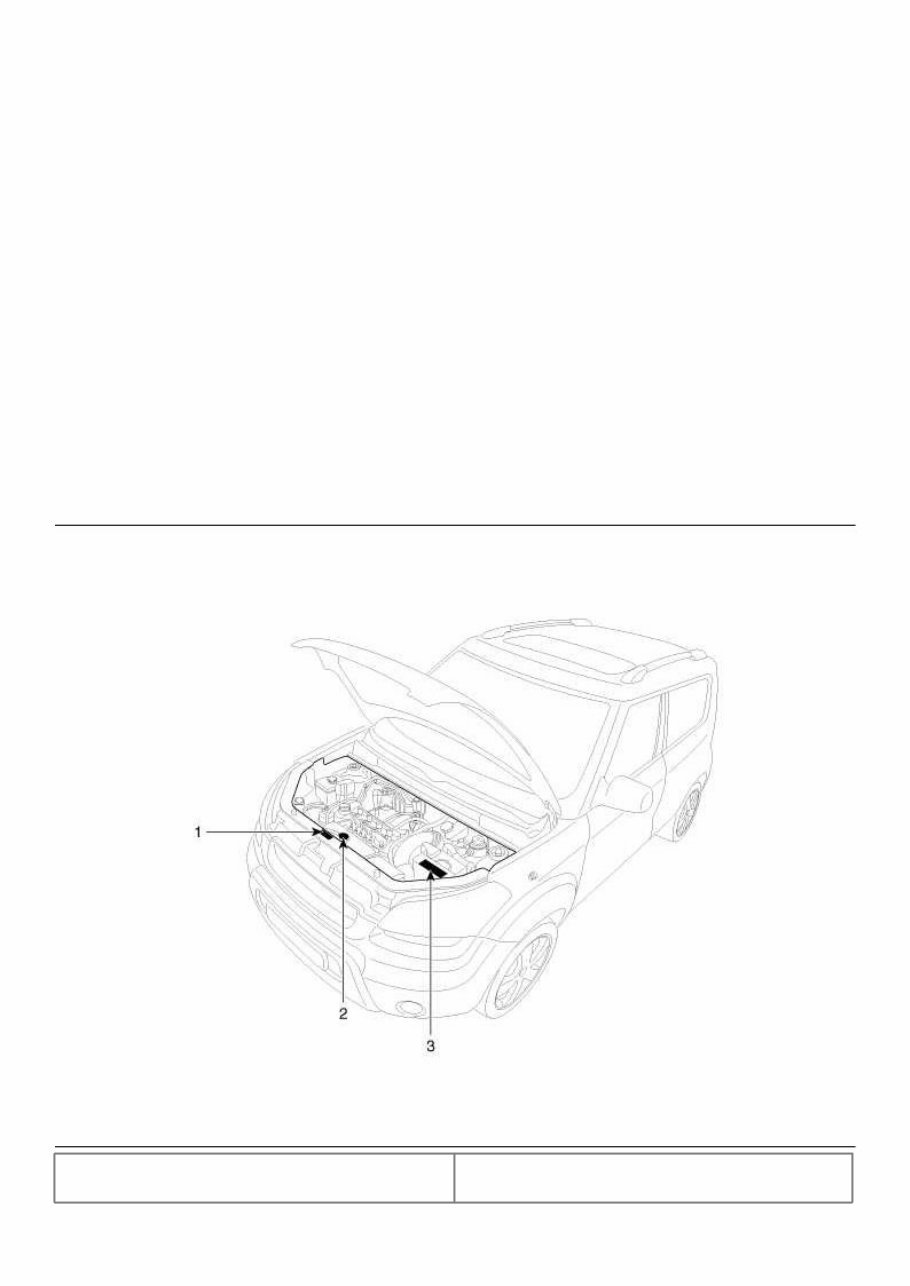

of 24 4. Detailed classification - F : Nu 2.0 MPI (15, 16 inch tire) - G : Nu 2.0 MPI-ISG (15, 16 inch tire) - E : Nu 2.0 MPI (18 inch tire) - F : Nu 2.0 MPI-ISG (18 inch tire) - C : Gamma 1.6 GDI - F : Gamma 1.6 GDI-ISG 5. Plant classification - H : Hwasung (Korea) - U : Ulsan - Plant 1 (Korea) - S : Ulsan - Plant 2 (Korea) - 2 : Powertech - Pant 2 (Korea) - 4 : Powertech - Pant 4 (Korea) - A : Powertech (U.S.A) - C : Powertech (China) 6. Transaxle production sequence number - 000001 ~ 999999 Warning / Caution Label Locations 1. Fan caution 2. Radiator cap caution 3. Battery caution http://pasha.tradebit.com
