SORENTO(BL) > 2007 > G 3.3 DOHC > General Information
General Information > General Information > General Information
IDENTIFICATION NUMBER DESCRIPTION

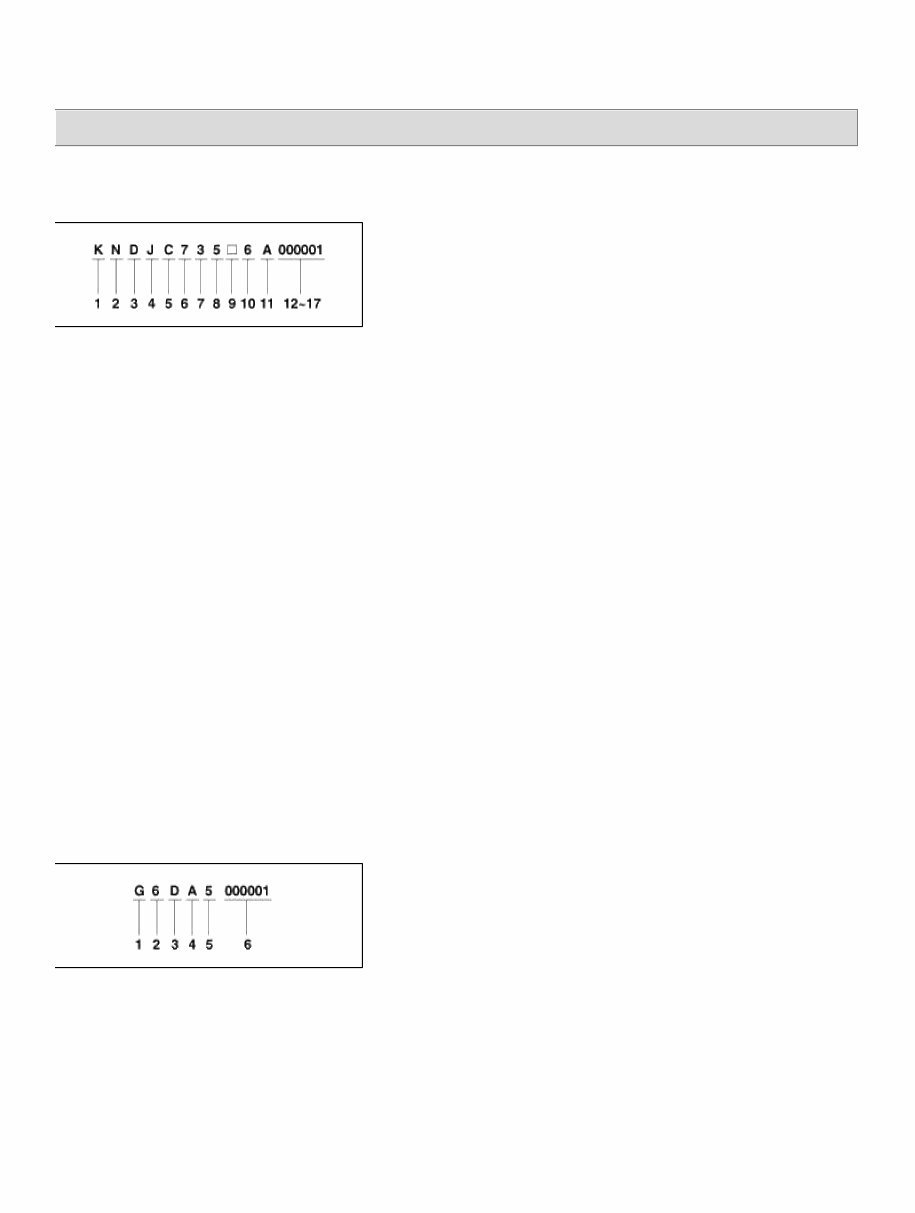

Vehicle identification number
1 : Geographic zone
- K = KOREA
2 : Manufacturer
- N = Kia motor company
3 : Vehicle type
- D = MPV
4 - 5 : Vehicle Line/Series
- JC = Sorento (4WD)
- JD = Sorento (2WD)
6 - 7 : Body Type
- 73 = 4 Door SUV & GRW 2271 ~ 2720 kg
8 : Engine type
- 5 = λ3.3
- 6 = λ3.8
9 : Check digit
10 : Model year
- 5 = 2005, 6 = 2006, 7 = 2007
11 : Plant location
- A = Hwasung Plant
12 - 17 : Production sequential number
- 000001 ~ 999999
ENGINE IDENTIFICATION NUMBER
1. Engine fuel
- G : Gasoline
2. Engine range
- 6 : 4 cycle 6 cylinder
3. Engine development order
- D : Lambda engine
Page 1 of 3
4. Engine capacity
- A : 3778cc
- B : 3342cc
5. Production year
- 5 : 2005, 6 : 2006
6. Engine production sequence number
- 000001 ~ 999999
LUBRICANTS
Recommended Lubricants
Parts OIL & GREASE STANDARD
Engine Oil Gasoline API SJ or SL SAE 5W -20
If 5W-20 engine oil is not available, 5W-30 or
secondary recommended engine oil for corresponding
temperature range can be used.
Transaxle Auto DIAMOND ATF SP-III, SK ATF SP-III
Power Steering PSF - 3
Breake Steering DOT 3 or equivalent
Coolant Ethlyene glycol base for aluminium radiator
Transaxle linkage, parking breake cable mechanism,
hood, door latch, seat adjuster,tailgate latch, door
hinges, tailgate hinge
Multipurpose grease NIGL grade #2
Lubricants capacities
Description 3.8 (G6DA) 3.3 (G6DB)
Engine oil Oil pan 5.5 (5.81, 4.84) 5.5 (5.81, 4.84)
Oil filter 0.4 (0.42, 0.35) 0.4 (0.42, 0.35)
Drain and refill 5.7 (6.02, 5.02) 5.7 (6.02, 5.02)
Total 5.9 (6.23, 5.19) 5.9 (6.23, 5.19)
Cooling system 8.9 (9.40, 7.83) 8.9 (9.40, 7.83)
Automatic transaxle 10.9 (11.51, 9.59) 10.9 (11.51, 9.59)
Power steering 0.9 (0.95, 0.79) 0.9 (0.95, 0.79)
Always use Genuine Kia parts and recommedended fluid.
Using any other type of parts and fluid can cause serious damaged if the vehicle.RECOMMENDED
LUBRICANTS.

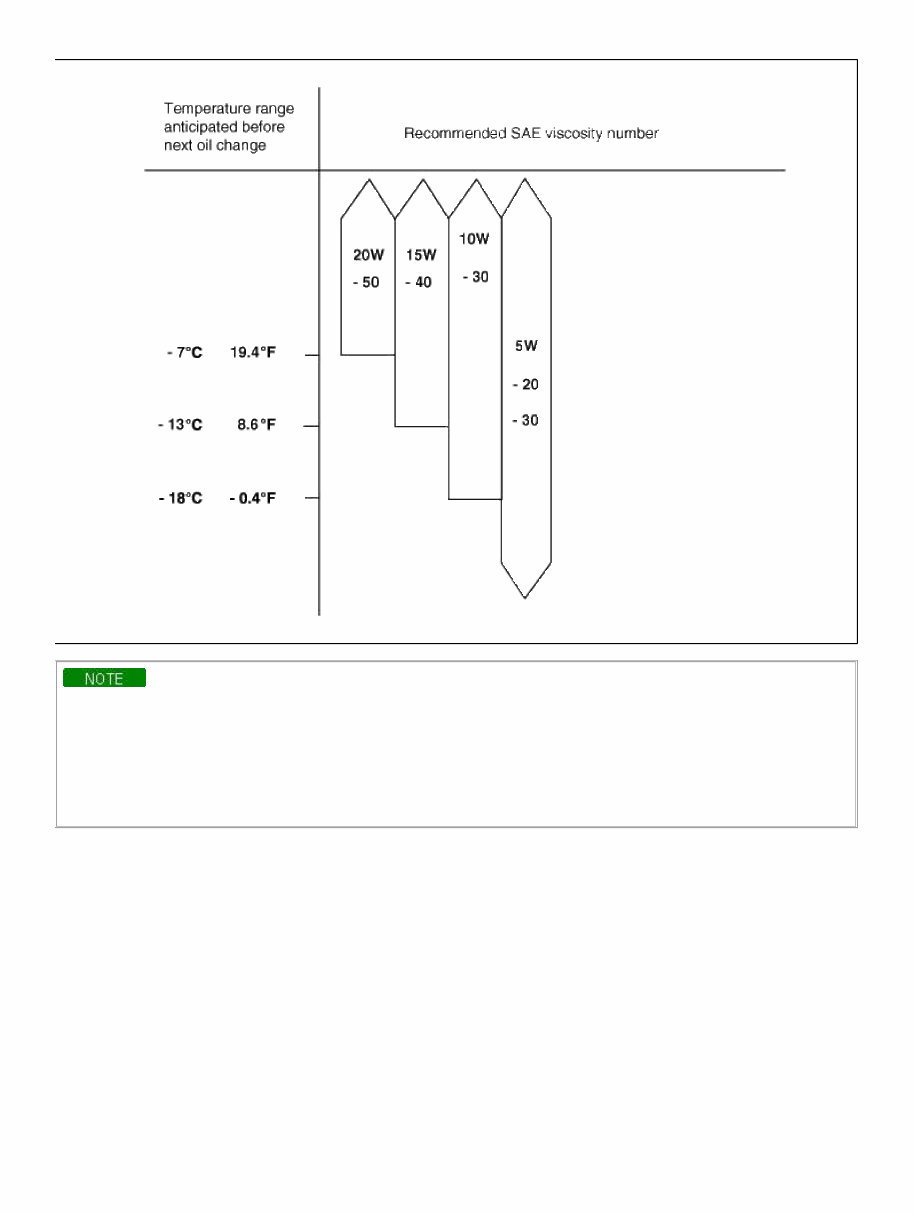

Selection of Engine oil
Recommended API classification : SJ or SL ABOVE
Recommended SAE viscosity grades : 5W-20 (If 5W-20 engine oil is not available, 5W-30 or secondary
recommended engine oil for corresponding temperature range can be used.)
Page 2 of 3
For best performance and maximum protection of all types of operation, select only those lubricants which.
1. Satisfy the requirements of the API classification.
2. Have the proper SAE grade number for expected ambient temperature range.
3. Lubricants that do not have both an SAE grade number and API service classification on the container should
not be used.
Page 3 of 3
SORENTO(BL) > 2007 > G 3.3 DOHC > Automatic Transaxle System
Automatic Transaxle System > General Information > Specifications
SPECIFICATION
Type A5SR1 A5SR2
Driving system 2WD/ 4WD
T/CON
Type 3 elements, 1 stage, 2 phase
Identification inscription [Nominal diameter (mm)] 8 (Φ250) 8 (Φ260)
Stall torque ratio 1.76 1.84
Transmission
Manipulating system
Remote control flow transmission (Cable
method)
Shift position
P Fix output axle (Engine start allowed)
R Reverse
N Neutral (Engine start allowed)
D 1↔2↔3↔4↔5
Gear ratio
1st 3.827
2nd 2.368
3rd 1.520
4th 1.000
5th 0.834
Reverse 2.613
Final gear ratio 3.333
Control method Electronic control
Function
Lock-up control Equipped
Operating fluid pressure control Equipped
Real time feedback transmission
control
Equipped
Transmission pattern auto change
control
Equipped
Self-diagnosis control Equipped
Fail-safe function Equipped
Sports mode function Equipped
Speedometer gear teeth (drive/driven) 6/14
Oil pump
Type Trochoid oil pump
Driving system Engine drive
ATF oil
The recommended
APOLLOIL ATF RED-1K or Kia Genuine
Red-1
Quantity 10â„“(10.57 US qt, 8.8 lmp.qt)
Page 1 of 131
Automatic Transaxle System > Automatic Transaxle System > Flow Diagram

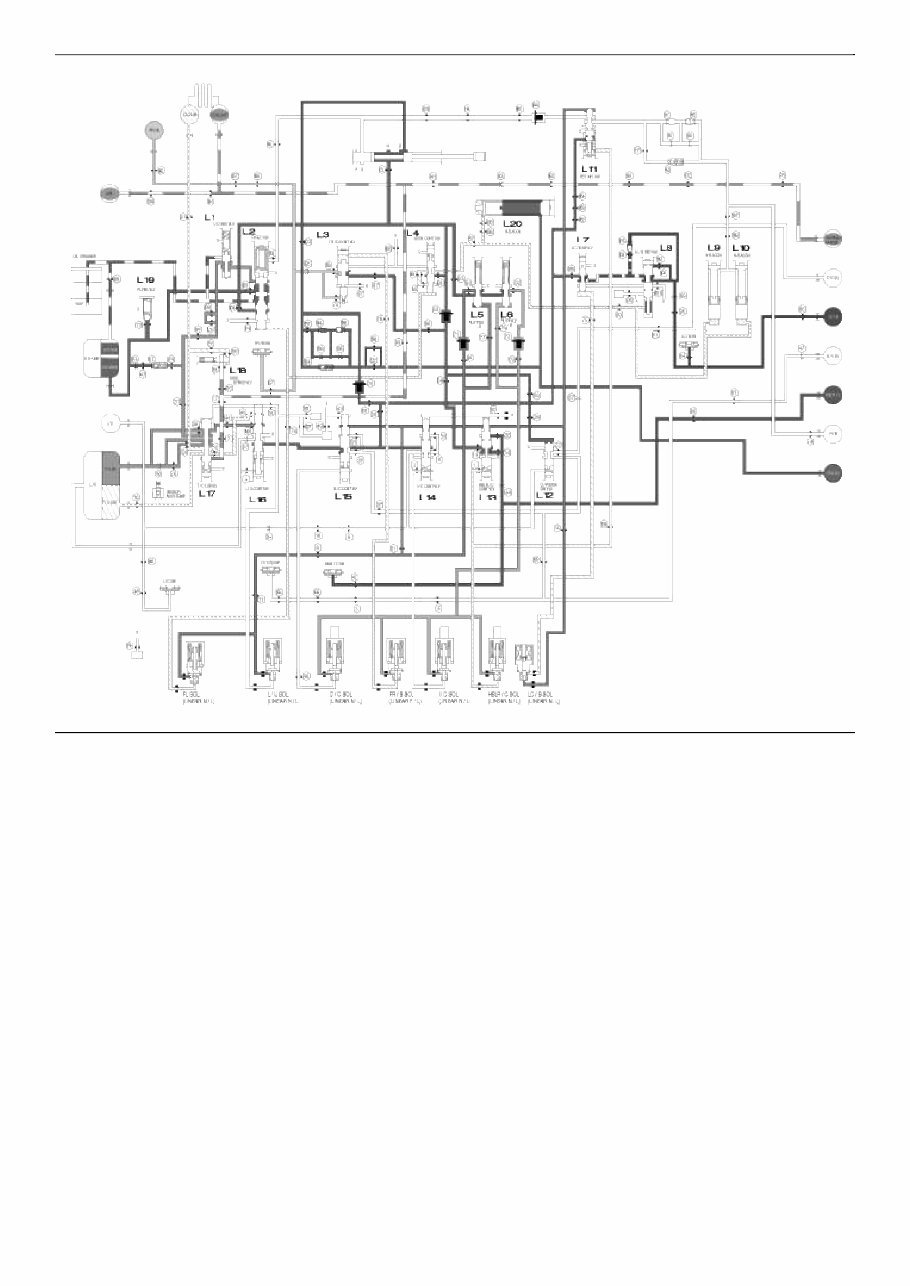

VALVE BODY fluid pressure circuit diagram
* Refer to body valves for L(number) valve name.

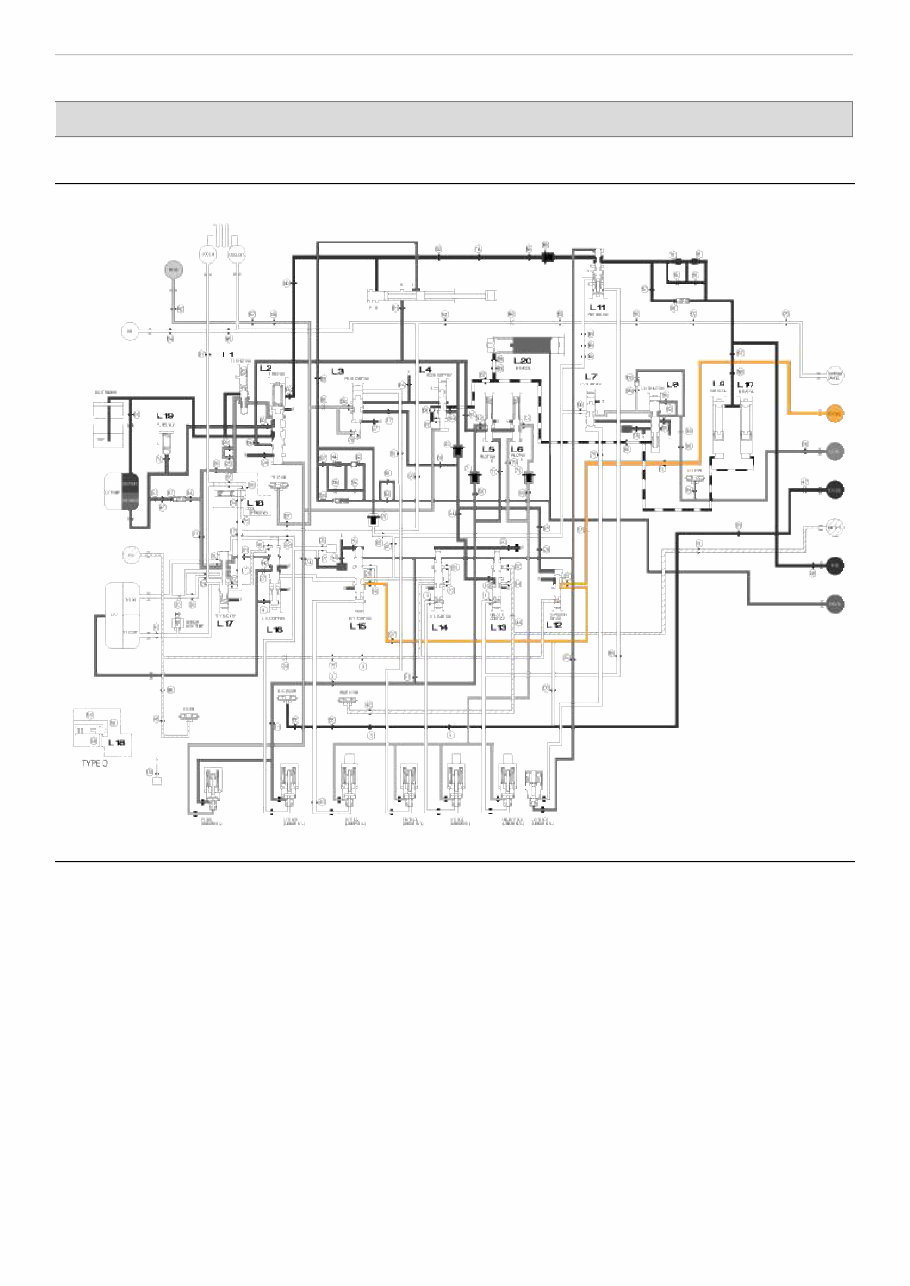

1st gear
Page 2 of 131

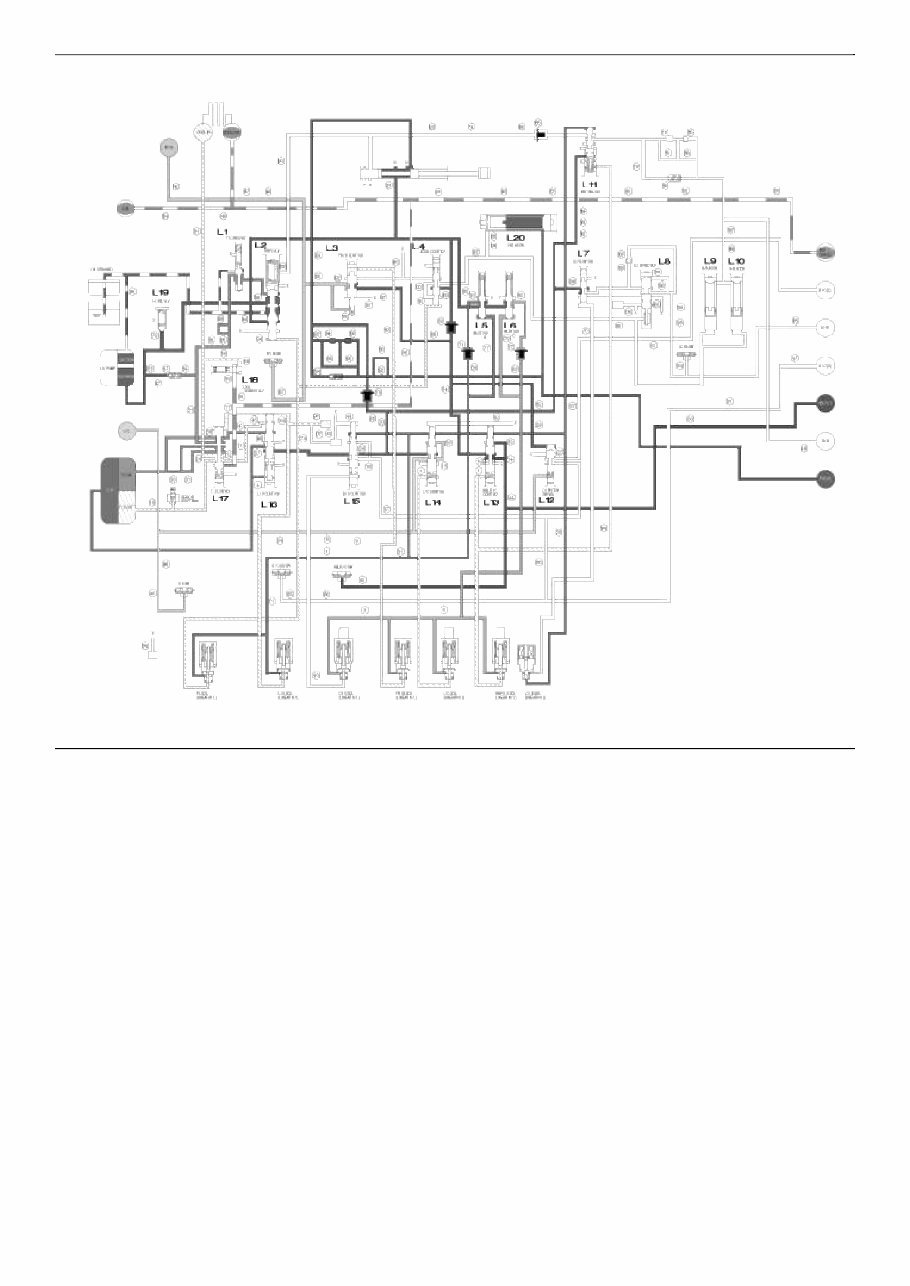

2nd gear
Page 3 of 131
3rd gear

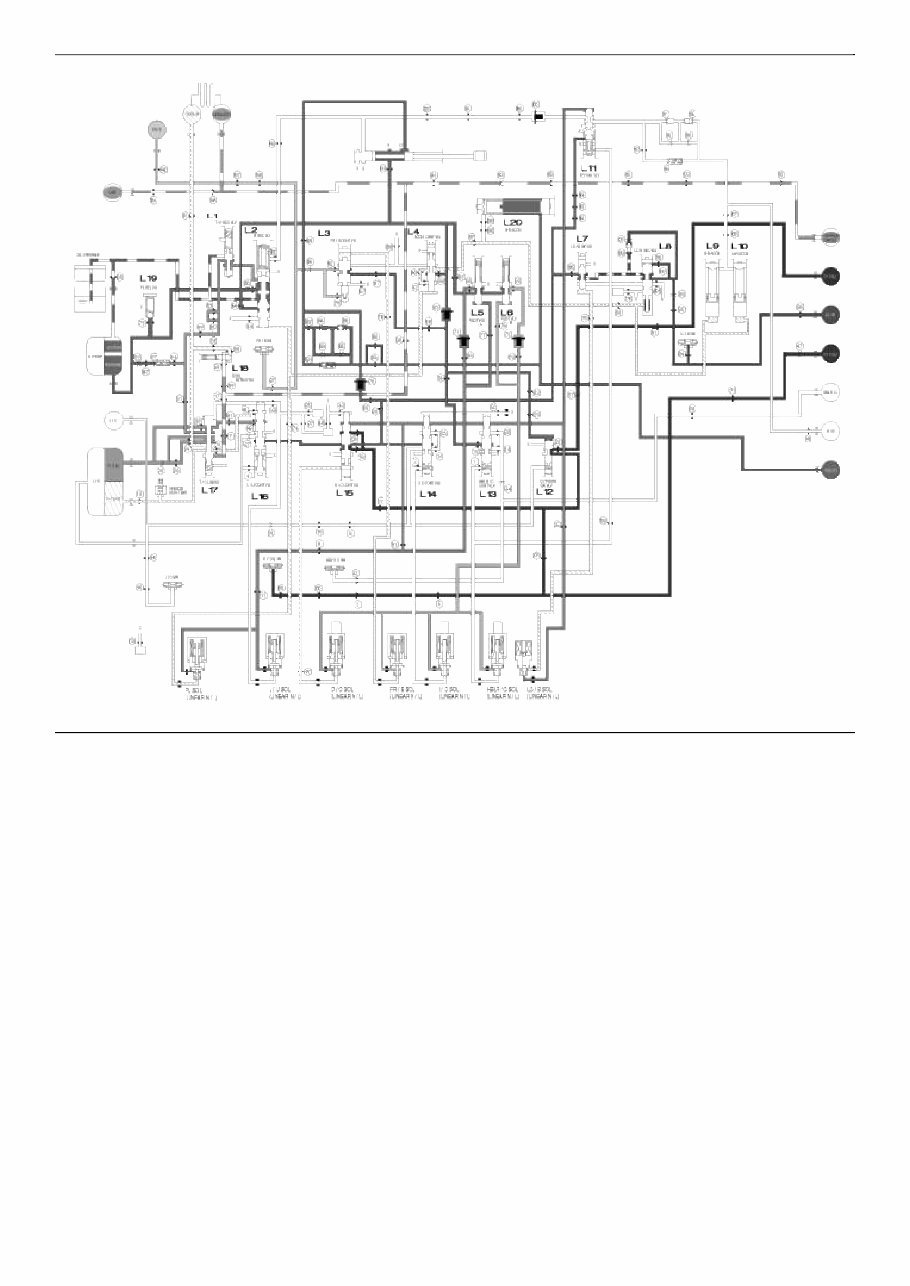

Page 4 of 131
4th gear

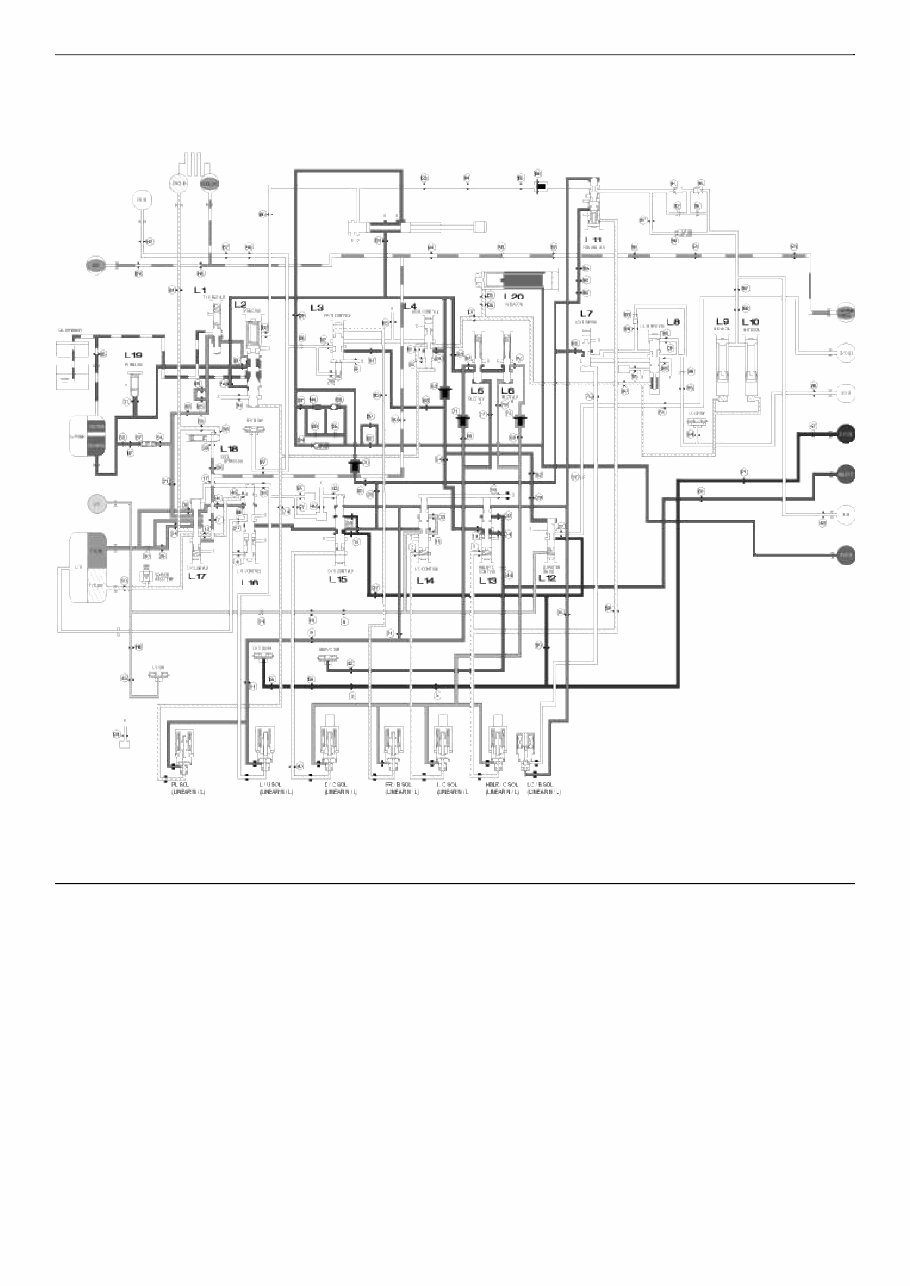

Page 5 of 131

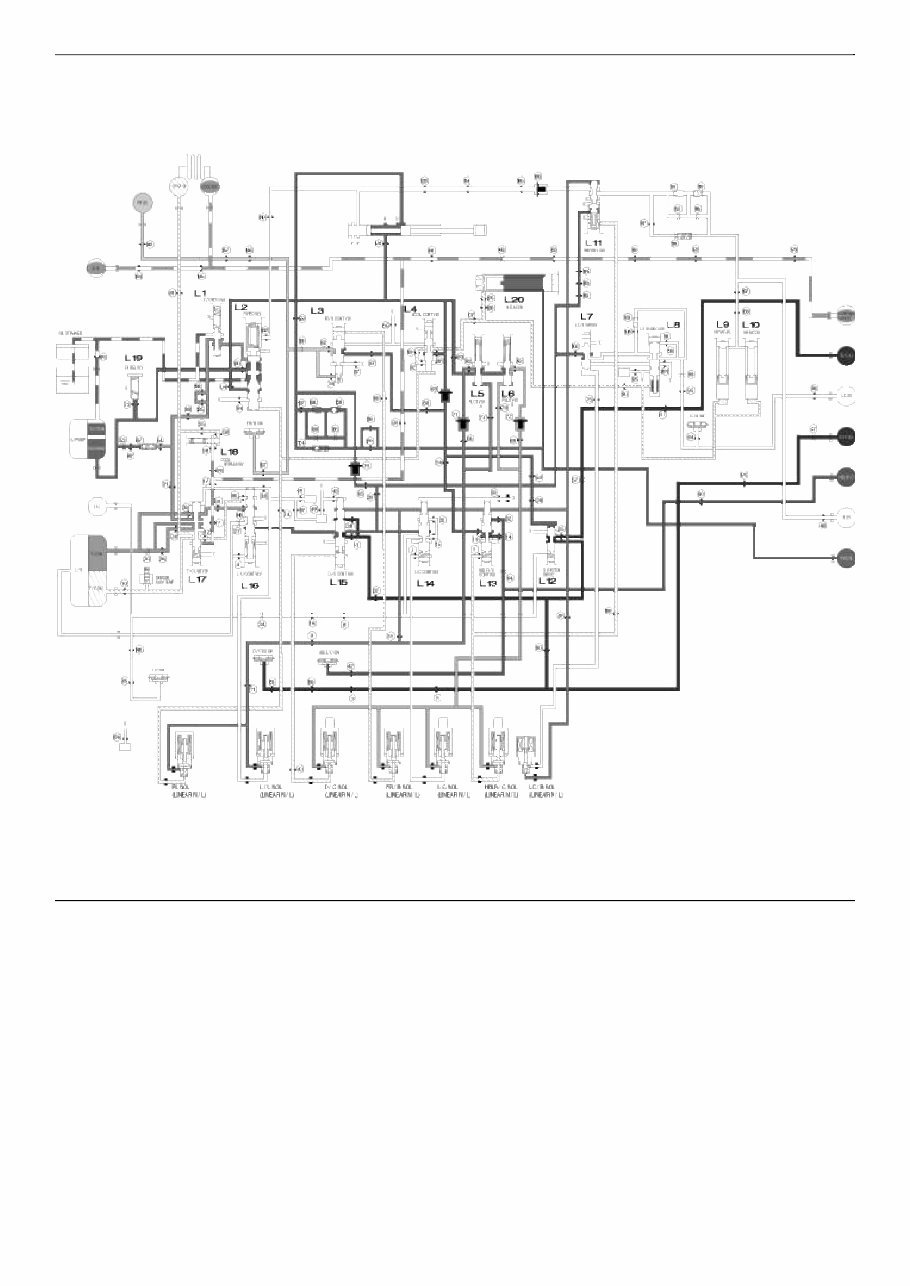

5th gear (lock-up)
Page 6 of 131
5th gear
Page 7 of 131
