Kia Sedona 2008 3.8L DOHC Workshop Service Manual for Repair

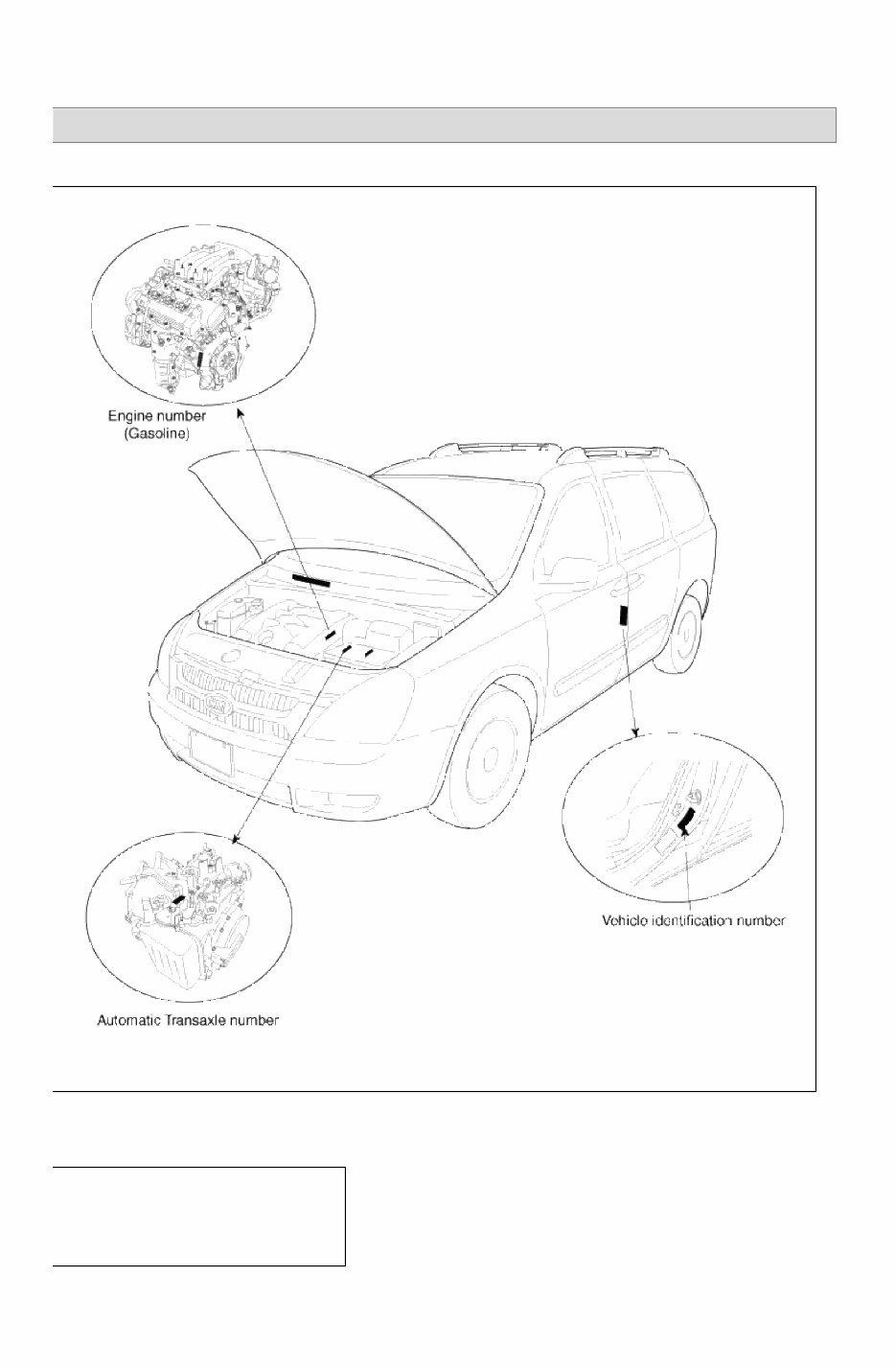

SEDONA(VQ) > 2008 > G 3.8 DOHC > General Information General Information > General Information > General Information IDENTIFICATION NUMBER LOCATIONS IDENTIFICATION NUMBER DESCRIPTION VEHICLE IDENTIFICATION NUMBER 1 : Geographic zone Page 1 of 21 This version of Total HTML Converter is unregistered. tomsn048@gmail.com

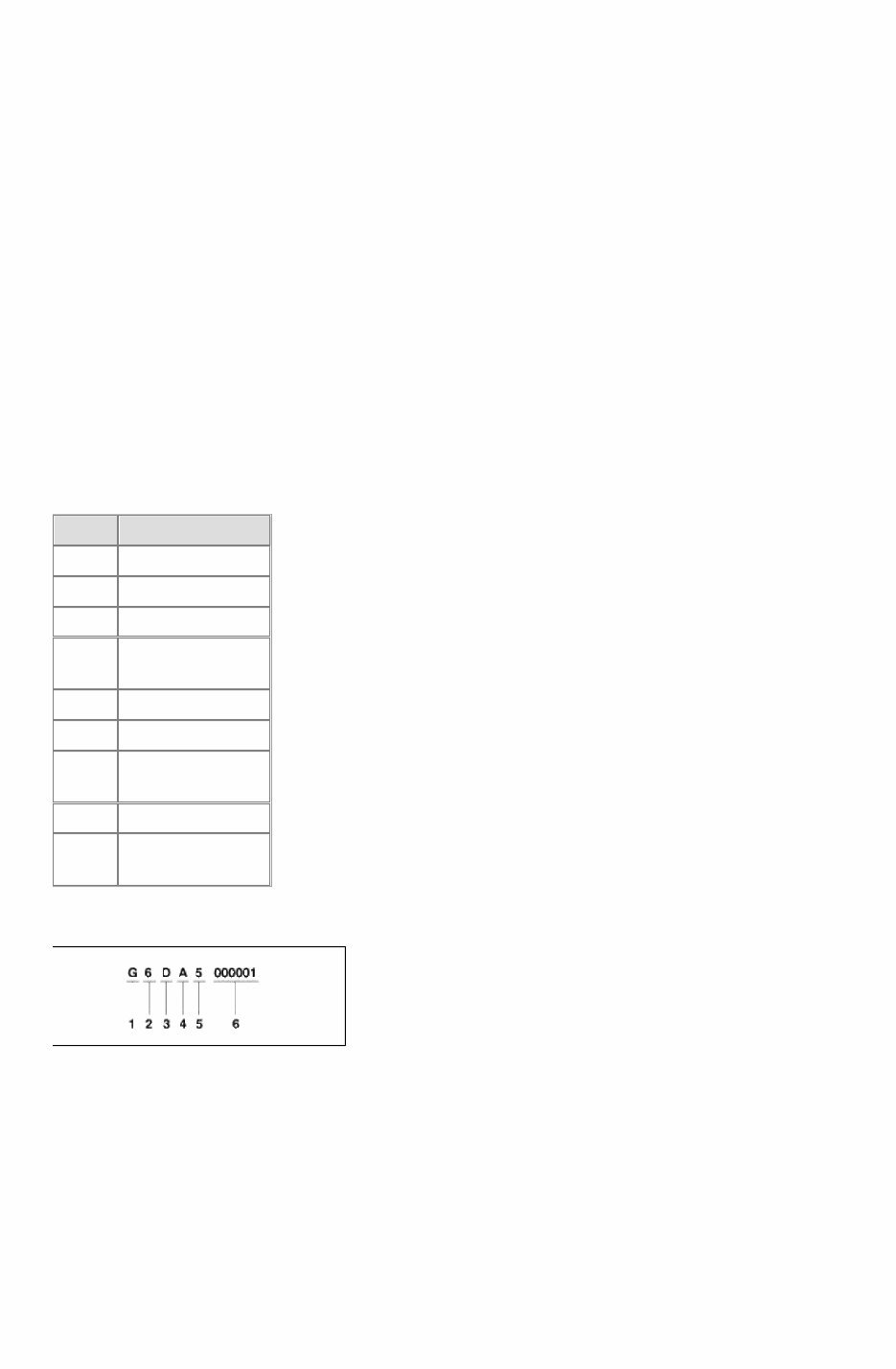

- K = Korea 2 : Manufacturer - N = Kia motor company 3 : Vehicle type - D = MPV 4 - 5 : Vehicle Line/Series - MB = VQ - MC = EP 6 - 7: Body type - 13 = Coach & GVW 2271 ~ 2720 kg - 23 = Long coach & GVW 2271 ~ 2720 kg 8 : Engine type - 3 = λ3.8 Gasoline 9 : Check digit 10 : Model year - 5 = 2005, 6 = 2006, 7 = 2007 11 : Plant location - 6 = Soha plant 12 - 17 : Production sequential number - 000001 ~ 999999 PAINT CODE CODE COLOR UD CLEAR WHITH 6C CLEAR SILVER K5 VELVET INDIGO 7P CHERRY KISS COC K9 CRISTAL BLUE U4 GOLD (B/ST) J9 EVENING SAILING 7V OLIVE GRAY 9B MIDNIGNT BLACK ENGINE IDENTIFICATION NUMBER 1. Engine fuel - G : Gasoline 2. Engine range - 6 : 4 cycle 6 cylinder 3. Engine development order - D : Lambda engine 4. Engine capacity - A : 3778cc (Gosoline) 5. Production year - 5 : 2005, 6 : 2006 Page 2 of 21 This version of Total HTML Converter is unregistered. tomsn048@gmail.com

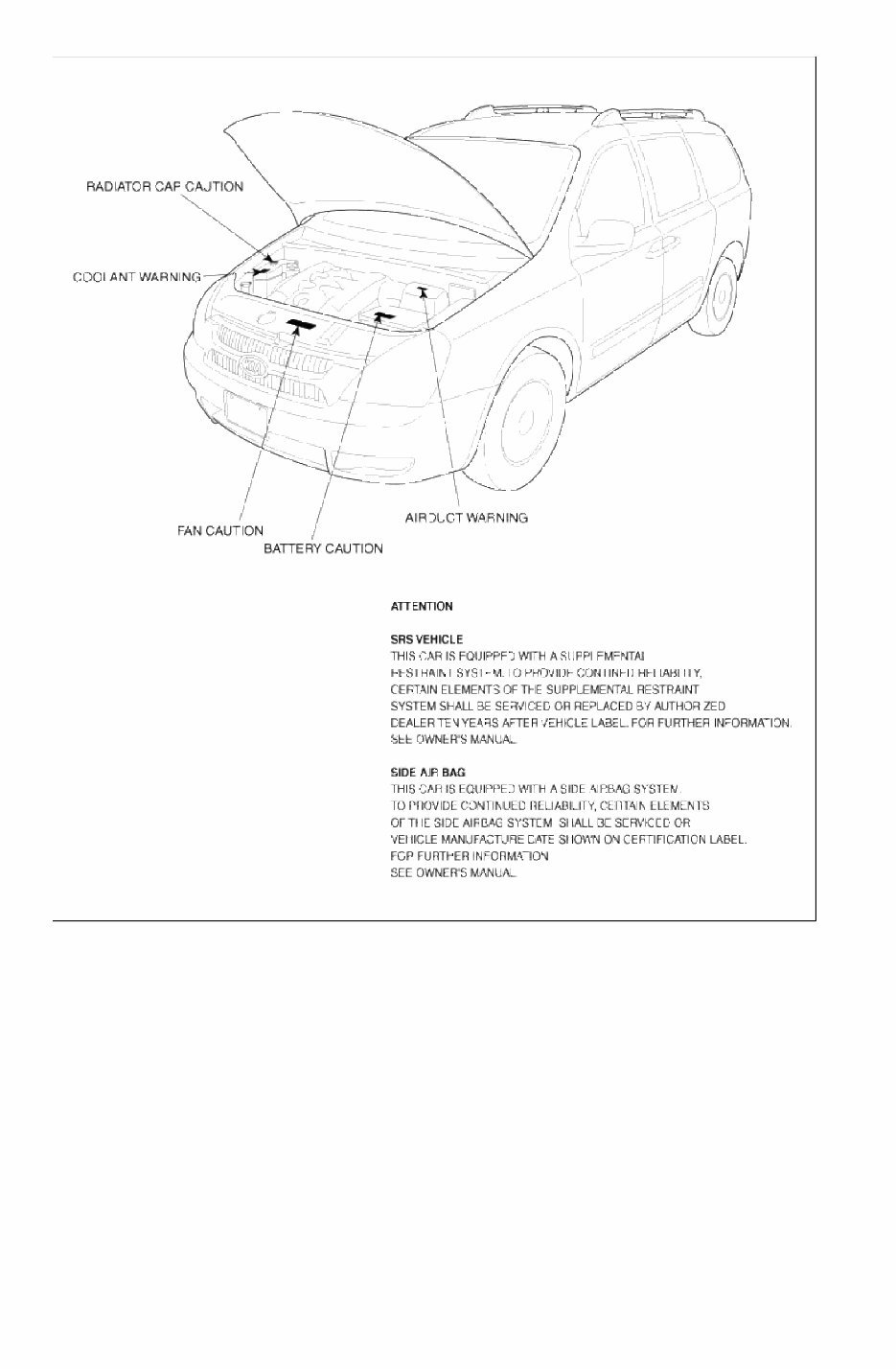

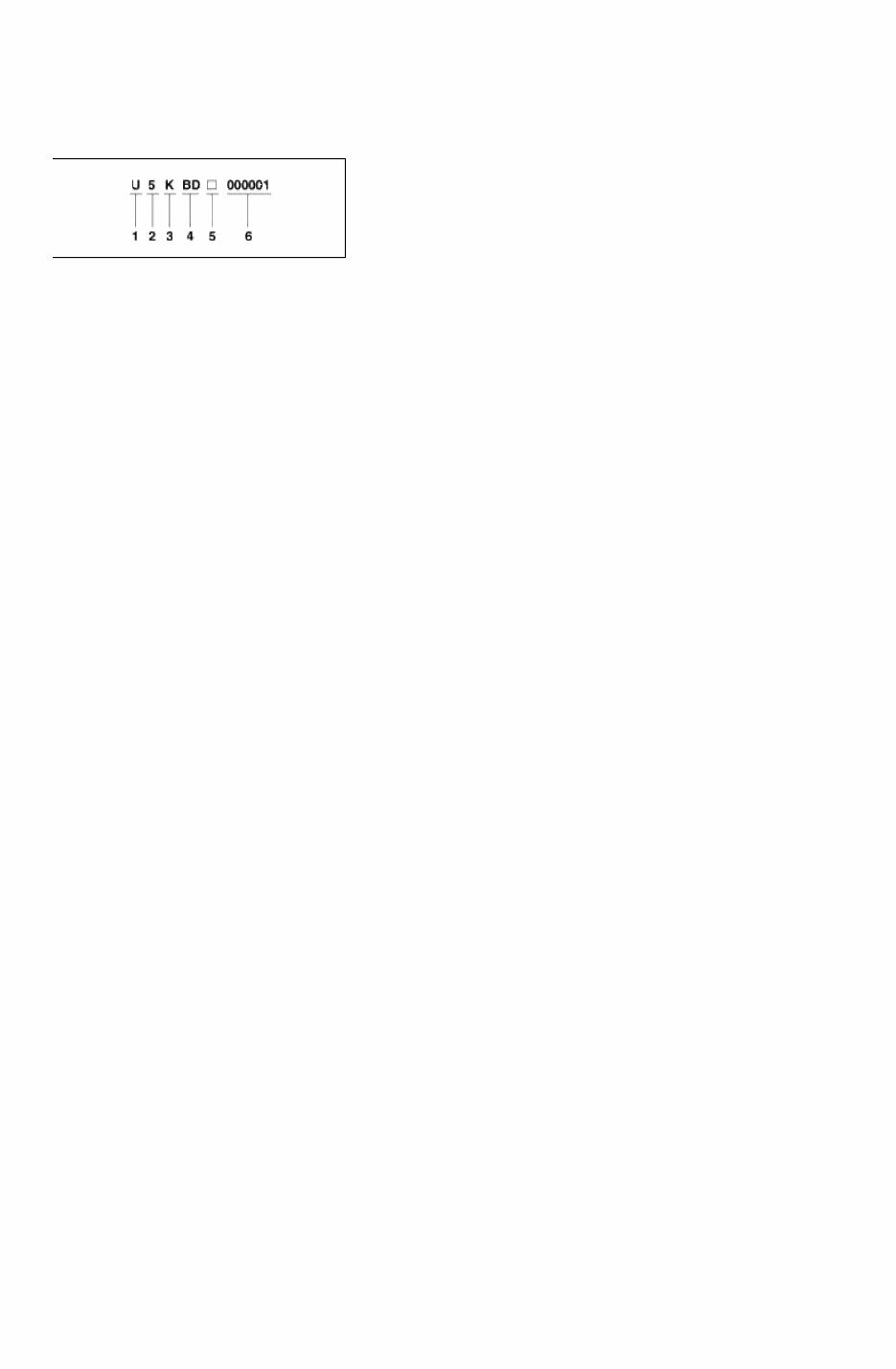

6. Engine production sequence number - 000001 ~ 999999 TRANSMISSION IDENTIFICATION NUMBER AUTOMATIC 1. Modle - U : A5HF1 2. Production year - 5 : 2005, 6 : 2006, 7 : 2007 3. Gear ratio - K : 3.333 4. Detailed chassification - FD : 3.8D 5. Spare 6. Transaxle production sequence number - 000001 ~ 999999 WARNING / CAUTION LABEL LOCATIONS Page 3 of 21 This version of Total HTML Converter is unregistered. tomsn048@gmail.com

AIR BAG WARNING / CAUTION LABEL Page 4 of 21 This version of Total HTML Converter is unregistered. tomsn048@gmail.com

AIR BAG WARING / CAUTION LABEL (CONT'D) Page 5 of 21 This version of Total HTML Converter is unregistered. tomsn048@gmail.com

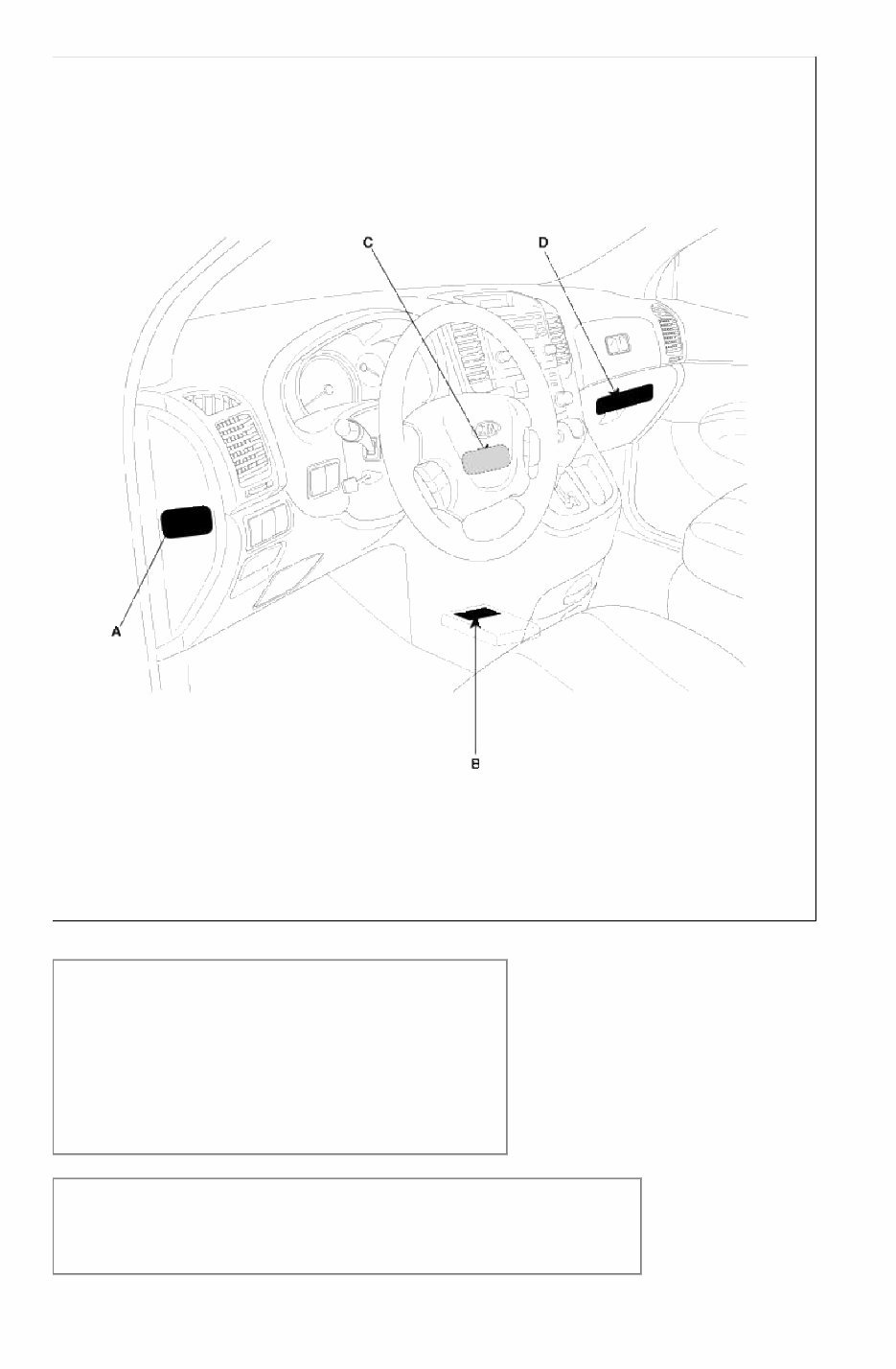

WARNING / CAUTION LABEL (cont'd) A : WARNING SEE OWNER'S MANUAL. This car is equipped a side airbag for each front seat. • Do not use any accessory seat covers. • Use of other seat covers could reduce the effect of the system. • Do not install any accessories on the side or near the side airbag. • Do not use excessive force on the side of the seat. • For further information, see the owner's manual. B : CAUTION AIR BAG ESPE UNIT Detach connector before unmounting. Assemble strictly according to manual instructions. Page 6 of 21 This version of Total HTML Converter is unregistered. tomsn048@gmail.com

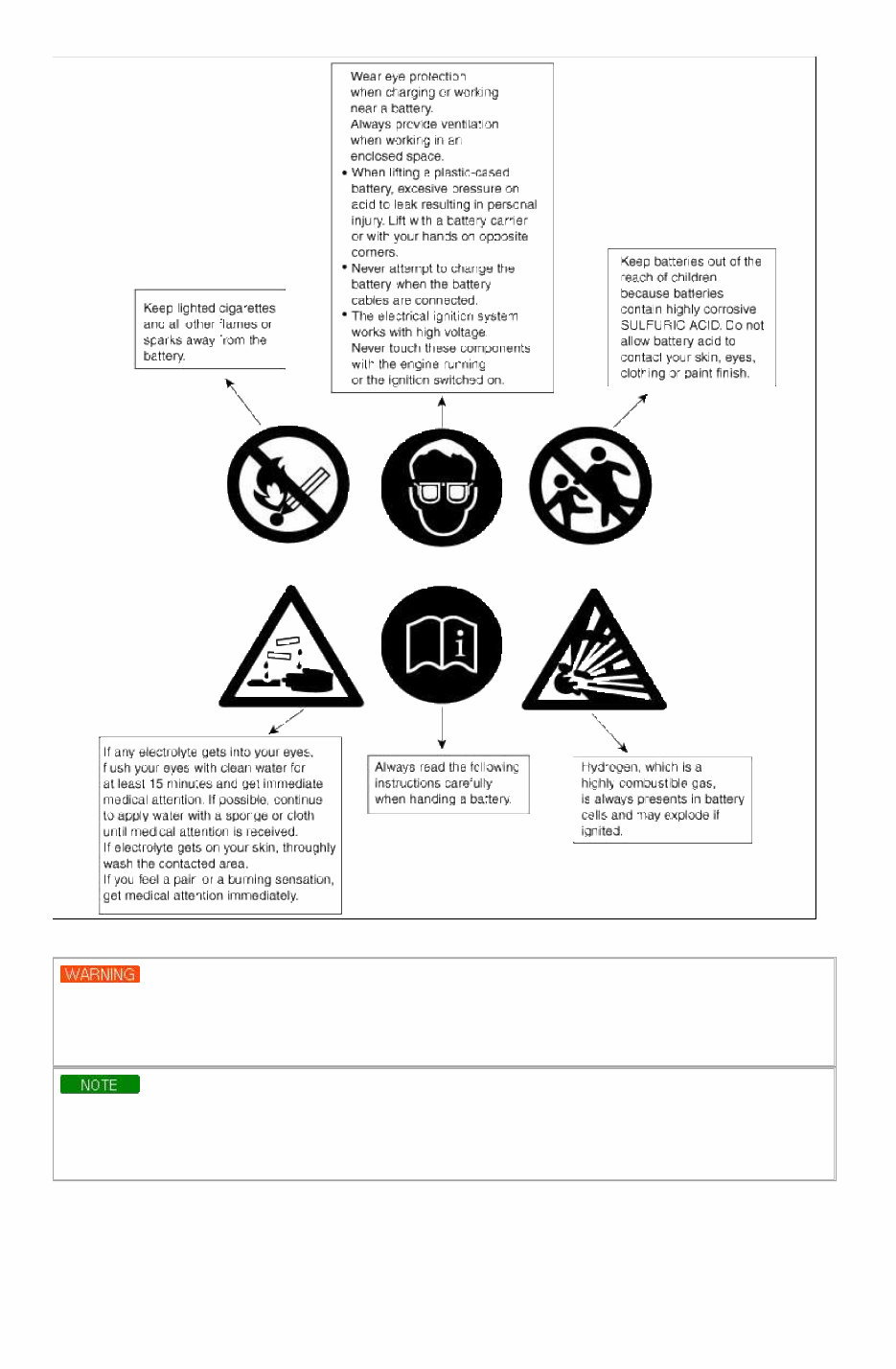

C : PASSENGER MODULE CAUTION CAUTION Don't open, remove or transfer to another vehicle. Risk of malfunction and bodily injury! This unit is to be installed and/or dismantled by trained personnel only. This item contains an explosive device. D : SUPPLEMENTAL RESTRAINT SYSTEM (AIR BAG) INFORMATION • The air bag is a Supplement Restraint System (SRS). You must always wear the seat belts. • The airbag system condition is normal when the "SRS" lamp in the cluster illuminates for approximately 6 seconds after the ignition key is turned on and then goes off. • If any of the following condition occur, the system must be serviced. • "SRS" lamp does not light up when the key is turned on. • "SRS" lamp stays lit or flashes continuously. • The air bag has inflated. • The air bag system must be inspected by an authorized dealer ten years after the vehicle manufacture date shown on the certification label, located on left front door opening area. WARNING Failure to the above instructions may result in injury to you or other occupants in the vehicle • See the "SRS" section in Owner's Manual for more information about airbags. BATTERY CAUTION LABEL DESCRIBTION Page 7 of 21 This version of Total HTML Converter is unregistered. tomsn048@gmail.com

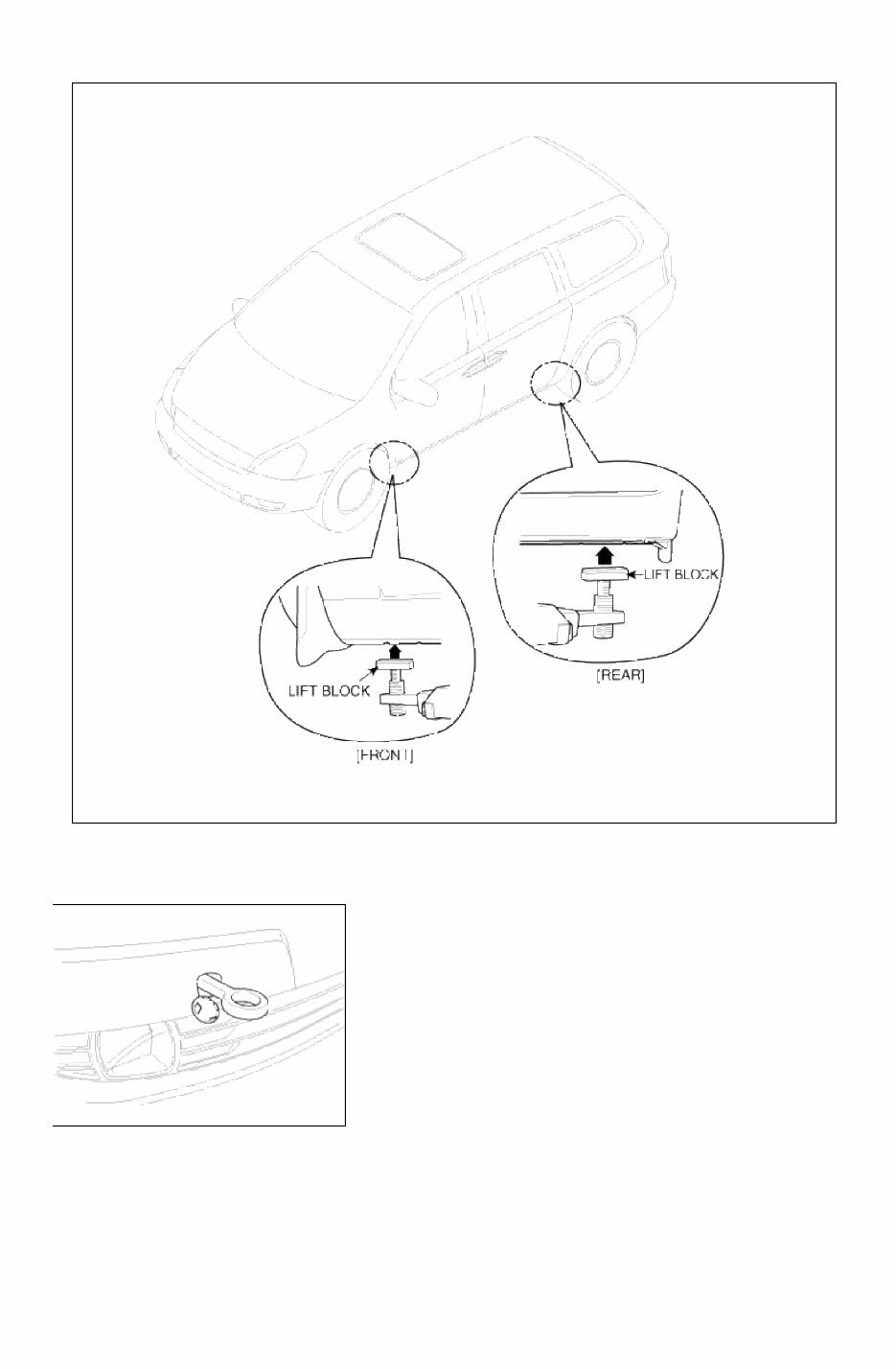

LIFT AND SUPPORT POINTS When heavy rear components such as suspension, fuel tank, spare tire, tailgate and trunk lid are to be removed, place additional weight in the luggage area before hoisting. When substatial weight is removed from the rear of the vehicle, the center of gravity may change and can cause the vehicle to tip forward on the hoist. • Since each tire/wheel assembly weights approximately 30lbs (14kg), placing the front wheels in the luggage area can assist with the weight distribution. • Use the same support points to support the vehicle on safety stands. 1. Place the lift blocks under the support points as shown in the illustration. 2. Raise the hoist a few inches (centimeters) and rock the vehicle to be sure it is firmly supported. Page 8 of 21 This version of Total HTML Converter is unregistered. tomsn048@gmail.com

3. Raise the hoist to full height to inspect the lift points for secure support. TOWING If the vehicle needs to be towed, call a professional towing service. Never tow vehicle with just a rope or chain. It is very dangerous. Page 9 of 21 This version of Total HTML Converter is unregistered. tomsn048@gmail.com

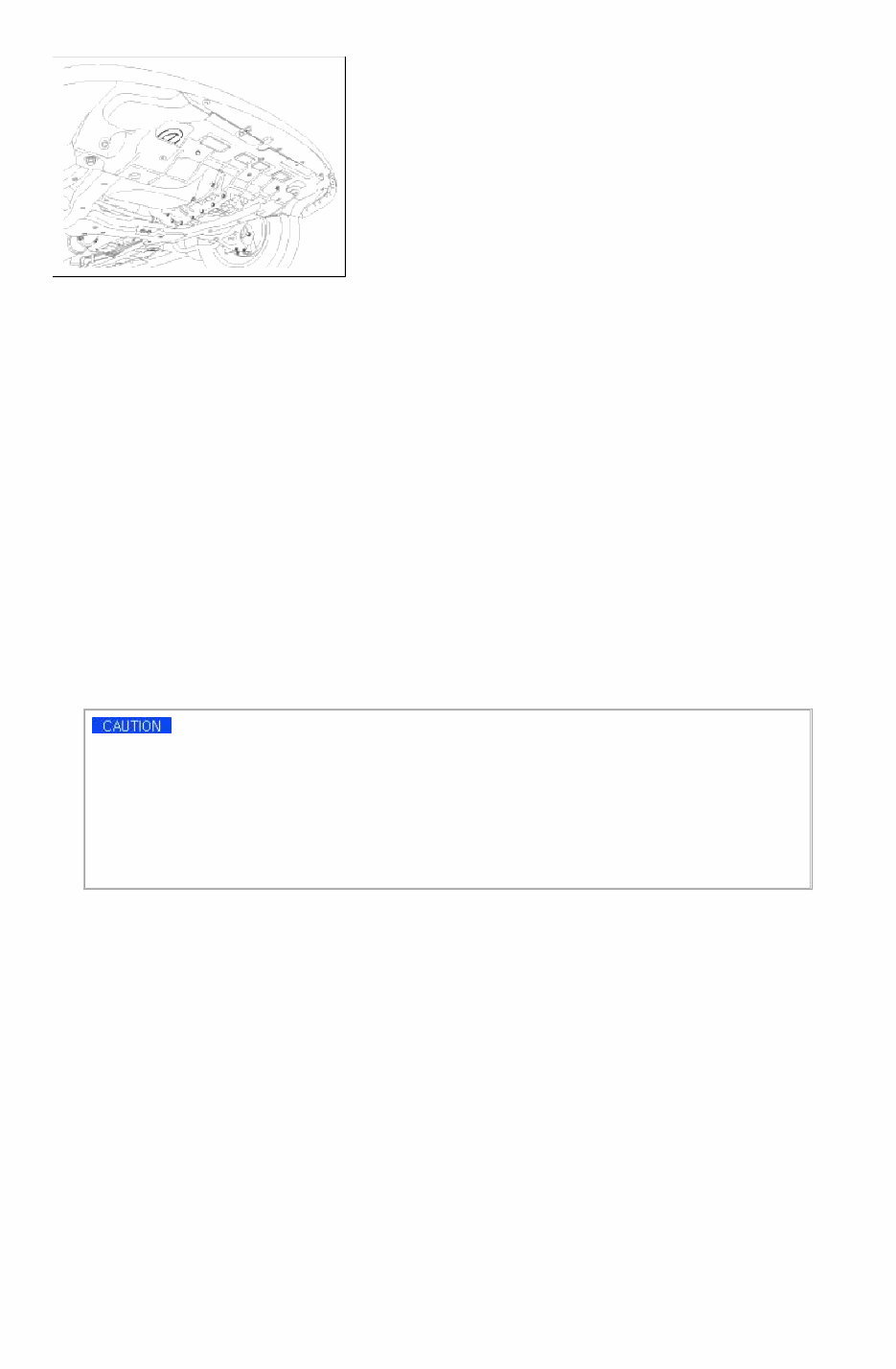

Emergency Towing There are three popular methods of towing a vehicle : - The operator loads the vehicle on the back of truck. This is best way of transporting the vehicle. - The tow truck uses two pivoting arms that go under the tires (front or rear) and lift them off the ground. The other two wheels remain on the ground. - The tow truck uses metal cables with hooks on the ends. These hooks go around parts of the frame or suspension, and the cables lift that end of the vehicle off the ground. The vehicle's suspension and body can be seriously damaged if this method of towing is attempted. If the vehicle cannot be transported by flat-bed, if should be towed with the front wheels off the ground. If due to damage, the vehicle must be toward with the front wheels on the ground, do the following : Manual Transmission • Release the parking brake. • Shift the transmission to neutral Automatic Transmission • Release the parking brake. • Start the engine. • Shift to [D] position, then [N] position. • Turn off the engine. • Improper towing preparation will damage the transmission. Follow the above procedure exactly. If you cannot shift the transmission or start the engine(automatic transmission), your vehicle must be transported on a flatbed. • It is the best to tow vehicle no farther than 19miles (30km), and keep the speed below 30mph (50km/h). • Trying to lift or tow your vehicle by the bumpers will cause serious damage. The bumpers are not designed to support the vehicle's weight. TIGHTENING TORQUE TABLE OF STANDARD PARTS Page 10 of 21 This version of Total HTML Converter is unregistered. tomsn048@gmail.com
