General
GROUND POINTS
This shows ground points of the hareness.

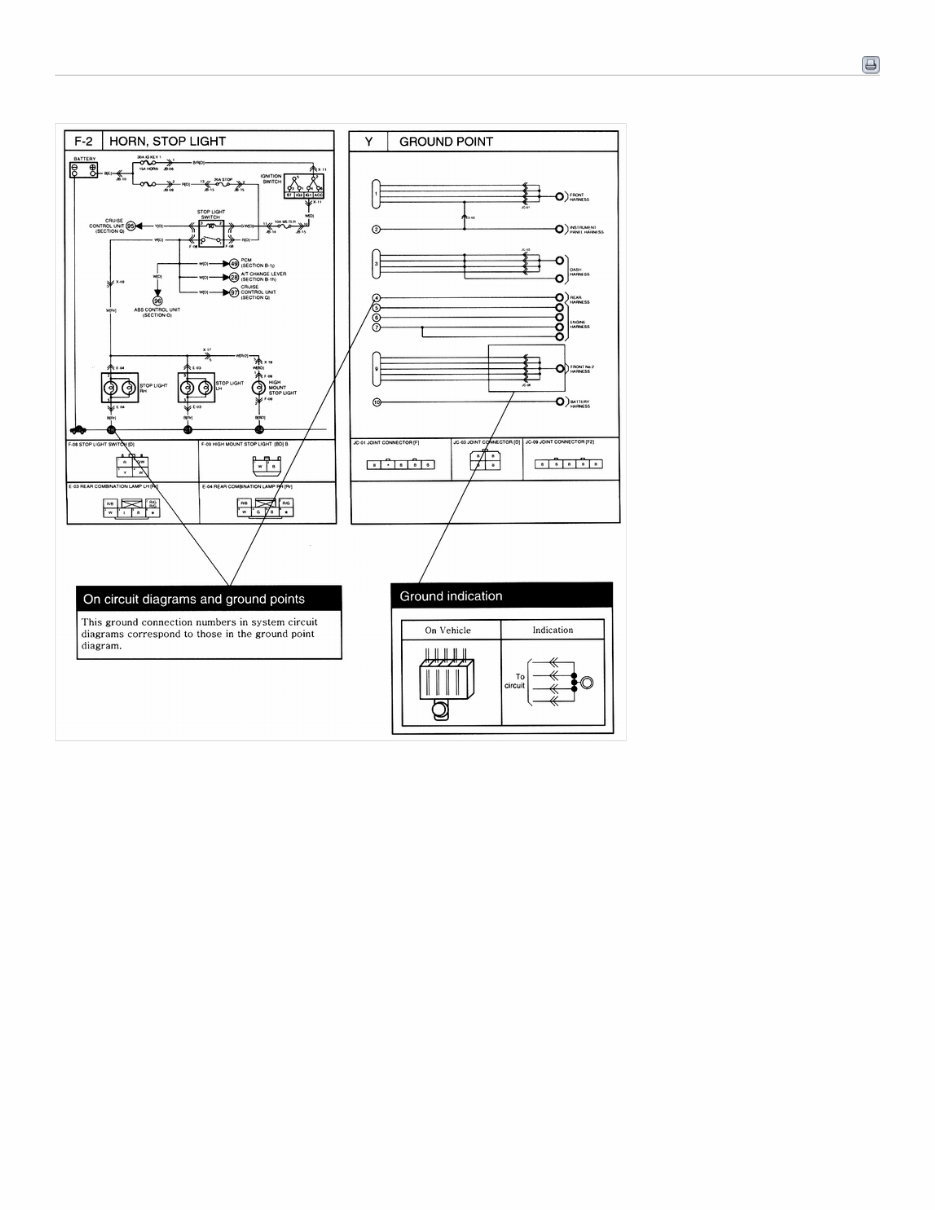

SYSTEM CIRCUIT DIAGRAM/CONNECTOR DIAGRAM

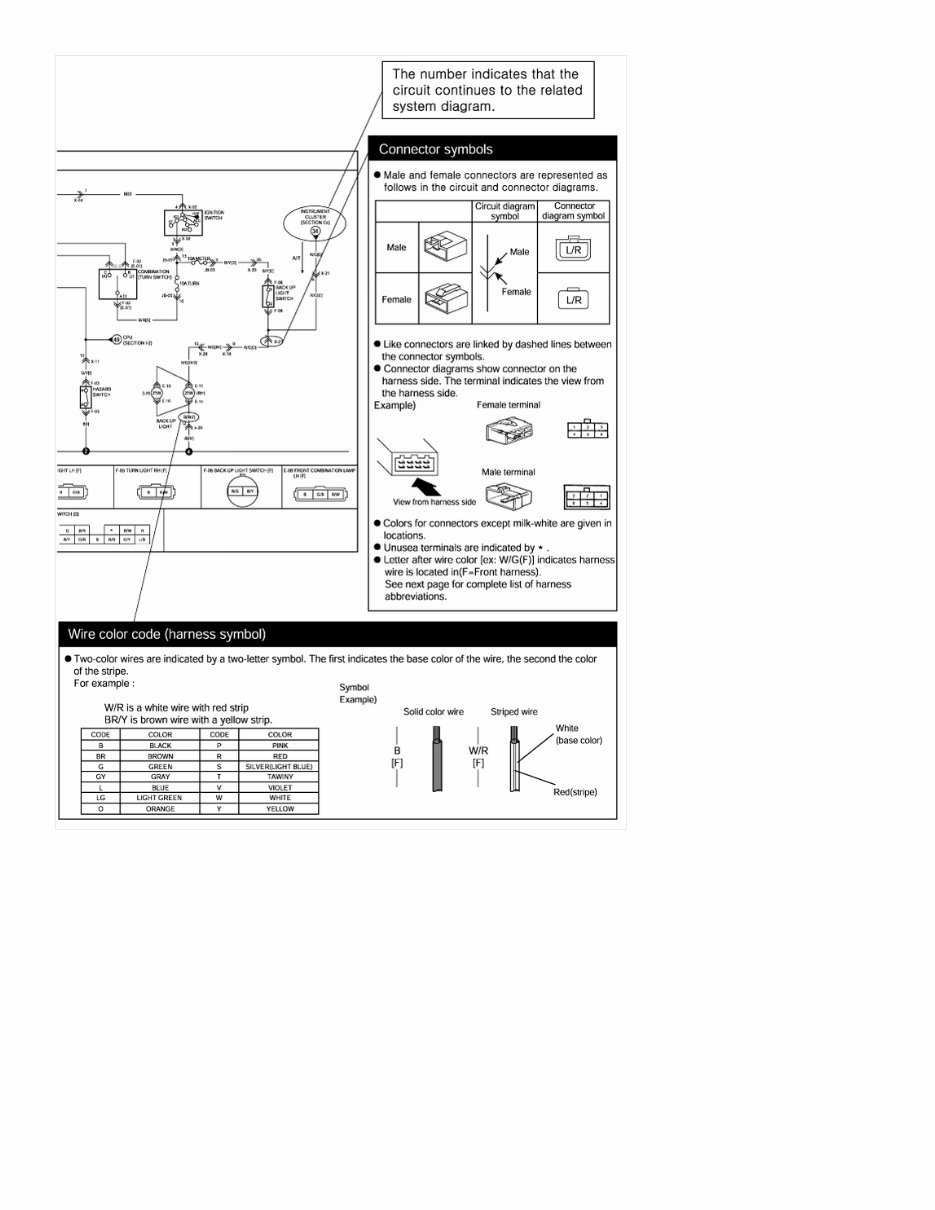

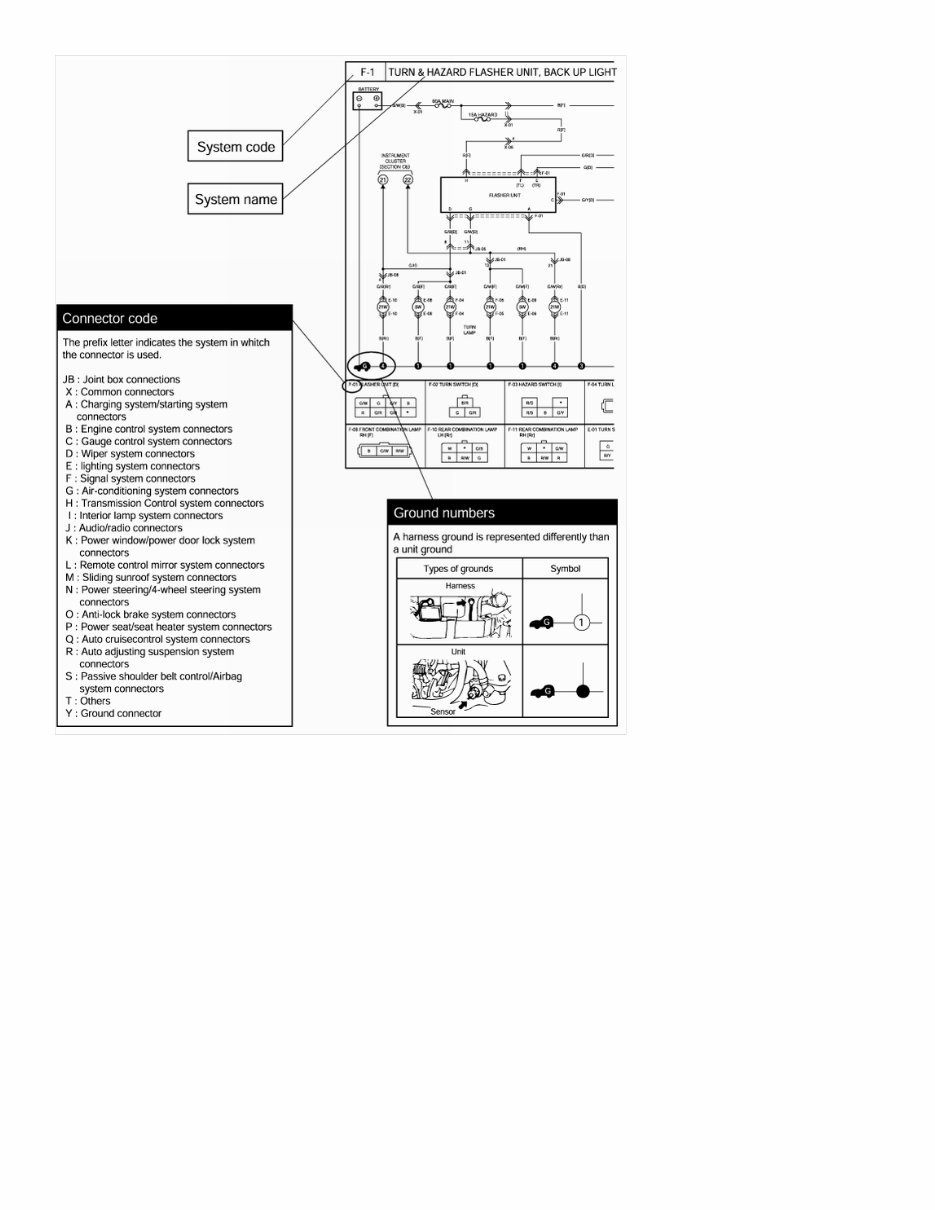

· These diagrams show the circuis for each system, from the power supply to the ground. The power supply side is on the upper part of the page, the ground side on the lower part. The
diagrmas discribe circuis with the ignition swtich off. Below is an explanation of the various points in the diagram.
https://www.kiatechinfo.com/viewer/print_pop.aspx?printtype=sprint&ve...
1 sur 8 2014-03-11 10:22
tomsn048@gmail.com
https://www.kiatechinfo.com/viewer/print_pop.aspx?printtype=sprint&ve...
2 sur 8 2014-03-11 10:22
tomsn048@gmail.com

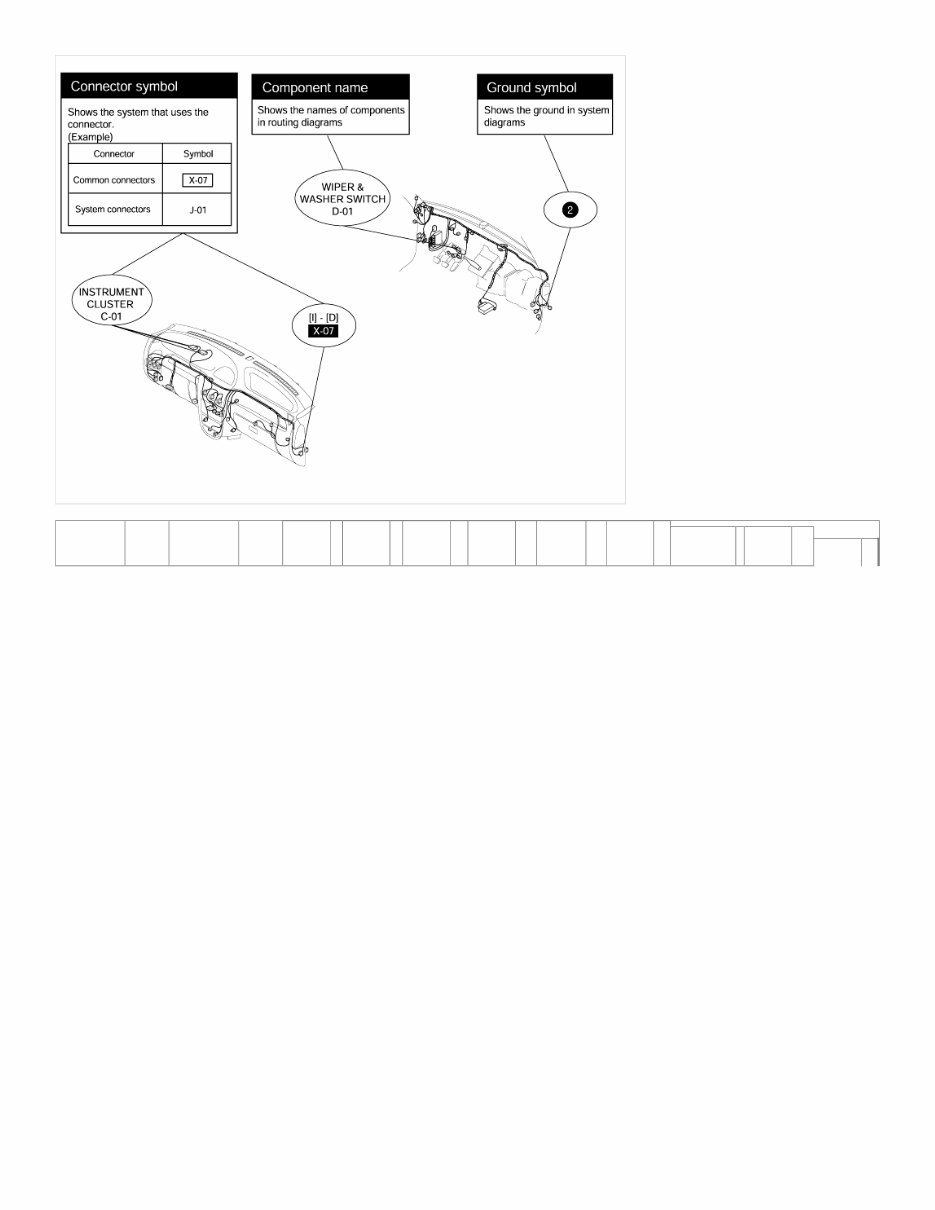

ROUTING DIAGRAM
· The routing diagram shows where electrical components are on the system circuit diagrma y call outline and connector symbols.
· Specified values are listed beside the routing diagram or on he following page.
https://www.kiatechinfo.com/viewer/print_pop.aspx?printtype=sprint&ve...
3 sur 8 2014-03-11 10:22
tomsn048@gmail.com

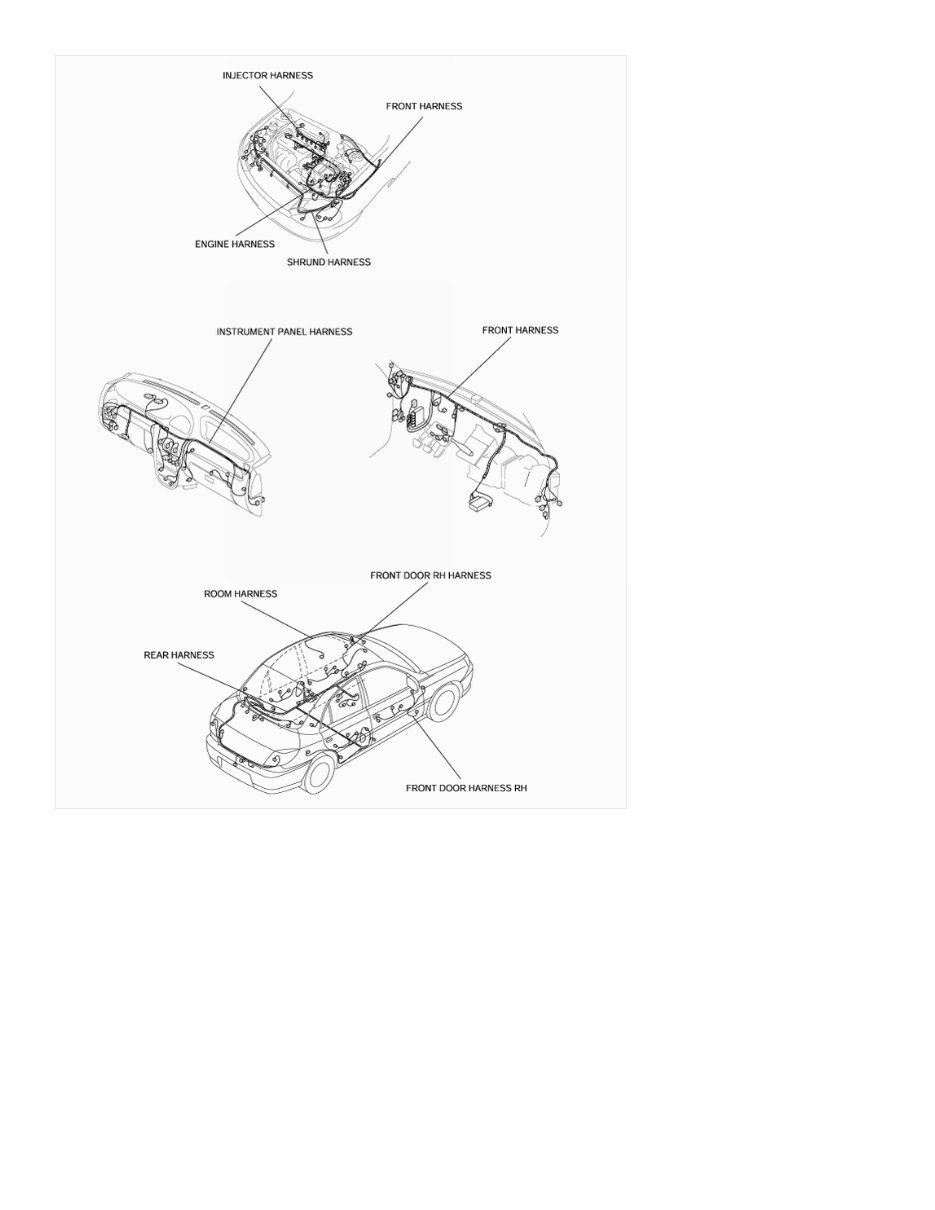

Harness symbols
DESCRIPTION
OF HARNESS
SYMBOL
DESCRIPTION
OF HARNESS
SYMBOL
FRONT
HARNESS
[F]
ENGINE
HARNESS
[E]
SHROD
HARNESS
[F2]
ROOM
HARNESS
[Rm]
INJECTOR
HARNESS
[INJ]
FRONT
DOOR LH
HARENSS
[Dr]
INSTRUMENT
PANEL
HARNESS
[I]
FRONT
DOOR RH
HARNESS
[Dr2]REAR
HARNESS
[Rr]
https://www.kiatechinfo.com/viewer/print_pop.aspx?printtype=sprint&ve...
4 sur 8 2014-03-11 10:22
tomsn048@gmail.com

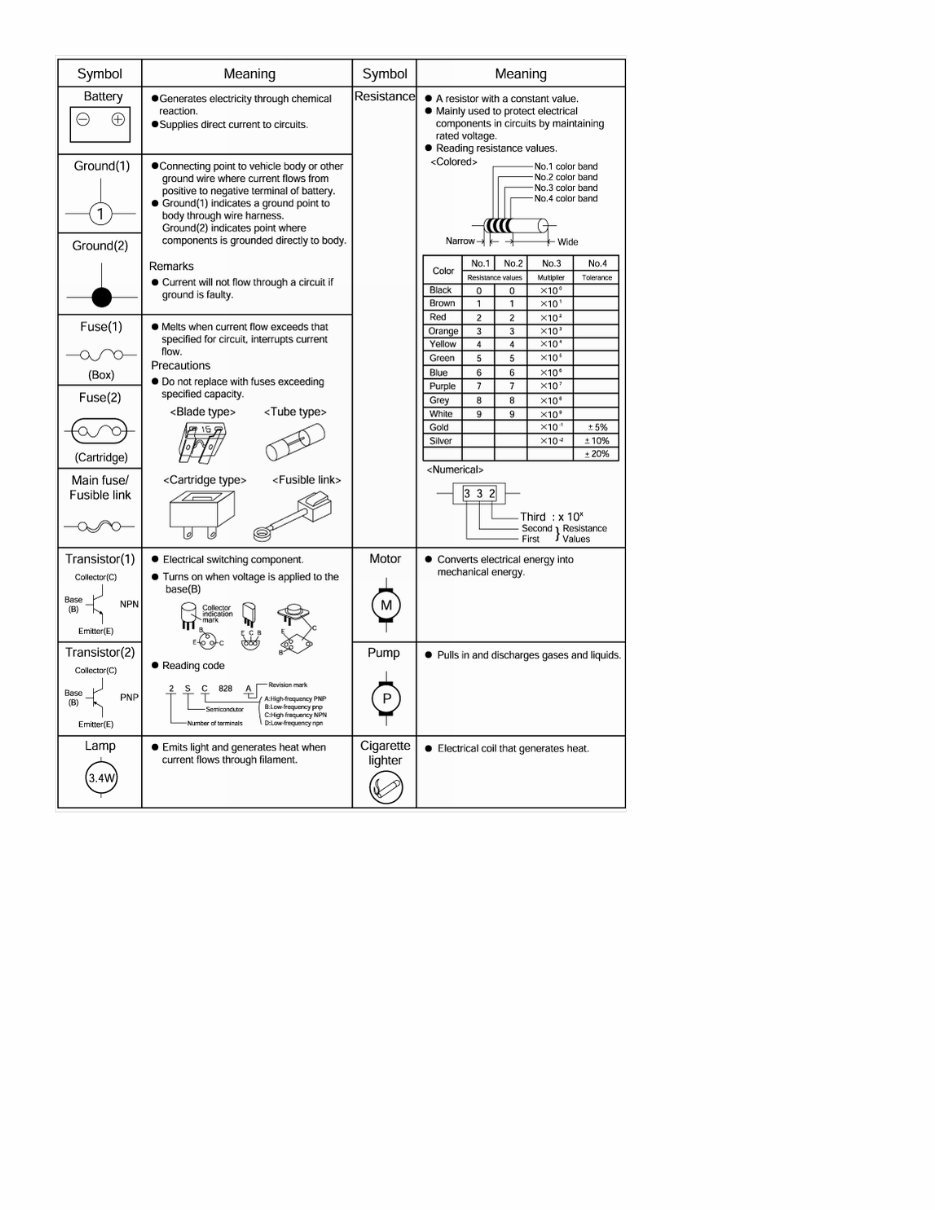

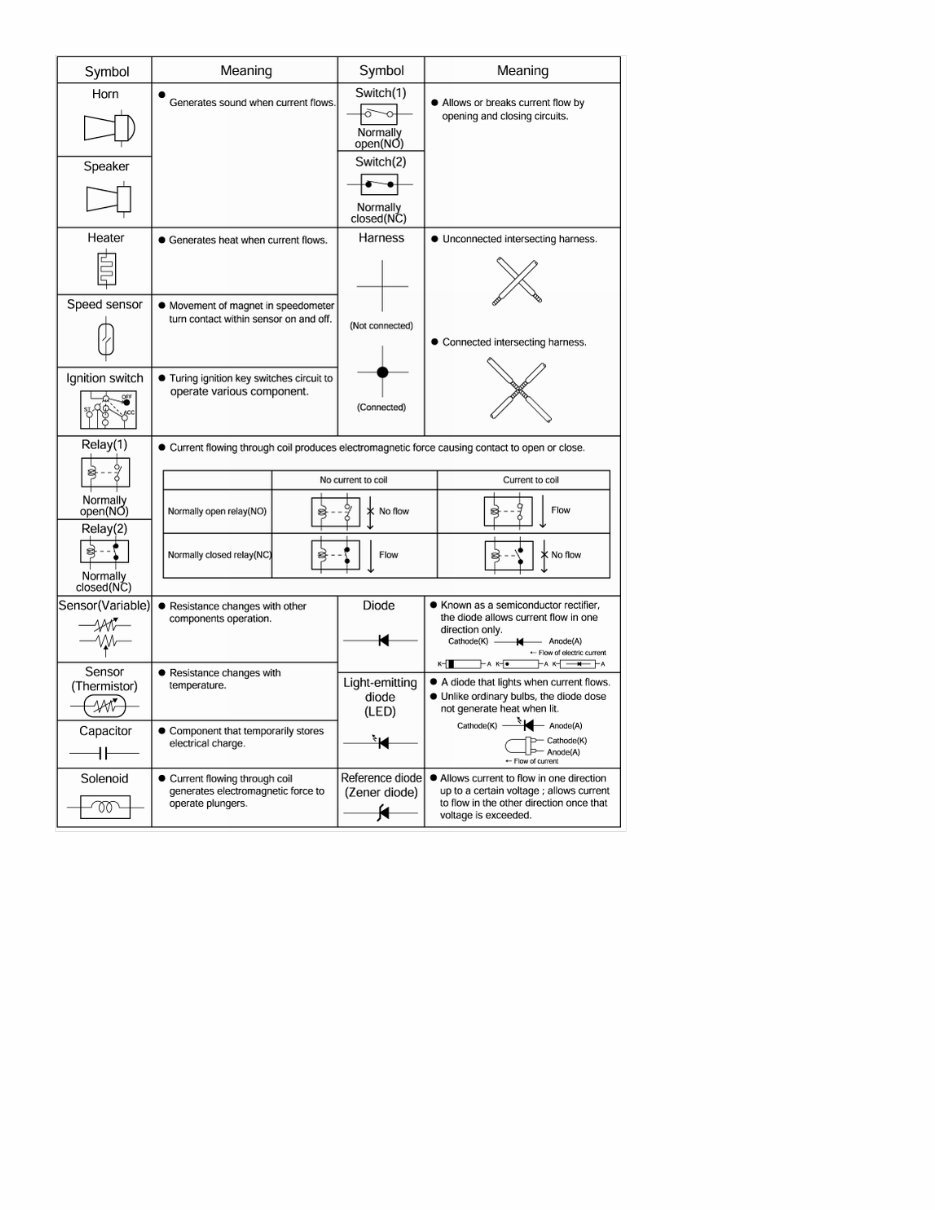

SYMBOLS
https://www.kiatechinfo.com/viewer/print_pop.aspx?printtype=sprint&ve...
5 sur 8 2014-03-11 10:22
tomsn048@gmail.com
https://www.kiatechinfo.com/viewer/print_pop.aspx?printtype=sprint&ve...
6 sur 8 2014-03-11 10:22
tomsn048@gmail.com

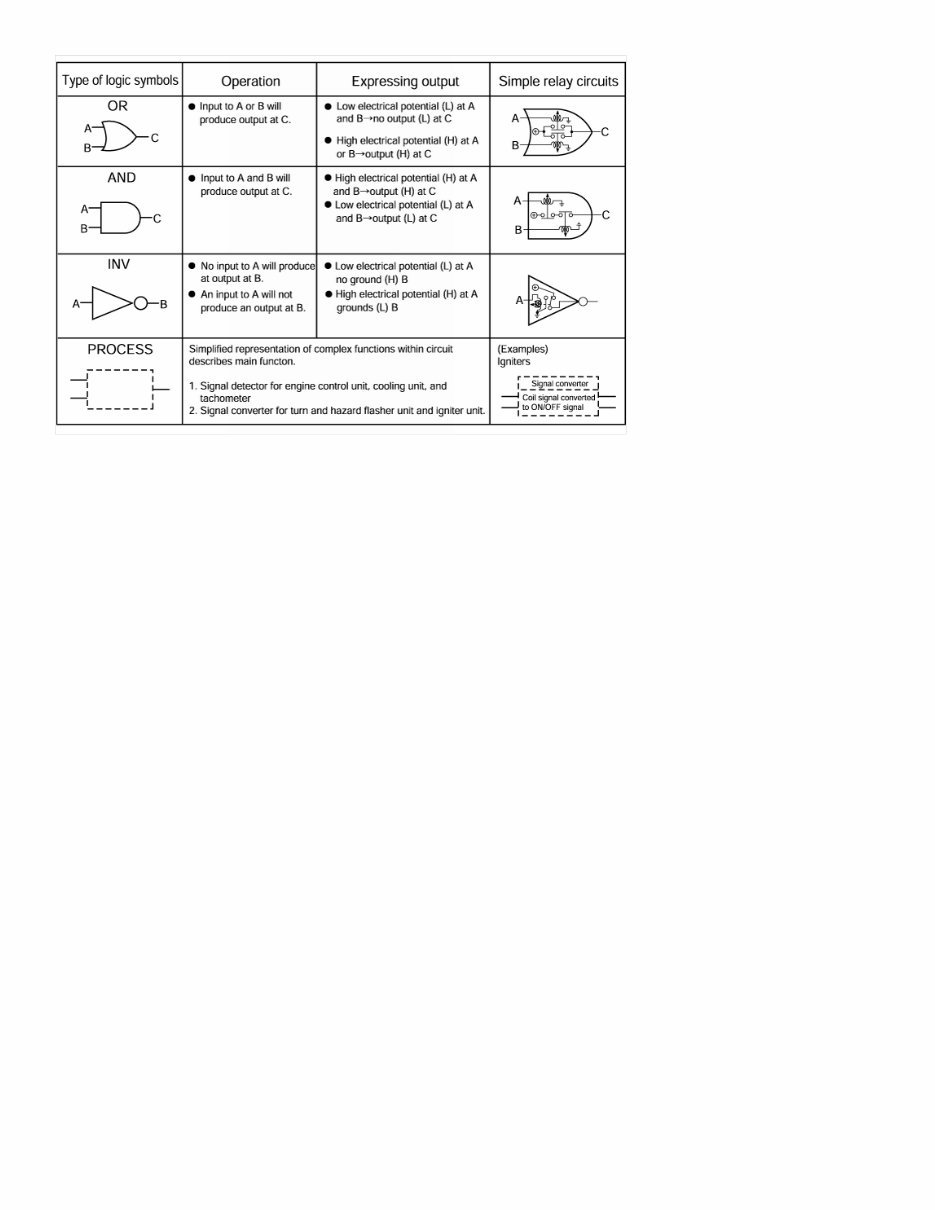

LOGIC SYMBOLS
https://www.kiatechinfo.com/viewer/print_pop.aspx?printtype=sprint&ve...
7 sur 8 2014-03-11 10:22
tomsn048@gmail.com
https://www.kiatechinfo.com/viewer/print_pop.aspx?printtype=sprint&ve...
8 sur 8 2014-03-11 10:22
tomsn048@gmail.com

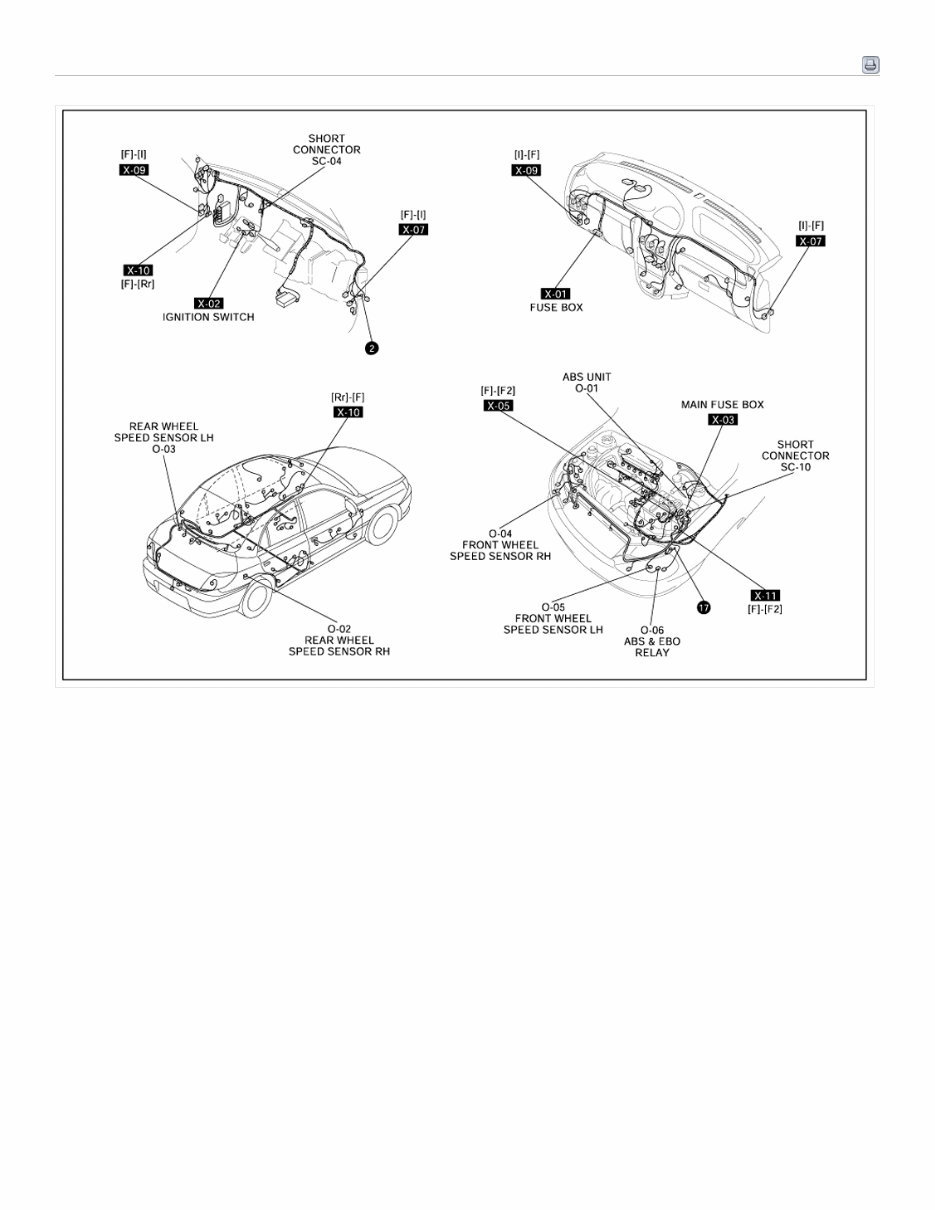

ABS (Anti-Lock Brake System)
ANTI-LOCK BRAKE SYSTEM (ABS)
https://www.kiatechinfo.com/viewer/print_pop.aspx?printtype=sprint&ve...
1 sur 1 2014-03-11 10:23
tomsn048@gmail.com

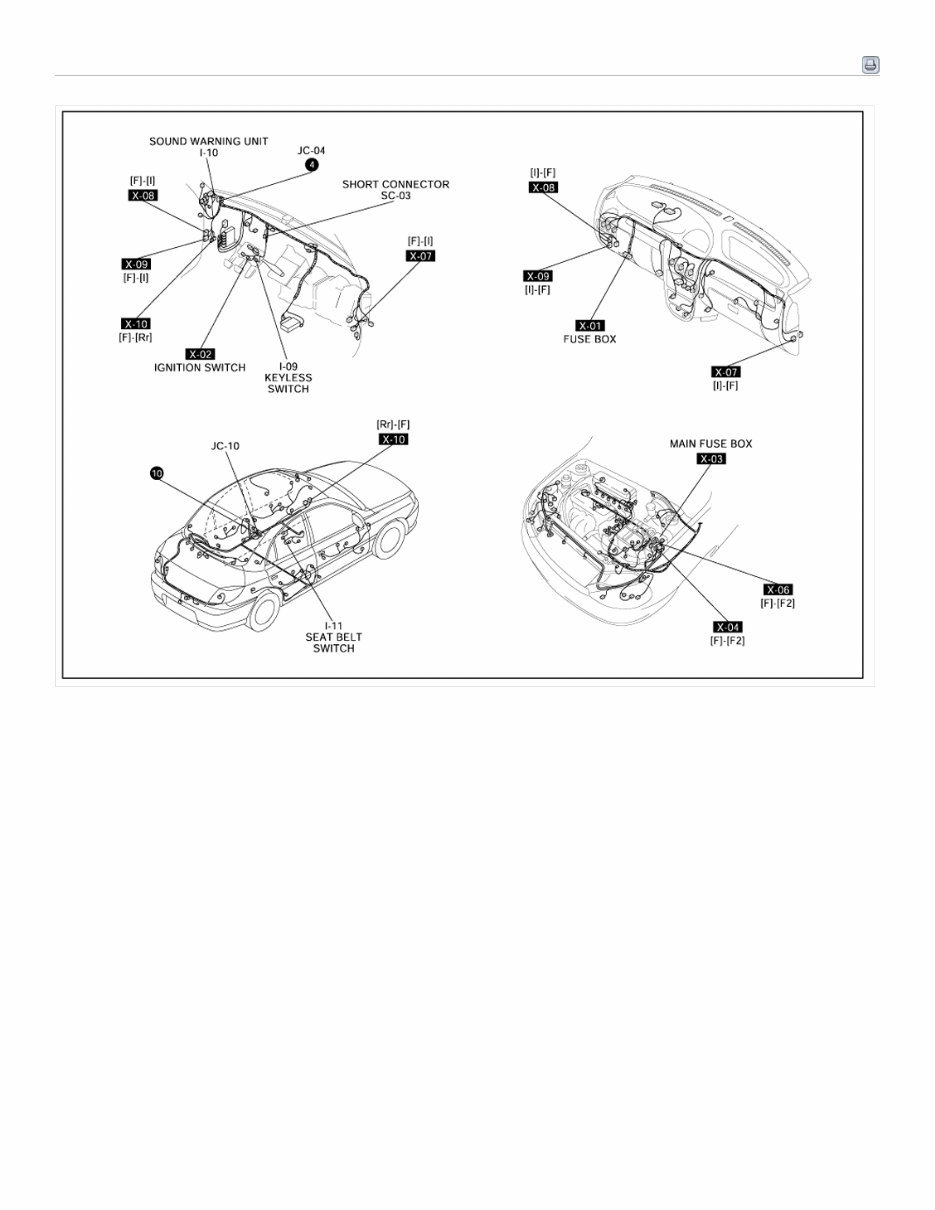

Acoustic Warning System
SOUND WARNING SYSTEM
https://www.kiatechinfo.com/viewer/print_pop.aspx?printtype=sprint&ve...
1 sur 1 2014-03-11 10:23
tomsn048@gmail.com
You're Reading a Preview
What's Included?
Lifetime Access
Fast Download Speeds
Online & Offline Access
Access PDF Contents & Bookmarks
Full Search Facility
Print one or all pages of your manual
$28.99
KIA RIO 2002 OEM Factory Electronic Troubleshooting manual
Viewed 50 Times Today
What's Included?
Lifetime Access
Fast Download Speeds
Online & Offline Access
Access PDF Contents & Bookmarks
Full Search Facility
Print one or all pages of your manual
$28.99
Secure transaction
What's Included?
Lifetime Access
Fast Download Speeds
Online & Offline Access
Access PDF Contents & Bookmarks
Full Search Facility
Print one or all pages of your manual
Description
You are purchasing a KIA Factory Electronic Troubleshooting manual for the 2002 KIA RIO (1.5L) model, covering all trims including EX and SX. This manual specifically focuses on schematics and wiring for the electronic components of the vehicle, separate from the service manual.
It is the same manual utilized by local dealer technicians for repairing and servicing electronic parts of the vehicle, encompassing all schematics, fuses, and the entire wiring system.
It is an ideal resource for both professional mechanics and DIY enthusiasts. The file format includes an index and is compatible with Win95/98/ME/XP/Vista/7, Linux, and MAC operating systems. The language of the manual is English, and it pertains to the 2002 model year.
