2002 ACCESSORIES & EQUIPMENT ETACS (Electronic Time And Alarm Control System) - Optima ETACS (ELECTRONIC TIME AND ALARM CONTROL SYSTEM) ELECTRONIC TIME AND ALARM CONTROL MODULE REMOVAL AND INSTALLATION 1. Disconnect the negative (-) battery terminal. 2. Remove the lower crash pad. 3. Remove the bolts holding the ETACS module and disconnect the connectors.

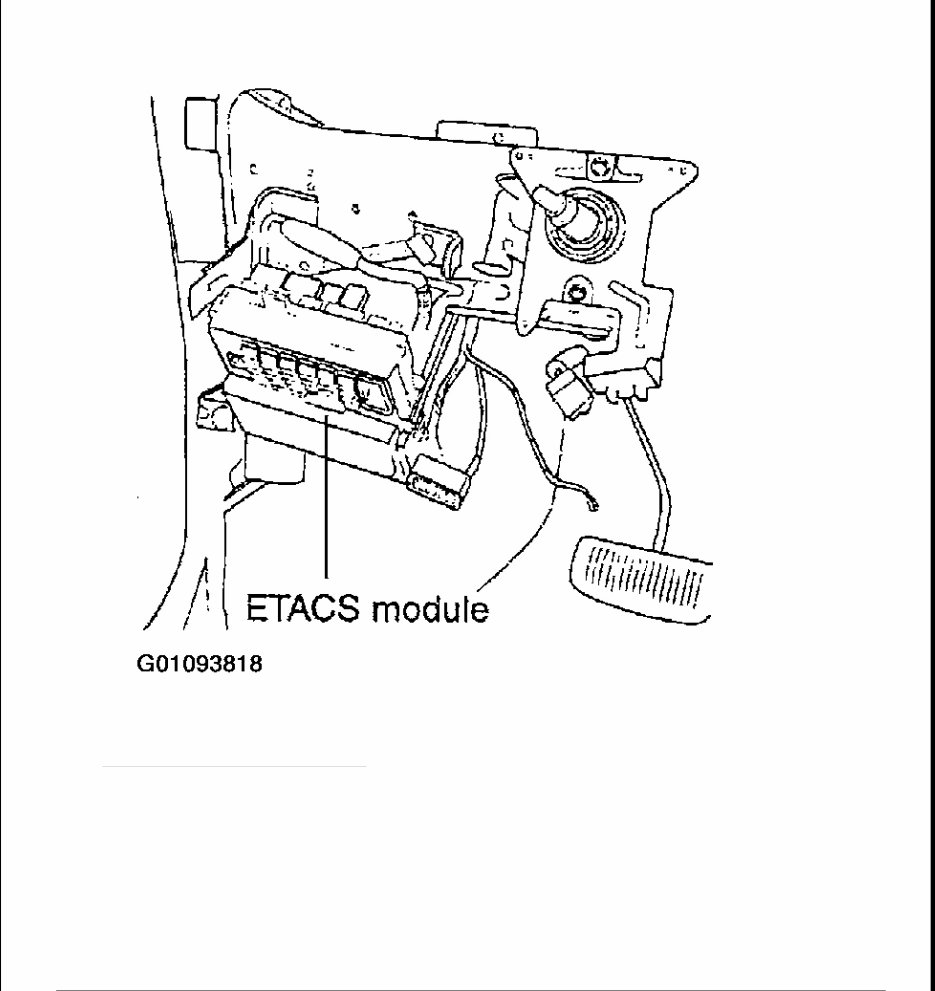

Fig. 1: Removing ETACS Module Courtesy of KIA MOTORS AMERICA, INC. 4. Installation is the reverse of removal. OPERATION CHECK OF COMPONENTS While operating the components, check whether the operations are normal with timing chart. ETACS FUNCTION

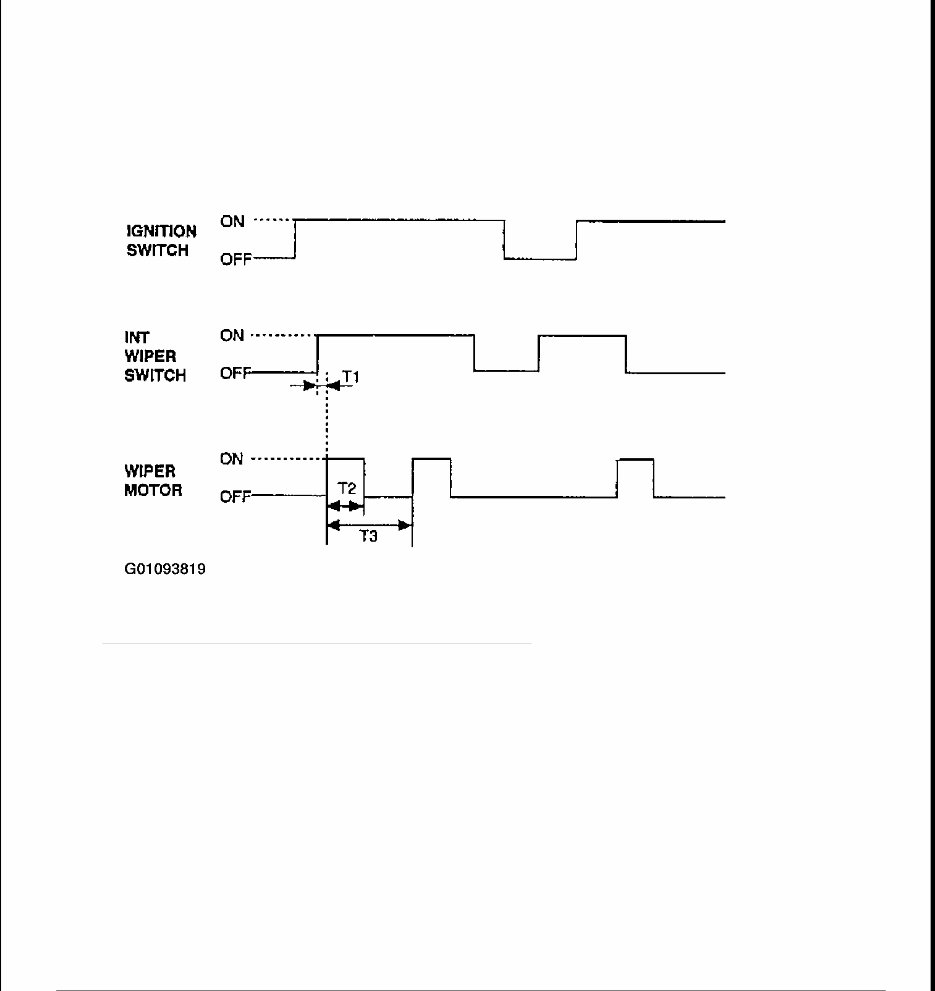

1. Variable intermittent wiper Time specification T1: Max. 0.3 sec. T2: Time of wiper motor 1 rotation (0.6~0.8 sec.). T3: 2.2 +/- 0.2 sec. (VR=0 kohm)~10.0 +/- 1.0 sec. (VR=50 kohm) Fig. 2: Variable Intermittent Wiper Time Specification Courtesy of KIA MOTORS AMERICA, INC. 2. Washer related wiper 1. Time specification T1: 0.6 sec. T2: 2.5~3.8 sec. 2. This function should be operated preferentially even though the variable intermittent wiper is operating.

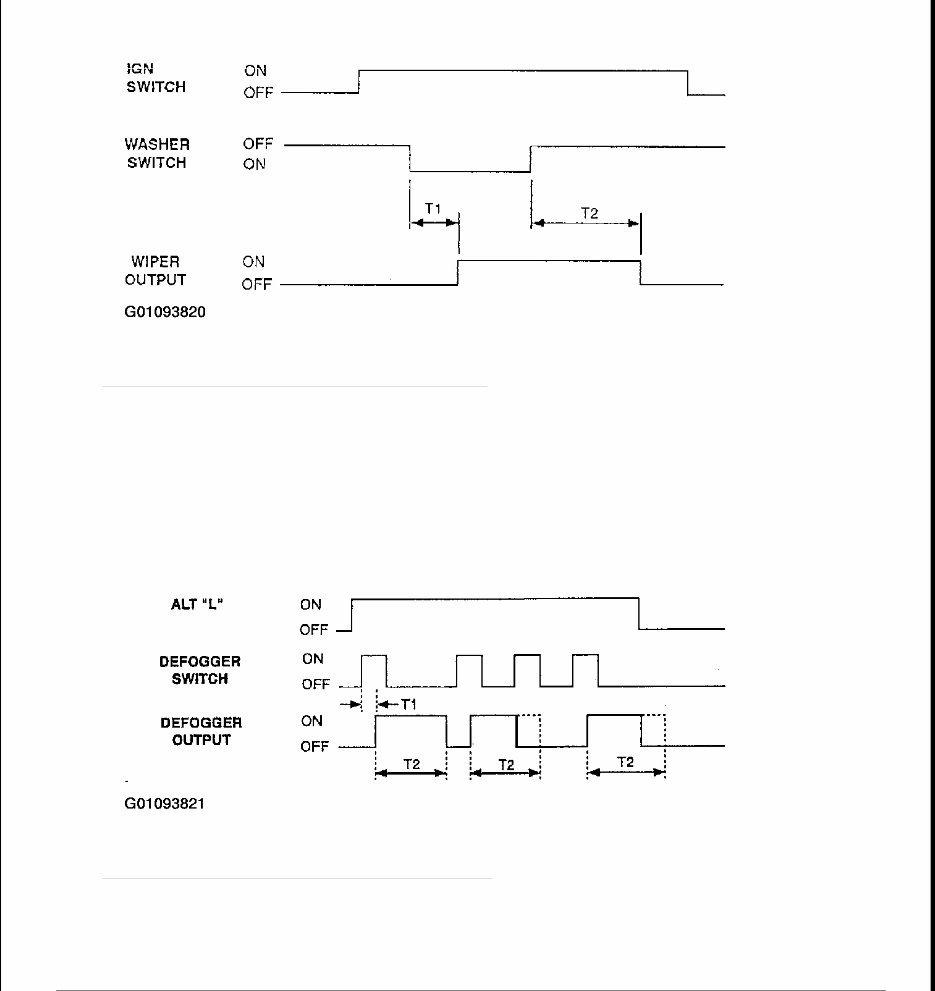

Fig. 3: Washer Related Wiper Time Specification Courtesy of KIA MOTORS AMERICA, INC. 3. Rear window defogger Time specification T1: 60m sec. T2: 20 +/- 1 Min. Fig. 4: Rear Window Defogger Time Specification Courtesy of KIA MOTORS AMERICA, INC. 4. Seat belt warning Time specification T1: 6 +/- 1 sec.

T2: 0.45 +/- 0.1 sec. T3: 0.3 +/- 0.1 sec. Fig. 5: Seat Belt Warning Time Specification Courtesy of KIA MOTORS AMERICA, INC. 5. Ignition key hole illumination Time specification T1: 10 +/- 1.0 sec. T2: 0 - 10 sec. Fig. 6: Ignition Key Hole Illumination Time Specification Courtesy of KIA MOTORS AMERICA, INC.

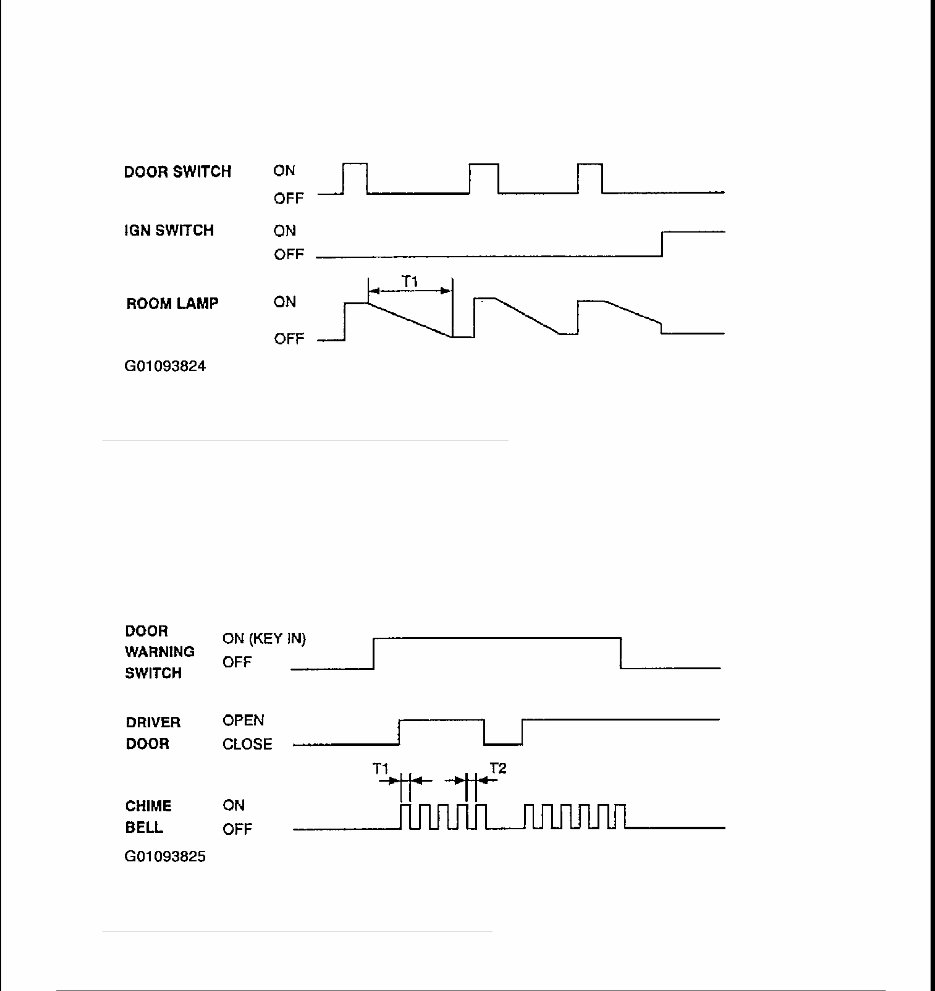

6. Delayed out room lamp Time specification T1: 5.5 +/- 0.5 sec. Fig. 7: Delayed Out Room Lamp Time Specification Courtesy of KIA MOTORS AMERICA, INC. 7. Key operated warning Time specification T1, T2: 0.45 +/- 0.1 sec. Fig. 8: Key Operated Warning Time Specification Courtesy of KIA MOTORS AMERICA, INC.

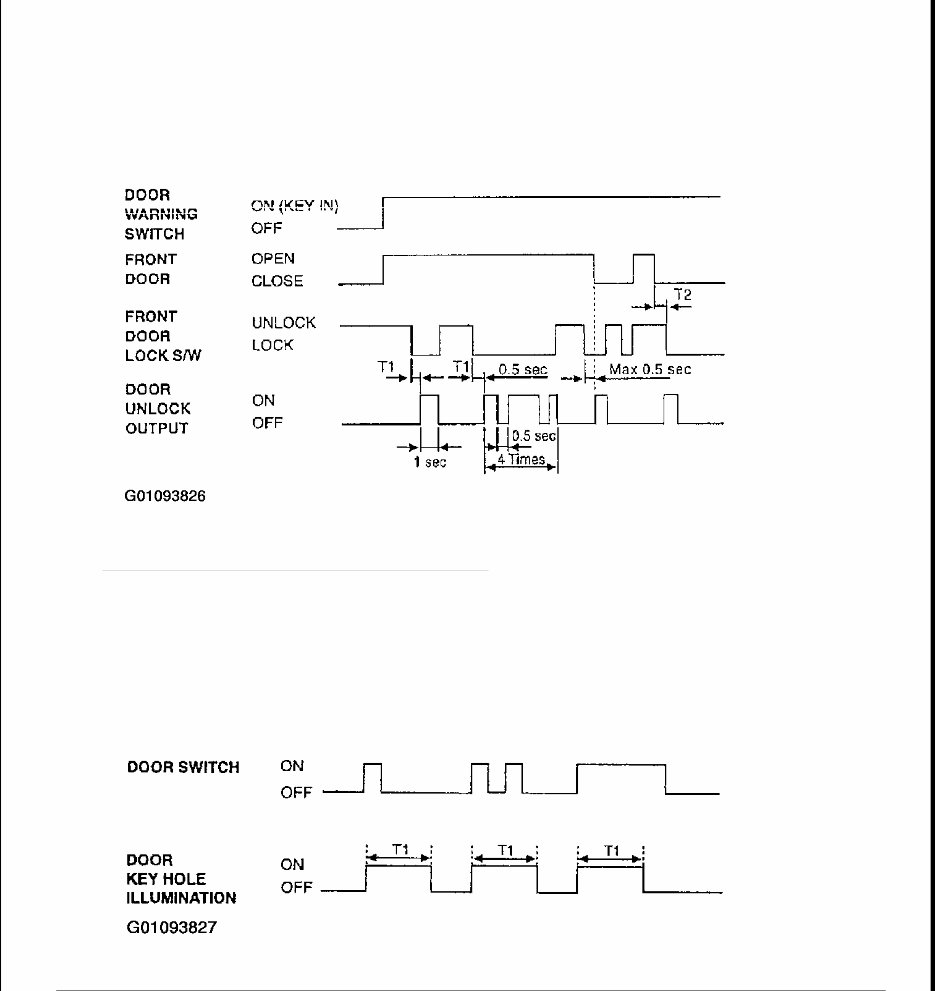

8. Ignition key reminder Time specification T1: 0.5 sec. T2: 0~0.5 sec. Fig. 9: Ignition Key Reminder Time Specification Courtesy of KIA MOTORS AMERICA, INC. 9. Outside Door key illumination (Without burglar alarm) Time specification T1: 10 +/- 1.0 sec.

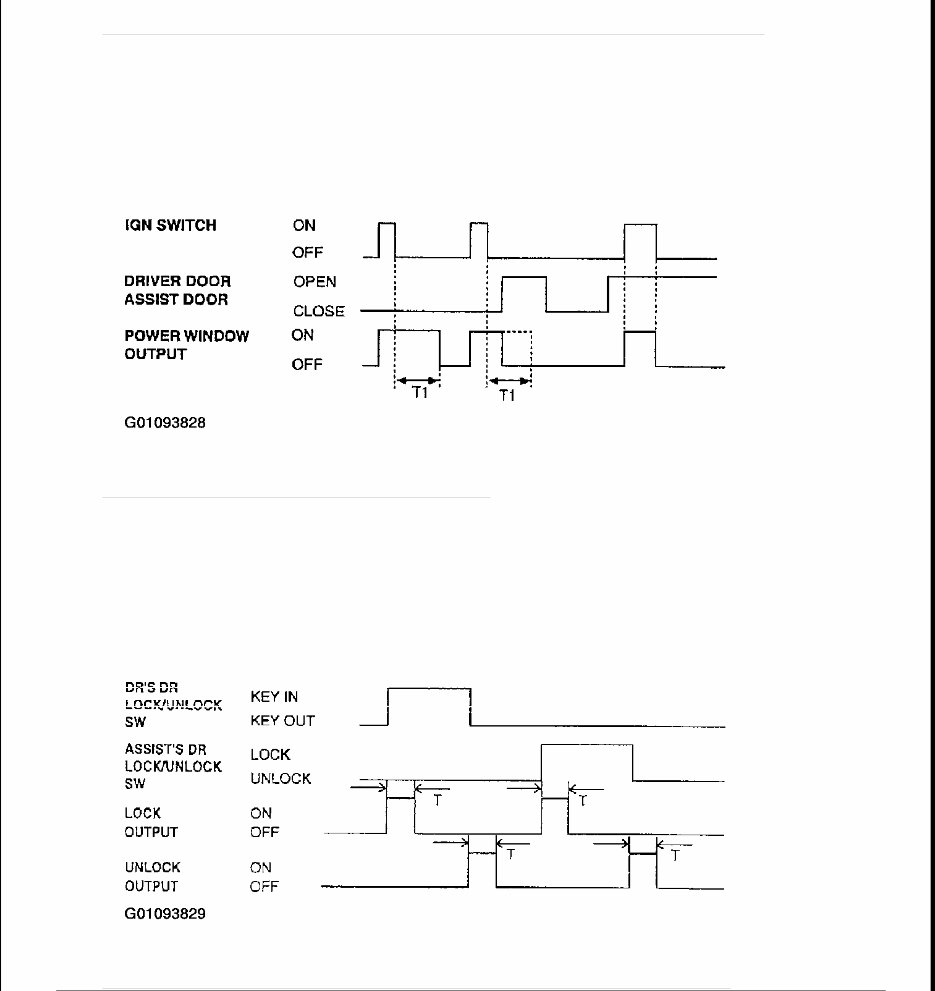

Fig. 10: Outside Door Key Illumination (Without Burglar Alarm) Time Specification Courtesy of KIA MOTORS AMERICA, INC. 10. Power window timer Time specification T1: 30 +/- 5 sec. Fig. 11: Power Window Timer Time Specification Courtesy of KIA MOTORS AMERICA, INC. 11. Central door lock/unlock (without burglar alarm) Time specification T: 0.5 +/- 0.1 sec. Fig. 12: Central Door Lock/Unlock (Without Burglar Alarm) Time Specification

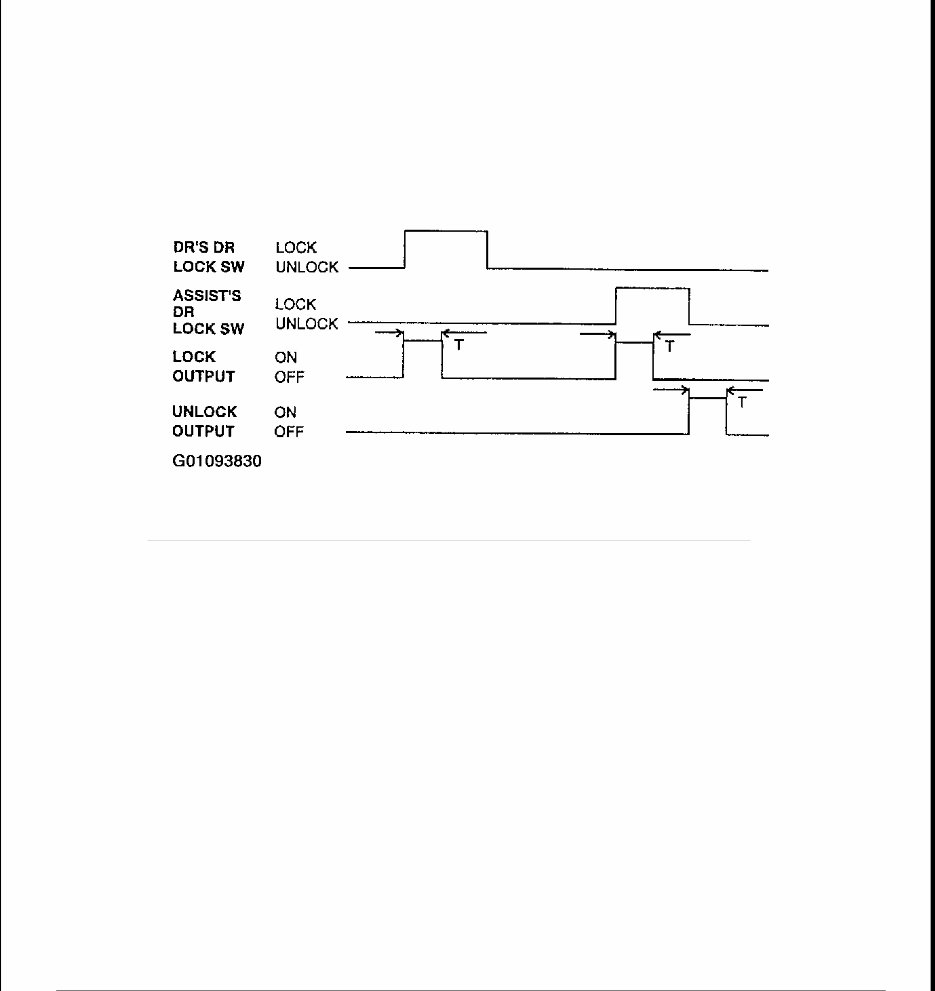

Courtesy of KIA MOTORS AMERICA, INC. 12. Central door lock/unlock (with burglar alarm) 1. When using the door key Time specification T: 0.5 +/- 0.1 sec. Fig. 13: Central Door Lock/Unlock (With Burglar Alarm) Time Specification Courtesy of KIA MOTORS AMERICA, INC. 2. When using the door lock knob switch Time specification T: 0.5 +/- 0.1 sec.

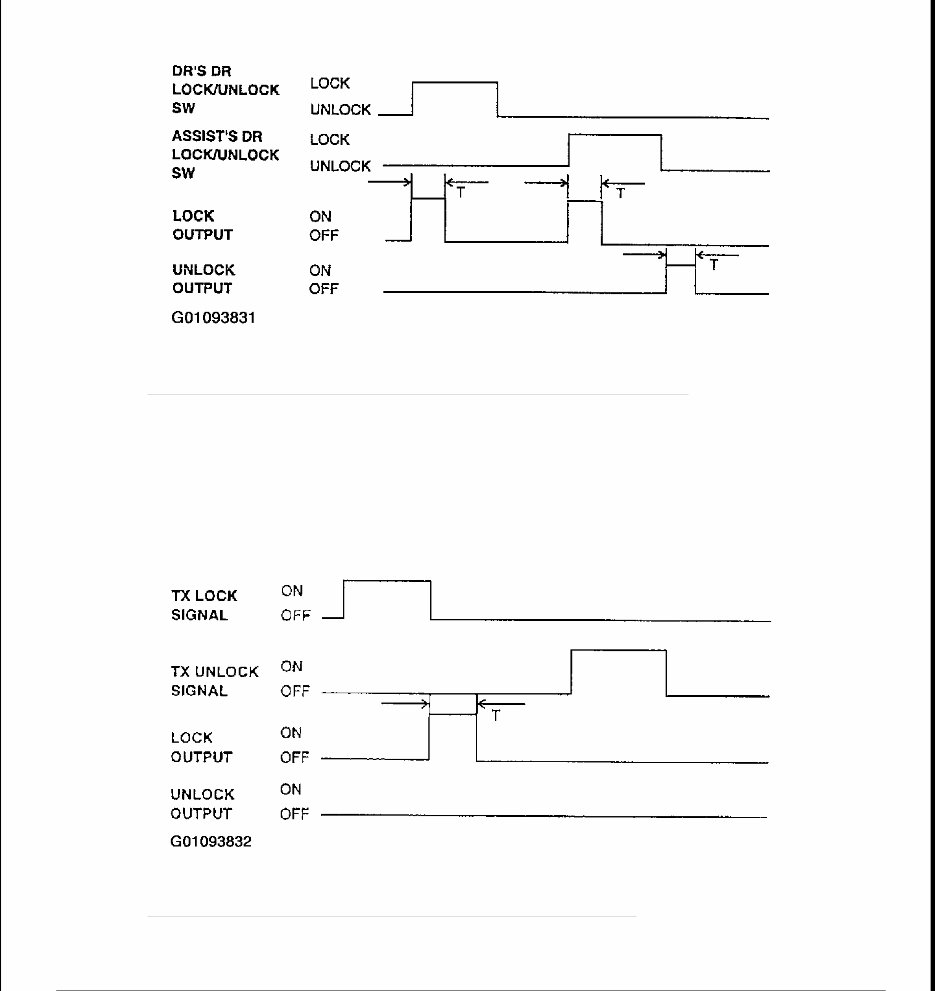

Fig. 14: When Using The Door Lock Knob Switch Time Specification Courtesy of KIA MOTORS AMERICA, INC. 3. When using the transmitter (TX) Time specification T: 0.5 +/- 0.1 sec. Fig. 15: When Using The Transmitter (TX) Time Specification Courtesy of KIA MOTORS AMERICA, INC. 4. Power window main door lock switch
