OPTIMA(MS) > 2004 > G 2.4 DOHC > General Information General Information > General Information > General Information GENERAL INFORMATION HOW TO USE THIS MANUAL This manual is divided into 21 sections. This first page of each section is marked with a black tab at the edge of the page. You can quickly find the first page of each section without looking through a full table of contents. Each section includes the essential removal, installation, adjustment and maintenance procedures for servicing all body styles. This information is current as of time of publication. An INDEX is provided on the first page of each section to guide you to the item to be replaced. TROUBLESHOOTING tables are included for each system to help you diagnose the system problem and find the cause. The repair for each possible cause is referenced in the remedy column to quickly lead you to the solution. DEFINITION OF TERMS Standard Value (Service standard) Indicates the value used as the standard for judging the quality of a part or assembly on inspection or the value to which the part or assembly is corrected and adjusted. It is given by a tolerance. Service Limit Shows the standard for judging the quality of a part or assembly on inspection and means the maximum or minimum value within which the part or assembly must be kept functionally or in strength. It is a value established outside the range ofstandard value WARNING , CAUTION, NOTE, ABBREVIATION • WARNING Information about an activity that could cause serious or severe personal injury or death to the driver, occupants or service technician. • CAUTION Information about an activity that could cause damage to the vehicle, or cause some personal injury. • NOTE A point of information. • ABBREVIATIONS DOHC : Double Over Head Camshaft V-6 : V-typed 6 Cylinder VEHICLE IDENTIFICATION NUMBER LOCATION The vehicle identification number (VIN) is on the top of the firewall and on the lower side of the left front door pillar. VEHICLE IDENTIFICATION NUMBER Vehicle identification number consists of 17 digit. Page 1 of 26

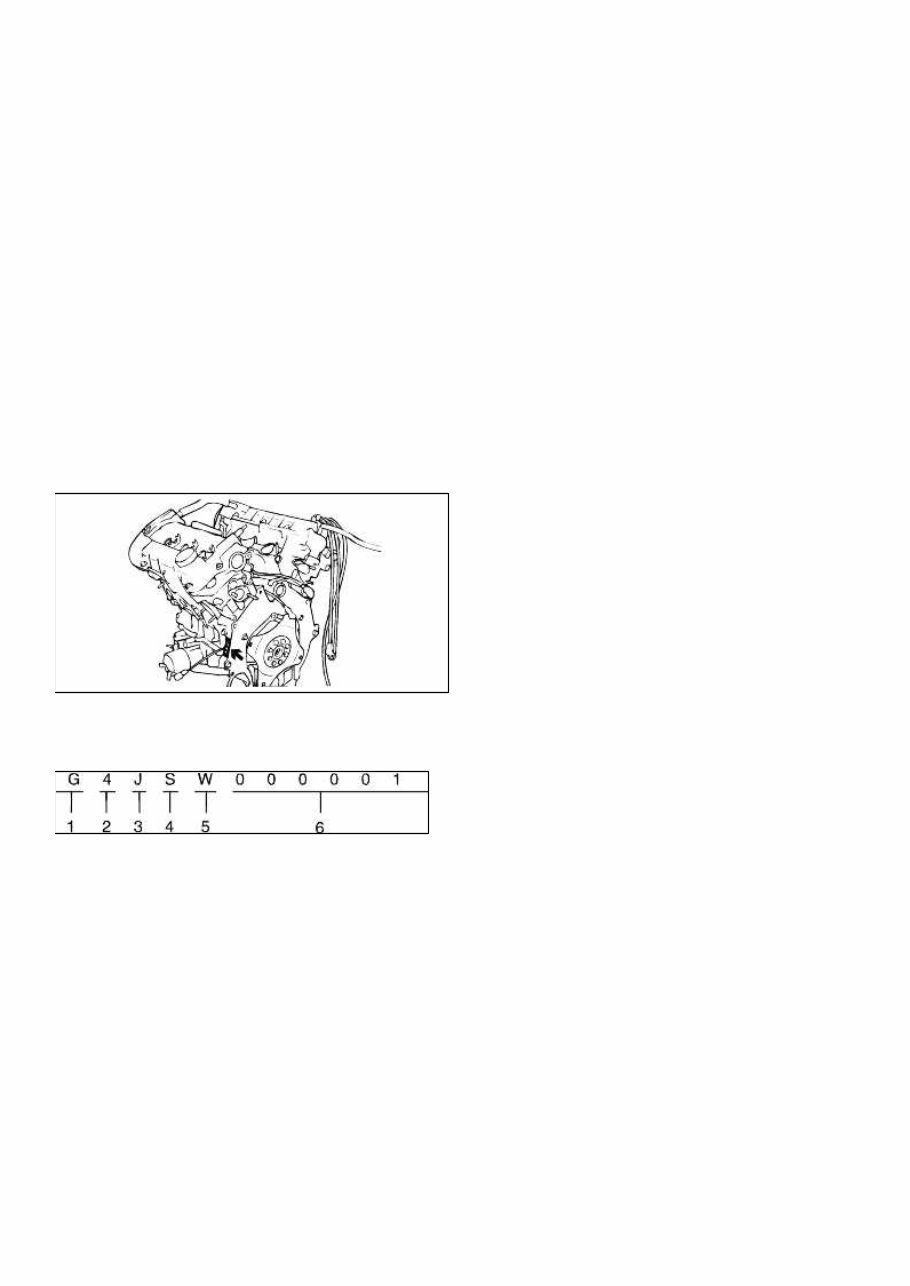

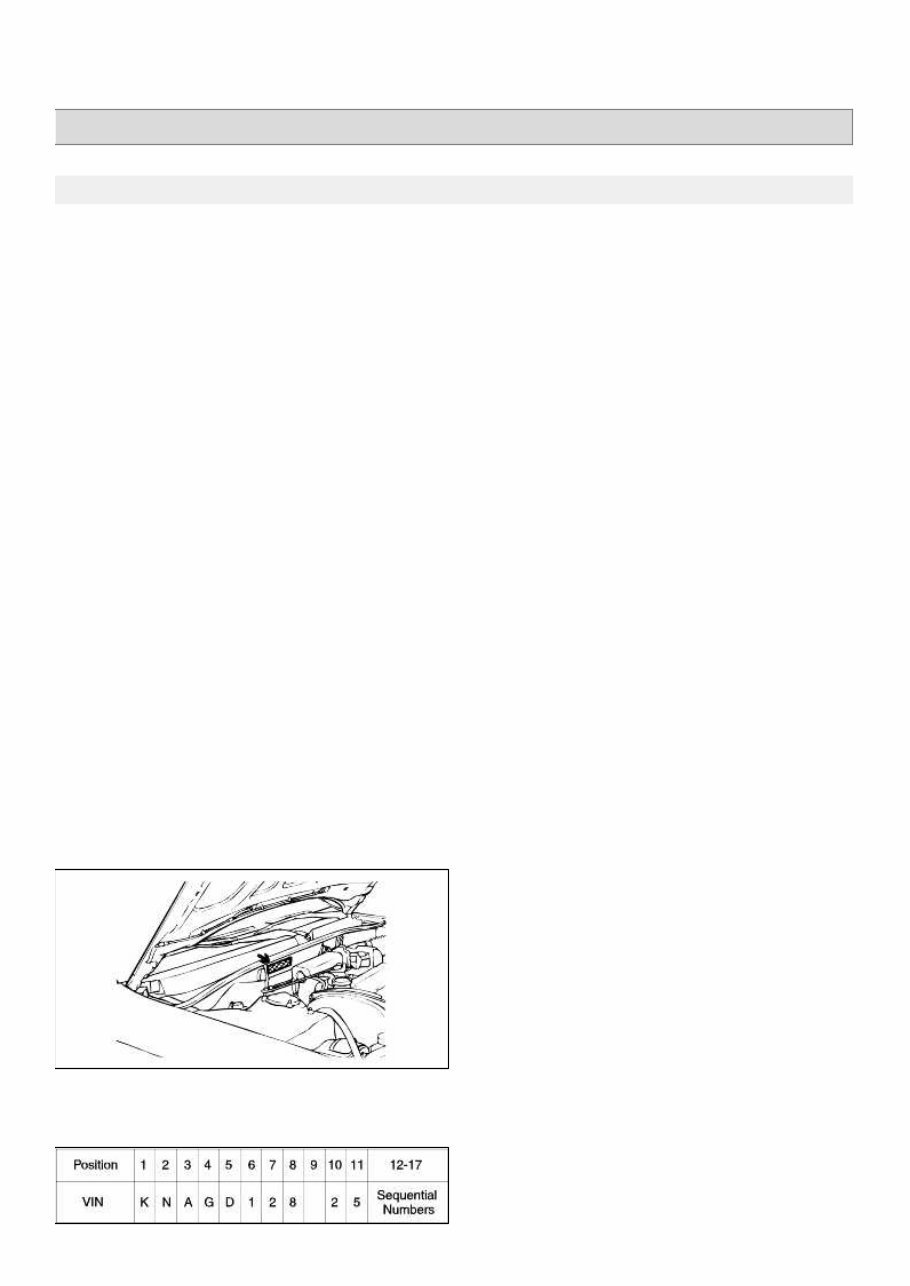

1 to 3 (Make / Vehicle Type): KNA - Kia Passenger Car 4 to 5 (Vehicle Line / Series): GD - OPTIMA 6 to 7 (Body Type): 12 - 4Door Seden 8 (Engine / Restraint): 6-Sirius II 2.4 8 - δ2.7 Gasoline & Air Bags (Manual Belts) 9 (Check Digit): To be calculated 10 (Model Year): 2 - 2002MY, 3 - 2003MY, 4 - 2004MY 11 (Plant): 5 - Hwasung Plant 12 to 17 (Sequential Numbers)) ENGINE IDENTIFICATION NUMBER LOCATION The engine identification number is stamped at the right front side on the top edge of the cylinder block. ENGINE IDENTIFICATION NUMBER Engine identification number consists of 11 digits. 1. Engine fuel G - Gasoline L - LPG D - Diesel 2. Engine range 4 - In line 4 cycle 4 cylinder 6 - V type 4 cycle 6 cylinder 3. Engine development order B - V6 Engine J - SIRIUS II DOHC Engine 4. Engine capacity N - 1836 cc P - 1997 cc, 1998 cc S - 2351 cc V - 2493 cc, 2497 cc 5. Product year 2 - 2002, 3 - 2003, 4 - 2004 Page 2 of 26

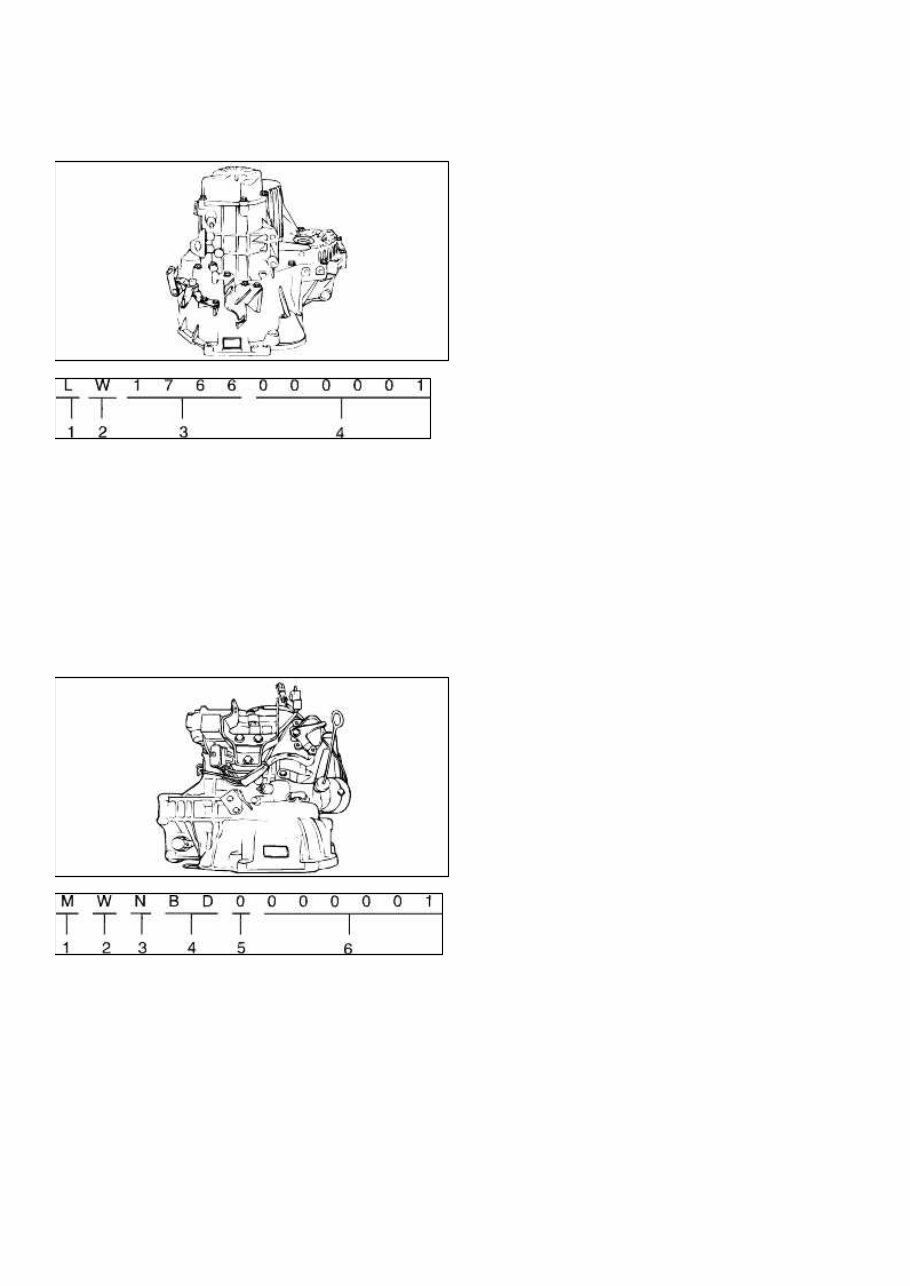

6. Engine production sequence number 000001 - 999999 TRANSAXLE IDENTIFICATION NUMBER LOCATION DESCRIPTION (MANUAL TRANSAXLE) 1. Model L : M5G Series 2. Product year 2 : 2002, 3 : 2003, 4 : 2004 3. Final gear ratio 1766 : 3,882 1665 : 4,063 4. Serial No. DESCRIPTION (AUTOMATIC TRANSAXLE) 1. Model C : KM 175-5 D : KM 175-6 H : F4A33 2. Product year 2 : 2002, 3 : 2003, 4 : 2004 3. Final gear ration F : 4.350 (KM 175-6) A : 3.958 (F4A33) 4. Classification of detail AD : 2.4 Liter Engine BD 2.0/ 2.5 Liter Engine 5. Spare 6. Serial No. PROTECTION OF THE VEHICLE Page 3 of 26

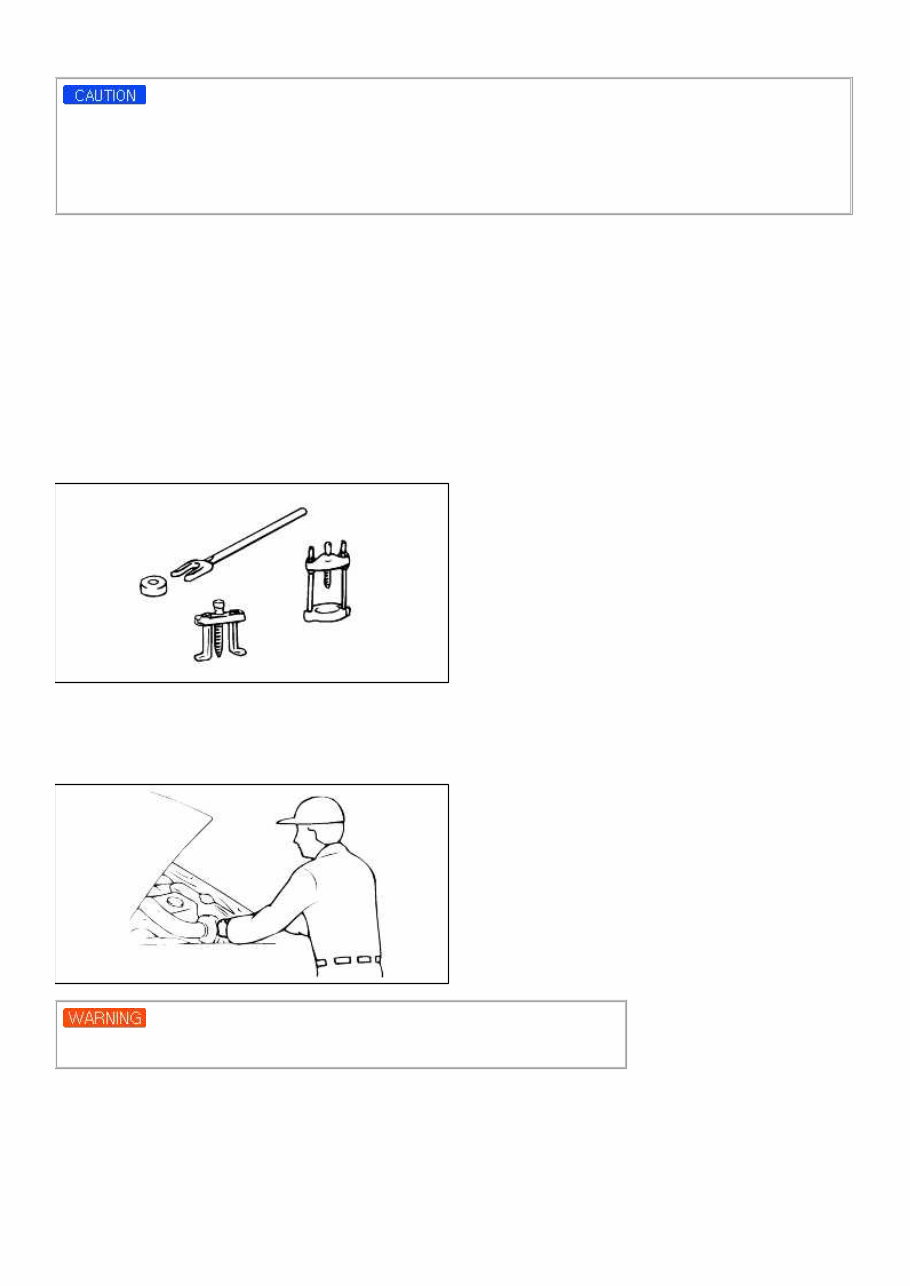

Always be sure to fenders, seats, and floor areas before starting work. The support rod must be inserted into the hole near the edge of the hood whenever you inspect the engine compartment to prevent the hood from falling and possibly injuring you. Assure that the support rod has been released prior to closing the hood. Always double check to be sure the hood is firmly latched before driving away. BASIC SAFETY WARNINGS WHEN WORKING ON THE VEHICLE The following precautions must be followed when jacking up the vehicle 1. Block wheels. 2. Use only specified jacking positions. 3. Support vehicle with safety stands (jack stands) 4. Never start the engine until you personally make certain the engine compartment is clear of tools and people. Never relyon another person to make the inspection-make the inspection yourself. PREPARATION OF TOOLS AND MEASURING EQUIPMENT Be sure that all necessary tools and measuring equipment are available before starting work activity. SPECIAL TOOLS Use special tools when they are required. REMOVAL OF PARTS First find the cause of trouble and then make sure whether removing or disassembling is required before starting the job. The failure to follow these instructions can lead to serious personal injury or death. DISASSEMBLY If the disassembly procedure is complex, requiring many parts to be disassembled, all parts should be disassembled in a way that will not affect their performance or external appearance. Page 4 of 26

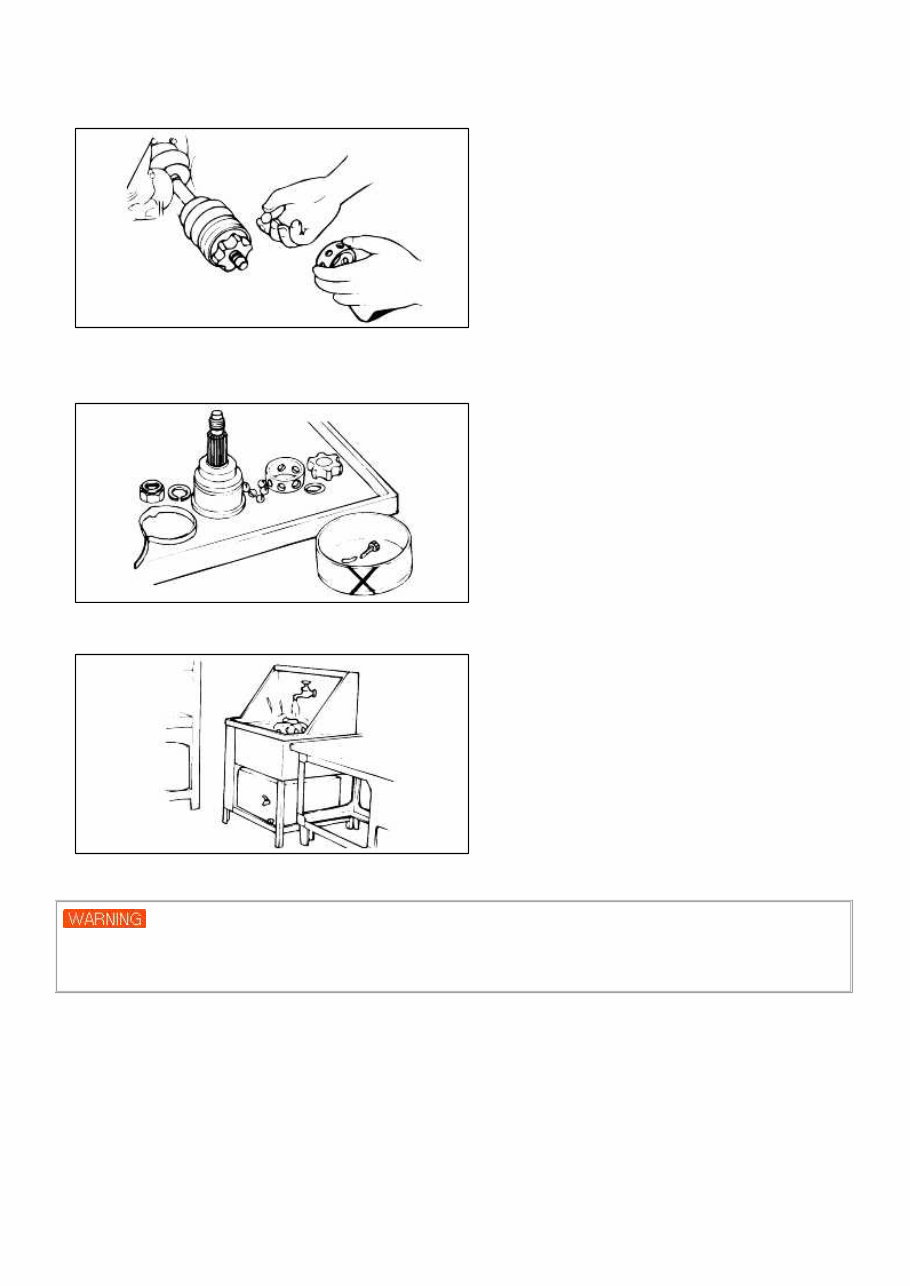

1. Inspection of parts Each part when removed should be carefully inspected for malfunction, deformation, damage, and other problems. 2. Arrangement of parts All disassembled parts should be carefully arranged for reassembly. Be sure to separate or otherwise identify the parts to be replaced from those that will be reused. 3. Cleaning parts for reuse All parts to be reused should be carefully and thoroughly clean-ed by the appropriate method. PARTS When replacing factory parts, use genuine parts. If using non-factory parts, you must ensure that such parts are the equivalent quality of genuine factory parts to avoid exposing customers to the risk of severe injury or death. REASSEMBLY Standard values, such as torques and certa in adjustments, must be strictly observed in the reassembly of all parts. If removed, these parts should be replaced with new ones. 1. Oil seals 2. Gaskets 3. 3. O-rings 4. Lock washers 5. Cotter pins (split pins) Page 5 of 26
