2005 Jeep Wrangler TJ Parts Catalog

VIN PLATE DECODING INFORMATION 1 2 3 4 5 6 7 8 9 10 11 12 thru 17 Country Make Vehicle Type Other Line Series Body Style Engine Check Digit Model Year Assy. Plant Sequence No. The following table interprets the VIN Plate position shown above. Position Interpretation Codes = Description 1 Country of Origin 1 = USA 2 Assembler J = Jeep 3 Vehicle Type 4 = Multipurpose Passenger Vehicle 4 GVWR & Pass. Safety D = 0 - 1360 kg ( 0 - 3000 lbs) E = 1360 - 1814 kg ( 3001 - 4000 lbs) F = 1815 - 2267 kg ( 4001 - 5000 lbs) 5 Vehicle Line A = Wrangler (LHD) 4 = Wrangler (RHD) 6 Series 2 = SE 3 = SE 3=X 4 = Sport 5 = Sahara 7 Body Style 9 = Open Body 8 Engine P = 2.5L Gas Unleaded (EPE) S = 4.0L Gas Unleaded (ERH) H = 2.5L Gas Leaded (EPE) V = 4.0L Gas Leaded (ERH) 9 Check Digit 0 = Check Digit 0 = Check Digit 10 Model Year W = 1998 X = 1999 4 = 2004 5 = 2005 2 = 2002 11 Assembly Plant P = Toledo #2 12 thru 17 Vehicle Build Sequence Model Year Assembly Sequence

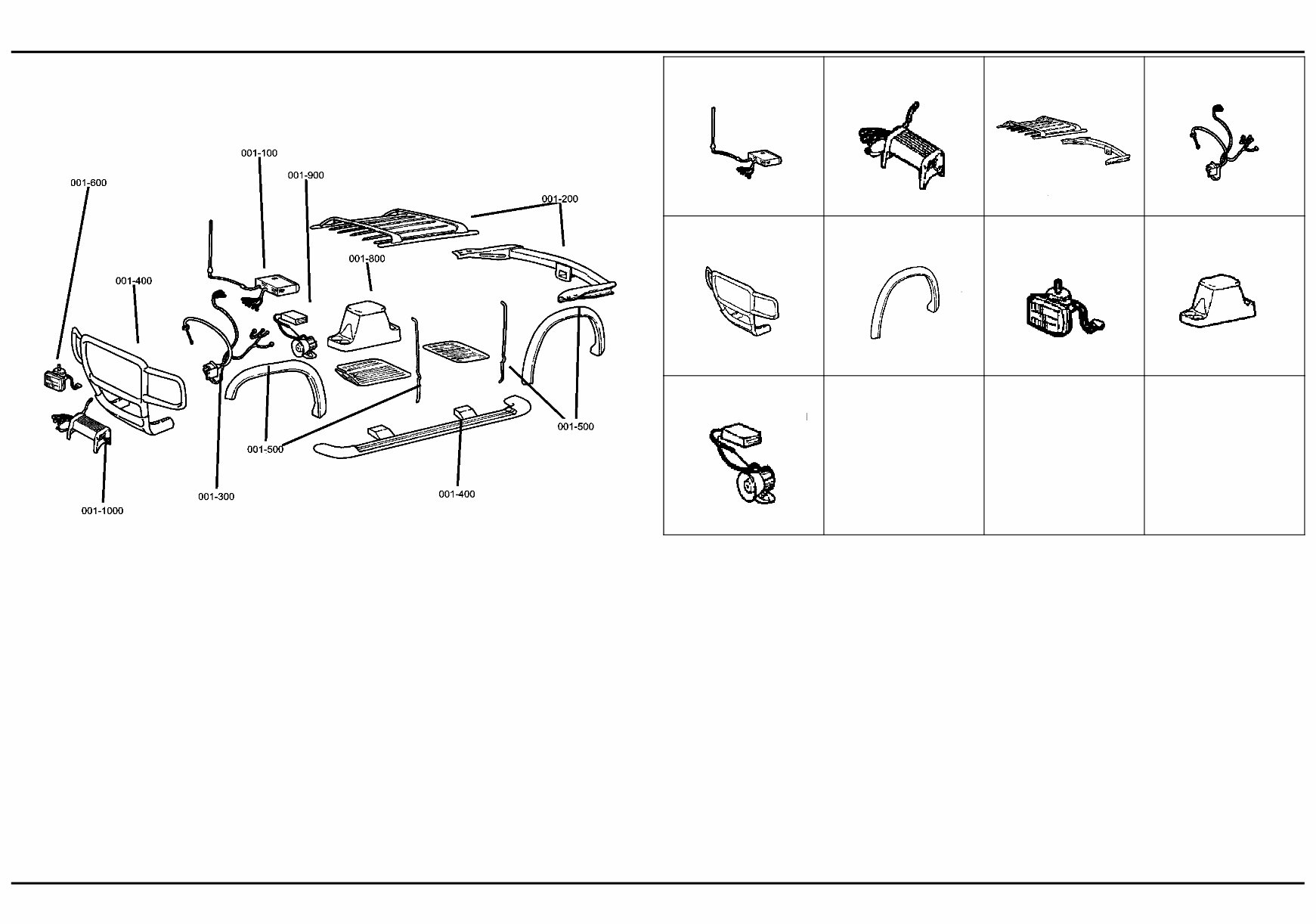

Group - 1 Component Parts for Mopar Accessories 001-100 Audio & Electronics 001-1000 4 - Wheeling & Off Road 001-200 Carriers & Cargo Hauling 001-300 Driving Convenience 001-400 Exterior Appearance 001-500 Exterior Protection 001-600 Fog Lights & Electrical 001-800 Interior Storage 001-900 Security 2002 TJ

Group - 1 Component Parts for Mopar Accessories Illustration Title Group-Fig. No. Audio & Electronics Player Kit - CD Changer - 6 Disc............................................................................................................ Fig. 1 - 110 Player Kit -- 12 Disc .......................................................................................................................... Fig. 1 - 120 Install Kit - CD Changer - Trunk ............................................................................................................. Fig. 1 - 130 Antenna Kit ................................................................................................................................... Fig. 1 - 150 Speaker Kit - Sub Woofer ................................................................................................................... Fig. 1 - 162 Overhead Speakers - Soundbar ............................................................................................................ Fig. 1 - 164 Carriers & Cargo Hauling Bike Carrier - Hitch Mount ................................................................................................................... Fig. 1 - 220 Bike Carrier - Spare Tire Mount ............................................................................................................. Fig. 1 - 222 Ski Carrier - Spare Tire Mount .............................................................................................................. Fig. 1 - 232 Trailer Tow - Receiver Kit .................................................................................................................... Fig. 1 - 250 Driving Convenience Speed Control Kit ............................................................................................................................ Fig. 1 - 310 Top Kit - Soft .................................................................................................................................. Fig. 1 - 320 Hardtop Exhauster ........................................................................................................................... Fig. 1 - 322 Mounting Kit - Cell Phone ................................................................................................................... Fig. 1 - 330 Exterior Appearance Bumper Kit- Front ............................................................................................................................ Fig. 1 - 410 Bumper Kit - Rear ............................................................................................................................ Fig. 1 - 420 Extension Kit - Bumper ...................................................................................................................... Fig. 1 - 430 Side Step Kit .................................................................................................................................. Fig. 1 - 440 Exterior Protection Shield Kit - Air ................................................................................................................................ Fig. 1 - 510 Trim Kit - Door ................................................................................................................................ Fig. 1 - 520 Hardware Package - Door ................................................................................................................... Fig. 1 - 540 Hardtop Wiring Kit ............................................................................................................................ Fig. 1 - 550 Fog Lights & Electrical Light Kit - Fog................................................................................................................................. Fig. 1 - 610 Light Kit - Off Road ........................................................................................................................... Fig. 1 - 620 Bar Kit - Light Windshield.................................................................................................................... Fig. 1 - 630 Installation Package - Lights ................................................................................................................ Fig. 1 - 640 Heater Kit - Engine Block .................................................................................................................... Fig. 1 - 650 Interior Storage Console Kit - Floor ........................................................................................................................... Fig. 1 - 820 Security Alarm - EVS Base System................................................................................................................... Fig. 1 - 910 4 - Wheeling & Off Road Winch Kit - Power ........................................................................................................................... Fig. 1 - 1020 2002 TJ

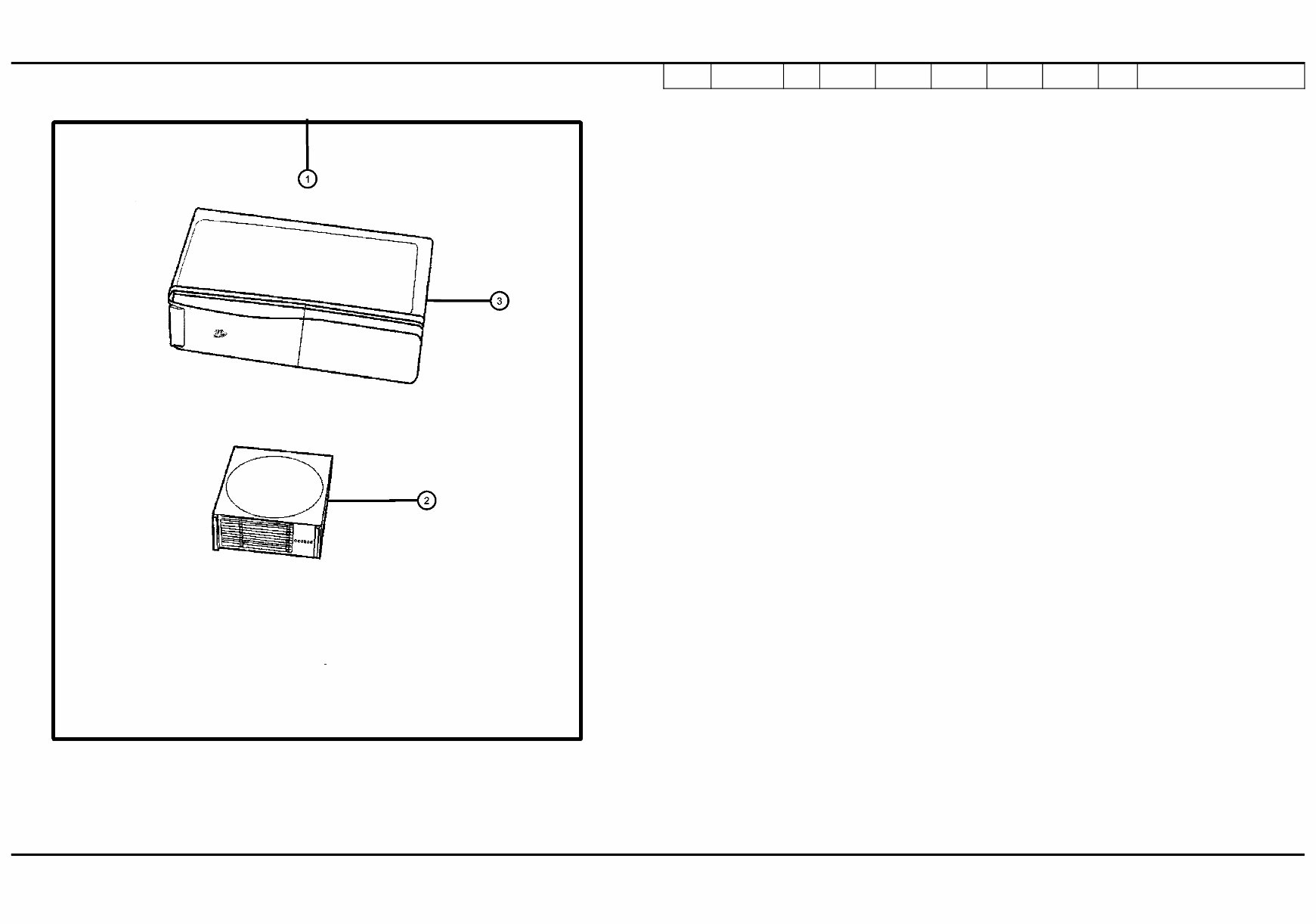

Player Kit - CD Changer - 6 Disc Figure 1-110 ITEM PART NUMBER QTY LINE SERIES BODY ENGINE TRANS TRIM DESCRIPTION Player Kit - CD Changer - 6 Disc PK- CD C-6D NOTE; Use with CD-Controlled radios. For radios without CD Changer controls, use FM-Modulator Kit 82202292 1 82202700 1 PLAYER KIT, CD Changer - 6 Disc 2 04797433 1 MAGAZINE, CD Changer 3 04797433 1 CHANGER, CD, Serviced in Package, (NOT SERVICED) WRANGLER (TJ) SERIES LINE BODY ENGINE TRANSMISSION H = Sport L = SE M=X P = Sahara J = JEEP - 4WD U = JEEP - 4WD (RHD) 77 = 93.4 WB EPE = Engine - 2.5L Power Tech I-4 ERH = Engine - 4.0L Power Tech I-6 EP0 = All 2.5L ER0 = All 4.0L DDD = Transmission - 5-Speed HD Manual DDQ = Transmission - 5-Speed Manual DGD = Transmission - 3-Spd. Automatic,30RH DGG = Transmission - 3-Spd. Automatic,32RH DG0 = All Automatic Transmissions DBB = All Manual Transmissions AR = use ase required - = Non illustrrated part 2002 TJ << RETURN TO GROUP INDEX

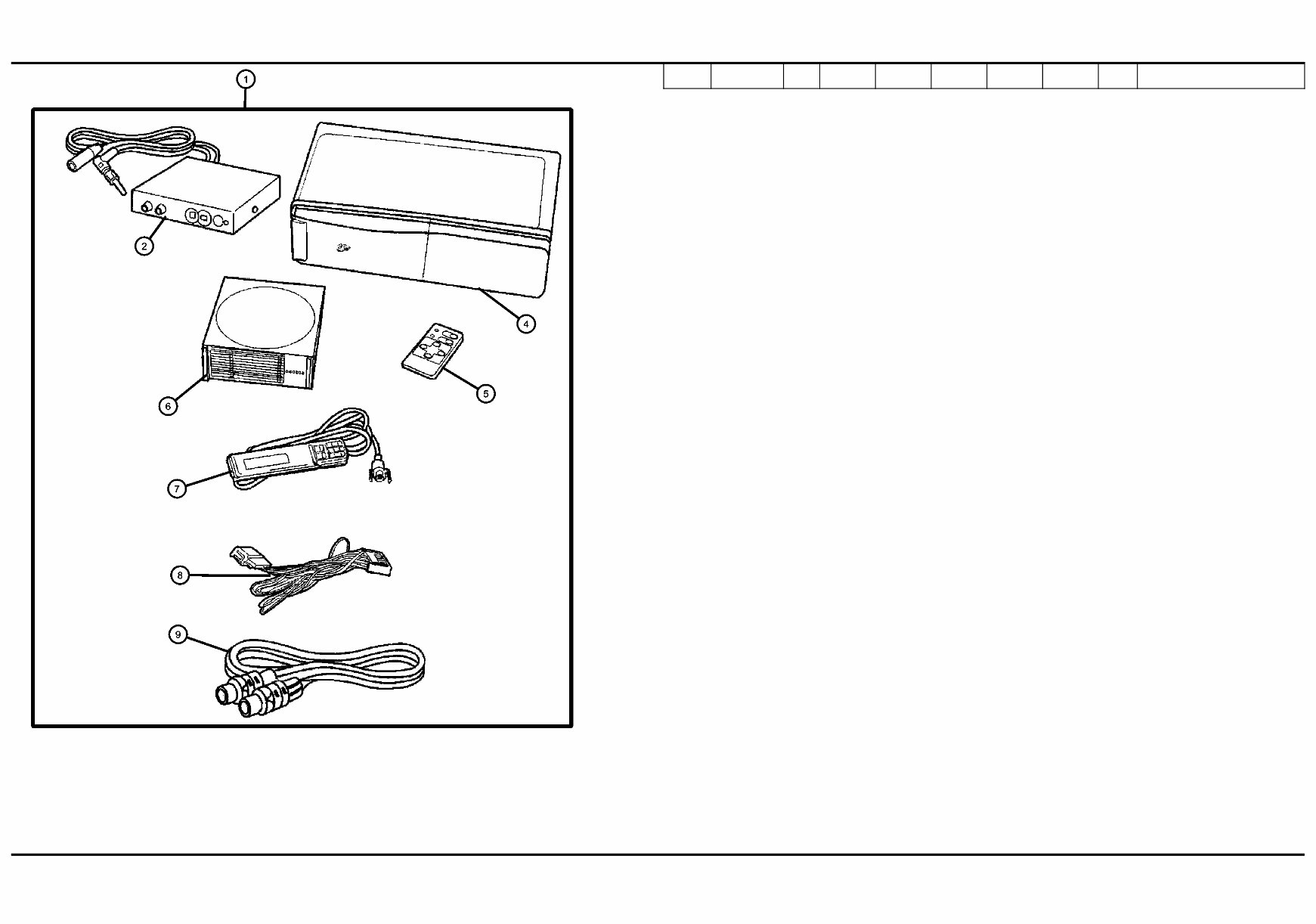

Player Kit -- 12 Disc Figure 1-120 ITEM PART NUMBER QTY LINE SERIES BODY ENGINE TRANS TRIM DESCRIPTION Player Kit -- 12 Disc PK– 12 D NOTE; For radio without CD controls. Pentastar Logo, Includes RF Modulator, Power Cord, Din Cord, Hand Held and IR Remote Controller and O 1 82204730 1 J 77 PLAYER KIT, CD Changer - 12 Disc 2 05013804AA 1 J 77 MODULATOR, FM -3 05013800AA 1 J 77 HARDWARE KIT, Mounting 4 05013806AA 1 J 77 CHANGER, CD 5 05013802AA 1 J 77 CONTROLLER, CD Wireless 6 05013805AA 1 J 77 MAGAZINE, CD Changer 7 05013803AA 1 J 77 CONTROLLER, CD Wired 8 04465117 1 J 77 ADAPTOR, A/C 9 05013801AA 1 J 77 DIN CORD, CD Player, 5 Meters WRANGLER (TJ) SERIES LINE BODY ENGINE TRANSMISSION H = Sport L = SE M=X P = Sahara J = JEEP - 4WD U = JEEP - 4WD (RHD) 77 = 93.4 WB EPE = Engine - 2.5L Power Tech I-4 ERH = Engine - 4.0L Power Tech I-6 EP0 = All 2.5L ER0 = All 4.0L DDD = Transmission - 5-Speed HD Manual DDQ = Transmission - 5-Speed Manual DGD = Transmission - 3-Spd. Automatic,30RH DGG = Transmission - 3-Spd. Automatic,32RH DG0 = All Automatic Transmissions DBB = All Manual Transmissions AR = use ase required - = Non illustrrated part 2002 TJ << RETURN TO GROUP INDEX

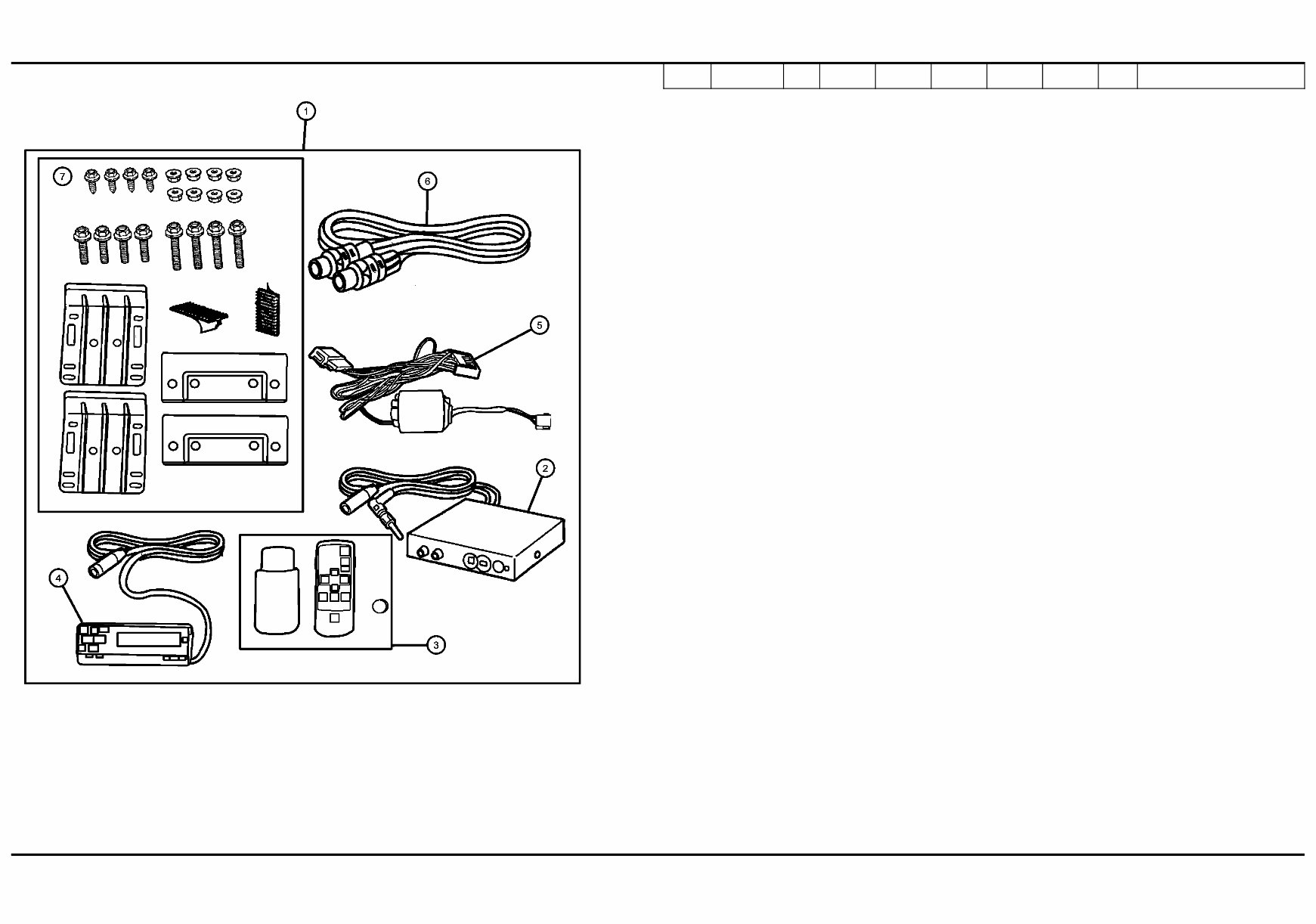

Install Kit - CD Changer - Trunk Figure 1-130 ITEM PART NUMBER QTY LINE SERIES BODY ENGINE TRANS TRIM DESCRIPTION Install Kit - CD Changer - Trunk 1 82207481 1 J 77 INSTALL KIT, CD Changer - Trunk 2 82207481 1 MODULATOR, FM Changer, (NOT SERVICED) 3 05017217AA 1 J 77 CONTROLLER, CD Wireless 4 05017217AA 1 CONTROLLER, CD Wired, (NOT SERVICED) 5 04465117 1 J 77 ADAPTOR, A/C 6 04465113 1 J 77 CABLE, Din 7 04465113 1 HARDWARE KIT, Mounting, (NOT SERVICED) WRANGLER (TJ) SERIES LINE BODY ENGINE TRANSMISSION H = Sport L = SE M=X P = Sahara J = JEEP - 4WD U = JEEP - 4WD (RHD) 77 = 93.4 WB EPE = Engine - 2.5L Power Tech I-4 ERH = Engine - 4.0L Power Tech I-6 EP0 = All 2.5L ER0 = All 4.0L DDD = Transmission - 5-Speed HD Manual DDQ = Transmission - 5-Speed Manual DGD = Transmission - 3-Spd. Automatic,30RH DGG = Transmission - 3-Spd. Automatic,32RH DG0 = All Automatic Transmissions DBB = All Manual Transmissions AR = use ase required - = Non illustrrated part 2002 TJ << RETURN TO GROUP INDEX

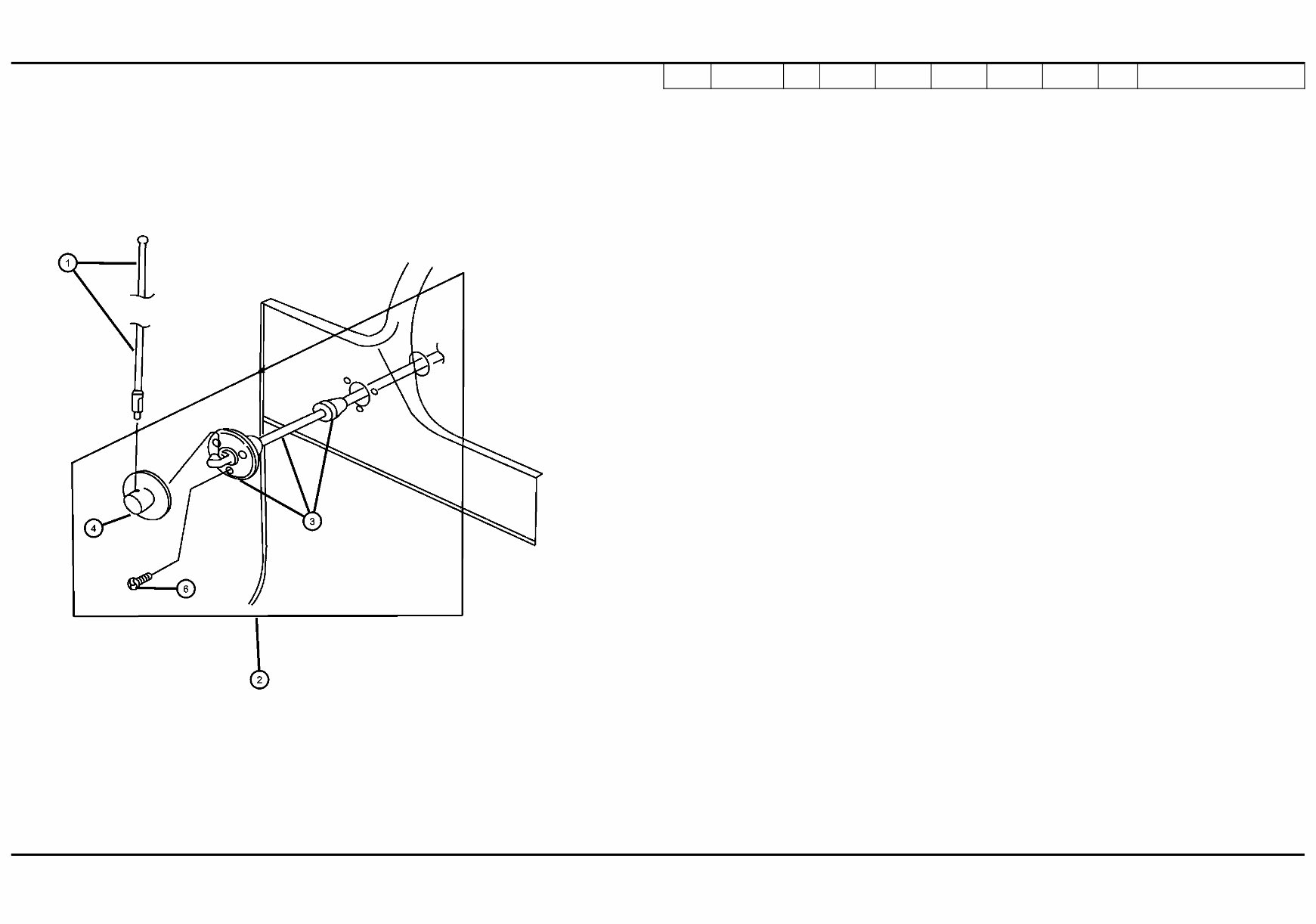

Antenna Kit Figure 1-150 ITEM PART NUMBER QTY LINE SERIES BODY ENGINE TRANS TRIM DESCRIPTION Antenna Kit 1 56009081 1 MAST, Antenna 2 82202317 1 J 77 ANTENNA PACKAGE, Radio - Manual 3 56008788 1 ANTENNA, Base Cable And Bracket 4 56038504 1 COVER, Antenna Opening -5 56008786 1 CABLE, Antenna, Extension with 90 Degree Male End. 6 56008786 1 SCREW, Oval Head, .164-18x.75, (NOT SERVICED) WRANGLER (TJ) SERIES LINE BODY ENGINE TRANSMISSION H = Sport L = SE M=X P = Sahara J = JEEP - 4WD U = JEEP - 4WD (RHD) 77 = 93.4 WB EPE = Engine - 2.5L Power Tech I-4 ERH = Engine - 4.0L Power Tech I-6 EP0 = All 2.5L ER0 = All 4.0L DDD = Transmission - 5-Speed HD Manual DDQ = Transmission - 5-Speed Manual DGD = Transmission - 3-Spd. Automatic,30RH DGG = Transmission - 3-Spd. Automatic,32RH DG0 = All Automatic Transmissions DBB = All Manual Transmissions AR = use ase required - = Non illustrrated part 2002 TJ << RETURN TO GROUP INDEX

Speaker Kit - Sub Woofer Figure 1-162 ITEM PART NUMBER QTY LINE SERIES BODY ENGINE TRANS TRIM DESCRIPTION Speaker Kit - Sub Woofer SK-SW NOTE: Sub-Woofer, Treeters and Amplier are located in the panel 1 SPEAKER KIT, Sub Woofer 82204808 1 J 77 Agate 82204809 1 J 77 Camel 2 04883950 1 J 77 SPEAKER, Sub - Woofer, 8 Inch 3 04883951 1 J 77 SPEAKER, Tweeter -4 04883952 1 J 77 AMPLIFIER, Radio WRANGLER (TJ) SERIES LINE BODY ENGINE TRANSMISSION H = Sport L = SE M=X P = Sahara J = JEEP - 4WD U = JEEP - 4WD (RHD) 77 = 93.4 WB EPE = Engine - 2.5L Power Tech I-4 ERH = Engine - 4.0L Power Tech I-6 EP0 = All 2.5L ER0 = All 4.0L DDD = Transmission - 5-Speed HD Manual DDQ = Transmission - 5-Speed Manual DGD = Transmission - 3-Spd. Automatic,30RH DGG = Transmission - 3-Spd. Automatic,32RH DG0 = All Automatic Transmissions DBB = All Manual Transmissions AR = use ase required - = Non illustrrated part 2002 TJ << RETURN TO GROUP INDEX

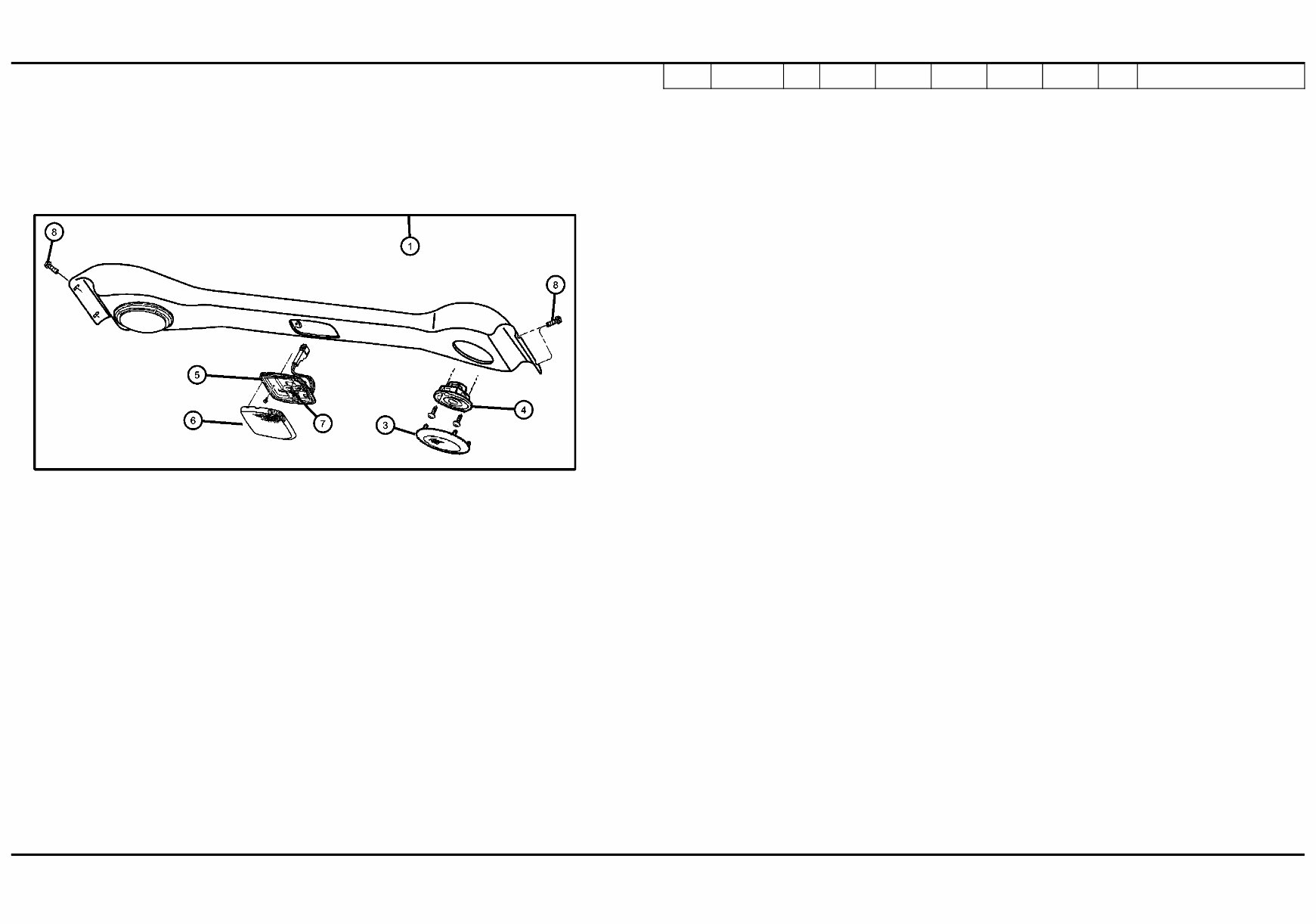

Overhead Speakers - Soundbar Figure 1-164 ITEM PART NUMBER QTY LINE SERIES BODY ENGINE TRANS TRIM DESCRIPTION Overhead Speakers - Soundbar 1 SPEAKER KIT, Sound Bar 82207330 1 J 77 Agate 82207331 1 J 77 Camel -2 04874294 1 COVER, Soundbar 3 04874296AB 1 GRILLE, Speaker 4 56038566AC 2 SPEAKER, 5.25" 5 56007264 1 BEZEL, Dome Lamp 6 56007265 1 LENS, Dome Lamp 7 L0000912 1 BULB, 912 8 06503267 4 SCREW, Round Head, M6x1x25 WRANGLER (TJ) SERIES LINE BODY ENGINE TRANSMISSION H = Sport L = SE M=X P = Sahara J = JEEP - 4WD U = JEEP - 4WD (RHD) 77 = 93.4 WB EPE = Engine - 2.5L Power Tech I-4 ERH = Engine - 4.0L Power Tech I-6 EP0 = All 2.5L ER0 = All 4.0L DDD = Transmission - 5-Speed HD Manual DDQ = Transmission - 5-Speed Manual DGD = Transmission - 3-Spd. Automatic,30RH DGG = Transmission - 3-Spd. Automatic,32RH DG0 = All Automatic Transmissions DBB = All Manual Transmissions AR = use ase required - = Non illustrrated part 2002 TJ << RETURN TO GROUP INDEX

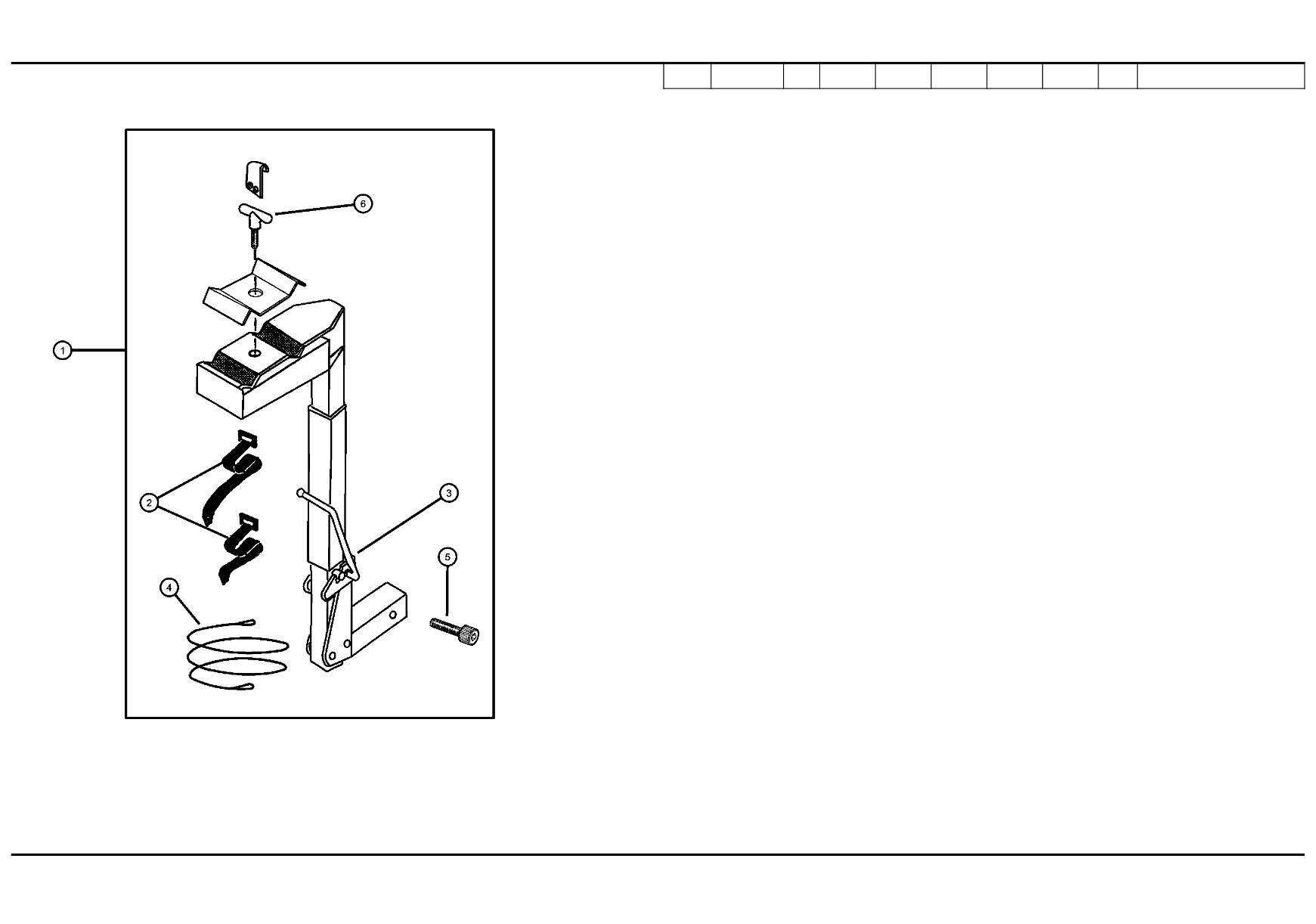

Bike Carrier - Hitch Mount Figure 1-220 ITEM PART NUMBER QTY LINE SERIES BODY ENGINE TRANS TRIM DESCRIPTION Bike Carrier - Hitch Mount BC-HM NOTE: Folds down for access to rear deck, has anti theft bolts. 1 82204452 1 J 77 CARRIER KIT, Bike, 1.25 inch Receiver 2 04762880 1 J 77 STRAP KIT, Velcro 3 05016775AA 1 J 77 STRAP KIT, Bike Carrier Latch, Consists of: 2- Rubber Straps 4 04762882 1 J 77 LOCK KIT, Bike Carrier Handle 5 05016774AA 1 J 77 BOLT KIT, Security, Consists of: Security Bolt and Wrench 6 05016610AA 1 J 77 HARDWARE KIT, Accessory, T-Handle WRANGLER (TJ) SERIES LINE BODY ENGINE TRANSMISSION H = Sport L = SE M=X P = Sahara J = JEEP - 4WD U = JEEP - 4WD (RHD) 77 = 93.4 WB EPE = Engine - 2.5L Power Tech I-4 ERH = Engine - 4.0L Power Tech I-6 EP0 = All 2.5L ER0 = All 4.0L DDD = Transmission - 5-Speed HD Manual DDQ = Transmission - 5-Speed Manual DGD = Transmission - 3-Spd. Automatic,30RH DGG = Transmission - 3-Spd. Automatic,32RH DG0 = All Automatic Transmissions DBB = All Manual Transmissions AR = use ase required - = Non illustrrated part 2002 TJ << RETURN TO GROUP INDEX
