CHAPTER 1 INTRODUCTION Section I. GENERAL 1. scope a. This manual is published for the information and guidance of personnel responsible for depot maintenance of this matiriel. It contains information on maintenance which is beyond the scope of the tools, equipment, or supplies normally available to using organizations. This manual does not contain information which is intended pri- marily for the using organization, since such information is available to ordnance maintenance personnel in the pertinent operator’s technical manuals or field manuals. b. This manual contains a description of and procedures for re- moval, disassembly, inspection, repair, rebuild, and assembly of the engine and clutch for the $/,-ton 4 x 4 utility truck M38. The appendix contains a list of current references, including supply catalogs, technical manuals, and other available publications applicable to the matdriel. c. TM Q-804 contains operating and lubricating instructions for the materiel and contains all maintenance operations allocated to using organizations in performing maintenance work within their scope. d. TM Q-1804B contains service information on the power train, body and frame. e. TM Q-18258 or TM Q-1825B contains service information on the Delco-Remy or Auto-Lit6 electrical equipment. f. TM Q-1826A contains service information on the Carter carbu- retor. g. TM Q-1828A contains service information on the AC fuel -pump. h. This first edition manual is being published in advance of complete technical review of all concerned. Any errors or omissions will be brought to the attention of Chief of Ordnance, Washington 25, D. C., ATTENTION : ORDFM-Pub. 2. Field and Depot Maintenance Allocation The publication of instructions for complete disassembly and rebuild is not to be construed as authority for the performance by field

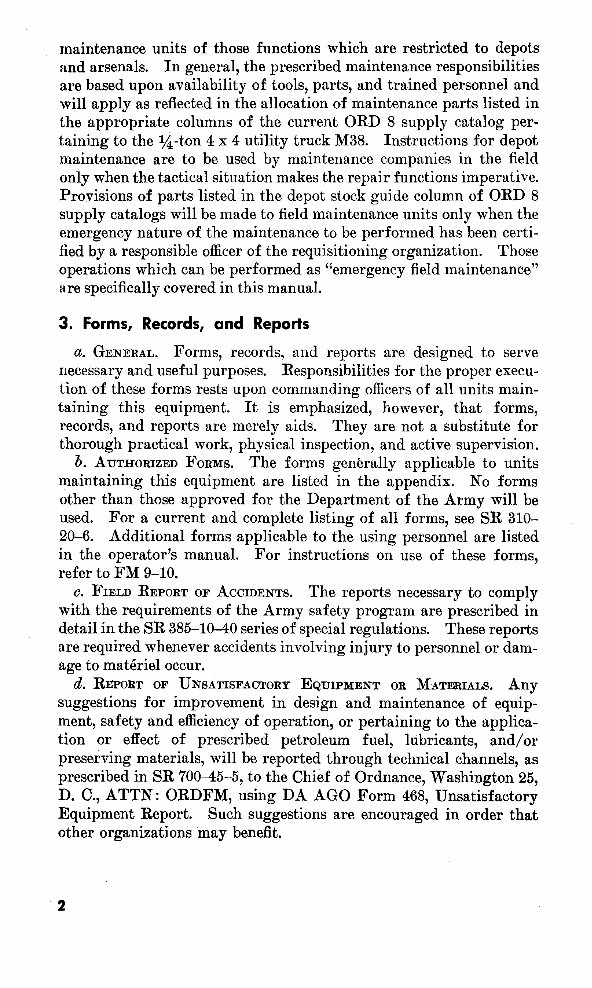

maintenance units of those functions which are restricted to depots and arsenals. In general, the prescribed maintenance responsibilities are based upon availability of tools, parts, and trained personnel and will apply as reflected in the allocation of maintenance parts listed in the appropriate columns of the current ORD 8 supply catalog pertaining to the $,&ton 4 x 4 utility truck M38. Instructions for depot maintenance are to be used by maintenance companies in the field only when the tactical situation makes the repair functions imperative. Provisions of parts listed in the depot stock guide column of ORD 8 supply catalogs will be made to field maintenance units only when the emergency nature of the maintenance to be performed has been certi- fied by a responsible officer of the requisitioning organization. Those operations which can be performed as “emergency field maintenance” a,re specifically covered in this manual. 3. Forms, Records, and Reports cc. GENERAL. Forms, records, and reports are designed to serve necessary and useful purposes. Responsibilities for the proper execu- tion of these forms rests upon commanding officers of all units maintaining this equipment. It is emphasized, however, that forms, records, and reports are merely aids. They are not a substitute for thorough practical work, physical inspection, and active supervision. b. AUTHORIZED FORMS. The forms generally applicable to units maintaining this equipment are listed in the appendix. No forms other than those approved for the Department of the Army will be used. For a current and complete listing of all forms, see SR 310- 20-6. Additional forms applicable to the using personnel are listed in the operator’s manual For instructions on use of these forms, refer to FM 9-10. c. FIELD REPORTOF ACCIDENTS. The reports necessary to comply with the requirements of the Army safety program are prescribed in detail in the SR 385-10-40 series of special regulations. These reports a,re required whenever accidents involving injury to personnel or damage to materiel occur. d. REPORT OF UNSATISFACTORY EQUIPMENT OR MATERIALS. Any suggestions for improvement in design and maintenance of equipment, safety and efficiency of operation, or pertaining to the application or effect of prescribed petroleum fuel, lubricants, and/or preserving materials, will be reported through technical channels, as prescribed in SR 70045-5, to the Chief of Ordnance, Washington 25, D. C., ATTN: ORDFM, using DA AGO Form 468, Unsatisfactory Equipment Report. Such suggestions are encouraged in order that other organizations may benefit..

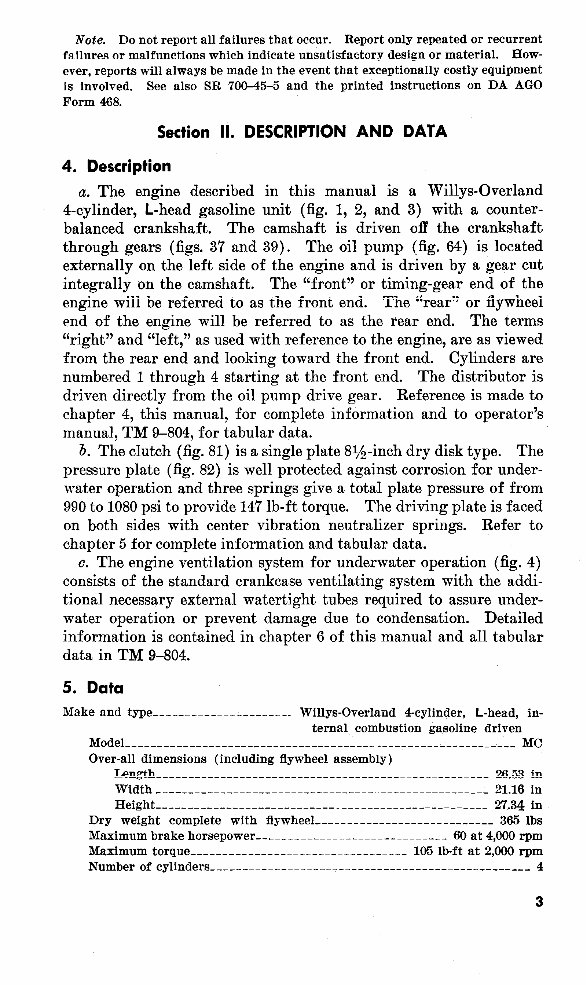

Note. Do not report all failures that occur. Report only repeated or recurrent failures or malfunctions which indicate unsatisfactory design or material. How- ever, reports will always be made in the event that exceptionally costly equipment is involved. See also SR 700-45-5 and the printed instructions on DA AGO Form 468. Section II. DESCRIPTION AND DATA 4. Description a. The engine described in this manual is a Willys-Overland 4-cylinder, L-head gasoline unit (fig. 1, 2, and 3) with a counter- balanced crankshaft. The camshaft is driven off the crankshaft through gears (figs. 3’7 and 39). The oil pump (fig. 64) is located externally on the left side of the engine and is driven by a gear cut integrally on the camshaft. The “front” or timing-gear end of the engine will be referred to as the front end. The “rear” or flywheel end of the engine will be referred to as the rear end. The terms “right” and “left,” as used with reference to the engine, are as viewed from the rear end and looking toward the front end. Cylinders are numbered 1 through 4 starting at the front end. The distributor is driven directly from the oil pump drive gear. Reference is made to chapter 4, this manual, for complete information and to operator’s manual, TM 9-804, for tabular data. b. The clutch (fig. 81) is a single plate @$-inch dry disk type. The pressure plate (fig. 82) is well protected against corrosion for underwater operation and three springs give a total plate pressure of from 990 to 1080 psi to provide 147 lb-ft torque. The driving plate is faced on both sides with center vibration neutralizer springs. Refer to chapter 5 for complete information and tabular data. c. The engine ventilation system for underwater operation (fig. 4) consists of the standard crankcase ventilating system with the additional necessary external watertight tubes required to assure underwater operation or prevent damage due to condensation. Detailed information is contained in chapter 6 of this manual and all tabular data in TM 9-804. 5. Data Make and type__--________-________. Willys-Overland 4-cylinder, L-head, in- ternal combustion gasoline driven Model_______________-----_-----------------__-_---__-_--_-_--__-__ MC Over-all dimensions (including flywheel assembly) Length______________------------------------__---_----_--- 26.53 in Width_-______-_____-_____---_-----_---_..--_--------_--_-_ 21.16 in Height------__-_---_----------_-----------------_--_-_---- 27.34 in Dry weight complete with flywheel__--__________________--__-_ 365 Ibs Maximum brake horsepower____---_____________________-_ 60 at 4,000 rpm Maximum torque________________-____-_-______-___ 105 lb-ft at 2,000 rpm Number ofcylinders____--__-_--------------__--------------_-___--___ 4 3

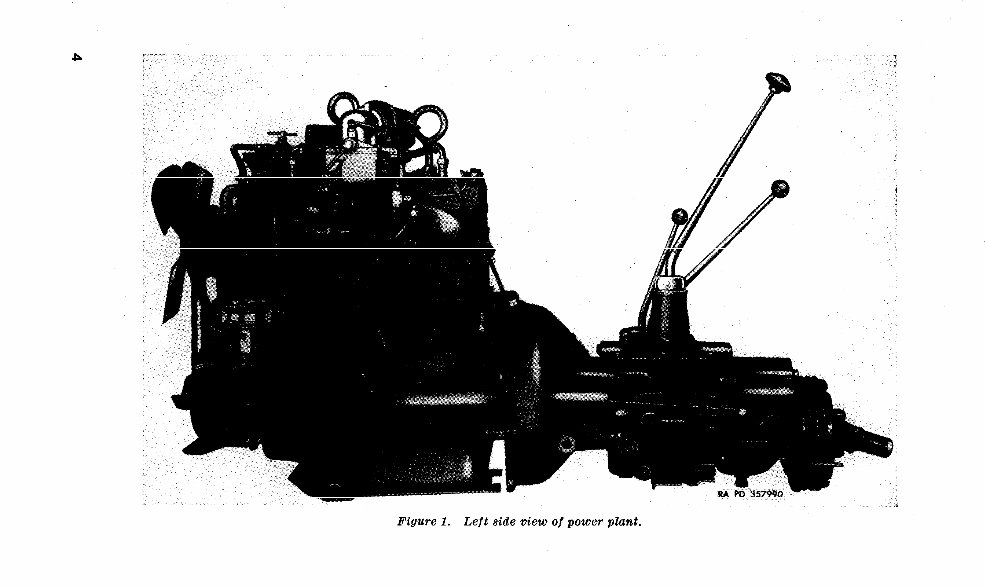

Figure 1. Left side view of power plant.

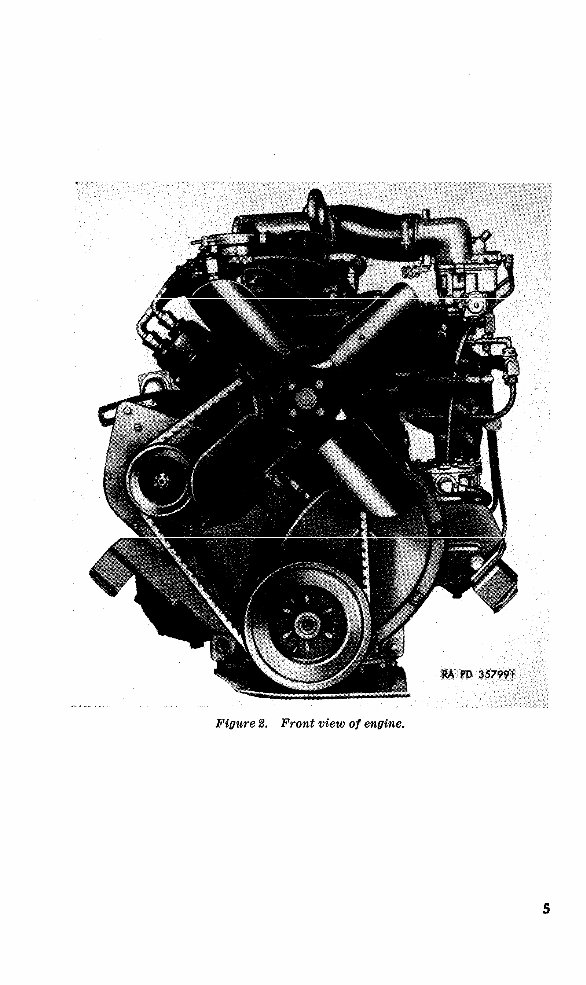

Figure 2. Front view of engine.

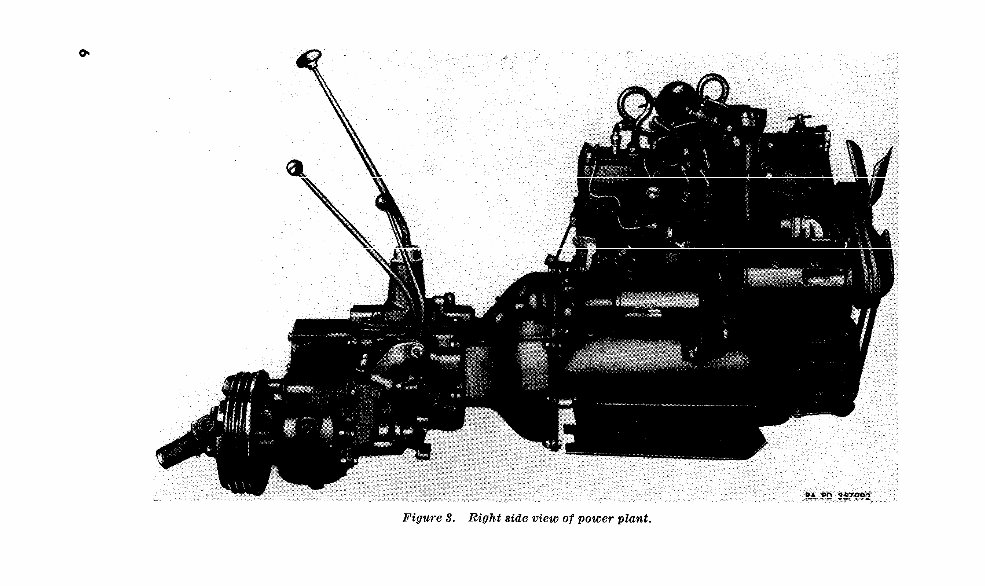

Figure 3. Right side view of power plant.

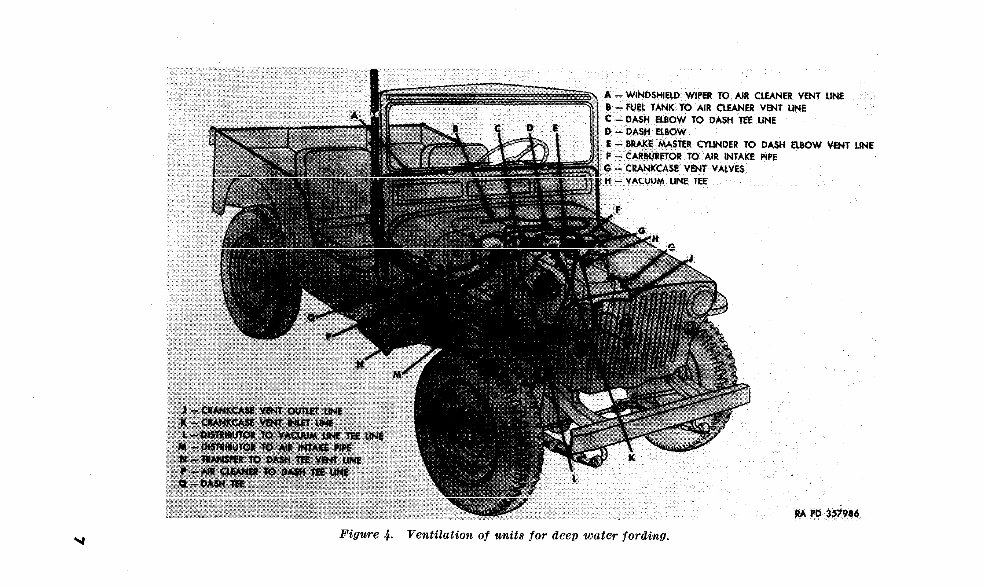

LINE VWT LINE Y Figure 4. Ventilation of units for deep water fording.

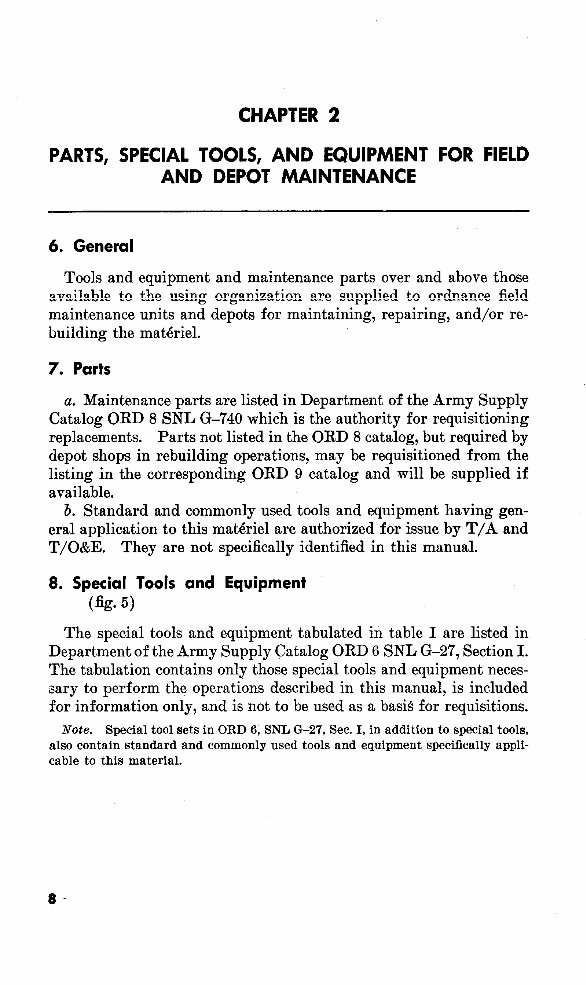

Tools and equipment and maintenance parts over and above those available to the using organization are supplied to ordnance field maintenance units and depots for maintaining, repairing, and/or rebuilding the matiriel. Maintenance parts are listed in Department of the Army Supply Catalog ORD 8 SNL G-740 which is the authority for requisitioning replacements. Parts not listed in the ORD 8 catalog, but required by depot shops in rebuilding operations, may be requisitioned from the listing in the corresponding ORD 9 catalog and will be supplied if available. 6. Standard and commonly used tools and equipment having general application to this materiel are authorized for issue by T/A and T/O&E. They are not specifically identified in this manual. The special tools and equipment tabulated in table I are listed in Department of the Army Supply Catalog ORD 6 SNL G-27, Section I. The tabulation contains only those special tools and equipment necessary to perform the operations described in this manual, is included for information only, and is not to be used as a basis for requisitions. Note. Special tool sets in ORD 6, SNL G-27, Sec. I, in addition to special tools, also contain standard and commonly used tools and equipment specifically applicable to this material. 8
