VIN PLATE DECODING INFORMATION 1 2 3 4 5 6 7 8 9 10 11 12 thru 17 Country Make Vehicle Type Other Line Series Body Style Engine Check Digit Model Year Assy. Plant Sequence No. The following table interprets the VIN Plate position shown above. Position Interpretation Codes = Description 1 Country of Origin 1 = Built in U.S. by DaimlerChrysler Corporation 2 Assembler J = Jeep 3 Vehicle Type 4 = Multipurpose Passenger Vehicle Less Side Air Bags 4 GVWR & Pass. Safety E = 1361-1814 kg (3001-4000 lbs) F = 1814-2267 kg (4001-5000 lbs) G = 2268-2721 kg (5001-6000 lbs) H = 2722-3175 kg (6001-7000 lbs) J = 3176-3628 kg (7001-8000 lbs) K = 3629-4082 kg (8001-9000 lbs) L = 4083-4535 kg (9001-10000 lbs) M = 4536-6350 kg (10001-14000 lbs) 5 Vehicle Line K = Liberty 4x2 Left Hand Drive L = Liberty/Cherokee 4x4 Left Hand Drive M = Liberty/Cherokee 4x4 Right Hand Drive 6 Series 4 = H Series - Liberty/Cherokee Sport 3 = M Series - Liberty Renegade 5 = P Series - Liberty/Cherokee Limited 7 Body Style 8 = KJ - 74 8 Engine 1 = 2.4L I4 Cyl. Gas DOHC (ED1) K = 3.7L V6 Cyl. Gas (EKG) 7 = 2.5L I4 Cyl. 16V Turbo Diesel (ENJ) 5 = 2.8L I4 Cyl. 16V Turbo Diesel (ENR) 9 Check Digit 0 = Check Digit 0 = Check Digit 10 Model Year 6 = 2006 11 Assembly Plant L = Toledo North Assembly 12 thru 17 Vehicle Build Sequence Model Year Assembly Sequence

Group - 1 Component Parts for Mopar Accessories 001-100 Audio & Electronics 001-200 Carriers & Cargo Hauling 001-300 Driving Convenience 001-400 Exterior Appearance 001-500 Exterior Protection 001-600 Fog Lights & Electrical 001-800 Interior Storage 2006 KJ

Group - 1 Component Parts for Mopar Accessories Illustration Title Group-Fig. No. Audio & Electronics Player Kit - CD Changer ..................................................................................................................... Fig. 1 - 110 Satellite Receiver Kit ......................................................................................................................... Fig. 1 - 120 Install Kit - Sattelite Receiver Without CD Changer ....................................................................................... Fig. 1 - 130 Install Kit - Satellite Receiver With CD...................................................................................................... Fig. 1 - 135 Navigation Kit (RB1) ......................................................................................................................... Fig. 1 - 140 Navigation Kit (RB4) ......................................................................................................................... Fig. 1 - 145 Carriers & Cargo Hauling Bike Carrier - Roof - Fork Mount ............................................................................................................ Fig. 1 - 210 Bike Carrier - Roof - Upright Mount ......................................................................................................... Fig. 1 - 215 Carrier Kit - Canoe ........................................................................................................................... Fig. 1 - 225 Carrier Kit - Water Sports .................................................................................................................... Fig. 1 - 230 Ski Carrier - Spare Tire Mount .............................................................................................................. Fig. 1 - 235 Ski Carrier - Roof Mount ..................................................................................................................... Fig. 1 - 240 Luggage Carrier - Roof - Hard Style ........................................................................................................ Fig. 1 - 245 Luggage Carrier - Roof - Vinyl .............................................................................................................. Fig. 1 - 250 Rack Kit - Sport Utility........................................................................................................................ Fig. 1 - 255 Wiring Kit - Trailer Tow - 4 Way ............................................................................................................. Fig. 1 - 260 Wiring Kit - Trailer Tow - 7 Way ............................................................................................................. Fig. 1 - 265 Fan Kit - Engine .............................................................................................................................. Fig. 1 - 270 Driving Convenience Remote Start - Installation Kit ............................................................................................................... Fig. 1 - 310 Hands Free Kit/Cellular Phone Blue Tooth ................................................................................................. Fig. 1 - 320 Exterior Appearance Running Board Kit ............................................................................................................................ Fig. 1 - 410 Wheel Kit...................................................................................................................................... Fig. 1 - 415 Exterior Protection Skid Plate - Transfer Case .................................................................................................................. Fig. 1 - 510 Skid Plate - Fuel Tank........................................................................................................................ Fig. 1 - 515 Fog Lights & Electrical Light Bar Roof ................................................................................................................................ Fig. 1 - 615 Interior Storage Guard Kit - Dog............................................................................................................................... Fig. 1 - 810 2006 KJ

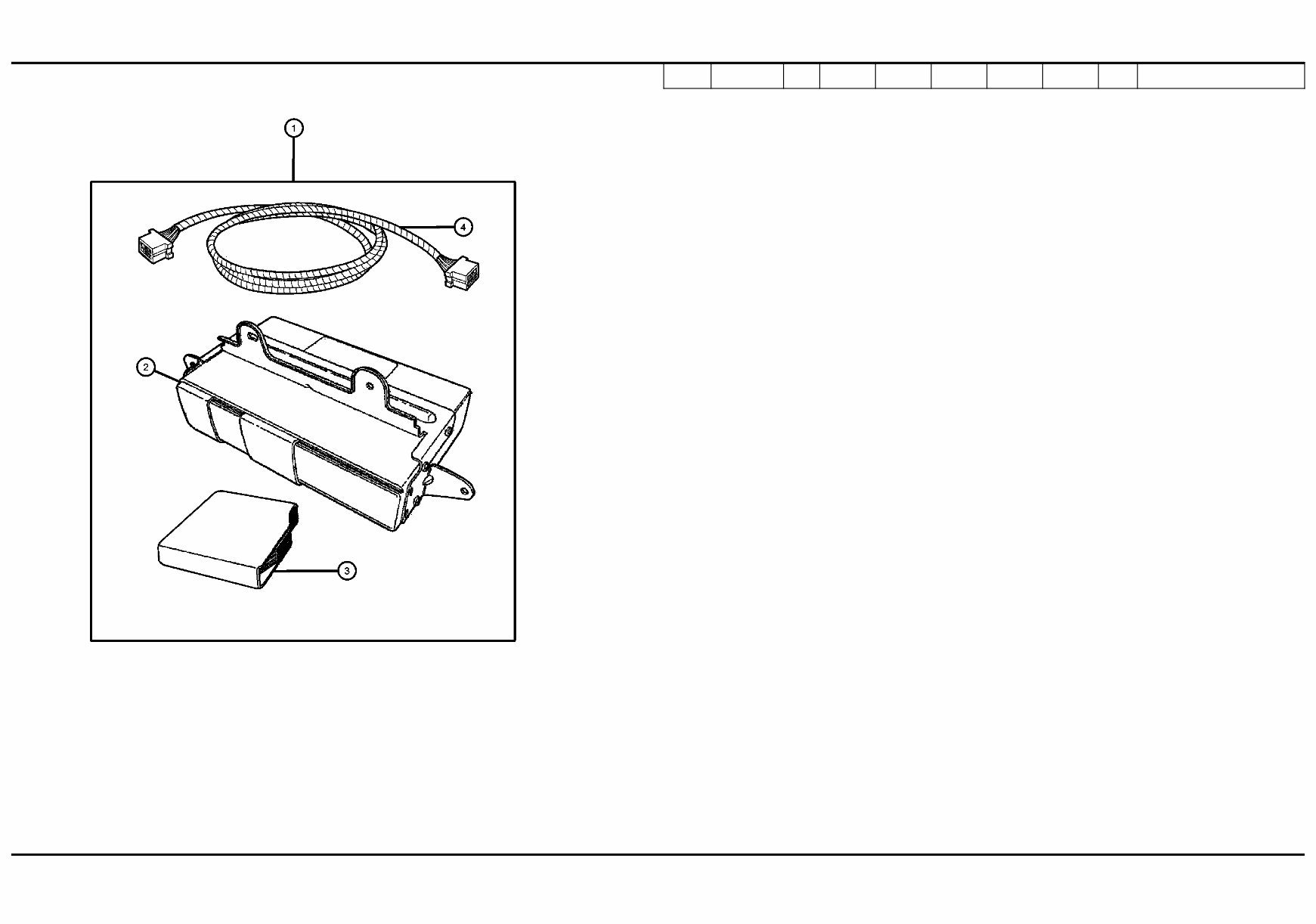

Player Kit - CD Changer Figure 1-110 ITEM PART NUMBER QTY LINE SERIES BODY ENGINE TRANS TRIM DESCRIPTION Player Kit - CD Changer PK- CD C Note; For Warranty Repair On Item 2, Order Using Z Prex 1 82208269 1 74 PLAYER KIT, CD Changer - 6 Disc 2 56038616AA 1 74 CHANGER, CD 3 04797433 1 MAGAZINE, CD Changer 4 05073243AB 1 74 CABLE, CD Changer LIBERTY (KJ) SERIES LINE BODY ENGINE TRANSMISSION H = HIGHLINE M = MEDIUM P = PREMIUM T = JEEP - 2WD J = JEEP - 4WD U = JEEP - 4WD (RHD) 74 = SPORT UTILITY 4-DR EKG = 3.7L V6 Engine ENR = 2.8L 4 Cyl Turbo Diesel Engine ENJ = 2.5L 4 Cyl 16V Turbo Diesel Engine ED1 = 2.4L 4 Cyl DOHC 16v SMPI Engine DG6 = 4-Spd. Automatic 42RLE Transmission DGV = 4-Spd. Automatic VLP Transmission DGQ = 5-Spd Automatic 5-45RFE Transmission DEH = 6-Speed Manual NSG370 Transmission DDD = 5-Speed HD Manual Transmission DDK = 5-Speed HD Manual Transmission AR = use ase required - = Non illustrrated part 2006 KJ << RETURN TO GROUP INDEX

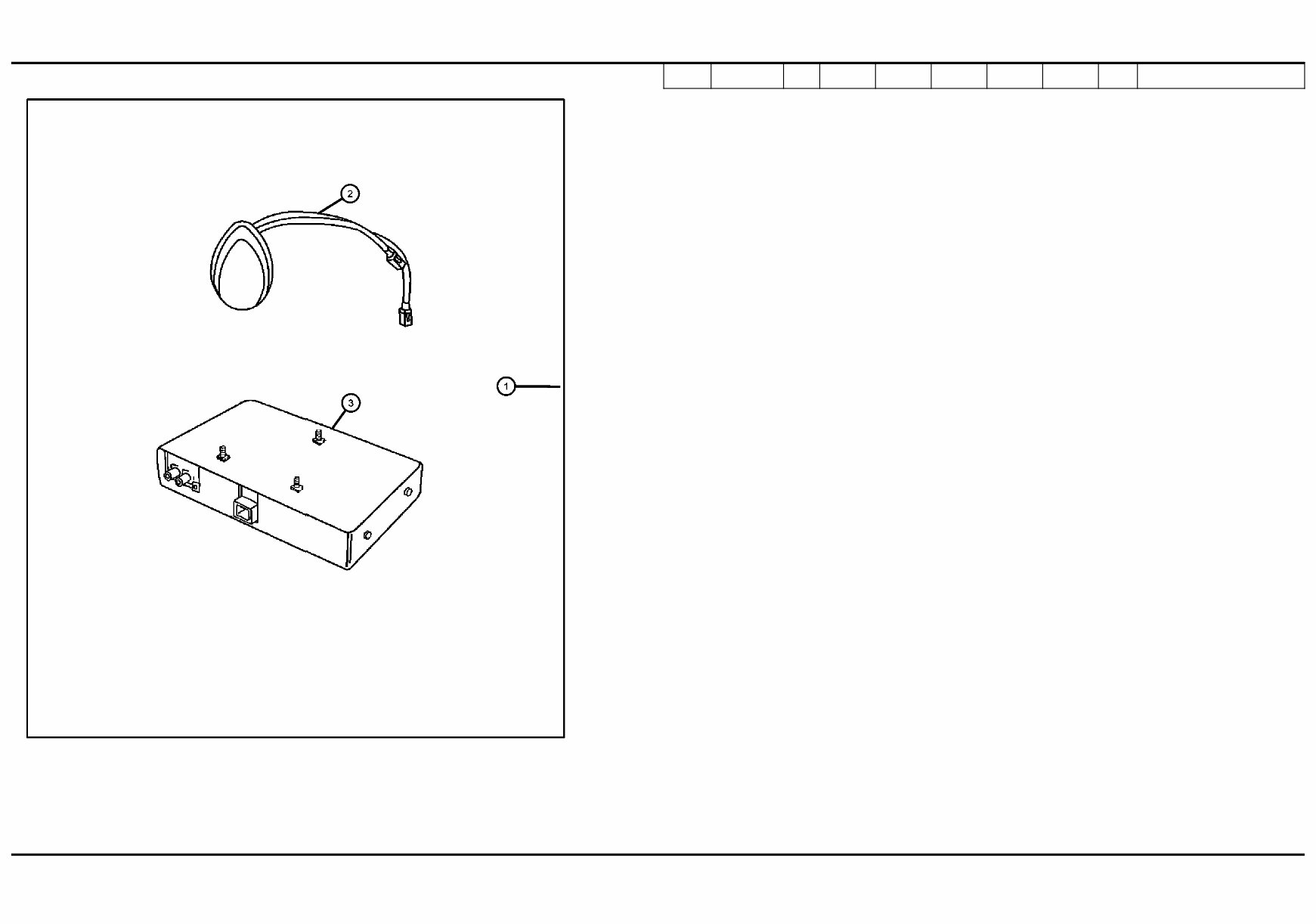

Satellite Receiver Kit Figure 1-120 ITEM PART NUMBER QTY LINE SERIES BODY ENGINE TRANS TRIM DESCRIPTION Satellite Receiver Kit SRK Note: For Warranty Repair on Item 3, Order Using Z Prex 1 82206488AB 1 RECEIVER, Satelite 2 05066205AC 1 ANTENNA, Satellite 3 05064020AJ 1 RECEIVER, Satellite LIBERTY (KJ) SERIES LINE BODY ENGINE TRANSMISSION H = HIGHLINE M = MEDIUM P = PREMIUM T = JEEP - 2WD J = JEEP - 4WD U = JEEP - 4WD (RHD) 74 = SPORT UTILITY 4-DR EKG = 3.7L V6 Engine ENR = 2.8L 4 Cyl Turbo Diesel Engine ENJ = 2.5L 4 Cyl 16V Turbo Diesel Engine ED1 = 2.4L 4 Cyl DOHC 16v SMPI Engine DG6 = 4-Spd. Automatic 42RLE Transmission DGV = 4-Spd. Automatic VLP Transmission DGQ = 5-Spd Automatic 5-45RFE Transmission DEH = 6-Speed Manual NSG370 Transmission DDD = 5-Speed HD Manual Transmission DDK = 5-Speed HD Manual Transmission AR = use ase required - = Non illustrrated part 2006 KJ << RETURN TO GROUP INDEX

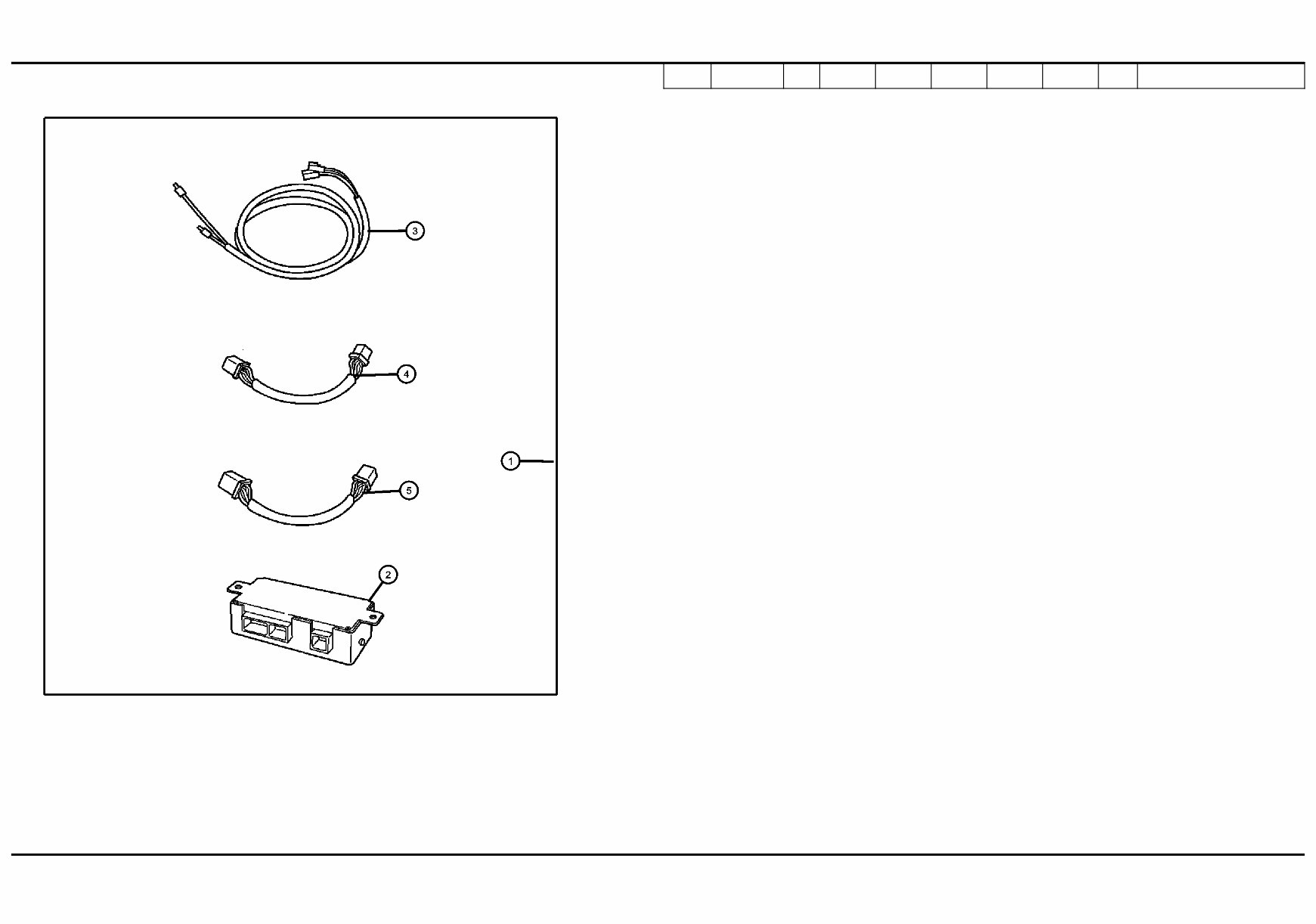

Install Kit - Sattelite Receiver Without CD Changer Figure 1-130 ITEM PART NUMBER QTY LINE SERIES BODY ENGINE TRANS TRIM DESCRIPTION Install Kit - Sattelite Receiver Without CD Changer 1 82206489 1 INSTALL KIT, Satelite Receiver 2 05066207AB 1 CABLE, Antenna 3 05066203AA 1 WIRING, Rcvr to Radio LIBERTY (KJ) SERIES LINE BODY ENGINE TRANSMISSION H = HIGHLINE M = MEDIUM P = PREMIUM T = JEEP - 2WD J = JEEP - 4WD U = JEEP - 4WD (RHD) 74 = SPORT UTILITY 4-DR EKG = 3.7L V6 Engine ENR = 2.8L 4 Cyl Turbo Diesel Engine ENJ = 2.5L 4 Cyl 16V Turbo Diesel Engine ED1 = 2.4L 4 Cyl DOHC 16v SMPI Engine DG6 = 4-Spd. Automatic 42RLE Transmission DGV = 4-Spd. Automatic VLP Transmission DGQ = 5-Spd Automatic 5-45RFE Transmission DEH = 6-Speed Manual NSG370 Transmission DDD = 5-Speed HD Manual Transmission DDK = 5-Speed HD Manual Transmission AR = use ase required - = Non illustrrated part 2006 KJ << RETURN TO GROUP INDEX

Install Kit - Satellite Receiver With CD Figure 1-135 ITEM PART NUMBER QTY LINE SERIES BODY ENGINE TRANS TRIM DESCRIPTION Install Kit - Satellite Receiver With CD 1 82207565 1 INSTALL KIT, Satelite Receiver 2 05066202AC 1 MODULE, RR Multiplex 3 05066207AB 1 CABLE, Antenna 4 05066206AA 1 WIRING, RCVR TO MUX 5 05083163AA 1 WIRING, CD to MUX -6 05066210AA 1 WIRING, Adaptor LIBERTY (KJ) SERIES LINE BODY ENGINE TRANSMISSION H = HIGHLINE M = MEDIUM P = PREMIUM T = JEEP - 2WD J = JEEP - 4WD U = JEEP - 4WD (RHD) 74 = SPORT UTILITY 4-DR EKG = 3.7L V6 Engine ENR = 2.8L 4 Cyl Turbo Diesel Engine ENJ = 2.5L 4 Cyl 16V Turbo Diesel Engine ED1 = 2.4L 4 Cyl DOHC 16v SMPI Engine DG6 = 4-Spd. Automatic 42RLE Transmission DGV = 4-Spd. Automatic VLP Transmission DGQ = 5-Spd Automatic 5-45RFE Transmission DEH = 6-Speed Manual NSG370 Transmission DDD = 5-Speed HD Manual Transmission DDK = 5-Speed HD Manual Transmission AR = use ase required - = Non illustrrated part 2006 KJ << RETURN TO GROUP INDEX

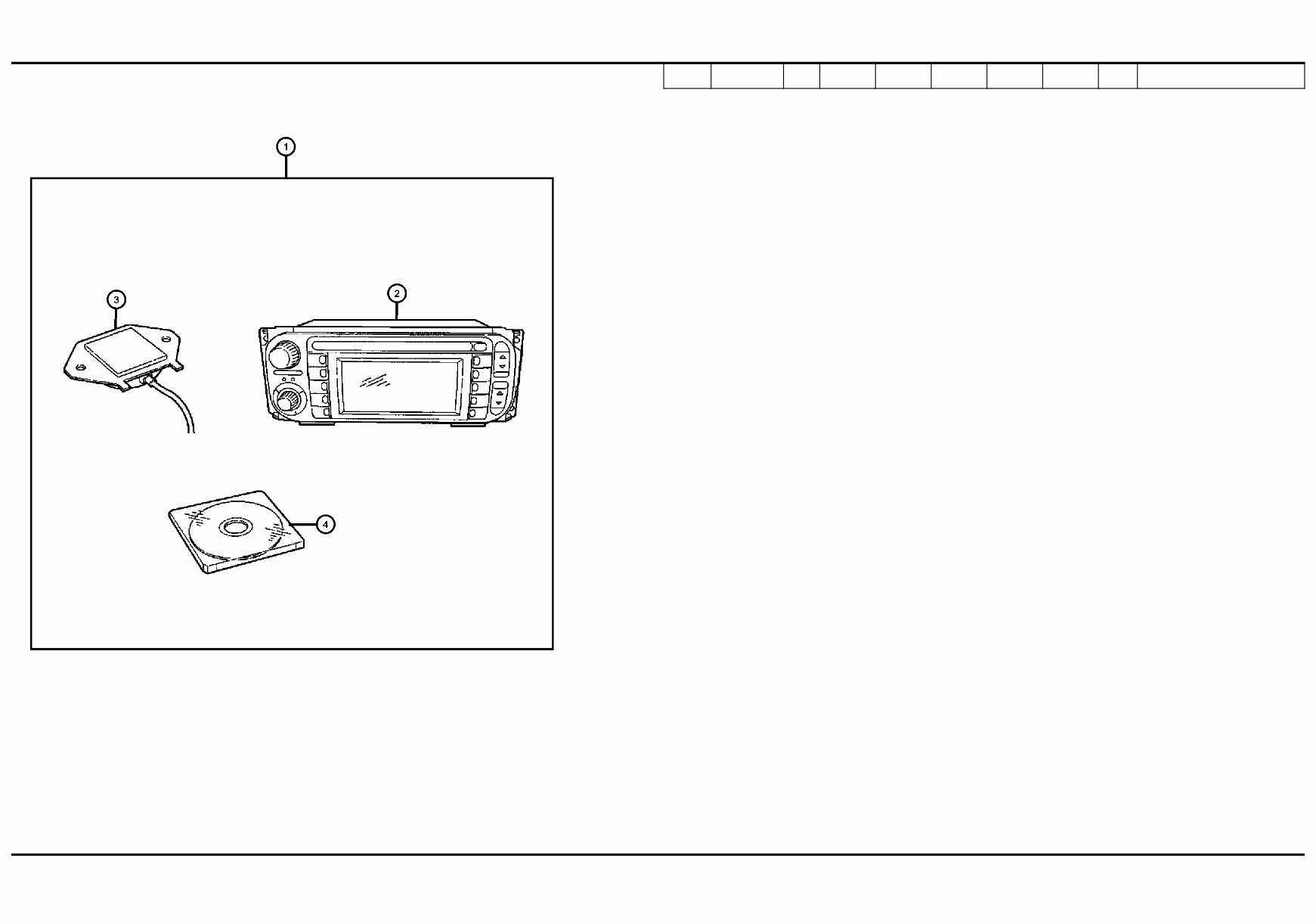

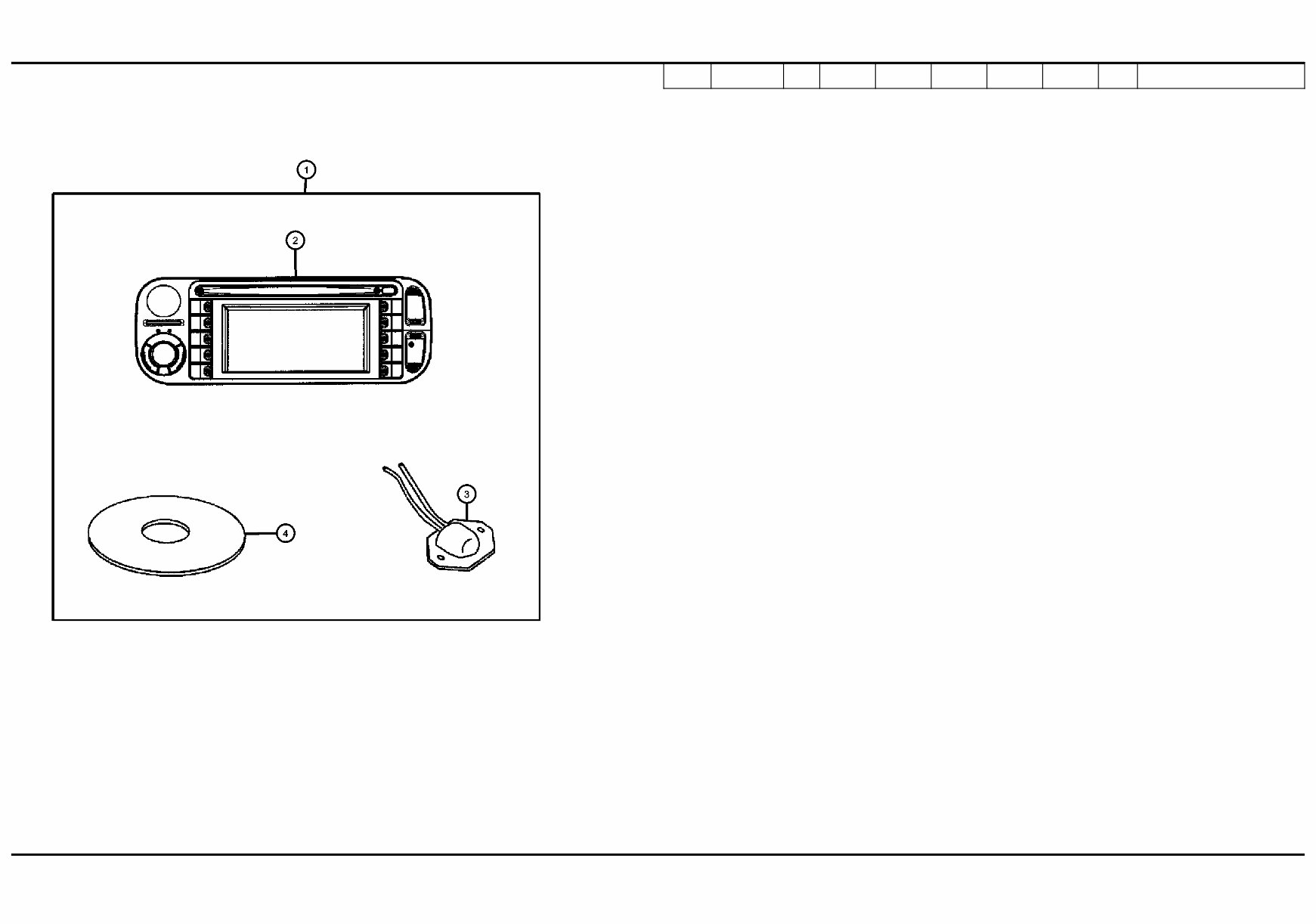

Navigation Kit (RB1) Figure 1-140 ITEM PART NUMBER QTY LINE SERIES BODY ENGINE TRANS TRIM DESCRIPTION Navigation Kit (RB1) NK(RB1) Note: For Warranty Repair On Item 2, Order Using Z Prex 1 82208715AC 1 RADIO, AM/FM CD W/NAV/DVD & CD-CTRL 2 56038629AH 1 RADIO, AM/FM CD W/NAV/DVD & CD-CTRL 3 56038630AA 1 ANTENNA, GPS 4 05064033AC 1 DVD, Geographic Database LIBERTY (KJ) SERIES LINE BODY ENGINE TRANSMISSION H = HIGHLINE M = MEDIUM P = PREMIUM T = JEEP - 2WD J = JEEP - 4WD U = JEEP - 4WD (RHD) 74 = SPORT UTILITY 4-DR EKG = 3.7L V6 Engine ENR = 2.8L 4 Cyl Turbo Diesel Engine ENJ = 2.5L 4 Cyl 16V Turbo Diesel Engine ED1 = 2.4L 4 Cyl DOHC 16v SMPI Engine DG6 = 4-Spd. Automatic 42RLE Transmission DGV = 4-Spd. Automatic VLP Transmission DGQ = 5-Spd Automatic 5-45RFE Transmission DEH = 6-Speed Manual NSG370 Transmission DDD = 5-Speed HD Manual Transmission DDK = 5-Speed HD Manual Transmission AR = use ase required - = Non illustrrated part 2006 KJ << RETURN TO GROUP INDEX

Navigation Kit (RB4) Figure 1-145 ITEM PART NUMBER QTY LINE SERIES BODY ENGINE TRANS TRIM DESCRIPTION Navigation Kit (RB4) NK(RB4) Note: For Warranty Repair on Item 2, Order Using Z Prex 1 82208481 1 RADIO, AM/FM CD W/NAV/DVD & CD-CTRL, [RB4] 2 56043286AF 1 RADIO, AM/FM CD W/NAV/DVD & CD-CTRL 3 05094003AA 1 ANTENNA, Satellite 4 05091501AG 1 COMPACT DISC, Navigation LIBERTY (KJ) SERIES LINE BODY ENGINE TRANSMISSION H = HIGHLINE M = MEDIUM P = PREMIUM T = JEEP - 2WD J = JEEP - 4WD U = JEEP - 4WD (RHD) 74 = SPORT UTILITY 4-DR EKG = 3.7L V6 Engine ENR = 2.8L 4 Cyl Turbo Diesel Engine ENJ = 2.5L 4 Cyl 16V Turbo Diesel Engine ED1 = 2.4L 4 Cyl DOHC 16v SMPI Engine DG6 = 4-Spd. Automatic 42RLE Transmission DGV = 4-Spd. Automatic VLP Transmission DGQ = 5-Spd Automatic 5-45RFE Transmission DEH = 6-Speed Manual NSG370 Transmission DDD = 5-Speed HD Manual Transmission DDK = 5-Speed HD Manual Transmission AR = use ase required - = Non illustrrated part 2006 KJ << RETURN TO GROUP INDEX

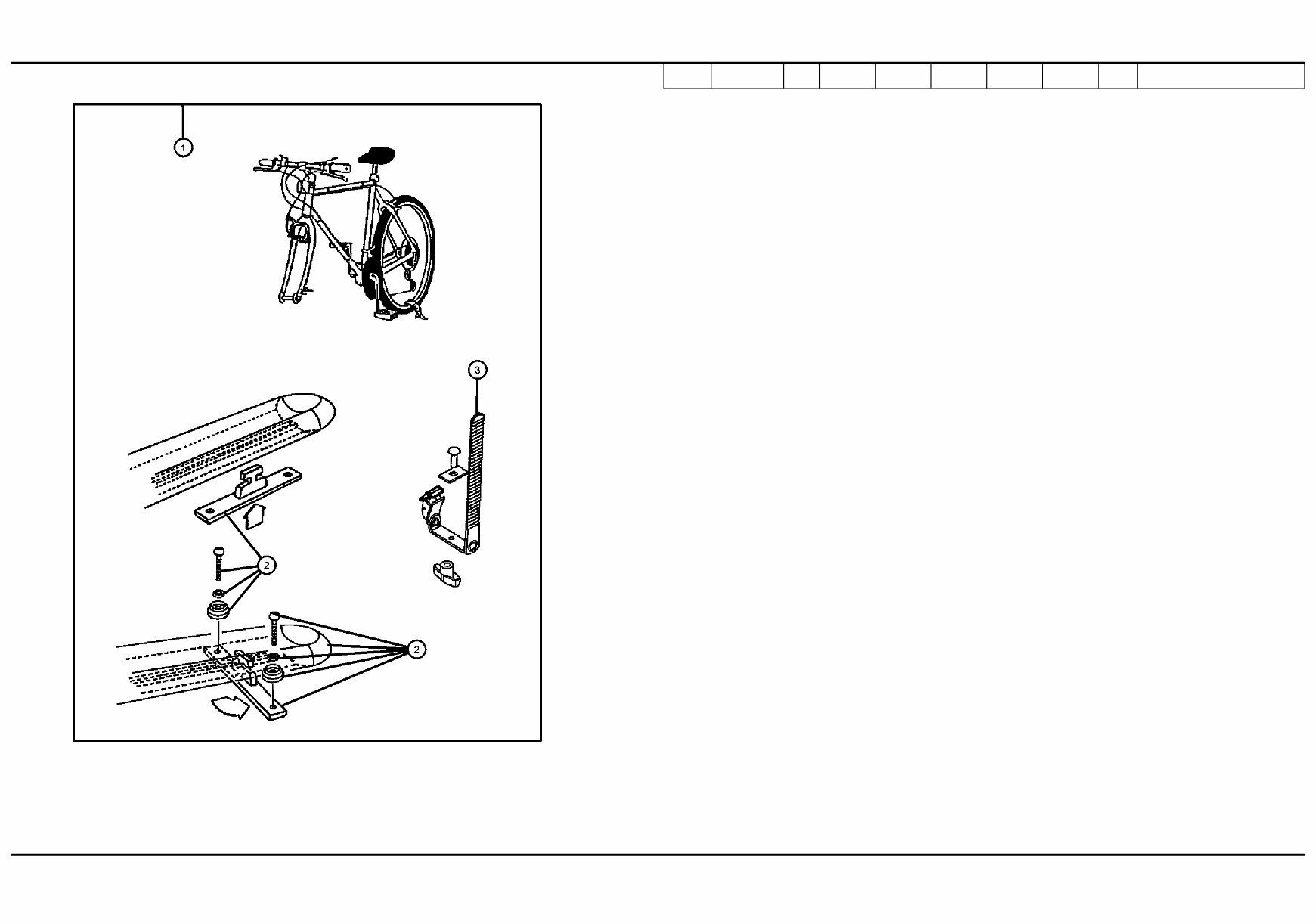

Bike Carrier - Roof - Fork Mount Figure 1-210 ITEM PART NUMBER QTY LINE SERIES BODY ENGINE TRANS TRIM DESCRIPTION Bike Carrier - Roof - Fork Mount BC-R-FM Note; Requires Sport Utility Rack 1 82207943 1 74 CARRIER KIT, Bike, Fork - Mount 2 05093779AA 1 74 HARDWARE KIT, Accessory 3 05114532AA 1 74 STRAP, Cargo Tie Down LIBERTY (KJ) SERIES LINE BODY ENGINE TRANSMISSION H = HIGHLINE M = MEDIUM P = PREMIUM T = JEEP - 2WD J = JEEP - 4WD U = JEEP - 4WD (RHD) 74 = SPORT UTILITY 4-DR EKG = 3.7L V6 Engine ENR = 2.8L 4 Cyl Turbo Diesel Engine ENJ = 2.5L 4 Cyl 16V Turbo Diesel Engine ED1 = 2.4L 4 Cyl DOHC 16v SMPI Engine DG6 = 4-Spd. Automatic 42RLE Transmission DGV = 4-Spd. Automatic VLP Transmission DGQ = 5-Spd Automatic 5-45RFE Transmission DEH = 6-Speed Manual NSG370 Transmission DDD = 5-Speed HD Manual Transmission DDK = 5-Speed HD Manual Transmission AR = use ase required - = Non illustrrated part 2006 KJ << RETURN TO GROUP INDEX
