2019 Jeep Grand Commander- 2.0L I4 DOHC Di Turbo PHEV Service & Repair Manual

Parts 002 - Front Suspension 100 - Front Suspension, Strut and Cradle 105 - Suspension, Front, Springs, Shocks, Control Arms 110 - Cradle 200 - Front Stabilizer Bar 205 - Front Stabilizer Bar 005 - Brakes 100 - Front Brakes 105 - Brakes, Front 200 - Rear Brakes 205 - Brakes, Rear 300 - Power Brake Booster 305 - Booster and Pump 310 - Vacuum Hoses, Brake Booster 400 - Brake Master Cylinder 405 - Master Cylinder 500 - Hydraulic Control Unit, Brake Tubes and Hoses 505 - Hydraulic Control Unit 510 - Brake Tubes and Hoses, Front 515 - Brake Tubes and Hoses, Rear 600 - Brake Pedals 605 - Pedal, Brake 700 - Parking Brake Lever, Cables, and Rear Disc Park Brake Assembly 705 - Electric Park Brake System 007 - Cooling 100 - Radiator and Related Parts; Charge Air Cooler 110 - Radiator and Related Parts, [ECX] 130 - Radiator Seal, Shields, Shrouds, And Baffles 135 - Radiator Support 165 - Charge Air Cooler Duct 200 - Water Pump and Related Parts 205 - Water Pump 210 - Thermostat and Related Parts, 2.0L [EC1], [ECX] 500 - Drive Belts 505 - Drive Belts 600 - Transmission Oil Cooler, and Lines 610 - Transmission Cooler And Lines, 2.0L [ECX] 800 - Turbo Charger Cooling System 805 - Turbo Cooling 900 - Battery Cooling 910 - Battery Heater, 2.0L[ECX] 915 - Heater Pump, 2.0L [ECX] 920 - Heat Exchanger, 2.0L [ECX] 925 - Auxiliary Pump, 2.0L [ECX] 008 - Electrical 100 - Starters 115 - Remote Start 300 - Wiper and Washer System 305 - Front Wiper System 310 - Front Washer System 320 - Rear Wiper System 325 - Rear Washer System 400 - Keys, Modules and Engine Controllers 405 - Module, Engine Control, 2.0L 420 - Module, Transmission Control 425 - Module, Power Inverter 430 - Module, Body Control 435 - Module, Transfer Case Control 440 - Modules, Body 445 - Modules, Brakes, Suspension, and Steering 450 - Receiver Modules, Transmitters, Keys 455 - Module, Telematics 500 - Power Distribution Center, Fuse Block, Junction Block, Relays and Fuses 505 - Power Distribution Center, Intelligent, 2.0L [EC1]

507 - Power Distribution Center, 2.0L PHEV [ECX] 520 - Power Invertor Outlet 600 - Sensors 660 - Sensors, Oxygen, 2.0L 680 - Sensors, Brake 685 - Sensors, Body 800 - Switches 805 - Switches, Instrument Panel 810 - Switches, Console 815 - Switches, Doors and Liftgate 820 - Switches, Body 825 - Switches, Seat 830 - Switches, Steering Column & Wheel 840 - Switches, Heater And Air Conditioning 900 - Horns 905 - Horns 910 - Pedestrian Alert System 1000 - Battery, Battery Tray and Cables 1005 - Battery, Tray and Support 1015 - Wiring, Battery, 2.0L PHEV [ECX] 1020 - Parts, Hybrid Battery, Battery Cable Chargers & Related 1100 - Lamps-Interior and Exterior 1105 - Lamps, Front 1110 - Lamps, Rear 1130 - Lighting, Interior, Overhead 1135 - Lighting, Interior, Instrument Panel and Console 1140 - Lighting, Interior, Rear Quarter Trim 1145 - Lighting, Interior, Door Trim 1150 - Lamps, License 1199 - Lamps, Outside Mirror 1200 - Wiring-Powertrain 1205 - Wiring, Engine, 2.0L [EC1],[ECX] 1210 - Wiring, Transmission 1215 - Ground Straps 1300 - Wiring-Headlamp to Dash 1305 - Wiring, Headlamp To Dash, 2.0L PHEV [ECX] 1307 - Wiring, Front End 1400 - Wiring-Instrument Panel 1405 - Wiring, Instrument Panel 1500 - Wiring-Body and Accessories 1505 - Wiring, Body 1510 - Wiring, Chassis and Underbody 1515 - Wiring, Doors and Liftgate 1520 - Wiring, Front Seats 1525 - Wiring, Air Conditioning And Heater 1600 - Wiring and Repair 1605 - Wiring Repairs 1900 - Ignition - Spark Plugs, Cables, Coils, and Glow Plugs 1906 - Spark Plugs, Ignition Coils 2100 - Instrument Panel Cluster 2105 - Instrument Cluster 2200 - Radio, Antenna, Speakers, DVD, and Video systems 2205 - Radios and Center Stack 2210 - Antenna 2220 - Standard 6-Base Speaker System, [RCG] 2221 - Premium II 10 Speaker System, [RC3] 2222 - Speakers And Sub-Woofer, High Performance Speaker System, [RCA] 2230 - Rear View Camera System 2235 - Front Camera System 2250 - Audio Microphone 2255 - Noise Reduction Microphones And Amplifier 2600 - Park Assist 2610 - Front And Rear Park Assist And Blind Spot Detection 2700 - Speed Control 2705 - Adaptive Speed Control

009ECX - 2.0L I4 DOHC DI Turbo PHEV; Engine 100 - Engine Identification, Service Engines & Engine Service Kits 105 - Engine Assembly And Service Long Block 2.0L Direct Injected Turbo PHEV, [ECX] 125 - Engine Cover And Related Parts 2.0L Direct Injected Turbo PHEV, [ECX] 145 - Engine Gasket/Install Kits 2.0L Direct Injected Turbo PHEV, [ECX] 200 - Cylinder Head 205 - Cylinder Head Cover 2.0L Direct Injected Turbo PHEV, [ECX] 225 - Cylinder Head 2.0L Direct Injected Turbo PHEV, [ECX] 300 - Cylinder Block 305 - Cylinder Block And Hardware 2.0L Direct Injected Turbo PHEV, [ECX] 400 - Crankshaft, Piston, Drive Plate, Flywheel, and Damper 405 - Crankshaft, Crankshaft Bearings, Damper And Flywheel 2.0L Direct Injected Turbo PHEV, [ECX] 425 - Pistons, Piston Rings, Connecting Rods And Bearings 2.0L Direct Injected Turbo PHEV, [ECX] 500 - Camshaft and Valve 505 - Camshafts And Valvetrain 2.0L Direct Injected Turbo PHEV, [ECX] 600 - Timing Belt/Chain and Cover and Balance Shaft 605 - Timing Case Cover 2.0L Direct Injected Turbo PHEV, [ECX] 625 - Timing System 2.0L Direct Injected Turbo PHEV, [ECX] 645 - Balance Shafts 2.0L Direct Injected Turbo PHEV, [ECX] 700 - Engine Oiling, Oil Pan and Indicator (Dipstick) 705 - Engine Oil Pump 2.0L Direct Injected Turbo, [ECX] 725 - Engine Oil Pan, Engine Oil Level Indicator And Related Parts 2.0L Directed Injected Turbo, [ECX] 745 - Engine Oil, Engine Oil Filter, Adapter 2.0L Direct Injected Turbo, [ECX] 800 - Engine Oil Cooler 805 - Engine Oil Cooler 2.0L Direct Injected Turbo, [ECX] 900 - Turbo and Super Chargers 905 - Turbocharger And Oil Hoses/Tubes 2.0L Direct Injected Turbo, [ECX] 1000 - Manifolds and Vacuum Fittings 1005 - Intake Manifold 2.0L Direct Injected Turbo, [ECX] 1100 - Crankcase Ventilation 1105 - Crankcase Ventilation 2.0L Direct Injected Turbo, [ECX] 1200 - Engine Mounting 1205 - Engine Mounting Right Side 2.0L Direct Injected Turbo PHEV, [ECX] 1235 - Engine Mounting Left Side 2.0L Direct Injected Turbo PHEV, [ECX] 1245 - Engine Mounting Front/Rear 2.0L Direct Injected Turbo PHEV, [ECX] 010 - Restraints 200 - Air Bags 205 - Air Bag Modules , Impact Sensors and Clock Spring 210 - Air Bags 300 - Seat Belts 305 - Seat Belts First Row 310 - Seat Belts Second Row 315 - Seat Belts Third Row [CYE] 011 - Exhaust 100 - Exhaust System 105 - Exhaust System 2.0L [EC1,ECX] 130 - Exhaust Heat Shield 013 - Frame, Bumper and Fascia 200 - Front Bumper and Fascia 205 - Fascia, Front 300 - Rear Bumper and Fascia 305 - Fascia, Rear 500 - Trailer Tow and Tow Hooks 505 - Tow Hook 700 - Under Body Protection 705 - Underbody Shields and Plates 710 - Fuel Tank Skid Plates 014 - Fuel 100 - Fuel Tank 105 - Fuel Tank, FWD 110 - Fuel Tank, AWD 300 - Fuel Lines 315 - Front Fuel Tubes, [ECX] 320 - Rear Fuel Bundle, [ECX] 400 - Fuel Rail and Injectors

405 - Fuel Rail, [EC1], [ECX] 600 - Throttle Body 605 - Electronic Throttle Body 900 - Air Inlet Components 902 - Air Intake Duct before Air Cleaner 905 - Air Intake Duct after Air Cleaner 1000 - Accelerator Pedal 1005 - Accelerator Pedal 017 - Rear Suspension 100 - Rear Suspension and Cradle 110 - Suspension, Rear 120 - Cradle, Rear Suspension 200 - Rear Stabilizer Bar 205 - Stabilizer Bar, Rear 019 - Steering 100 - Steering Wheel 105 - Steering Wheel Assembly 200 - Steering Column and Intermediate Shaft 205 - Steering Column 300 - Steering Gear 305 - Gear Rack and Pinion 021DFH - 948TE; 9-Speed; Automatic Transmission 100 - Automatic Transmission / Transaxle and Torque Converter 105 - Transmission / Transaxle Assembly 110 - Torque Converter 115 - Transmission Serviceable Parts 200 - Case, Extension, Oil Pan, and Indicator (Dipstick) 215 - Vent 1100 - Gearshift Controls and Related Parts 1110 - Gearshift Controls 1115 - Gearshift Lever, Cable, and Bracket 1200 - Mounting and Skid Plate 1205 - Mounting Support 1215 - Mounting Bolts 021DFQ - Si-EVT; Hybrid Automatic Transmission 100 - Automatic Transmission / Transaxle and Torque Converter 105 - Transmission / Transaxle Assembly 110 - Transmission Serviceable Parts 115 - Power Inverter Module (PIM) 200 - Case, Extension, Oil Pan, and Indicator (Dipstick) 205 - Wiring and Vent 1100 - Gearshift Controls and Related Parts 1105 - Gearshift Controls 1110 - Gearshift Lever and Park Lock Actuator 1200 - Mounting and Skid Plate 1205 - Mounting Support 1210 - Mounting Bolts 021DK2 - Power Transfer Unit 100 - Transfer Case Assembly 105 - Power Transfer Unit 110 - Power Transfer Unit Service Parts 022 - Wheels 100 - Wheels, Tires and Hardware 105 - Wheels and Hardware 200 - Wheel Covers and Center Caps 205 - Wheel Cover and Center Caps 300 - Jack Stowage 310 - Jack Assembly And Tools 400 - Wheel Spare 405 - Spare Wheel Stowage 500 - Emergency Kit 505 - Emergency Kit 600 - Tire Monitoring System 610 - Tire Monitoring System 024 - Air Conditioners and Heaters

100 - Air Conditioner and Heater Units 105 - Air Conditioning and Heater Unit 110 - Air Conditioning and Heater Unit 115 - Air Conditioning And Heater Unit Rear 200 - Air Conditioner and Heater Plumbing 210 - Heater Plumbing, Rear 220 - A/C Plumbing, Rear 300 - Air Conditioner and Heater Controls 305 - A/C and Heater Controls 400 - Air Conditioner Compressor and Mounting 405 - A/C Compressor 500 - Air Ducts 505 - Ducts Front 510 - Ducts Rear 515 - Exhauster 025 - Emission Controls 300 - Vacuum Canister/Leak Detection Pump 305 - Vacuum Canister and Leak Detection Pump 026 - Labels 100 - Interior 105 - Instrument Panel 110 - Visor 200 - Under Hood 205 - Engine Compartment 300 - Doors 311 - Doors and Pillars 500 - Trunk 505 - Fire Extinguisher Label 510 - Rear Cargo and Storage 027 - Glass 100 - Glass and Interior Rear View Mirror 105 - Glass, Windshield 110 - Glass, Front And Rear Door 118 - Glass, Quarter 120 - Mirror, Inside Rear View 130 - Glass, Liftgate 030 - Doors, Door Mirrors and Related Parts 100 - Front Door 105 - Front Door, Shell and Hinges 125 - Front Door, Hardware Components 150 - Door Lock Cylinder 200 - Rear Door 205 - Rear Door, Shell & Hinges 225 - Rear Door, Hardware & Components 500 - Exterior Mirror 505 - Mirrors, Exterior 600 - Weatherstrips and Seals 605 - Weatherstrips, Front Door 625 - Weatherstrips, Rear Door 665 - Weatherstrips, Liftgate 700 - Lift and Tail gates 705 - Liftgate 0035I2 - Front Wheel Drive; Differential and Drive Line 300 - Front Axle Drive Shafts 305 - Shafts, Axle 0035I4 - Four Wheel Drive; Differential and Drive Line 300 - Front Axle Drive Shafts 305 - Shafts, Axle 600 - Drive Shaft 605 - Shaft, Drive 700 - Rear Axle Assembly 705 - Axle Assembly 800 - Rear Axle; Housing, Differential and Vent 805 - Housing and Differential With Internal Components 815 - Rear Axle Mounting

900 - Rear Axle Shafts 905 - Shafts, Axle Rear 040 - Exterior Ornamentation 100 - Nameplates 105 - Nameplates 200 - Moldings and Ornamentation 210 - Exterior Ornamentation 250 - Spoiler 400 - Grilles 405 - Grille, Radiator 050 - Interior Trim 100 - Headliners-Visors-Assist Straps 105 - Headliner Without Sunroof 110 - Headliner And Visors With Sunroof, [GWJ] 200 - Panels-Moldings-Scuff Plates, Pillar, Cowl, 1/4 Panel Trim and Cargo Covers 205 - Interior Moldings and Pillars 235 - Quarter Trim Panel 300 - Carpets, Floor Mats, Load Floor, and Silencers 305 - Carpet, Complete 310 - Load Floor, Cargo 315 - Silencers 400 - Door Trim Panels-Front and Rear 405 - Front Door Trim Panels 410 - Rear Door Trim Panels 500 - Front Seats - First Row 505 - Front Seat - Bucket - Trim Code [A7] 510 - Front Seat - Bucket - Trim Code [AL] 512 - Front Seat - Bucket - Trim Code [BF] 515 - Front Seat - Bucket - Trim Code [DL] 520 - Front Seat - Bucket - Trim Code [EL] 522 - Front Seat - Bucket - Trim Code [FL] 525 - Front Seat - Bucket - Trim Code [Q6] 600 - Rear Seats - Second Row 665 - Rear Seat - Split Seat - Trim Code [A7] 670 - Rear Seat - Split Seat - Trim Code [AL] 672 - Rear Seat - Split Seat - Trim Code [BF] 675 - Rear Seat - Split Seat - Trim Code [DL] 680 - Rear Seat - Split Seat - Trim Code [EL] 682 - Rear Seat - Split Seat - Trim Code [FL] 685 - Rear Seat - Split Seat - Trim Code [Q6] 700 - Rear Seats - Third Row 705 - Rear Seat - Split Back Seat - Trim Code [A7] 710 - Rear Seat - Split Back Seat - Trim Code [AL] 715 - Rear Seat - Split Back Seat - Trim Code [DL] 720 - Rear Seat - Split Back Seat - Trim Code [EL] 722 - Rear Seat - Split Back Seat - Trim Code [FL] 725 - Rear Seat - Split Back Seat - Trim Code [Q6] 900 - Front Seats - Adjusters, Recliners, Shields and Risers 910 - Adjusters, Recliners and Shields - Driver Seat - Power 915 - Adjusters, Recliners and Shields - Passenger Seat - Manual 920 - Adjusters, Recliners and Shields - Passenger Seat - Power 1000 - Rear Seats - Second Row - Adjusters, Recliners, Shields and Risers 1005 - Adjusters, Recliners, Shields and Risers 1100 - Rear Seats - Third Row - Adjusters, Recliners, Shields and Risers 1105 - Frames and Shields 1400 - Lift Gate Panel and Scuff Plate 1405 - Liftgate Trim Panel 1410 - Liftgate Scuff Plate 1600 - Consoles 1605 - Floor Console Front 1620 - Overhead Consoles 1700 - Instrument Panel 1715 - Instrument Panel 060 - Body Sheet Metal Except Doors 100 - Floor Pans

105 - Front Floor Pan 110 - Center and Rear Floor Pan 115 - Underbody Shields and Plates 200 - Plugs 205 - Plugs Dash Panel 210 - Plugs Body Side 215 - Plugs Floor Pan 220 - Plugs Floor Pan Underbody 225 - Plugs Floor Pan Rear 300 - Fenders 305 - Front Fenders and Shields 400 - Hood and Hood Release 405 - Hood and Related Parts 500 - Cowl and Dash Panel 504 - Cowl , Dash Panel and Related Parts 600 - Aperture Panel and Pillar Supports 605 - Aperture Panel 610 - Quarter Panel and Fuel Filler Door 900 - Roof 905 - Roof Panel 1000 - Sunroof 1005 - Sunroof and Componet Parts [GWJ] 1300 - Sport Bar or Luggage Rack 1305 - Roof Rack

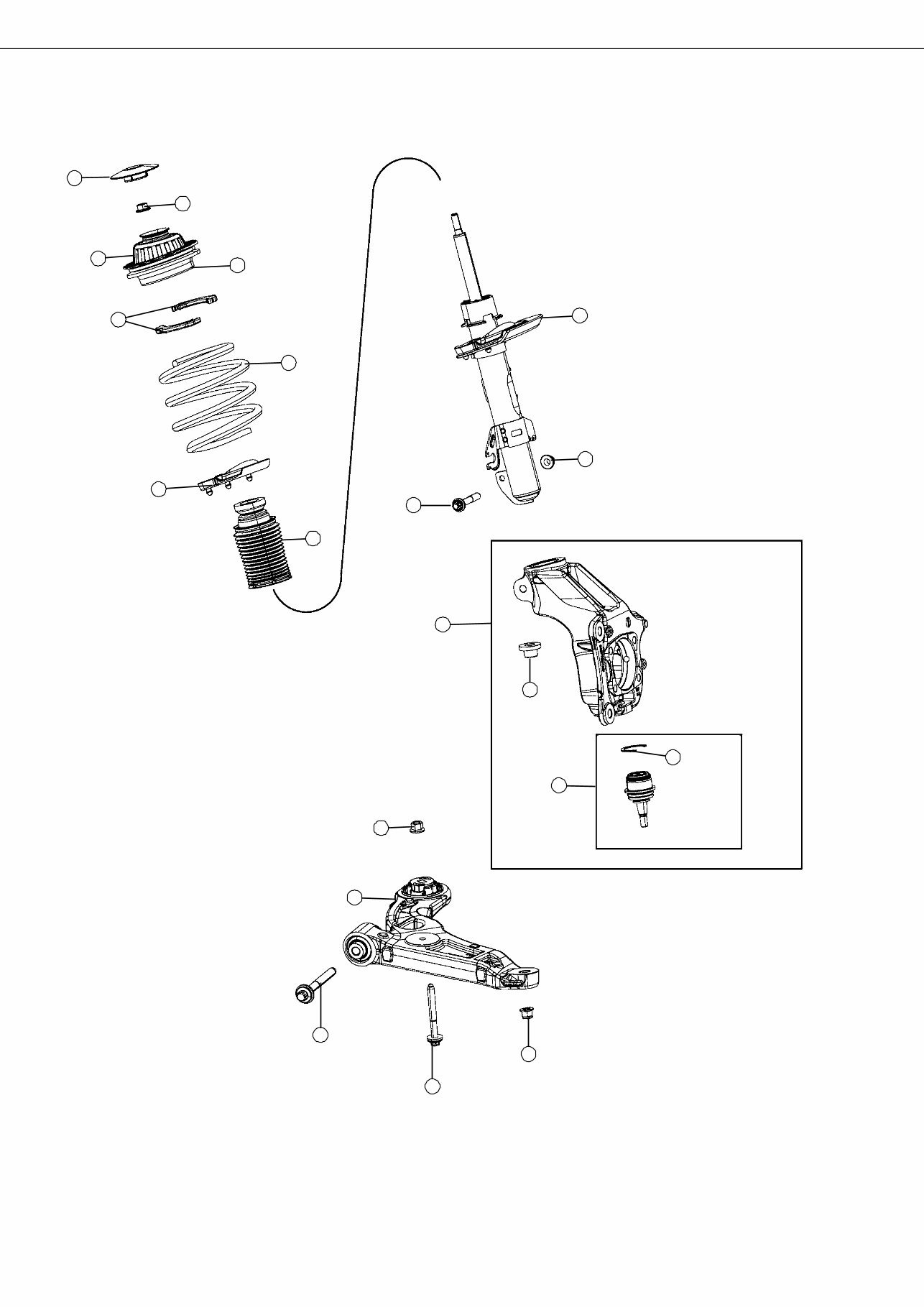

2019 K8 002 - Front Suspension 105 - Suspension, Front, Springs, Shocks, Control Arms 7 11 9 16 19 5 4 8 10 1 18 2 15 14 20 3 13 12 6 17 Property of FCA US LLC

... Item Description Part Number Qty Info Eng Trans Line Series Body Trim 1 CAP, Suspension Strut 53318694 2 J M T 75 2 NUT, Hex Locking, M12 X1.25 1348354080 2 J M T 75 1348354080 4 J M T 75 3 MOUNT, Strut Right 53348176 1 J M T 75 Left 53348177 1 J M T 75 4 ISOLATOR, Spring Seat, Upper 53317176 2 J M T 75 5 RETAINER, Front Suspen sion 51817819 4 J M T 75 6 SPRING, Front Coil Left 53470334 1 T 75 Right 53470335 1 J 75 Right 53470335 1 T 75 Left 53470336 1 J 75 Right, [XDQ] 53435702 1 M T 75 Left, [XDQ] 53435703 1 M 75 7 ISOLATOR, Spring Seat, Lower 53322753 2 J M T 75 8 SHIELD, Shock Absorber Dust 53346963 2 J M T 75 9 STRUT, Front Suspension Right, [XDQ] 53434489 1 M T 75 Left, [XDQ] 53422961 1 M T 75 10 SCREW, 6 Lobe, M12X1. 25X78.00 50515665 2 J M T 75 11 NUT, Hex Locking, M12 X1.25 1348354080 2 J M T 75 1348354080 4 J M T 75 12 KNUCKLE, Front Right 53448003 1 J M T 75 Left 53448005 1 J M T 75 13 SLEEVE, Knuckle, (Servic ed in Assembly)

14 BALL JOINT KIT, Knuckl e, (Serviced in Assembly) 15 SNAP RING, FRT KNUC KLE B/JNT, (Serviced in Assembly) 16 NUT, Hex Flange Lockin g, M14X2.00 53178232 2 J M T 75 17 ARM, Lower Control, Fro nt Left 53446286 1 J M T 75 Right 53446283 1 J M T 75 18 BOLT, Hex Flange Torx H ead 53385788 2 J M T 75 19 SCREW, M14X2.00X91. 75 53431935 2 J M T 75 20 NUT, Hex Flange Lock, M12X1.50 53115084 2 J M T 75 53115084 2 J T 75
