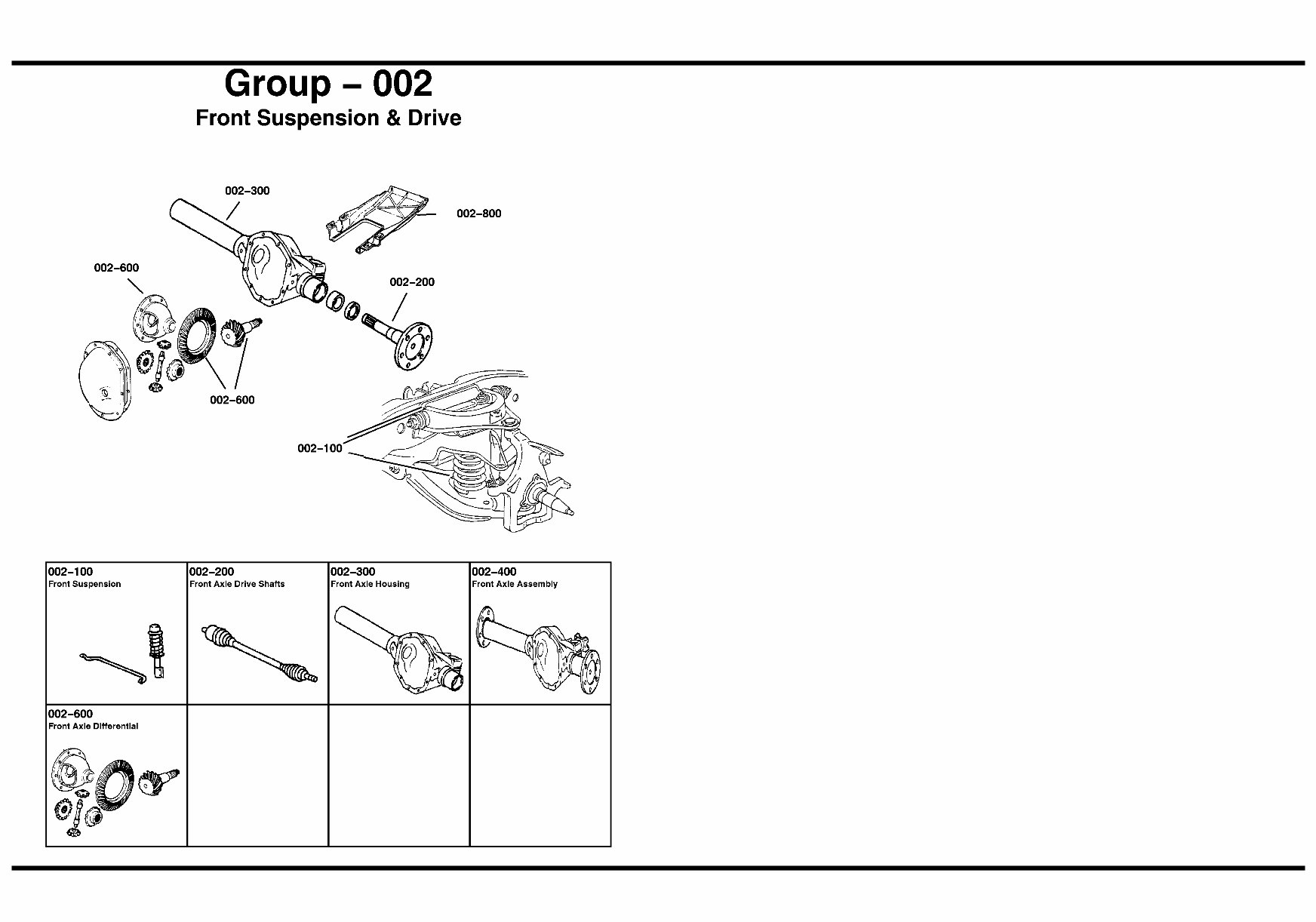

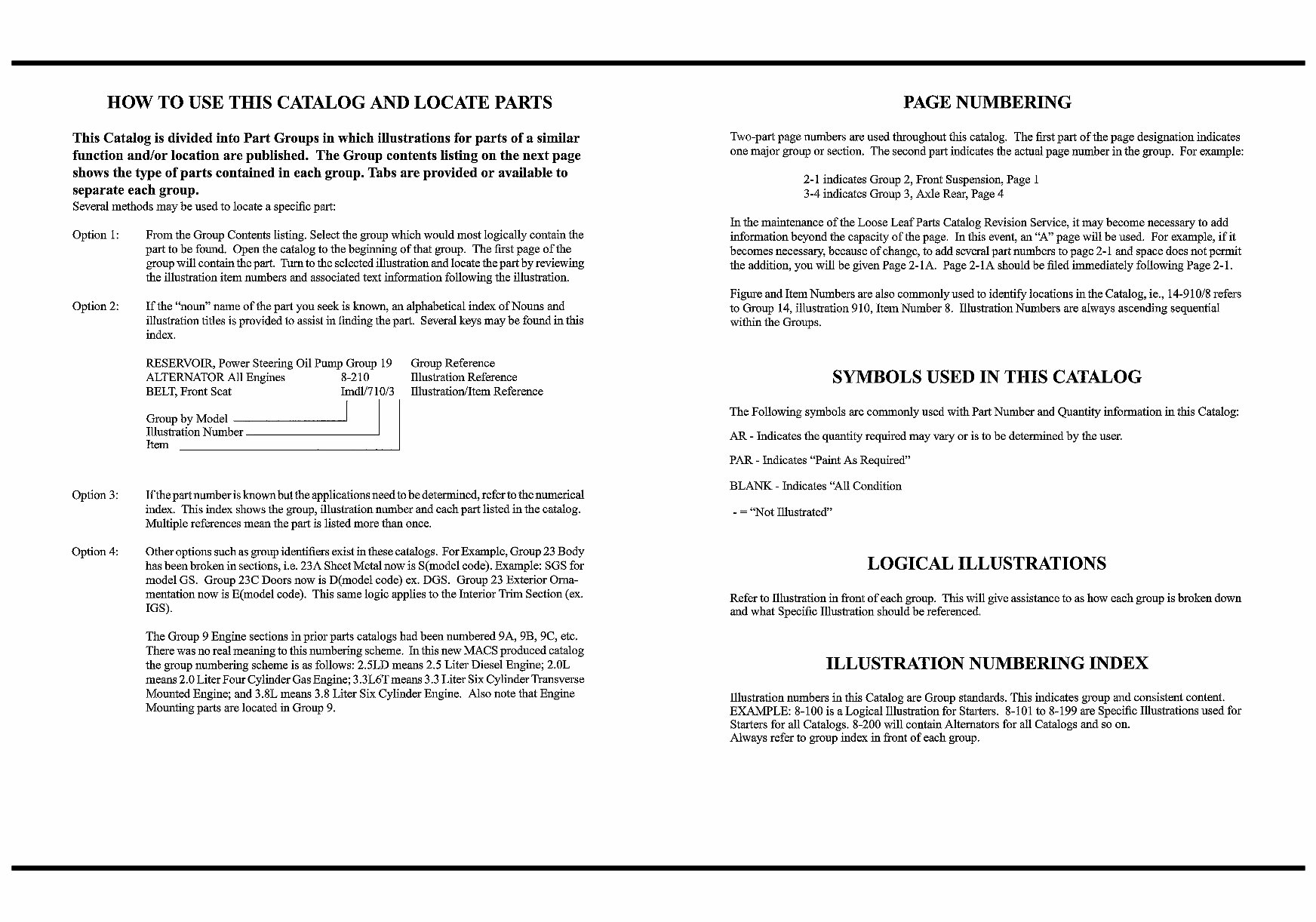

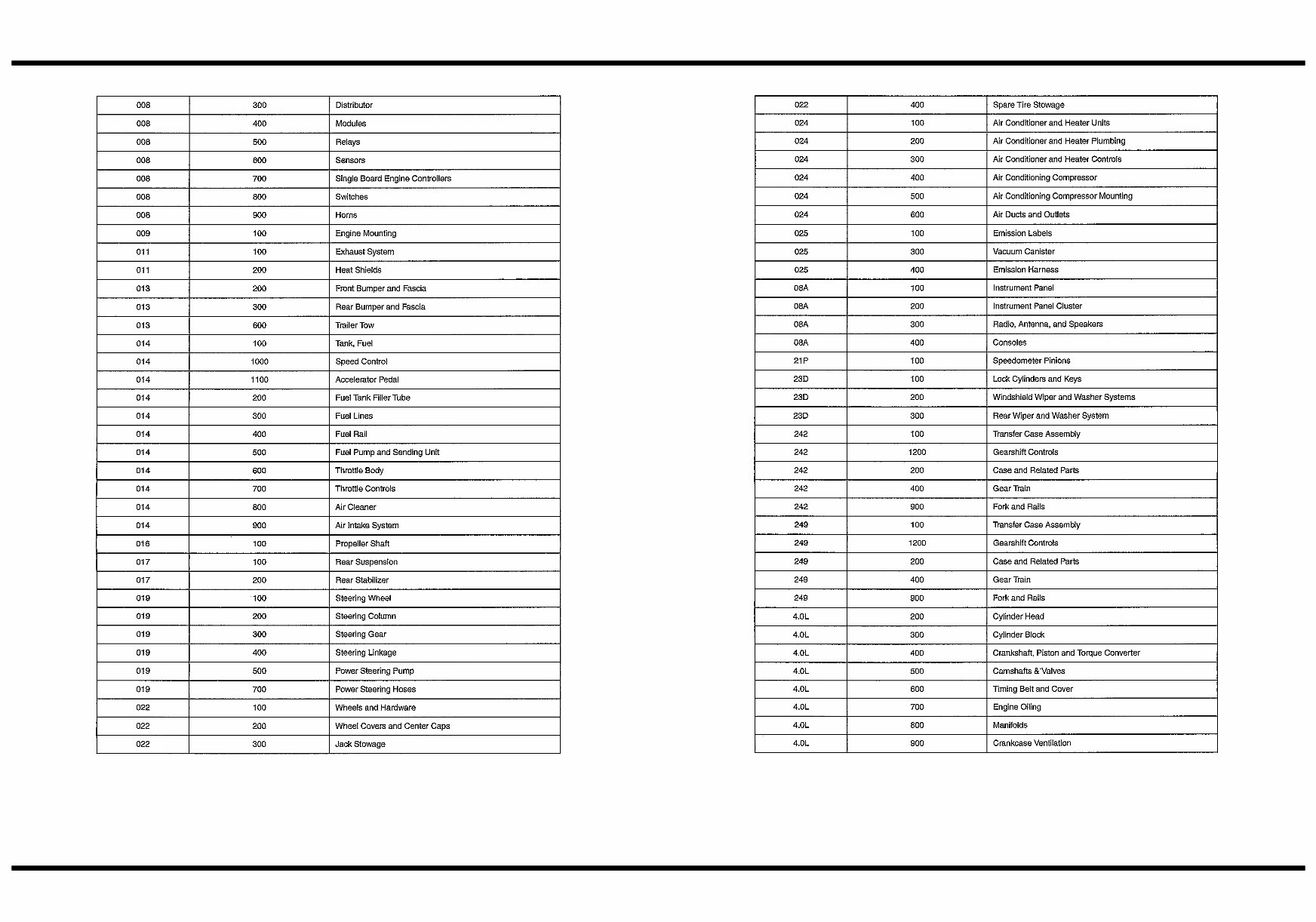

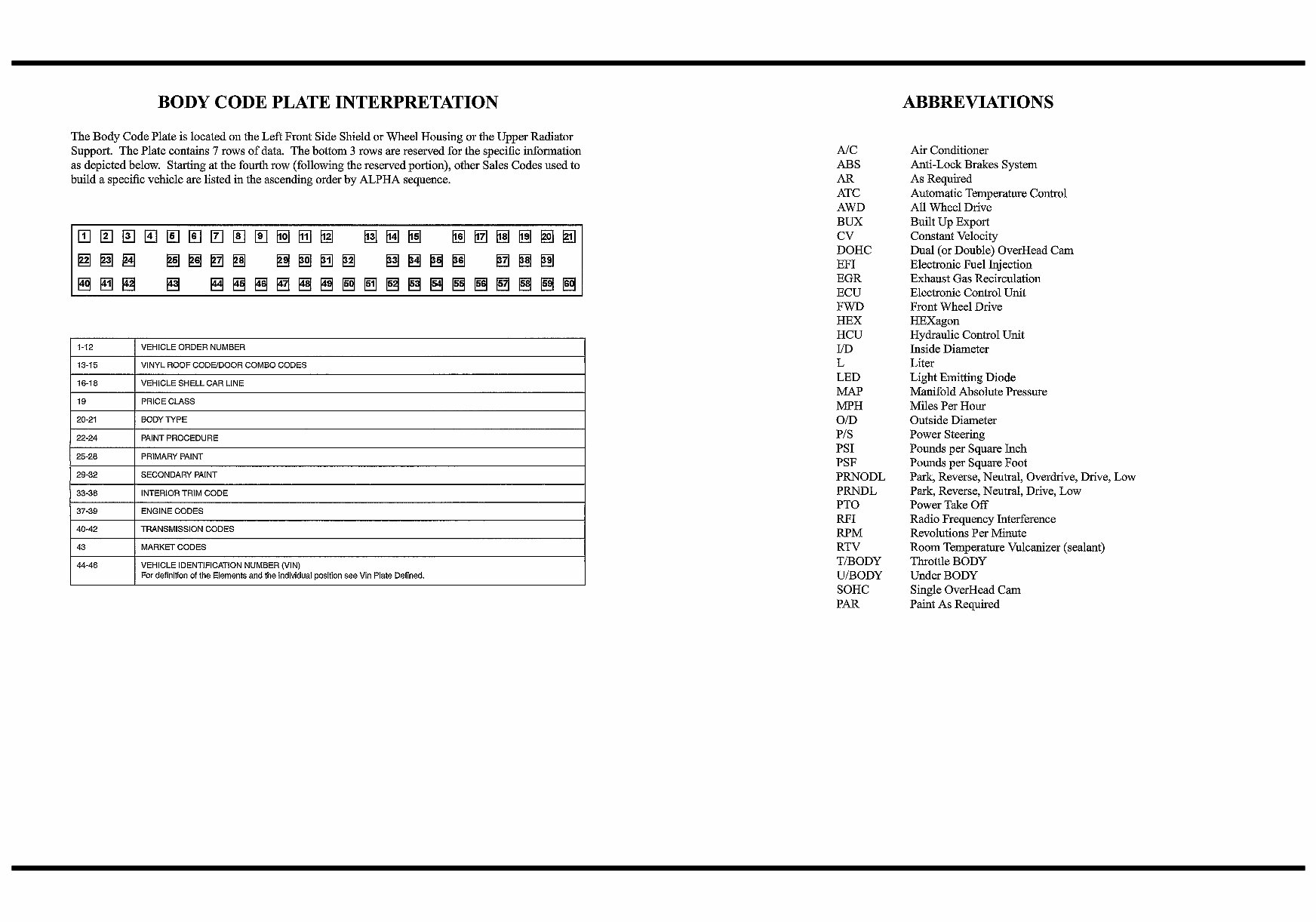

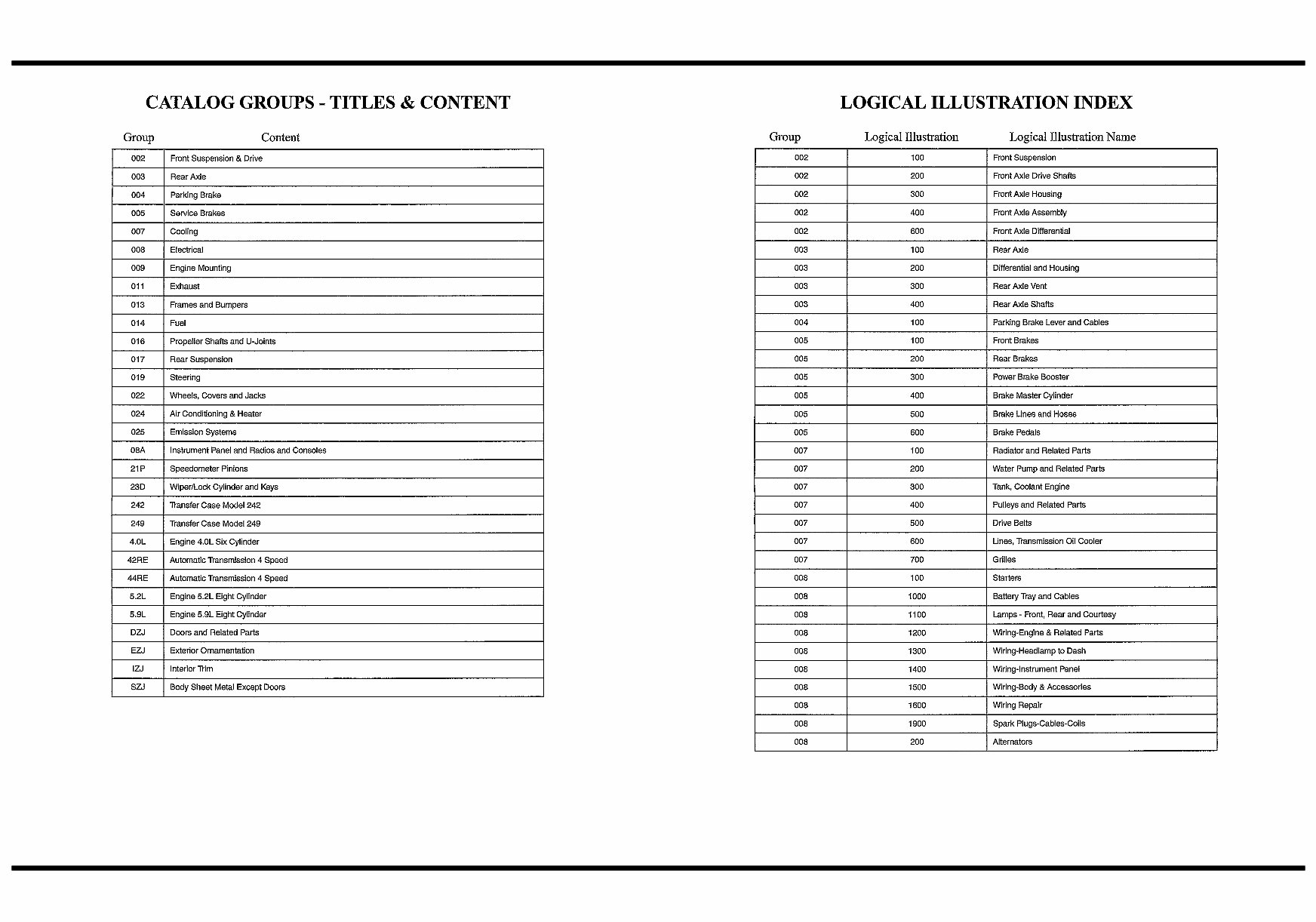

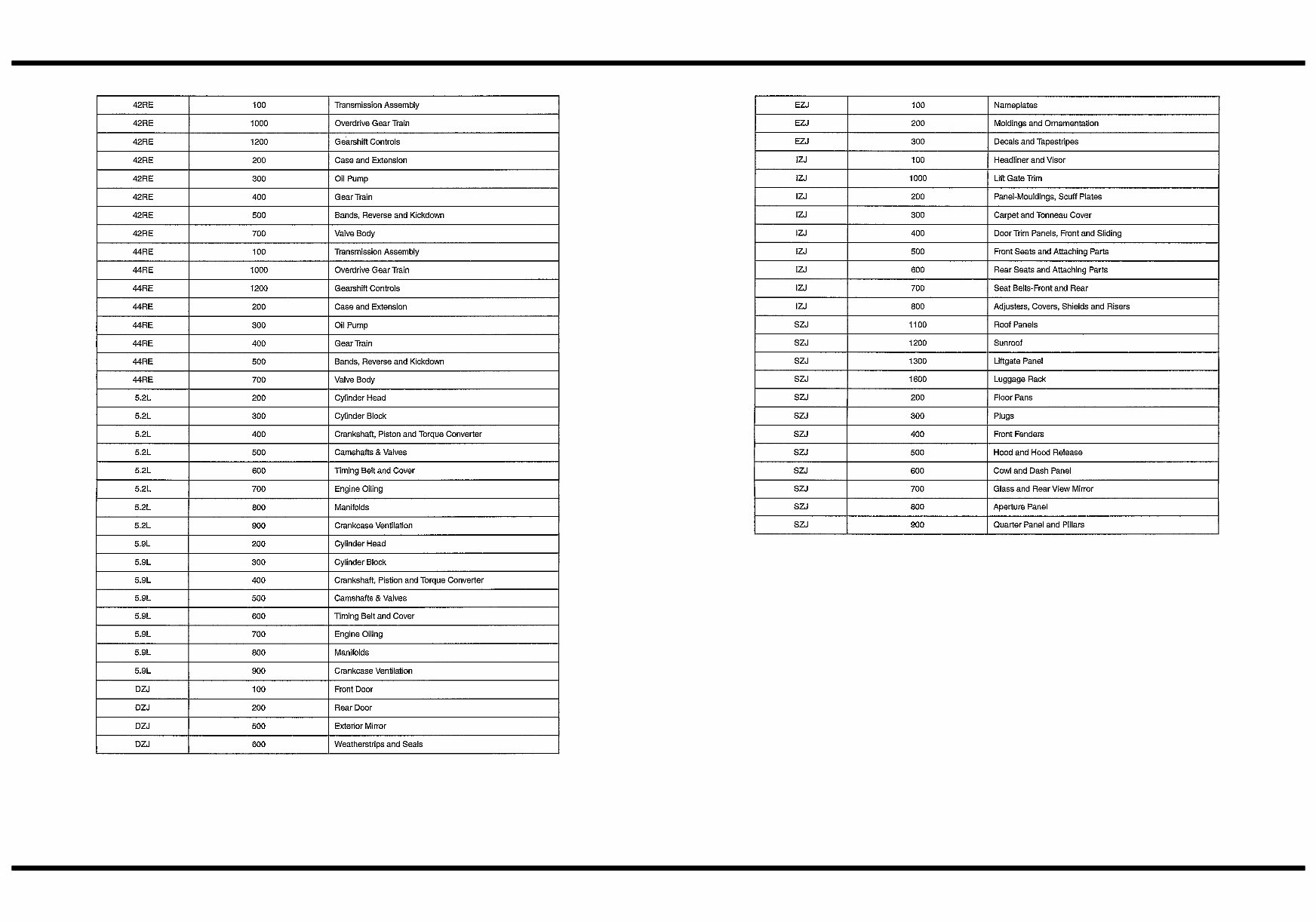

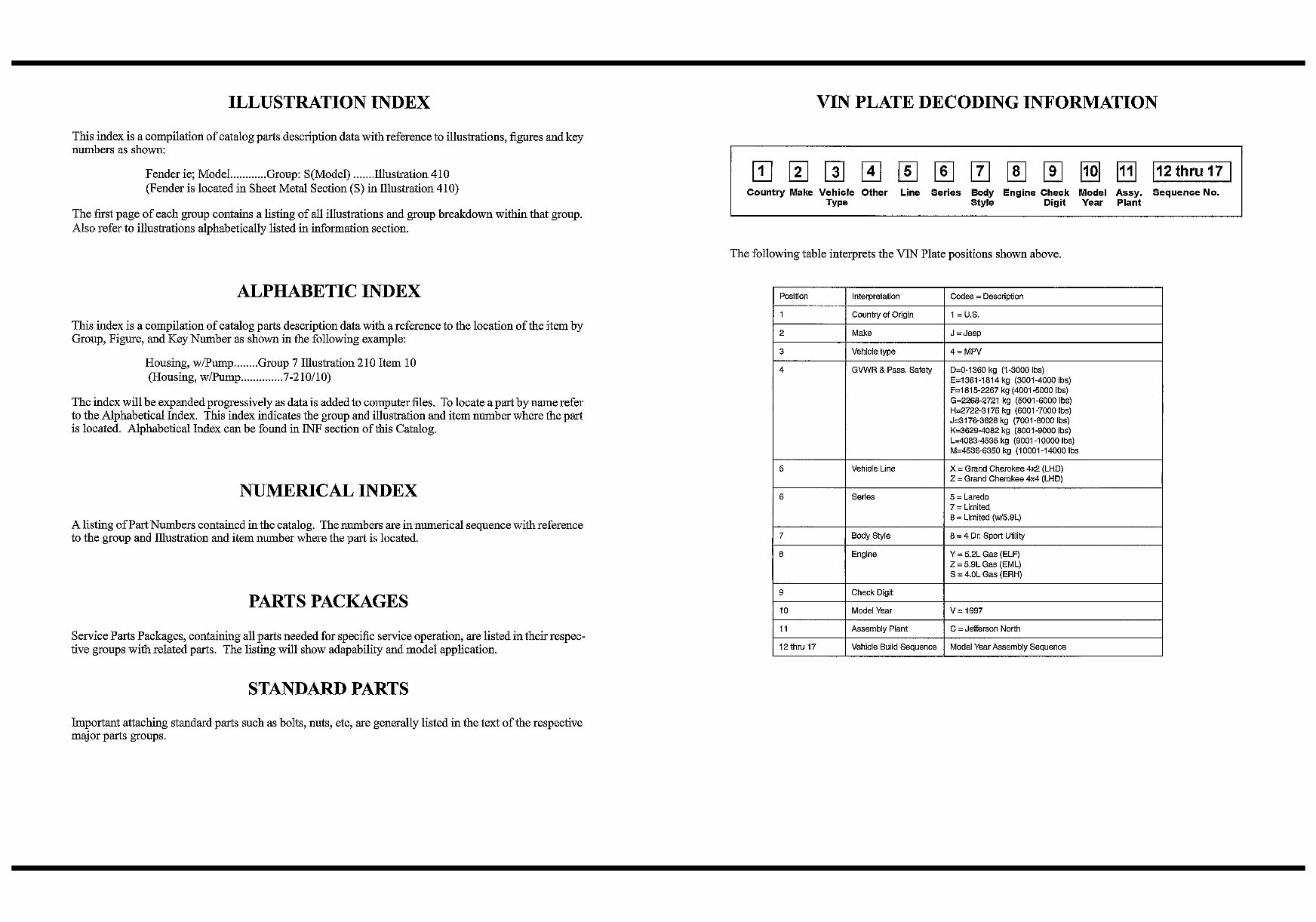

GROUP 2 - Front Suspension & Drive Illustration Title Group-Fig. No. Front Suspension Suspension,Front,Springs,Shocks,Control Arms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Fig. 002-110 Bar,Front Stabilizer Bar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Fig. 002-120 Bar,Front Track . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Fig. 002-130 Front Axle Drive Shafts Shafts,Front Axle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Fig. 002-210 Front Axle Housing Housing,Front Axle 2 Wheel Drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Fig. 002-310 Housing,Front Axle 4 Wheel Drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Fig. 002-320 Front Axle Assembly Axle Assembly,Front . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Fig. 002-410 Front Axle Differential Differential,Front,Internal Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Fig. 002-610 December 1, 2003

Note:UCA=Upper Control Arm---LCA=Lower Control Arm---SDA=Normal Duty Suspension---SDU=High Pressure Gas Charged Shocks---ER0=4.0L 6 Cylinder Gas Engine---EL0=5.2L 8 Cylinder Gas Engine---Check VIN Number for Sales Codes on Front 1 SPRING, Front Coil 5208 8102 1 [ZFJ,ZUJ] 5208 8103 1 [ZFK,ZUK] 5208 8104 1 [ZGK,ZVK] 5208 8105 1 [ZGL,ZVL] 5208 8181 1 [ZFL,ZUL] 5208 8361 1 [ZFM,ZUM] 5208 8362 1 [ZFN,ZUN] 5208 8363 1 [ZGN,ZVN] 5208 9141 1 [ZGP,ZVP] 2 6502 468 2 SCREW, Hex Flange Head, M8x1. 25x20, Coil Spring Retainer 3 BRACKET, Spring 5208 8114 1 Coil Spring Retainer, Right 5200 5917 1 Coil Spring Retainer, Left 4 SCREW, Truss Head, M10x1.5x75 6502 469 2 T 74 UCA to Front Axle Mounting 2 J 74 UCA to Front Axle Mounting 5 ARM, Control 5208 7711 2 T 74 Upper 2 J 74 Upper -6 BUSHING, Control Arm 5208 7852 1 T Upper 1 J Upper 7 NUT, Hex Flange Lock, M10x1.5 6502 696 4 T 74 UCA to Front Axle and Sill Mounting 4 J 74 UCA to Front Axle and Sill Mounting 8 BOLT, Hex Flange Head, M10x1. 50x78.20 6503 085 2 T 74 UCA to Sill Mounting 2 J 74 UCA to Sill Mounting 9 BOLT, Hex Flange Head, M14x2. 0x105 6502 963 2 T 74 LCA to Sill Mounting 2 J 74 LCA to Sill Mounting 10 6502 696 4 NUT, Hex Flange Lock, M10x1.5, LCA to Sill Mounting 11 BOLT AND WASHER, Hex Head, M14 x 2.00 x 111.6 Suspension,Front,Springs,Shocks,Control Arms Figure 002-110 December 1, 2003 JEEP GRAND CHEROKEE (ZJ) —————————————————————————————————————————————————————————— SERIES LINE BODY ENGINE TRANSMISSION L = Low Line J = 4WD 74 = 4 Door ERH, ER0 = 4.0L Power Tech I-6. DGW = 4 Speed Auto. 44RE T = 2WD ELF, EL0 = 5.2L V8 MPI DGK = 4 Speed Auto. 42RE EML, EM0 = 5.9L V8 MPI DGT = 4 Speed Auto. 46RE DG0 = All Speed Auto. PART ITEM NUMBER QTY LINE SERIES BODY ENGINE TRANS TRIM DESCRIPTION AR = Use as required - = Non illustrated part # = New this model year « RETURN TO GROUP INDEX »

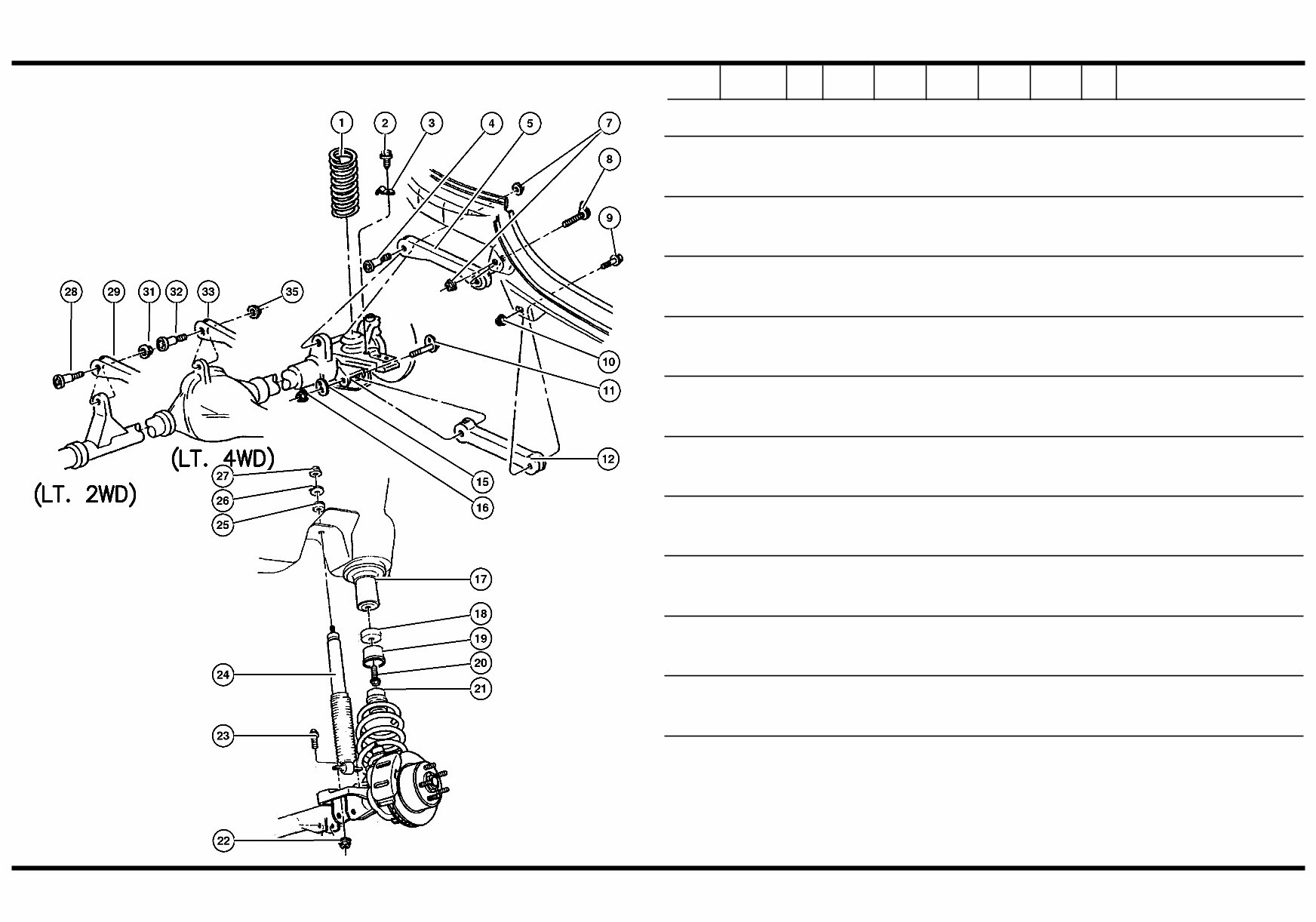

6504 238 2 T 74 LCA to Front Axle Mounting 2 J 74 LCA to Front Axle Mounting 12 5208 8312 2 ARM, Control, Lower -13 5208 8167 2 BUSHING, Lower Control Arm, Lower -14 5208 7720 2 BUSHING, Control Arm, Lower 15 WASHER, M14 6504 236 2 T 74 LCA to Front Axle Mounting 2 J 74 LCA to Front Axle Mounting 16 NUT, Hex, M14-2 6503 841 2 T 74 LCA to Front Axle Mounting 2 J 74 LCA to Front Axle Mounting 17 ISOLATOR, Spring 5208 7767 2 T 74 Upper 2 J 74 Upper 18 5200 5645 2 J SPACER, Jounce Bumper, [SDU] Only 19 CUP, Jounce Bumper 5208 7635 2 T 74 2 J 74 20 6504 425 2 SCREW AND WASHER, M10x1. 50x35, Jounce Bumper Mounting 21 BUMPER, Jounce 5208 7992 2 T 74 2 J 74 22 6101 695 4 NUT, Hex Flange Lock, M8x1.25, Shock Mounting, Lower 23 #6502 555 4 BOLT, M8x1.25x30, Shock Mounting, Lower 24 SHOCK ABSORBER PACKAGE, Suspension, Front #4897 794AA 2 ER0 [SDA] #4883 368AC 2 EL0 [SDA] 4741 675 2 [SDU] 25 GROMMET, Shock Absorber 5208 7768 2 T 74 2 J 74 26 RETAINER, Shock Absorber 5200 5574 2 T 74 2 J 74 27 6502 556 2 NUT, Hex, M10-1.5, Shock Mounting, Upper 28 SCREW, Truss Head, M10x1.5x75 Suspension,Front,Springs,Shocks,Control Arms Figure 002-110 December 1, 2003 JEEP GRAND CHEROKEE (ZJ) —————————————————————————————————————————————————————————— SERIES LINE BODY ENGINE TRANSMISSION L = Low Line J = 4WD 74 = 4 Door ERH, ER0 = 4.0L Power Tech I-6. DGW = 4 Speed Auto. 44RE T = 2WD ELF, EL0 = 5.2L V8 MPI DGK = 4 Speed Auto. 42RE EML, EM0 = 5.9L V8 MPI DGT = 4 Speed Auto. 46RE DG0 = All Speed Auto. PART ITEM NUMBER QTY LINE SERIES BODY ENGINE TRANS TRIM DESCRIPTION AR = Use as required - = Non illustrated part # = New this model year « RETURN TO GROUP INDEX «»
