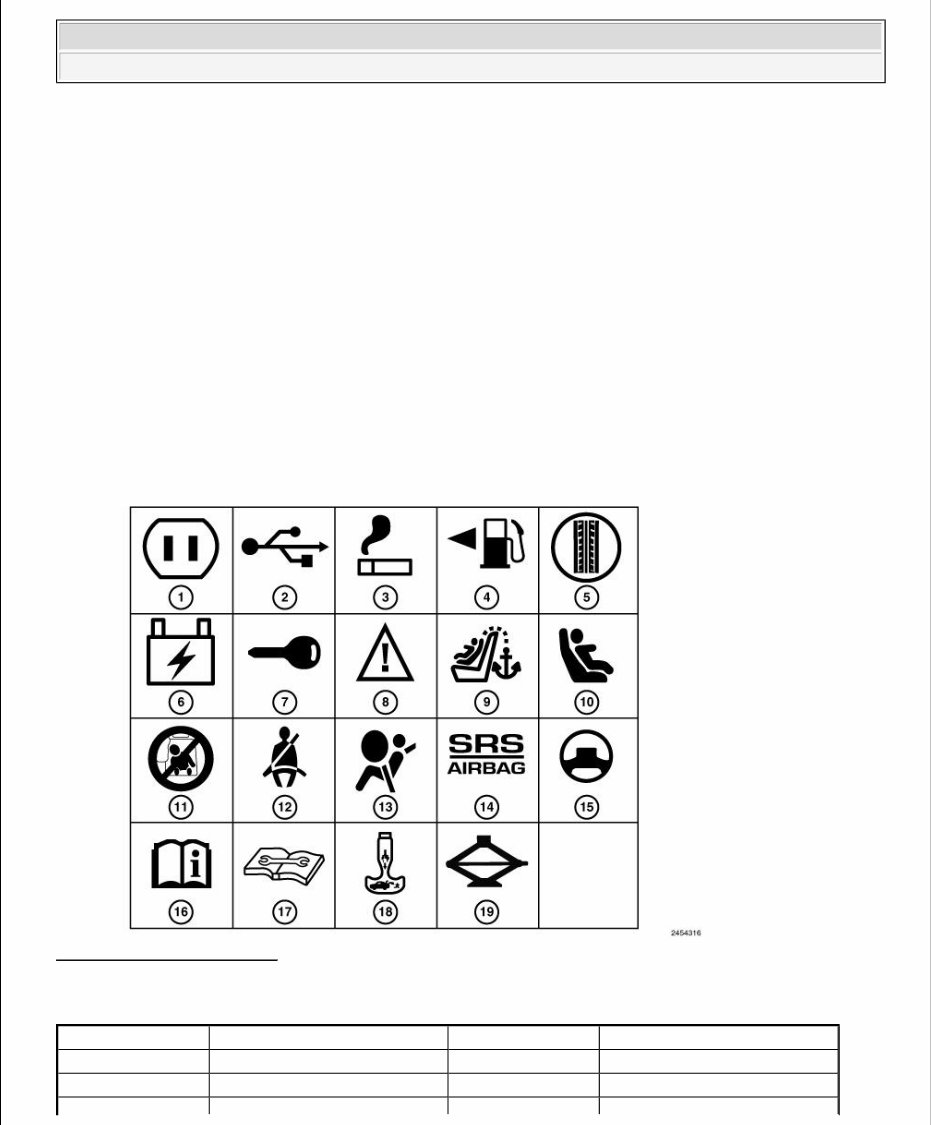

2011 GENERAL INFORMATION Vehicle Data - Grand Cherokee VEHICLE INFORMATION INTERNATIONAL VEHICLE CONTROL AND DISPLAY SYMBOLS DESCRIPTION DESCRIPTION Chrysler LLC uses international symbols to identify various systems on the vehicle. The graphic symbols illustrated are used to identify various instrument controls, vehicle controls and service information references. The symbols correspond to the controls and displays that are located on the instrument panel and throughout the vehicle. Fig. 1: Information Symbols Courtesy of CHRYSLER LLC INTERNATIONAL INFORMATION SYMBOL IDENTIFICATION SYMBOL DESCRIPTION SYMBOL DESCRIPTION 1 115-Volt Power Inverter 11 Side Airbag 2 USB Connector 12 Seat Belt 2011 Jeep Grand Cherokee 2011 GENERAL INFORMATION Vehicle Data - Grand Cherokee

3 Lighter 13 Airbag 4 Fuel Fill Side 14 Supplemental Restraint System 5 Spare Tire Winch 15 Power Steering Fluid 6 Fuse 16 See Owner's Manual 7 Key Activate (Power Outlet) 17 See Appropriate Service Information 8 Warning 18 Emergency Release Handle 9 Child Seat Tether Anchor 19 Jack/Jack Tools Location 10 Lower Anchors and Tether for Children (latch) 2011 Jeep Grand Cherokee 2011 GENERAL INFORMATION Vehicle Data - Grand Cherokee

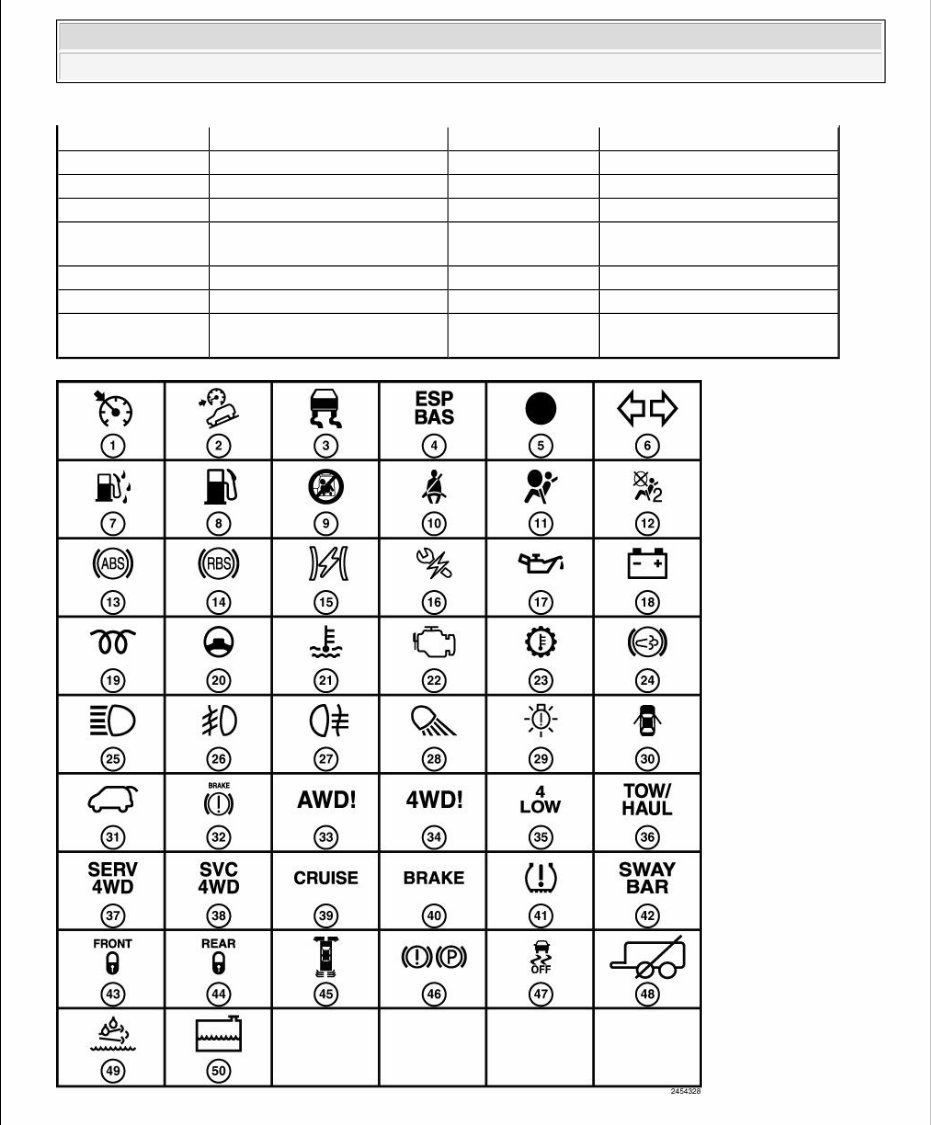

Fig. 2: Indicator Symbols Courtesy of CHRYSLER LLC INTERNATIONAL INDICATOR SYMBOL IDENTIFICATION SYMBOL DESCRIPTION SYMBOL DESCRIPTION 1 Electronic Speed Control 26 Front Fog Light 2 Hill Descent Control 27 Rear Fog Light 3 Traction Control 28 Cargo Lamp 4 Electronic Stability Program/Brake System Assist System 29 Exterior Bulb Failure 5 Security Indicator 30 Door Ajar 6 Turn Signals 31 Liftgate Open 7 Water In Fuel 32 Brake System Warning Parking Brake 8 Low Fuel 33 All Wheel Drive 9 Side Airbag 34 Four Wheel Drive 10 Seat Belt Reminder 35 Four Wheel Drive Low 11 Airbag Warning Light 36 Tow/Haul 12 Passenger Airbag Off 37 Service Four Wheel Drive 13 Failure Of Anti-Lock Braking System 38 Service Four Wheel Drive 14 HEV Brake Regenerative Light 39 Cruise Indicator 15 Electronic Throttle Control 40 Brake System Warning Parking Brake 16 HEV Service Light 41 Tire Pressure Monitor 17 Engine Oil 42 Sway Bar Disconnect Indicator 18 Battery Charging 43 Front Axle Lock 19 Glow Plug/Intake Air Heated 44 Rear Axle Lock 20 Power Steering Fluid 45 Park Assist Indicator 21 Engine Coolant Temperature 46 Park Brake Indicator 22 Malfunction Indicator Light 47 Electronic Stability Control/Traction Control Off 23 Transmission Oil Temperature Light 48 Trailer Brake System Off 24 Diesel Exhaust Brake 49 25 High Beam 50 2011 Jeep Grand Cherokee 2011 GENERAL INFORMATION Vehicle Data - Grand Cherokee

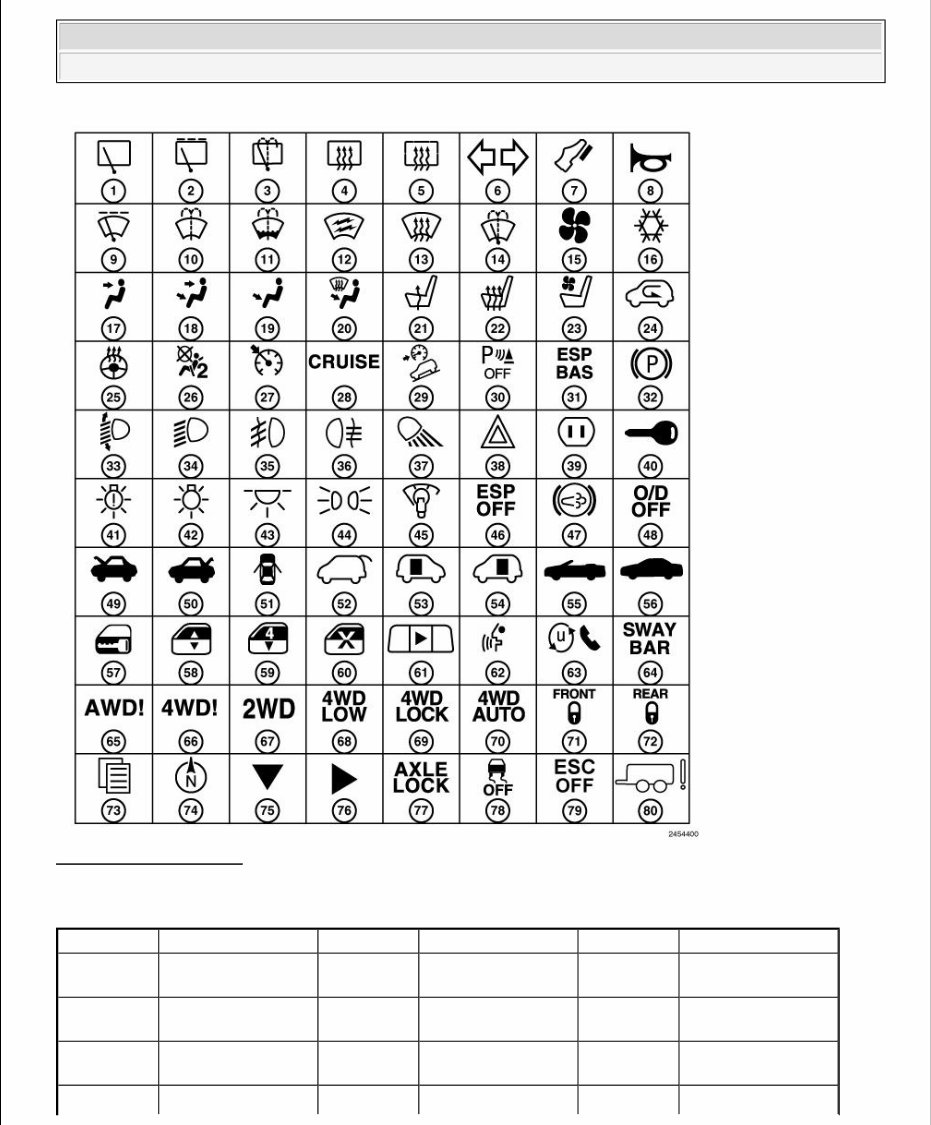

Fig. 3: Control Symbols Courtesy of CHRYSLER LLC INTERNATIONAL CONTROL SYMBOL IDENTIFICATION SYMBOL DESCRIPTION SYMBOL DESCRIPTION SYMBOL DESCRIPTION 1 Rear Window Wiper 26 Passenger Air Bag Off 51 Door Ajar 2 Rear Window Intermittent Wiper 27 Electronic Speed Control 52 Liftgate Release 3 Rear Window Washer 28 Cruise Indicator 53 Sliding Door Rear Window 2011 Jeep Grand Cherokee 2011 GENERAL INFORMATION Vehicle Data - Grand Cherokee

4 Defrost 29 Hill Descent Control 54 Sliding Door 5 Heated Mirror 30 Park Assist Off 55 Convertible Top Down 6 Turn Signals 31 Electronic Stability Program/Brake System Assist System 56 Convertible Top Up 7 Adjustable Pedals 32 Park Brake Release 57 Door Lock 8 Horn 33 Adjustable Headlights 58 Window Lift 9 Windshield Wiper Intermittent 34 Low Beam 59 Convertible 4 Window Down 10 Windshield Washer 35 Front Fog Light 60 Window Lock 11 Windshield Washer Fluid Level 36 Rear Fog Light 61 Power Rear Window 12 Windshield Electrically Heated 37 Cargo Lamp 62 Voice Recognition Button 13 Windshield Defrost 38 Hazard Lights 63 Uconnect™ Button 14 Windshield Wiper And Washer 39 115-Volt Power Inverter 64 SwayBar Disconnect 15 Ventilating Fan 40 Key Activate (Power Outlet) 65 All Wheel Drive 16 Air Conditioning 41 Exterior Bulb Failure 66 Four Wheel Drive 17 Upper Air Outlet 42 Master Lighting Switch 67 Two Wheel Drive 18 Upper And Lower Air Outlet 43 Dome Light 68 Four Wheel Drive Low 19 Lower Air Outlet 44 Park Lights 69 Four Wheel Drive Lock 20 Defrost And Lower Air Outlet 45 Instrument Panel Illumination 70 Four Wheel Drive Auto 21 Heated Seat Low 46 Electronic Stability Program Off 71 Front Axle Lock 22 Heated Seat High 47 Diesel Exhaust Brake 72 Rear Axle Lock 23 Ventilated Seat 48 Overdrive Off 73 EVIC Menu 24 Recirculation 49 Hood Release 74 Navigation Button 25 Heated Steering Wheel 50 Trunk/Deck Release 75 Step 76 Reset 77 Axle Lock Button 78 Traction Control Off 79 Electronic Stability Control Off 80 Trailer Brakes 2011 Jeep Grand Cherokee 2011 GENERAL INFORMATION Vehicle Data - Grand Cherokee

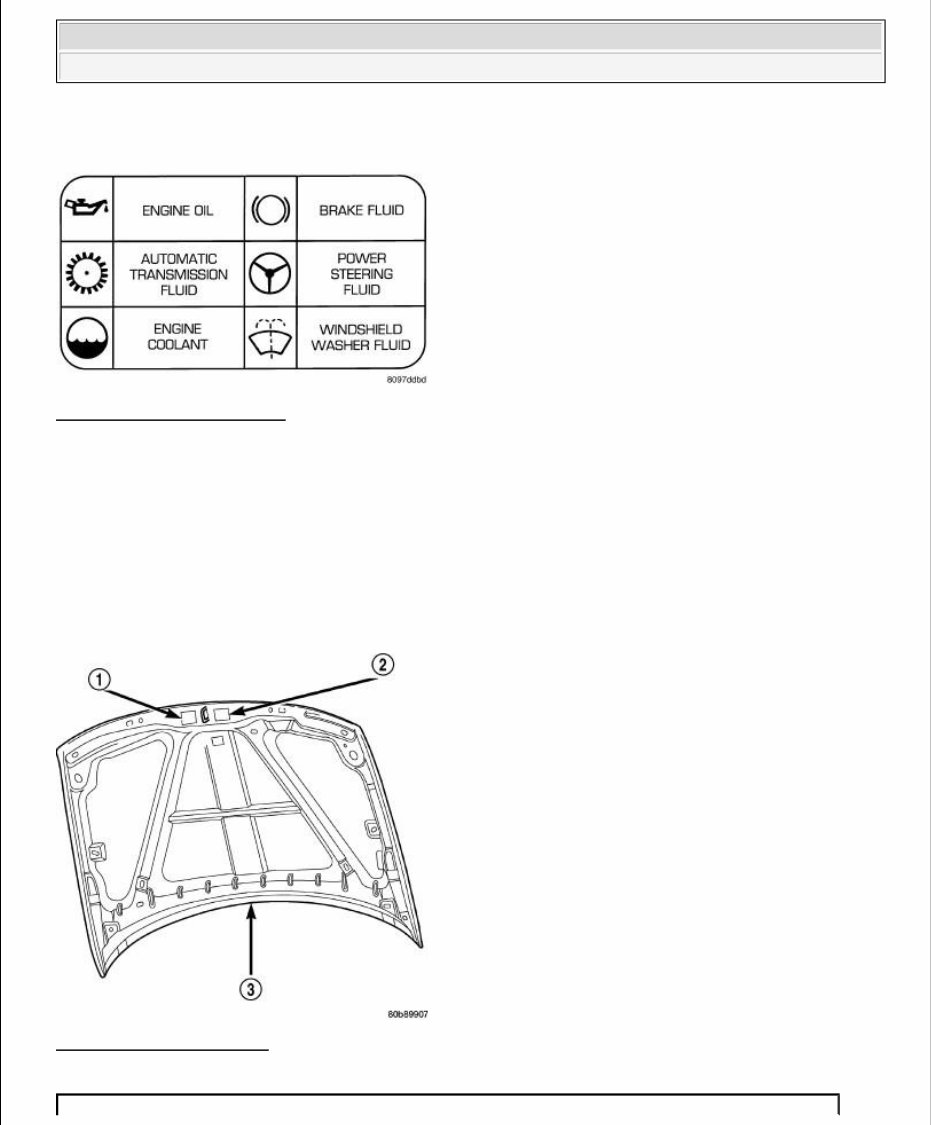

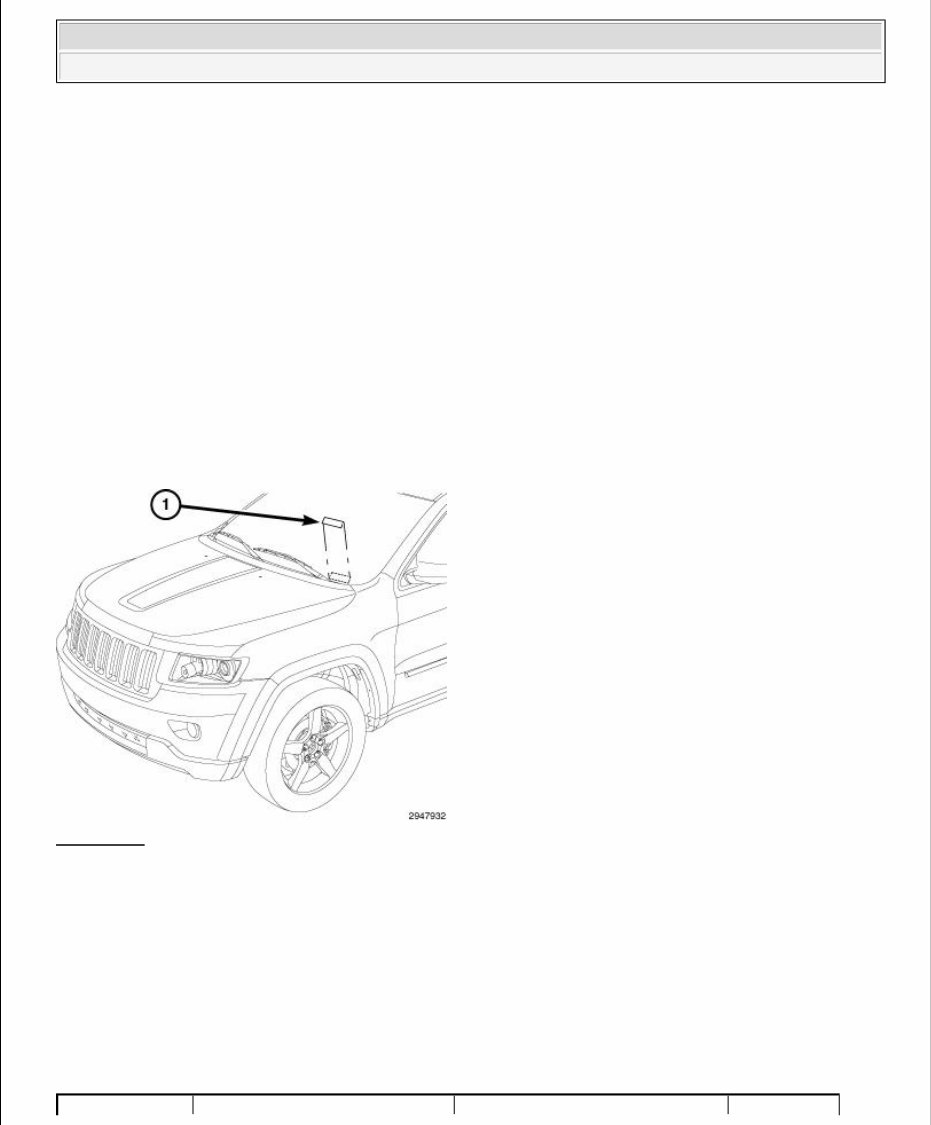

ENGINE COMPARTMENT Fig. 4: International Symbols Courtesy of CHRYSLER LLC The graphic symbols illustrated are used to identify engine compartment lubricant and fluid inspection and fill locations. The symbols correspond to the caps located within the engine compartment. LABEL, VEHICLE EMISSION CERTIFICATION INFORMATION (VECI) DESCRIPTION DESCRIPTION Fig. 5: Veci Label Location Courtesy of CHRYSLER LLC 2011 Jeep Grand Cherokee 2011 GENERAL INFORMATION Vehicle Data - Grand Cherokee

All vehicles are equipped with a combined VECI label(s). The label is located in the engine compartment on the vehicle hood. Two labels are used for vehicles built for sale in the country of Canada. The VECI label(s) contain the following:  Engine family and displacement  Evaporative family  Certification application  Spark plug and gap VEHICLE CERTIFICATION LABEL DESCRIPTION DESCRIPTION Fig. 6: Vehicle Certification Label - Typical Courtesy of CHRYSLER LLC A vehicle certification label is attached to every Chrysler LLC vehicle. The label certifies that the vehicle conforms to all applicable Federal Motor Vehicle Standards. The label also lists:  Month and year of vehicle manufacture.  Gross Vehicle Weight Rating (GVWR). The gross front and rear axle weight ratings (GAWR's) are based on a minimum rim size and maximum cold tire inflation pressure. 1 - VECI LABEL (CANADIAN) 2 - VECI LABEL 3 - HOOD NOTE: The Vehicle Emission Control Information (VECI) label(s) must be in place for the life of the vehicle. When replacing the component in which the VECI label is adhered, a new VECI label must also be adhered to the new component. 2011 Jeep Grand Cherokee 2011 GENERAL INFORMATION Vehicle Data - Grand Cherokee

 Vehicle Identification Number (VIN).  Type of vehicle.  Type of rear wheels.  Bar code.  Month, Day and Hour (MDH) of final assembly.  Paint and Trim codes.  Country of origin. The label is located on the driver-side door shut-face. VEHICLE IDENTIFICATION NUMBER DESCRIPTION DESCRIPTION Fig. 7: VIN Courtesy of CHRYSLER LLC The Vehicle Identification Number (VIN) label (1) is attached to the top left side of the instrument panel. The VIN contains 17 characters that provide data concerning the vehicle. Refer to the decoding chart below to determine the identification of a vehicle. To protect the consumer from theft and possible fraud the manufacturer is required to include a Check Digit at the ninth position of the Vehicle Identification Number. The check digit is used by the manufacturer and government agencies to verify the authenticity of the vehicle and official documentation. The formula to use the check digit is not released to the general public. VEHICLE IDENTIFICATION NUMBER DECODING CHART 2011 Jeep Grand Cherokee 2011 GENERAL INFORMATION Vehicle Data - Grand Cherokee

POSITION INTERPRETATION CODE = DESCRIPTION 1, 2, 3 WMI (World Manufacturer Identifier) 1J4 = Chrysler LLC 4 Gross Vehicle Weight Rating Active Belts (ASP) Front Air Bags (OSP) Without Side Inflatable Restraints C = 2722 - 3175 kg (6001 - 7000 lbs) Active Belts (ASP) Front Air Bags (OSP) With Side Inflatable Restraints All Rows J = 2722 - 3175 kg (6001 - 7000 lbs) R = 2722 - 3175 kg (6001 - 7000 lbs) 5 Vehicle Line (WK) S = Grand Cherokee Left Hand Drive (4x2) R = Grand Cherokee Left Hand Drive (4x4) 2 = Grand Cherokee Right Hand Drive (4x4) 6 Series 4 = Grand Cherokee Laredo 5 = Grand Cherokee Limited 6 = Grand Cherokee Overland 7 Body Style G = Sport Utility 4 Door 8 Engine G = 3.6L 6 CYL Gasoline Non - Turbo (EZH) T = 5.7L 8 CYL Gasoline Non - Turbo (ERB) 9 Check Digit 0 through 9 or X 10 Model Year B = 2011 11 Assembly Plant C = Jefferson North Assembly 12 thru 17 Vehicle Build Sequence 6 Digit Number Assigned by Assembly Plant 2011 Jeep Grand Cherokee 2011 GENERAL INFORMATION Vehicle Data - Grand Cherokee

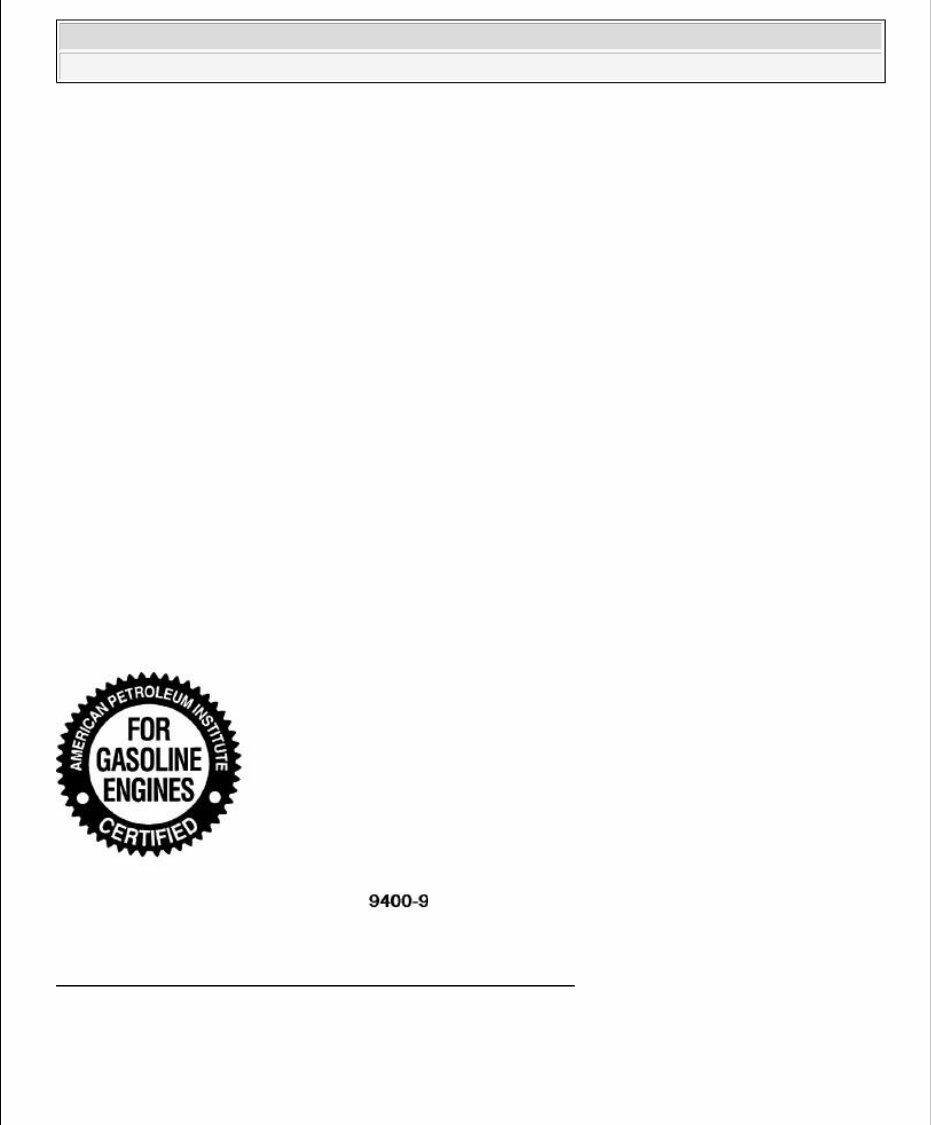

2011 GENERAL INFORMATION Vehicle Quick Reference - Grand Cherokee CAPACITIES AND RECOMMENDED FLUIDS DESCRIPTION FLUID TYPES When service is required, Chrysler Group LLC recommends that only Mopar® brand parts, lubricants and chemicals be used. Mopar® provides the best engineered products for servicing Chrysler Group LLC vehicles. Only lubricants bearing designations defined by the following organization should be used to service a Chrysler Group LLC vehicle:  Society of Automotive Engineers (SAE)  American Petroleum Institute (API)  National Lubricating Grease Institute (NLGI)  European Automobile Manufacturers Association (ACEA) API QUALITY CLASSIFICATION Fig. 1: Identifying American Petroleum Institute Certified Symbol Courtesy of CHRYSLER LLC This symbol on the front of an oil container means that the oil has been certified by the American Petroleum Institute (API) to meet all the lubrication requirements specified by Chrysler Group LLC. GEAR LUBRICANTS 2011 Jeep Grand Cherokee 2011 GENERAL INFORMATION Vehicle Quick Reference - Grand Cherokee
