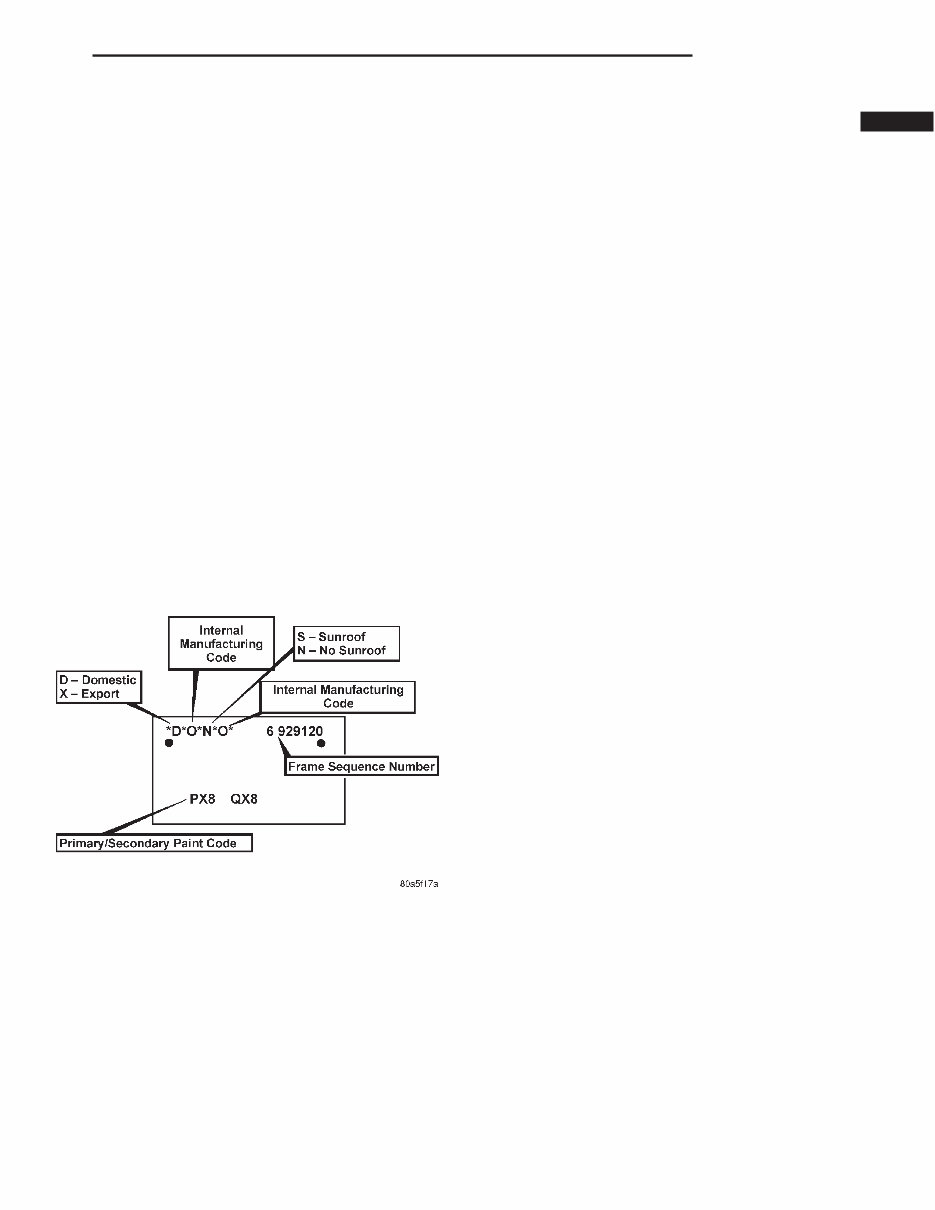

INTRODUCTION TABLE OF CONTENTS page page BODY CODE PLATE DESCRIPTION ............................ 1 FASTENER IDENTIFICATION DESCRIPTION ............................ 1 FASTENER USAGE DESCRIPTION ............................ 4 INTERNATIONAL VEHICLE CONTROL AND DISPLAY SYMBOLS DESCRIPTION ............................ 4 METRIC SYSTEM DESCRIPTION ............................ 5 TORQUE REFERENCES DESCRIPTION ............................ 7 VECI LABEL DESCRIPTION ............................ 9 VEHICLE IDENTIFICATION NUMBER DESCRIPTION ............................ 9 VEHICLE SAFETY CERTIFICATION LABEL DESCRIPTION ........................... 10 BODY CODE PLATE DESCRIPTION A metal Body Code plate is located in the engine compartment and attached to the top of the right frame rail. The information listed on the plate (Fig. 1) is used for manufacturing and service purposes. FASTENER IDENTIFICATION DESCRIPTION The SAE bolt strength grades range from grade 2 to grade 8. The higher the grade number, the greater the bolt strength. Identification is determined by the line marks on the top of each bolt head. The actual bolt strength grade corresponds to the number of line marks plus 2. The most commonly used metric bolt strength classes are 9.8 and 10.9. The metric strength class identification number is imprinted on the head of the bolt. The higher the class number, the greater the bolt strength. Some metric nuts are imprinted with a single-digit strength class on the nut face. Refer to the Fastener Identification and Fastener Strength Charts. Fig. 1 Body Code Plate WJ INTRODUCTION 1

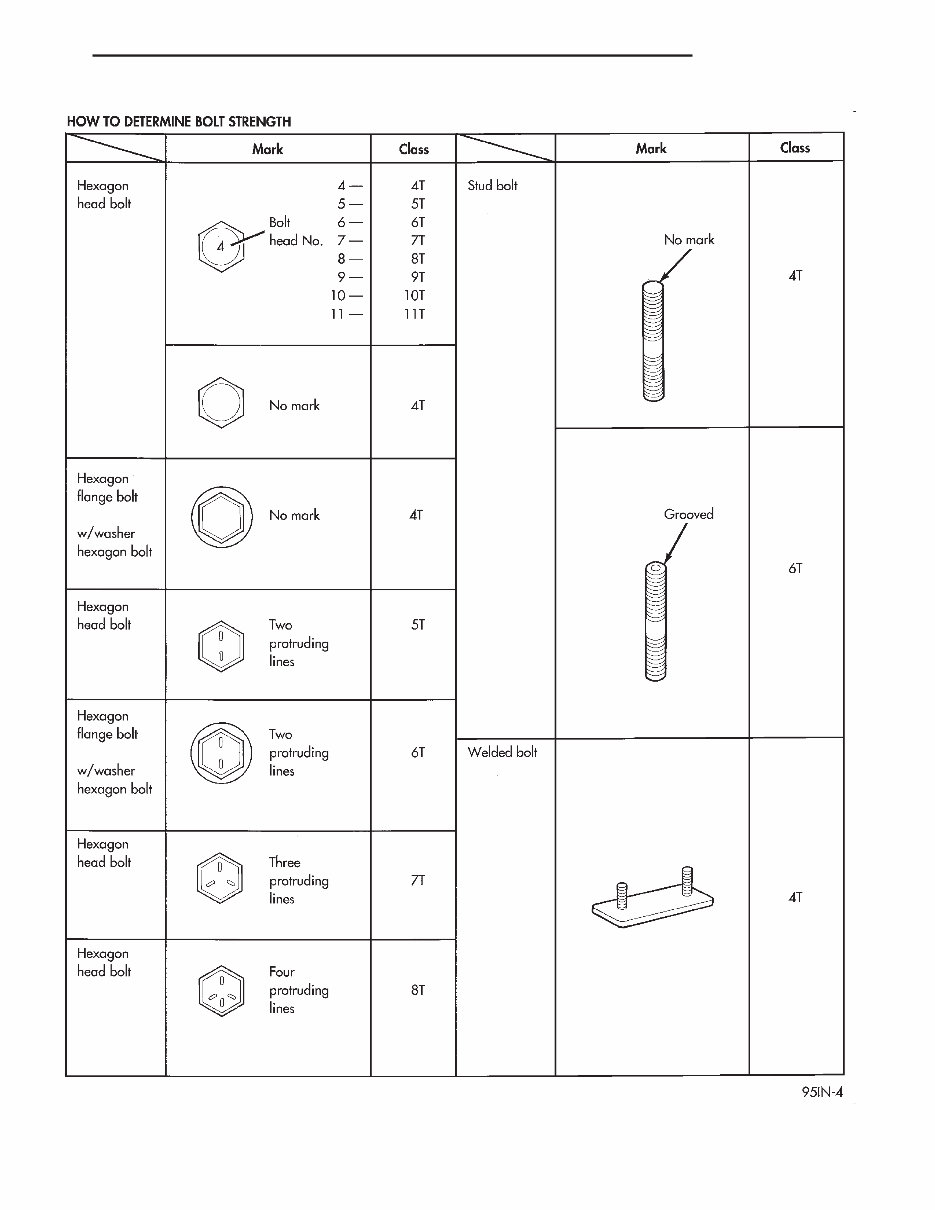

FASTENER IDENTIFICATION 2 INTRODUCTION WJ FASTENER IDENTIFICATION (Continued)

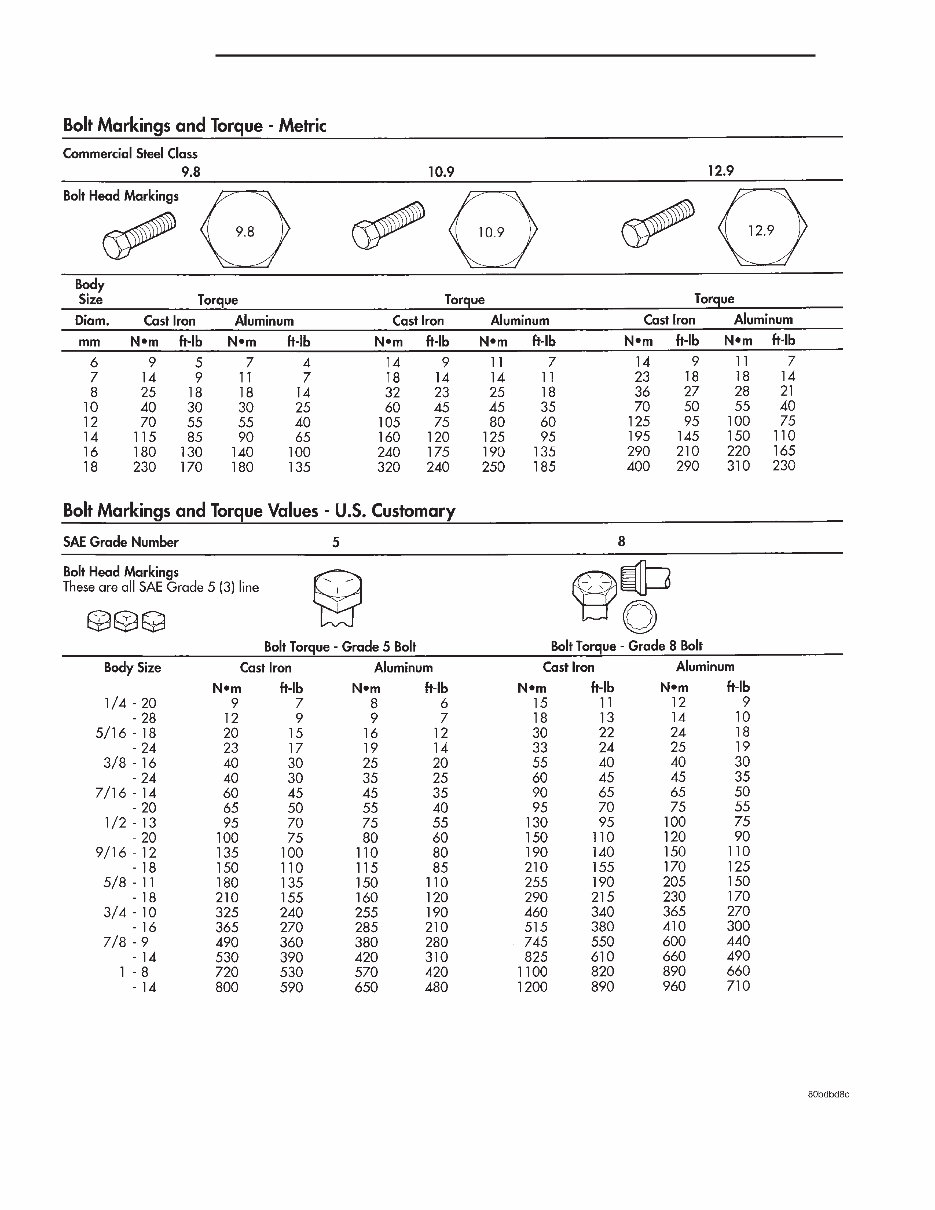

FASTENER STRENGTH WJ INTRODUCTION 3 FASTENER IDENTIFICATION (Continued)

FASTENER USAGE DESCRIPTION - FASTENER USAGE WARNING: USE OF AN INCORRECT FASTENER MAY RESULT IN COMPONENT DAMAGE OR PER- SONAL INJURY. Figure art, specifications and torque references in this Service Manual are identified in metric and SAE format. During any maintenance or repair procedures, it is important to salvage all fasteners (nuts, bolts, etc.) for reassembly. If the fastener is not salvageable, a fastener of equivalent specification must be used. DESCRIPTION - THREADED HOLE REPAIR Most stripped threaded holes can be repaired using a Helicoilt. Follow the manufactures recommenda- tions for application and repair procedures. INTERNATIONAL VEHICLE CONTROL AND DISPLAY SYMBOLS DESCRIPTION - INTERNATIONAL SYMBOLS The graphic symbols illustrated in the following International Control and Display Symbols Chart are used to identify various instrument controls. The symbols correspond to the controls and displays that are located on the instrument panel. INTERNATIONAL SYMBOLS 1 High Beam 13 Rear Window Washer 2 Fog Lamps 14 Fuel 3 Headlamp, Parking Lamps, Panel Lamps 15 Engine Coolant Temperature 4 Turn Warning 16 Battery Charging Condition 5 Hazard Warning 17 Engine Oil 6 Windshield Washer 18 Seat Belt 7 Windshield Wiper 19 Brake Failure 8 Windshield Wiper and Washer 20 Parking Brake 9 Windscreen Demisting and Defrosting 21 Front Hood 10 Ventilating Fan 22 Rear hood (Decklid) 11 Rear Window Defogger 23 Horn 12 Rear Window Wiper 24 Lighter 4 INTRODUCTION WJ
