Jeep Cherokee WJ & XJ 1993-2001 Parts Manual

VIN PLATE DECODING INFORMATION 1 2 3 4 5 6 7 8 9 10 11 12 thru 17 Country Make Vehicle Type Other Line Series Body Style Engine Check Digit Model Year Assy. Plant Sequence No. The following table interprets the VIN Plate position shown above. Position Interpretation Codes = Description 1 Country of Origin 1 = United States 2 Assembler J = Jeep 3 Vehicle Type 4 = Multipurpose Vehicle 4 GVWR & Pass. Safety D = 0 - 1360 kg (0-3000 lbs) E = 1361 - 1814 kg (3001 - 4000 lbs) F = 1815 - 2267 kg (4001 - 5000 lbs) G = 2268 - 2721 kg (5001 - 6000 lbs) K = 3629 - 4082 kg (8001 - 9000 lbs) L = 4083 - 4535 kg (9001 - 10,000 lbs) M = 4536 - 6350 kg (10,001 - 14,000 lbs) H = 2722 - 3175 kg (6001 - 7000 lbs) J = 3176 - 3628 kg (7001 - 8000 lbs) 5 Vehicle Line F = Cherokee 4x4 LHD J = Cherokee 4x4 (LHD), (RHD w/ABB) T = Cherokee 4x2 LHD 6 Series 2 = SE 4 = Sport 5 = Classic 6 = Limited with MZG 6 = Country w/o MZG 7 Body Style 6 = 4 Door Sedan 8 Engine M = 2.5L Diesel (ENC) S = 4.0L Gas Unleaded (ERH) 9 Check Digit 0 = Check Digit 0 = Check Digit 10 Model Year 1 = 2001 11 Assembly Plant L = Toledo #1 12 thru 17 Vehicle Build Sequence Model Year Assembly Sequence

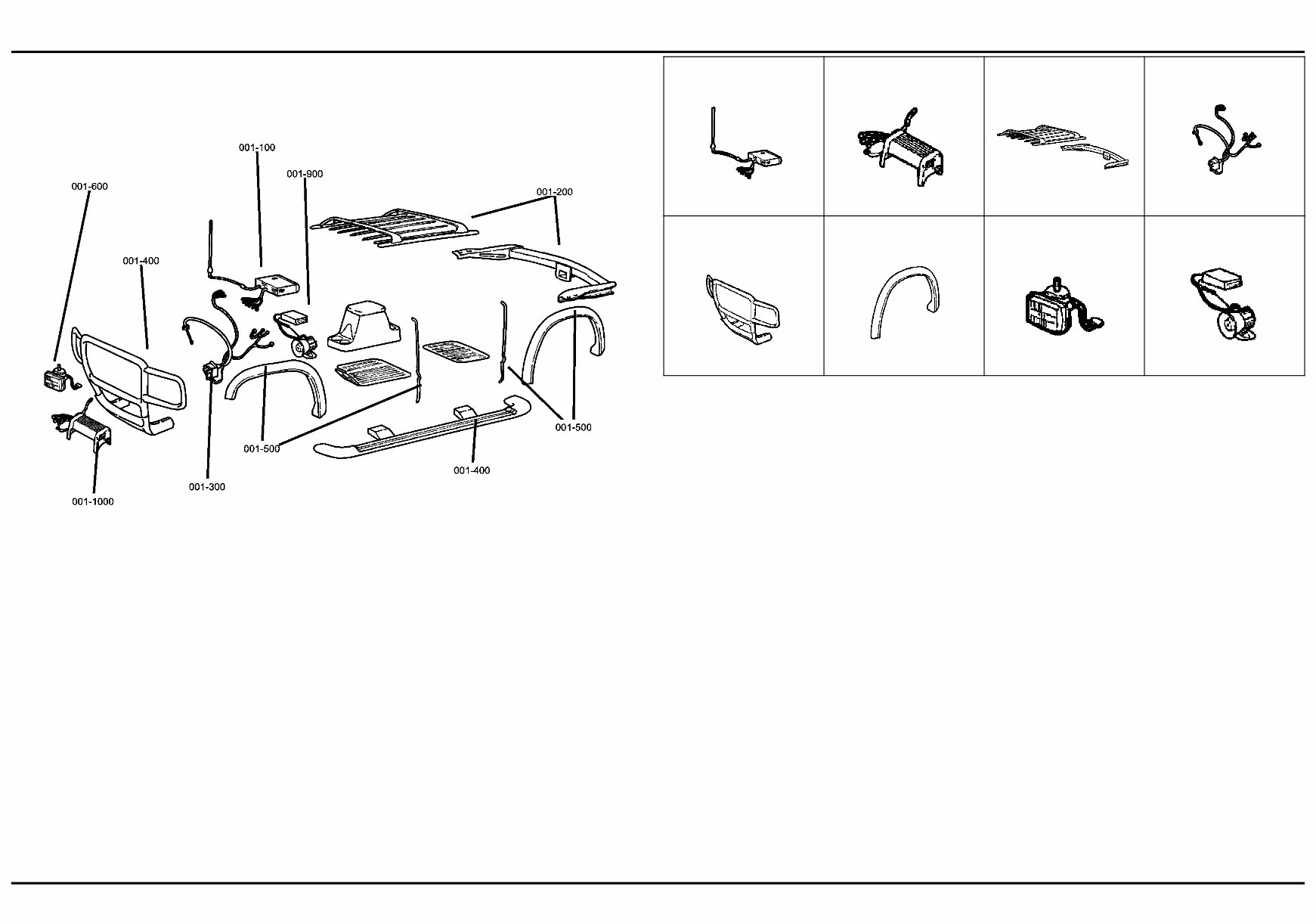

Group - 1 Component Parts for Mopar Accessories 001-100 Audio & Electronics 001-1000 4 - Wheeling & Off Road 001-200 Carriers & Cargo Hauling 001-300 Driving Convenience 001-400 Exterior Appearance 001-500 Exterior Protection 001-600 Fog Lights & Electrical 001-900 Security 2001 XJ

Group - 1 Component Parts for Mopar Accessories Illustration Title Group-Fig. No. Audio & Electronics Player Kit - CD Changer - 6 Disc............................................................................................................ Fig. 1 - 110 Player Kit - CD Changer - 12 Disc .......................................................................................................... Fig. 1 - 112 Install Kit - CD Changer - Trunk ............................................................................................................. Fig. 1 - 130 Carriers & Cargo Hauling Bike Carrier - Hitch Mount ................................................................................................................... Fig. 1 - 210 Bike Carrier - Roof Mount ................................................................................................................... Fig. 1 - 212 Bike Carrier - Roof Mount ................................................................................................................... Fig. 1 - 214 Carrier Kit - Canoe ........................................................................................................................... Fig. 1 - 220 Carrier Kit - Water Sports .................................................................................................................... Fig. 1 - 225 Carrier Kit - Ski- Hitch Mount ................................................................................................................ Fig. 1 - 230 Carrier Kit - Ski (Two Pair) ................................................................................................................... Fig. 1 - 232 Carrier Kit - Ski (Four Pair) .................................................................................................................. Fig. 1 - 234 Carrier Kit - Ski (Six Pair) .................................................................................................................... Fig. 1 - 236 Tire Carrier - Roof Mount .................................................................................................................... Fig. 1 - 240 Luggage Rack Package - Roof.............................................................................................................. Fig. 1 - 260 Utility Bar Package - Roof ................................................................................................................... Fig. 1 - 262 Carrier Kit - Multipurpose .................................................................................................................... Fig. 1 - 270 Carrier Kit - Basket Type..................................................................................................................... Fig. 1 - 272 Luggage Carrier - Roof Mount .............................................................................................................. Fig. 1 - 274 Trailer Tow Kit ................................................................................................................................ Fig. 1 - 280 Wiring Kit -Trailer Tow ....................................................................................................................... Fig. 1 - 285 Cooler Kit - Transmission Oil ................................................................................................................ Fig. 1 - 290 Driving Convenience Speed Control Package ..................................................................................................................... Fig. 1 - 310 Mounting Kit - Cellular Phone ............................................................................................................... Fig. 1 - 320 Exterior Appearance Brush Guard .................................................................................................................................. Fig. 1 - 410 Running Board Kit ............................................................................................................................ Fig. 1 - 430 Step Kit - Side ................................................................................................................................ Fig. 1 - 432 Step Kit - Side ................................................................................................................................ Fig. 1 - 434 Exterior Protection Shield Kit ...................................................................................................................................... Fig. 1 - 510 Skid Plate - Front ............................................................................................................................. Fig. 1 - 520 Skid Plate - Transfer Case .................................................................................................................. Fig. 1 - 522 Skid Plate - Fuel Tank........................................................................................................................ Fig. 1 - 524 Fog Lights & Electrical Light Kit - Fog................................................................................................................................. Fig. 1 - 610 Installation Kit - Fog .......................................................................................................................... Fig. 1 - 616 Heater Kit ..................................................................................................................................... Fig. 1 - 620 Security Alarm - EVS Base System................................................................................................................... Fig. 1 - 910 Alarm - EVS Plus System ................................................................................................................... Fig. 1 - 914 4 - Wheeling & Off Road Guard - Rock Rails .......................................................................................................................... Fig. 1 - 1020 Winch Kit - Power ........................................................................................................................... Fig. 1 - 1030 2001 XJ

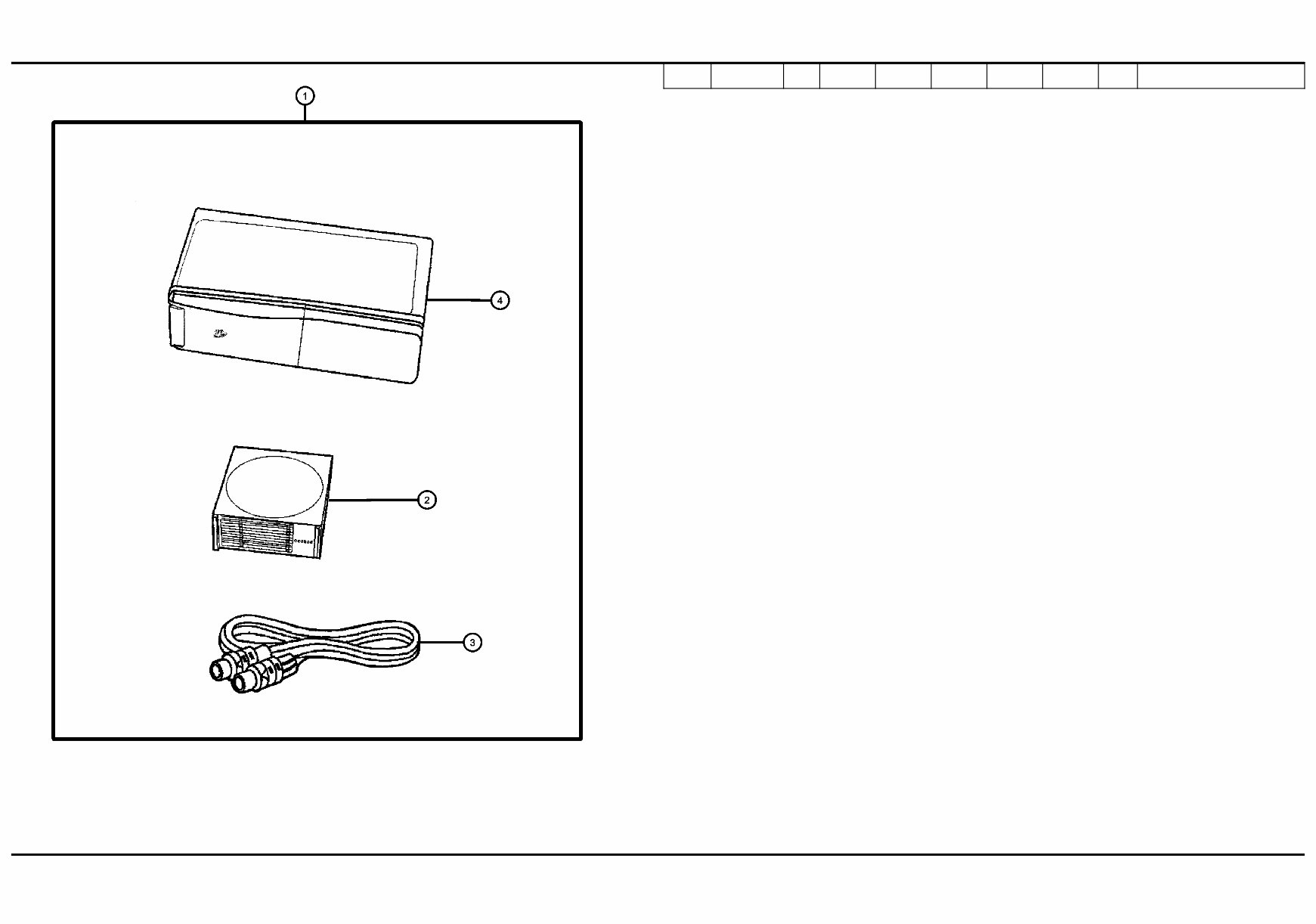

Player Kit - CD Changer - 6 Disc Figure 1-110 ITEM PART NUMBER QTY LINE SERIES BODY ENGINE TRANS TRIM DESCRIPTION Player Kit - CD Changer - 6 Disc PK- CD C-6D NOTE; Use with CD-Controlled radios. For radios without CD Changer controls, use FM-Modulator Kit 82202292 1 82202700 1 PLAYER KIT, CD Changer - 6 Disc 2 04797433 1 MAGAZINE, CD Changer 3 04465113 1 CABLE, Din 4 04465113 1 CHANGER, CD, (NOT SERVICED) CHEROKEE (XJ) SERIES LINE BODY ENGINE TRANSMISSION P = Limited S = Limited L = SE H = Sport B = JEEP - 2WD (RHD) J = JEEP - LHD 4WD T = LHD (2WD) U = RHD (4WD) 72 = SPORT UTILITY 2-DR 74 = SPORT UTILITY 4-DR ENC = ENGINE - 2.5L 4 CYL TURBO DIESEL ERH = ENGINE - 4.0L POWER TECH I-6 DDD = TRANSMISSION - 5-SPEED HD MANUAL DGS = TRANSMISSION-4SPD. AUTO,AISIN WARNER DG0 = Transmissions - All Automatic DBB = ALL MANUAL TRANSMISSIONS AR = use ase required - = Non illustrrated part 2001 XJ << RETURN TO GROUP INDEX

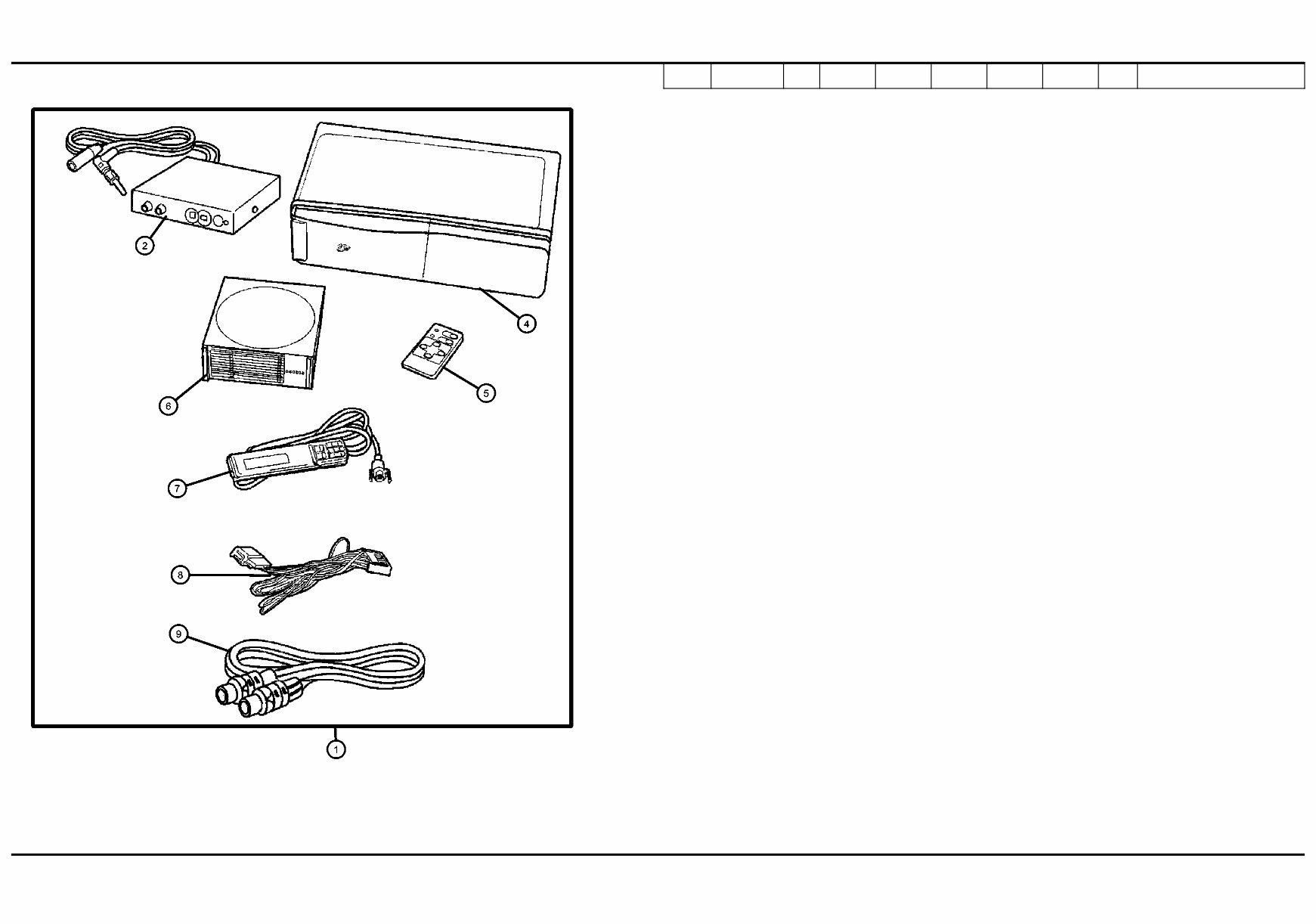

Player Kit - CD Changer - 12 Disc Figure 1-112 ITEM PART NUMBER QTY LINE SERIES BODY ENGINE TRANS TRIM DESCRIPTION Player Kit - CD Changer - 12 Disc PK- CD C- 12 D NOTE; For radio without CD controls. Pentastar Logo, Includes RF Modulator, Power Cord, Din Cord, Hand Held and IR Remote Controller and O 1 82204730 1 J, T 72, 74 PLAYER KIT, CD Changer - 12 Disc 2 05013804AA 1 J, T 72, 74 MODULATOR, FM -3 05013800AA 1 J, T 72, 74 HARDWARE KIT, Mounting 4 05013806AA 1 J, T 72, 74 CHANGER, CD 5 05013802AA 1 J, T 72, 74 CONTROLLER, CD Wireless 6 05013805AA 1 J, T 72, 74 MAGAZINE, CD Changer 7 05013803AA 1 J, T 72, 74 CONTROLLER, CD Wired 8 04465117 1 J, T 72, 74 ADAPTOR, A/C 9 05013801AA 1 J, T 72, 74 DIN CORD, CD Player, 5 Meter CHEROKEE (XJ) SERIES LINE BODY ENGINE TRANSMISSION P = Limited S = Limited L = SE H = Sport B = JEEP - 2WD (RHD) J = JEEP - LHD 4WD T = LHD (2WD) U = RHD (4WD) 72 = SPORT UTILITY 2-DR 74 = SPORT UTILITY 4-DR ENC = ENGINE - 2.5L 4 CYL TURBO DIESEL ERH = ENGINE - 4.0L POWER TECH I-6 DDD = TRANSMISSION - 5-SPEED HD MANUAL DGS = TRANSMISSION-4SPD. AUTO,AISIN WARNER DG0 = Transmissions - All Automatic DBB = ALL MANUAL TRANSMISSIONS AR = use ase required - = Non illustrrated part 2001 XJ << RETURN TO GROUP INDEX

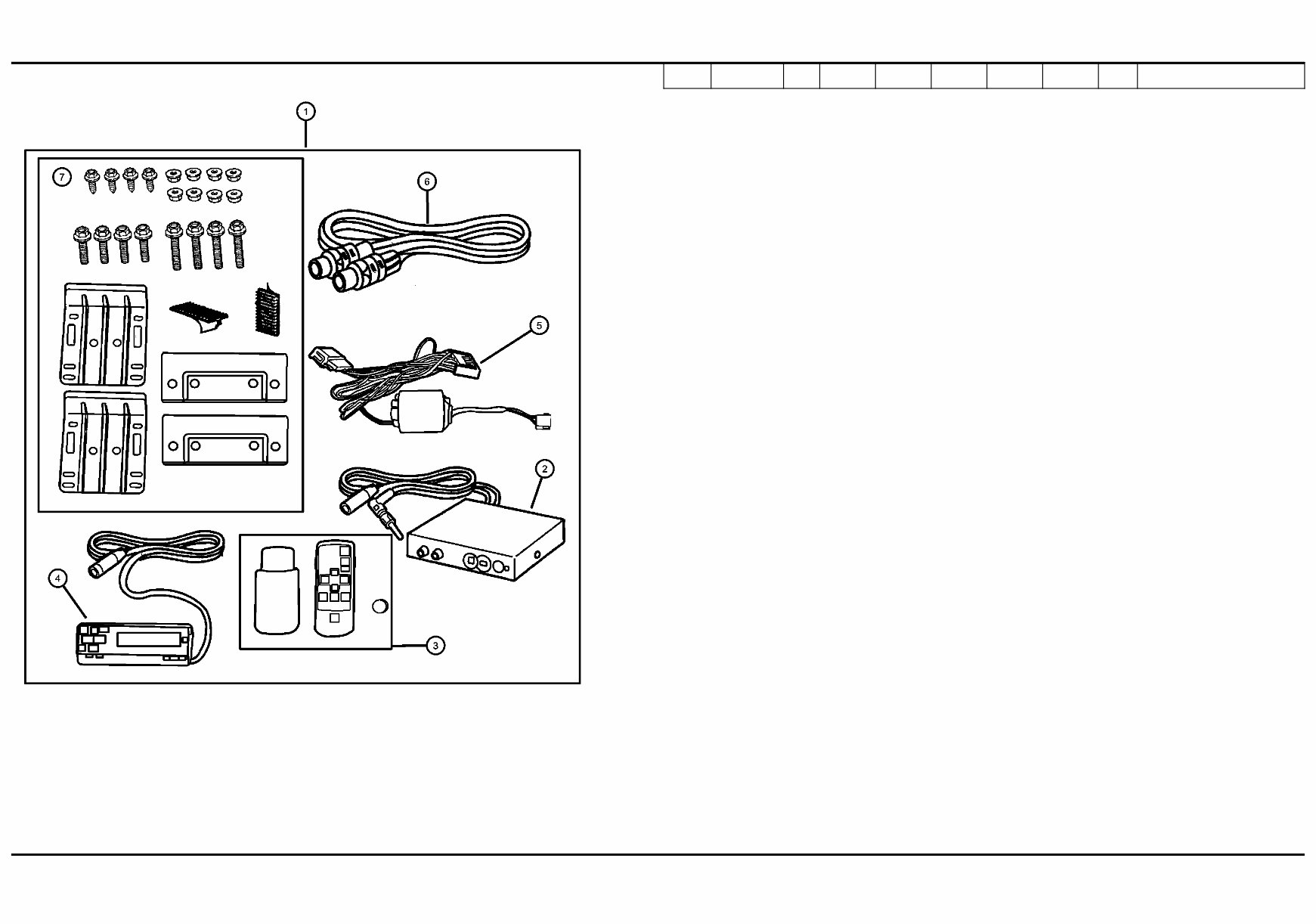

Install Kit - CD Changer - Trunk Figure 1-130 ITEM PART NUMBER QTY LINE SERIES BODY ENGINE TRANS TRIM DESCRIPTION Install Kit - CD Changer - Trunk 1 82202292 1 INSTALL KIT, CD Changer - Trunk 2 05012349AA 1 MODULATOR, FM Changer 3 05017217AA 1 CONTROLLER, CD Wireless 4 05017217AA 1 CONTROLLER, CD Wired, (NOT SERVICED) 5 04465117 1 ADAPTOR, A/C 6 04465113 1 CABLE, Din 7 04465113 1 HARDWARE KIT, Mounting, (NOT SERVICED) CHEROKEE (XJ) SERIES LINE BODY ENGINE TRANSMISSION P = Limited S = Limited L = SE H = Sport B = JEEP - 2WD (RHD) J = JEEP - LHD 4WD T = LHD (2WD) U = RHD (4WD) 72 = SPORT UTILITY 2-DR 74 = SPORT UTILITY 4-DR ENC = ENGINE - 2.5L 4 CYL TURBO DIESEL ERH = ENGINE - 4.0L POWER TECH I-6 DDD = TRANSMISSION - 5-SPEED HD MANUAL DGS = TRANSMISSION-4SPD. AUTO,AISIN WARNER DG0 = Transmissions - All Automatic DBB = ALL MANUAL TRANSMISSIONS AR = use ase required - = Non illustrrated part 2001 XJ << RETURN TO GROUP INDEX

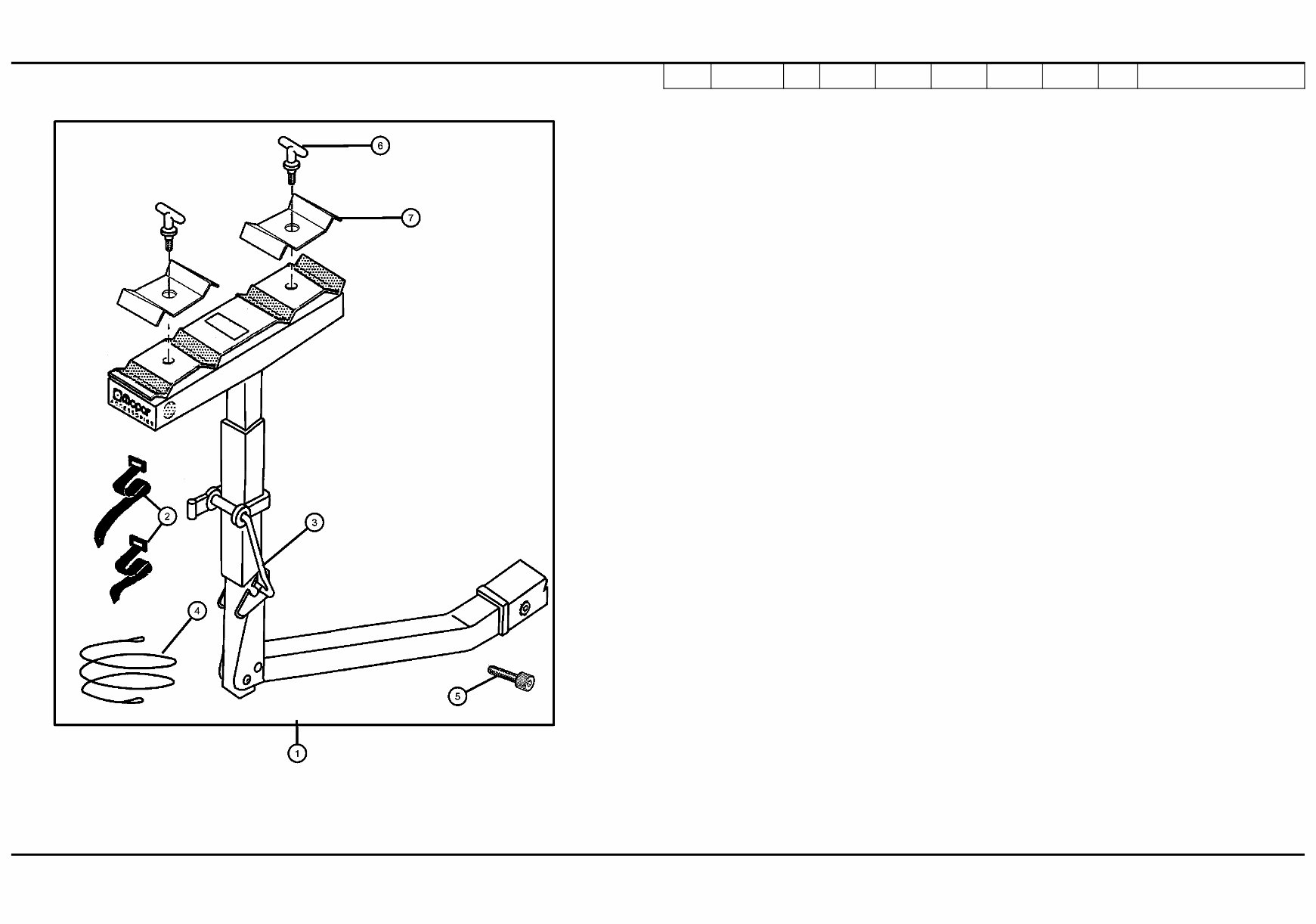

Bike Carrier - Hitch Mount Figure 1-210 ITEM PART NUMBER QTY LINE SERIES BODY ENGINE TRANS TRIM DESCRIPTION Bike Carrier - Hitch Mount 1 CARRIER KIT, Bike, 2 inch hitch opening 82204328 1 J, T 72, 74 Four Bike 82204453 1 J, T 72, 74 Two Bike 2 04762880 1 J, T 72, 74 STRAP KIT, Velcro, Consists of: 1- Long and 1- Short 3 05016775AA 1 J, T 72, 74 STRAP KIT, Bike Carrier Latch, Consists of : Two Rubber Straps 4 04762882 1 J, T 72, 74 LOCK KIT, Bike Carrier Handle 5 05016776AA 1 J, T 72, 74 BOLT KIT, Security, Consists of: 1- Security Bolt,1-Security Wrench, washer and nut. For use with a 2 inch Receiver. 6 05016610AA 1 J, T 72, 74 HARDWARE KIT, Accessory, T-Handle 7 05016657AA 1 J, T 72, 74 HARDWARE KIT, Accessory, Top Clamp - 82204328 uses Two Total CHEROKEE (XJ) SERIES LINE BODY ENGINE TRANSMISSION P = Limited S = Limited L = SE H = Sport B = JEEP - 2WD (RHD) J = JEEP - LHD 4WD T = LHD (2WD) U = RHD (4WD) 72 = SPORT UTILITY 2-DR 74 = SPORT UTILITY 4-DR ENC = ENGINE - 2.5L 4 CYL TURBO DIESEL ERH = ENGINE - 4.0L POWER TECH I-6 DDD = TRANSMISSION - 5-SPEED HD MANUAL DGS = TRANSMISSION-4SPD. AUTO,AISIN WARNER DG0 = Transmissions - All Automatic DBB = ALL MANUAL TRANSMISSIONS AR = use ase required - = Non illustrrated part 2001 XJ << RETURN TO GROUP INDEX

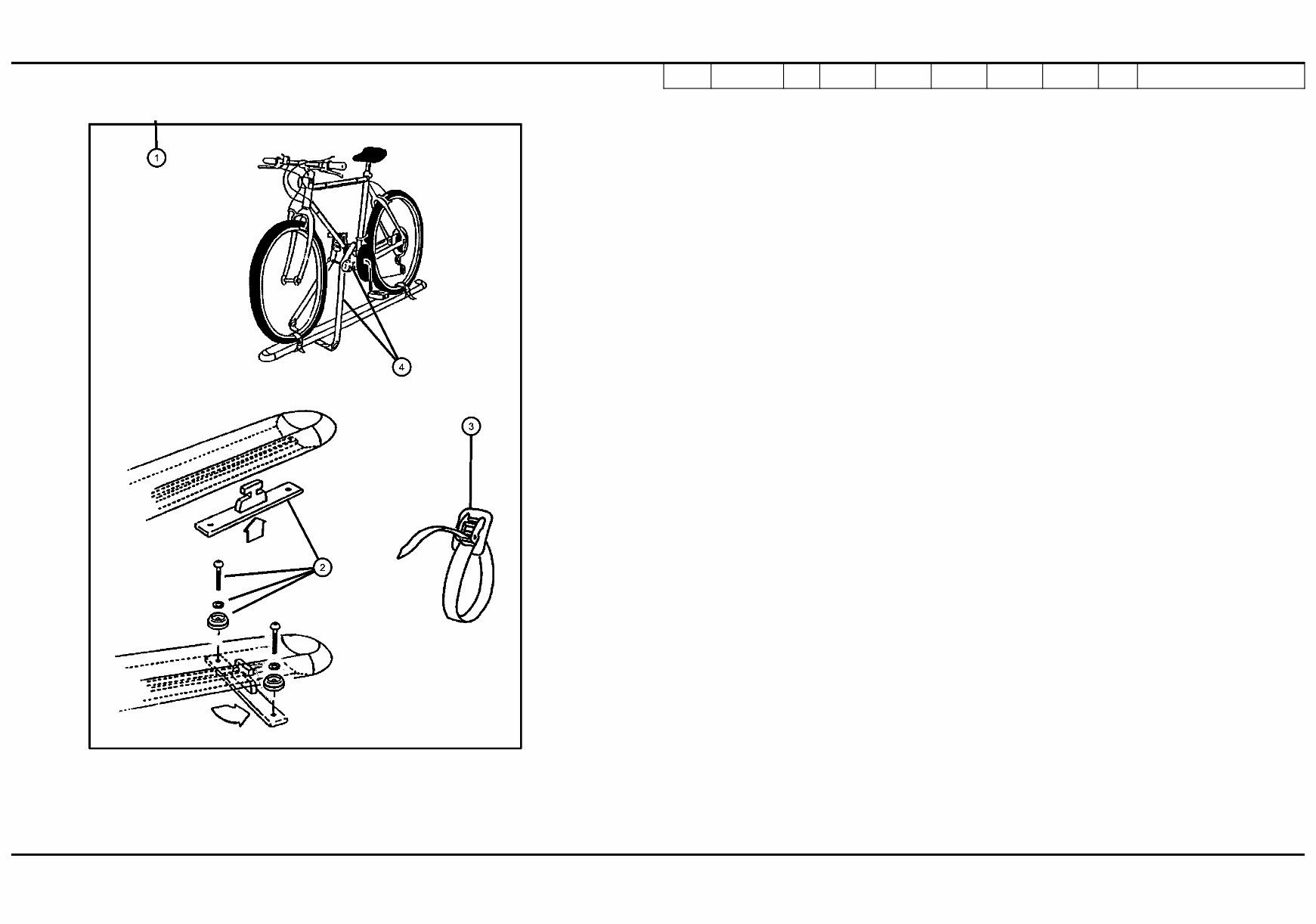

Bike Carrier - Roof Mount Figure 1-212 ITEM PART NUMBER QTY LINE SERIES BODY ENGINE TRANS TRIM DESCRIPTION Bike Carrier - Roof Mount BC-RM NOTE: Hardware Kit also contained in Carrier Kit. NOTE: Carrier Kit has Upright Clamp for bike. 1 82300585 1 J, T 72, 74 CARRIER KIT, Bike, Fork - Mount 2 05016512AA 1 J, T 72, 74 HARDWARE KIT, Accessory, Consists of: 2-T-Slot Bars, 4- Round Dome Washers, 4- M6X1.0 X 16MM Machine Screws, 2 M6 Lockwashers 3 05016513AA 1 J, T 72, 74 STRAP, Cargo Tie Down, Consists of ; 2 Straps for securing the tire(s) onto the rack.NOTE: 82300585 only needs one strap but will receive 2 in this kit. CHEROKEE (XJ) SERIES LINE BODY ENGINE TRANSMISSION P = Limited S = Limited L = SE H = Sport B = JEEP - 2WD (RHD) J = JEEP - LHD 4WD T = LHD (2WD) U = RHD (4WD) 72 = SPORT UTILITY 2-DR 74 = SPORT UTILITY 4-DR ENC = ENGINE - 2.5L 4 CYL TURBO DIESEL ERH = ENGINE - 4.0L POWER TECH I-6 DDD = TRANSMISSION - 5-SPEED HD MANUAL DGS = TRANSMISSION-4SPD. AUTO,AISIN WARNER DG0 = Transmissions - All Automatic DBB = ALL MANUAL TRANSMISSIONS AR = use ase required - = Non illustrrated part 2001 XJ << RETURN TO GROUP INDEX

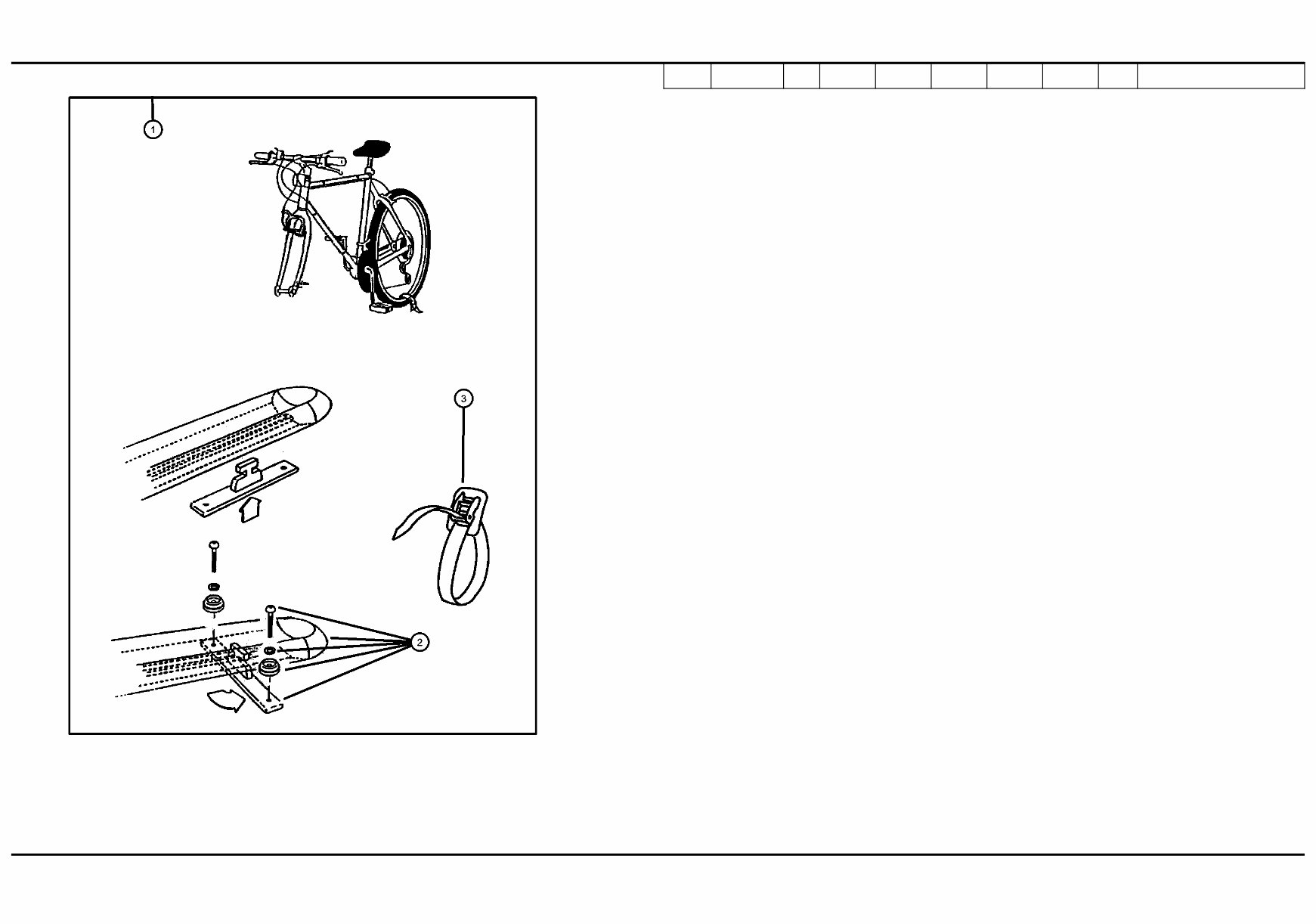

Bike Carrier - Roof Mount Figure 1-214 ITEM PART NUMBER QTY LINE SERIES BODY ENGINE TRANS TRIM DESCRIPTION Bike Carrier - Roof Mount BC-RM NOTE: Kit has Uprignt Clamp for Bike. 1 82203471 1 CARRIER KIT, Bike, Upright - Mount 2 05016512AA 1 HARDWARE KIT, Accessory 3 05016513AA 1 STRAP, Cargo Tie Down 4 05018194AA 1 HARDWARE KIT, Bike Carrier CHEROKEE (XJ) SERIES LINE BODY ENGINE TRANSMISSION P = Limited S = Limited L = SE H = Sport B = JEEP - 2WD (RHD) J = JEEP - LHD 4WD T = LHD (2WD) U = RHD (4WD) 72 = SPORT UTILITY 2-DR 74 = SPORT UTILITY 4-DR ENC = ENGINE - 2.5L 4 CYL TURBO DIESEL ERH = ENGINE - 4.0L POWER TECH I-6 DDD = TRANSMISSION - 5-SPEED HD MANUAL DGS = TRANSMISSION-4SPD. AUTO,AISIN WARNER DG0 = Transmissions - All Automatic DBB = ALL MANUAL TRANSMISSIONS AR = use ase required - = Non illustrrated part 2001 XJ << RETURN TO GROUP INDEX

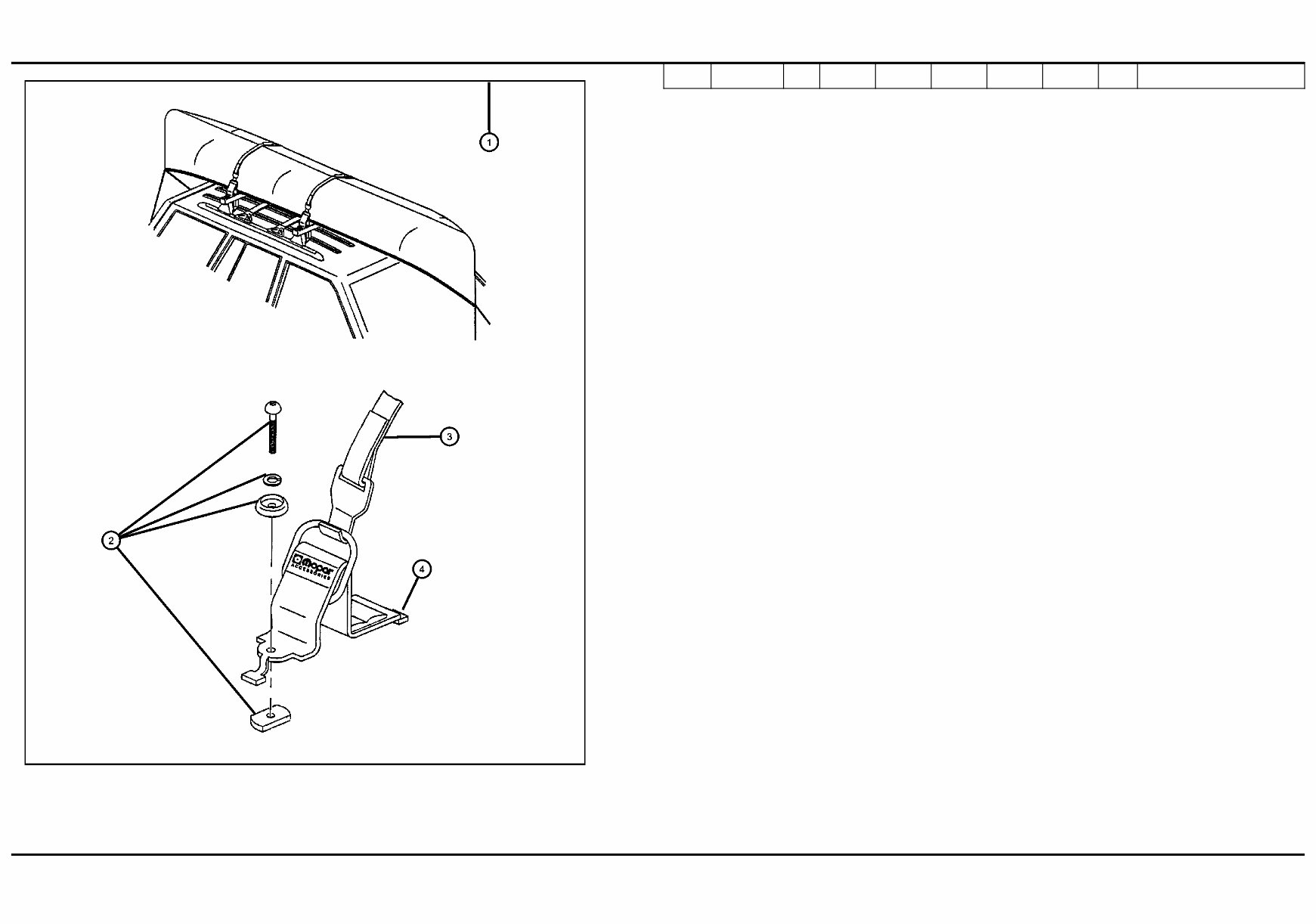

Carrier Kit - Canoe Figure 1-220 ITEM PART NUMBER QTY LINE SERIES BODY ENGINE TRANS TRIM DESCRIPTION Carrier Kit - Canoe CK-C NOTE: Use only with Sport Utility Bar NOTE: Hardware Kit also contained in Carrier Kit 1 82204700 1 J, T 72, 74 CARRIER KIT, Water Sports 2 05016389AA 1 J, T 72, 74 HARDWARE KIT, Accessory, Consists of: 4- 25MM Button Head Screws, 4- 30MM Button Head Screws, 4- Lock Washers, 4- Dome Washer, 4- Rubber Washers and 4- T-Nuts. 3 05016511AA 1 J, T 72, 74 STRAP, Cargo Tie Down 4 05016510AA 1 J, T 72, 74 BRACKET, Cargo Tie Down CHEROKEE (XJ) SERIES LINE BODY ENGINE TRANSMISSION P = Limited S = Limited L = SE H = Sport B = JEEP - 2WD (RHD) J = JEEP - LHD 4WD T = LHD (2WD) U = RHD (4WD) 72 = SPORT UTILITY 2-DR 74 = SPORT UTILITY 4-DR ENC = ENGINE - 2.5L 4 CYL TURBO DIESEL ERH = ENGINE - 4.0L POWER TECH I-6 DDD = TRANSMISSION - 5-SPEED HD MANUAL DGS = TRANSMISSION-4SPD. AUTO,AISIN WARNER DG0 = Transmissions - All Automatic DBB = ALL MANUAL TRANSMISSIONS AR = use ase required - = Non illustrrated part 2001 XJ << RETURN TO GROUP INDEX
