SPECIAL CAUTIONS
SUPPLEMENTAL RESTRAINT
SYSTEM
Refer to Procedure Explanation 29 for Supplemental Restraint/Air
Bag Special Cautions.
ELECTRICAL COMPONENTS
Ignition must be in off position before any electrical repair is
performed.
SUSPENSION
Manufacturer advises that some new fasteners must be used
whenever old fasteners are loosened or removed.
WELDING
Before initiating any repair involving the use of an electric welder,
the ignition must be in the off position and both battery terminals
disconnected.
PAINT CODE
LOCATION
Paint code located on left front door jamb.
CLEAR COAT
IDENTIFICATION
All colors are clear coat.
INFORMATION LABELS
Label, A/C XR847032 $8.10
Label, Air Bag C2C22862 $9.00
Label, Coolant XR813289 $3.45
Order by Application
Label, Fan Caution-See Cooling Section
Label, Fuel C2C18300 $1.45
Label, Emission XR845341 $5.85
Label, Vacuum XR833434 $6.55
Order by Application
FRONT BUMPER
Use Procedure Explanations 1 and 28
with the following text.
2000-02
2008 Jaguar S-Type (none) Sedan
Copyright 1998 - 2013 - Mitchell International, Inc.. All Rights Reserved. Page 1 of 211
Refinish Front Cover 2.4
Refinish Outer Moulding R .5
L .5
Refinish Air Deflector .5
Refinish Reinforcement Bar 1.0
R&I Front Cover #1.8
O/H Front Cover (Includes R&I) #2.8
#Includes R&I/R&R Grille
Add to R&R or O/H Front Cover
w/ H/Lamp Washers .3
NOTE: All Parts in this section are included in overhaul unless
noted otherwise.

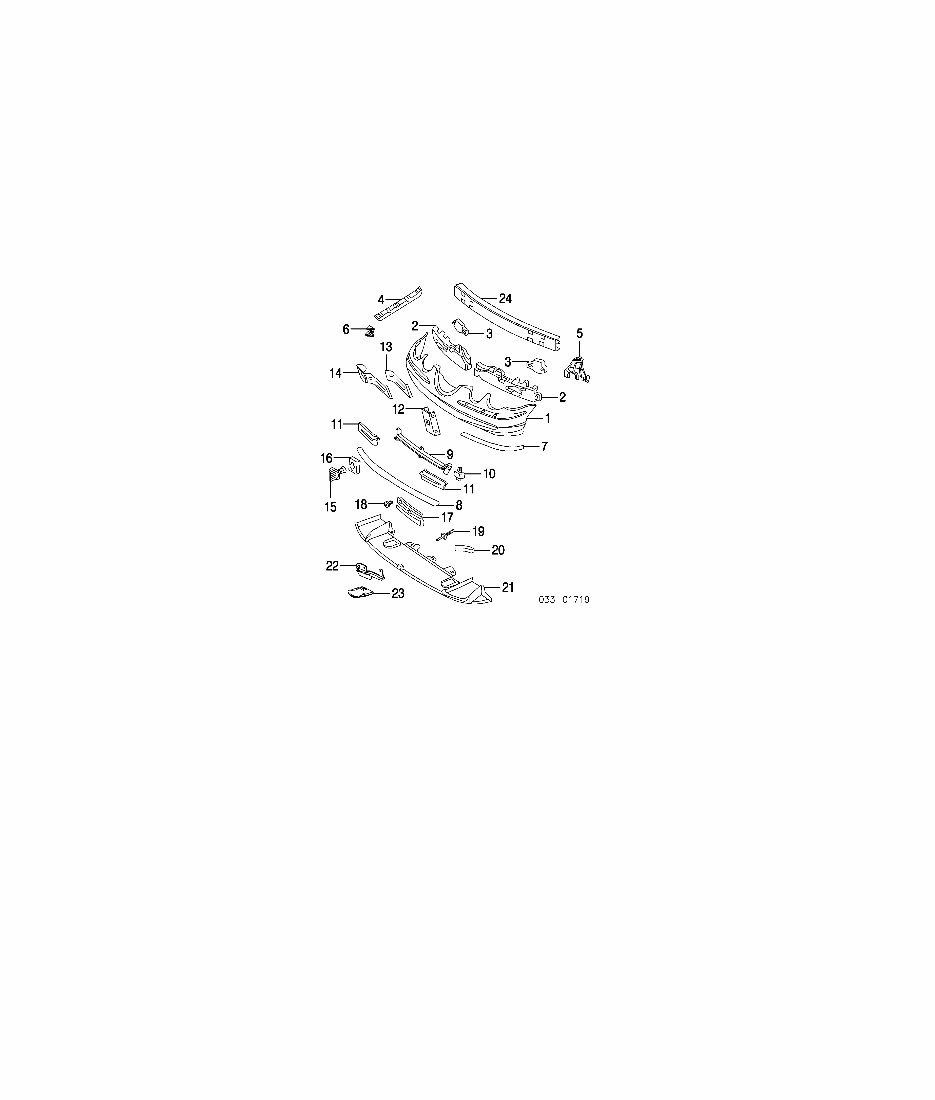

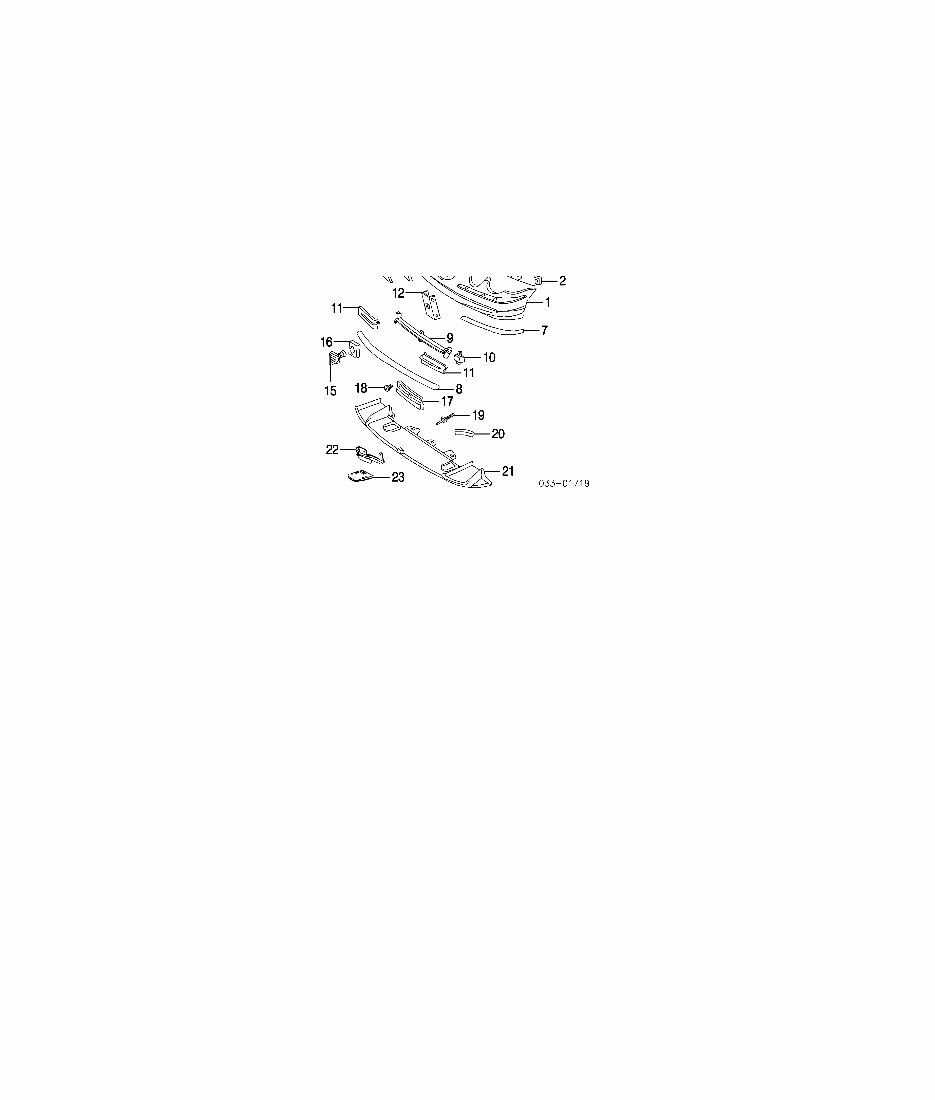

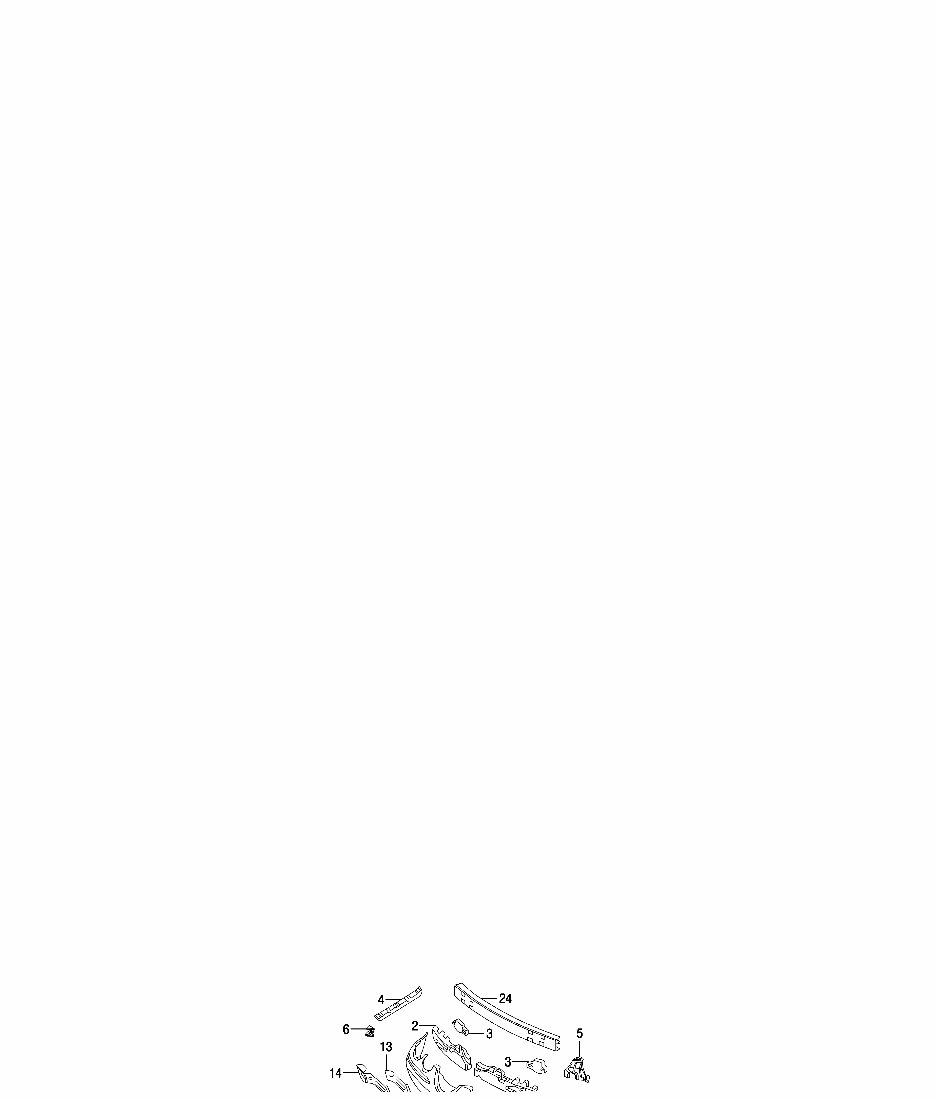

1 Cover, Front (P)
w/ H/Lamp Washers XR87633XXX $830.00 #2.8
w/o H/Lamp Washers XR87632XXX $830.00 #2.8
(P) Paint to Match
#Includes R&I/R&R Grille
2 Absorber, Impact R XR836543 $122.75 #.2
L XR836544 $122.75 #.2
#w/Front Cover Removed
3 Insert, Impact Absorber R XR810580 $105.26
L XR810581 $105.26
4 Bracket, Side Mounting R XR826634 $44.50
L XR826635 $44.50
5 Bracket, Mounting R XR82145 $33.70
L XR82146 $33.70
6 Retainer, Cover R XR811451 $3.35
L XR811452 $3.35
7 Moulding, Outer
Chrome R XR87628 $145.50 .2
L XR87629 $145.50 .2
Paint to Match R XR826424XXX $145.50 .2
L XR826425XXX $145.50 .2
8 Deflector, Outer Air (P) XR829588 $92.14 .4
(P) Paint to Match
9 Deflector, Inner Air XR829429 $92.14
2008 Jaguar S-Type (none) Sedan
Copyright 1998 - 2013 - Mitchell International, Inc.. All Rights Reserved. Page 2 of 211
10 Bracket, Air Deflector R XR829544 $101.25
L XR829545 $97.00
11 Cover, Deflector R XR829433 $63.00
L XR829435 $62.50
12 Moulding, Center XR87611 $14.00 .3
Mldg, Lamp Opening
13 w/Fog Lamps R XR817164 $33.30 .3
L XR87616 $27.95 .3
14 w/o Fog Lamps R XR817167 $56.00 .3
L XR87638 $36.50 .3
15 Clip, Front Cover (3) KTG100002 $1.40
16 Nut, Front Cover (3) KRF100003 $1.20
17 Bracket, License XR82147 $33.10 .2
18 Screw, License Bracket R XR88674 $2.65
L XR88674 $2.65
19 Rivet, License Bracket (3) XR813185 $2.65
20 Pad, Insulator
Small R XR812722 $3.30
L XR812722 $3.30
Large R XR817826 $14.25
L XR817826 $14.25
21 Panel, Valance XR825035 $342.00 .3
22 Duct, Air R XR825033 $12.13
L XR825034 $12.13
23 Duct, Brake Cooling R XR825036 $73.50
L XR825037 $73.50
24 Bar, Reinforcement (P) XR839116 $370.00 #1.0
(P) Paint to Match
#w/Front Cover Removed, Not Included in O/H
2003
2003 W/SUPERCHARGER
2008 Jaguar S-Type (none) Sedan
Copyright 1998 - 2013 - Mitchell International, Inc.. All Rights Reserved. Page 3 of 211
Refinish Front Cover 2.4
Refinish Outer Moulding R .5
L .5
Refinish Reinforcement Bar 1.0
R&I Front Cover #1.8
O/H Front Cover (Includes R&I) #2.8
#Includes R&I/R&R Grille
Add to R&R or O/H Front Cover
w/ H/Lamp Washers .3
NOTE: All Parts in this section are included in overhaul unless
noted otherwise.

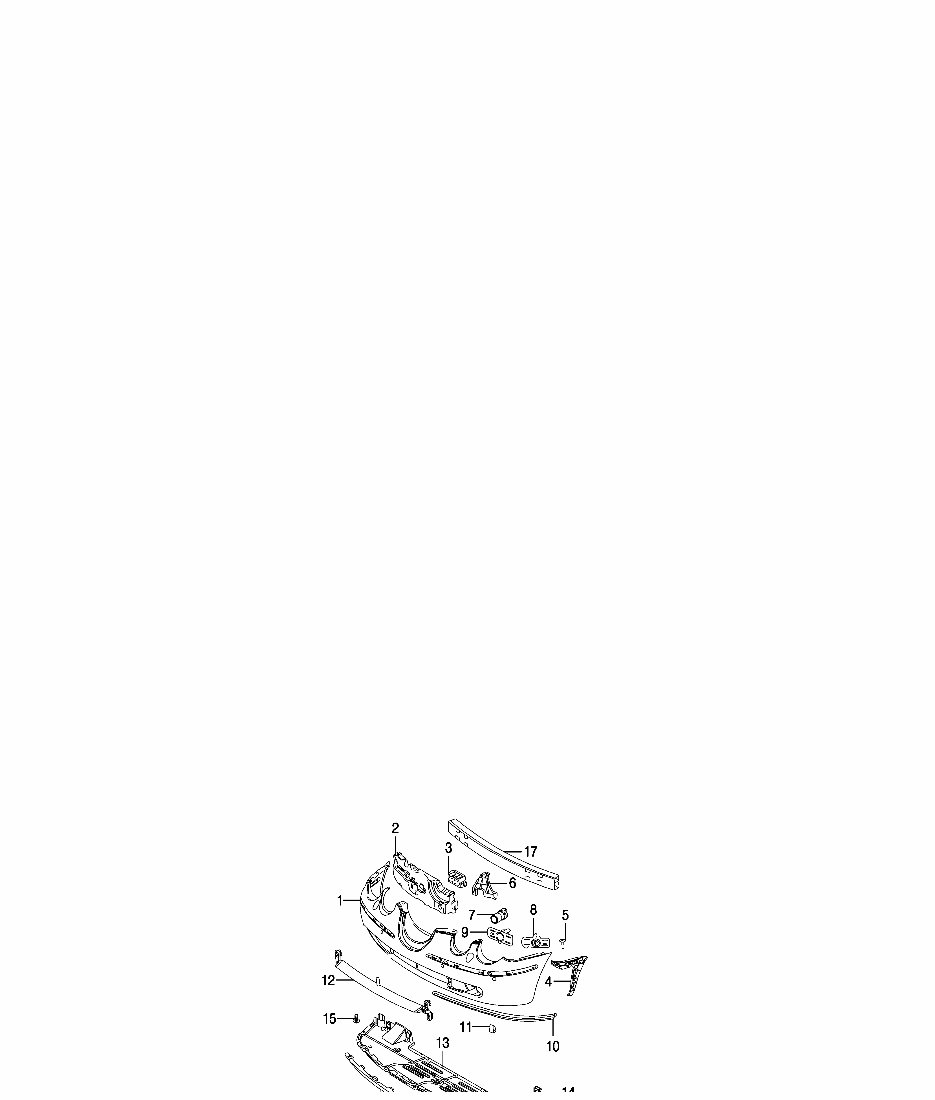

1 Cover, Front (P)
w/ H/Lamp Washers XR829442XXX $830.00 #2.8
w/o H/Lamp Washers XR829443XXX $830.00 #2.8
(P) Paint to Match
#Includes R&I/R&R Grille
2 Absorber, Impact R XR836543 $122.75 #.2
L XR836544 $122.75 #.2
#w/Front Cover Removed
3 Insert, Impact Absorber R XR810580 $105.26
L XR810581 $105.26
4 Bracket, Side Mounting R XR826634 $44.50
L XR826635 $44.50
5 Retainer, Cover R XR830258 $3.45
L XR830259 $3.35
6 Bracket, Mounting R XR82145 $33.70
L XR82146 $33.70
7 Moulding, Outer (P) R XR826424XXX $145.50 .2
L XR826425XXX $145.50 .2
(P) Paint to Match
8 Bracket, License XR82147 $33.10 .2
9 Screw, License Bracket R XR88674 $2.65
L XR88674 $2.65
10 Rivet, License Bracket (3) XR813185 $2.65

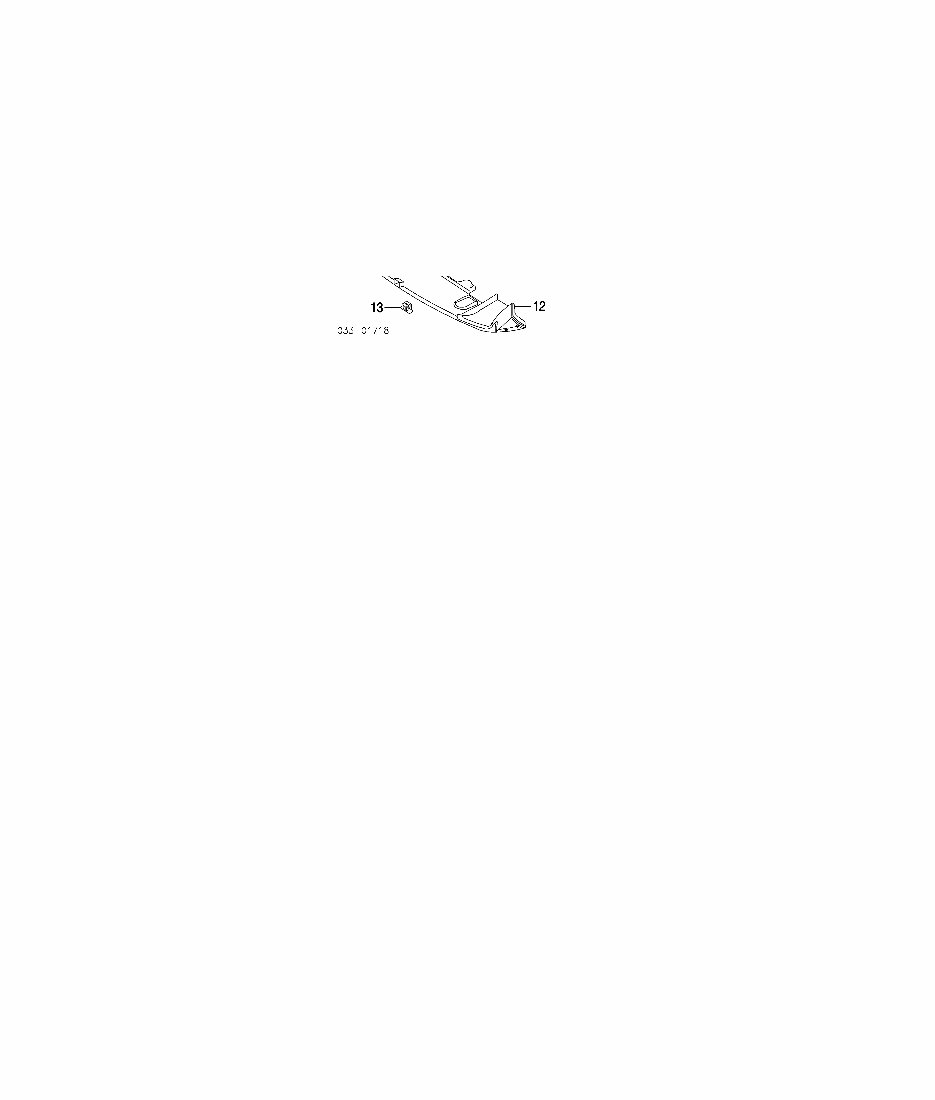

11 Mesh, Grille
w/Engine Heater XR829431 $204.00
w/o Engine Heater XR829430 $204.00
12 Panel, Valance XR827703 $298.50
13 Clip, Mounting (3) XR857744 $1.20
14 Bar, Reinforcement (P) XR839116 $370.00 #1.0
(P) Paint to Match
#w/Front Cover Removed, Not Included in O/H
2003
2003 W/O SUPERCHARGER
2008 Jaguar S-Type (none) Sedan
Copyright 1998 - 2013 - Mitchell International, Inc.. All Rights Reserved. Page 4 of 211
Refinish Front Cover 2.4
Refinish Outer Moulding R .5
L .5
Refinish Air Deflector .5
Refinish Reinforcement Bar 1.0
R&I Front Cover #1.8
O/H Front Cover (Includes R&I) #2.8
#Includes R&I/R&R Grille
Add to R&R or O/H Front Cover
w/ H/Lamp Washers .3
NOTE: All Parts in this section are included in overhaul unless
noted otherwise.
1 Cover, Front (P)
w/ H/Lamp Washers XR87633XXX $830.00 #2.8
w/o H/Lamp Washers XR87632XXX $830.00 #2.8
(P) Paint to Match
#Includes R&I/R&R Grille
2 Absorber, Impact R XR836543 $122.75 #.2
L XR836544 $122.75 #.2
#w/Front Cover Removed
3 Insert, Impact Absorber R XR810580 $105.26
L XR810581 $105.26
4 Bracket, Side Mounting R XR826634 $44.50
L XR826635 $44.50
5 Bracket, Mounting R XR82145 $33.70
L XR82146 $33.70
6 Retainer, Cover R XR830258 $3.45
L XR830259 $3.35
7 Moulding, Outer
2008 Jaguar S-Type (none) Sedan
Copyright 1998 - 2013 - Mitchell International, Inc.. All Rights Reserved. Page 5 of 211
Chrome R XR87628 $145.50 .2
L XR87629 $145.50 .2
Paint to Match R XR826424XXX $145.50 .2
L XR826425XXX $145.50 .2
8 Deflector, Outer Air (P) XR829588 $92.14 .4
(P) Paint to Match
9 Deflector, Inner Air XR829429 $92.14
10 Bracket, Air Deflector R XR829544 $101.25
L XR829545 $97.00
11 Cover, Deflector R XR829433 $63.00
L XR829435 $62.50
12 Moulding, Center XR87611 $14.00 .3
Mldg, Lamp Opening
13 w/Fog Lamps R XR817164 $33.30 .3
L XR87616 $27.95 .3
14 w/o Fog Lamps R XR817167 $56.00 .3
L XR87638 $36.50 .3
15 Clip, Front Cover (3) KTG100002 $1.40
16 Nut, Front Cover (3) KRF100003 $1.20
17 Bracket, License XR82147 $33.10 .2
18 Screw, License Bracket R XR88674 $2.65
L XR88674 $2.65
19 Rivet, License Bracket (3) XR813185 $2.65
20 Pad, Insulator
Small R XR812722 $3.30
L XR812722 $3.30
Large R XR817826 $14.25
L XR817826 $14.25
21 Panel, Valance XR825035 $342.00 .3
22 Duct, Air R XR825033 $12.13
L XR825034 $12.13
23 Duct, Brake Cooling R XR825036 $73.50
L XR825037 $73.50
24 Bar, Reinforcement (P) XR839116 $370.00 #1.0
(P) Paint to Match
#w/Front Cover Removed, Not Included in O/H
2004-07
2004-07 W/SUPERCHARGER
2008 Jaguar S-Type (none) Sedan
Copyright 1998 - 2013 - Mitchell International, Inc.. All Rights Reserved. Page 6 of 211
Refinish Front Cover 2.4
Refinish Parktronic Sensor R .3
L .3
Refinish Outer Moulding R .5
L .5
Refinish Reinforcement Bar 1.0
R&I Front Cover #1.8
O/H Front Cover (Includes R&I) #2.8
#Includes R&I/R&R Grille
Add to R&R or O/H Front Cover
w/ H/Lamp Washers .3
w/Parking Sensors .4
NOTE: All Parts in this section are included in overhaul unless
noted otherwise.

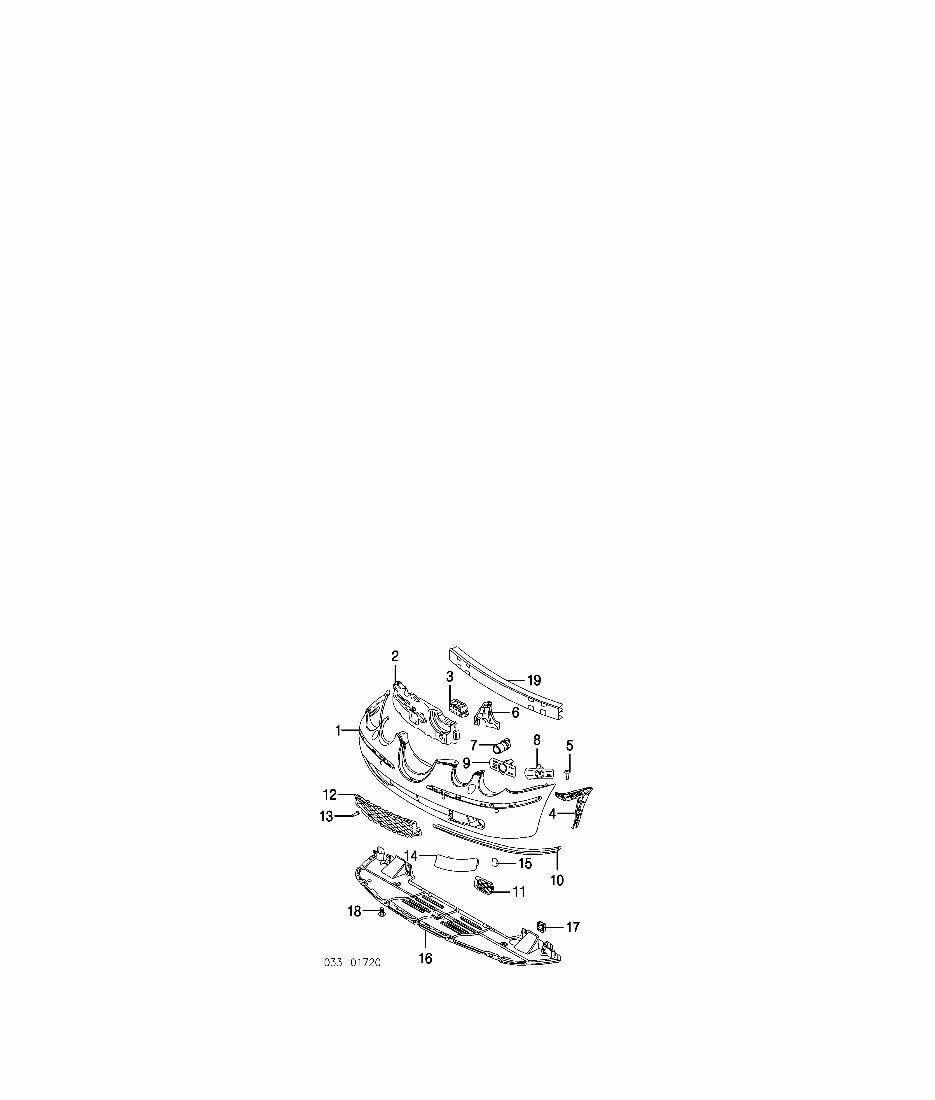

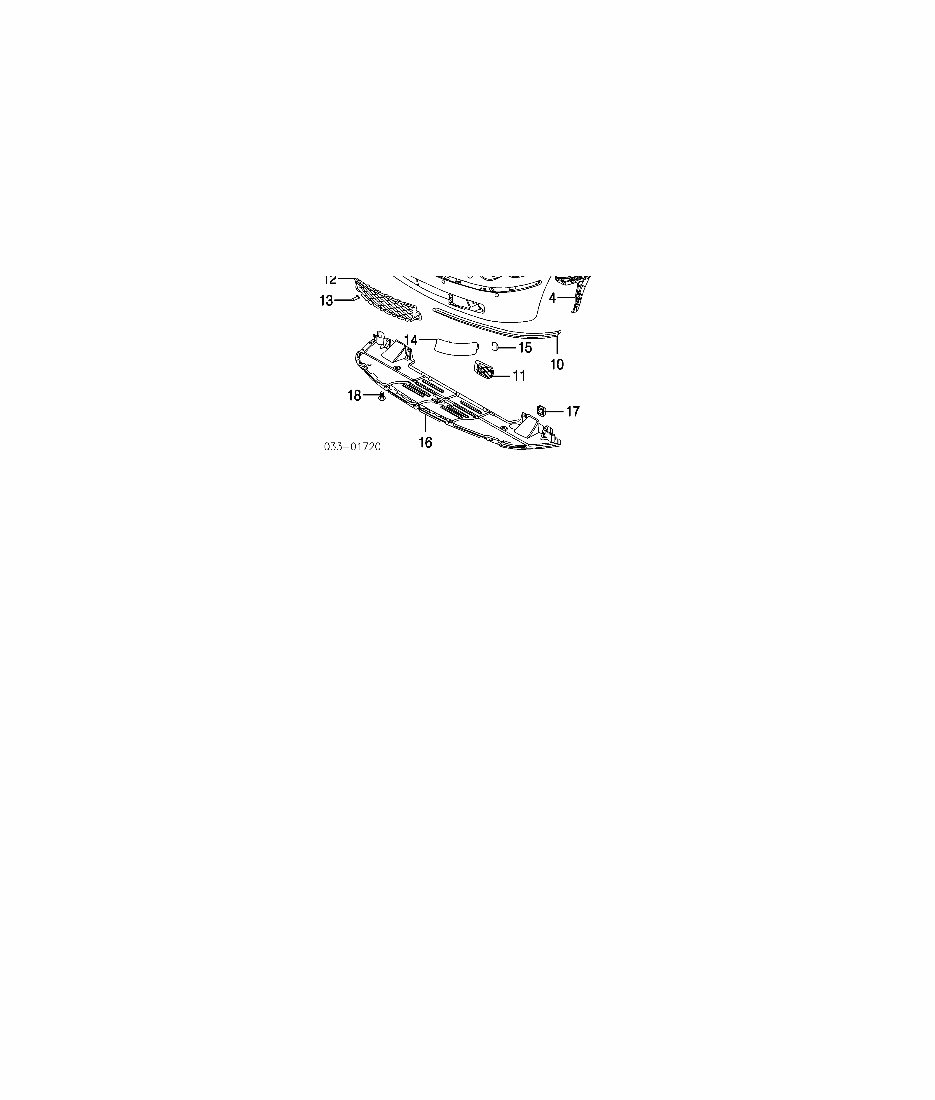

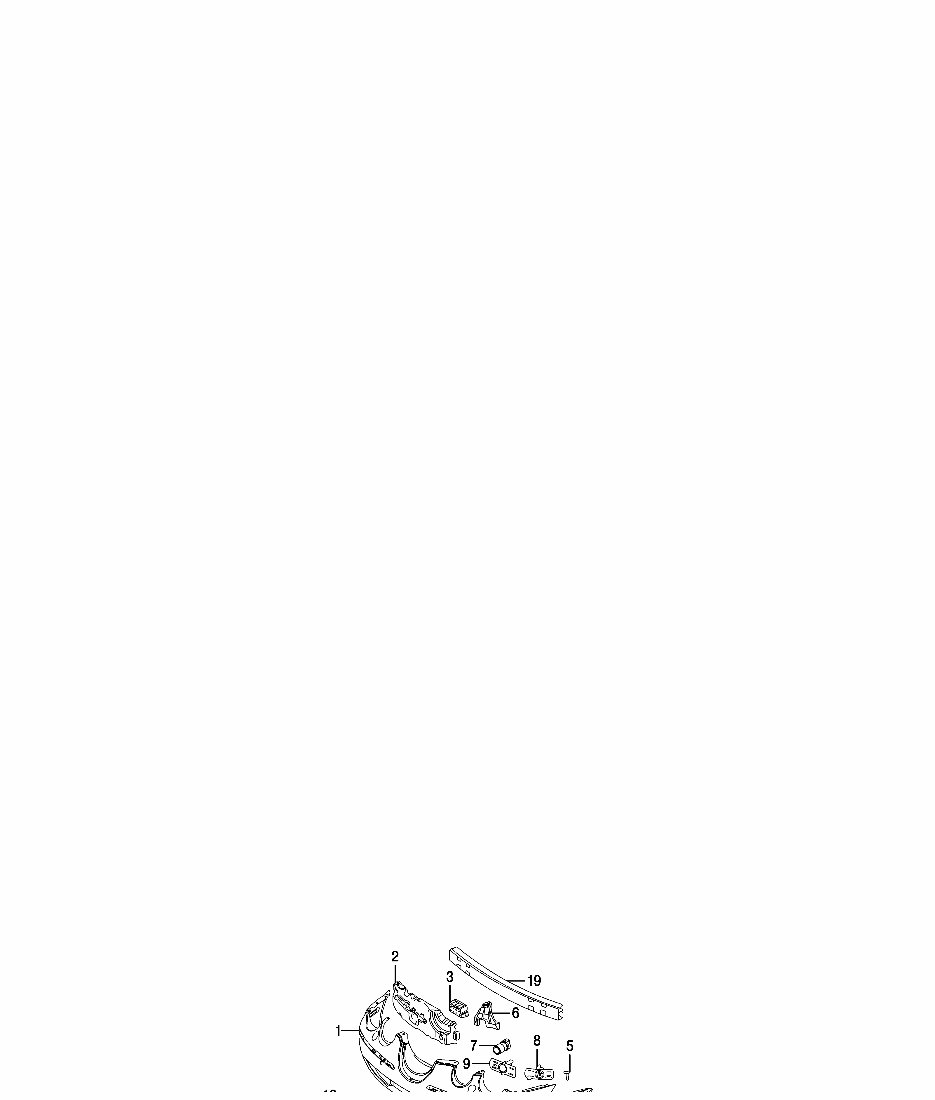

1 Cover, Front (P)
w/ H/Lamp Washers
w/Parktronic Sensor XR849699XXX $830.00 #2.8
w/o Parktronic Sensor XR849697XXX $830.00 #2.8
w/o H/Lamp Washers
w/Parktronic Sensor XR849698XXX $830.00 #2.8
w/o Parktronic Sensor XR849696XXX $830.00 #2.8
(P) Paint to Match
#Includes R&I/R&R Grille
2 Absorber, Impact R XR846167 $122.75 #.2
L XR846175 $122.75 #.2
#w/Front Cover Removed
3 Insert, Impact Absorber R XR846173 $13.90
L XR846174 $13.90
4 Bracket, Side Mounting R XR849686 $12.25
L XR849688 $12.40
5 Rivet, Mounting (3/Side) R XR835880 $0.85
L XR835880 $0.85
6 Bracket, Mounting R XR82145 $33.70
L XR82146 $33.70
7 Sensor, Parktronic (2/Side) (P) R C2C29376XXX $113.25 #.1
L C2C29376XXX $113.25 #.1
(P) Paint to Match
#w/Front Cover Removed, Not Included in O/H
2008 Jaguar S-Type (none) Sedan
Copyright 1998 - 2013 - Mitchell International, Inc.. All Rights Reserved. Page 7 of 211
Bracket, Sensor
8 Outer R XR837205 $6.35
L XR837208 $5.85
9 Inner R XR837207 $5.85
L XR837207 $5.85
10 Moulding, Outer (P) R XR844069XXX $145.50 .2
L XR844070XXX $145.50 .2
(P) Paint to Match
Mesh, Grille
11 Outer R XR846177 $204.00
L XR846178 $204.00
12 Inner
w/Engine Heater XR846159 $204.00
w/o Engine Heater XR846158 $204.00
13 Rivet, Mounting R C2C4628 $0.85
L C2C4628 $0.85
14 Cover, Opening (P) R XR844108XXX $23.15
L XR844109XXX $30.35
(P) Paint to Match
15 Retainer (4/Side) R C2S47633 $2.65
L C2S47633 $2.65
Bracket, License XR845314 $33.10 .2

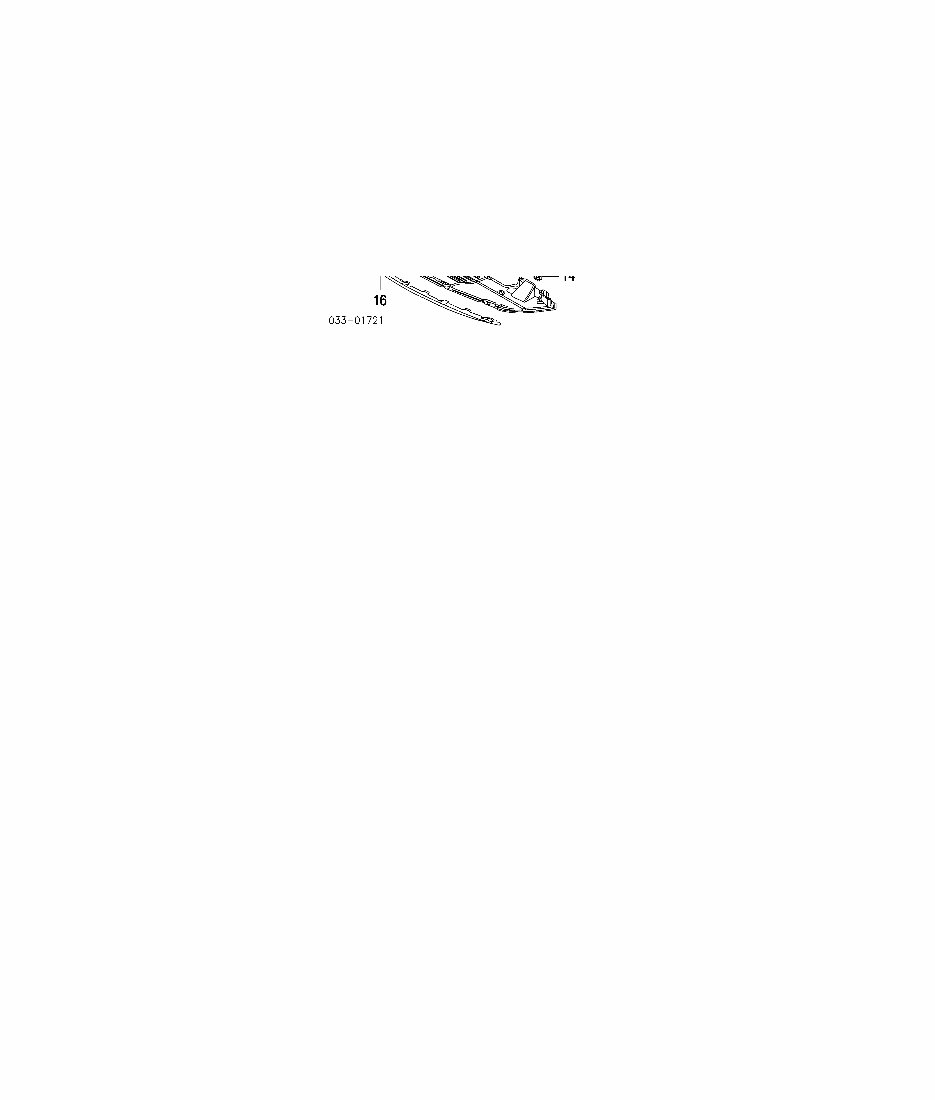

16 Panel, Valance XR849684 $315.00 .3
17 Nut, Mounting R XR87652 $2.65
L XR87652 $2.65
18 Bolt, Attaching (9) XR82059 $2.65
19 Bar, Reinforcement (P) XR852138 $370.00 #1.0
(P) Paint to Match
#w/Front Cover Removed, Not Included in O/H
2004-07
2004-07 W/O SUPERCHARGER
2008 Jaguar S-Type (none) Sedan
Copyright 1998 - 2013 - Mitchell International, Inc.. All Rights Reserved. Page 8 of 211
Refinish Front Cover 2.4
Refinish Outer Moulding R .5
L .5
Refinish Parktronic Sensor R .3
L .3
Refinish Reinforcement Bar 1.0
R&I Front Cover #1.8
O/H Front Cover (Includes R&I) #2.8
#Includes R&I/R&R Grille
Add to R&R or O/H Front Cover
w/ H/Lamp Washers .3
w/Parking Sensors .4
NOTE: All Parts in this section are included in overhaul unless
noted otherwise.
1 Cover, Front (P)
w/ H/Lamp Washers
w/Parktronic Sensor XR849695XXX $830.00 #2.8
w/o Parktronic Sensor XR849693XXX $830.00 #2.8
w/o H/Lamp Washers
w/Parktronic Sensor XR849694XXX $830.00 #2.8
w/o Parktronic Sensor XR849692XXX $830.00 #2.8
(P) Paint to Match
#Includes R&I/R&R Grille
2 Absorber, Impact R XR846167 $122.75 #.2
L XR846175 $122.75 #.2
#w/Front Cover Removed
3 Insert, Impact Absorber R XR846173 $13.90
L XR846174 $13.90
4 Bracket, Side Mounting R XR849685 $12.20
L XR849687 $12.70
5 Rivet, Mounting (3/Side) R XR835880 $0.85
L XR835880 $0.85
6 Bracket, Mounting R XR82145 $33.70
L XR82146 $33.70
7 Sensor, Parktronic (2/Side) (P) R C2C29376XXX $113.25 #.1
L C2C29376XXX $113.25 #.1
(P) Paint to Match
#w/Front Cover Removed, Not Included in O/H
Bracket, Sensor
8 Outer R XR837205 $6.35
L XR837208 $5.85
9 Inner R XR837207 $5.85
L XR837207 $5.85
10 Moulding, Outer
Chrome R XR844131 $145.50 .2
2008 Jaguar S-Type (none) Sedan
Copyright 1998 - 2013 - Mitchell International, Inc.. All Rights Reserved. Page 9 of 211
L XR844132 $145.50 .2
Paint to Match R XR844069XXX $145.50 .2
L XR844070XXX $145.50 .2
11 Retainer (4/Side) R C2S47633 $2.65
L C2S47633 $2.65
12 Deflector, Outer Air
2004 XR846157 $87.75 .3
2005
To VIN N43294 XR846157 $87.75 .3
From VIN N43295 XR852616 $32.18 .3
2006-07 XR852616 $32.18 .3
Bracket, License XR845314 $33.10 .2
13 Panel, Valance XR849683 $315.00 .3
14 Nut, Mounting R XR87652 $2.65
L XR87652 $2.65
15 Bolt, Attaching (9) XR82059 $2.65
16 Deflector, Lower N.A.
17 Bar, Reinforcement (P) XR852138 $370.00 #1.0
(P) Paint to Match
#w/Front Cover Removed, Not Included in O/H
2008
Refinish Front Cover 2.4
Refinish Parktronic Sensor R .3
L .3
Refinish Outer Moulding R .5
L .5
Refinish Reinforcement Bar 1.0
2008 Jaguar S-Type (none) Sedan
Copyright 1998 - 2013 - Mitchell International, Inc.. All Rights Reserved. Page 10 of 211
You're Reading a Preview
What's Included?
Lifetime Access
Fast Download Speeds
Online & Offline Access
Access PDF Contents & Bookmarks
Full Search Facility
Print one or all pages of your manual
$30.99
Viewed 68 Times Today
Secure transaction
What's Included?
Lifetime Access
Fast Download Speeds
Online & Offline Access
Access PDF Contents & Bookmarks
Full Search Facility
Print one or all pages of your manual
$30.99
1999-2008 Jaguar S-Type Parts Catalogue
This is a comprehensive parts catalog providing detailed exploded-view illustrations and parts diagrams, including every part number for any component on your vehicle.
Parts catalogs are valuable for ordering replacement parts or cross-referencing part numbers between manufacturers.
While they do not contain step-by-step procedures like a traditional repair manual, the exploded-view illustrations can be helpful when a workshop manual is unavailable.
Whether you are a professional mechanic or a DIY enthusiast, this manual is essential for rebuilding, overhauling, or ordering replacement parts.
Printable: Yes
Language: English
Compatibility: Compatible with various electronic devices including PC, Mac, Android, and Apple smartphones and tablets.
Requirements: Adobe Reader (free)
