2008 Hyundai VERACRUZ (EN) G 3.8 DOHC Service & Repair Manual

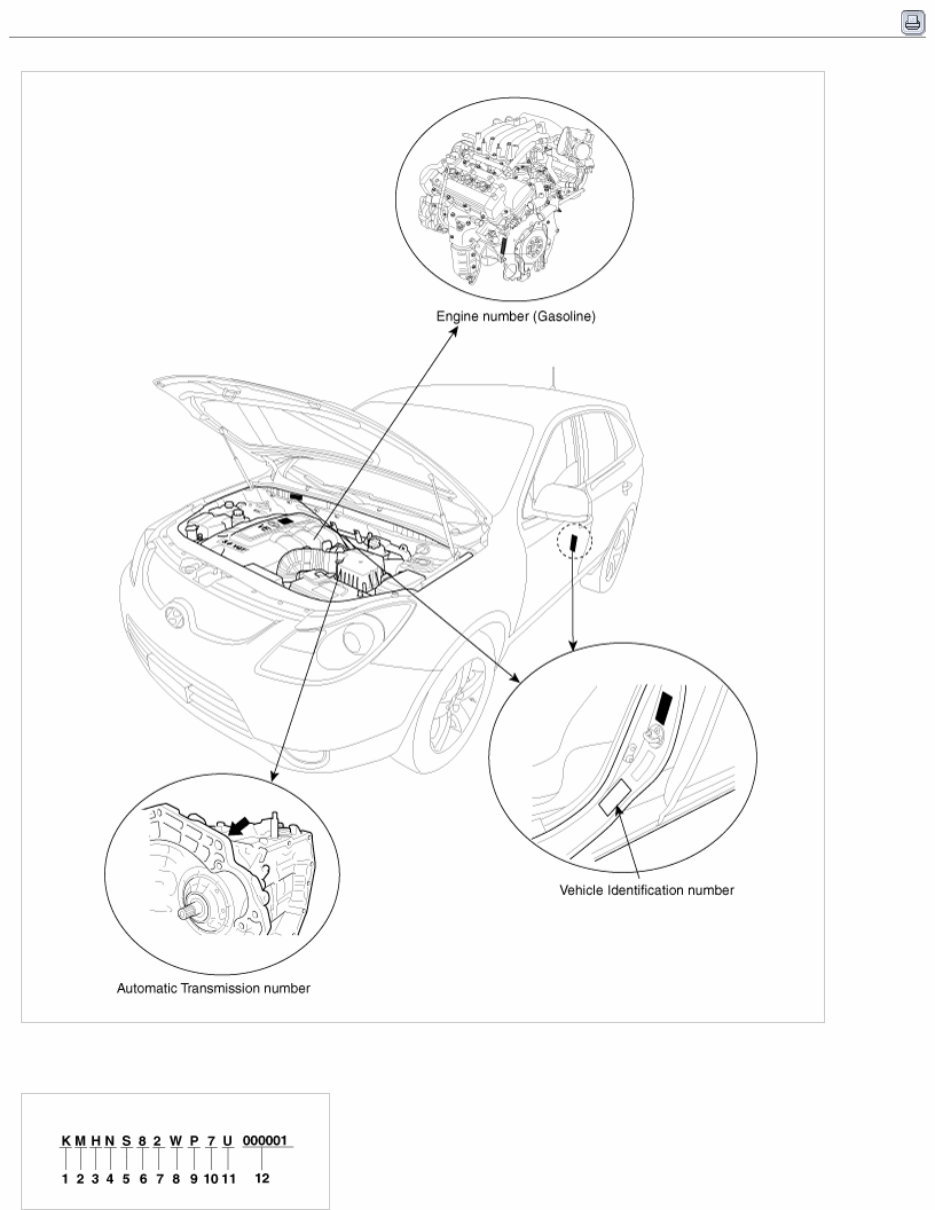

VERACRUZ(EN) > 2008 > G 3.8 DOHC > General Information - IDENTIFICATION NUMBER LOCATIONS IDENTIFICATION NUMBER DESCRIPTION VEHICLE IDENTIFICATION NUMBER

1. Geographic zone - K : Korea 2. Manufacturer - M : Hyundai motor company 3. Vehicle type - H : Passenger 4. Vehicle line - N : VERACRUZ 5. Model ＆ Series - S : STANDAD (L) - T : DELUXE (GL) - U : SUPER DELUXE (GLS) - V : GRAND SALON (GDS) - Z : SUPER GRAND SALON (HGS) 6. Body type - 8 : WAGON 7. Restraint system - 0 : Both side - None - 1 : Both side - Active belt - 2 : Both side - Passive belt 8. Engine type - C : Gasoline engine 3.8 9. Check digit - Check digit : 0 ~ 9, x - P : Left hand driver - R : Right hand driver 10. Production year - 6 : 2006, 7 : 2007, 8 : 2008 11. Plant of production - U : Ulsan (korea) 12. Vehicle production sequence number - 000001 ~ 999999 PAINT CODE CODE COLOR EB Enbony black 3M Vanilla white 5Q Blue onyx 5J Superior red 6F Blue titanium 2H Natural khaki 2Z Black pearl 5T Satin beige AD Dark bronze X2 Sleek silver ENGINE IDENTIFICATION NUMBER

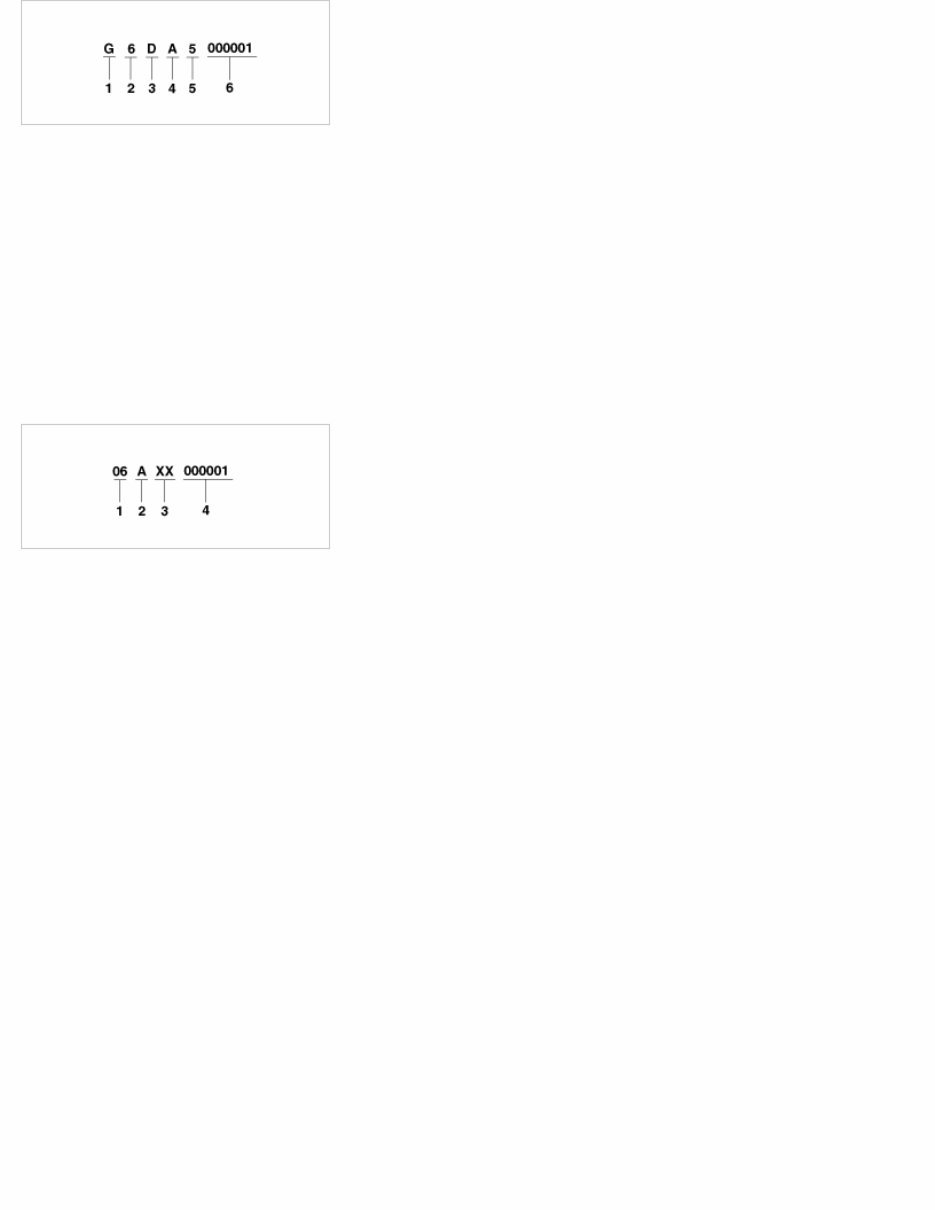

1. Engine fuel – G : Gasoline 2. Engine range – 6 : 4 cycle 6 cylinder 3 : Engine development order – D : Lamda engine 4. : Engine capacity – A : 3778cc (Gasoline) 5. Production year – 6 : 2006, 7 : 2007, 8 : 2008 6. Engine production sequence number – 000001 ~ 999999 AUTOMATIC 1. Production year - 6 : 2006, 7 : 2007, 8 : 2008 2. Production month - A : January - B : February - C : March - D : April - E : May - F : June - G : July - H : August - I : September - J : October - K : November - L : December 3. Factory code 4. Transaxle production sequence number - 000001 ~ 999999 5. Spare WARNING / CAUTION LABEL LOCATIONS

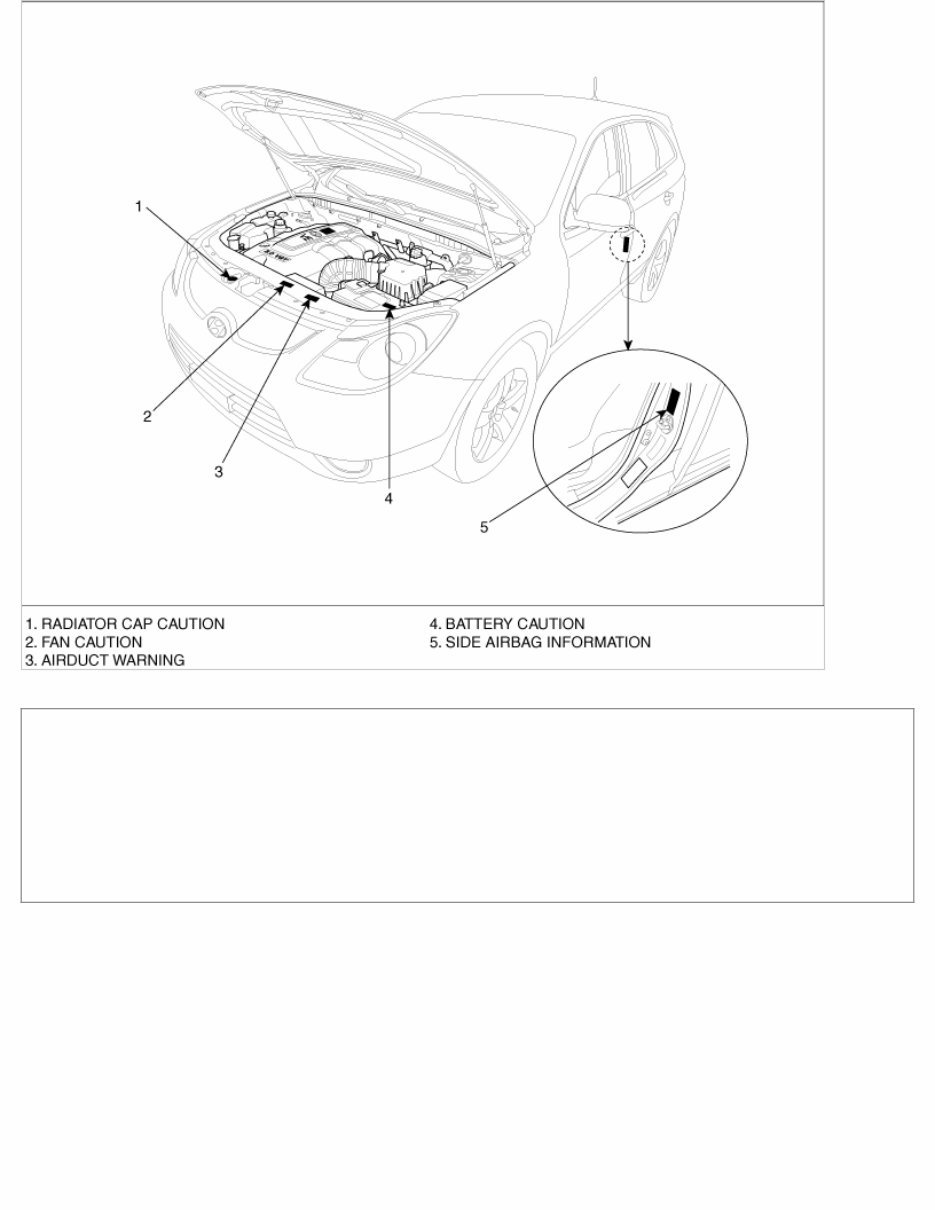

ATTENTION SRS VEHICLE This car is equipped with a supplemental restraint system. To provide continedreliablity, certain elements of the supplemental restraint system shallbe serviced or replaced by authorized dealer ten years after vehicle label.For further information. see owner''s manual. SIDE AIR BAG This car is equipped with a side airbag system. To provide continued reliability,certain elements of the side airbag system shall be serviced or vehiclemanufacture date shown on certification label. For further information seeowner''s manual. AIR BAG WARNING / CAUTION LABEL

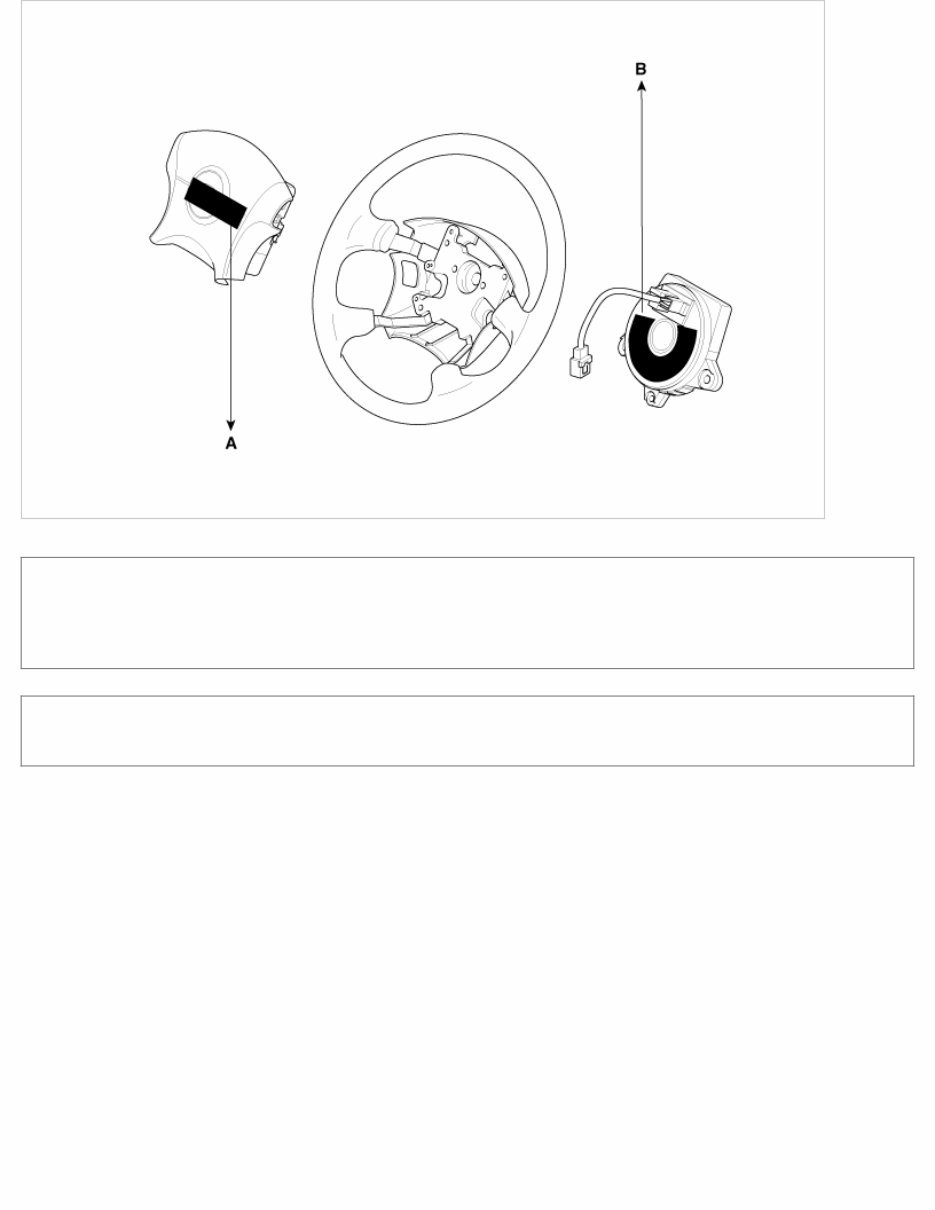

WARNING / CAUTION LABEL A. DRIVE AIR BAG (DAB) CAUTION Caution Don''t open, remove or transfer to another vehicle. Risk of malfunction and bodily injury! This unit is to be installed and/or dismantled by trained personnel only. This item contains an explosive device. B. CAUTION AIR BAG : Handing is limited to trained personnel. To be used only in prescribed vehicles. If not propely installed, device may become a dangerous projectile. See serivce manual instruction AIR BAG WARING / CAUTION LABEL

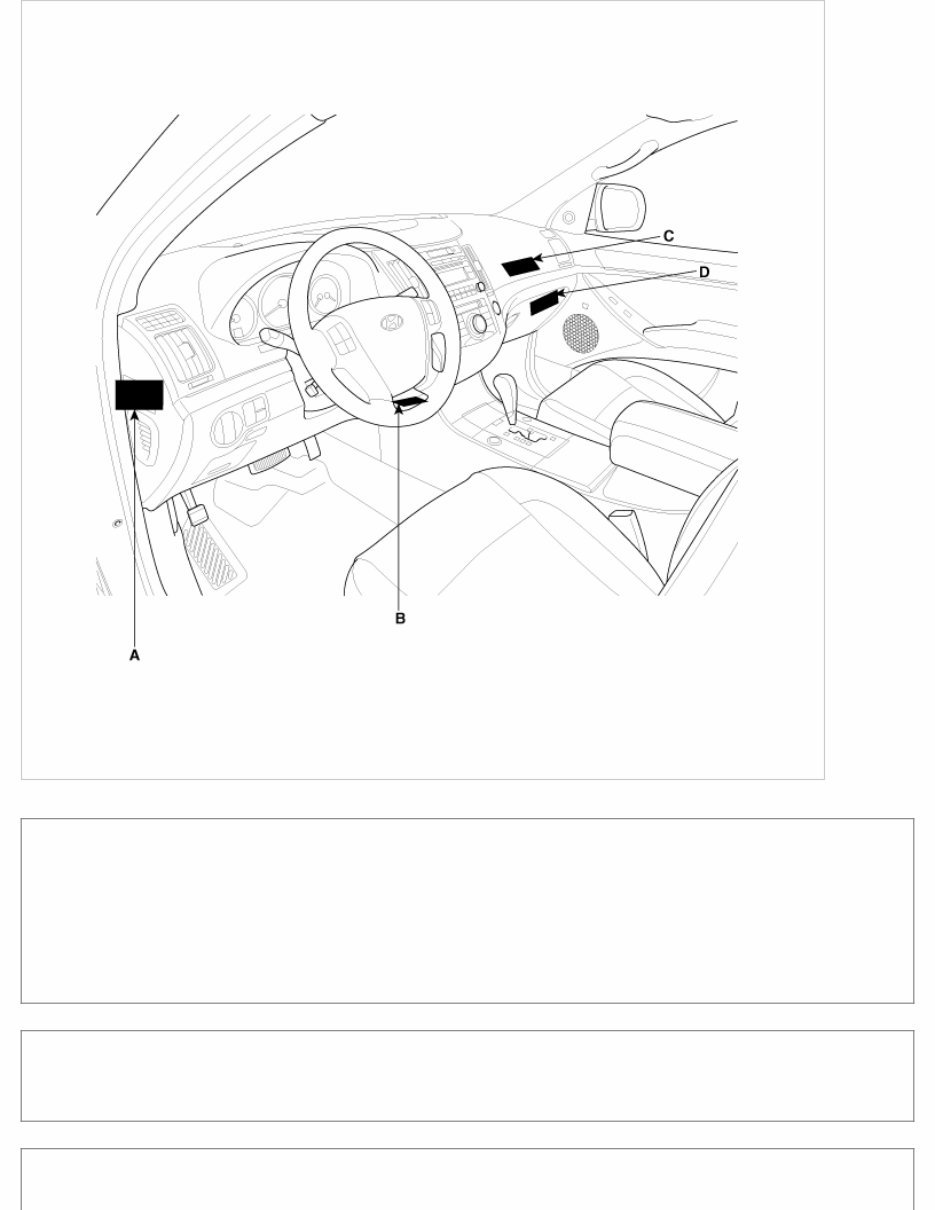

WARNING / CAUTION LABEL A : WARNING SEE OWNER''S MANUAL. This car is equipped a side airbag for each front seat. • Do not use any accessory seat covers. • Use of other seat covers could reduce the effect of the system. • Do not install any accessories on the side or near the side airbag. • Do not use excessive force on the side of the seat. • For further information, see the owner''s manual. B : CAUTION AIRBAG ESPE UNIT Detach connector before unmounting. Assemble strictly according to manual instructions. C : PASSENGER MODULE CAUTION

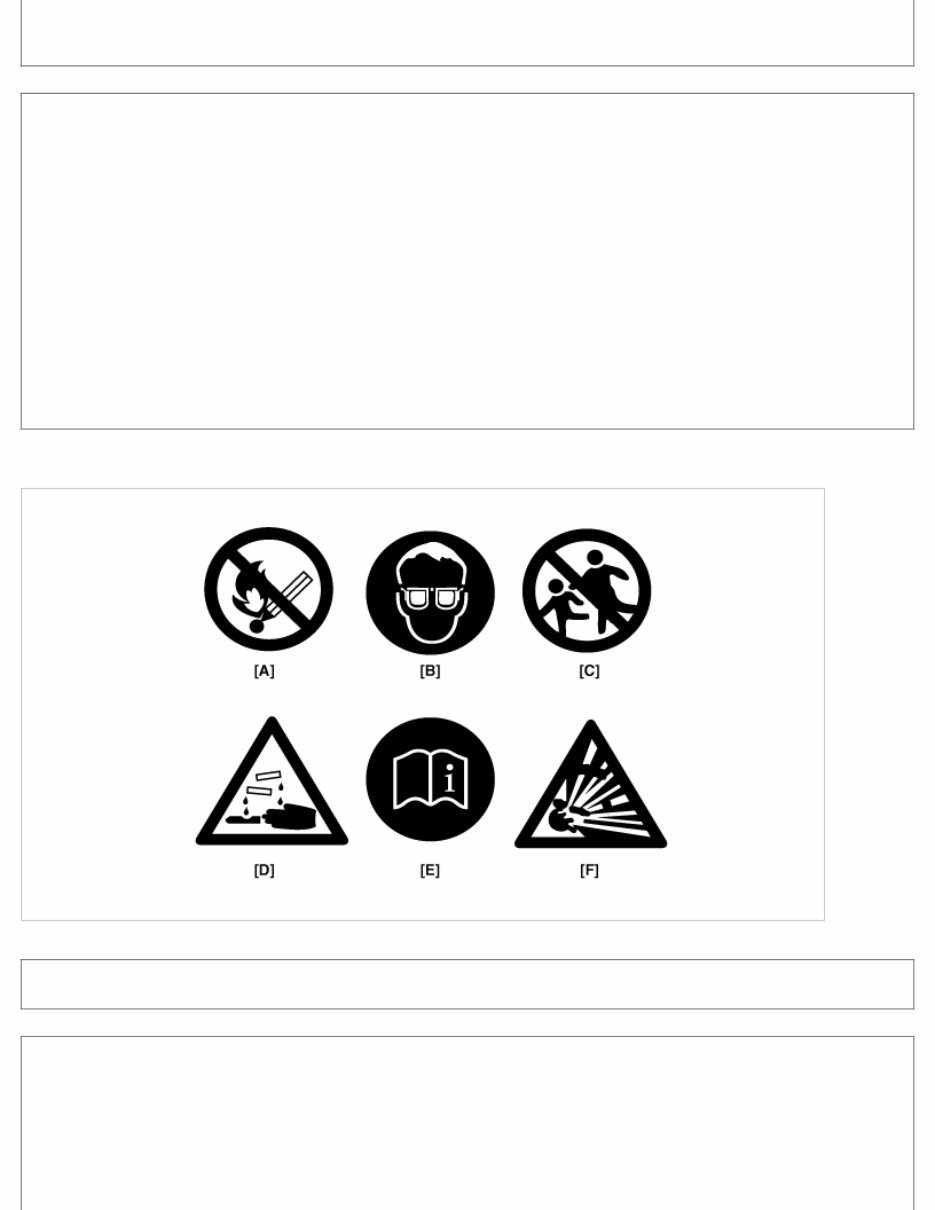

CAUTION Don''t open, remove or transfer to another vehicle. Risk of malfunction and bodily injury! This unit is to be installed and/or dismantled by trained personnel only. This item contains an explosive device. D : SUPPLEMENTAL RESTRAINT SYSTEM (AIRBAG) INFORMATION • The airbag is a Supplement Restraint System (SRS). You must always wear the seat belts. • The airbag system condition is normal when the "SRS" lamp in the cluster illuminates for approximately 6 seconds after the ignition key is turned on and then goes off. • If any of the following condition occur, the system must be serviced. • "SRS" lamp does not light up when the key is turned on. • "SRS" lamp stays lit or flashes continuously. • The airbag has inflated. • The airbag system must be inspected by an authorized dealer ten years after the vehicle manufacture date shown on the certification label, located on left front door opening area. WARNING Failure to the above instructions may result in injury to you or other occupants in the vehicle • See the "SRS" section in Owner''s Manual for more information about airbags. BATTERY CAUTION LABEL DESCRIBTION WARNING / CAUTION LABEL A. Keep lighted cigarettes and all other flames or sparks away from the battery. B. Wear eye protection when charging or working near a battery. Always provide ventilation when working in an enclosed space. • When lifting a plastic-cased battery, excesive pressure on acid to leak resulting in personal injury. Lift with a battery carrier or with your hands on opposite corners. • Never attempt to change the battery when the battery cables are connected. • The electrical ignition system works with high voltage.

Never touch these components with the engine running or the ignition switched on. C. Keep batteries out of the reach of children because batteries contain highly corrosive SULFURIC ACID. Do not allow battery acid to contact your skin, eyes, clothing or paint finish. D. If any electrolyte gets into your eyes, flush your eyes with clean water for at least 15 minutes and get immediate medical attention. If possible, continue to apply water with a sponge or cloth until medical attention is received. If electrolyte gets on your skin, throughly wash the contacted area. If you feel a pain or a burning sensation, get medical attention immediately. E. Always read the following instructions carefully when handing a battery. F. Hydrogen, which is a highly combustible gas, is always presents in battery cells and may explode if ignited. HANDLING AND STORAGE THE BATTERY Battery Itself • Batteries should be stored in cool, dry (27 degrees Celsius) places and out of direct sunlight. • MF batteries are tightly sealed to prevent acid leakage. However, tilting the battery to an angle of 45 degrees can cause acid to leak through the vents on the sides. Therefore, batteries should always be stored in their upright positions. Prevent placing any aqueous or solid (i.e. conductors) bodies on top of the battery. • It is extremely dangerous to use tools, such as hammers, on the battery terminals when connecting cables to the mounted battery. Battery on Vehicle • When storing the vehicle for long periods of time, make sure to remove the memory fuse at junction box to prevent natural discharging. • Also, run the engine for battery charging within 1 month if the memory fuse wasn''t removed from the start of vehicle storing. If the memory fuse was removed, run the engine for battery charging within 3 months from the start of vehicle storing. LIFT AND SUPPORT POINTS When heavy rear components such as suspension, fuel tank, spare tire, tailgate and trunk lid are to be removed, place additional weight in the luggage area before hoisting. When substatial weight is removed from the rear of the vehicle, the center of gravity may change and can cause the vehicle to tip forward on the hoist. • Since each tire/wheel assembly weights approximately 30lbs (14kg), placing the front wheels in the luggage area can assist with the weight distribution. • Use the same support points to support the vehicle on safety stands. 1. Place the lift blocks under the support points as shown in the illustration. 2. Raise the hoist a few inches (centimeters) and rock the vehicle to be sure it is firmly supported. 3. Raise the hoist to full height to inspect the lift points for secure support.

TOWING If the vehicle needs to be towed, call a professional towing service. Never tow vehicle with just a rope or chain. It is very dangerous. If the vehicle cannot be transported by flat-bed, if should be towed with the front wheels off the ground. If due to damage, the vehicle must be toward with the front wheels on the ground, do the following : Manual Transmission • Release the parking brake. • Shift the transmission to neutral Automatic Transmission • Release the parking brake. • Start the engine. • Shift to [D] position, then [N] position. • Turn off the engine. • The vehicle equipped with full-time 4WD should be only transported on a flat-bed. • The CVT vehicles should be only transported on a flat-bed or towed by wheel lift towing which the wheels of the driving axle are lifted off the ground. • Improper towing preparation will damage the transaxle. Follow the procedure above exactly. If you cannot shift the transaxle or start the engine(automatic transaxle), your vehicle must be transported on a flatbed. • It is the best to tow vehicle no farther than 30km (19miles), and keep the speed below 50km/h (30mph). (For the CVT and full-time 4WD (CVT/AT) vehicles, limit the towing distance and speed to 1.5km (1 mile) and 15km/h (10 mph).) • Trying to lift or tow your vehicle by the bumpers will cause serious damage to the vehicle. The bumpers are not designed to support the vehicle''s weight. Front :

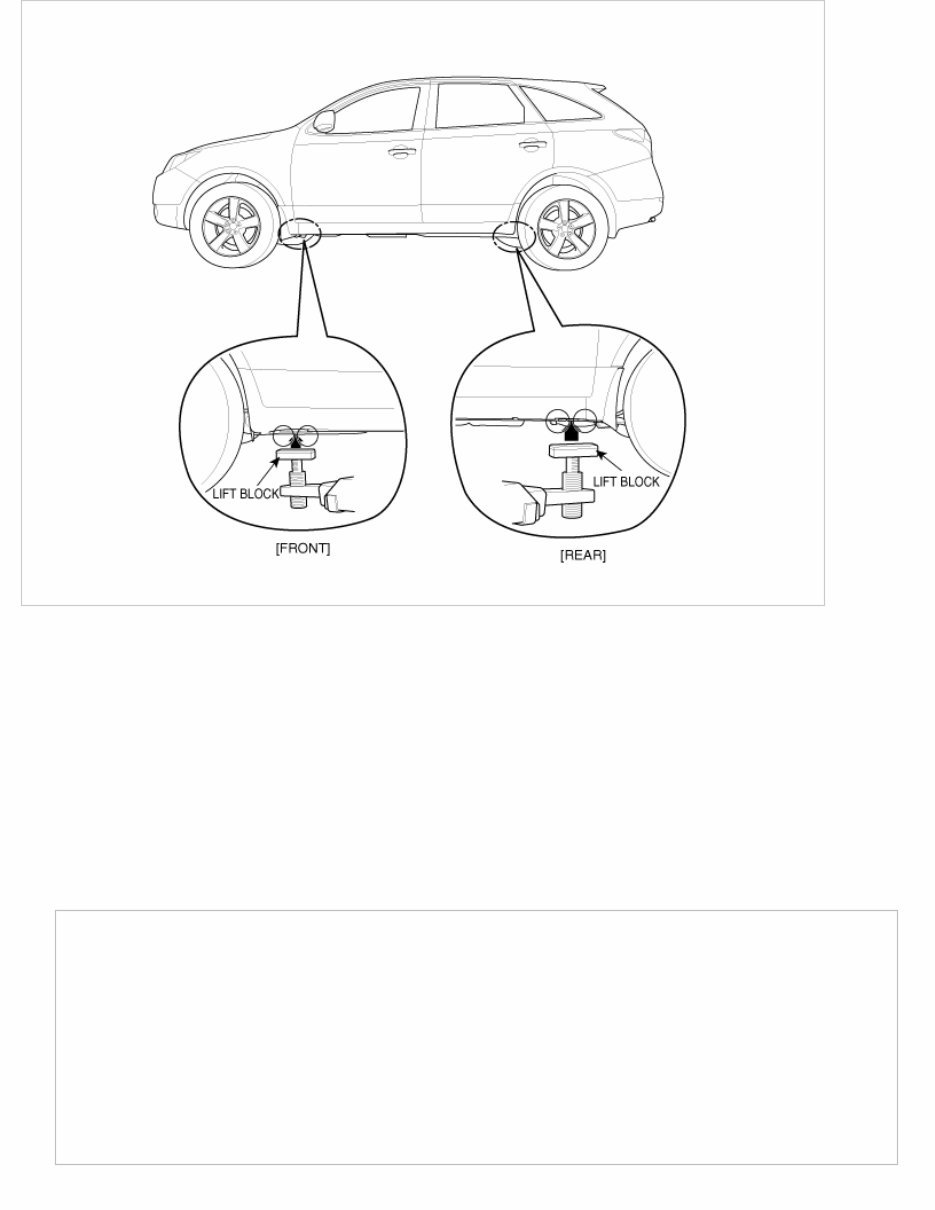

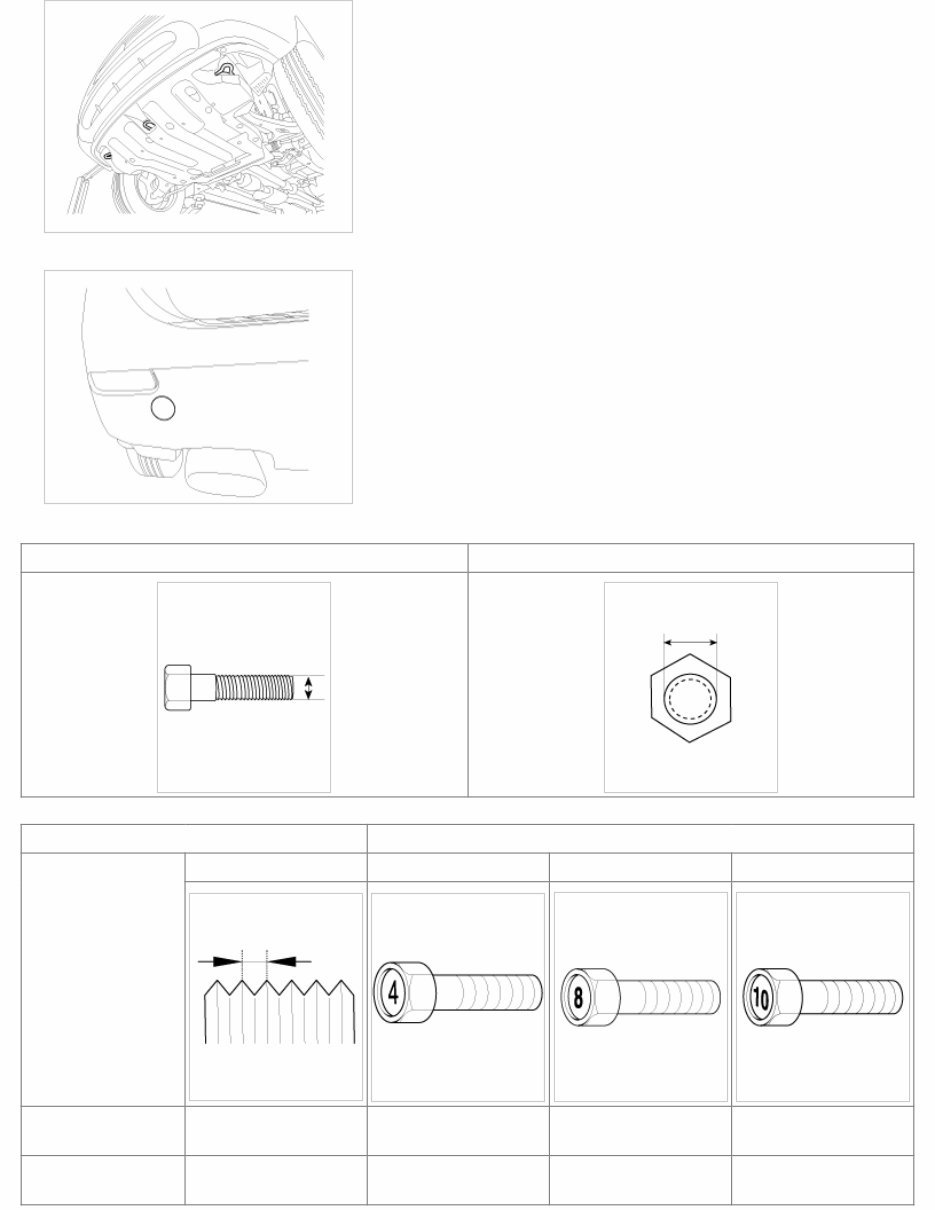

Rear : Tightening Torque Table Of Standard Parts BOLT (Nominal diameter) NUT (Nominal diameter) BOLT/NUT Normal screw Torque Nm (kg.m, Ib-ft) Nominal diameter. (mm) Pitch [mm (in.) ] 4T 8T 10T M5 0.8 (0.031) 2.0 ~ 3.0 (0.2 ~ 0.3, 1.4 ~ 2.2) 4.9 ~ 6.9 (0.5 ~ 0.7, 3.6 ~ 5.1) 7.8 ~ 10.8 (0.8 ~ 1.1, 5.8 ~ 8.0) M6 1 (0.039) 2.9 ~ 4.9 (0.3 ~ 0.5, 2.2 ~ 3.6) 8.8 ~ 12.7 (0.9 ~ 1.3, 6.5 ~ 9.4) 13.7 ~ 18.6 (1.4 ~ 1.9, 10.1 ~ 13.7)
