2011 Hyundai Sonata Service & Repair Manual

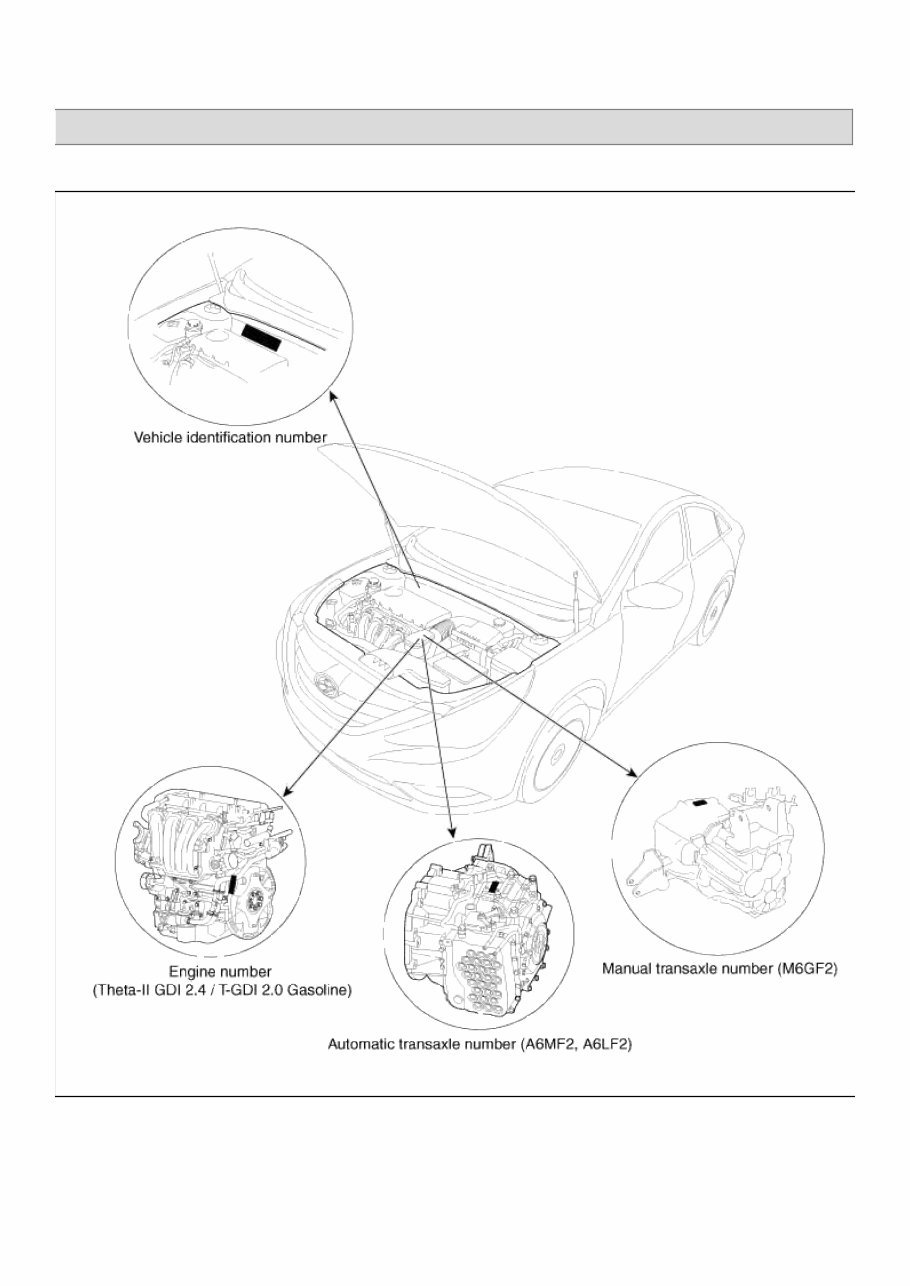

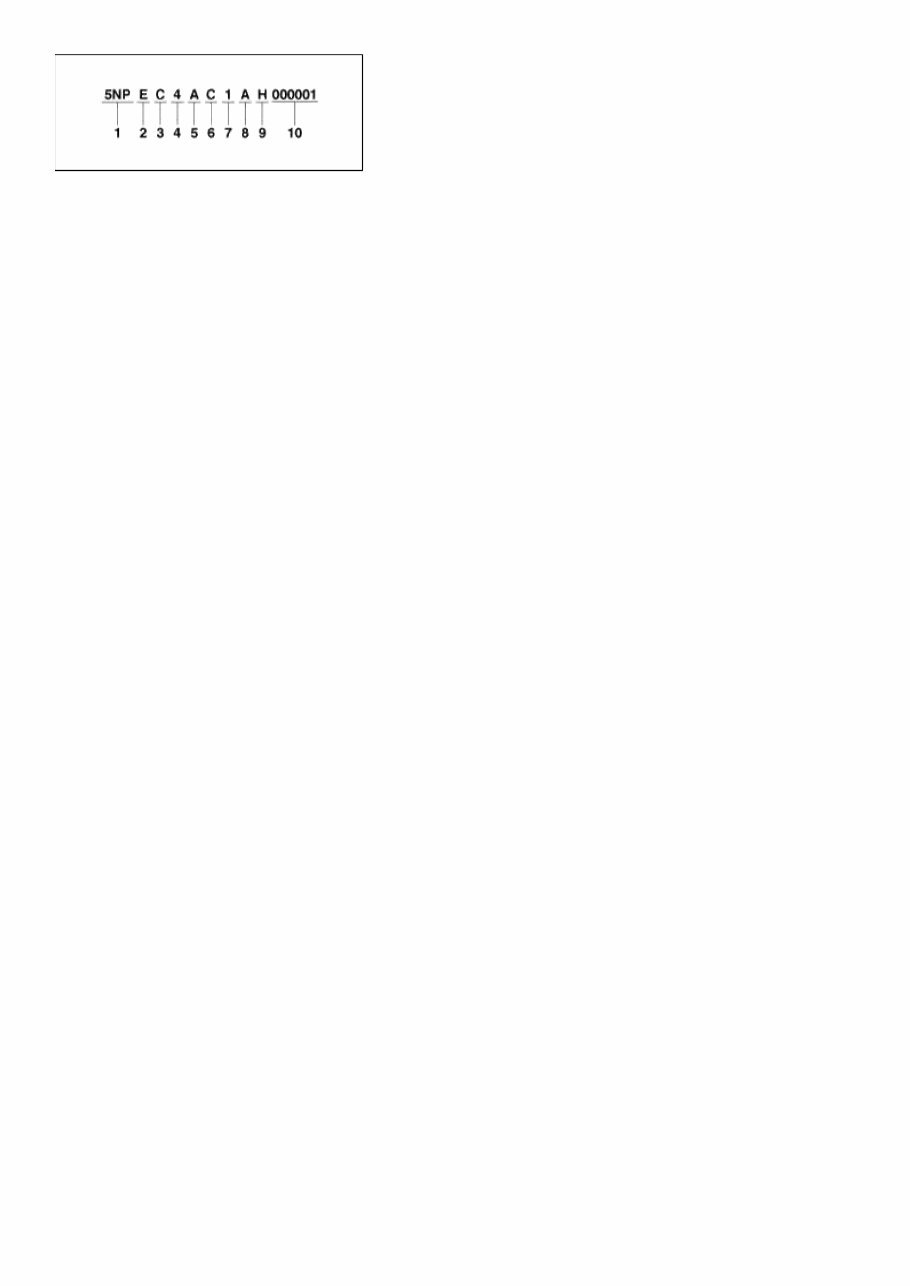

SONATA(YF) > 2011 > G 2.0 T-GDI > General Information General Information > General Information > General Information Identification Number Locations Identification Number Description Vehicle Identification Number Page 1 of 20

1. World Manufacturer Identifier (WMI) A. 5NP : Passenger vehicle B. 5NM : MPV (Multipurpose Passenger Vehicle) / SUV (Sports Utility Vehicle) / RV (Recreational Vehicle) 2. Vehicle line A. E : SONATA 3. Model & Series A. A : Low grade (L) B. B : Middle-Low grade (GL) C. C : Middle grade (GLS, JSL, TAX) D. D : Middle-High grade (HGS) E. E : High grade (TOP) 4. Body/Cabin type, Gross Vehicle Weight Rating 5NP - 1 : Limousine - 2 : Sedan - 2 door - 3 : Sedan - 3 door - 4 : Sedan - 4 door - 5 : Sedan - 5 door - 6 : Coupe - 7 : Convertible - 8 : Wagon - 9 : Commercial Van - 0 : Pick-Up 5NM - 1 : Wagon 4×2 Class-A - 2 : Wagon 4×2 Class-B - 3 : Wagon 4×2 Class-C - 4 : Wagon 4×2 Class-D - 5 : Wagon 4×2 Class-E - 6 : Wagon 4×2 Class-F - 7 : Wagon 4×2 Class-G - A : Wagon 4×4 Class-A - B : Wagon 4×4 Class-B - C : Wagon 4×4 Class-C - D : Wagon 4×4 Class-D - E : Wagon 4×4 Class-E - F : Wagon 4×4 Class-F - G : Wagon 4×4 Class-G Page 2 of 20

5. Restraint system, Brake system 5NP, 5NM Code Seat belt Front air bag Knee air bag Side air bag Curtain air bag Driver's Passenger's Driver's Passenger's 1st row 2nd row 3rd row 1st row 2nd row 3rd row A ○ ○ ○ × × ○ × × ○ ○ × B ○ ○ ○ × × × × × × × × C ○ ○ ○ × × ○ × × ○ ○ ○ D ○ ○ ○ × × ○ ○ × ○ ○ × E ○ ○ × × × × × × × × × F ○ ○ ○ × × ○ × × × × × N ○ × × × × × × × × × × 6. Engine type A. B : Gasoline engine 2.0(Theta-II T-GDI) B. C : Gasoline engine 2.4(Theta-II GDI) 7. Check digit or Driver’s side & Transmission A. Check digit : 0 ~ 9, x 8. Model year A. A : 2010, B : 2011, C : 2012, D : 2013 ... 9. Plant of production 10. Vehicle production sequence number A. 000001 ~ 999999 Paint Code Code Color AA Black diamond WHC White crystal Y5 Sleek silver FHM Hyper metallic YDG Dark gray RER Remington red SES Espresso UEB Blue black NW Noble white Engine Number Page 3 of 20

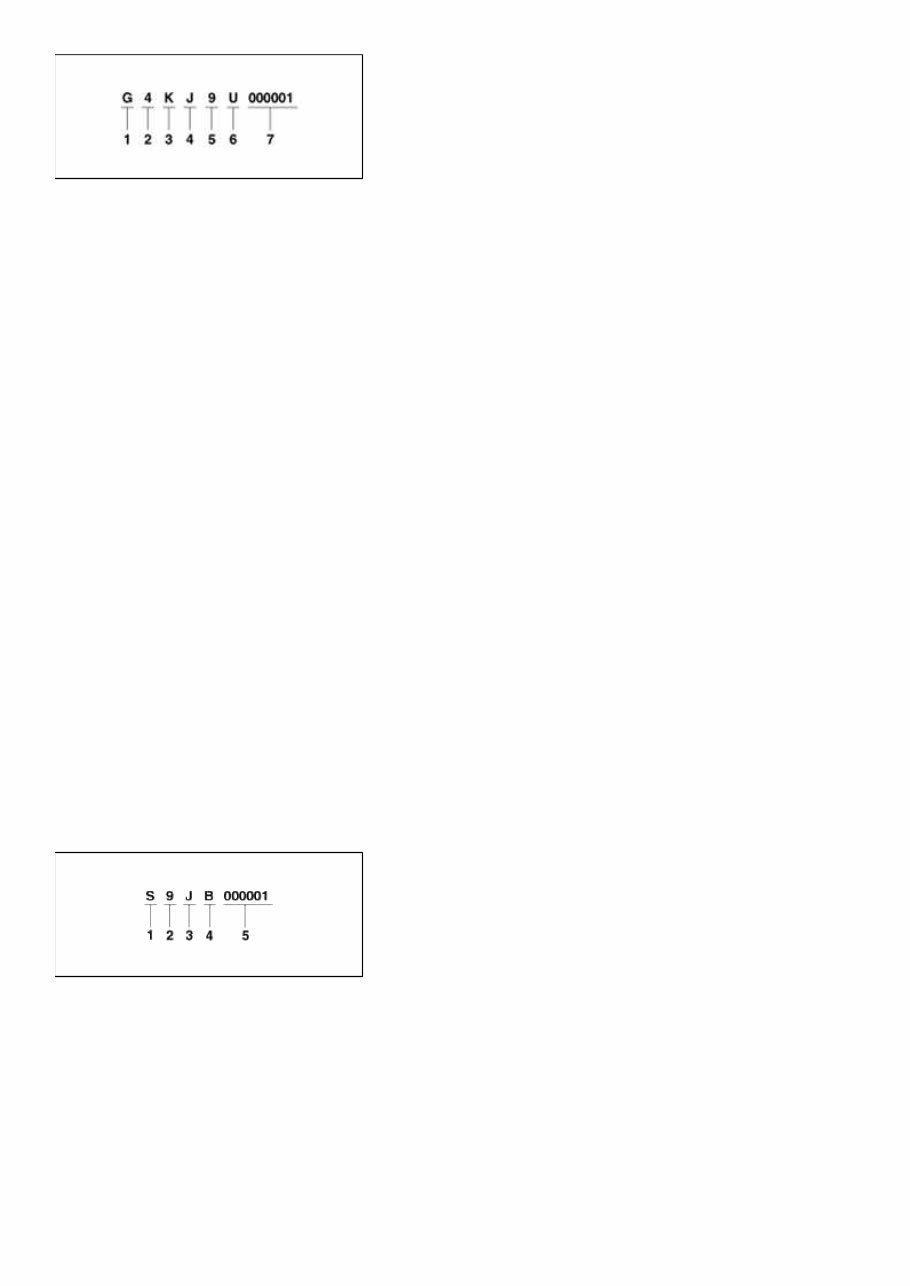

1. Engine fuel - G : Gasoline 2. Engine range - 4 : 4 cycle 4 cylinder 3. Engine development order and capacity - K : Theta engine (Gasoline) 4. Engine Capacity - H : 1998cc (T-GDI) - J : 2359cc (GDI) 5. Production year - 9 : 2009, A : 2010, B : 2011, C : 2012... 6. Plant of production - A : Asan (Korea) - B : Beijing (China) - H : Hwasung (Korea) - K : Montgomery (U.S.A) - M : Chennai (India) - P : Poseung (Korea) - S : Sohari (Korea) - T : Izmit (Turkey) - U : Ulsan (Korea) - W : Shandong (China) - Z : Zilina (Slovakia) - 1 : Yancheng (China) 7. Engine production sequence number - 000001 ~ 999999 Transaxle Number Manual 1. Model - S : M6GF2 2. Production year - 9 : 2009, A : 2010, B : 2011, C : 2012... 3. Plant of production - J : Hwaseong (Korea) 4. Final gear ratio - B : 4.333 / 3.250 5. Transaxle production sequence number - 000001 ~ 999999 Page 4 of 20

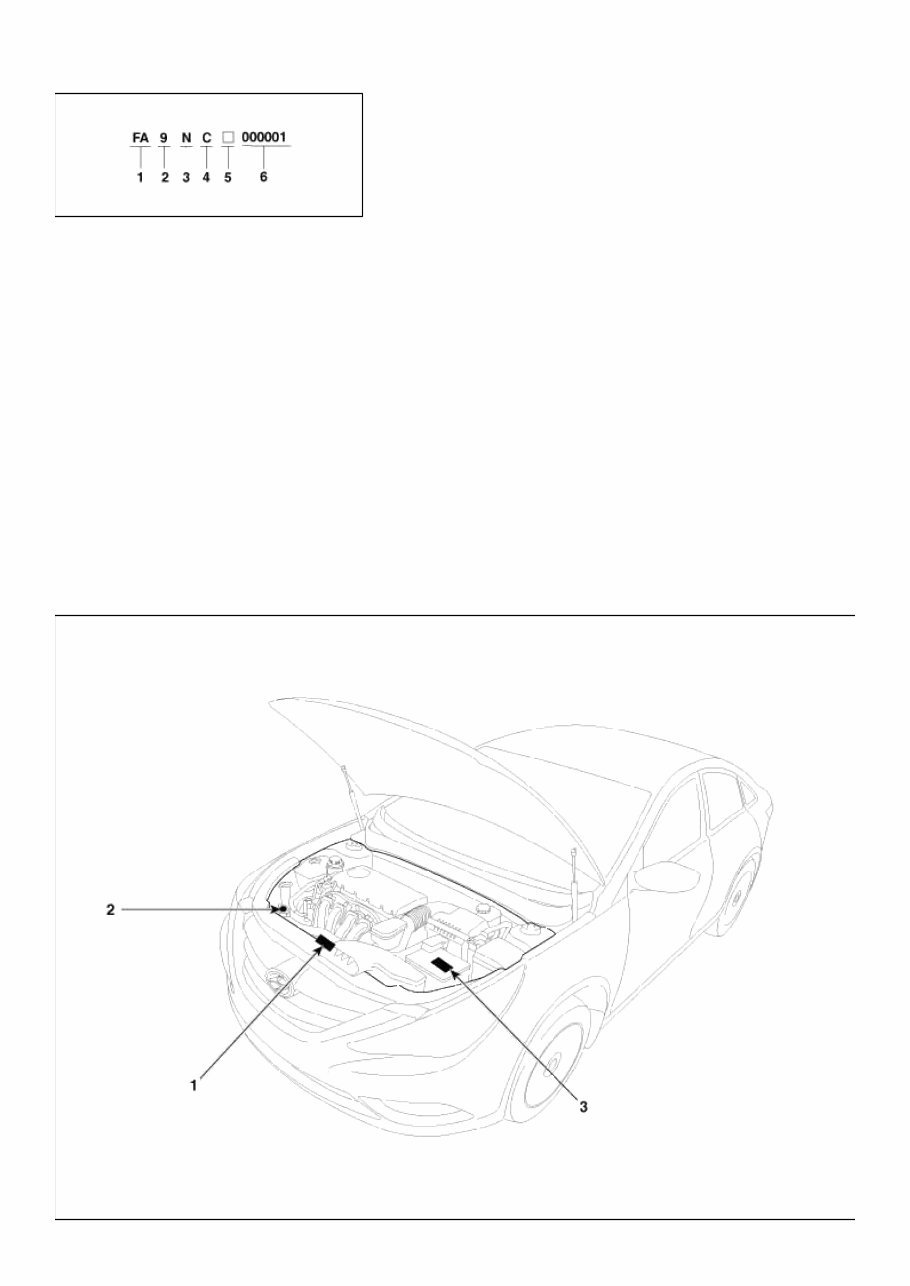

Automatic 1. Model - BA : A6LF2 (Theta-II 2.0 T-GDI) - FA : A6MF2 (Theta-II 2.4 GDI) 2. Production year - 9 : 2009, A : 2010, B : 2011, C : 2012... 3. Gear ratio - A : 2.885 (Theta-II 2.0 T-GDI) - N : 2.885 (Theta-II 2.4 GDI) 4. Detailed classification - A : Theta-II 2.0 T-GDI - C : Theta-II 2.4 GDI - E : Theta-II 2.4 GDI (H-Frame) 5. Spare 6. Transaxle production sequence number - 000001 ~ 999999 Warning / Caution Label Locations Page 5 of 20
