2007 Hyundai SONATA (NF) G 3.3 DOHC Service & Repair Manual

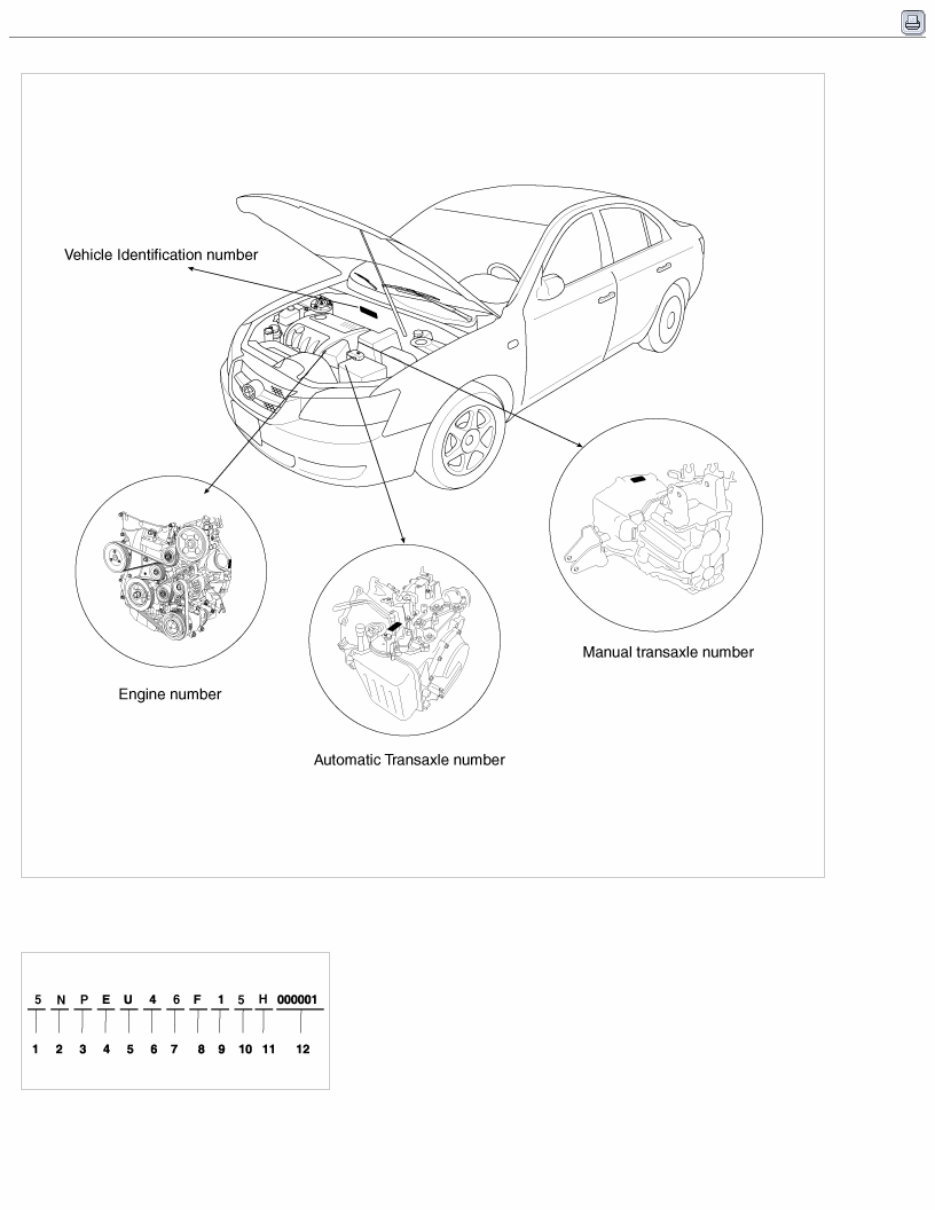

SONATA(NF) > 2007 > G 3.3 DOHC > General Information - IDENTIFICATION NUMBER LOCATIONS IDENTIFICATION NUMBER DESCRIPTION VEHICLE IDENTIFICATION NUMBER 1. Geographic zone - K : Korea 2. Manufacturer - M : Hyundai motor company

3. Vehicle type - 5NP : Passenger cars - H : Passenger cars 4. Vehicle line - E : SONATA 5. Model ＆ Series - S : STANDARD (L) - T : DELUXE (GL) - U : SUPER DELUXE (GLS) - V : GRAND SALON (GDS) - W : SUPER GRAND SALON (HGS) 6. Body type - 4 : Sedan 7. Restraint system - 5 : Depowered airbag. - 6 : Advanced airbag. 8. Engine type - C : Gas 2.4 - F : Gas 3.3 9. Check digit or others 10. Production year - 5 : 2005, 6 : 2006 11. Plant of production - H : Alabama in U.S.A - A : A-SAN (korea) 12. Vehicle production sequence number - 000001 ~ 999999 PAINT CODE CODE COLOR EB Ebony Black OT Special Color N2 Pure Pearl white S7 Sleek Silver B7 Grace Beige D2 Deep Pearl Blue W2 Presting Dark R D3 Aurora Blue G6 Charming Gray ENGINE IDENTIFICATION NUMBER

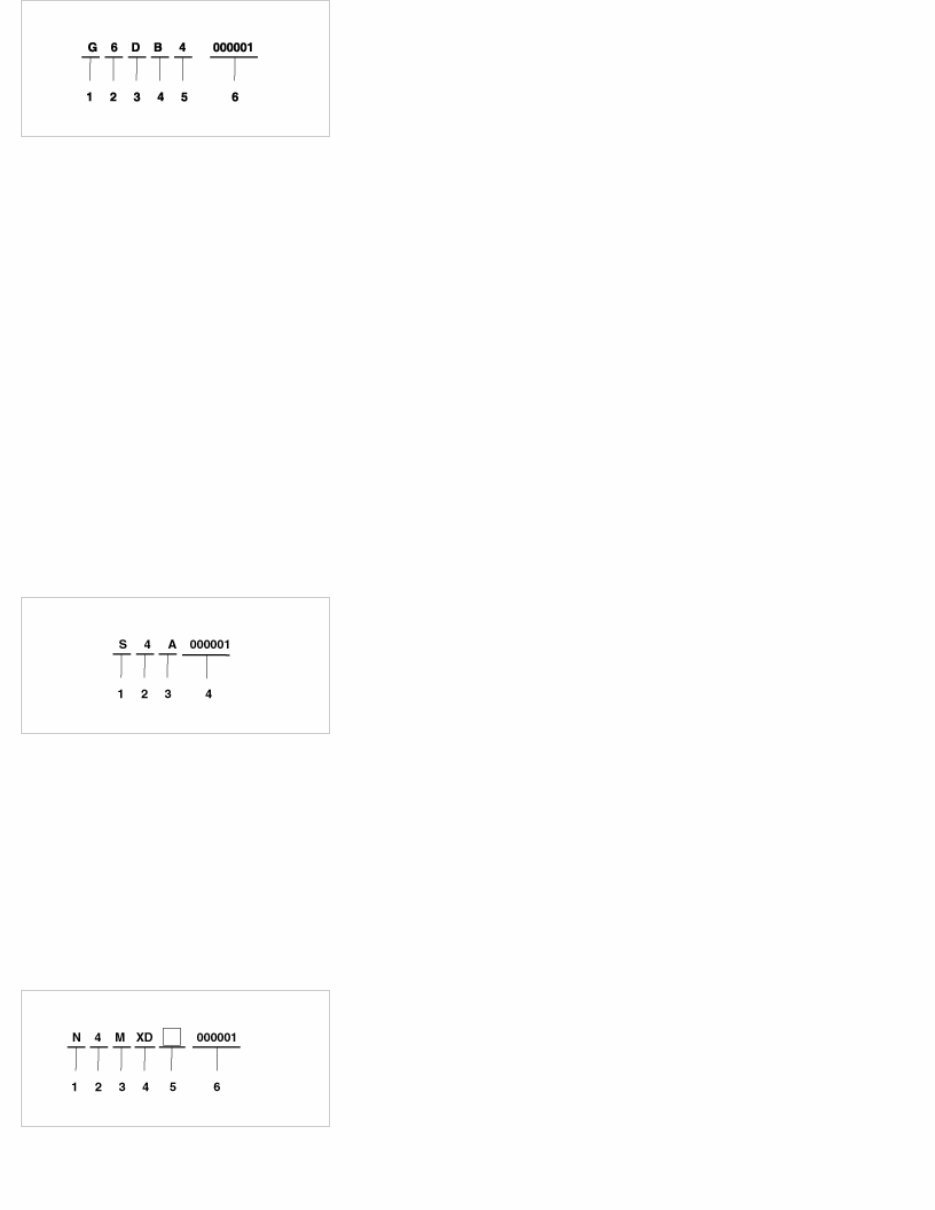

1. Engine fuel - G : Gasoline 2. Engine range - 4 : 4 cycle 4 cylinder - 6 : 4 cycle 6 cylinder 3. Engine development order - K : Theta engine - D : Lamda engine 4. Engine capacity - C : 2359 cc (Gasoline) - B : 3342 cc (Gasoline) 5. Production year - 5 : 2005, 6 : 2006 6. Engine production sequence number - 000001 ~ 999999 TRANSMISSION IDENTIFICATION NUMBER MANUAL 1) Model - S : M5GF2 2) Production year - 4 : 2004, 5 : 2005, 6 : 2006, 7 : 2007 3) Gear ratio - A : 4.680 - B : 4.333 4) Transaxle production sequence number - 000001 ~ 999999 AUTOMATIC 1. Model - N : F4A42-2 - U : A5HF1

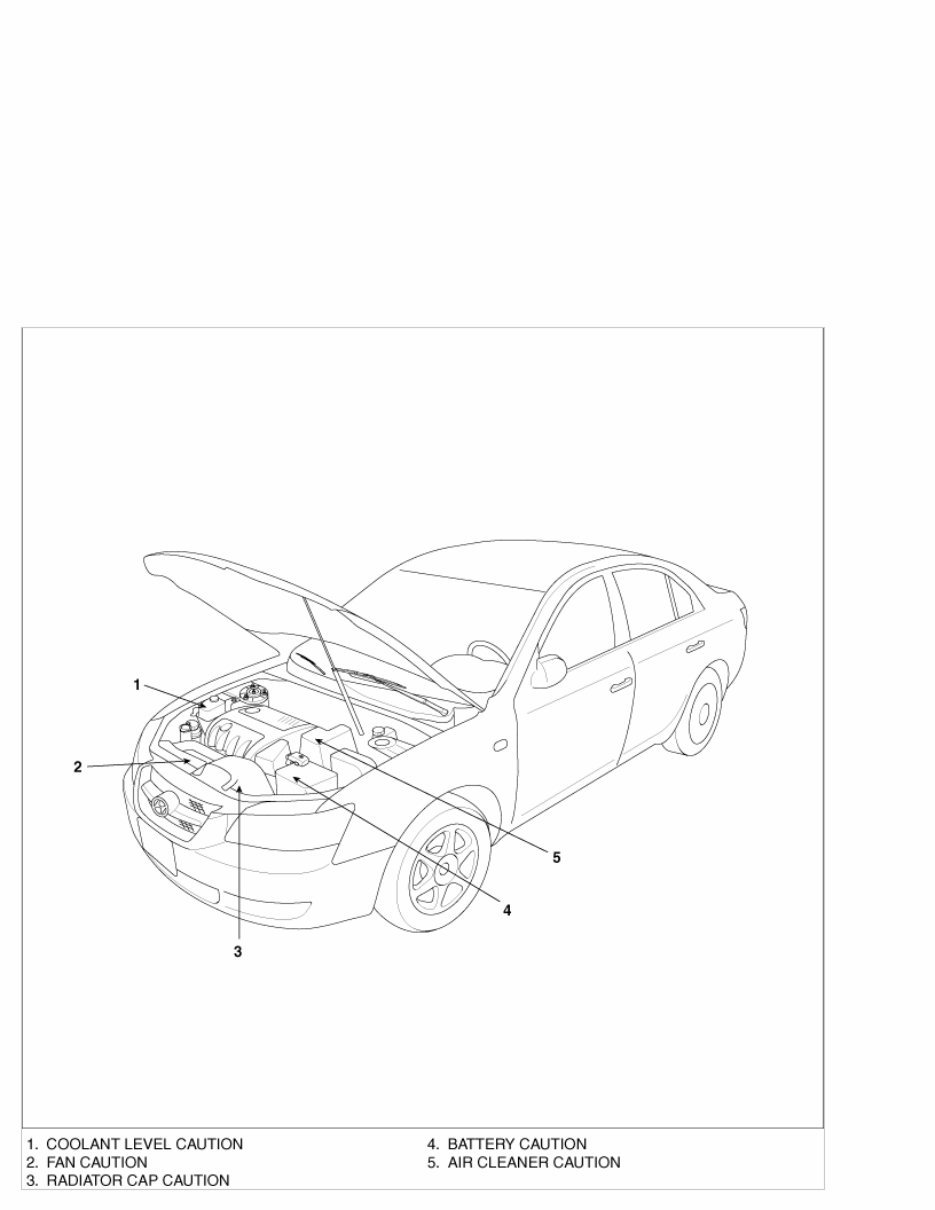

2. Production year - 4 : 2004, 5 : 2005, 6 : 2006, 7 : 2007 3. Gear ratio - M : 3.770 - K : 3.333 4. Detailed classification - XD : 2.4 (Theta engine) - GD : 3.3 (Lambda engine) 5. Spare 6. Transaxle production sequence number - 000001 ~ 999999 WARNING / CAUTION LABEL LOCATIONS

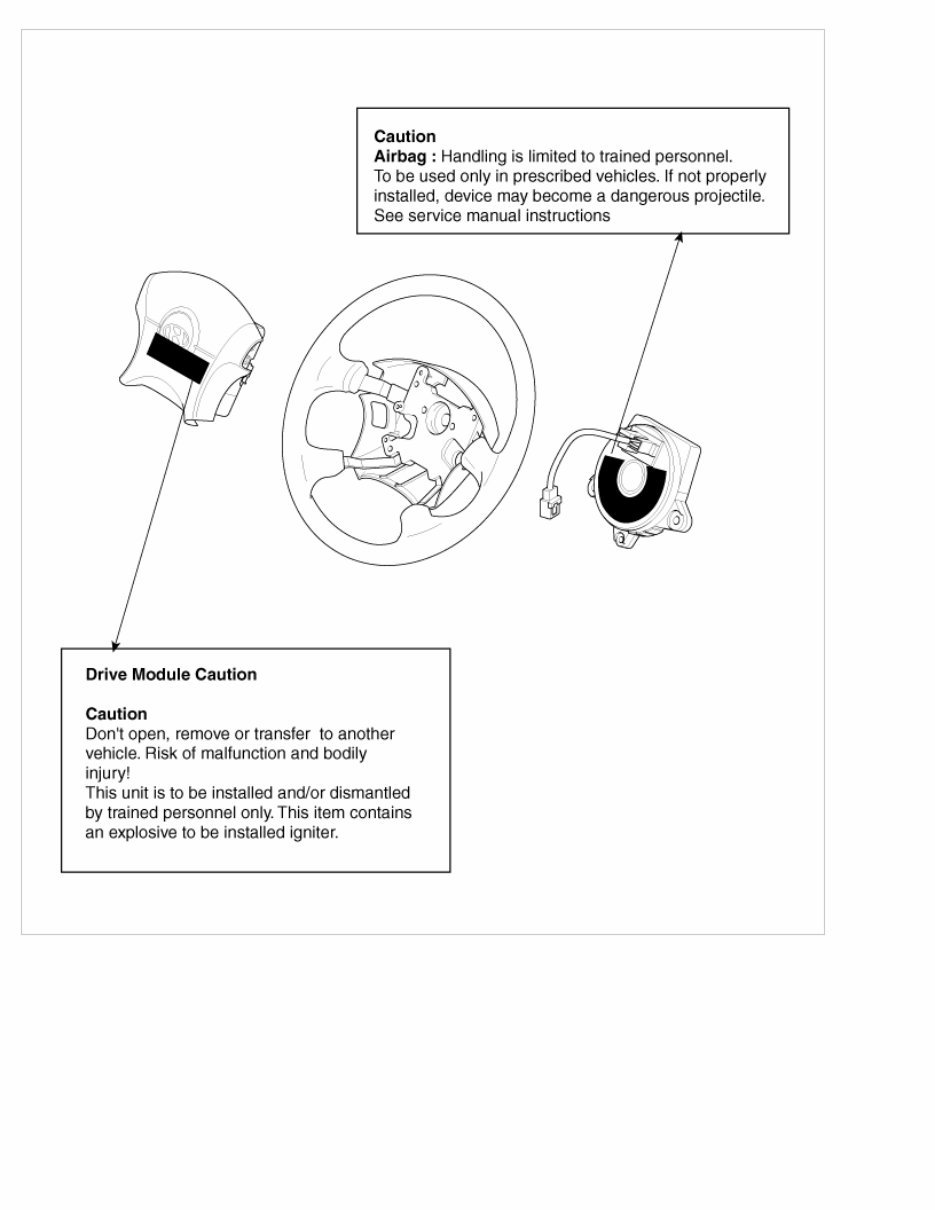

AIR BAG WARNING / CAUTION LABEL AIR BAG WARING / CAUTION LABEL (CONT''D)

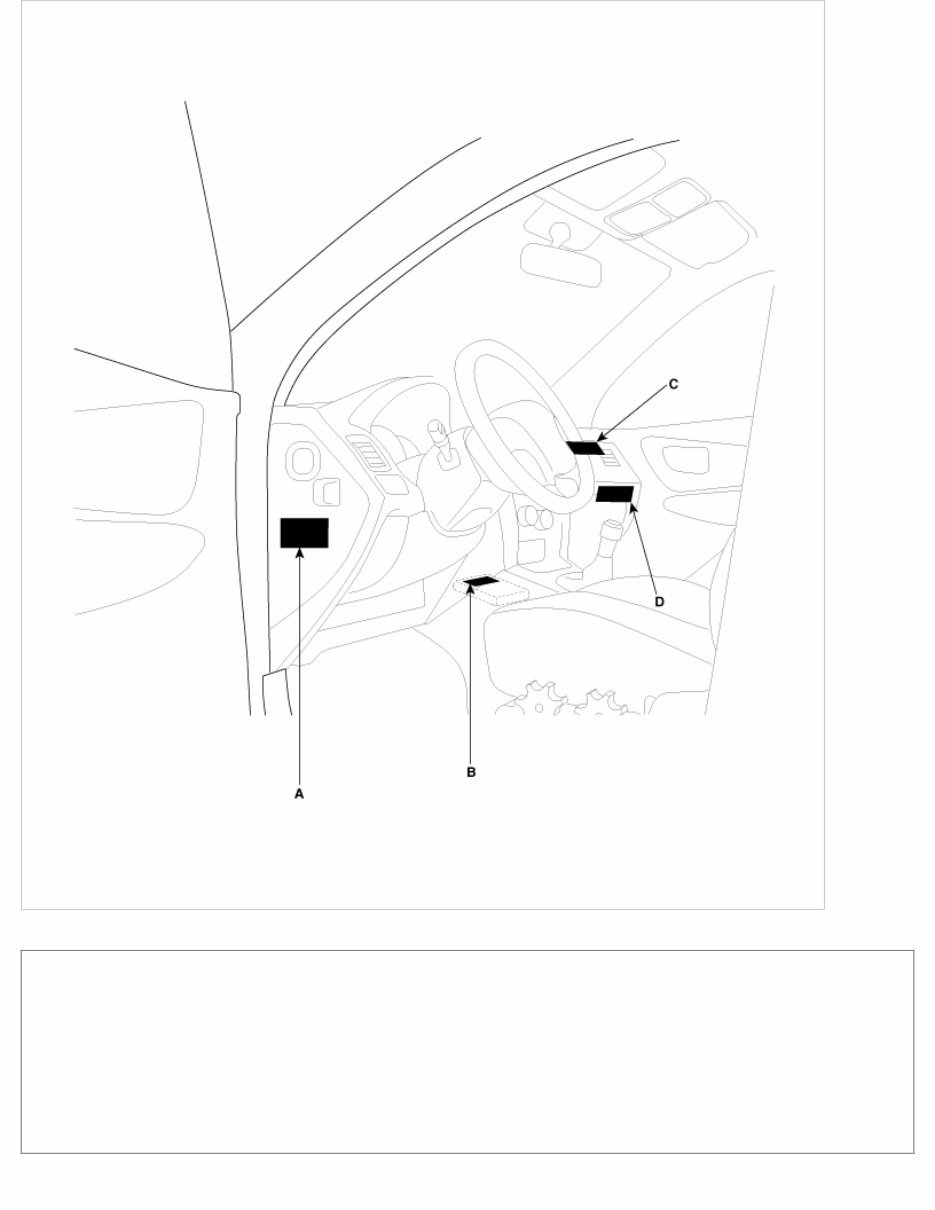

WARNING / CAUTION LABEL (cont''d) A : WARNING SEE OWNER''S MANUAL. This car is equipped a side airbag for each front seat. • Do not use any accessory seat covers. • Use of other seat covers could reduce the effect of the system. • Do not install any accessories on the side or near the side airbag. • Do not use excessive force on the side of the seal. • For further information, see the owner''s manual.

B : CAUTION AIRBAG ESPE UNIT Detach connector before dismounting. Assemble strictly according to manual instructions. C : PASSENGER MODULE CAUTION CAUTION Don''t open, remove or transfer to another vehicle. Risk of malfunction and bodily injury! This unit is to be installed and/or dismantled by trained personnel only. This item contains an explosive igniter. D : SUPPLEMENTAL RESTRAINT SYSTEM (AIRBAG) INFORMATION • The airbag is a Supplement Restraint System (SRS). You must always wear seat belts. • The airbag system condition is normal when the "SRS" lamp in the cluster flashes approximately 6 times after the ignition key is turned on and then goes off. • If any of the following condition soccur, the system must be serviced. • "SRS" lamp does not light up when the key is turned on. • "SRS" lamp stays lit or flashes continuously. • The airbag has inflated. • The airbag system must be inspected by an authorized dealer ten years after the vehicle manufacture date shown on the certification label, located on left front door opening area. WARNING Failure to the above instructions may result in injury to you or other occupants in the vehicle • See the "SRS" section in Owner''s Manual for more information about airbags. BATTERY CAUTION LABEL DESCRIPTION

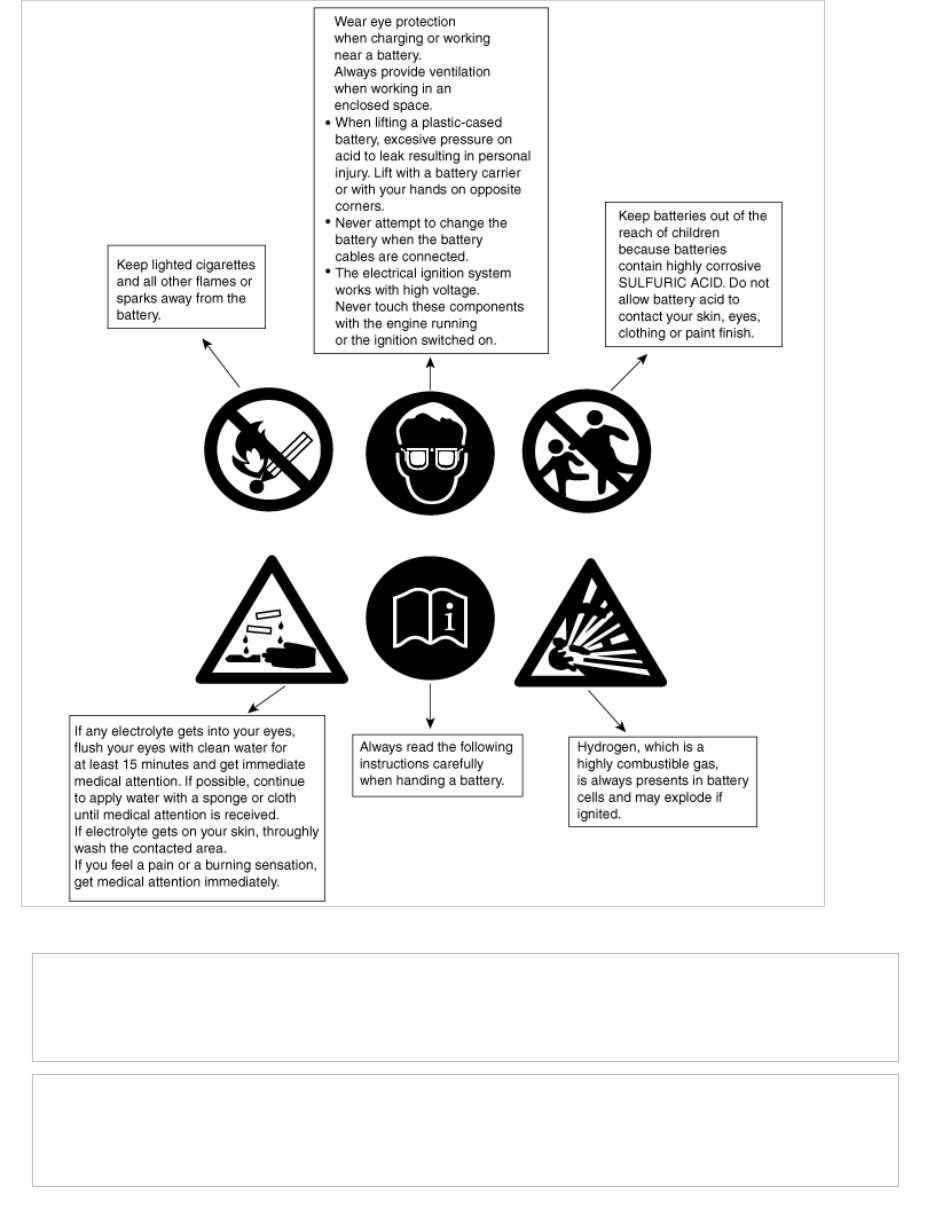

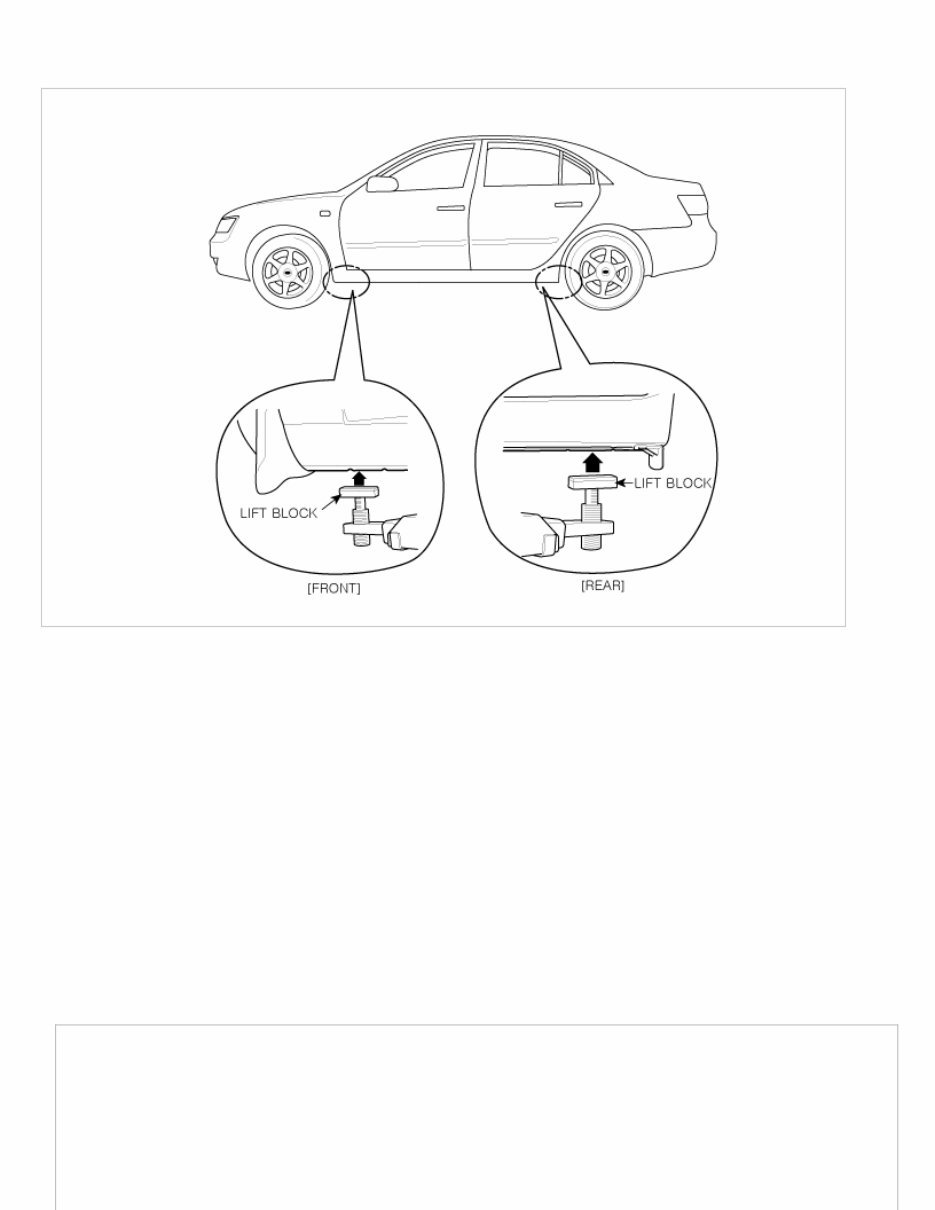

LIFT AND SUPPORT POINTS When heavy rear components such as suspension, fuel tank, spare tire, tailgate and trunk lid are to be removed, place additional weight in the luggage area before hoisting. When substantial weight is removed from the rear of the vehicle, thecenter of gravity may change and can cause the vehicle to tip forward on the hoist. • Since each tire/wheel assembly weights approximately 30lbs (14kg), placing the front wheels in the luggage area can assist with the weight distribution. • Use the same support points to support the vehicle on safety stands.

1. Place the lift blocks under the support points as shown in the illustration. 2. Raise the hoist a few inches (centimeters) and rock the vehicle to be sure it is firmly supported. 3. Raise the hoist to full height and inspect the lift points for secure support. TOWING If the vehicle needs to be towed, call a professional towing service. Never tow vehicle with just a rope or chain. It is very dangerous. Emergency Towing There are three popular methods of towing a vehicle : If the vehicle cannot be transported by flat-bed, it should be towed with the front wheels off the ground. If due to damage, the vehicle must be tow with the front wheels on the ground, do the following : Manual Transmission • Release the parking brake. • Shift the transmission to neutral Automatic Transmission • Release the parking brake. • Start the engine. • Shift to [D] position, then [N] position. • Turn off the engine. • The vehicle equipped with full-time 4WD should be only transported on a flat-bed. • The CVT vehicles should be only transported on a flat-bed or towed by wheel lift towing which the wheels of the driving axle are lifted off the ground. • Improper towing preparation will damage the transaxle. Follow the procedure above exactly. If you cannot shift the transaxle or start the engine(automatic transaxle), your vehicle must be transported on a flatbed. • It is the best to tow vehicle no farther than 30km (19miles), and keep the speed below 50km/h (30mph).

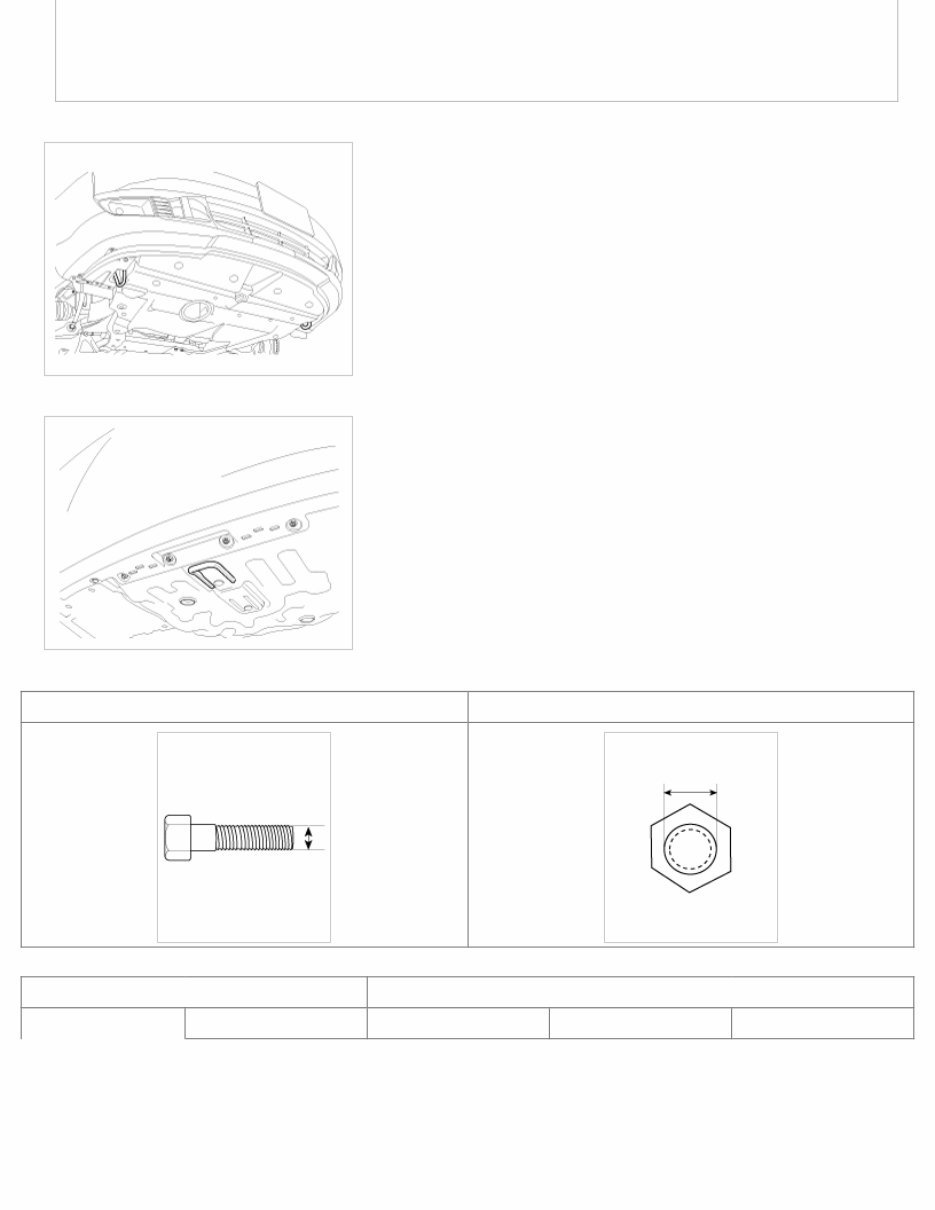

(For the CVT and full-time 4WD (CVT/AT) vehicles, limit the towing distance and speed to 1.5km (1 mile) and 15km/h (10 mph).) • Trying to lift or tow your vehicle by the bumpers will cause serious damage to the vehicle. The bumpers are not designed to support the vehicle''s weight. Front : Rear : Tightening Torque Table Of Standard Parts BOLT (Nominal diameter) NUT (Nominal diameter) BOLT/NUT Normal screw Torque Nm (kg.m, Ib-ft) Nominal diameter. (mm) Pitch [mm (in.) ] 4T 8T 10T
