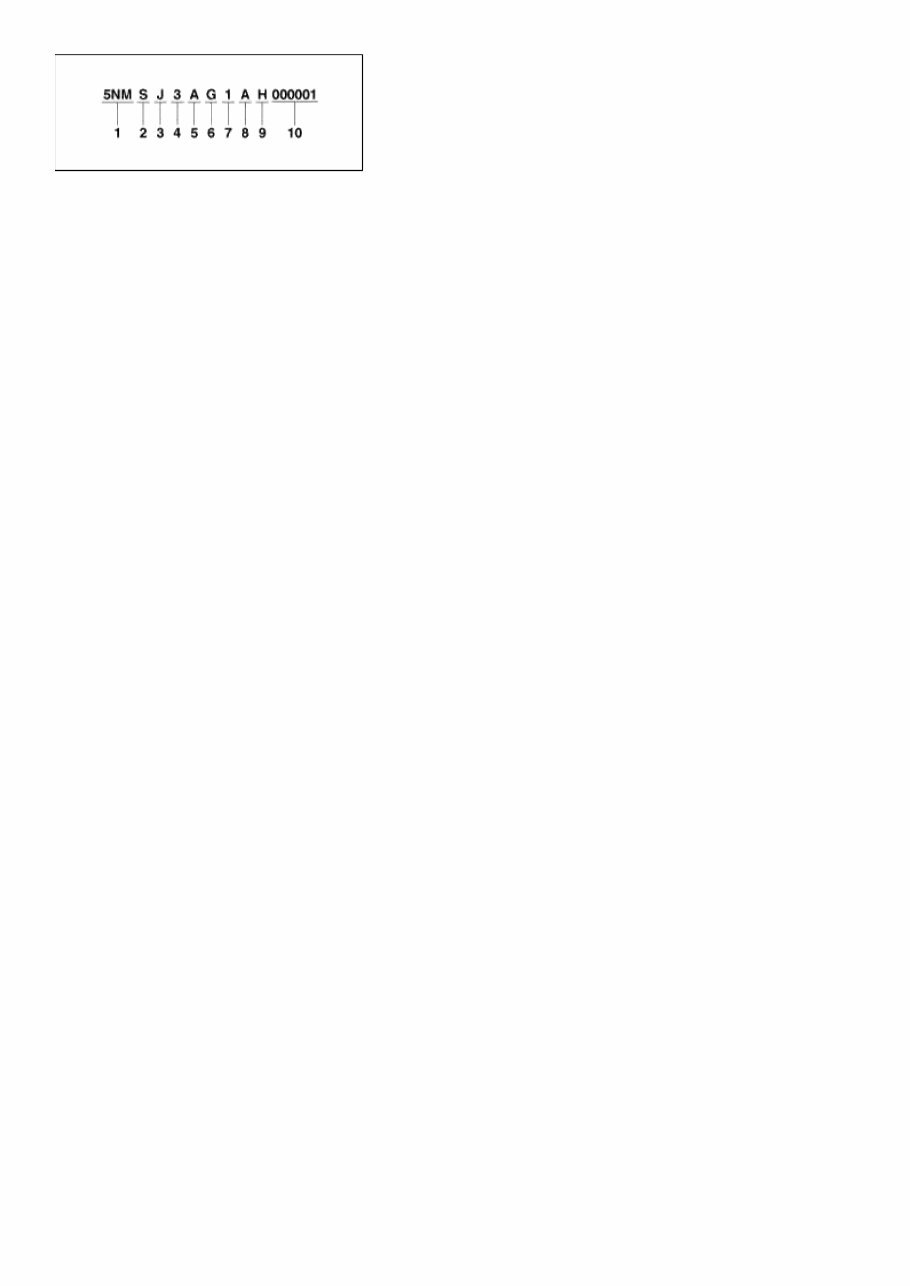

SANTAFE(CM) > 2011 > G 2.4 DOHC > General Information General Information > General Information > General Information Identification Number Locations Identification Number Description Vehicle Identification Number Page 1 of 20
1. World Manufacturer Identifier (WMI) A. 5NP : Passenger vehicle B. 5NM : MPV (Multipurpose Passenger Vehicle) / SUV (Sports Utility Vehicle) / RV (Recreational Vehicle) 2. Vehicle line A. S : SANTAFE 3. Model & Series A. F : Low grade (L) B. G : Middle-Low grade (GL) C. H : Middle grade (GLS, JSL, TAX) D. K : Middle-High grade (HGS) E. J : High grade (TOP) 4. Body/Cabin type, Gross Vehicle Weight Rating 5NP - 1 : Limousine - 2 : Sedan - 2 door - 3 : Sedan - 3 door - 4 : Sedan - 4 door - 5 : Sedan - 5 door - 6 : Coupe - 7 : Convertible - 8 : Wagon - 9 : Commercial Van - 0 : Pick-Up 5NM - 1 : Wagon 4×2 Class-A - 2 : Wagon 4×2 Class-B - 3 : Wagon 4×2 Class-C - 4 : Wagon 4×2 Class-D - 5 : Wagon 4×2 Class-E - 6 : Wagon 4×2 Class-F - 7 : Wagon 4×2 Class-G - A : Wagon 4×4 Class-A - B : Wagon 4×4 Class-B - C : Wagon 4×4 Class-C - D : Wagon 4×4 Class-D - E : Wagon 4×4 Class-E - F : Wagon 4×4 Class-F - G : Wagon 4×4 Class-G Page 2 of 20
5. Restraint system, Brake system 5NP, 5NM Code Seat belt Front air bag Knee air bag Side air bag Curtain air bag Driver's Passenger's Driver's Passenger's 1st row 2nd row 3rd row 1st row 2nd row 3rd row A ○ ○ ○ × × ○ × × ○ ○ × B ○ ○ ○ × × × × × × × × C ○ ○ ○ × × ○ × × ○ ○ ○ D ○ ○ ○ × × ○ ○ × ○ ○ × E ○ ○ × × × × × × × × × F ○ ○ ○ × × ○ × × × × × N ○ × × × × × × × × × × 6. Engine type A. B : Gasoline engine 2.4 B. G : Gasoline engine 3.5 7. Check digit or Driver’s side & Transmission - Check digit : 0 ~ 9, × 8. Production year A. A : 2010, B : 2011, C : 2012, D : 2013 ... 9. Plant of production - H : Alabama(U.S.A) 10. Vehicle production sequence number A. 000001 ~ 999999 Paint Code Code Color NKA Phantom black NLA Hyper metallic NMA Carbon gray STB Steel blue XDB Brown metallic 3M Vanilla white 5Q Blue onyx 5J Superior red ZLB Bronze SLS Sleek silver Engine Number Page 3 of 20

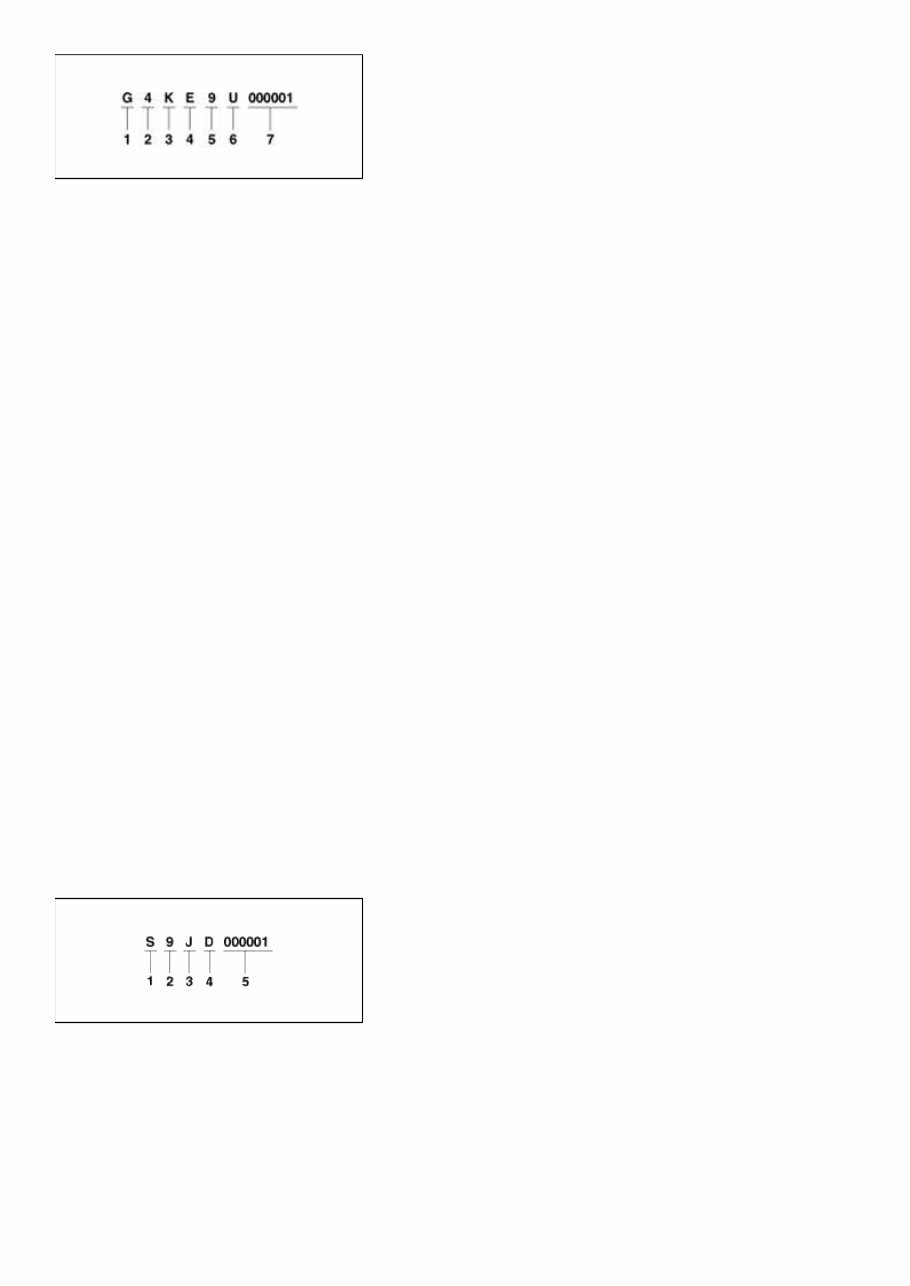

1. Engine fuel - G : Gasoline 2. Engine range - 4 : 4 cycle 4 cylinder - 6 : 4 cycle 6 cylinder 3. Engine development order and capacity - D : Lambda engine (Gasoline) - K : Theta engine (Gasoline) 4. Engine Capacity - C : 3470cc (Lamda-II engine) - E : 2359cc (Theta-II engine) 5. Production year - 9 ; 2009, A : 2010, B : 2011, C : 2012, D : 2013... 6. Plant of production - A : Asan (Korea) - B : Beijing (China) - H : Hwasung (Korea) - K : Montgomery (U.S.A) - M : Chennai (India) - P : Poseung (Korea) - S : Sohari (Korea) - T : Izmit (Turkey) - U : Ulsan (Korea) - W : Shandong (China) - Z : Zilina (Slovakia) - 1 : Yancheng (China) 7. Engine production sequence number - 000001 ~ 999999 Transaxle Number Manual 1. Model - S : M6GF2 2. Production year - 9 : 2009, A : 2010, B : 2011, C : 2012, D : 2013... 3. Plant of production - J : Hwaseong (Korea) 4. Final gear ratio - D : 5.071 / 3.737 Page 4 of 20

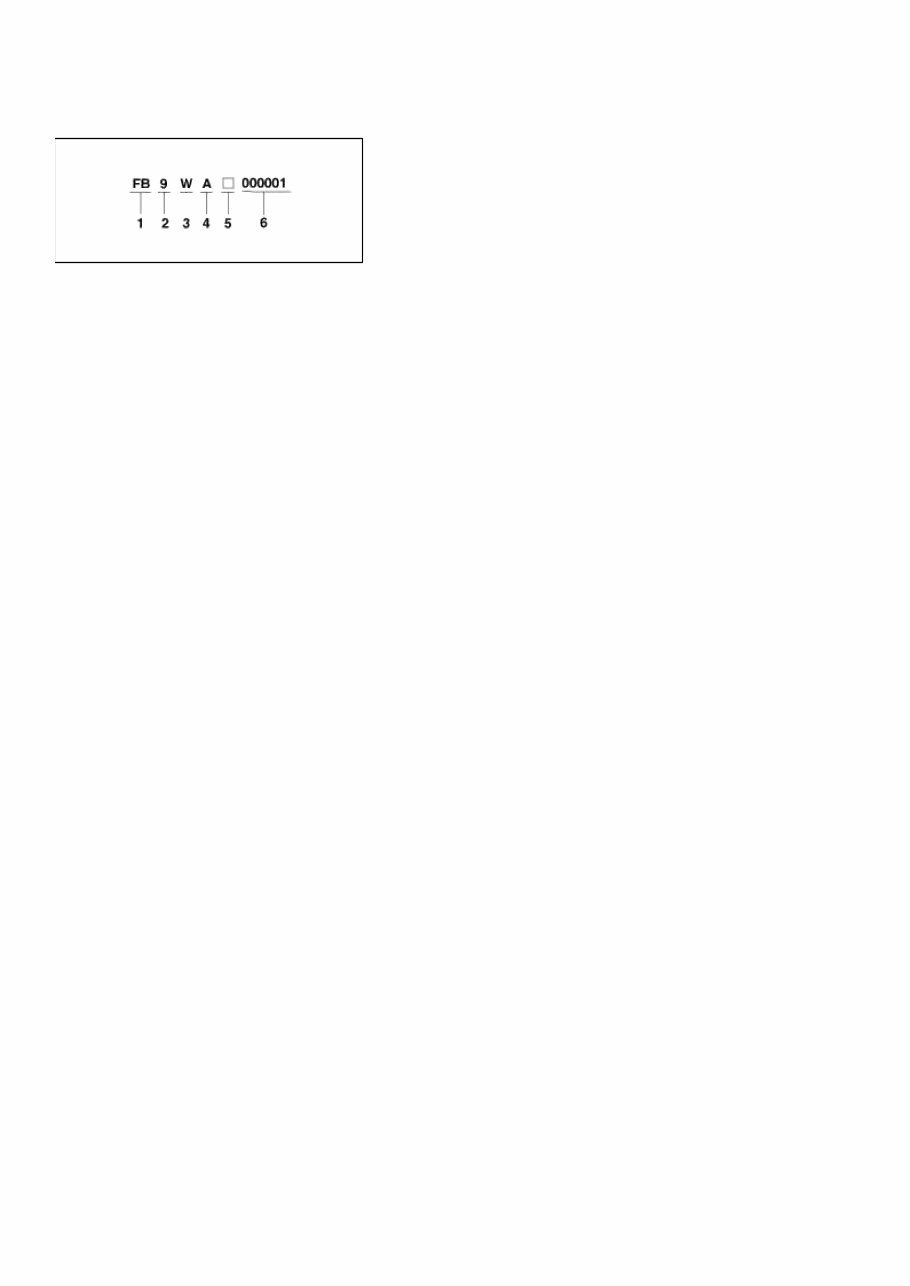

5. Transaxle production sequence number - 000001 ~ 999999 Automatic 1. Model - FB: A6MF2 (Theta-II 2.4, 2WD, water cooling) - FD: A6MF2 (Theta-II 2.4, 4WD, water cooling) - BB: A6LF2 (Lambda-II 3.5/R2.0, 2WD, water cooling) - BD: A6LF2 (Lambda-II 3.5/R2.0, 4WD, water cooling) 2. Production year - 9 : 2009, A : 2010, B : 2011, C : 2012, D : 2013... 3. Gear ratio - W : 3.913 - E : 3.915 4. Detailed classification - C : Theta-II 2.4 (A6MF2, 2WD/4WD) - C : Lambda-II 3.5 (A6LF2, 4WD) - D : Lambda-II 3.5 (A6LF2, 2WD) 5. Spare 6. Transaxle production sequence number - 000001 ~ 999999 Warning / Caution Label Locations Page 5 of 20
