SANTAFE(CM) > 2010 > G 3.5 DOHC > General Information

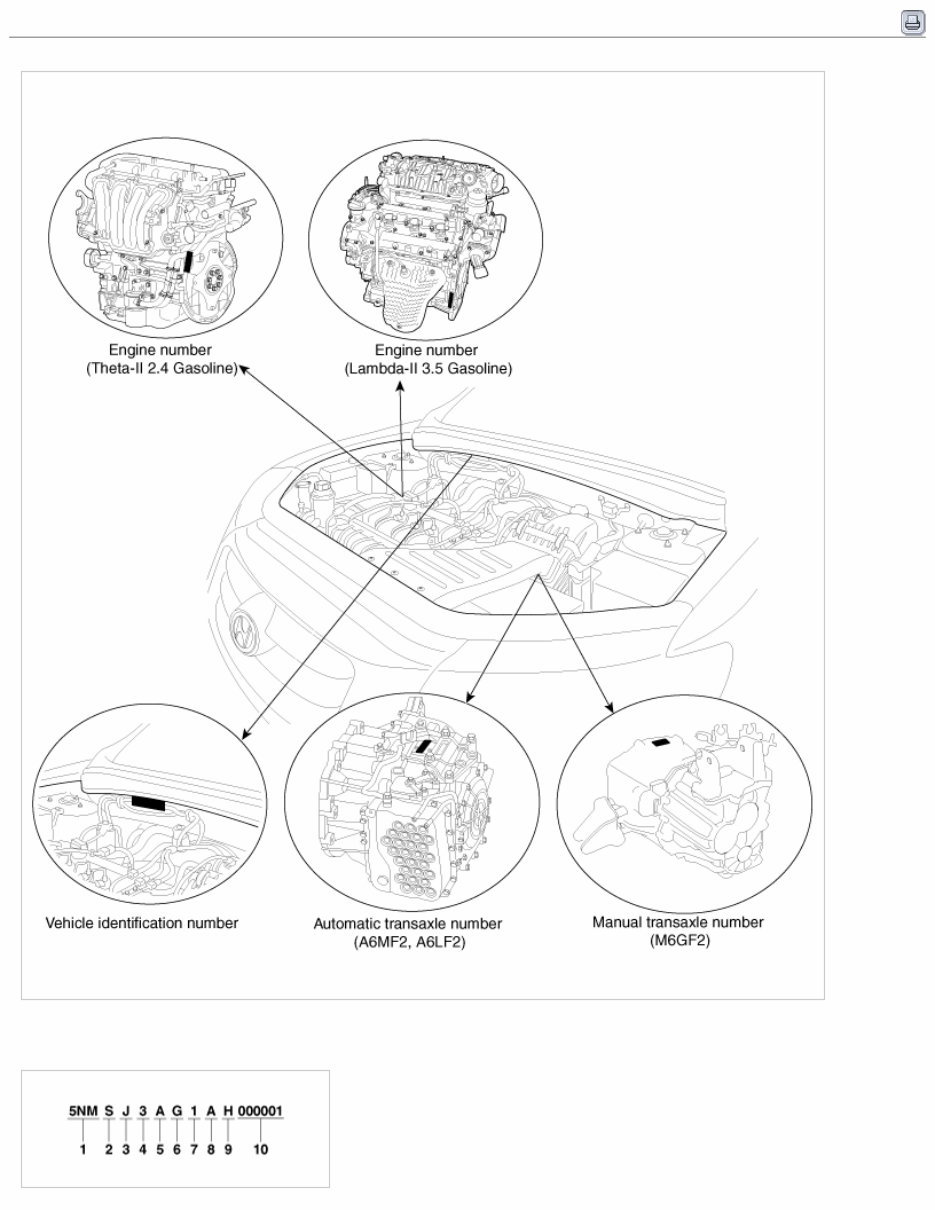

- Identification Number Locations
Identification Number Description
Vehicle Identification Number
1. World Manufacturer Identifier (WMI)
– 5NP : Passenger vehicle
– 5NM : MPV (Multipurpose Passenger Vehicle) / SUV (Sports Utility Vehicle) / RV (Recreational Vehicle)
2. Vehicle line
– S : SANTAFE
3.
Model ＆ Series
– F : Low grade (L)
– G : Middle-Low grade (GL)
– H : Middle grade (GLS, JSL, TAX)
– K : Middle-High grade (HGS)
– J : High grade (TOP)
4.Body/Cabin type, Gross Vehicle Weight Rating
5NP
- 1 : Limousine
- 2 : Sedan - 2 door
- 3 : Sedan - 3 door
- 4 : Sedan - 4 door
- 5 : Sedan - 5 door
- 6 : Coupe
- 7 : Convertible
- 8 : Wagon
- 9 : Commercial Van
- 0 : Pick-Up
5NM
- 1 : Wagon 4×2 Class-A
- 2 : Wagon 4×2 Class-B
- 3 : Wagon 4×2 Class-C
- 4 : Wagon 4×2 Class-D
- 5 : Wagon 4×2 Class-E
- 6 : Wagon 4×2 Class-F
- 7 : Wagon 4×2 Class-G
- A : Wagon 4×4 Class-A
- B : Wagon 4×4 Class-B
- C : Wagon 4×4 Class-C
- D : Wagon 4×4 Class-D
- E : Wagon 4×4 Class-E
- F : Wagon 4×4 Class-F
- G : Wagon 4×4 Class-G
5. Restraint system, Brake system
5NP, 5NM
Code
Seat
belt
Front air bag Knee air bag Side air bag Curtain air bag
Driver''s Passenger''s Driver''s Passenger''s 1st row 2nd row 3rd row 1st row 2nd row 3rd row
A ○ ○ ○ × × ○ × × ○ ○ ×
B ○ ○ ○ × × × × × × × ×
C ○ ○ ○ × × ○ × × ○ ○ ○
D ○ ○ ○ × × ○ ○ × ○ ○ ×
E ○ ○ × × × × × × × × ×
F ○ ○ ○ × × ○ × × × × ×
N ○ × × × × × × × × × ×
6. Engine type
– B : Gasoline engine 2.4
– G : Gasoline engine 3.5
7. Check digit or Driver’s side & Transmission
- Check digit : 0 ~ 9, ×
8. Model year
– A : 2010, B : 2011, C : 2012, D : 2013 ...
9. Plant of production
- H : Alabama(U.S.A)
10. Vehicle production sequence number
– 000001 ~ 999999

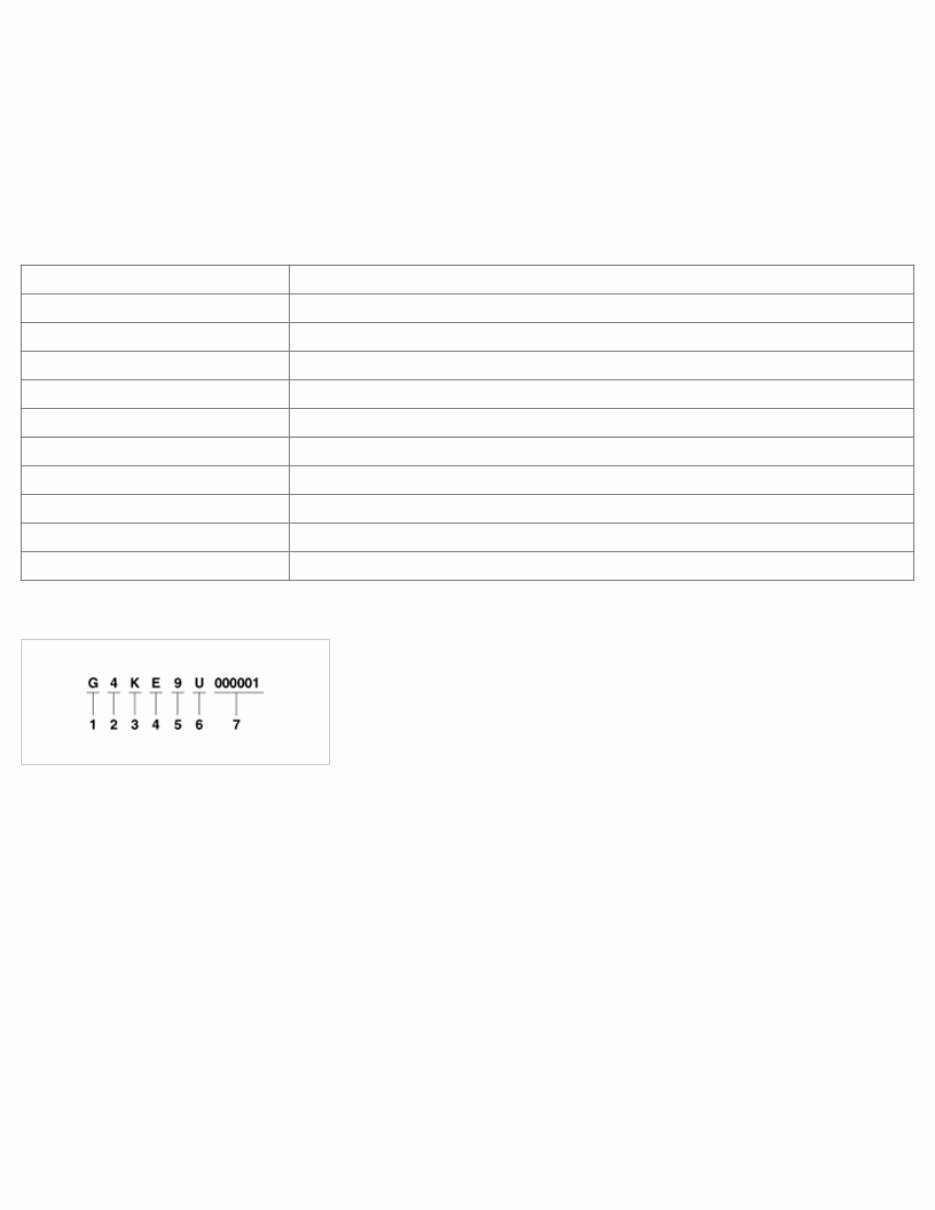

Paint Code
Code Color
NKA Phantom black
NLA Hyper metallic
NMA Carbon gray
STB Steel blue
XDB Brown metallic
3M Vanilla white
5Q Blue onyx
5J Superior red
ZLB Bronze
SLS Sleek silver
Engine Number
1. Engine fuel
- G : Gasoline
2. Engine range
- 4 : 4 cycle 4 cylinder
- 6 : 4 cycle 6 cylinder
3. Engine development order and capacity
- D : Lambda engine (Gasoline)
- K : Theta engine (Gasoline)
4. Engine Capacity
- C : 3470cc (Lamda-II engine)
- E : 2359cc (Theta-II engine)
5. Model year
- 9 ; 2009, A : 2010, B : 2011, C : 2012, D : 2013...
6. Plant of production
- A : Asan (Korea)
- B : Beijing (China)
- H : Hwasung (Korea)
- K : Montgomery (U.S.A)
- M : Chennai (India)
- P : Poseung (Korea)
- S : Sohari (Korea)
- T : Izmit (Turkey)
- U : Ulsan (Korea)
- W : Shandong (China)
- Z : Zilina (Slovakia)
- 1 : Yancheng (China)
7. Engine production sequence number
- 000001 ~ 999999

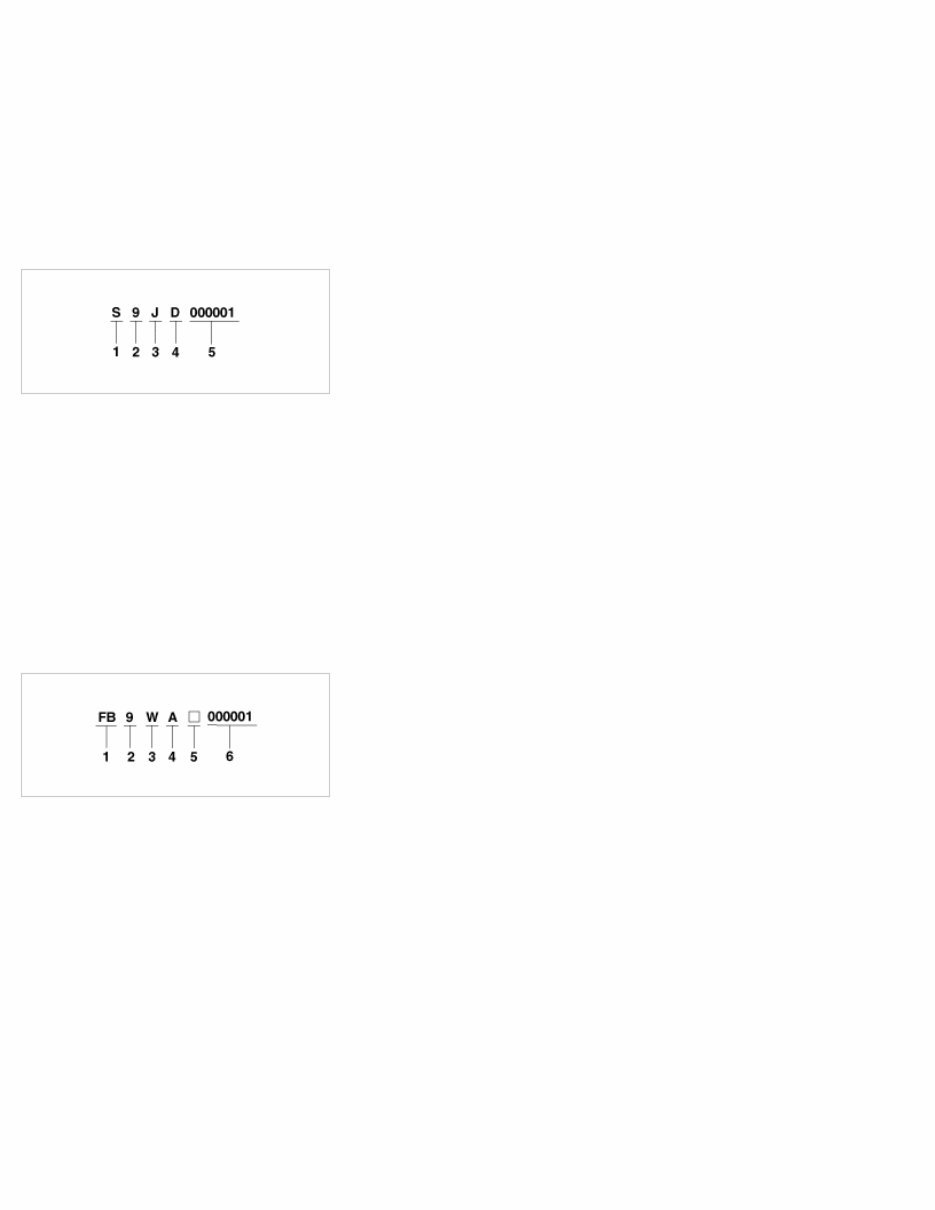

Transaxle Number
Manual
1. Model
- S : M6GF2
2. Model year
- 9 : 2009, A : 2010, B : 2011, C : 2012, D : 2013...
3. Plant of production
- J : Hwaseong (Korea)
4. Final gear ratio
- D : 5.071 / 3.737
5. Transaxle production sequence number
- 000001 ~ 999999
Automatic
1. Model
- FB: A6MF2 (Theta-II 2.4, 2WD, water cooling)
- FD: A6MF2 (Theta-II 2.4, 4WD, water cooling)
- BB: A6LF2 (Lambda-II 3.5/R2.0, 2WD, water cooling)
- BD: A6LF2 (Lambda-II 3.5/R2.0, 4WD, water cooling)
2. Model year
- 9 : 2009, A : 2010, B : 2011, C : 2012, D : 2013...
3. Gear ratio
- W : 3.913
- E : 3.915
4. Detailed classification
- C : Theta-II 2.4 (A6MF2, 2WD/4WD)
- C : Lambda-II 3.5 (A6LF2, 4WD)
- D : Lambda-II 3.5 (A6LF2, 2WD)
5. Spare
6. Transaxle production sequence number
- 000001 ~ 999999

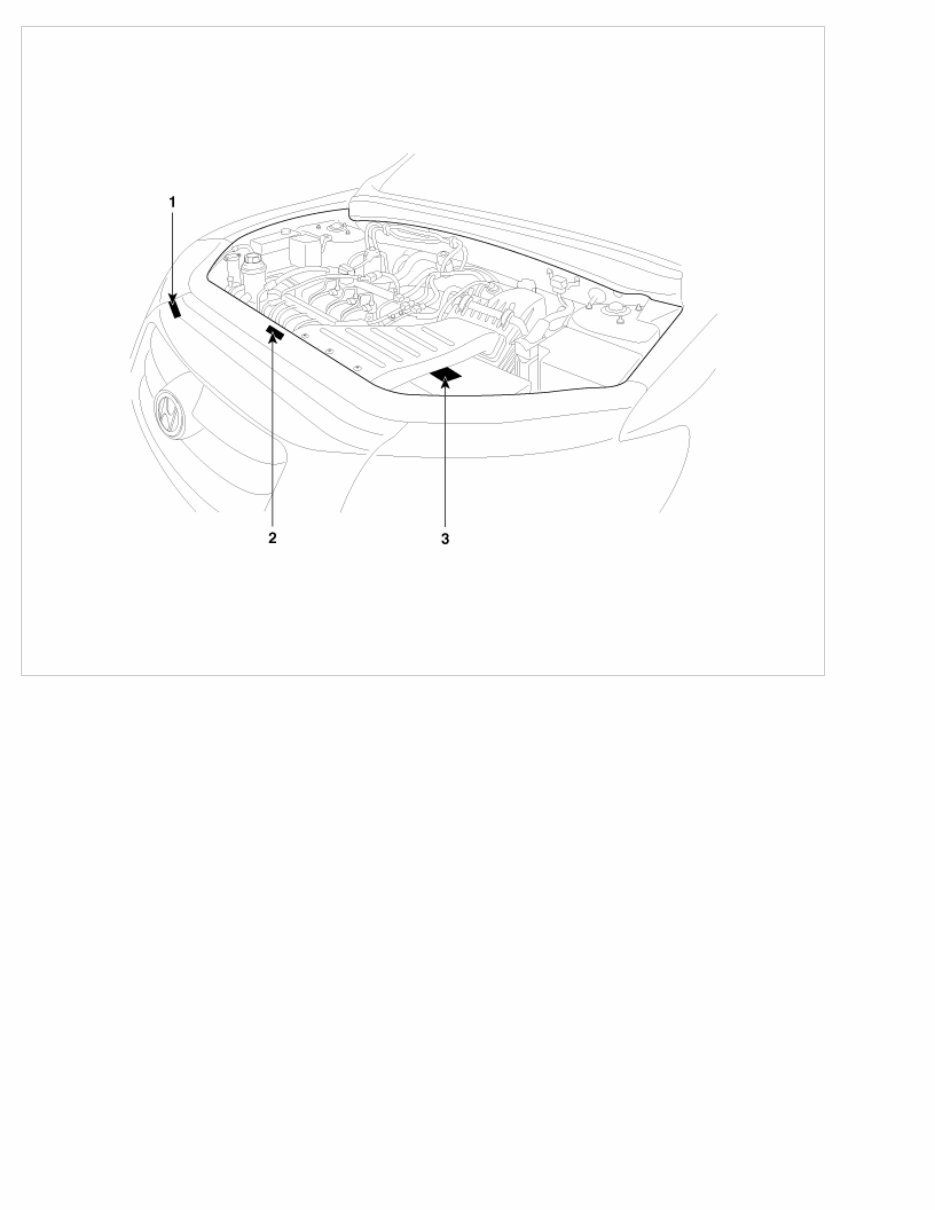

Warning / Caution Label Locations
1. Radiator cap caution
2. Fan caution
3. Battery caution
Battery Caution Label Describtion
Warning / Caution Label (Cont''d)
A.
Keep lighted cigarettes and all other flames or sparks away from the battery.
B.
Wear eye protection when charging or working near a battery. Always provide ventilation when working in an enclosed
space.
• When lifting a plastic-cased battery, excesive pressure on acid to leak resulting in personal injury. Lift with a battery
carrier or with your hands on opposite corners.
• Never attempt to change the battery when the battery cables are connected.
• The electrical ignition system works with high voltage.
Never touch these components with the engine running or the ignition switched on.
C.
Keep batteries out of the reach of children because batteries contain highly corrosive SULFURIC ACID. Do not allow
battery acid to contact your skin, eyes, clothing or paint finish.
D.
If any electrolyte gets into your eyes, flush your eyes with clean water for at least 15 minutes and get immediate
medical attention. If possible, continue to apply water with a sponge or cloth until medical attention is received.
If electrolyte gets on your skin, throughly wash the contacted area. If you feel a pain or a burning sensation, get medical
attention immediately.
E.
Always read the following instructions carefully when handing a battery.
F.
Hydrogen, which is a highly combustible gas, is always presents in battery cells and may explode if ignited.
G.
An improperly disposed battery can be harmful to the environment and human health.
Always confirm local regurations for battery disposal.
Handling And Storage The Battery
Battery Itself • Batteries should be stored in cool, dry (27 degrees Celsius) places and out of
direct sunlight.
• MF batteries are tightly sealed to prevent acid leakage.
However, tilting the battery to an angle of 45 degrees can cause acid to leak
through the vents on the sides. Therefore, batteries should always be stored in
their upright positions. Prevent placing any aqueous or solid (i.e. conductors)
bodies on top of the battery.
• It is extremely dangerous to use tools, such as hammers, on the battery terminals
when connecting cables to the mounted battery.
Battery on Vehicle • When storing the vehicle for long periods of time, make sure to remove the
memory fuse at junction box to prevent natural discharging.
• Also, run the engine for battery charging within 1 month if the memory fuse
wasn''t removed from the start of vehicle storing.
If the memory fuse was removed, run the engine for battery charging within 3
months from the start of vehicle storing.
After reconnecting or recharging a discharged battery, the ESC OFF indicator may illuminate.
In this case, turn the handle half way to the left and right whilst the ignition switch is in the ON position.
Then, restart the engine after the ignition is OFF.
The ESC OFF indicator may turn OFF.
If the ESC OFF indicator does not turn OFF, have the system checked refering to DTC. (Refer to the BR group.)

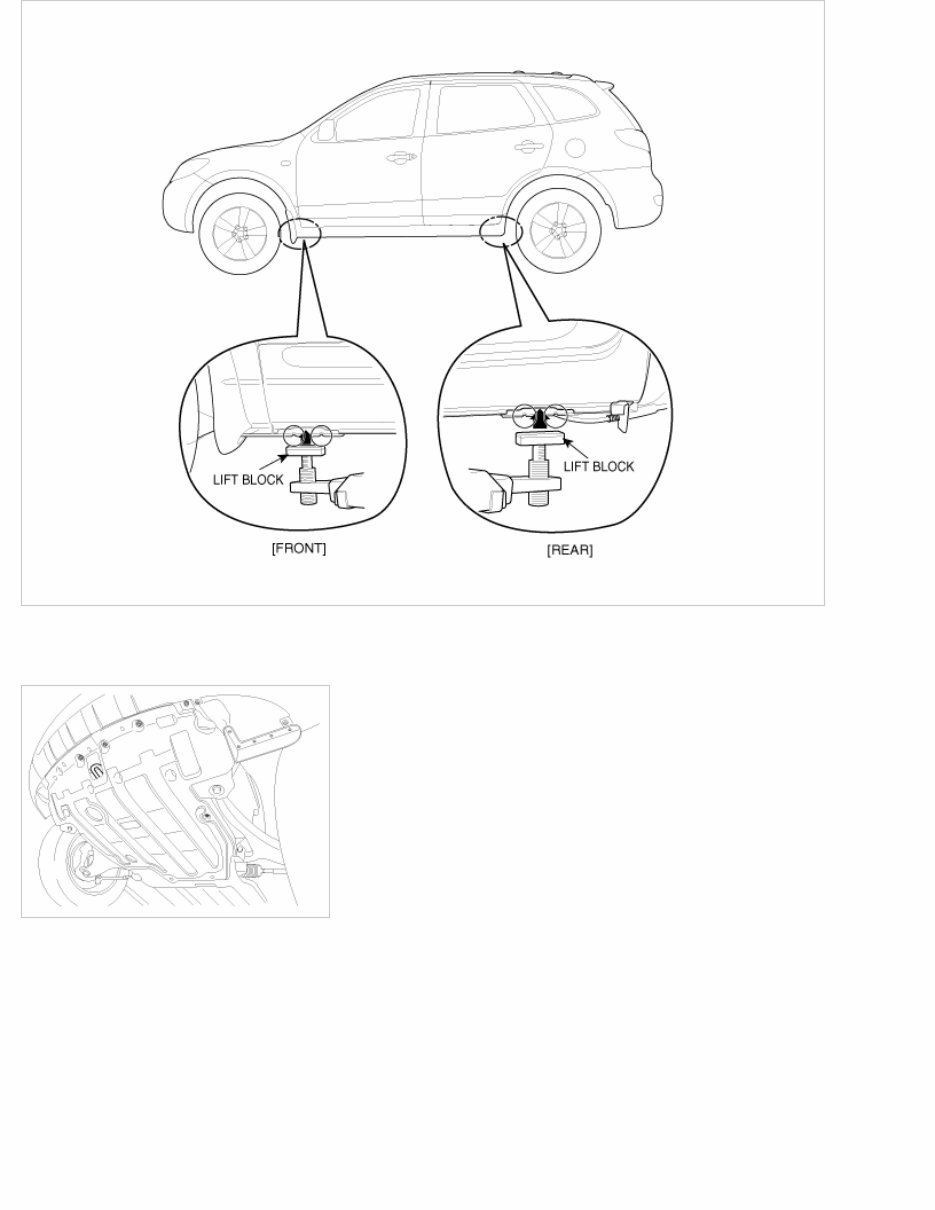

Lift And Support Points
When heavy rear components such as suspension, fuel tank, spare tire, tailgate and trunk lid are to be removed,
place additional weight in the luggage area before hoisting. When substatial weight is removed from the rear of the
vehicle, the center of gravity may change and can cause the vehicle to tip forward on the hoist.
• Since each tire/wheel assembly weights approximately 30lbs (14kg), placing the front wheels in the luggage area
can assist with the weight distribution.
• Use the same support points to support the vehicle on safety stands.
1. Place the lift blocks under the support points as shown in the illustration.
2. Raise the hoist a few inches (centimeters) and rock the vehicle to be sure it is firmly supported.
3. Raise the hoist to full height to inspect the lift points for secure support.
Towing
If the vehicle needs to be towed, call a professional towing service. Never tow vehicle with just a rope or chain. It is very
dangerous.
Emergency Towing
There are three popular methods of towing a vehicle :
– The operator loads the vehicle on the back of truck. This is best way of transporting the vehicle.
– The tow truck uses two pivoting arms that go under the tires of the driving axle and lift them off the ground. The other
two wheels remain on the ground.
– The tow truck uses metal cables with hooks on the ends. These hooks go around parts of the frame or suspension, and
the cables lift that end of the vehicle off the ground. The vehicle''s suspension and body can be seriously damaged if
this method of towing is attempted.
If the vehicle cannot be transported by flat-bed, should be towed with the wheels of the drivig axle off the ground and do
the following :
Manual Transaxle
• Release the parking brake.
• Shift the Transaxle to neutral
Automatic Transaxle
• Release the parking brake.
• Start the engine.
• Shift to [D] position, then [N] position.
• Turn off the engine.
• The vehicle equipped with full-time 4WD should be only transported on a flat-bed.
• The CVT vehicles should be only transported on a flat-bed or towed by wheel lift towing which the wheels of
the driving axle are lifted off the ground.
• Improper towing preparation will damage the transaxle. Follow the procedure above exactly. If you cannot shift
the transaxle or start the engine(automatic transaxle), your vehicle must be transported on a flatbed.
• It is the best to tow vehicle no farther than 30km (19miles), and keep the speed below 50km/h (30mph).
(For the CVT and full-time 4WD (CVT/AT) vehicles, limit the towing distance and speed to 1.5km (1 mile) and
15km/h (10 mph).)
• Trying to lift or tow your vehicle by the bumpers will cause serious damage to the vehicle. The bumpers are not
designed to support the vehicle''s weight.

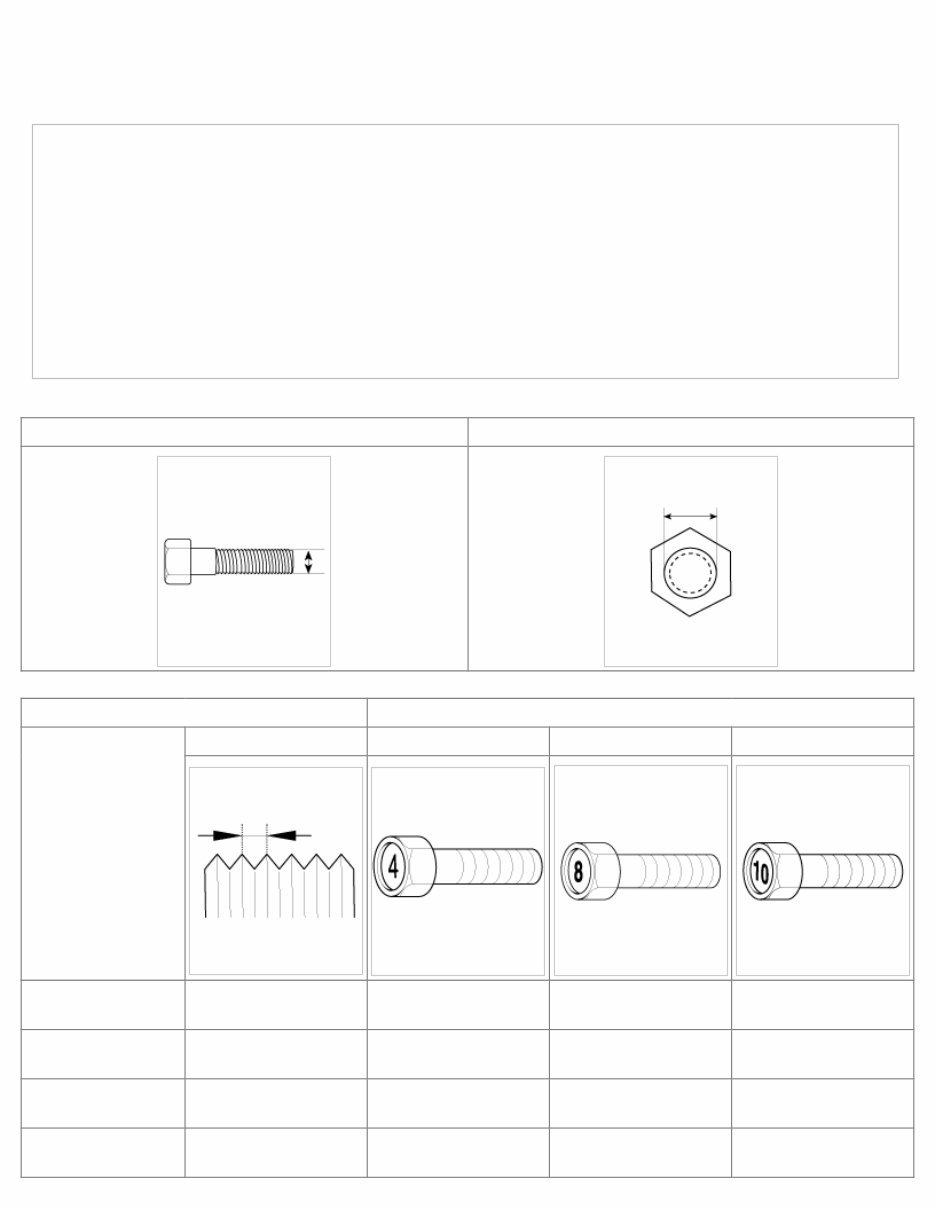

Tightening Torque Table Of Standard Parts
BOLT (Nominal diameter) NUT (Nominal diameter)
BOLT/NUT Normal screw Torque Nm (kg.m, Ib-ft)
Nominal diameter.
(mm)
Pitch [mm (in.) ] 4T 8T 10T
M5 0.8 (0.031)
2.0 ~ 3.0 (0.2 ~ 0.3, 1.4
~ 2.2)
4.9 ~ 6.9 (0.5 ~ 0.7, 3.6
~ 5.1)
7.8 ~ 10.8 (0.8 ~ 1.1,
5.8 ~ 8.0)
M6 1 (0.039)
2.9 ~ 4.9 (0.3 ~ 0.5, 2.2
~ 3.6)
8.8 ~ 12.7 (0.9 ~ 1.3,
6.5 ~ 9.4)
13.7 ~ 18.6 (1.4 ~ 1.9,
10.1 ~ 13.7)
M8 1.25 (0.049)
8.8 ~ 11.8 (0.9 ~ 1.2,
6.5 ~ 8.7)
22.6 ~ 30.4 (2.3 ~ 3.1,
16.6 ~ 22.4)
33.3 ~ 44.1 (3.4 ~ 4.5,
24.6 ~ 32.5)
M10 1.5 (0.059)
16.7 ~ 22.6 (1.7 ~ 2.3,
12.3 ~ 16.6)
45.1 ~ 60.8 (4.6 ~ 6.2,
33.3 ~ 44.8)
65.7 ~ 88.3 (6.7 ~ 9.0,
48.5 ~ 65.1)
M12 1.75 (0.068)
29.4 ~ 39.2 (3.0 ~ 4.0,
21.7 ~ 28.9)
78.5 ~ 105.9 (8.0 ~
10.8, 57.9 ~ 78.1)
114.7 ~ 154.9 (11.7 ~
15.8, 84.6 ~ 114.3)
M14 2 (0.078)
47.1 ~ 63.7 (4.8 ~ 6.5,
34.7 ~ 47.0)
125.5 ~ 169.7 (12.8 ~
17.3, 92.6 ~ 125.1)
183.4 ~ 249.1 (18.7 ~
25.4, 135.3 ~ 183.7)
M16 2 (0.078)
73.5 ~ 100.0 (7.5 ~
10.2, 54.2 ~ 73.8)
197.1 ~ 266.7 (20.1 ~
27.2, 145.4 ~ 196.7)
288.3 ~ 390.3 (29.4 ~
39.8, 212.7 ~ 287.9)
M20 2.5 (0.098)
144.2 ~ 195.2 (14.7 ~
19.9, 106.3 ~ 143.9)
396.2 ~ 535.4 (40.4 ~
54.6, 292.2 ~ 394.9)
565.8 ~ 764.9 (57.7 ~
78.0, 417.3 ~ 564.2)
M24 3 (0.118)
249.1 ~ 337.3 (25.4 ~
34.4, 183.7 ~ 248.8)
687.4 ~ 929.7 (70.1 ~
94.8, 507.0 ~ 685.7)
975.8 ~ 1320.0 (99.5 ~
134.6, 719.7 ~ 973.6)
M30 3.5 (0.137)
499.2 ~ 674.7 (50.9 ~
68.8, 368.2 ~ 497.6)
1372.9 ~ 1858.4 (140.0
~ 189.5, 1012.6 ~
1370.7)
1956.4 ~ 2647.8 (199.5
~ 270.0, 1443.0 ~
1952.9)

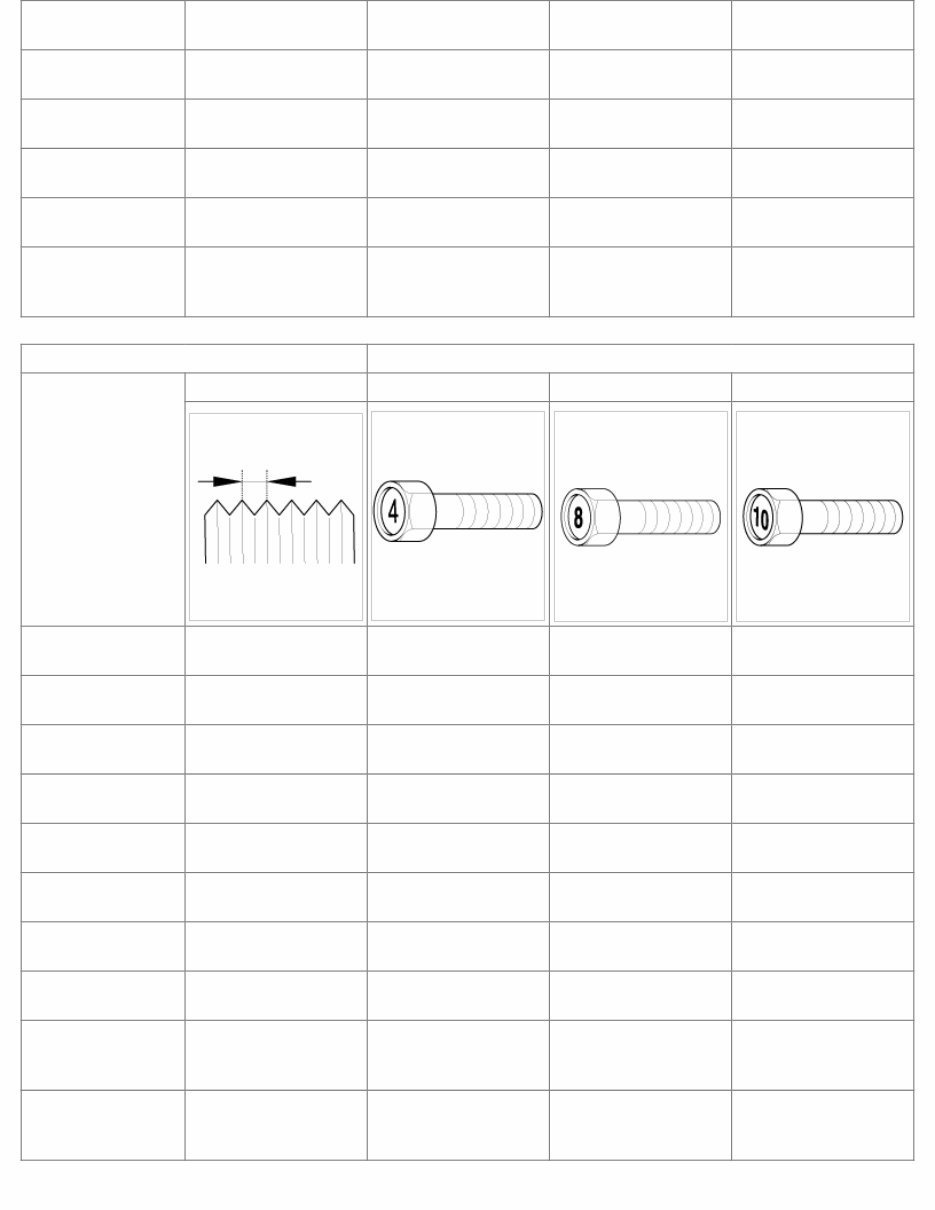

BOLT/NUT Thin screw Torque Nm (kg.m, Ib-ft)
Nominal diameter.
(mm)
Pitch [mm (in.) ] 4T 8T 10T
M5 0.5 (0.019)
2.0 ~ 3.0 (0.2 ~ 0.3, 1.4
~ 2.2)
5.9 ~ 8.8 (0.6 ~ 0.9, 4.3
~ 6.5)
8.8 ~ 12.7 (0.9 ~ 1.3,
6.5 ~ 9.4)
M6 0.75 (0.029)
3.9 ~ 4.9 (0.4 ~ 0.5, 2.9
~ 3.6)
9.8 ~ 13.7 (1.0 ~ 1.4,
7.2 ~ 10.1)
14.7 ~ 20.6 (1.5 ~ 2.1,
10.8 ~ 15.2)
M8 1 (0.039)
8.8 ~ 11.8 (0.9 ~ 1.2,
6.5 ~ 8.7)
24.5 ~ 32.4 (2.5 ~ 3.3,
18.1 ~ 23.9)
35.3 ~ 48.1 (3.6 ~ 4.9,
26.0 ~ 35.4)
M10 1.25 (0.049)
17.7 ~ 23.5 (1.8 ~ 2.4,
13.0 ~ 17.4)
47.1 ~ 63.7 (4.8 ~ 6.5,
34.7 ~ 47.0)
69.6 ~ 94.1 (7.1 ~ 9.6,
51.4 ~ 69.4)
M12 1.25 (0.049)
32.4 ~ 44.1 (3.3 ~ 4.5,
23.9 ~ 32.5)
86.3 ~ 117.7 (8.8 ~
12.0, 63.7 ~ 86.8)
127.5 ~ 172.6 (13.0 ~
17.6, 94.0 ~ 127.3)
M14 1.5 (0.059)
51.0 ~ 69.6 (5.2 ~ 7.1,
37.6 ~ 51.4)
136.3 ~ 185.3 (13.9 ~
18.9, 100.5 ~ 136.7)
201.0 ~ 271.6 (20.5 ~
27.7, 148.3 ~ 200.4)
M16 1.5 (0.059)
79.4 ~ 107.9 (8.1 ~
11.0, 58.6 ~ 79.6)
211.8 ~ 286.4 (21.6 ~
29.2, 156.2 ~ 211.2)
311.8 ~ 421.7 (31.8 ~
43.0, 230.0 ~ 311.0)
M20 1.5 (0.059)
163.8 ~ 221.6 (16.7 ~
22.6, 120.8 ~ 163.5)
448.2 ~ 607.0 (45.7 ~
61.9, 330.5 ~ 447.7)
639.4 ~ 864.9 (65.2 ~
88.2, 471.6 ~ 638.0)
M24 2 (0.078)
276.5 ~ 373.6 (28.2 ~
38.1, 204.0 ~ 275.6)
759.0 ~ 1026.8 (77.4 ~
104.7, 559.8 ~ 757.3)
1080.7 ~ 1462.2 (110.2
~ 149.1, 797.1 ~
1078.4)
M30 2 (0.078)
562.9 ~ 762.0 (57.4 ~
77.7, 415.2 ~ 562.0)
1553.4 ~ 2102.5 (158.4
~ 214.4, 1145.7 ~
1550.8)
2210.4 ~ 2991.0 (225.4
~ 305.0, 1630.3 ~
2206.1)
You're Reading a Preview
What's Included?
Lifetime Access
Fast Download Speeds
Online & Offline Access
Access PDF Contents & Bookmarks
Full Search Facility
Print one or all pages of your manual
$31.99
2010 Hyundai SANTAFE (CM) G 3.5 DOHC Service & Repair Manual
Viewed 15 Times Today
What's Included?
Lifetime Access
Fast Download Speeds
Online & Offline Access
Access PDF Contents & Bookmarks
Full Search Facility
Print one or all pages of your manual
$31.99
Secure transaction
What's Included?
Lifetime Access
Fast Download Speeds
Online & Offline Access
Access PDF Contents & Bookmarks
Full Search Facility
Print one or all pages of your manual
Description
The 2010 Hyundai Santafe (CM) G 3.5 DOHC Service & Repair Manual is designed to provide comprehensive technical guidance for both professional mechanics and DIY enthusiasts. This manual offers in-depth information on the maintenance, repair, and troubleshooting of your vehicle.
- Technical data and specifications for the engine, transmission, brakes, suspension, and electrical systems
- Step-by-step instructions for routine maintenance, such as oil changes, tire rotations, and belt replacements
- Troubleshooting guides for common problems and error codes
- Repair procedures for engine, transmission, and other major components
- Fully illustrated with diagrams and exploded views to aid in your understanding and repair
This manual is an ideal resource for anyone looking to learn more about their Hyundai Santafe or to tackle complex repairs. Whether you're a seasoned mechanic or a DIY enthusiast, this manual will provide the information you need to keep your vehicle running smoothly and efficiently.
Note: This product description does not mention the actual format of the manual (PDF or .OVA) but provides a general overview of the content and its intended audience.
