2008 Hyundai SANTAFE (CM) G 2.7 DOHC Service & Repair Manual

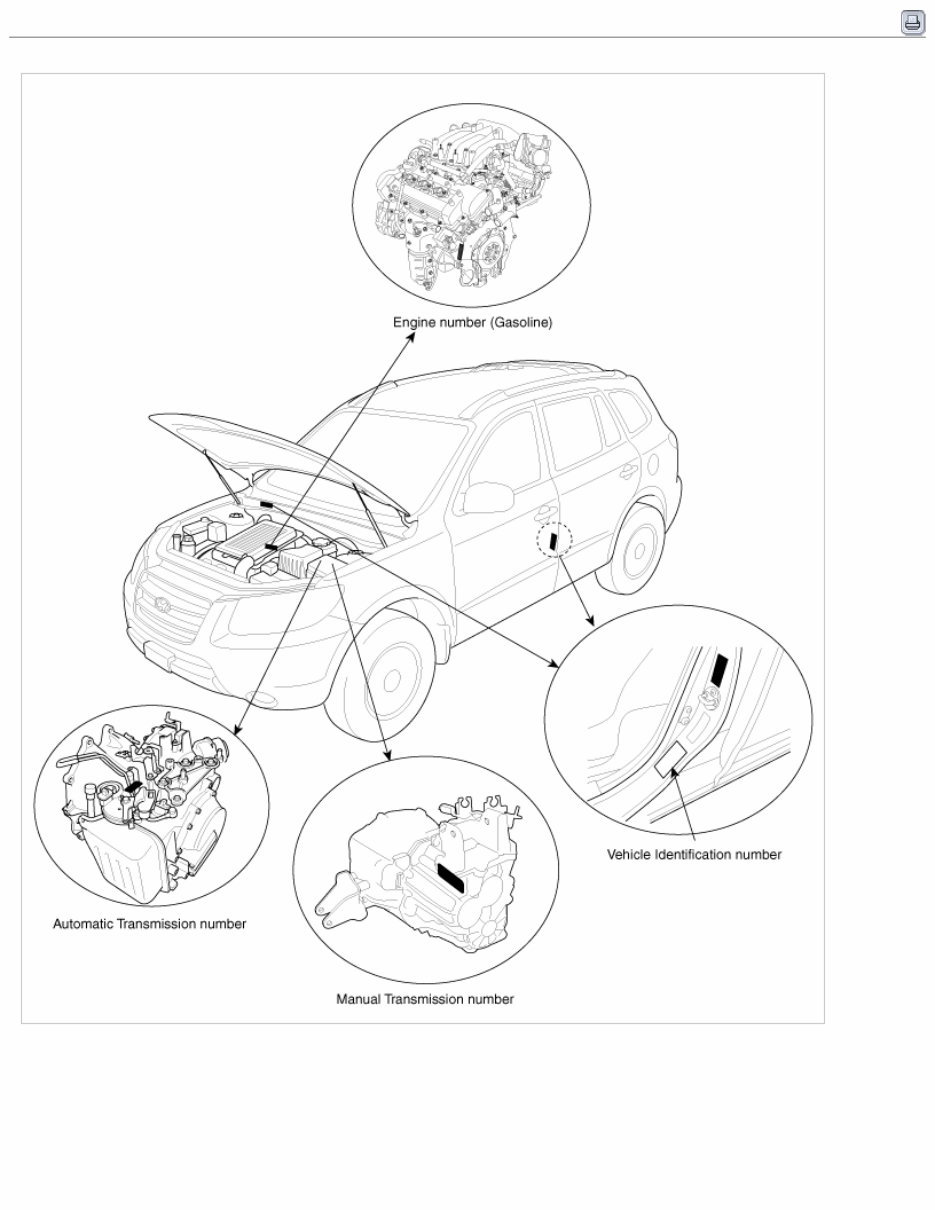

SANTAFE(CM) > 2008 > G 2.7 DOHC > General Information - Identification Number Locations Identification Number Description Vehicle Identification Number

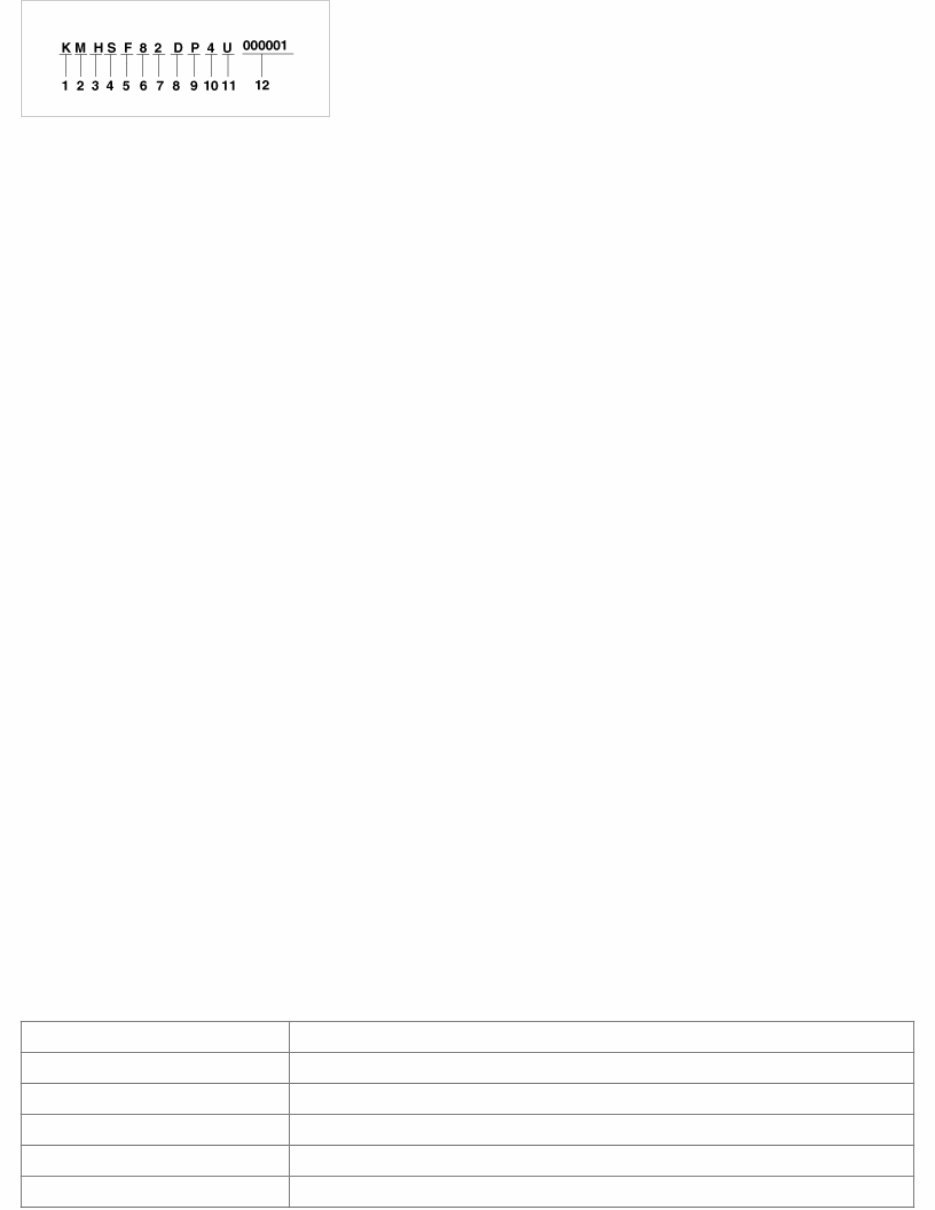

1. Geographic zone - K : Korea 2. Manufacturer - M : Hyundai motor company 3. Vehicle type - H : Passenger 4. Vehicle line - S : SANTAFE 5. Model ＆ Series - F : STANDAD (L) - G : DELUXE (GL) - H : SUPER DELUXE (GLS) - J : GRAND SALON (GDS) - K : SUPPER GRAND SALON (HGS) 6. Body type - 8 : WAGON 7. Restraint system - 0 : Both side - None - 1 : Both side - Active belt - 2 : Both side - Passive belt 8. Engine type - D : Gasoline 2.7 DOHC - E : Gasoline 3.3 DOHC 9. Check digit - Check digit : 0 ~ 9, x - P : Left hand driver - R : Right hand driver 10. Production year - 5 : 2005, 6 : 2006, 7 : 2007 11. Plant of production - U : Ulsan (korea) - H : Alabama 12. Vehicle production sequence number - 000001 ~ 999999 Paint Code Code Color NW Noble White EB Ebony Black LS Smart Silver 3M Vanilla White 5Q Blue Onyx

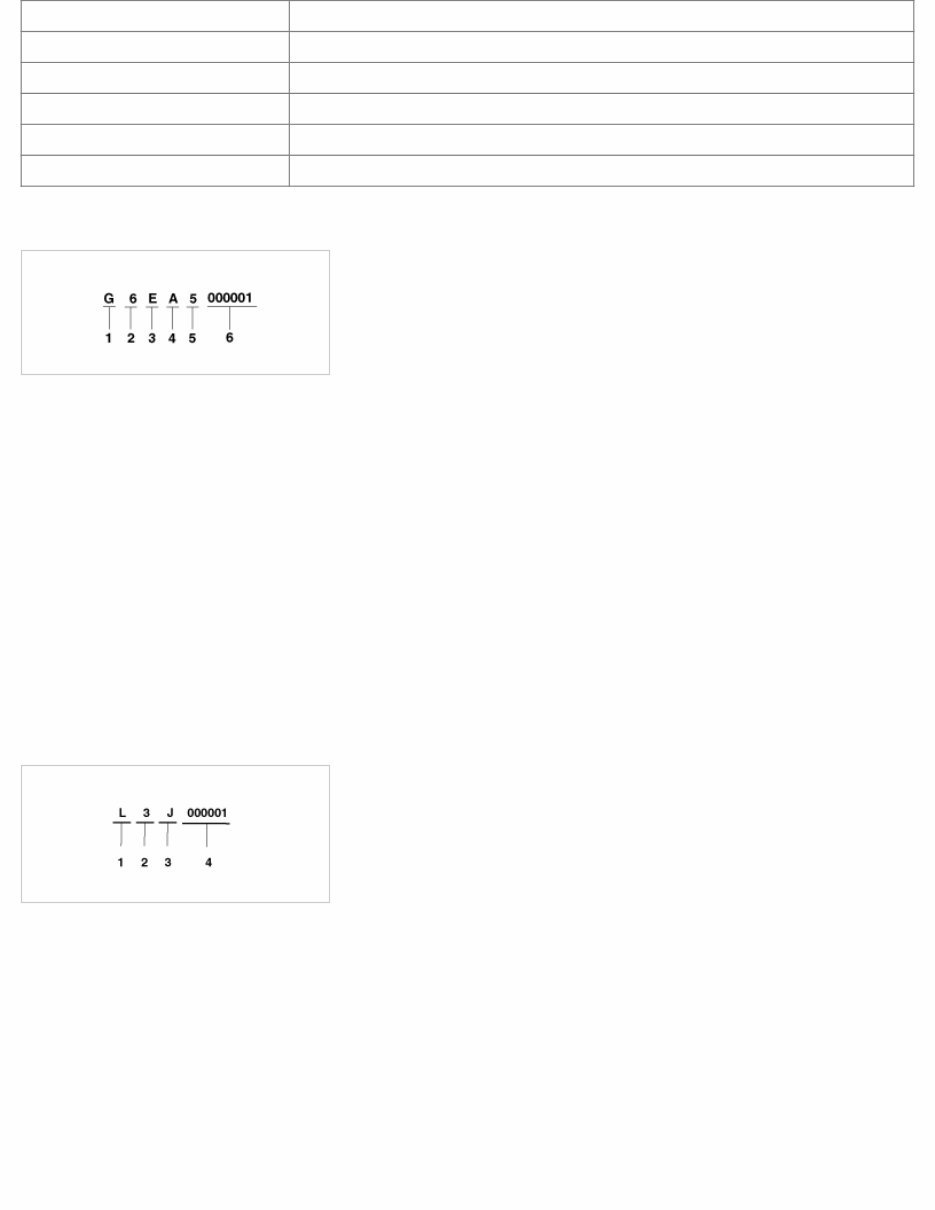

5J Superior Red 6F Blue Titanium 6M Platinum Silver 2Z Black Pearl 2J Gunmental 5T Satin Beige Engine Identification Number 1. Engine fuel – G : Gasoline – D : Diesel 2. Engine range – 4 : 4 cycle 4 cylinder – 6 : 4 cycle 6 cylinder 3~4 : Engine development order and capacity – EA : μ - engine, 2656cc (Gasoline) – DB : λ - engine, 3342cc (Gasoline) 5. Production year –5 : 2005, 6 : 2006, 7 : 2007 6. Engine production sequence number – 000001 ~ 999999 Transmission Identification Number Manual 1) Model - S : M5GF2 2) Production year - 5 : 2005, 6 : 2006, 7 : 2007 3) Gear ratio - D : 5.071 / 3.737 4) Transaxle production sequence number - 000001 ~ 999999 Automatic

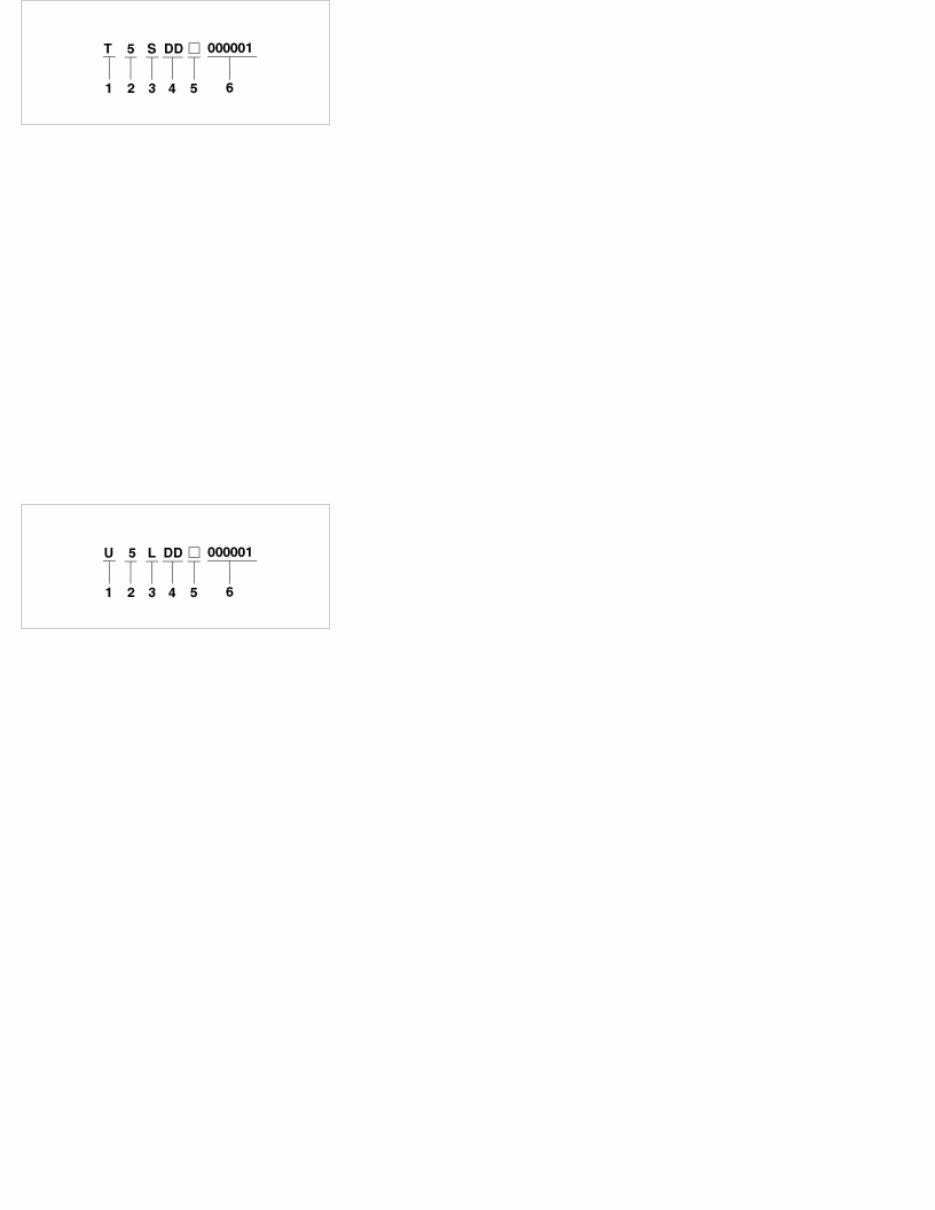

1. Model - T : F4A51-3 2. Production year - 5 : 2005, 6 : 2006, 7 : 2007 3. Gear ratio - S : 4.520 4. Detailed chassification - DD : 4WD - CD : 2WD - ED : 2WD + LSD 5. Spare 6. Transaxle production sequence number - 000001 ~ 999999 Automatic 1. Model – U : A5HF1 2. Production year –5 : 2005, 6 : 2006, 7 : 2007 3. Gear ratio – L : 3.684 4. Detailed chassification – DD : 4WD – CD : 2WD – ED : 2WD + LSD 5. Spare 6. Transaxle production sequence number – 000001 ~ 999999 Warning / Caution Label Locations

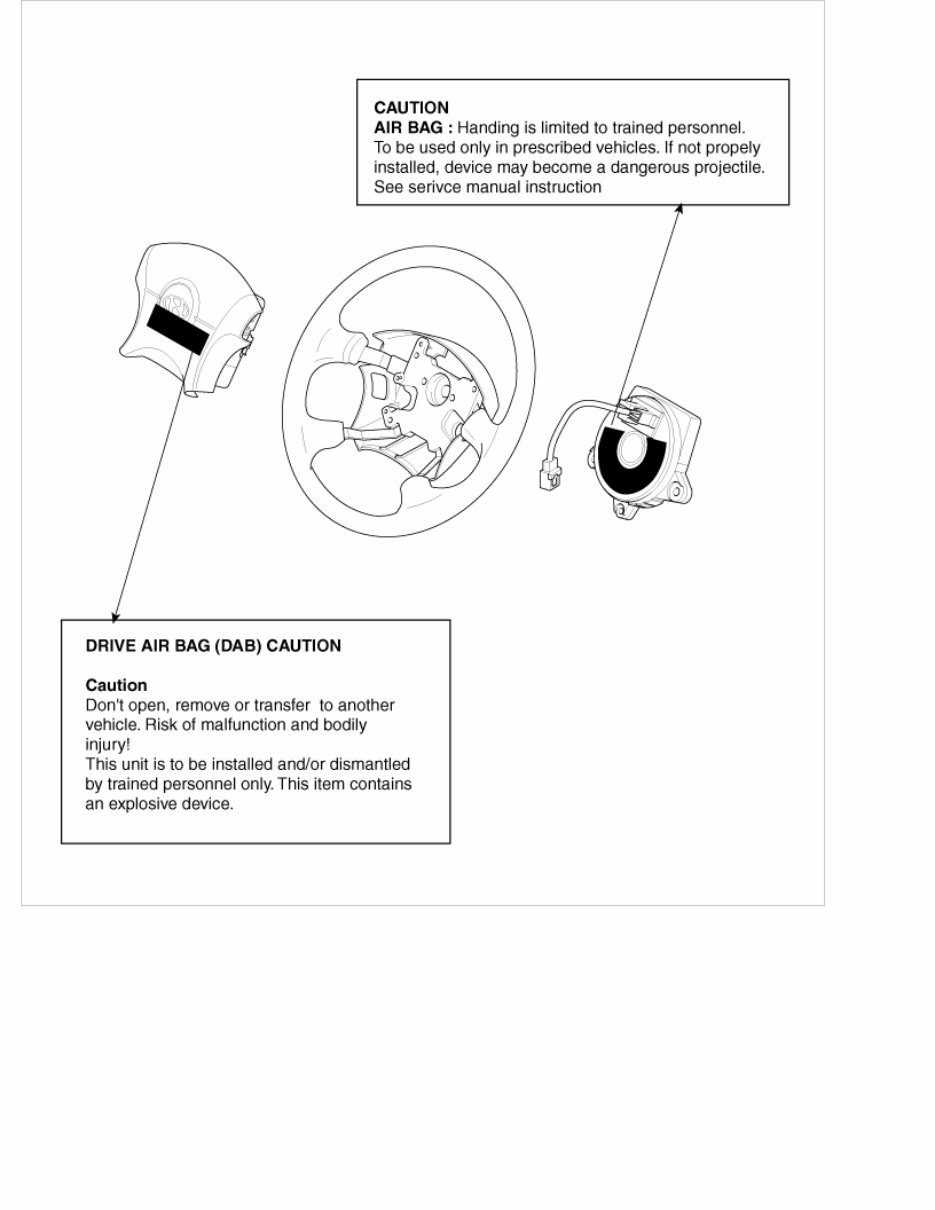

Air Bag Warning / Caution Label

Air Bag Waring / Caution Label (Cont''d)

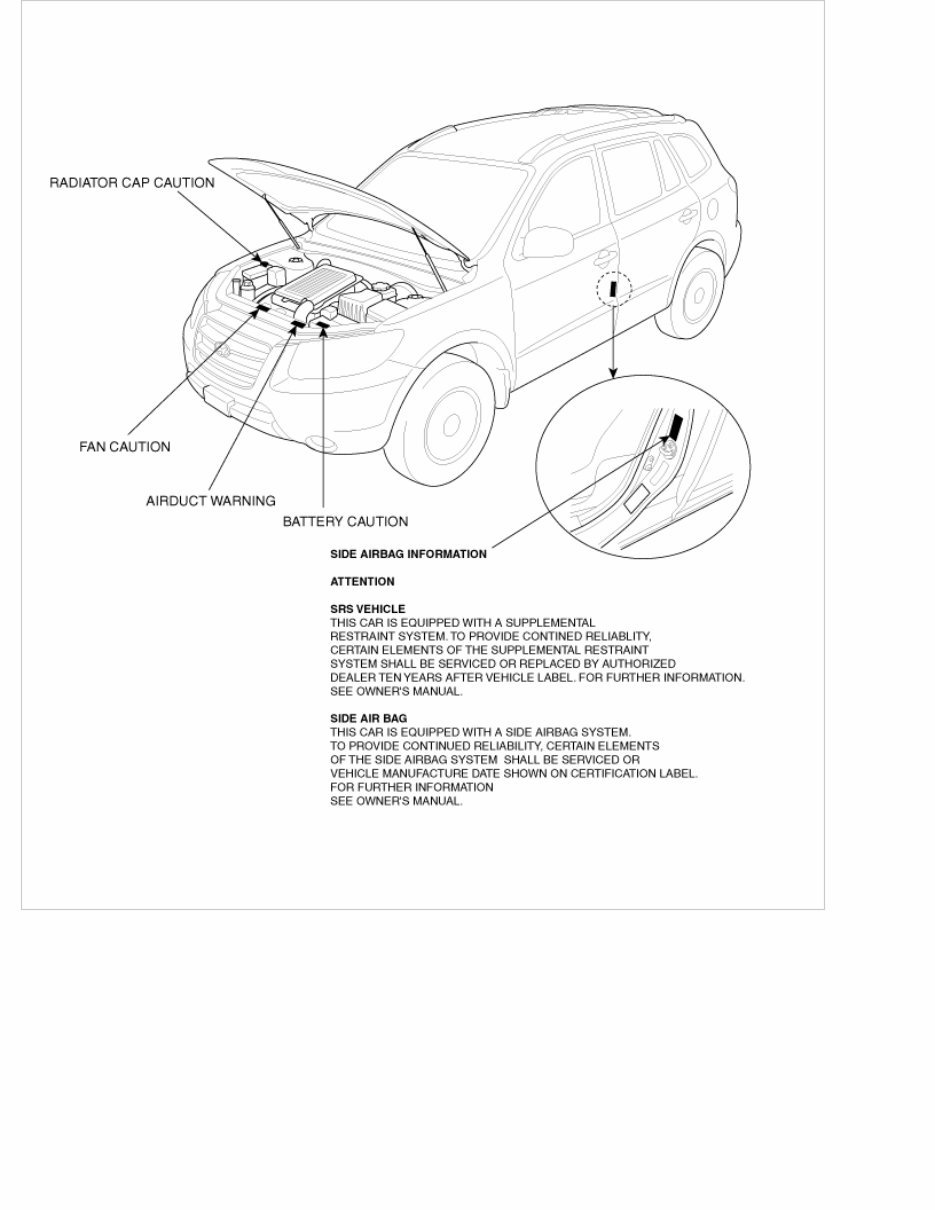

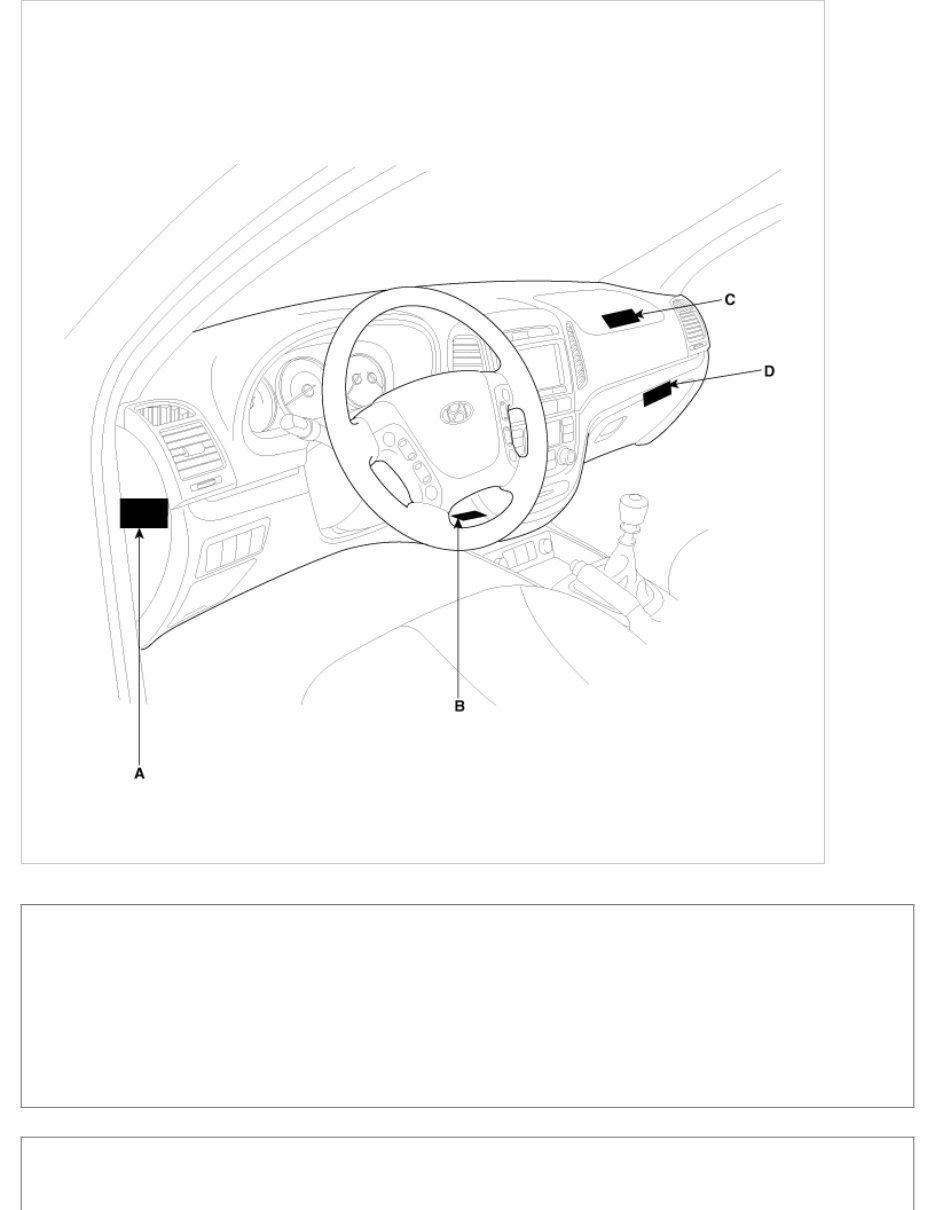

Warning / Caution Label (Cont''d) A : WARNING See Owner''s Manual. This car is equipped a side airbag for each front seat. • Do not use any accessory seat covers. • Use of other seat covers could reduce the effect of the system. • Do not install any accessories on the side or near the side airbag. • Do not use excessive force on the side of the seat. • For further information, see the owner''s manual. B : CAUTION AIRBAG ESPE UNIT

Detach connector before unmounting. Assemble strictly according to manual instructions. C : Passenger Module Caution CAUTION Don''t open, remove or transfer to another vehicle. Risk of malfunction and bodily injury! This unit is to be installed and/or dismantled by trained personnel only. This item contains an explosive device. D : Supplemental Restraint System (Airbag) Information • The airbag is a Supplement Restraint System (SRS). You must always wear the seat belts. • The airbag system condition is normal when the "SRS" lamp in the cluster illuminates for approximately 6 seconds after the ignition key is turned on and then goes off. • If any of the following condition occur, the system must be serviced. • "SRS" lamp does not light up when the key is turned on. • "SRS" lamp stays lit or flashes continuously. • The airbag has inflated. • The airbag system must be inspected by an authorized dealer ten years after the vehicle manufacture date shown on the certification label, located on left front door opening area. WARNING Failure to the above instructions may result in injury to you or other occupants in the vehicle • See the "SRS" section in Owner''s Manual for more information about airbags. Battery Caution Label Describtion

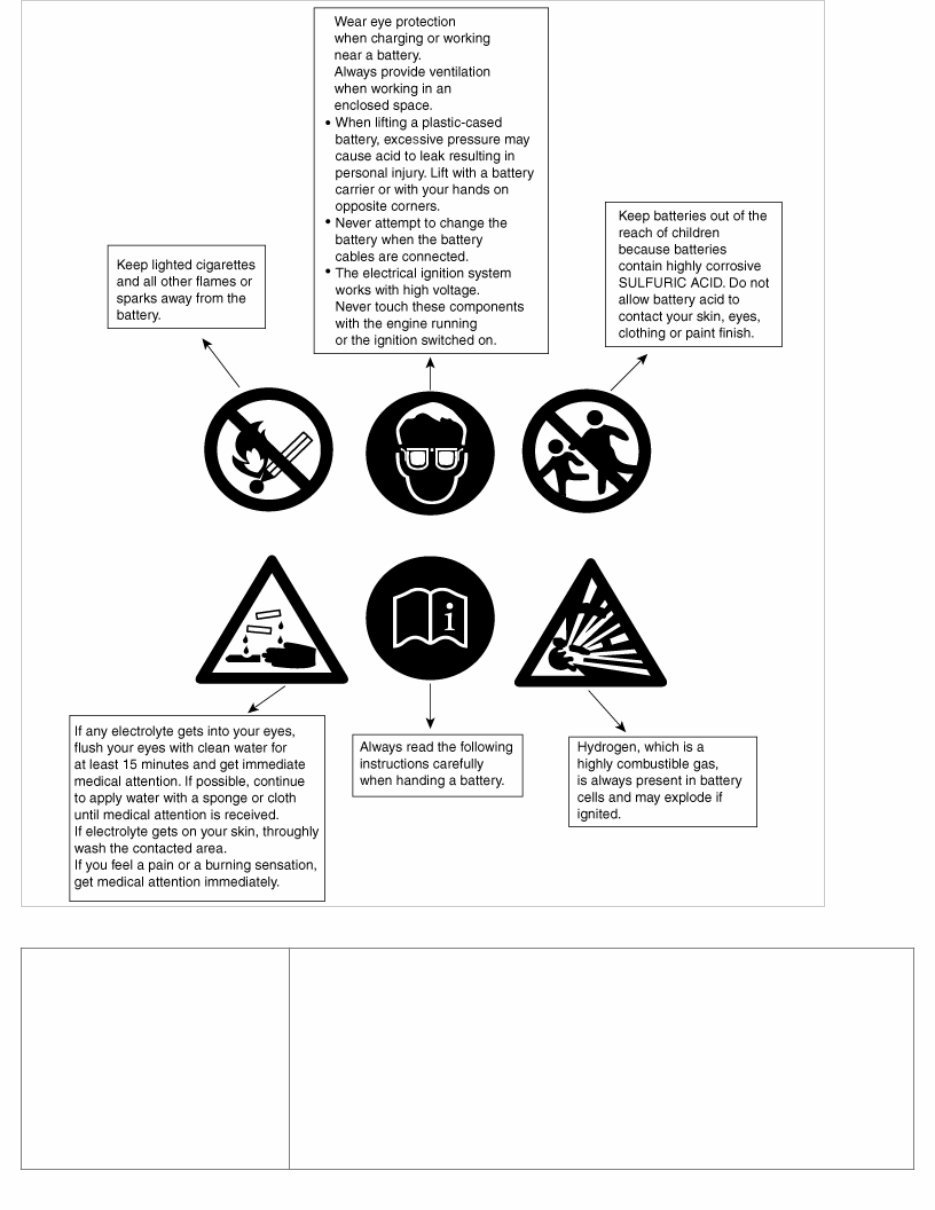

Handling And Storage The Battery Battery Itself • Batteries should be stored in cool, dry (27 degrees Celsius) places and out of direct sunlight. • MF batteries are tightly sealed to prevent acid leakage. However, tilting the battery to an angle of 45 degrees can cause acid to leak through the vents on the sides. Therefore, batteries should always be stored in their upright positions. Prevent placing any aqueous or solid (i.e. conductors) bodies on top of the battery. • It is extremely dangerous to use tools, such as hammers, on the battery terminals when connecting cables to the mounted battery.

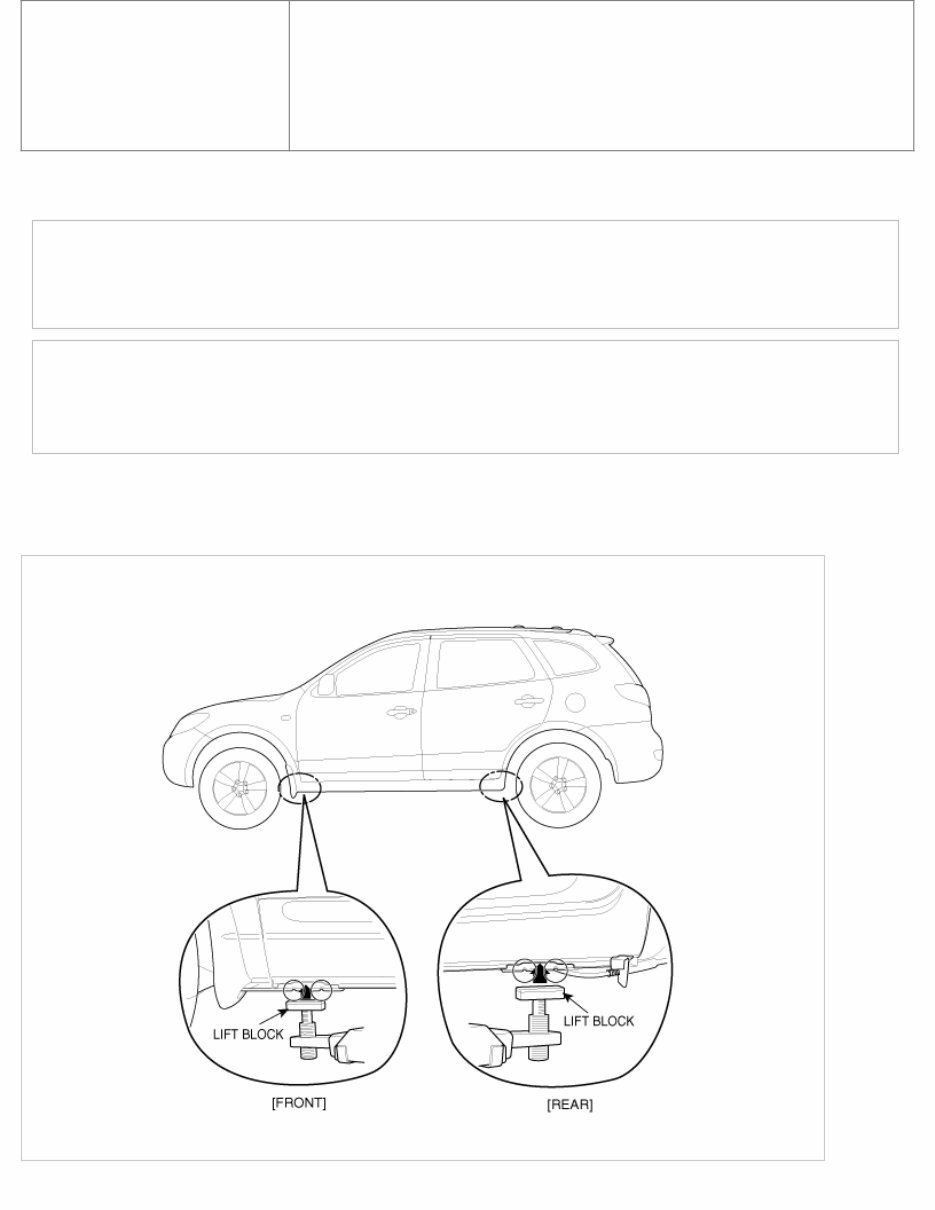

Battery on Vehicle • When storing the vehicle for long periods of time, make sure to remove the memory fuse at junction box to prevent natural discharging. • Also, run the engine for battery charging within 1 month if the memory fuse wasn''t removed from the start of vehicle storing. If the memory fuse was removed, run the engine for battery charging within 3 months from the start of vehicle storing. Lift And Support Points When heavy rear components such as suspension, fuel tank, spare tire, tailgate and trunk lid are to be removed, place additional weight in the luggage area before hoisting. When substatial weight is removed from the rear of the vehicle, the center of gravity may change and can cause the vehicle to tip forward on the hoist. • Since each tire/wheel assembly weights approximately 30lbs (14kg), placing the front wheels in the luggage area can assist with the weight distribution. • Use the same support points to support the vehicle on safety stands. 1. Place the lift blocks under the support points as shown in the illustration. 2. Raise the hoist a few inches (centimeters) and rock the vehicle to be sure it is firmly supported. 3. Raise the hoist to full height to inspect the lift points for secure support. Towing
