ELANTRA TOURING(FD) > 2009 > G 2.0 MPI > General

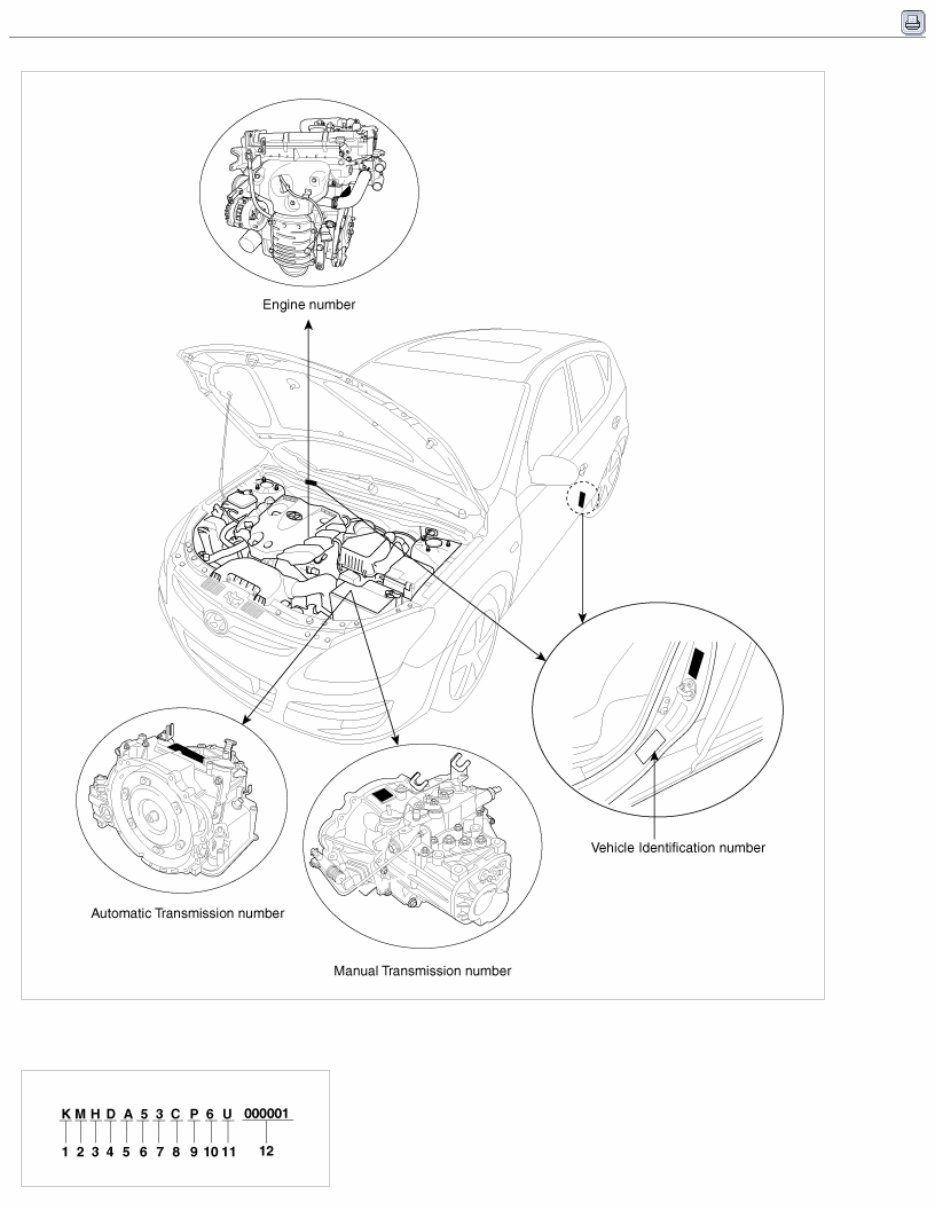

- Identification Number Locations
Identification Number Description
Vehicle Identification Number
1. Geographic zone
- K : Korea
2. Manufacturer
- M : Hyundai motor company
3. Vehicle type
- H : Passenger
4. Vehicle line
- D : FD
5.
Model ＆ Series
- A : STANDAD (L)
- B : DELUXE (GL)
- C : SUPER DELUXE (GLS)
6. Body type
- 4 : Sedan, 4 Door
- 5 : Sedan, 5 Door
- 8 : Wagon
7. Restraint system
- 3 : Drive Side : active belt & airbag,
Passenger side : active belt or passive belt
- 4 : Both Sides : active belt & airbag.
- 5 : Depowered : airbag.
- 6 : Advanced airbag or depowered airbag with suspension
8. Engine type
- E : Gasoline 2.0 DOHC
9. Check digit
- Check digit : 0 ~ 9, x
- P : Left hand driver
- R : Right hand driver
10. Production year
- 7 : 2007, 8 : 2008, 9 : 2009
11. Plant of production
- U : Ulsan (Korea)
12. Vehicle production sequence number
- 000001 ~ 999999
Paint Code
Code Color
7F Crystal White
2R Continental Silver
9A Steel Gray
9D Moonlight blue
JA Shine Red
2X Indigo Blue
9F Stone Black
BV Vivid Blue
KF (FA01) Gold Metalic
ND (FA03) Ember Red
QU (FA07) Champagne Silver
WC (FA06) Mocha Brown

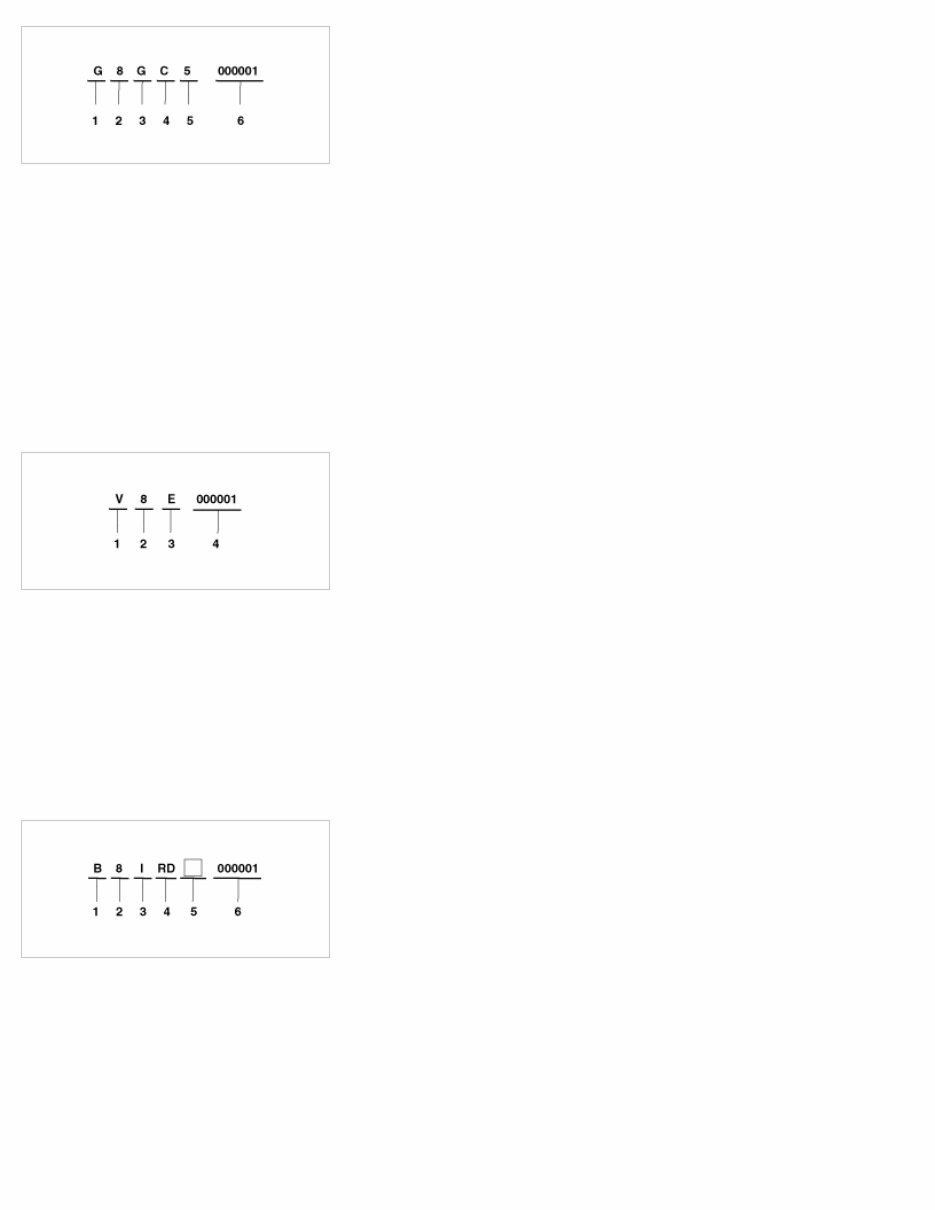

Engine Identification Number
1. Engine fuel
– G : Gasoline
2. Engine range
– 4 : 4 cycle 4 cylinder
3 - 4. Engine development order and capacity
– GC : β engine, 1975cc (Gasoline)
5. Production year
– 6 : 2006, 7 : 2007, 8 : 2008, 9 : 2009
6. Engine production sequence number
– 000001 ~ 999999
Transmission Identification Number
Manual
1. Model
- V : M5CF2
2. Production year
- 7 : 2007, 8 : 2008, 9 : 2009
3. Gear ratio
- E : 4.188
4. Transaxle production sequence number
- 000001 ~ 999999
Automatic
1. Model
- B : A4CF2
2. Production year
- 7 : 2007, 8 : 2008, 9 : 2009
3. Gear ratio
- I = 4.121
4. Detailed chassification
- RU/RD : β - 2.0
5. Spare
6. Transaxle production sequence number
- 000001 ~ 999999

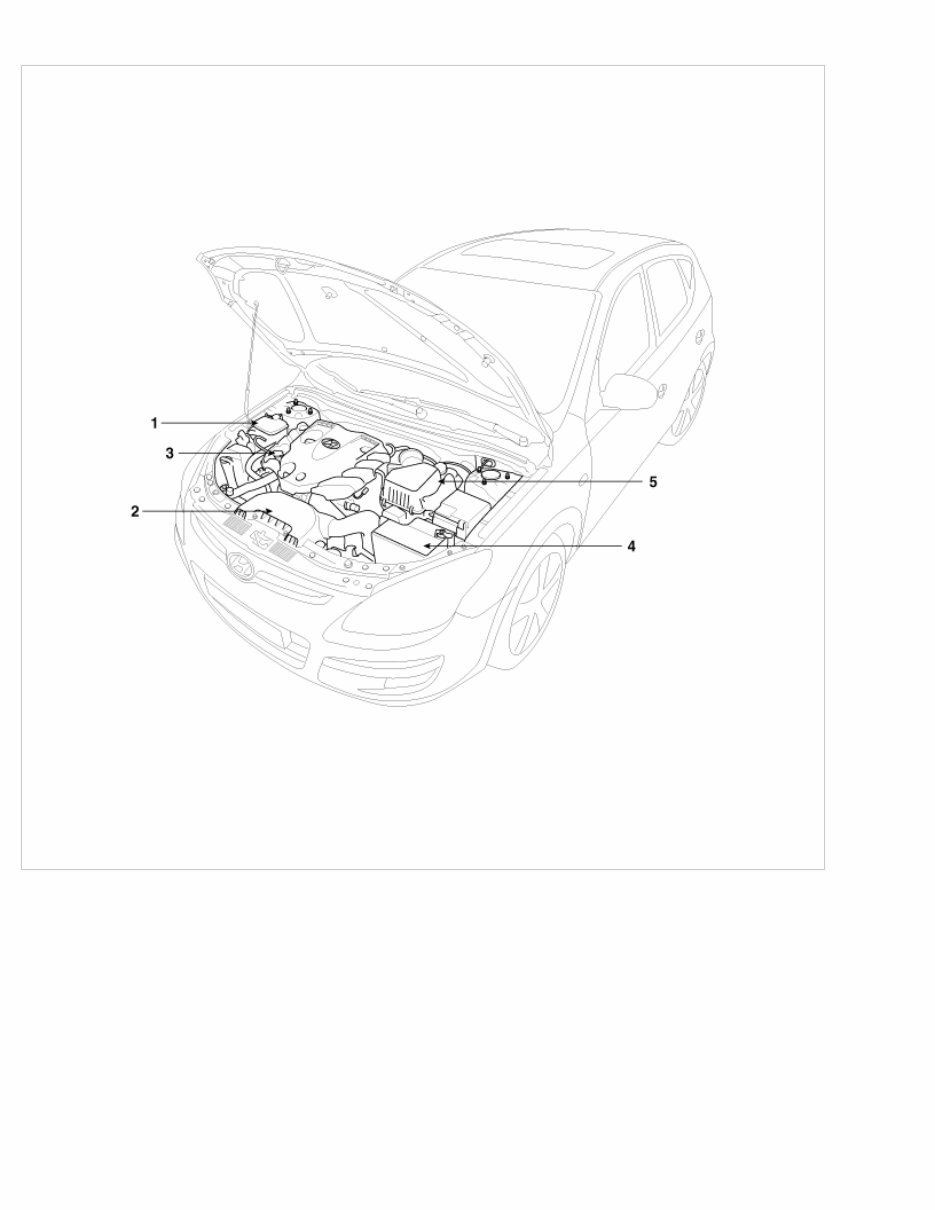

Warning / Caution Label Locations
1. Coolant Level Caution
2. Fan Caution
3. Radiator Cap Caution
4. Battery Caution
5. Air Cleaner Caution

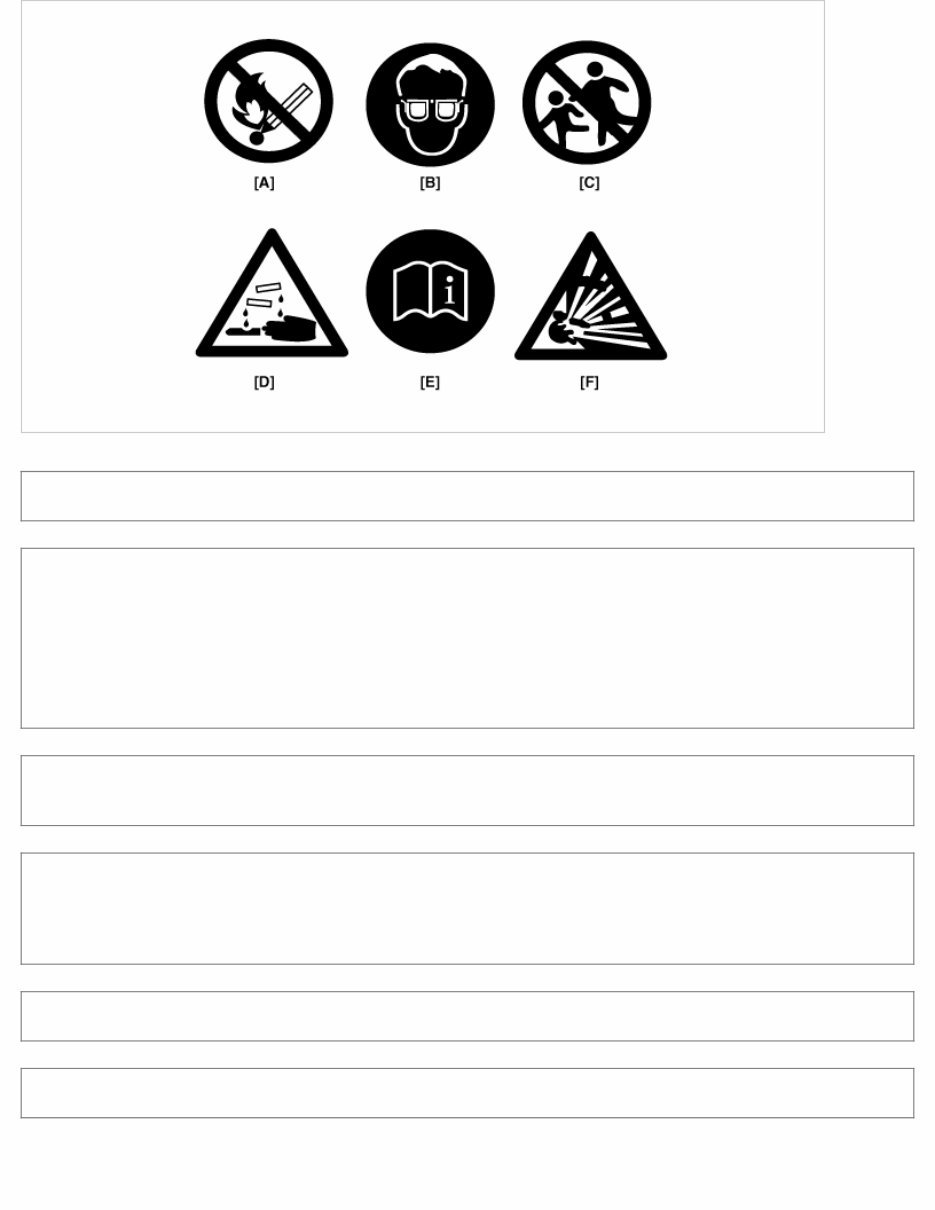

Battery Caution Label Describtion
Warning / Caution Label (Cont''d)
A.
Keep lighted cigarettes and all other flames or sparks away from the battery.
B.
Wear eye protection when charging or working near a battery. Always provide ventilation when working in an enclosed
space.
• When lifting a plastic-cased battery, excesive pressure on acid to leak resulting in personal injury. Lift with a battery
carrier or with your hands on opposite corners.
• Never attempt to change the battery when the battery cables are connected.
• The electrical ignition system works with high voltage.
Never touch these components with the engine running or the ignition switched on.
C.
Keep batteries out of the reach of children because batteries contain highly corrosive SULFURIC ACID. Do not allow
battery acid to contact your skin, eyes, clothing or paint finish.
D.
If any electrolyte gets into your eyes, flush your eyes with clean water for at least 15 minutes and get immediate
medical attention. If possible, continue to apply water with a sponge or cloth until medical attention is received.
If electrolyte gets on your skin, throughly wash the contacted area. If you feel a pain or a burning sensation, get medical
attention immediately.
E.
Always read the following instructions carefully when handing a battery.
F.
Hydrogen, which is a highly combustible gas, is always presents in battery cells and may explode if ignited.
Handling And Storage The Battery
Battery Itself • Batteries should be stored in cool, dry (27 degrees Celsius) places and out of
direct sunlight.
• MF batteries are tightly sealed to prevent acid leakage.
However, tilting the battery to an angle of 45 degrees can cause acid to leak
through the vents on the sides. Therefore, batteries should always be stored in
their upright positions. Prevent placing any aqueous or solid (i.e. conductors)
bodies on top of the battery.
• It is extremely dangerous to use tools, such as hammers, on the battery terminals
when connecting cables to the mounted battery.
Battery on Vehicle • When storing the vehicle for long periods of time, make sure to remove the
memory fuse at junction box to prevent natural discharging.
• Also, run the engine for battery charging within 1 month if the memory fuse
wasn''t removed from the start of vehicle storing.
If the memory fuse was removed, run the engine for battery charging within 3
months from the start of vehicle storing.
After reconnecting or recharging a discharged battery, the ESP OFF indicator may illuminate.
In this case, turn the handle half way to the left and right whilst the ignition switch is in the ON position.
Then, restart the engine after the ignition is OFF.
The ESP OFF indicator may turn OFF.
If the ESP OFF indicator does not turn OFF, have the system checked refering to DTC. (Refer to the BR group.)

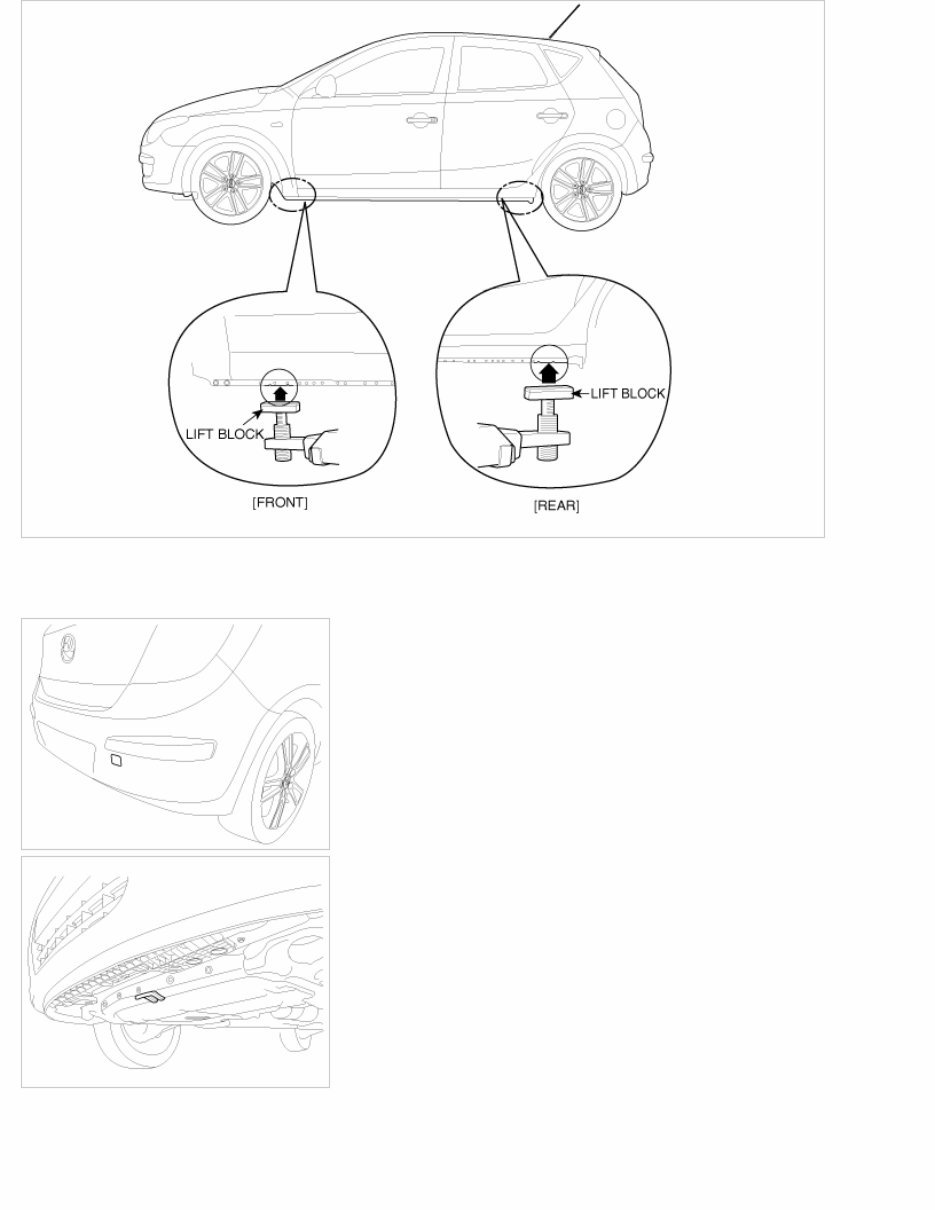

Lift And Support Points
When heavy rear components such as suspension, fuel tank, spare tire, tailgate and trunk lid are to be removed,
place additional weight in the luggage area before hoisting. When substatial weight is removed from the rear of the
vehicle, the center of gravity may change and can cause the vehicle to tip forward on the hoist.
• Since each tire/wheel assembly weights approximately 30lbs (14kg), placing the front wheels in the luggage area
can assist with the weight distribution.
• Use the same support points to support the vehicle on safety stands.
1. Place the lift blocks under the support points as shown in the illustration.
2. Raise the hoist a few inches (centimeters) and rock the vehicle to be sure it is firmly supported.
3. Raise the hoist to full height to inspect the lift points for secure support.
Towing
If the vehicle needs to be towed, call a professional towing service. Never tow vehicle with just a rope or chain. It is very
dangerous.
Emergency Towing
There are three popular methods of towing a vehicle :
- The operator loads the vehicle on the back of truck. This is best way of transporting the vehicle.
- The tow truck uses two pivoting arms that go under the tires (front or rear) and lift them off the ground. The other two
wheels remain on the ground.
- The tow truck uses metal cables with hooks on the ends. These hooks go around parts of the frame or suspension, and
the cables lift that end of the vehicle off the ground. The vehicle''s suspension and body can be seriously damaged if this
method of towing is attempted.
If the vehicle cannot be transported by flat-bed, if should be towed with the front wheels off the ground. If due to
damage, the vehicle must be toward with the front wheels on the ground, do the following :
Manual Transmission
• Release the parking brake.
• Shift the transmission to neutral
Automatic Transmission
• Release the parking brake.
• Start the engine.
• Shift to [D] position, then [N] position.
• Turn off the engine.
• The vehicle equipped with full-time 4WD should be only transported on a flat-bed.
• The CVT vehicles should be only transported on a flat-bed or towed by wheel lift towing which the wheels of
the driving axle are lifted off the ground.
• Improper towing preparation will damage the transaxle. Follow the procedure above exactly. If you cannot
shift the transaxle or start the engine(automatic transaxle), your vehicle must be transported on a flatbed.
• It is the best to tow vehicle no farther than 30km (19miles), and keep the speed below 50km/h (30mph).
(For the CVT and full-time 4WD (CVT/AT) vehicles, limit the towing distance and speed to 1.5km (1 mile)
and 15km/h (10 mph).)
• Trying to lift or tow your vehicle by the bumpers will cause serious damage to the vehicle. The bumpers are
not designed to support the vehicle''s weight.

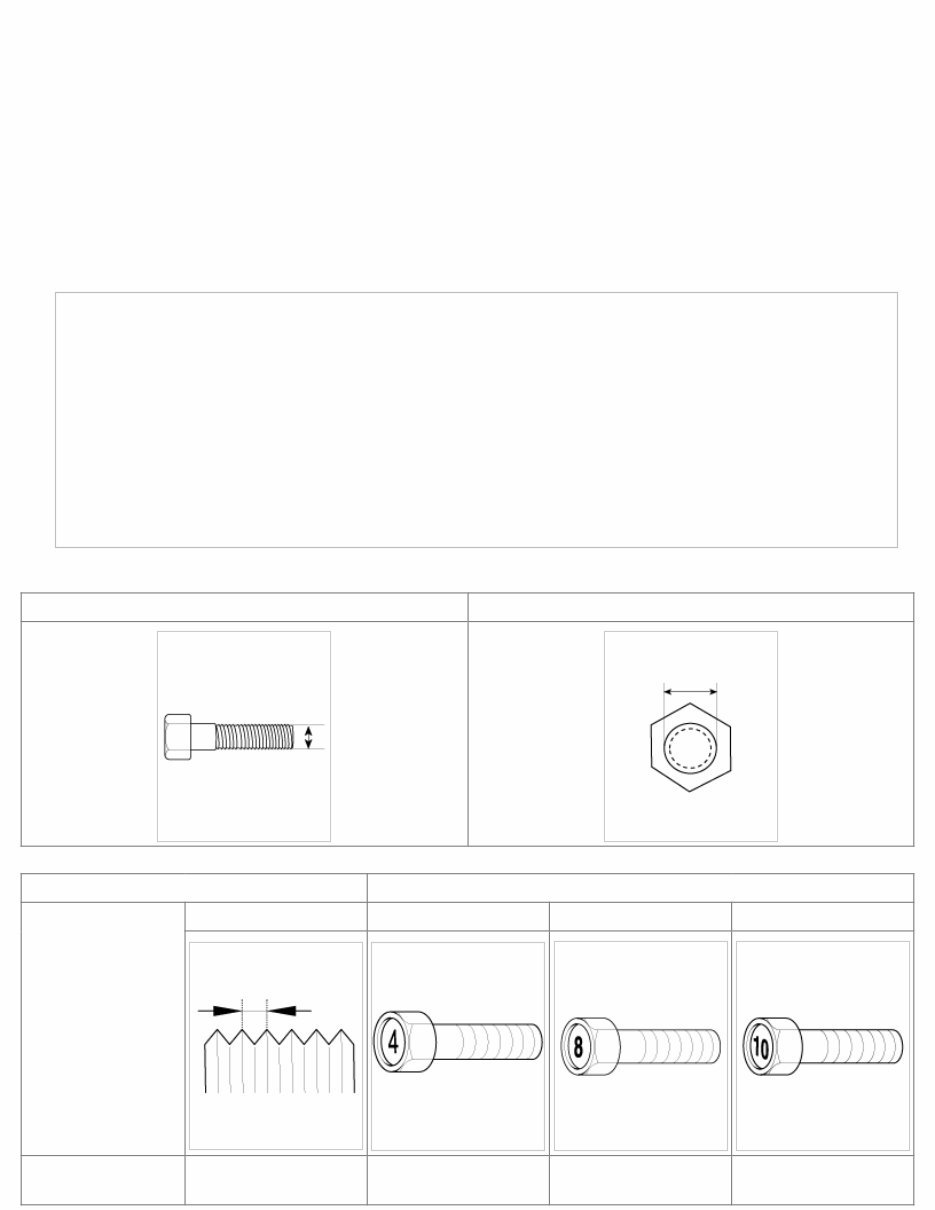

Tightening Torque Table Of Standard Parts
BOLT (Nominal diameter) NUT (Nominal diameter)
BOLT/NUT Normal screw Torque Nm (kg.m, Ib-ft)
Nominal diameter.
(mm)
Pitch [mm (in.) ] 4T 8T 10T
M5 0.8 (0.031)
2.0 ~ 3.0 (0.2 ~ 0.3, 1.4
~ 2.2)
4.9 ~ 6.9 (0.5 ~ 0.7, 3.6
~ 5.1)
7.8 ~ 10.8 (0.8 ~ 1.1,
5.8 ~ 8.0)
M6 1 (0.039)
2.9 ~ 4.9 (0.3 ~ 0.5, 2.2
~ 3.6)
8.8 ~ 12.7 (0.9 ~ 1.3,
6.5 ~ 9.4)
13.7 ~ 18.6 (1.4 ~ 1.9,
10.1 ~ 13.7)
M8 1.25 (0.049)
8.8 ~ 11.8 (0.9 ~ 1.2,
6.5 ~ 8.7)
22.6 ~ 30.4 (2.3 ~ 3.1,
16.6 ~ 22.4)
33.3 ~ 44.1 (3.4 ~ 4.5,
24.6 ~ 32.5)
M10 1.5 (0.059)
16.7 ~ 22.6 (1.7 ~ 2.3,
12.3 ~ 16.6)
45.1 ~ 60.8 (4.6 ~ 6.2,
33.3 ~ 44.8)
65.7 ~ 88.3 (6.7 ~ 9.0,
48.5 ~ 65.1)
M12 1.75 (0.068)
29.4 ~ 39.2 (3.0 ~ 4.0,
21.7 ~ 28.9)
78.5 ~ 105.9 (8.0 ~
10.8, 57.9 ~ 78.1)
114.7 ~ 154.9 (11.7 ~
15.8, 84.6 ~ 114.3)
M14 2 (0.078)
47.1 ~ 63.7 (4.8 ~ 6.5,
34.7 ~ 47.0)
125.5 ~ 169.7 (12.8 ~
17.3, 92.6 ~ 125.1)
183.4 ~ 249.1 (18.7 ~
25.4, 135.3 ~ 183.7)
M16 2 (0.078)
73.5 ~ 100.0 (7.5 ~
10.2, 54.2 ~ 73.8)
197.1 ~ 266.7 (20.1 ~
27.2, 145.4 ~ 196.7)
288.3 ~ 390.3 (29.4 ~
39.8, 212.7 ~ 287.9)
M20 2.5 (0.098)
144.2 ~ 195.2 (14.7 ~
19.9, 106.3 ~ 143.9)
396.2 ~ 535.4 (40.4 ~
54.6, 292.2 ~ 394.9)
565.8 ~ 764.9 (57.7 ~
78.0, 417.3 ~ 564.2)
M24 3 (0.118)
249.1 ~ 337.3 (25.4 ~
34.4, 183.7 ~ 248.8)
687.4 ~ 929.7 (70.1 ~
94.8, 507.0 ~ 685.7)
975.8 ~ 1320.0 (99.5 ~
134.6, 719.7 ~ 973.6)
M30 3.5 (0.137)
499.2 ~ 674.7 (50.9 ~
68.8, 368.2 ~ 497.6)
1372.9 ~ 1858.4 (140.0
~ 189.5, 1012.6 ~
1370.7)
1956.4 ~ 2647.8 (199.5
~ 270.0, 1443.0 ~
1952.9)

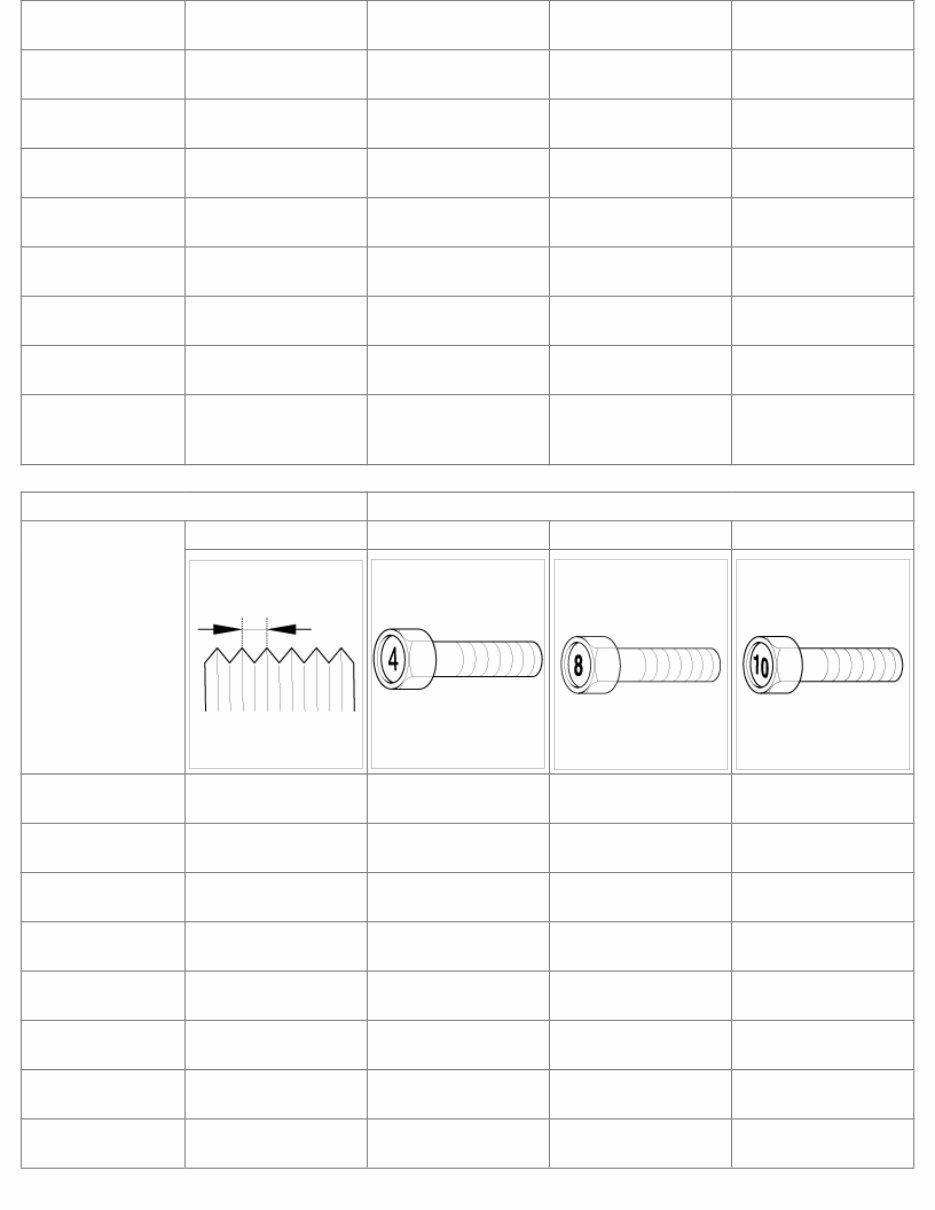

BOLT/NUT Thin screw Torque Nm (kg.m, Ib-ft)
Nominal diameter.
(mm)
Pitch [mm (in.) ] 4T 8T 10T
M5 0.5 (0.019)
2.0 ~ 3.0 (0.2 ~ 0.3, 1.4
~ 2.2)
5.9 ~ 8.8 (0.6 ~ 0.9, 4.3
~ 6.5)
8.8 ~ 12.7 (0.9 ~ 1.3,
6.5 ~ 9.4)
M6 0.75 (0.029)
3.9 ~ 4.9 (0.4 ~ 0.5, 2.9
~ 3.6)
9.8 ~ 13.7 (1.0 ~ 1.4,
7.2 ~ 10.1)
14.7 ~ 20.6 (1.5 ~ 2.1,
10.8 ~ 15.2)
M8 1 (0.039)
8.8 ~ 11.8 (0.9 ~ 1.2,
6.5 ~ 8.7)
24.5 ~ 32.4 (2.5 ~ 3.3,
18.1 ~ 23.9)
35.3 ~ 48.1 (3.6 ~ 4.9,
26.0 ~ 35.4)
M10 1.25 (0.049)
17.7 ~ 23.5 (1.8 ~ 2.4,
13.0 ~ 17.4)
47.1 ~ 63.7 (4.8 ~ 6.5,
34.7 ~ 47.0)
69.6 ~ 94.1 (7.1 ~ 9.6,
51.4 ~ 69.4)
M12 1.25 (0.049)
32.4 ~ 44.1 (3.3 ~ 4.5,
23.9 ~ 32.5)
86.3 ~ 117.7 (8.8 ~
12.0, 63.7 ~ 86.8)
127.5 ~ 172.6 (13.0 ~
17.6, 94.0 ~ 127.3)
M14 1.5 (0.059)
51.0 ~ 69.6 (5.2 ~ 7.1,
37.6 ~ 51.4)
136.3 ~ 185.3 (13.9 ~
18.9, 100.5 ~ 136.7)
201.0 ~ 271.6 (20.5 ~
27.7, 148.3 ~ 200.4)
M16 1.5 (0.059)
79.4 ~ 107.9 (8.1 ~
11.0, 58.6 ~ 79.6)
211.8 ~ 286.4 (21.6 ~
29.2, 156.2 ~ 211.2)
311.8 ~ 421.7 (31.8 ~
43.0, 230.0 ~ 311.0)
M20 1.5 (0.059)
163.8 ~ 221.6 (16.7 ~
22.6, 120.8 ~ 163.5)
448.2 ~ 607.0 (45.7 ~
61.9, 330.5 ~ 447.7)
639.4 ~ 864.9 (65.2 ~
88.2, 471.6 ~ 638.0)
M24 2 (0.078)
276.5 ~ 373.6 (28.2 ~
38.1, 204.0 ~ 275.6)
759.0 ~ 1026.8 (77.4 ~
104.7, 559.8 ~ 757.3)
1080.7 ~ 1462.2 (110.2
~ 149.1, 797.1 ~
1078.4)
M30 2 (0.078)
562.9 ~ 762.0 (57.4 ~
77.7, 415.2 ~ 562.0)
1553.4 ~ 2102.5 (158.4
~ 214.4, 1145.7 ~
1550.8)
2210.4 ~ 2991.0 (225.4
~ 305.0, 1630.3 ~
2206.1)

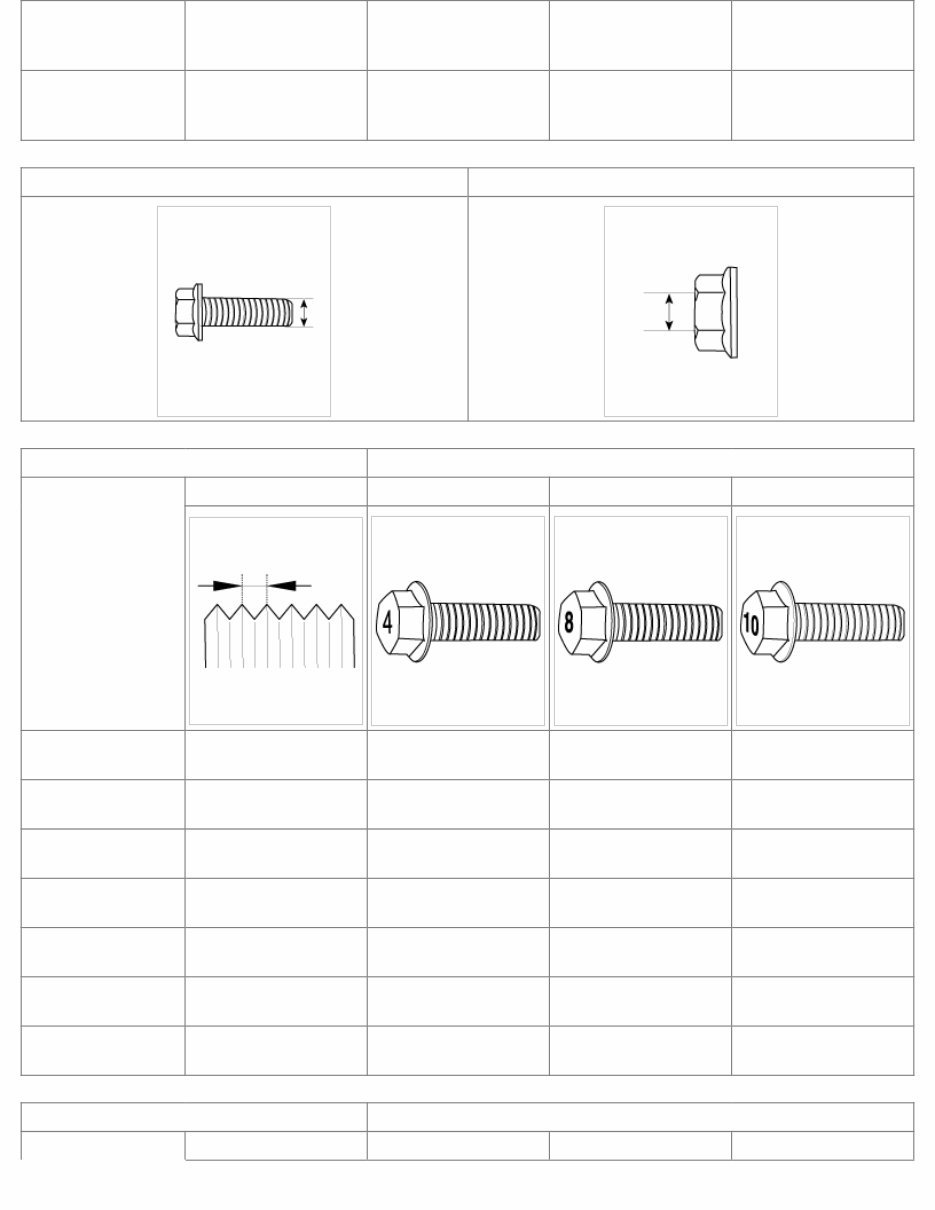

Flange BOLT (Nominal diameter) Flange NUT (Nominal diameter)
Flange BOLT/NUT Normal screw Torque Nm (kg.m, Ib-ft)
Nominal diameter.
(mm)
Pitch [mm (in.) ] 4T 8T 10T
M5 0.8 (0.031)
2.0 ~ 2.9 (0.2 ~ 0.3, 1.4
~ 2.2)
5.9 ~ 7.8 (0.6 ~ 0.8, 4.3
~ 5.8)
8.8 ~ 11.8 (0.9 ~ 1.2,
6.5 ~ 8.7)
M6 1 (0.039)
3.9 ~ 4.9 (0.4 ~ 0.5, 2.9
~ 3.6)
9.8 ~ 13.7 (1.0 ~ 1.4,
7.2 ~ 10.1)
14.7 ~ 19.6 (1.5 ~ 2.0,
10.8 ~ 14.5)
M8 1.25 (0.049)
8.8 ~ 11.8 (0.9 ~ 1.2,
6.5 ~ 8.7)
24.5 ~ 32.4 (2.5 ~ 3.3,
18.1 ~ 23.9)
35.3 ~ 48.1 (3.6 ~ 4.9,
26.0 ~ 35.4)
M10 1.5 (0.059)
17.7 ~ 24.5 (1.8 ~ 2.5,
13.0 ~ 18.1)
48.1 ~ 65.7 (4.9 ~ 6.7,
35.4 ~ 48.5)
70.6 ~ 96.1 (7.2 ~ 9.8,
52.1 ~ 70.9)
M12 1.75 (0.068)
31.4 ~ 43.1 (3.2 ~ 4.4,
23.1 ~ 31.8)
84.3 ~ 113.8 (8.6 ~
11.6, 62.2 ~ 83.9)
123.6 ~ 167.7 (12.6 ~
17.1, 91.1 ~ 123.7)
M14 2 (0.078)
51.0 ~ 68.6 (5.2 ~ 7.0,
37.6 ~ 50.6)
135.3 ~ 182.4 (13.8 ~
18.6, 99.8 ~ 134.5)
198.1 ~ 268.7 (20.2 ~
27.4, 146.1 ~ 198.2)
M16 2 (0.078)
79.4 ~ 107.9 (8.1 ~
11.0, 58.6 ~ 79.6)
212.8 ~ 288.3 (21.7 ~
29.4, 157.0 ~ 212.7)
311.8 ~ 421.7 (31.8 ~
43.0, 230.0 ~ 311.0)
Flange BOLT/NUT Thin screw Torque Nm (kg.m, Ib-ft)
Nominal diameter.
(mm)
Pitch [mm (in.) ] 4T 8T 10T
You're Reading a Preview
What's Included?
Lifetime Access
Fast Download Speeds
Online & Offline Access
Access PDF Contents & Bookmarks
Full Search Facility
Print one or all pages of your manual
$31.99
2009 Hyundai ELANTRA TOURING (FD) G 2.0 MPI Service & Repair Manual
Viewed 13 Times Today
What's Included?
Lifetime Access
Fast Download Speeds
Online & Offline Access
Access PDF Contents & Bookmarks
Full Search Facility
Print one or all pages of your manual
$31.99
Secure transaction
What's Included?
Lifetime Access
Fast Download Speeds
Online & Offline Access
Access PDF Contents & Bookmarks
Full Search Facility
Print one or all pages of your manual
Description
The Hyundai Elantra Touring (FD) G 2.0 MPI Service & Repair Manual is a comprehensive technical guide designed for both professional mechanics and DIY enthusiasts. This manual provides in-depth information on troubleshooting, repair, and maintenance of the vehicle, covering a range of topics from routine maintenance to complex repairs.
- Provides detailed descriptions of vehicle systems, components, and mechanisms
- Offers troubleshooting guides to help diagnose and resolve common issues
- Includes step-by-step repair procedures, accompanied by diagrams and specifications
- Presents comprehensive maintenance instructions, covering tasks such as oil changes, brake pad replacements, and more
- Affords users the knowledge to perform complex tasks, including engine overhauls and electrical system repairs
The manual is an essential resource for anyone seeking to understand and work on their Hyundai Elantra Touring (FD) G 2.0 MPI. Whether you're a seasoned mechanic or a DIY enthusiast, this manual will provide you with the technical information you need to maintain, repair, and maintain your vehicle effectively.
This manual is suitable for both professionals and DIY enthusiasts, offering a range of information and guidance to help you get the most out of your Hyundai Elantra Touring (FD) G 2.0 MPI.
