ACCENT(LC) > 2003 > G 1.5 SOHC > General Information
- IDENTIFICATION NUMBER

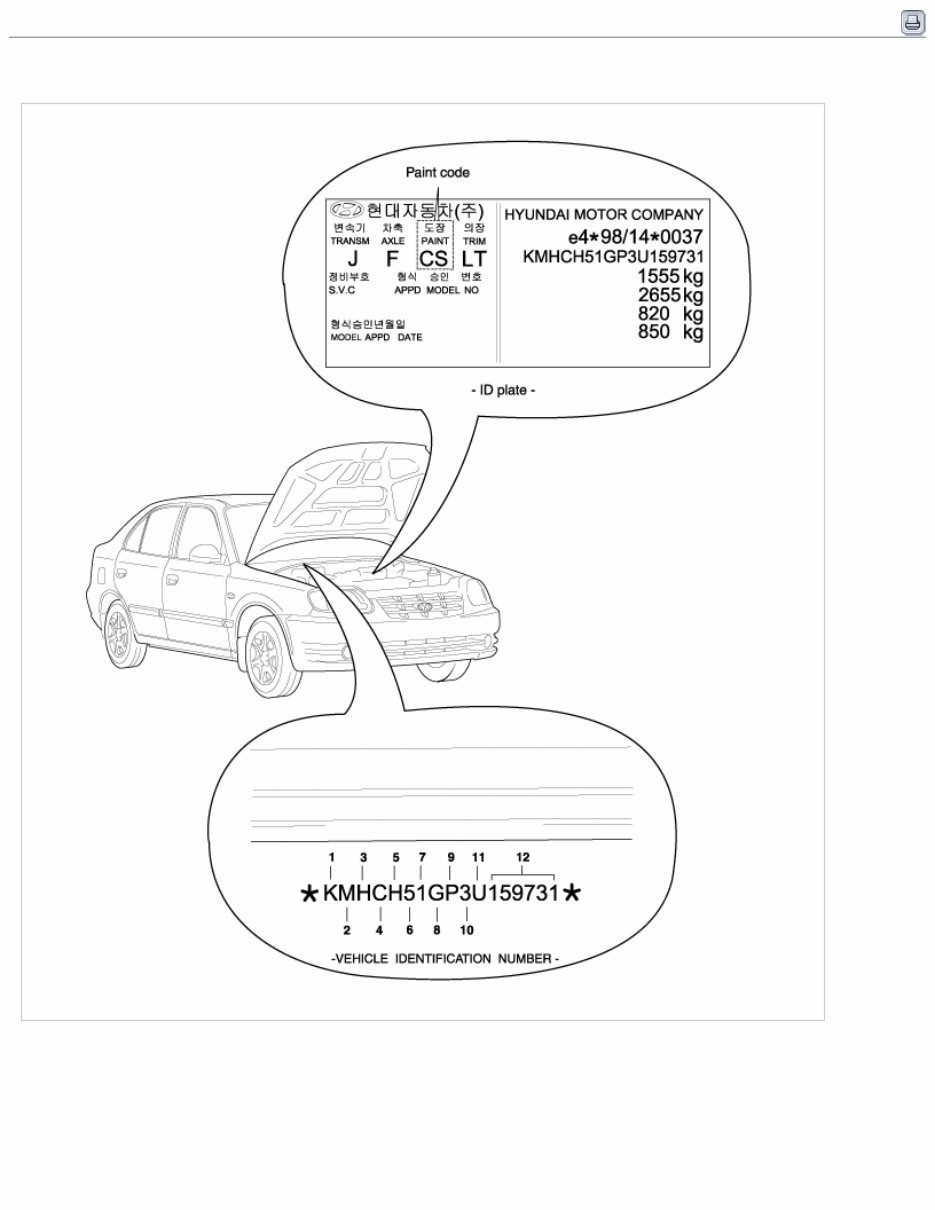

VEHICLE IDENTIFICATION NUMBER LOCATION
VEHICLE IDENTIFICATION NUMBER DESCRIPTION
1. Geographic zone
K : Korea
2. Manufacturer
M : Hyundai motor company
3. Vehicle type
H : Passenger
4. Vehicle line
C : Accent
5. Model & Series
F : STANDAD (L)
G : DELUXE (GL)
H : SUPER DELUXE (GLS)
6. Body type
3 : Sedan 3 - Door
4 : Sedan 4 - Door
7. Restraint system
3 : Drive side ＆ Passenger side - Active belt + Airbag
Passenger side - Active belt or passive belt
4 : Both side - Active belt + Airbag
5 : Depowered - Airbag
8. Engine type
C : Gas 1.6 DOHC
G : Gas 1.5 SOHC
9. Driver side
P : LHD, R : RHD
10. Production year
2 : 2002, 3 : 2003, 4 : 2004, 5 : 2005
11. Plant of production
U : Ulsan (Korea)
12. Vehicle production sequence number
000001 ~ 999999
PAINT CODE
CODE COLOR
NW Noble White
EB Ebony Black
CS Clean Silver
HL Hiphop Red
IA Vivid Yellow
YA Potomac Blue
TI Tundra Green
UA Hot Gold
WS Technical Gray
ZG Mass Green

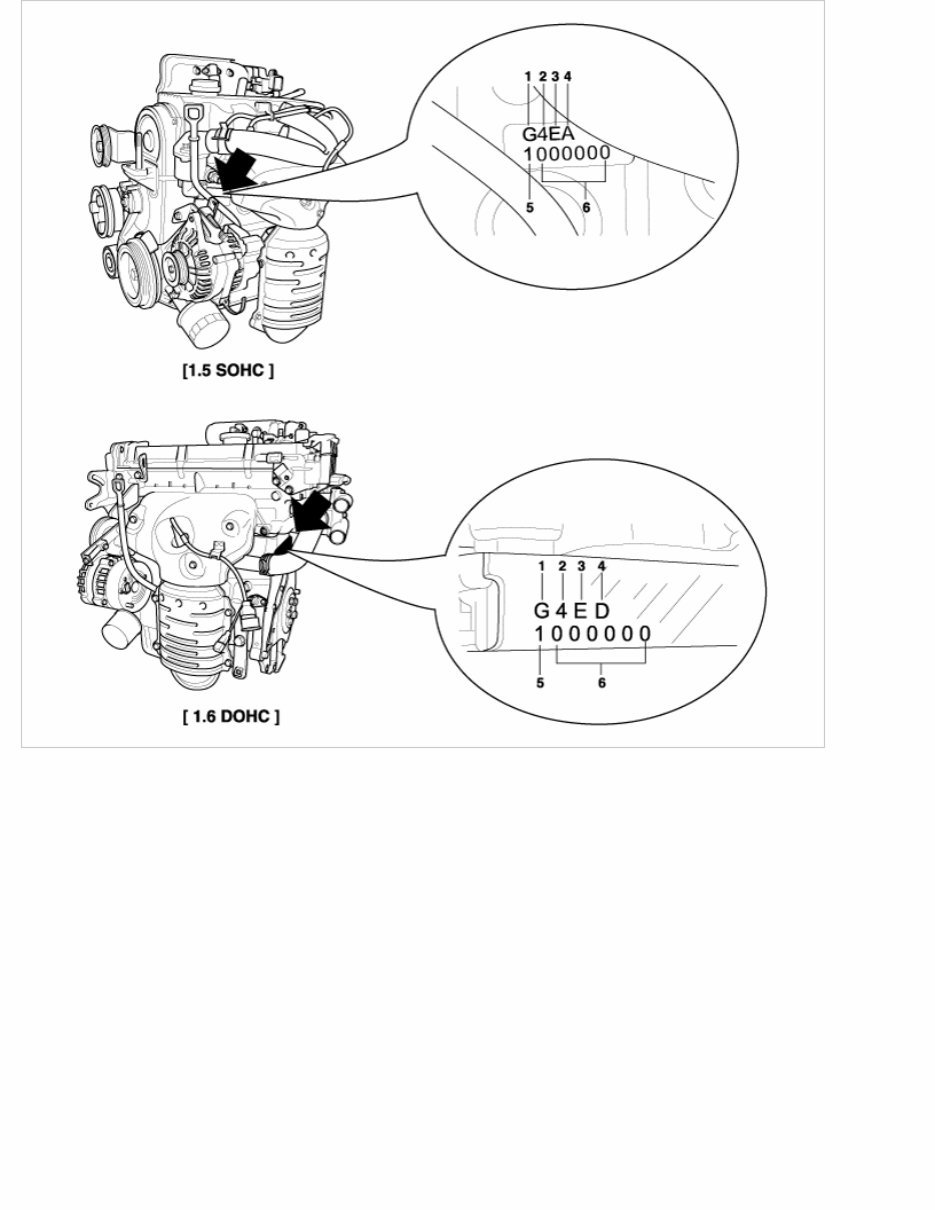

ENGINE IDENTIFICATION NUMBER LOCATION
ENGINE IDENTIFICATION NUMBER DESCRIPTION
1. Engine fuel
G : Gasoline
2. Engine range
4 : In line 4 cycle 4 cylinder
3. Engine development order
E : Alpha engine
4. Engine capacity
B : 1495 cc
D : 1599 cc
5. Production year
1 : 2001, 2 : 2002, 3 : 2003, 4 : 2004
6. Engine production sequence number
000001 ~ 999999

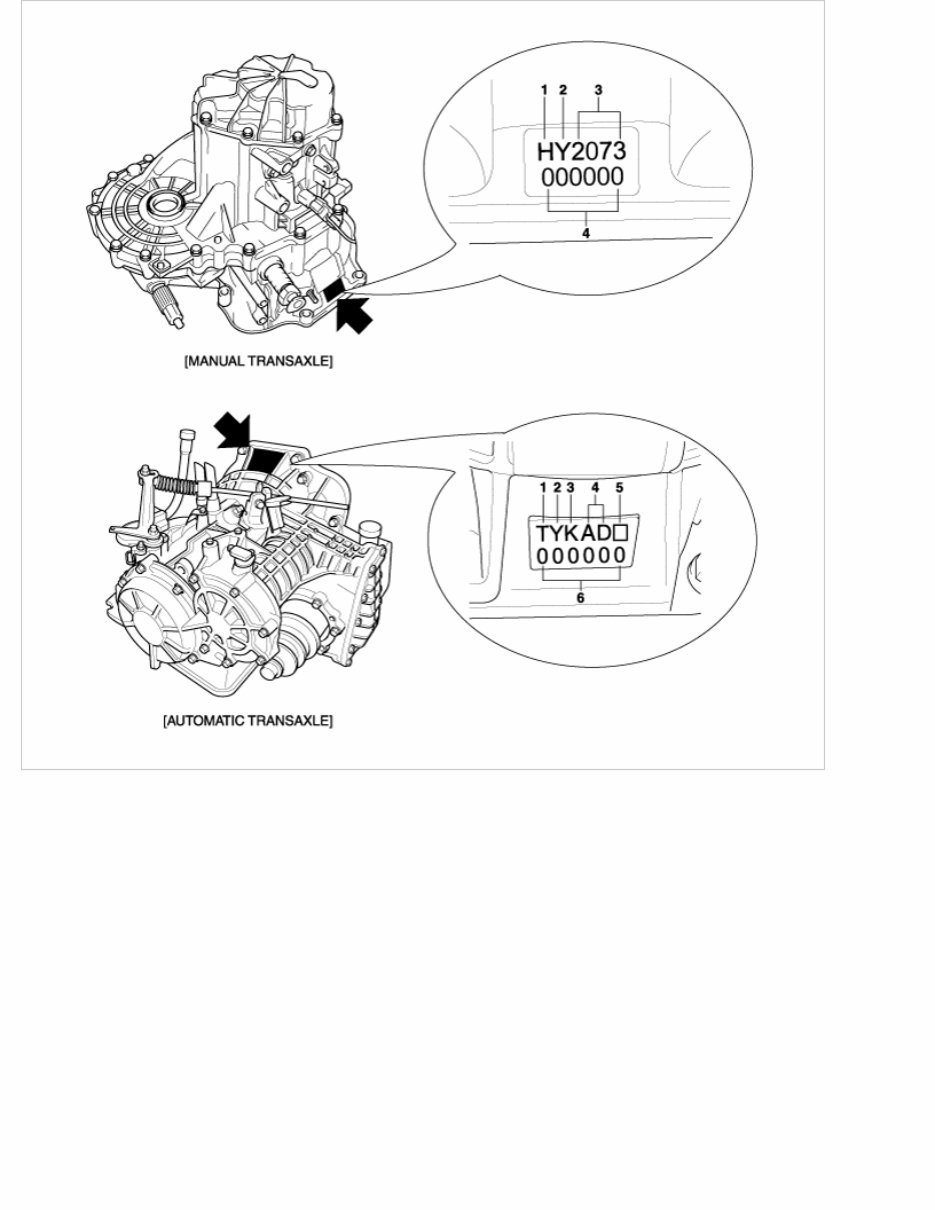

TRANSAXLE IDENTIFICATION NUMBER LOCATION
TRANSAXLE IDENTIFICATION NUMBER DESCRIPTION
1) Model
H : M5AF3
2) Production year
W - 1998, X - 1999, Y - 2000, 1 - 2001,
2 - 2002, 3 - 2003, 4 - 2004, 5 - 2005
3) Gear ratio
2073 : 3.650
4) Transaxle production sequence number
000000 ~ 999999
1) T : A4AF3
2) Production year
W - 1998, X - 1999, Y - 2000, 1 - 2001,
2 - 2002, 3 - 2003, 4 - 2004, 5 - 2005
3) Gear ratio
K : 3.443
L : 3.656
N : 4.041
4) Detailed classification
AD : 1.5 SOHC
ID : 1.6 DOHC
5) Spare
6) Transaxle production sequence number
000000 ~ 999999
LIFT SUPPORT POINT

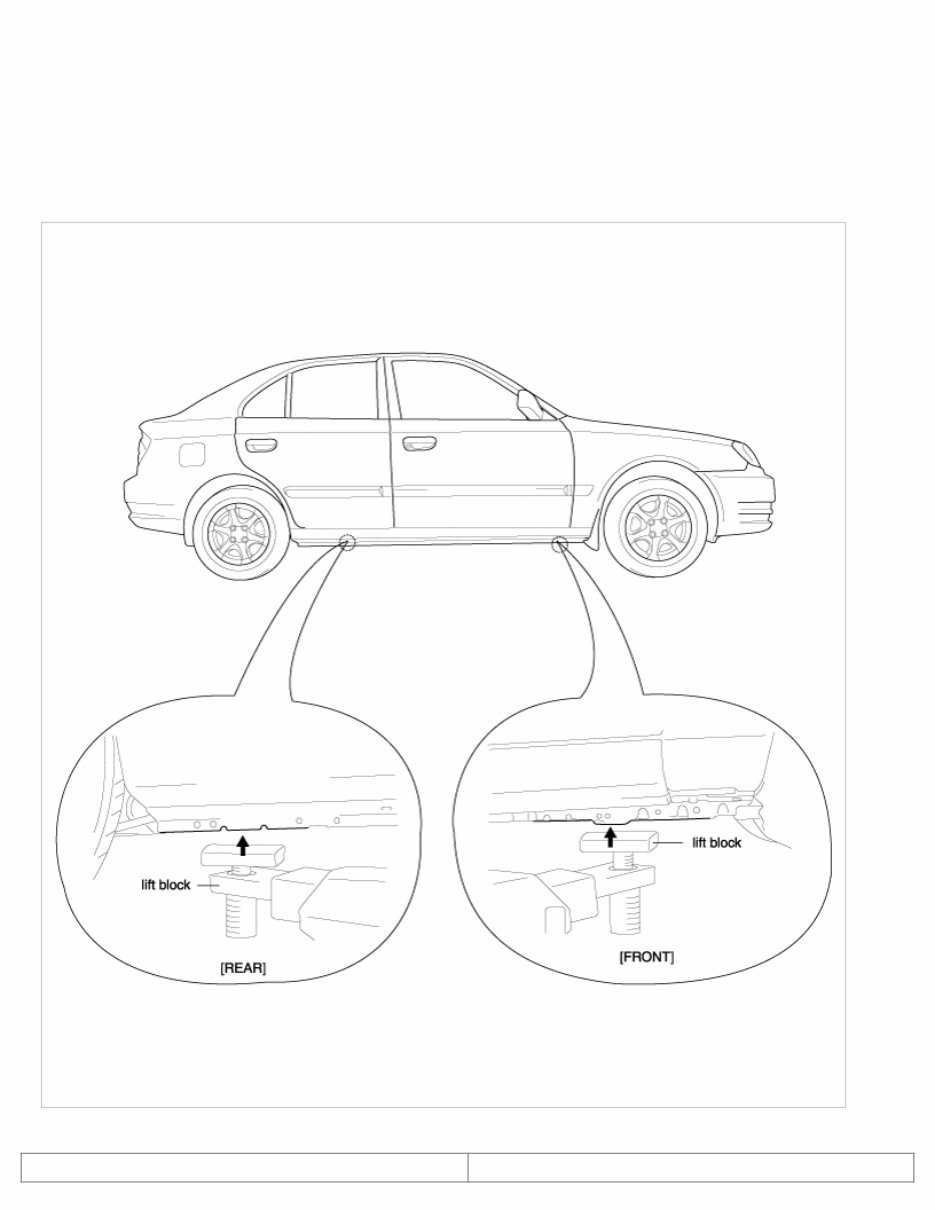

1. Place the lift blocks under the support points as shown in the illustration.
2. Raise the hoist a few inches and rock the vehicle to be sure it is firmly supported.
3. Raise the hoist to full height to inspect the lift points for secure support.
Tightening Torque Table Of Standard Parts
BOLT (Nominal diameter) NUT (Nominal diameter)
BOLT/NUT Normal screw Torque Nm (kg.m, Ib-ft)
Nominal diameter.
(mm)
Pitch [mm (in.) ] 4T 8T 10T
M5 0.8 (0.031)
2.0 ~ 3.0 (0.2 ~ 0.3, 1.4
~ 2.2)
4.9 ~ 6.9 (0.5 ~ 0.7, 3.6
~ 5.1)
7.8 ~ 10.8 (0.8 ~ 1.1,
5.8 ~ 8.0)
M6 1 (0.039)
2.9 ~ 4.9 (0.3 ~ 0.5, 2.2
~ 3.6)
8.8 ~ 12.7 (0.9 ~ 1.3,
6.5 ~ 9.4)
13.7 ~ 18.6 (1.4 ~ 1.9,
10.1 ~ 13.7)
M8 1.25 (0.049)
8.8 ~ 11.8 (0.9 ~ 1.2,
6.5 ~ 8.7)
22.6 ~ 30.4 (2.3 ~ 3.1,
16.6 ~ 22.4)
33.3 ~ 44.1 (3.4 ~ 4.5,
24.6 ~ 32.5)
M10 1.5 (0.059)
16.7 ~ 22.6 (1.7 ~ 2.3,
12.3 ~ 16.6)
45.1 ~ 60.8 (4.6 ~ 6.2,
33.3 ~ 44.8)
65.7 ~ 88.3 (6.7 ~ 9.0,
48.5 ~ 65.1)
M12 1.75 (0.068)
29.4 ~ 39.2 (3.0 ~ 4.0,
21.7 ~ 28.9)
78.5 ~ 105.9 (8.0 ~
10.8, 57.9 ~ 78.1)
114.7 ~ 154.9 (11.7 ~
15.8, 84.6 ~ 114.3)
M14 2 (0.078)
47.1 ~ 63.7 (4.8 ~ 6.5,
34.7 ~ 47.0)
125.5 ~ 169.7 (12.8 ~
17.3, 92.6 ~ 125.1)
183.4 ~ 249.1 (18.7 ~
25.4, 135.3 ~ 183.7)
M16 2 (0.078)
73.5 ~ 100.0 (7.5 ~
10.2, 54.2 ~ 73.8)
197.1 ~ 266.7 (20.1 ~
27.2, 145.4 ~ 196.7)
288.3 ~ 390.3 (29.4 ~
39.8, 212.7 ~ 287.9)
M20 2.5 (0.098)
144.2 ~ 195.2 (14.7 ~
19.9, 106.3 ~ 143.9)
396.2 ~ 535.4 (40.4 ~
54.6, 292.2 ~ 394.9)
565.8 ~ 764.9 (57.7 ~
78.0, 417.3 ~ 564.2)
M24 3 (0.118)
249.1 ~ 337.3 (25.4 ~
34.4, 183.7 ~ 248.8)
687.4 ~ 929.7 (70.1 ~
94.8, 507.0 ~ 685.7)
975.8 ~ 1320.0 (99.5 ~
134.6, 719.7 ~ 973.6)
M30 3.5 (0.137)
499.2 ~ 674.7 (50.9 ~
68.8, 368.2 ~ 497.6)
1372.9 ~ 1858.4 (140.0
~ 189.5, 1012.6 ~
1370.7)
1956.4 ~ 2647.8 (199.5
~ 270.0, 1443.0 ~
1952.9)
BOLT/NUT Thin screw Torque Nm (kg.m, Ib-ft)
Nominal diameter.
(mm)
Pitch [mm (in.) ] 4T 8T 10T
M5 0.5 (0.019)
2.0 ~ 3.0 (0.2 ~ 0.3, 1.4
~ 2.2)
5.9 ~ 8.8 (0.6 ~ 0.9, 4.3
~ 6.5)
8.8 ~ 12.7 (0.9 ~ 1.3,
6.5 ~ 9.4)
M6 0.75 (0.029)
3.9 ~ 4.9 (0.4 ~ 0.5, 2.9
~ 3.6)
9.8 ~ 13.7 (1.0 ~ 1.4,
7.2 ~ 10.1)
14.7 ~ 20.6 (1.5 ~ 2.1,
10.8 ~ 15.2)
M8 1 (0.039)
8.8 ~ 11.8 (0.9 ~ 1.2,
6.5 ~ 8.7)
24.5 ~ 32.4 (2.5 ~ 3.3,
18.1 ~ 23.9)
35.3 ~ 48.1 (3.6 ~ 4.9,
26.0 ~ 35.4)
M10 1.25 (0.049)
17.7 ~ 23.5 (1.8 ~ 2.4,
13.0 ~ 17.4)
47.1 ~ 63.7 (4.8 ~ 6.5,
34.7 ~ 47.0)
69.6 ~ 94.1 (7.1 ~ 9.6,
51.4 ~ 69.4)
M12 1.25 (0.049)
32.4 ~ 44.1 (3.3 ~ 4.5,
23.9 ~ 32.5)
86.3 ~ 117.7 (8.8 ~
12.0, 63.7 ~ 86.8)
127.5 ~ 172.6 (13.0 ~
17.6, 94.0 ~ 127.3)
M14 1.5 (0.059)
51.0 ~ 69.6 (5.2 ~ 7.1,
37.6 ~ 51.4)
136.3 ~ 185.3 (13.9 ~
18.9, 100.5 ~ 136.7)
201.0 ~ 271.6 (20.5 ~
27.7, 148.3 ~ 200.4)
M16 1.5 (0.059)
79.4 ~ 107.9 (8.1 ~
11.0, 58.6 ~ 79.6)
211.8 ~ 286.4 (21.6 ~
29.2, 156.2 ~ 211.2)
311.8 ~ 421.7 (31.8 ~
43.0, 230.0 ~ 311.0)
M20 1.5 (0.059)
163.8 ~ 221.6 (16.7 ~
22.6, 120.8 ~ 163.5)
448.2 ~ 607.0 (45.7 ~
61.9, 330.5 ~ 447.7)
639.4 ~ 864.9 (65.2 ~
88.2, 471.6 ~ 638.0)
M24 2 (0.078)
276.5 ~ 373.6 (28.2 ~
38.1, 204.0 ~ 275.6)
759.0 ~ 1026.8 (77.4 ~
104.7, 559.8 ~ 757.3)
1080.7 ~ 1462.2 (110.2
~ 149.1, 797.1 ~
1078.4)
M30 2 (0.078)
562.9 ~ 762.0 (57.4 ~
77.7, 415.2 ~ 562.0)
1553.4 ~ 2102.5 (158.4
~ 214.4, 1145.7 ~
1550.8)
2210.4 ~ 2991.0 (225.4
~ 305.0, 1630.3 ~
2206.1)

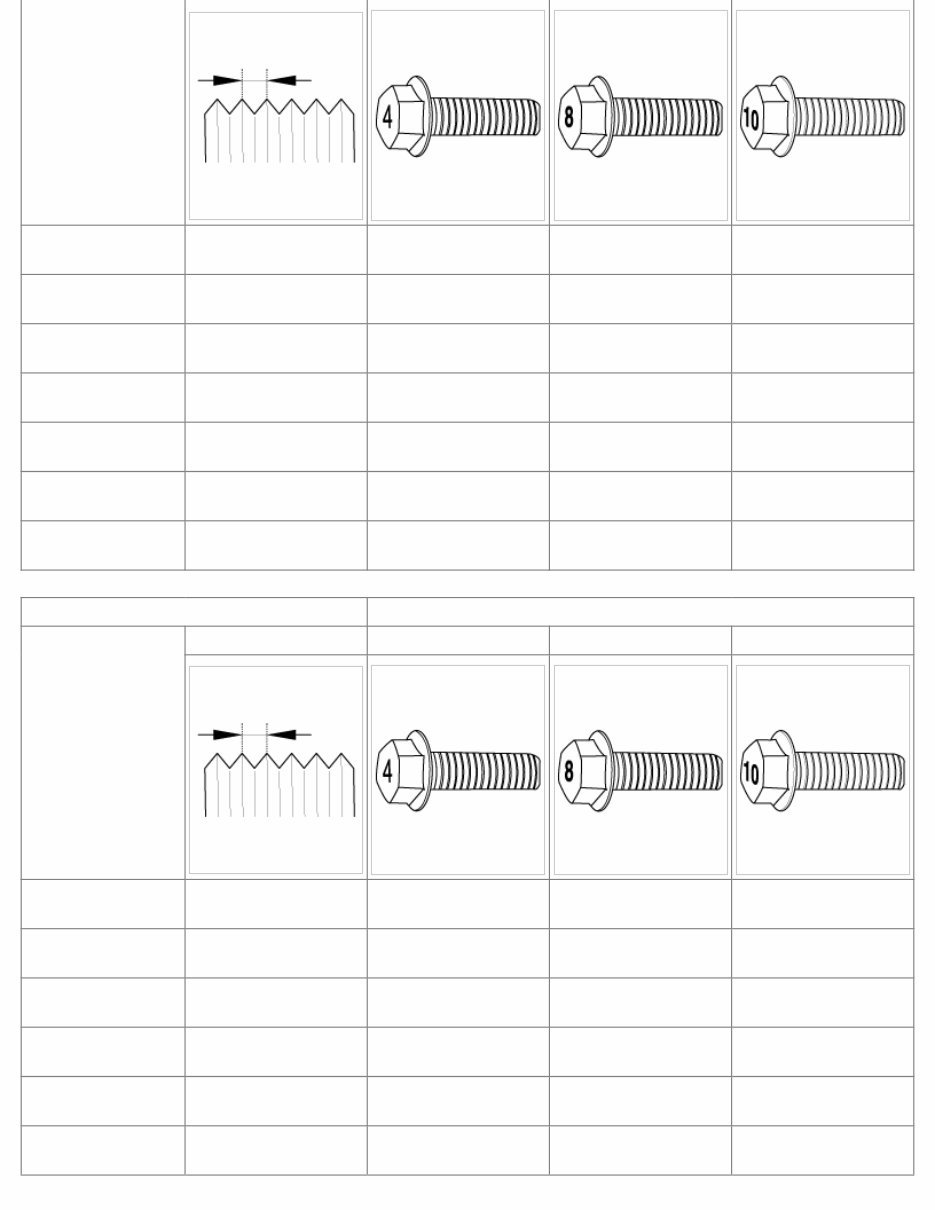

Flange BOLT (Nominal diameter) Flange NUT (Nominal diameter)
Flange BOLT/NUT Normal screw Torque Nm (kg.m, Ib-ft)
Nominal diameter.
(mm)
Pitch [mm (in.) ] 4T 8T 10T
M5 0.8 (0.031)
2.0 ~ 2.9 (0.2 ~ 0.3, 1.4
~ 2.2)
5.9 ~ 7.8 (0.6 ~ 0.8, 4.3
~ 5.8)
8.8 ~ 11.8 (0.9 ~ 1.2,
6.5 ~ 8.7)
M6 1 (0.039)
3.9 ~ 4.9 (0.4 ~ 0.5, 2.9
~ 3.6)
9.8 ~ 13.7 (1.0 ~ 1.4,
7.2 ~ 10.1)
14.7 ~ 19.6 (1.5 ~ 2.0,
10.8 ~ 14.5)
M8 1.25 (0.049)
8.8 ~ 11.8 (0.9 ~ 1.2,
6.5 ~ 8.7)
24.5 ~ 32.4 (2.5 ~ 3.3,
18.1 ~ 23.9)
35.3 ~ 48.1 (3.6 ~ 4.9,
26.0 ~ 35.4)
M10 1.5 (0.059)
17.7 ~ 24.5 (1.8 ~ 2.5,
13.0 ~ 18.1)
48.1 ~ 65.7 (4.9 ~ 6.7,
35.4 ~ 48.5)
70.6 ~ 96.1 (7.2 ~ 9.8,
52.1 ~ 70.9)
M12 1.75 (0.068)
31.4 ~ 43.1 (3.2 ~ 4.4,
23.1 ~ 31.8)
84.3 ~ 113.8 (8.6 ~
11.6, 62.2 ~ 83.9)
123.6 ~ 167.7 (12.6 ~
17.1, 91.1 ~ 123.7)
M14 2 (0.078)
51.0 ~ 68.6 (5.2 ~ 7.0,
37.6 ~ 50.6)
135.3 ~ 182.4 (13.8 ~
18.6, 99.8 ~ 134.5)
198.1 ~ 268.7 (20.2 ~
27.4, 146.1 ~ 198.2)
M16 2 (0.078)
79.4 ~ 107.9 (8.1 ~
11.0, 58.6 ~ 79.6)
212.8 ~ 288.3 (21.7 ~
29.4, 157.0 ~ 212.7)
311.8 ~ 421.7 (31.8 ~
43.0, 230.0 ~ 311.0)
Flange BOLT/NUT Thin screw Torque Nm (kg.m, Ib-ft)
Nominal diameter.
(mm)
Pitch [mm (in.) ] 4T 8T 10T
M5 0.5 (0.019)
2.9 ~ 2.9 (0.3 ~ 0.3, 2.2
~ 2.2)
6.9 ~ 8.8 (0.7 ~ 0.9, 5.1
~ 6.5)
9.8 ~ 13.7 (1.0 ~ 1.4,
7.2 ~ 10.1)
M6 0.75 (0.029)
3.9 ~ 5.9 (0.4 ~ 0.6, 2.9
~ 4.3)
10.8 ~ 14.7 (1.1 ~ 1.5,
8.0 ~ 10.8)
16.7 ~ 21.6 (1.7 ~ 2.2,
12.3 ~ 15.9)
M8 1 (0.039)
9.8 ~ 12.7 (1.0 ~ 1.3,
7.2 ~ 9.4)
26.5 ~ 35.3 (2.7 ~ 3.6,
19.5 ~ 26.0)
38.2 ~ 52.0 (3.9 ~ 5.3,
28.2 ~ 38.3)
M10 1.25 (0.049)
19.6 ~ 25.5 (2.0 ~ 2.6,
14.5 ~ 18.8)
51.0 ~ 68.6 (5.2 ~ 7.0,
37.6 ~ 50.6)
75.5 ~ 102.0 (7.7 ~
10.4, 55.7 ~ 75.2)
M12 1.25 (0.049)
35.3 ~ 48.1 (3.6 ~ 4.9,
26.0 ~ 35.4)
94.1 ~ 126.5 (9.6 ~
12.9, 69.4 ~ 93.3)
138.3 ~ 186.3 (14.1 ~
19.0, 102.0 ~ 137.4)
M14 1.5 (0.059)
55.9 ~ 75.5 (5.7 ~ 7.7,
41.2 ~ 55.7)
148.1 ~ 200.1 (15.1 ~
20.4, 109.2 ~ 147.6)
216.7 ~ 293.2 (22.1 ~
29.9, 159.8 ~ 216.3)
M16 1.5 (0.059)
86.3 ~ 116.7 (8.8 ~
11.9, 63.7 ~ 86.1)
229.5 ~ 309.9 (23.4 ~
31.6, 169.3 ~ 228.6)
336.4 ~ 455.0 (34.3 ~
46.4, 248.1 ~ 335.6)
1) The torques shown in the table are standard values under the following conditions.
• Nuts and bolts are made of galvanized steel bar.
• Galvanized plain steel washers are inserted.
• All nuts, bolts and plain washers are dry.
2) The torques shown in the table are not applicable.
• When spring washers, toothed washers and the like are inserted.
• If plastic parts are fastened.
• If self-tapping screws or self-locking nuts are used.
• If threads and surfaces are coated with oil.
LUBRICANTS
RECOMMENDED LUBRICANTS
Parts Specifications
Engine oil API Classification SG Above (SAE 10W/30, 5W/30)
API Classification SH Above (SAE 7.4W/30)
Manual transaxle API Classification GL - 4 (SAE 75W/90)
Automatic transaxle GENUINE HYUNDAI transaxle oil, GENUINE DIAMOND ATF SP -
III
Brake DOT 3 or DOT 4
Cooling system High quality ethylene glycol
– Concentration level 40% (tropical)
– Concentration level 50% (tropical)
Power steering PSF - 3
Transaxle linkage, parking brake cable
mechanism, hood lock and hook, door latch,
seat adjuster, tailgate latch, door hinges,
tailgate hinges
Multipurpose grease NLGI grade #2
– Always use GL - 4 Classification for the manual transaxle (Do not use GL - 5 Classification)
– Always use Genuine Hyundai parts and recommended fluid.
Using any other type of parts and fluid can cause serious damage of the vehicle.
LUBRICANTS CAPACITIES
Description
Capacities
1.5/1.6
Engine oil
Oil pan 3.0 (3.17, 2.64)
Oil filter 0.3 (0.32, 0.26)
Total 3.3 (3.49, 2.90)
Cooling system 6.5 (6.87, 5.72)
Manual transaxle 2.5 (2.27, 1.89)
Automatic transaxle 6.1 (6.45, 5.37)
Power steering 0.9 (0.95, 0.79)
liter (U.S. qus., lmp.qts.)

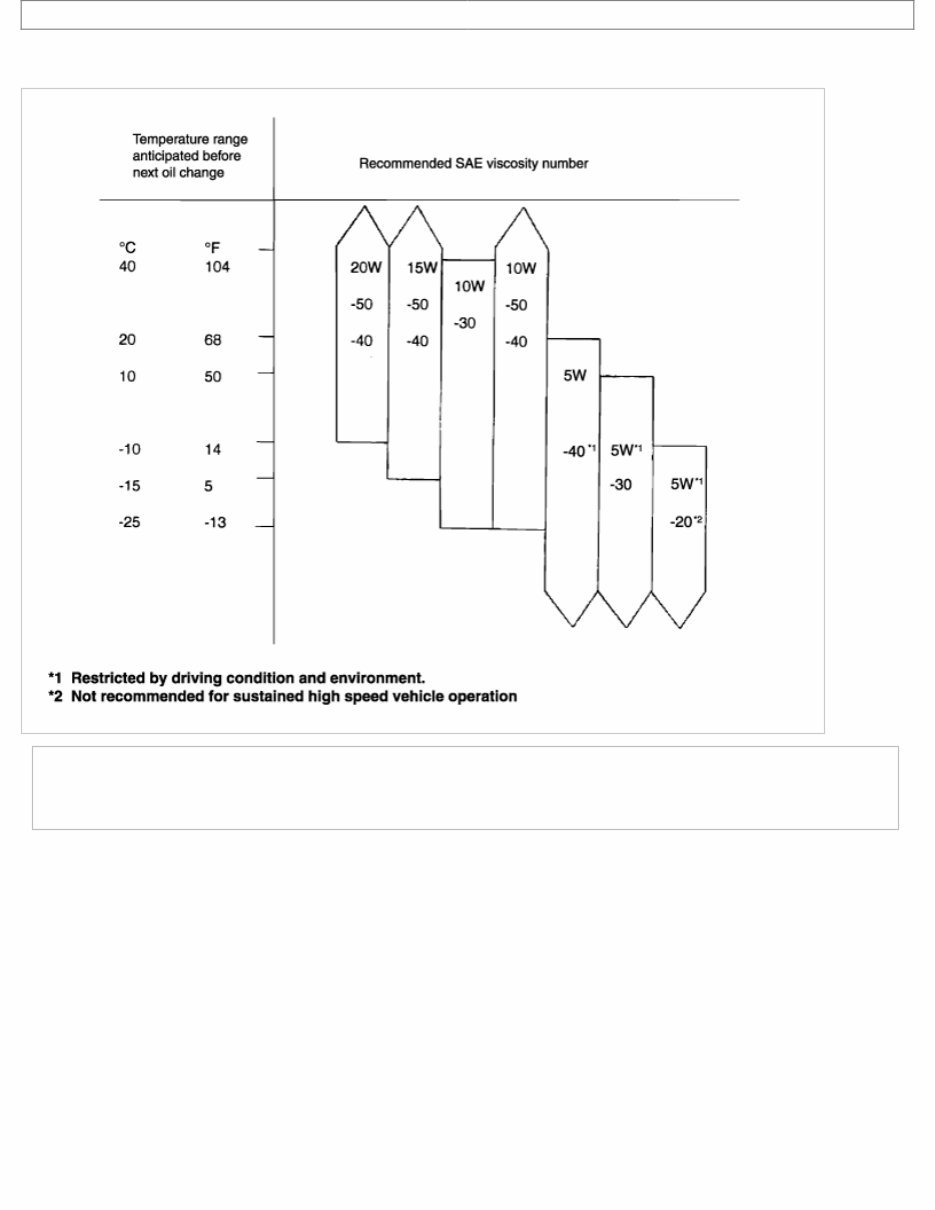

SELECTION OF ENGINE OIL
1) Satisfy the requirements of the API classification.
2) Have the proper SAE grade number for expected ambient temperature range.
SRS SYSTEM COMPONENTS INFORMATION
