2019 Honda Odyssey Repair Manual

Service Information The service and repair information contained in this manual is intended for use by qualified, professional technicians. Attempting service or repairs without the proper training, tools, and equipment could cause injury to you or others. It could also damage the vehicle or create an unsafe condition. This manual describes the proper methods and procedures for doing service, maintenance, and repairs. Some procedures require the use of specially designed tools and dedicated equipment. Any person who intends to use a replacement part, a service procedure, or a tool that is not recommended by Honda, must determine the risks to their personal safety and the safe operation of the vehicle. If you need to replace any parts, always use the correct parts supplied by a Honda dealer. Never use inferior quality parts. FOR YOUR CUSTOMER'S SAFETY Proper service and maintenance are essential to the customer's safety and the reliability of the vehicle. Any error or oversight while servicing a vehicle can result in faulty operation, damage to the vehicle, or injury to others. Improper service or repairs can create an unsafe condition that can cause your customers or others to be seriously hurt or killed. Follow the procedures and precautions in this manual and other service materials carefully. FOR YOUR SAFETY Because this manual is intended for the professional service technician, we do not provide warnings about many basic shop safety practices (for example, hot parts－wear gloves). If you have not received shop safety training or do not feel confident about your knowledge of safe servicing practices, we recommend that you do not attempt to do the procedures described in this manual. Failure to properly follow instructions and precautions can cause you to be seriously hurt or killed. Follow the procedures and precautions in this manual carefully. Some of the most important general service safety precautions follow this text. However, we cannot warn you of every conceivable hazard that can arise in doing service and repair procedures. Only you can decide whether or not you should do a given task. IMPORTANT SAFETY PRECAUTIONS Make sure you have a clear understanding of all basic shop safety practices, and that you are wearing appropriate clothing and using safety equipment. When doing any service task, be especially careful of the following: － Read all of the instructions before you begin, and make sure you have the tools, the replacement or repair parts, and the skills required to do the tasks safely and completely. － Protect your eyes by using proper safety glasses, goggles, or face shields anytime you hammer, drill, grind, or work around pressurized air or liquids and springs, or other stored-energy components. If there is any doubt, put on eye protection. － Use other protective wear when necessary, such as gloves or safety shoes. Handling hot or sharp parts can cause severe burns or cuts. Before you grab something that looks like it can hurt you, stop and put on gloves. － Protect yourself and others whenever you have the vehicle up in the air. Anytime you raise the vehicle, either with a lift or a jack, make sure that it is always securely supported. Use safety stands if needed. － Protect yourself by wearing an approved welding helmet, gloves, and safety shoes anytime you are welding. You can receive burns from hot parts; allow the parts to cool before working in that area. － Protect yourself from paints and harmful chemicals by wearing an approved respirator, eye protection, and gloves whenever you are painting. Spray paint only in an approved paint booth that is well ventilated. Make sure the engine is off before you begin any servicing procedures, unless the instruction tells you to do otherwise. This will help eliminate several potential hazards: － Carbon monoxide poisoning from engine exhaust. Be sure there is adequate ventilation whenever you run the engine. － Burns from hot parts or coolant. Let the engine and exhaust system cool before working in those areas. － Injury from moving parts. If the instruction tells you to run the engine, be sure your hands, fingers, and clothing are out of the way. Gasoline vapors and hydrogen gases from batteries are explosive. To reduce the possibility of a fire or explosion, be careful when working around gasoline or batteries: － Use only a nonflammable solvent, not gasoline, to clean parts. － Never drain or store gasoline in an open container. － Keep all cigarettes, sparks, and flames away from the battery and all fuel-related parts.

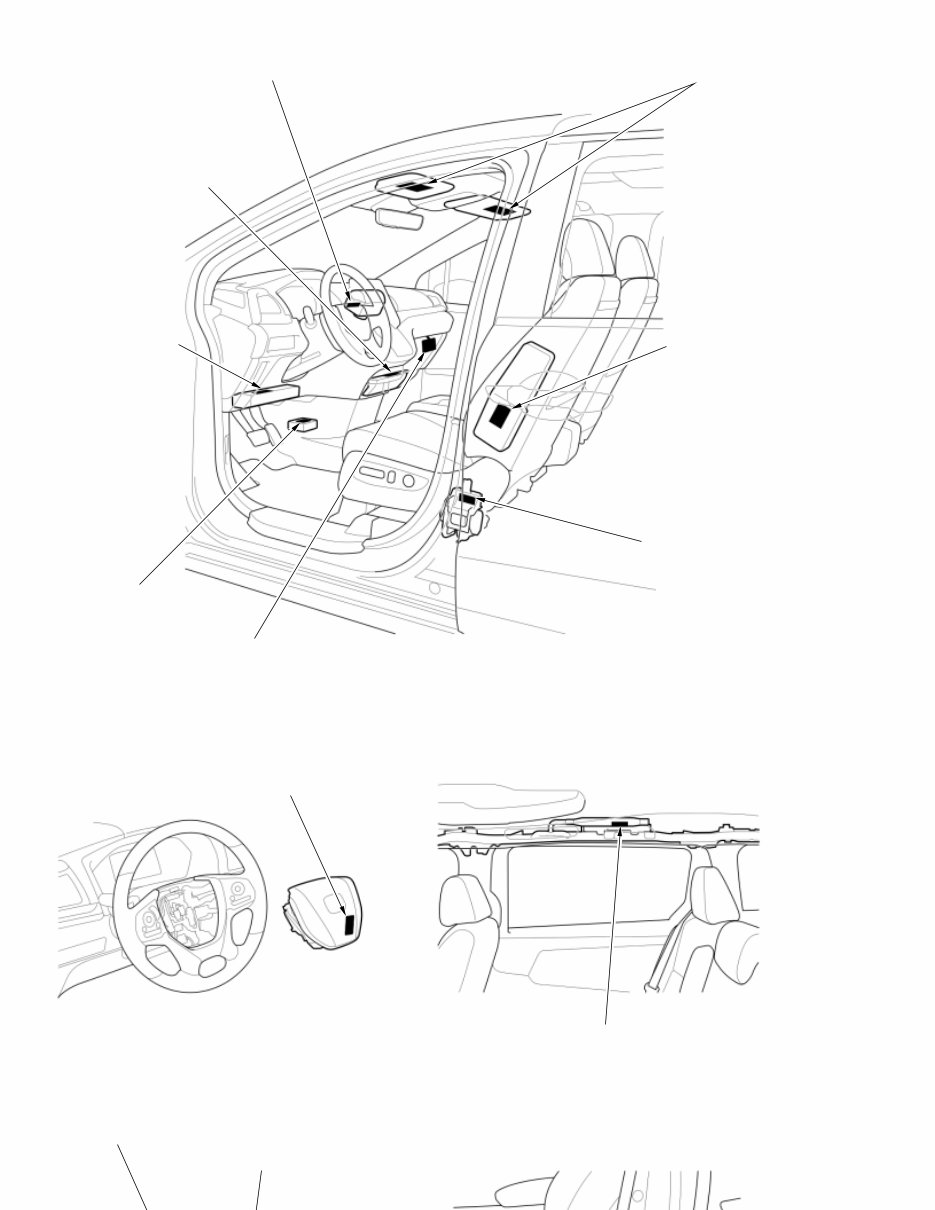

Front Passenger's Compartment: Steering Wheel: Rear Passenger's Compartment: Engine Compartment: Doorjamb Area: SRS WARNING INFORMATION MONITOR NOTICE SEAT BELT TENSIONER WARNING SIDE AIRBAG MODULE DANGER PASSENGER AIRBAG WARNING TAG (CHILD SEAT) USA models PASSENGER'S AIRBAG MODULE DANGER PASSENGER'S KNEE AIRBAG MODULE DANGER DRIVER'S KNEE AIRBAG MODULE DANGER DRIVER'S AIRBAG MODULE DANGER SIDE CURTAIN AIRBAG MODULE DANGER AIR CONDITIONING INFORMATION EMISSION CONTROL INFORMATION and ENGINE COOLANT INFORMATION

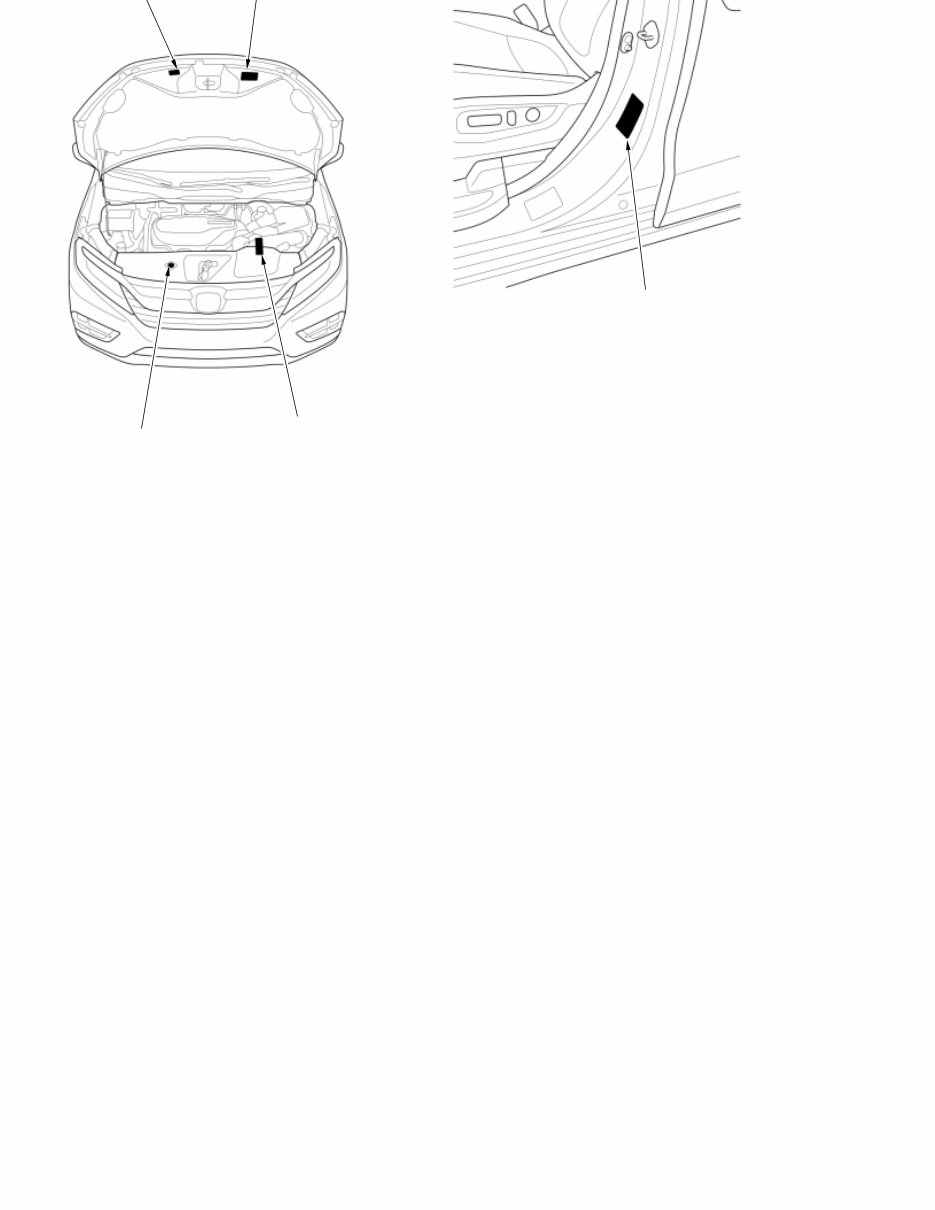

RADIATOR CAP DANGER 12 VOLT BATTERY CAUTION TIRE INFORMATION Located on driver's doorjamb

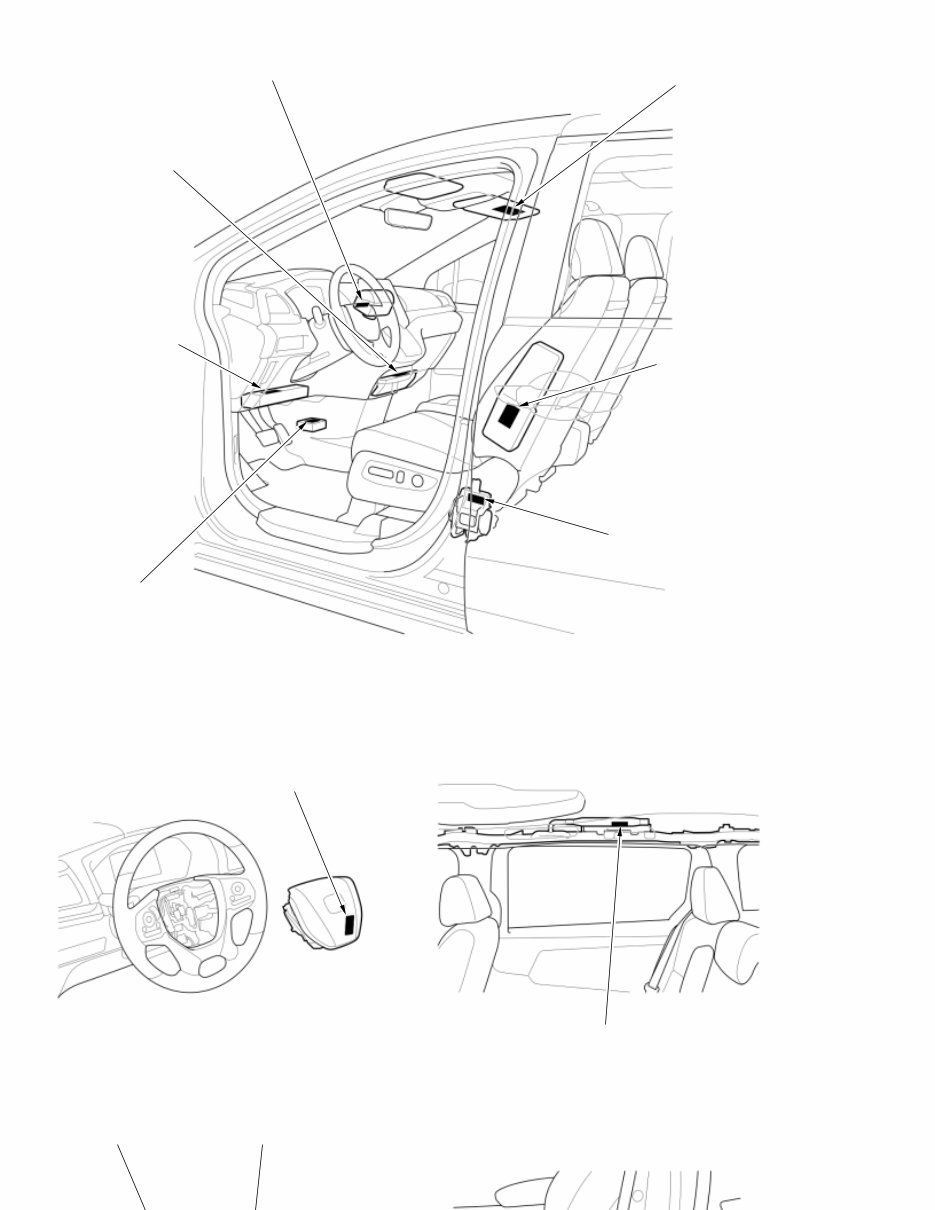

Front Passenger's Compartment: Steering Wheel: Rear Passenger's Compartment: Engine Compartment: Doorjamb Area: SRS WARNING INFORMATION MONITOR NOTICE SEAT BELT TENSIONER WARNING SIDE AIRBAG MODULE DANGER PASSENGER'S AIRBAG MODULE DANGER PASSENGER'S KNEE AIRBAG MODULE DANGER DRIVER'S KNEE AIRBAG MODULE DANGER DRIVER'S AIRBAG MODULE DANGER SIDE CURTAIN AIRBAG MODULE DANGER AIR CONDITIONING INFORMATION ENGINE COOLANT INFORMATION

RADIATOR CAP DANGER 12 VOLT BATTERY CAUTION TIRE INFORMATION Located on driver's doorjamb

Item Measurement Qualification Specification AUTOMATIC TRANSMISSION (9-speed) Type Electronically-controlled automatic, nine-speed forward, one-reverse Primary reduction Direct 1:1 Gear ratio 1st 4.713 2nd 2.842 3rd 1.909 4th 1.382 5th 1.000 6th 0.808 7th 0.699 8th 0.580 9th 0.480 Reverse 3.830 Final reduction Type Single helical gear Gear ratio 4.334 AUTOMATIC TRANSMISSION (10-speed) Type Electronically-controlled automatic, ten-speed forward, one-reverse Primary reduction Direct 1:1 Gear ratio 1st 5.246 2nd 3.271 3rd 2.185 4th 1.597 5th 1.304 6th 1.000 7th 0.782 8th 0.653 9th 0.581 10th 0.517 Reverse 3.974 Final reduction Type Single helical gear Gear ratio 3.550 STEERING Type Rack and pinion with electrical power-assisted Overall ratio 14.35 Turns, lock-to-lock 2.97 Steering wheel diameter 386 mm (15.20 in) SUSPENSION Type Front MacPherson strut with stabilizer, coil spring Rear Independent multilink with stabilizer, coil spring Shock absorber Front and rear Telescopic, hydraulic, nitrogen gas-filled TIRES Size See tire information label attached to driver's doorjamb. BRAKES Type of service brake Front Power-assisted self-adjusting ventilated disc Rear Power-assisted self-adjusting solid disc Type of parking brake Electrical parking brake AIR CONDITIONING Compressor Type Variable capacity, swash plate type Capacity 171.4 mL (10.46 cu in)/rev Maximum speed 9,200 rpm Condenser Type Corrugated fin Evaporator Type Corrugated fin Blower (front) Type Ferrite type Motor type 300 W/12 V Speed control Continuous Blower (rear) Type Ferrite type Motor type 220 W/12 V Speed control Continuous Temperature control Air-mix type Compressor clutch Type Dry, single plate, poly V-ribbed belt drive Electrical power consumption at 68 °F (20 °C) 28 W maximum at 12 V ELECTRICAL RATINGS 12 volt battery L3 FLA: 12 V－60 Ah (20 HR)/48 Ah (5 HR) L3 AGM: 12 V－60 Ah (20 HR)/48 Ah (5 HR) Fuses 12 volt battery terminal fuse box 150 A, 70 A, 60 A Under-hood fuse/relay box 30 A, 20 A, 15 A, 10 A, 5 A Fuse holder 60 A, 50 A, 40 A, 30 A, 20 A, 15 A, 10 A, 5 A Fuse/relay holder A 10 A

Item Measurement Qualification Specification Under-dash fuse/relay box 20 A, 15 A, 10 A Fuse/relay holder B 40 A, 30 A, 20 A, 10 A Light bulbs Headlights (low) 12 V－55 W (H11) LED Headlights (high)/Daytime Running Lights (DRL) 12 V－60 W (HB3) LED Front parking lights/Daytime Running Lights (DRL) LED Front turn signal/parking lights 12 V－28/8 W Side Turn signal lights (door mirror) LED Front side marker lights 12 V－3 CP Fog lights 12 V－35 W LED Brake lights 12 V－21 W Taillights LED Inner taillights LED Rear side marker lights LED Rear turn signal lights 12 V－21 W Back-up lights 12 V－21 W High mount brake light LED License plate light LED Console box light 12 V－1.4 W Door courtesy lights 12 V－2 CP Door inner handle lights LED Cargo area light 12 V－8 W Vanity mirror lights 12 V－1.4 W Front individual map lights 12 V－5 W Rear individual map lights (second and third row) 12 V－5 W Driver's dashboard decoration light LED Dashboard center decoration light LED Passenger's center decoration light LED Tray light LED Ambient lights LED Glove box light 12 V－1.4 W Footwell lights LED

Item Measurement Qualification Specification AUTOMATIC TRANSMISSION (9-speed) Type Electronically-controlled automatic, nine-speed forward, one-reverse Primary reduction Direct 1:1 Gear ratio 1st 4.713 2nd 2.842 3rd 1.909 4th 1.382 5th 1.000 6th 0.808 7th 0.699 8th 0.580 9th 0.480 Reverse 3.830 Final reduction Type Single helical gear Gear ratio 4.334 AUTOMATIC TRANSMISSION (10-speed) Type Electronically-controlled automatic, ten-speed forward, one-reverse Primary reduction Direct 1:1 Gear ratio 1st 5.246 2nd 3.271 3rd 2.185 4th 1.597 5th 1.304 6th 1.000 7th 0.782 8th 0.653 9th 0.581 10th 0.517 Reverse 3.974 Final reduction Type Single helical gear Gear ratio 3.550 STEERING Type Rack and pinion with electrical power-assisted Overall ratio 14.35 Turns, lock-to-lock 2.97 Steering wheel diameter 386 mm (15.20 in) SUSPENSION Type Front MacPherson strut with stabilizer, coil spring Rear Independent multilink with stabilizer, coil spring Shock absorber Front and rear Telescopic, hydraulic, nitrogen gas-filled TIRES Size See tire information label attached to driver's doorjamb. BRAKES Type of service brake Front Power-assisted self-adjusting ventilated disc Rear Power-assisted self-adjusting solid disc Type of parking brake Electrical parking brake AIR CONDITIONING Compressor Type Variable capacity, swash plate type Capacity 171.4 mL (10.46 cu in)/rev Maximum speed 9,200 rpm Condenser Type Corrugated fin Evaporator Type Corrugated fin Blower (front) Type Ferrite type Motor type 300 W/12 V Speed control Continuous Blower (rear) Type Ferrite type Motor type 220 W/12 V Speed control Continuous Temperature control Air-mix type Compressor clutch Type Dry, single plate, poly V-ribbed belt drive Electrical power consumption at 68 °F (20 °C) 28 W maximum at 12 V ELECTRICAL RATINGS 12 volt battery L3 FLA: 12 V－60 Ah (20 HR)/48 Ah (5 HR) L3 AGM: 12 V－60 Ah (20 HR)/48 Ah (5 HR) Fuses 12 volt battery terminal fuse box 150 A, 70 A, 60 A Under-hood fuse/relay box 30 A, 20 A, 15 A, 10 A, 5 A Fuse holder 60 A, 50 A, 40 A, 30 A, 20 A, 15 A, 10 A, 5 A Fuse/relay holder A 10 A

Item Measurement Qualification Specification Under-dash fuse/relay box 20 A, 15 A, 10 A Fuse/relay holder B 40 A, 30 A, 20 A, 10 A, 5 A Light bulbs Headlights (low) LED Headlights (high) LED Front parking lights/daytime running lights (DRL) LED Front turn signal lights 12 V－28/8 W Side turn signal lights (door mirror) LED Front side marker lights 12 V－3 CP Fog lights LED Brake lights 12 V－21 W Taillights LED Inner taillights LED Rear side marker lights LED Rear turn signal lights 12 V－21 W Back-up lights 12 V－21 W High mount brake light LED License plate light LED Console box light 12 V－1.4 W Door courtesy lights 12 V－2 CP Door inner handle lights LED Cargo area light 12 V－8 W Vanity mirror lights 12 V－1.4 W Front individual map lights 12 V－5 W Rear individual map lights (second and third row) 12 V－5 W Driver's dashboard decoration light LED Dashboard center decoration light LED Passenger's center decoration light LED Tray light LED Ambient lights LED Glove box light 12 V－1.4 W Footwell lights LED Door pocket lights LED

ECU Reprogramming In order to use a vehicle safely against the threat of cyberattacks to the control unit, the software update work of control units requires a rewriting system for control unit with high security. In this ECU Reprogramming, software of control units is updated without being stored in information appliance, and software is prevented from being tampered with or flowing out by private key between the server and the vehicle. Also, an update history is collected by the server, and the version of the software for one vehicle is managed. The ECU Reprogramming (dedicated application) is used to communicate with the server after the vehicle information is read through an interface. The server automatically searches for updatable software for the vehicle and displays it on the dedicated application. and *1: Data link connector Software distribution server control server Update history Information appliance Decided application Encryption software Private key DLC*1 Vehicle information Software update target vehicle
