2018 Honda HR-V Repair Manual

Service Information The service and repair information contained in this manual is intended for use by qualified, professional technicians. Attempting service or repairs without the proper training, tools, and equipment could cause injury to you or others. It could also damage the vehicle or create an unsafe condition. This manual describes the proper methods and procedures for doing service, maintenance, and repairs. Some procedures require the use of specially designed tools and dedicated equipment. Any person who intends to use a replacement part, a service procedure, or a tool that is not recommended by Honda, must determine the risks to their personal safety and the safe operation of the vehicle. If you need to replace any parts, always use the correct parts supplied by a Honda dealer. Never use inferior quality parts. FOR YOUR CUSTOMER'S SAFETY Proper service and maintenance are essential to the customer's safety and the reliability of the vehicle. Any error or oversight while servicing a vehicle can result in faulty operation, damage to the vehicle, or injury to others. Improper service or repairs can create an unsafe condition that can cause your customers or others to be seriously hurt or killed. Follow the procedures and precautions in this manual and other service materials carefully. FOR YOUR SAFETY Because this manual is intended for a professional service technician, we do not provide warnings about many basic shop safety practices (for example, hot parts－wear gloves). If you have not received shop safety training or do not feel confident about your knowledge of safe servicing practices, we recommend that you do not attempt to do the procedures described in this manual. Failure to properly follow instructions and precautions can cause you to be seriously hurt or killed. Follow the procedures and precautions in this manual carefully. Some of the most important general service safety precautions follow this text. However, we cannot warn you of every conceivable hazard that can arise in doing service and repair procedures. Only you can decide whether or not you should do a given task. IMPORTANT SAFETY PRECAUTIONS Make sure you have a clear understanding of all basic shop safety practices, and that you are wearing appropriate clothing and using safety equipment. When doing any service task, be especially careful of the following: － Read all of the instructions before you begin, and make sure you have the tools, the replacement or repair parts, and the skills required to do the tasks safely and completely. － Protect your eyes by using proper safety glasses, goggles, or face shields anytime you hammer, drill, grind, or work around pressurized air or liquids and springs, or other stored-energy components. If there is any doubt, put on eye protection. － Use other protective wear when necessary, such as gloves or safety shoes. Handling hot or sharp parts can cause severe burns or cuts. Before you grab something that looks like it can hurt you, stop and put on gloves. － Protect yourself and others whenever you have the vehicle up in the air. Anytime you raise the vehicle, either with a lift or a jack, make sure that it is always securely supported. Use safety stands if needed. － Protect yourself by wearing an approved welding helmet, gloves, and safety shoes anytime you are welding. You can receive burns from hot parts; allow the parts to cool before working in that area. － Protect yourself from paints and harmful chemicals by wearing an approved respirator, eye protection, and gloves whenever you are painting. Spray paint only in an approved paint booth that is well ventilated. Make sure the engine is off before you begin any servicing procedures, unless the instruction tells you to do otherwise. This will help eliminate several potential hazards: － Carbon monoxide poisoning from engine exhaust. Be sure there is adequate ventilation whenever you run the engine. － Burns from hot parts or coolant. Let the engine and exhaust system cool before working in those areas. － Injury from moving parts. If the instruction tells you to run the engine, be sure your hands, fingers, and clothing are out of the way. Gasoline vapors and hydrogen gases from batteries are explosive. To reduce the possibility of a fire or explosion, be careful when working around gasoline or batteries: － Use only a nonflammable solvent, not gasoline, to clean parts. － Never drain or store gasoline in an open container. － Keep all cigarettes, sparks, and flames away from the battery and all fuel-related parts.

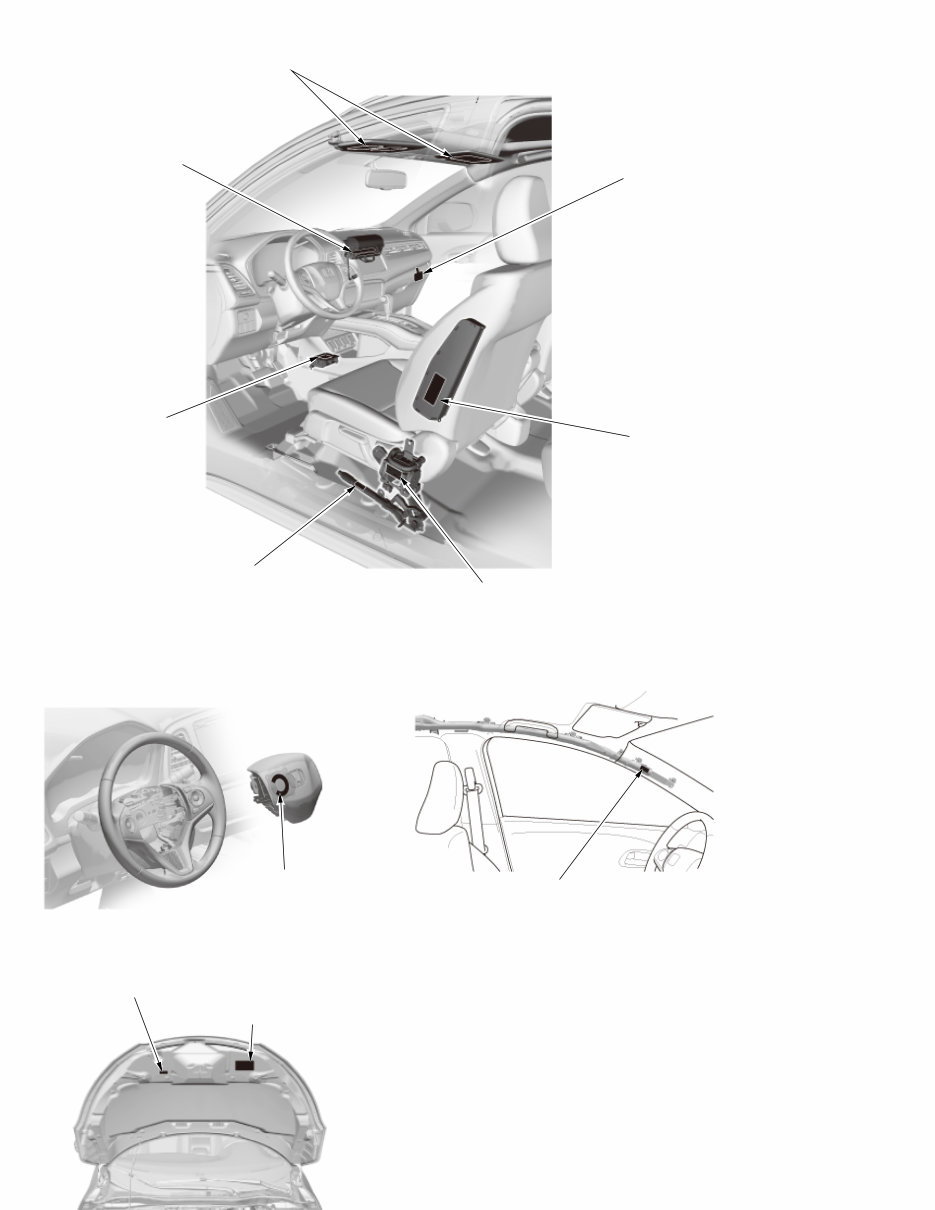

Front Passenger’s Compartment: Steering Wheel: Driver's Compartment: Engine Compartment: SRS WARNING INFORMATION SRS UNIT SEAT BELT TENSIONER CAUTION SIDE AIRBAG MODULE DANGER PASSENGER AIRBAG MODULE DANGER SEAT BELT OUTER LAP TENSIONER WARNING PASSENGER AIRBAG WARNING TAG (CHILD SEAT) USA models DRIVER AIRBAG MODULE DANGER ROOF-SIDE AIRBAG MODULE DANGER AIR CONDITIONING INFORMATION EMISSION CONTROL INFORMATION and ENGINE COOLANT INFORMATION

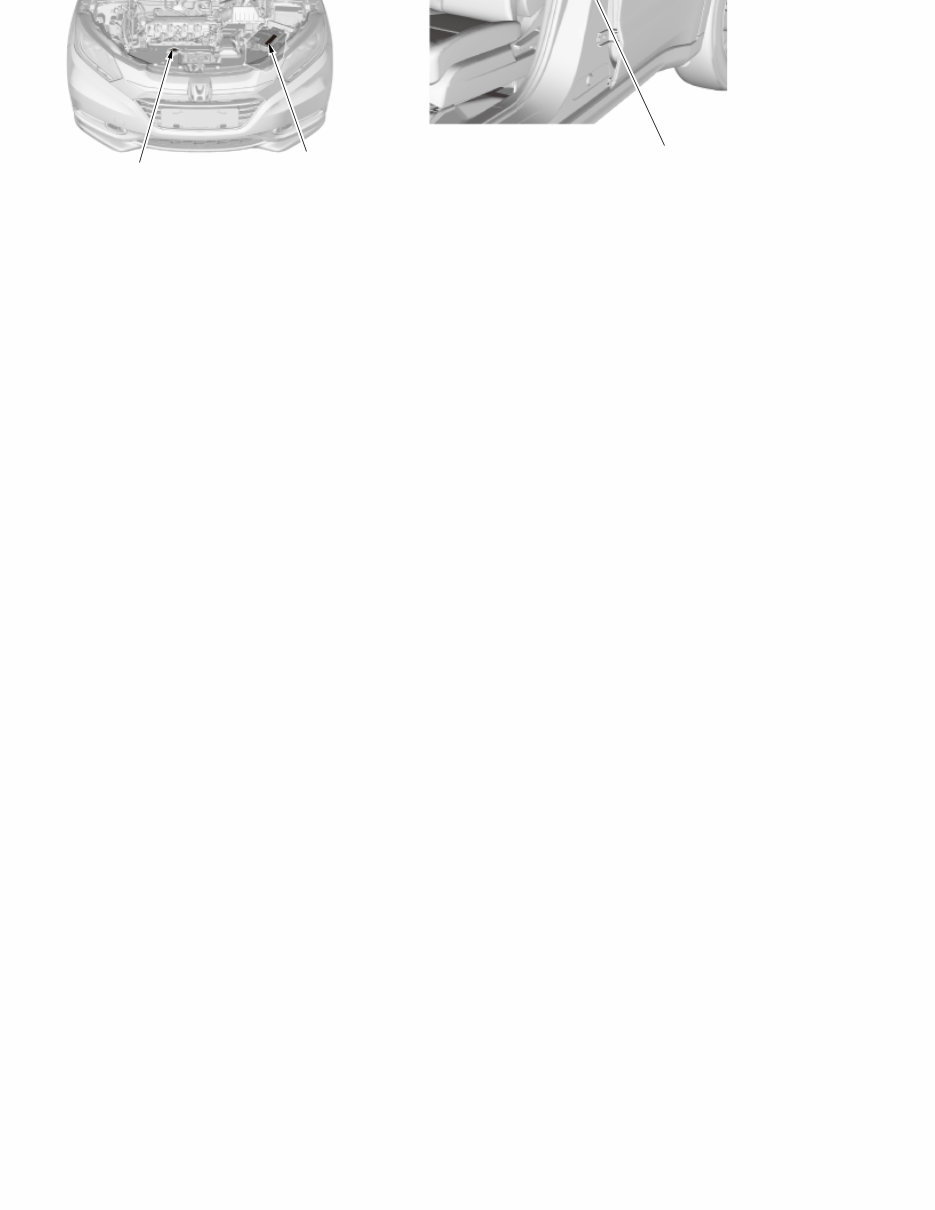

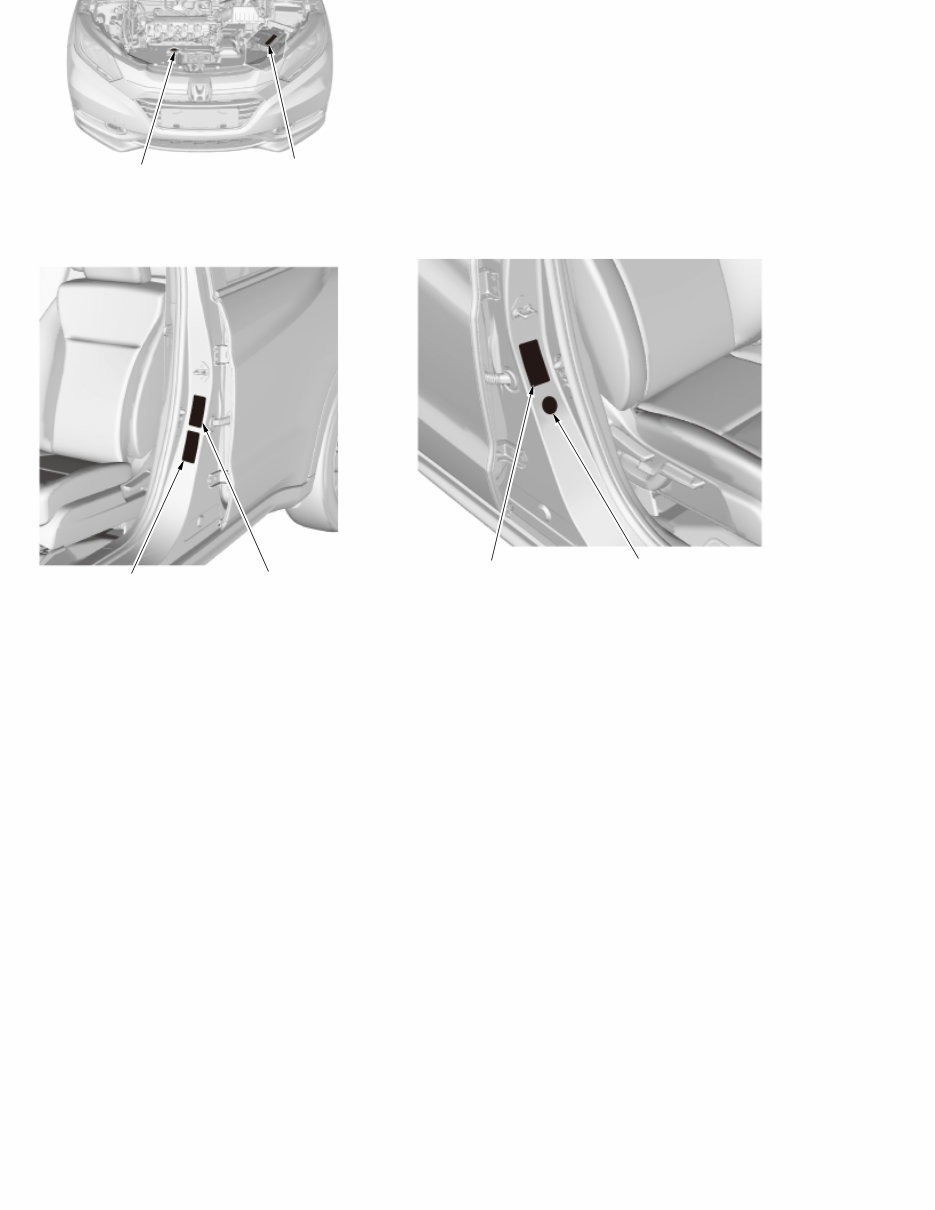

Driver’s Doorjamb: Passenger’s Doorjamb: RADIATOR CAP DANGER 12 VOLT BATTERY CAUTION SIDE AIRBAG CAUTION TYRE INFORMATION SIDE AIRBAG CAUTION PASSENGER AIRBAG CHILD SEAT CAUTION

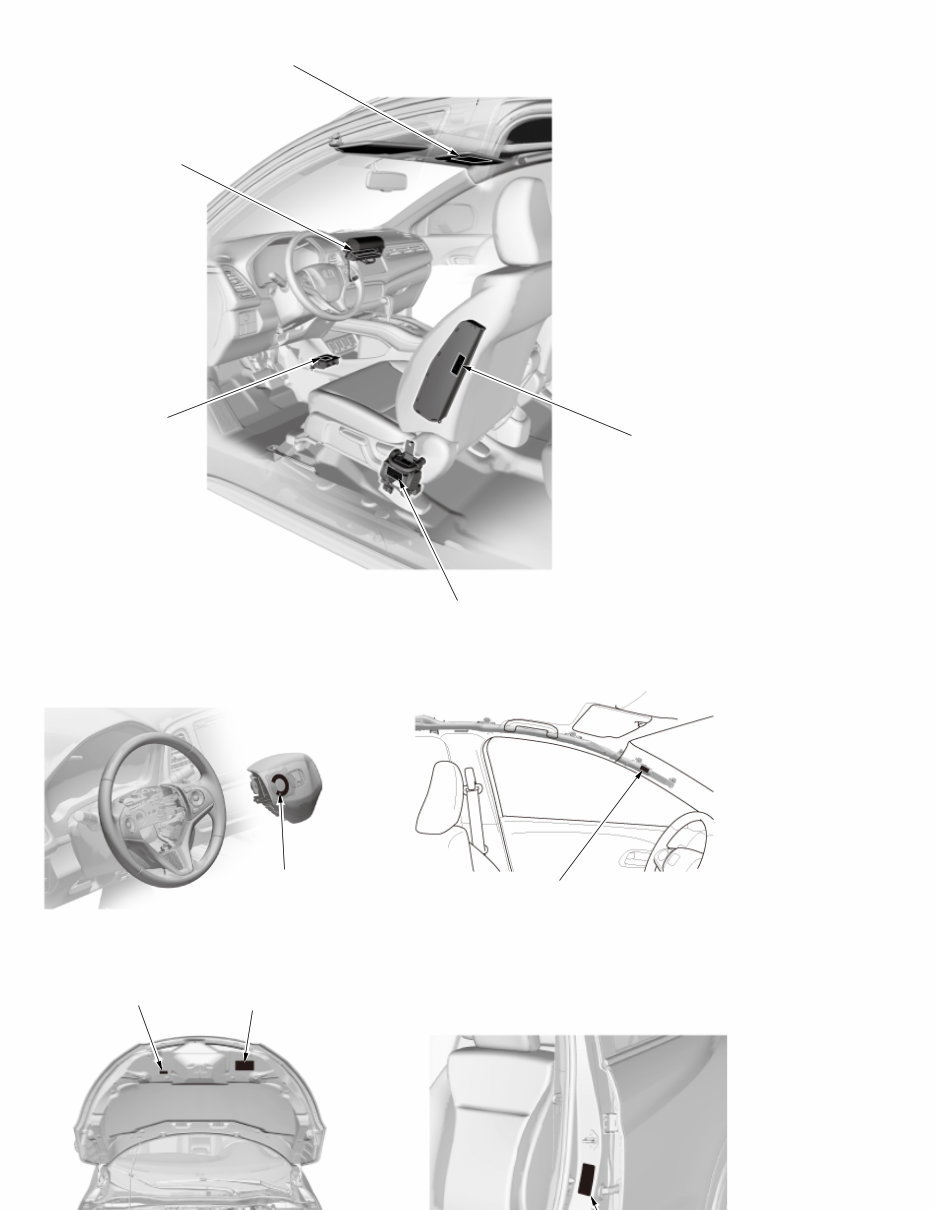

Front Passenger’s Compartment: Steering Wheel: Driver's Compartment: Engine Compartment: Driver’s Doorjamb: SRS WARNING INFORMATION SRS UNIT SEAT BELT TENSIONER CAUTION SIDE AIRBAG MODULE DANGER PASSENGER AIRBAG MODULE DANGER DRIVER AIRBAG MODULE DANGER ROOF-SIDE AIRBAG MODULE DANGER AIR CONDITIONING INFORMATION ENGINE COOLANT INFORMATION

RADIATOR CAP DANGER 12 VOLT BATTERY CAUTION TYRE INFORMATION

Item Measurement Qualification Specification ENGINE Fuel required Regular UNLEADED gasoline with 87 Pump Octane Number or higher (ethanol can be used up to 15% by volume) CLUTCH Type Single plate dry, diaphragm spring MANUAL TRANSMISSION Type Synchronized, six-speed forward, one reverse Primary reduction Direct 1:1 Gear ratio 1st 3.642 2nd 1.884 3rd 1.361 4th 1.023 5th 0.829 6th 0.686 Reverse 3.673 Final reduction Type Single helical gear Gear ratio 4.705 CVT Type Electronically-controlled continuously variable transmission, multi plate wet sump, hydraulic Primary reduction Direct 1:1 Gear ratio Low－High 2.526－0.408 Reverse 2.760－1.382 Final reduction Type Single helical gear Gear ratio 5.435 STEERING Type Rack and pinion with electrical power-assisted Overall, ratio 13.92 Turns, lock-to-lock 2.71 Steering wheel diameter 370 mm (14.57 in) SUSPENSION Type Front McPherson strut with stabilizer, coil spring Rear Torsion beam, coil spring Shock absorber Front and rear Telescopic, hydraulic, nitrogen gas-filled TIRES Size See tire information label attached to driver's doorjamb. BRAKES Type of service brake Front Power-assisted self-adjusting ventilated disc Rear Power-assisted self-adjusting solid disc Type of parking brake Electric Parking Brake AIR CONDITIONING Compressor Type Swash plate Capacity 110.1 mL (6.72 cu in)/rev Maximum speed 7,600 rpm Lubricant capacity 70－82 mL (2 1/3－2 3/4 fl oz) Lubricant type DENSO ND-OIL 8 Condenser Type Corrugated fin Evaporator Type Corrugated fin Blower Type Stabilized swirling flow Motor type 220 W/12 V Speed control (without climate control) 4-speed Speed control (with climate control) Infinitely variable Maximum capacity 450 m 3 (15,892 cu ft)/h Temperature control Air-mix type Compressor clutch Type Dry, single plate, poly V-belt drive Electrical power consumption at 68 °F (20 °C) 40 W maximum at 12 V Refrigerant Type HFC-134a (R-134a) Capacity 405－455 g (14.29－16.05 oz) ELECTRICAL RATINGS 12 volt battery 12 V－47 Ah/20 HR (12 V-38 Ah/5 HR) Fuses 12 volt battery terminal fuse box 100A, 80 A, 70 A Under-hood fuse/relay box 30 A, 20 A, 15 A, 10 A, 7.5 A Under-dash fuse/relay box 20 A, 15 A, 10 A, 7.5 A Auxiliary under- dash fuse box A 70 A, 50 A, 40 A, 30 A, 20 A, 10 A, 7.5 A

Item Measurement Qualification Specification Light bulbs Headlight low/high beam 12 V－60/55 W (HB2) Front turn signal lights/front parking light 12 V－28/8 W Front side maker light 12 V－5 W Side turn signal lights LED Rear turn signal lights 12 V－21 W (Amber) Front fog lights 12 V－35 W (H8) Brake lights/taillights LED Rear side maker light LED High mount brake light LED Back-up light 12 V－16 W License plate lights 12 V- 5 W Ceiling light 12 V－8 W Front individual map lights 12 V－8 W Cargo area light 12 V－5 W Console box light LED Vanity mirror light 12 V－1.8 W

Item Measurement Qualification Specification ENGINE Fuel required Regular UNLEADED petrol with 91 Research Octane Number or higher CLUTCH Type Single plate dry, diaphragm spring MANUAL TRANSMISSION Type Synchronized, six-speed forward, one reverse Primary reduction Direct 1:1 Gear ratio 1st 3.642 2nd 1.884 3rd 1.361 4th 1.023 5th 0.829 6th 0.686 Reverse 3.673 Final reduction Type Single helical gear Gear ratio 4.705 CVT Type Electronically-controlled continuously variable transmission, multi plate wet sump, hydraulic Primary reduction Direct 1:1 Gear ratio Low－High 2.526－0.408 Reverse 2.760－1.382 Final reduction Type Single helical gear Gear ratio 5.435 STEERING Type Rack and pinion with electrical power-assisted Overall, ratio 14.32 Turns, lock-to-lock 2.79 Steering wheel diameter 370 mm (14.57 in) SUSPENSION Type Front McPherson strut with stabilizer, coil spring Rear Torsion beam, coil spring Shock absorber Front and rear Telescopic, hydraulic, nitrogen gas-filled TIRES Size See tire information label attached to driver's doorjamb. BRAKES Type of service brake Front Power-assisted self-adjusting ventilated disc Rear Power-assisted self-adjusting solid disc Type of parking brake Electric Parking Brake AIR CONDITIONING Compressor Type Swash plate Capacity 110.1 mL (6.72 cu in)/rev Maximum speed 7,600 rpm Lubricant capacity 70－82 mL (2 1/3－2 3/4 fl oz) Lubricant type DENSO ND-OIL 8 Condenser Type Corrugated fin Evaporator Type Corrugated fin Blower Type Stabilized swirling flow Motor type 220 W/12 V Speed control (without climate control) 4-speed Speed control (with climate control) Infinitely variable Maximum capacity 450 m 3 (15,892 cu ft)/h Temperature control Air-mix type Compressor clutch Type Dry, single plate, poly V-belt drive Electrical power consumption at 68 °F (20 °C) 40 W maximum at 12 V Refrigerant Type HFC-134a (R-134a) Capacity 405－455 g (14.29－16.05 oz) ELECTRICAL RATINGS 12 volt battery 12 V－47 Ah/20 HR (12 V-38 Ah/5 HR) Fuses 12 volt battery terminal fuse box 100 A, 80 A, 70 A Under-hood fuse/relay box 30 A, 20 A, 15 A, 10 A, 7.5 A Under-dash fuse/relay box 20 A, 15 A, 10 A, 7.5 A Auxiliary under- dash fuse box A 70 A, 50 A, 40 A, 30 A, 20 A, 10 A, 7.5 A

Item Measurement Qualification Specification Light bulbs Headlight low/high beam 12 V－60/55 W (HB2) Front turn signal lights/front parking light 12 V－28/8 W Front side maker light 12 V－5 W Side turn signal lights LED Rear turn signal lights 12 V－21 W (Amber) Front fog lights 12 V－35 W (H8) Brake lights/taillights LED Rear side maker light LED High mount brake light LED Back-up light 12 V－16 W License plate lights 12 V- 5 W Ceiling light 12 V－8 W Front individual map lights 12 V－8 W Cargo area light 12 V－5 W Console box light LED Vanity mirror light 12 V－1.8 W

Item Measurement Qualification Specification CLUTCH Type Single plate dry, diaphragm spring MANUAL TRANSMISSION Type Synchronized, six-speed forward, one reverse Primary reduction Direct 1:1 Gear ratio 1st 3.642 2nd 1.884 3rd 1.361 4th 1.023 5th 0.829 6th 0.686 Reverse 3.673 Final reduction Type Single helical gear Gear ratio 4.705 CVT Type Electronically-controlled continuously variable transmission, multi plate wet sump, hydraulic Primary reduction Direct 1:1 Gear ratio Low－High 2.526－0.408 Reverse 2.760－1.382 Final reduction Type Single helical gear Gear ratio 5.435 STEERING Type Rack and pinion with electrical power-assisted Overall, ratio 14.32 Turns, lock-to-lock 2.79 Steering wheel diameter 370 mm (14.57 in) SUSPENSION Type Front McPherson strut with stabilizer, coil spring Rear Torsion beam, coil spring Shock absorber Front and rear Telescopic, hydraulic, nitrogen gas-filled TIRES Size See tire information label attached to driver's doorjamb. BRAKES Type of service brake Front Power-assisted self-adjusting ventilated disc Rear Power-assisted self-adjusting solid disc Type of parking brake Electric Parking Brake AIR CONDITIONING Compressor Type Swash plate Capacity 110.1 mL (6.72 cu in)/rev Maximum speed 7,600 rpm Lubricant capacity 70－82 mL (2 1/3－2 3/4 fl oz) Lubricant type DENSO ND-OIL 8 Condenser Type Corrugated fin Evaporator Type Corrugated fin Blower Type Stabilized swirling flow Motor type 220 W/12 V Speed control (without climate control) 4-speed Speed control (with climate control) Infinitely variable Maximum capacity 450 m 3 (15,892 cu ft)/h Temperature control Air-mix type Compressor clutch Type Dry, single plate, poly V-belt drive Electrical power consumption at 68 °F (20 °C) 40 W maximum at 12 V Refrigerant Type HFC-134a (R-134a) Capacity 405－455 g (14.29－16.05 oz) ELECTRICAL RATINGS 12 volt battery 12 V－47 Ah/20 HR (12 V-38 Ah/5 HR) Fuses 12 volt battery terminal fuse box 100 A, 80 A, 70 A Under-hood fuse/relay box 30 A, 20 A, 15 A, 10 A, 7.5 A Under-dash fuse/relay box 20 A, 15 A, 10 A, 7.5 A Auxiliary under- dash fuse box A 70 A, 50 A, 40 A, 30 A, 20 A, 10 A, 7.5 A Light bulbs Headlight high/low beam 12 V－60/55 W (HB2)
