2013 Honda CR-V Service & Repair Manual

Service Information The service and repair information contained in this manual is intended for use by qualified, professional technicians. Attempting service or repairs without the proper training, tools, and equipment could cause injury to you or others. It could also damage the vehicle or create an unsafe condition. This manual describes the proper methods and procedures for doing service, maintenance, and repairs. Some procedures require the use of specially designed tools and dedicated equipment. Any person who intends to use a replacement part, a service procedure, or a tool that is not recommended by Honda, must determine the risks to their personal safety and the safe operation of the vehicle. If you need to replace any parts, always use the correct parts supplied by a Honda dealer. Never use inferior quality parts. FOR YOUR CUSTOMER'S SAFETY Proper service and maintenance are essential to the customer's safety and the reliability of the vehicle. Any error or oversight while servicing a vehicle can result in faulty operation, damage to the vehicle, or injury to others. Improper service or repairs can create an unsafe condition that can cause your customers or others to be seriously hurt or killed. Follow the procedures and precautions in this manual and other service materials carefully. FOR YOUR SAFETY Because this manual is intended for the professional service technician, we do not provide warnings about many basic shop safety practices (for example, hot parts －wear gloves). If you have not received shop safety training or do not feel confident about your knowledge of safe servicing practices, we recommend that you do not attempt to do the procedures described in this manual. Failure to properly follow instructions and precautions can cause you to be seriously hurt or killed. Follow the procedures and precautions in this manual carefully. Some of the most important general service safety precautions follow this text. However, we cannot warn you of every conceivable hazard that can arise in doing service and repair procedures. Only you can decide whether or not you should do a given task. IMPORTANT SAFETY PRECAUTIONS Make sure you have a clear understanding of all basic shop safety practices, and that you are wearing appropriate clothing and using safety equipment. When doing any service task, be especially careful of the following: － Read all of the instructions before you begin, and make sure you have the tools, the replacement or repair parts, and the skills required to do the tasks safely and completely. － Protect your eyes by using proper safety glasses, goggles, or face shields anytime you hammer, drill, grind, or work around pressurized air or liquids and springs, or other stored-energy components. If there is any doubt, put on eye protection. － Use other protective wear when necessary, such as gloves or safety shoes. Handling hot or sharp parts can cause severe burns or cuts. Before you grab something that looks like it can hurt you, stop and put on gloves. － Protect yourself and others whenever you have the vehicle up in the air. Anytime you raise the vehicle, either with a lift or a jack, make sure that it is always securely supported. Use safety stands if needed. － Protect yourself by wearing an approved welding helmet, gloves, and safety shoes anytime you are welding. You can receive burns from hot parts; allow the parts to cool before working in that area. － Protect yourself from paints and harmful chemicals by wearing an approved respirator, eye protection, and gloves whenever you are painting. Spray paint only in an approved paint booth that is well ventilated. Make sure the engine is off before you begin any servicing procedures, unless the instruction tells you to do otherwise. This will help eliminate several potential hazards: － Carbon monoxide poisoning from engine exhaust. Be sure there is adequate ventilation whenever you run the engine. － Burns from hot parts or coolant. Let the engine and exhaust system cool before working in those areas. － Injury from moving parts. If the instruction tells you to run the engine, be sure your hands, fingers, and clothing are out of the way. Gasoline vapors and hydrogen gases from batteries are explosive. To reduce the possibility of a fire or explosion, be careful when working around gasoline or batteries: － Use only a nonflammable solvent, not gasoline, to clean parts. － Never drain or store gasoline in an open container. － Keep all cigarettes, sparks, and flames away from the battery and all fuel-related parts.

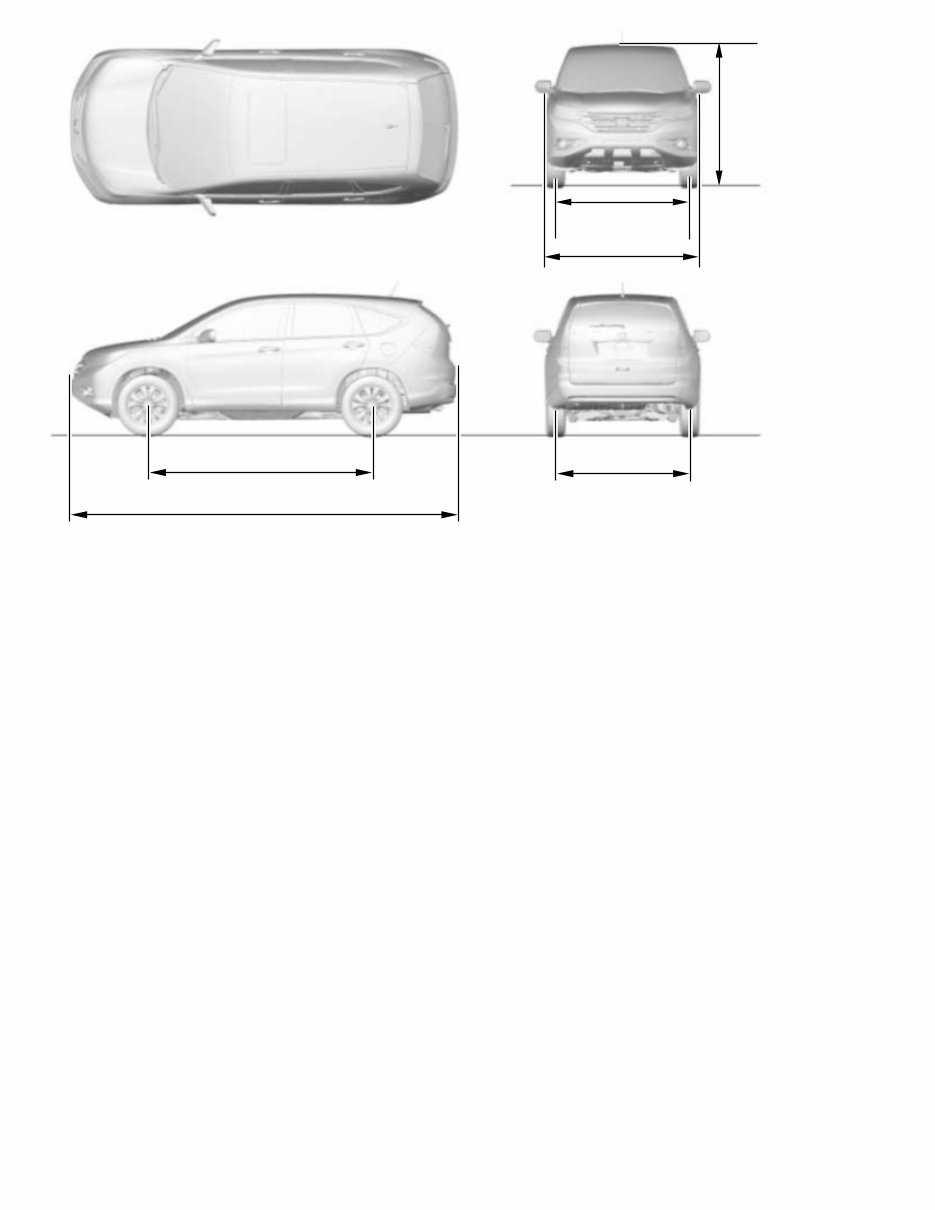

4,545 mm (178.9 in) 1,820 mm (71.6 in) 1,655 mm (65.1 in) 2,620 mm (103.1 in) 1,565 mm (61.6 in) 1,565 mm (61.6 in)

4,530 mm (178.3 in) 1,820 mm (71.6 in) 1,654 mm (65.1 in)* 2 2,620 mm (103.2 in) 1,565 mm (61.6 in)* 4 1,561 mm (61.5 in)* 3 1,562 mm (61.5 in)* 3 * 1 : 2WD * 2 : AWD 1,644 mm (64.7 in)* 1 * 3 : LX(AWD) 1,568 mm (61.7 in)* 5 * 4 : LX(2WD), EX(2WD), EX-L(AWD) * 5 : EX(2WD), EX-L(2WD) 1,567 mm (61.7 in)* 5 1,565 mm (61.6 in)* 4

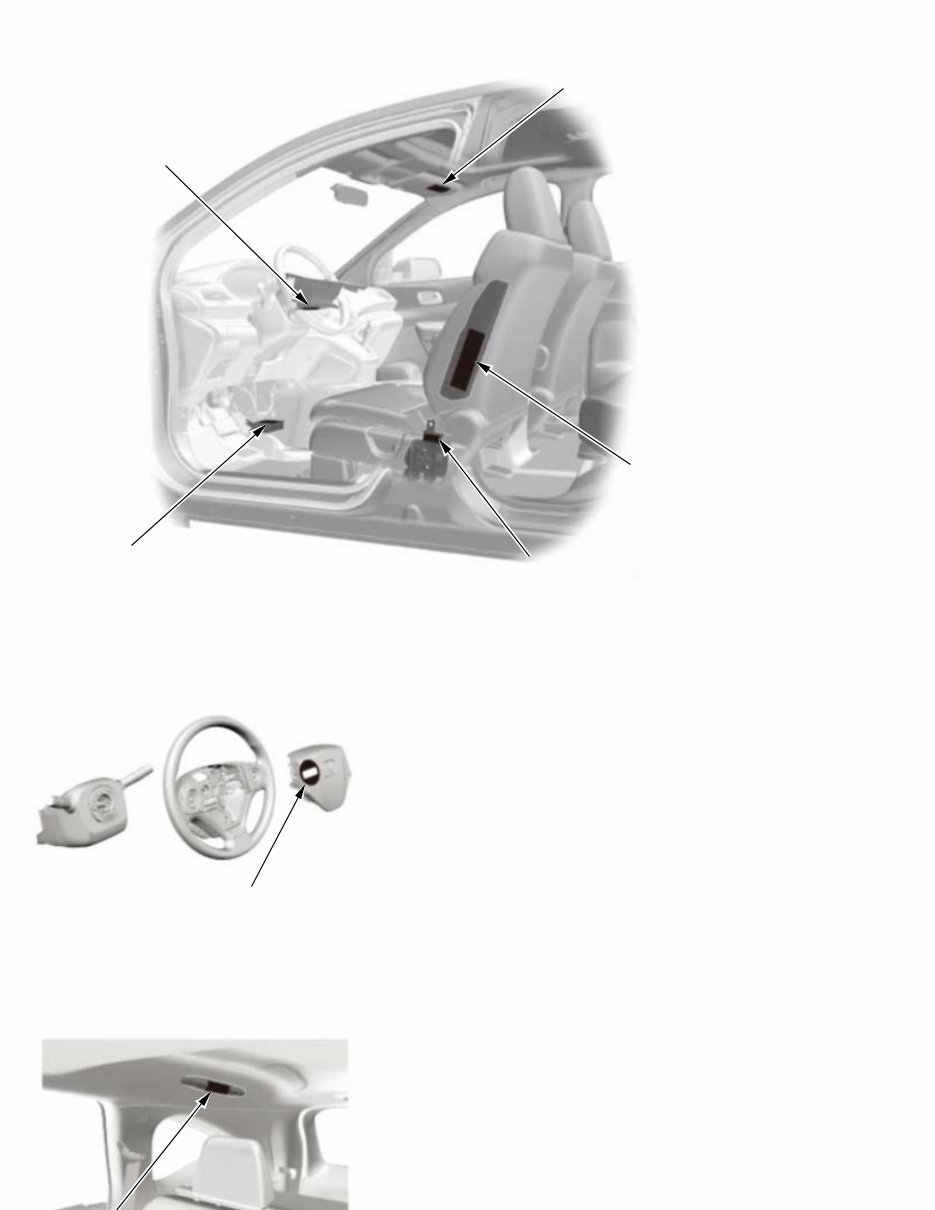

Front Passenger’s Compartment: Steering Wheel: Rear Passenger’s Compartment : MONITOR NOTICE SEAT BELT TENSIONER WARNING SIDE AIRBAG MODULE DANGER PASSENGER AIRBAG MODULE DANGER SRS WARNING INFORMATION DRIVER AIRBAG MODULE DANGER

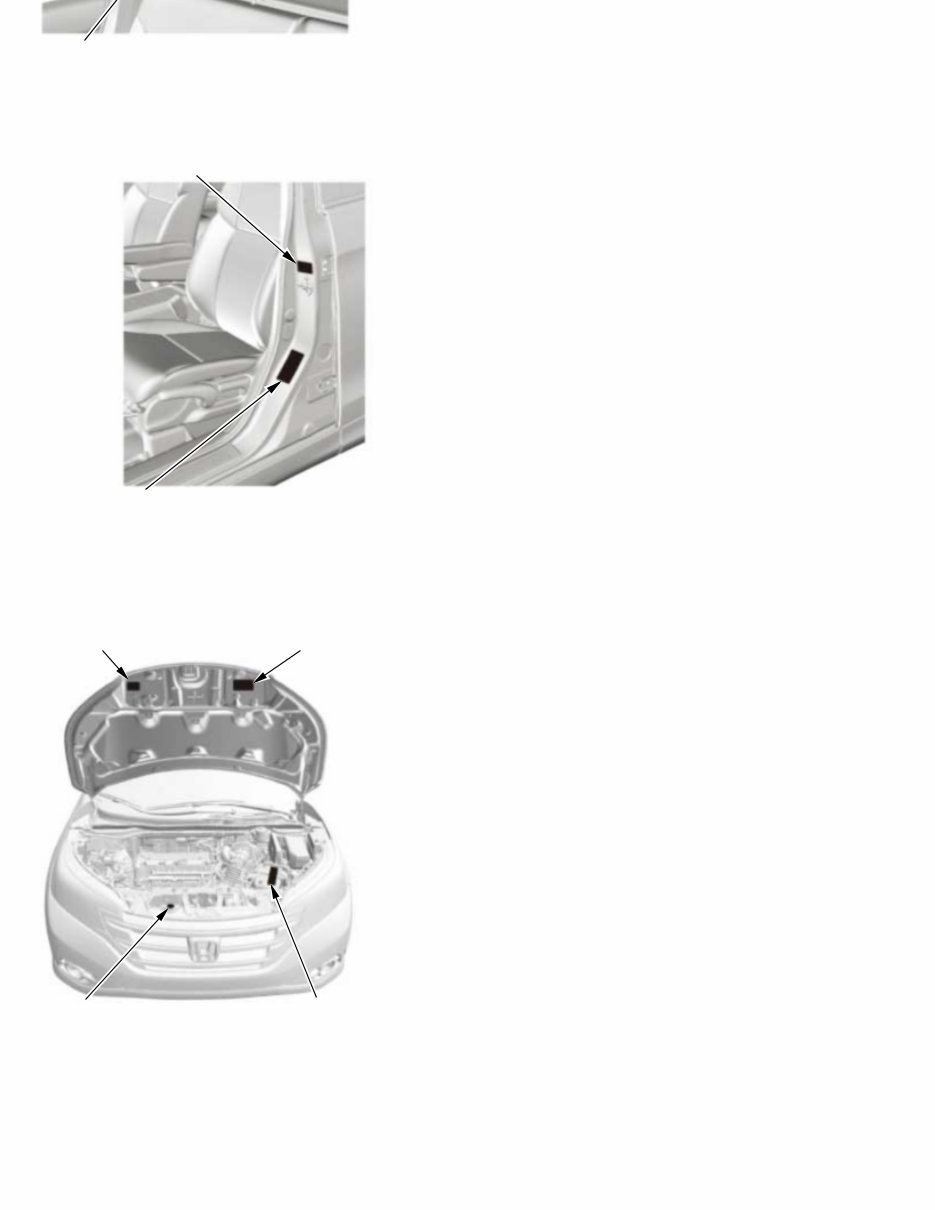

Doorjamb Area : Engine Compartment : ROOF-SIDE AIRBAG MODULE DANGER TIRE INFORMATION Located on driver's doorjamb SIDE AIRBAG CAUTION Located on driver's and passenger's doorjambs AIR CONDITIONING INFORMATION ENGINE COOLANT INFORMATION RADIATOR CAP DANGER BATTERY DANGER

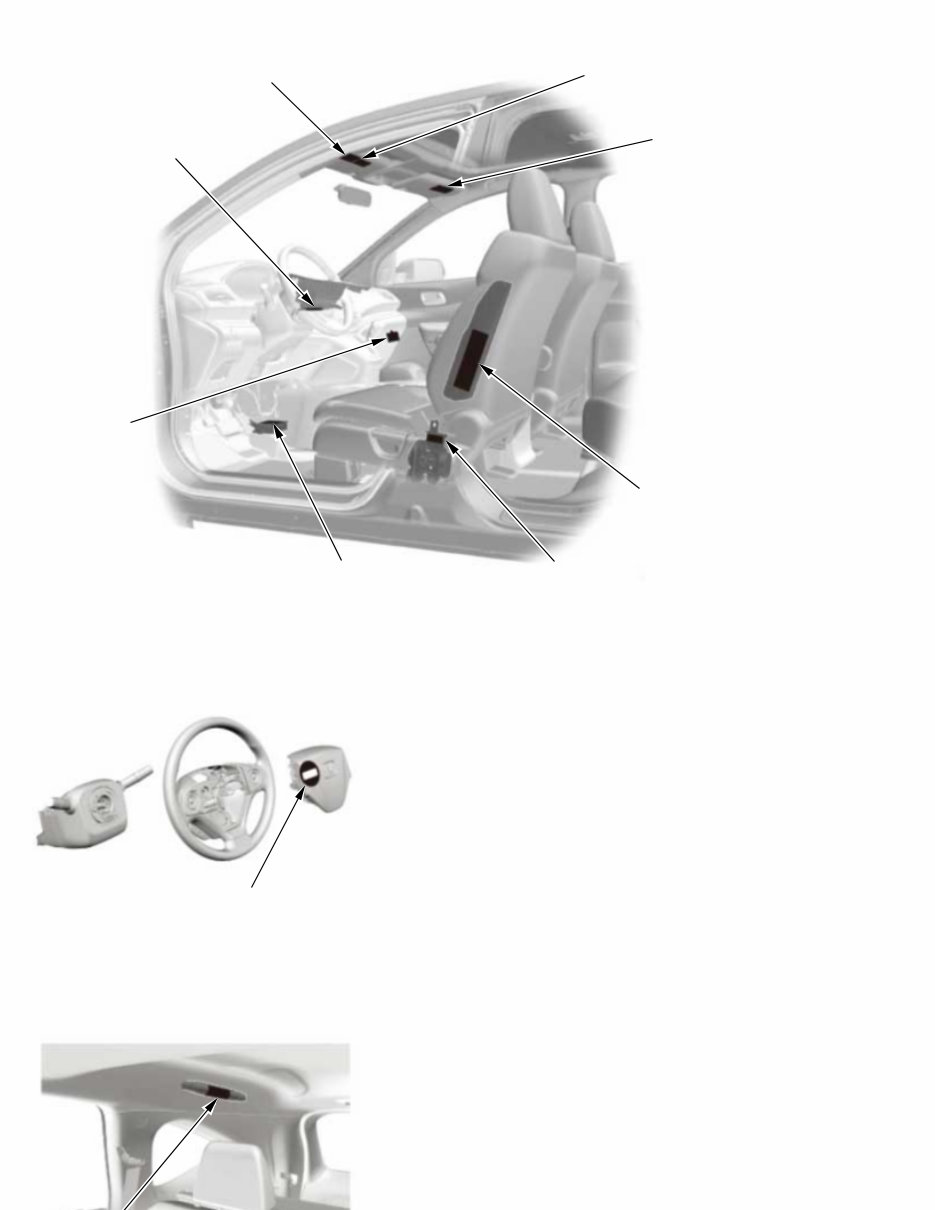

Front Passenger’s Compartment: Steering Wheel: Rear Passenger’s Compartment : SRS WARNING INFORMATION MONITOR NOTICE SEAT BELT TENSIONER WARNING SIDE AIRBAG MODULE DANGER PASSENGER AIRBAG MODULE DANGER PASSENGER AIRBAG WARNING TAG (CHILD SEAT) USA models HIGHER ROLLOVER RISK WARNING USA models SRS WARNING INFORMATION DRIVER AIRBAG MODULE DANGER

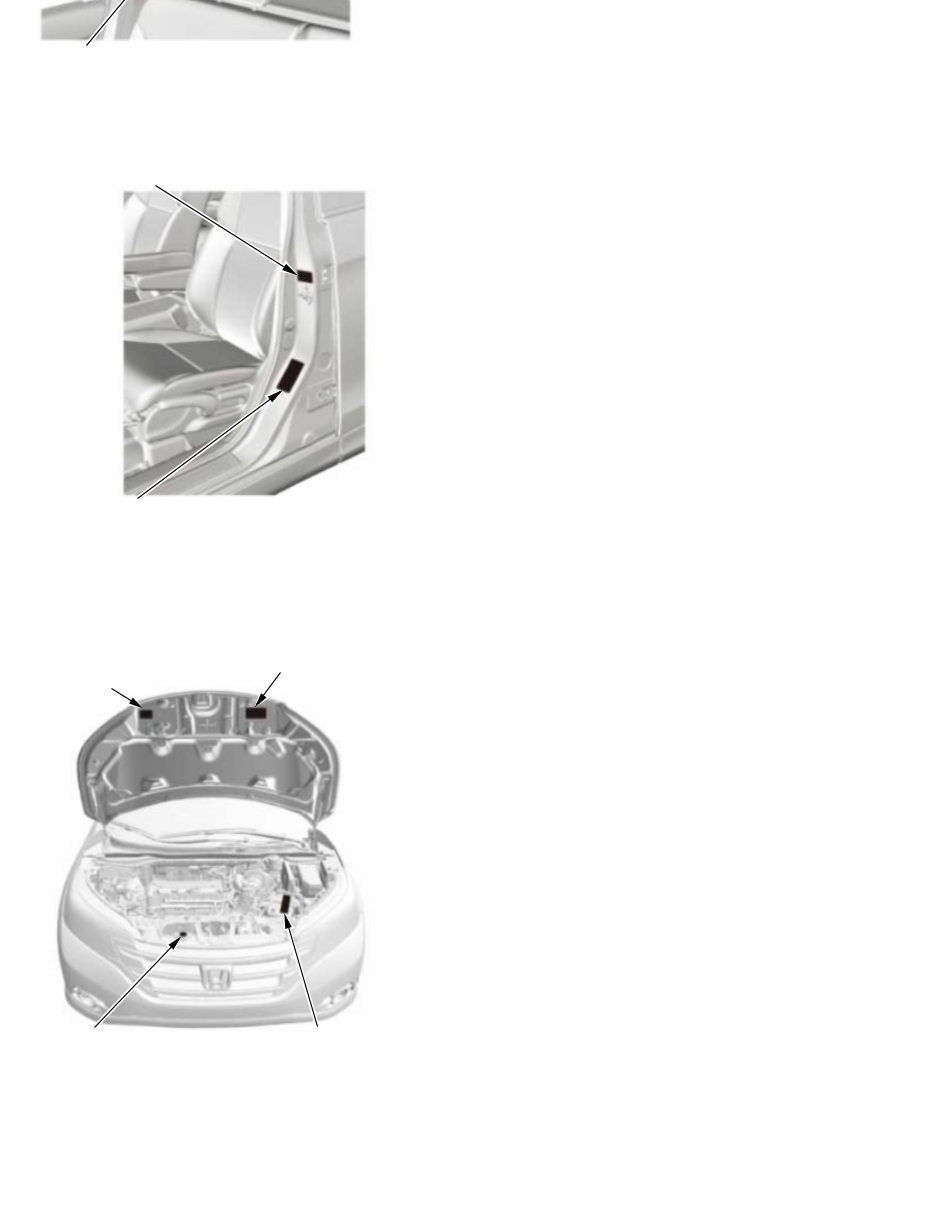

Doorjamb Area : Engine Compartment : ROOF-SIDE AIRBAG MODULE DANGER TIRE INFORMATION Located on driver's doorjamb SIDE AIRBAG CAUTION Located on driver's and passenger's doorjambs AIR CONDITIONING INFORMATION EMISSION CONTROL INFORMATION ENGINE COOLANT INFORMATION, and I/M TESTING INFORMATION (AWD model) RADIATOR CAP DANGER BATTERY DANGER

Item Measurement Qualification Specification DIMENSIONS Overall length 4,530 mm (178.3 in) Overall width 1,820 mm (71.6 in) Overall height 2WD 1,644 mm (64.7 in) AWD 1,654 mm (65.1 in) Wheelbase 2,620 mm (103.2 in) Track Front EX(2WD), EX- L(2WD) 1,567 mm (61.7 in) LX(2WD), EX(AWD), EX-L(AWD) 1,565 mm (61.6 in) LX(AWD) 1,562 mm (61.5 in) Rear EX(2WD), EX- L(2WD) 1,568 mm (61.7 in) LX(2WD), EX(AWD), EX-L(AWD) 1,565 mm (61.6 in) LX(AWD) 1,561 mm (61.5 in) Seating capacity Five (5) WEIGHT Gross Vehicle Weight Rating (GVWR) 1,965－2,070 kg (4,332－4,564 lbs) ENGINE Type Water-cooled, 4-stroke DOHC i-VTEC gasoline engine Cylinder arrangement Inline 4-cylinder, transverse Bore and stroke 87.0 x 99.0 mm (3.425 x 3.898 in) Displacement 2,354 cm 3 (143.7 cu in) Compression ratio 10.0 Valve train Chain drive, DOHC i-VTEC 4 valves per cylinder Lubrication system Forced, wet sump, with trochoid pump Fuel required Regular UNLEADED gasoline with 87 Pump Octane Number or higher STARTER Type Gear reduction Nominal output 1.6kW Nominal voltage 12 V Hour rating 30 seconds Direction of rotation Clockwise as viewed from drive end AUTOMATIC TRANSMISSION Type Electronically-controlled automatic, five-speed forward, one reverse, three- element torque converter with lock-up clutch Primary reduction Direct 1:1 Gear ratio (AWD) 1st 2.786 2nd 1.614 3rd 1.082 4th 0.773 5th 0.566 Reverse 2.000 Gear ratio (2WD) 1st 2.652 2nd 1.517 3rd 1.037 4th 0.738 5th 0.537 Reverse 2.000 Transfer gear Type Single helical gear Gear ratio 0.875 Differential final gears Type Single helical gear Gear ratio 4.438 STEERING Type Electrical power-assisted rack and pinion Overall ratio 16.66 Turns, lock-to-lock 3.16 Steering wheel diameter 365－375 mm (14.37－14.76 in) SUSPENSION Type Front MacPherson strut with stabilizer, coil spring Rear Re-active link double wishbone with stabilizer, coil spring Shock absorber Front and rear Telescopic, hydraulic, nitrogen gas-filled TIRES Size Front and rear Except LX 225/65R17 102T LX 215/70R16 100S Spare Produced in Japan T155/90D17 101M Except produced in Japan T165/80D17 104M BRAKES Type of service brake Front Power-assisted self-adjusting ventilated disc Rear Power-assisted self-adjusting solid disc Type of parking brake Mechanical actuating, rear wheels AIR CONDITIONING Compressor Type Scroll Capacity 97.9 mL (5.97 cu in)/rev Maximum speed 10,000 rpm Lubricant capacity 80 mL (2 2/3 fl oz)

Item Measurement Qualification Specification Lubricant type SP-10 Condenser Type Corrugated fin Evaporator Type Corrugated fin Blower Type Stabilized swirling flow Motor type 210 W/12 V Speed control Infinitely variable Maximum capacity 490 m 3 (17.302 cu ft)/h Temperature control Air-mix type Compressor clutch Type Dry, single plate, poly V-belt drive Electrical power consumption at 68 °F (20 °C) 42 W maximum at 12 V Refrigerant Type HFC-134a (R-134a) Capacity 385－435 g (13.6－15.4 oz) ELECTRICAL RATINGS Battery Produced in Japan 12 V－47 Ah/20 HR (12 V－36 Ah/5 HR) Except produced in Japan 12 V－47 Ah/20 HR (12 V－38 Ah/5 HR) Fuses Under-hood fuse/relay box 100 A, 70 A, 60 A, 50 A, 40 A, 30 A, 20 A, 15 A, 10 A, 7.5 A Under-dash fuse/relay box 20 A, 15 A, 10 A, 7.5 A Light bulbs Headlight high beam 12 V－60 W Headlight low beam 12 V－55 W Fog lights 12 V－55 W Front side marker lights 12 V－3 CP Front turn signal lights/parking lights 12 V－24/2.2 CP Rear turn signal lights 12 V－21W Amber color Lower rear side marker lights/brake lights/taillights 12 V－21/5 W Upper rear side marker lights 12 V－3 CP High mount brake light LED Back-up lights 12 V－21 W License plate light 12 V－3 CP Ceiling lights 12 V－8 W Individual map light 12 V－8 W Cargo area light 12 V－8 W Gauge lights LED (non-replaceable) Ambient light LED Indicator lights LED, 14 V－1.12 W

Item Measurement Qualification Specification DIMENSIONS Overall length 4,530 mm (178.3 in) Overall width 1,820 mm (71.6 in) Overall height 2WD 1,644 mm (64.7 in) AWD 1,654 mm (65.1 in) Wheelbase 2,620 mm (103.2 in) Track Front EX(2WD), EXL(2WD) 1,567 mm (61.7 in) LX(2WD), EX(AWD), EXL(AWD) 1,565 mm (61.6 in) LX(AWD) 1,562 mm (61.5 in) Rear EX(2WD), EXL(2WD) 1,568 mm (61.7 in) LX(2WD), EX(AWD), EXL(AWD) 1,565 mm (61.6 in) LX(AWD) 1,561 mm (61.5 in) Seating capacity Five (5) WEIGHT Gross Vehicle Weight Rating (GVWR) 1,965－2,070 kg (4,332－4,564 lbs) ENGINE Type Water-cooled, 4-stroke DOHC i-VTEC gasoline engine Cylinder arrangement Inline 4-cylinder, transverse Bore and stroke 87.0 x 99.0 mm (3.425 x 3.898 in) Displacement 2,354 cm 3 (143.7 cu in) Compression ratio 10.0 Valve train Chain drive, DOHC i-VTEC 4 valves per cylinder Lubrication system Forced, wet sump, with trochoid pump Fuel required Regular UNLEADED gasoline with 87 Pump Octane Number or higher STARTER Type Gear reduction Nominal output 1.6kW Nominal voltage 12 V Hour rating 30 seconds Direction of rotation Clockwise as viewed from drive end AUTOMATIC TRANSMISSION Type Electronically-controlled automatic, five-speed forward, one reverse, three- element torque converter with lock-up clutch Primary reduction Direct 1:1 Gear ratio (AWD) 1st 2.786 2nd 1.614 3rd 1.082 4th 0.773 5th 0.566 Reverse 2.000 Gear ratio (2WD) 1st 2.652 2nd 1.517 3rd 1.037 4th 0.738 5th 0.537 Reverse 2.000 Transfer gear Type Single helical gear Gear ratio 0.875 Differential final gears Type Single helical gear Gear ratio 4.438 STEERING Type Electrical power-assisted rack and pinion Overall ratio 16.66 Turns, lock-to-lock 3.16 Steering wheel diameter 365－375 mm (14.37－14.76 in) SUSPENSION Type Front MacPherson strut with stabilizer, coil spring Rear Re-active link double wishbone with stabilizer, coil spring Shock absorber Front and rear Telescopic, hydraulic, nitrogen gas-filled TIRES Size Front and rear Except LX 225/65R17 102T LX 215/70R16 100S Spare T165/80D17 104M BRAKES Type of service brake Front Power-assisted self-adjusting ventilated disc Rear Power-assisted self-adjusting solid disc Type of parking brake Mechanical actuating, rear wheels AIR CONDITIONING Compressor Type Scroll Capacity 97.9 mL (5.97 cu in)/rev Maximum speed 10,000 rpm Lubricant capacity 80 mL (2 2/3 fl oz) Lubricant type SP-10 Condenser Type Corrugated fin Evaporator Type Corrugated fin
