2005 GEM Global Electric Motorcars Parts Catalog and Service Repair Workshop Manual

P/N 1010-00159 02-04-04JKS 2005 Year Model Parts Catalog GEM Models GEM E2 - 2 Passenger NEV GEM E4 - 4 Passenger NEV GEM ES - 2 Passenger Short-back NEV GEM EL - 2 Passenger Long-back NEV GEM E2 - 2 Passenger NEV GEM E4 - 4 Passenger NEV GEM ES - 2 Passenger Short-back NEV GEM EL - 2 Passenger Long-back NEV

Disclaimer This document is based on information available at the time of its publication. While efforts have been made to be accurate, the information contained herein does not purport to cover all details or variations. Features may be described herein which are not present in all vehicles. Global Electric Motorcars assumes no obligation of notice to holders of this document with respect to changes subsequently made. Global Electric Motorcars makes no representation or warranty, expressed, implied, or statutory with respect to, and assumes no responsibility for the accuracy, completeness, sufficiency, or usefulness of the information contained herein. No warranties of merchantability or fitness for purpose shall apply. Copyright © 2004, Global Electric Motorcars. All rights reserved. Produced and printed in the USA.

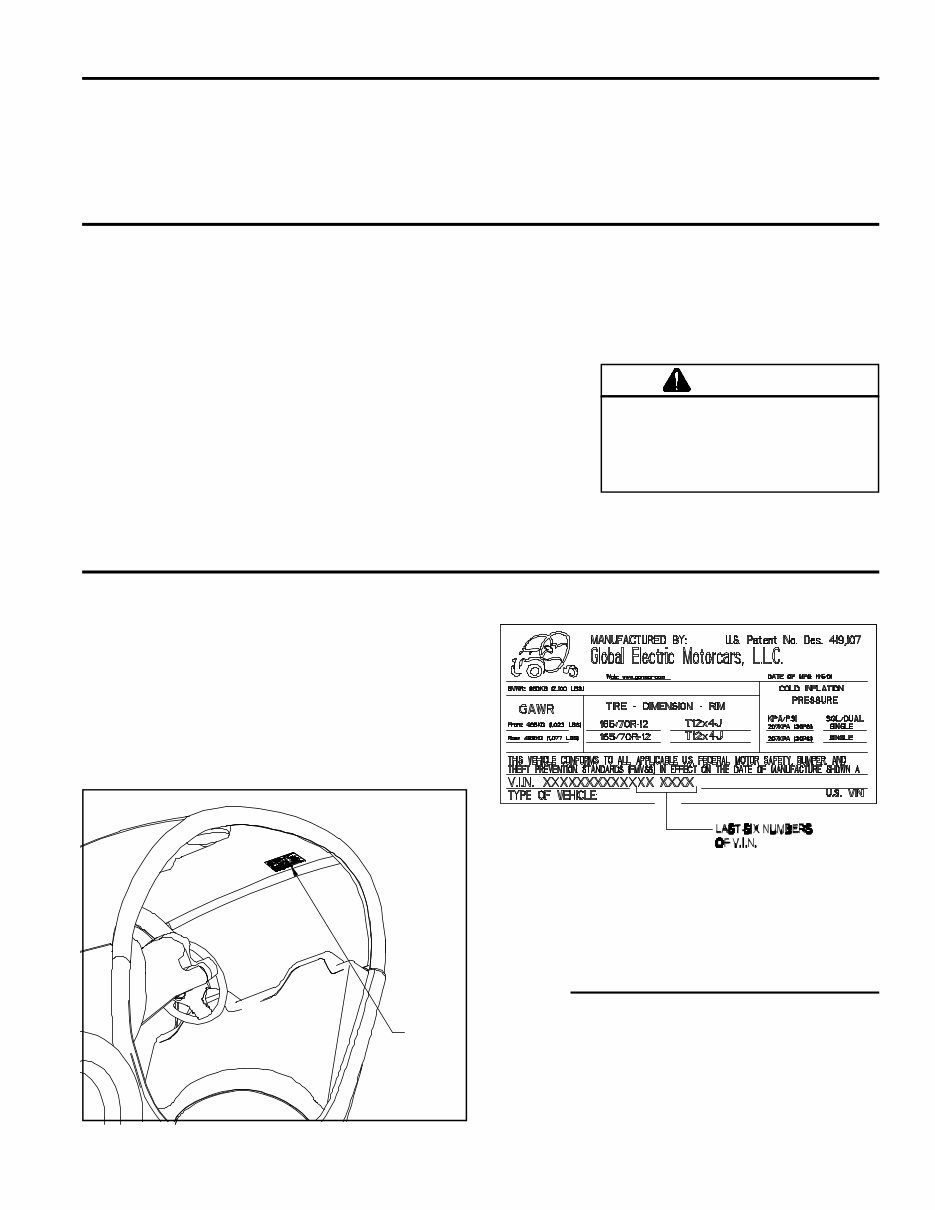

PARTS ORDERING INFORMATION If you need service or parts for your unit: For service assistance or parts, contact your nearest authorized GEM dealer or the factory. Your nearest authorized GEM dealer will need to know the vehicle identification number (V.I.N.) of your vehicle to provide the most efficient service. See below for information on how to identify and record the V.I.N. for your vehicle. REPLACEMENT PARTS Only genuine GEM replacement parts should be used to repair the vehicle. GEM replacement parts are available from your GEM Dealer. To obtain prompt, efficient service, remember to give the Dealer the correct part description and V.I.N. number of the vehicle. When ordering parts for your unit provide the following: 1. The V.I.N. of your vehicle. 2. The PART NUMBER of the part. 3. The PART DESCRIPTION. 4. The QUANTITY needed. V.I.N. PLATE LOCATION Always give your authorized GEM dealer the V.I.N. of your vehicle when ordering parts, requesting service, or any other information. Remember to record the last six digits of your Vehicle Identification Number (V.I.N.) in the space provided below before calling. Use (Fig. # 1 & 2) to locate the V.I.N. plate. We urge using only genuine replacement parts, which meet all the latest requirements. Replacement parts manufactured by others could present safety hazards, even though they may fit on this unit. WARNING V.I.N. Fig. # 2 V.I.N. use last six numbers V.I.N. PLATE Fig. # 1 V.I.N. plate location

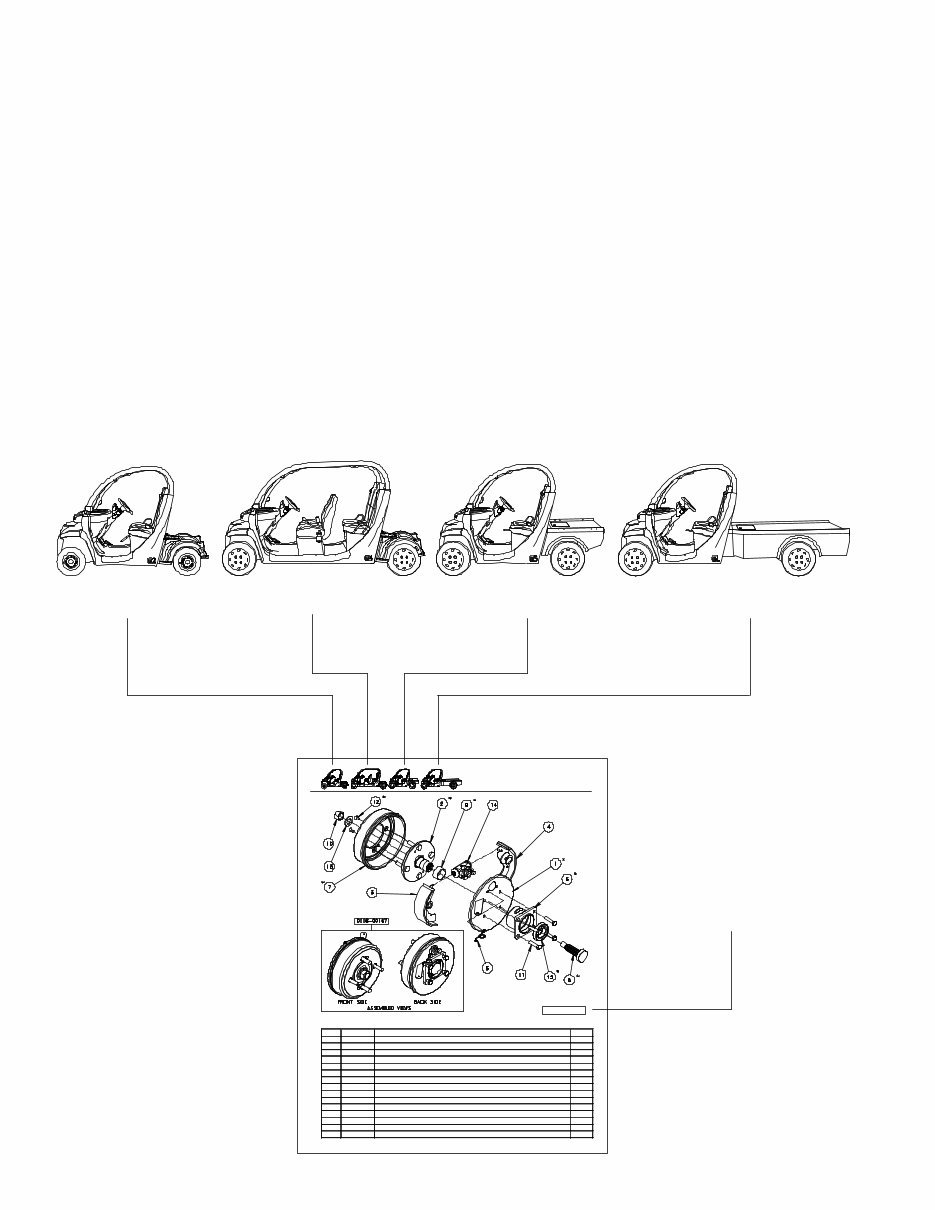

HOW TO USE THIS CATALOG AND LOCATE PARTS This catalog is divided into Item Class Groups in which illustrations for parts of a smiliar function and/or location are published. Option 1: From the contents page of the parts catalog, select the section which would most logically contain the part to be found. When the part is found, then determine if the part is for your model of vehicle by located the correct icon at the top of the page. (See illustration below “Determining if the part is for your model of vehicle”) Option 2: If the part number is known but the applications and/or locations need to be deter- mined, refer to the numerical index. This index shows the Part Number, Description, and Page Numbers that the item is listed. DETERMINING IF THE PART IS FOR YOUR MODEL OF VEHICLE GEM E2 - 2 Pas- senger NEV GEM E4 - 4 Passenger NEV GEM ES - 2 Passenger Short-back NEV GEM EL - 2 Passenger Long- back NEV LXXXX-XXXXX ASSY, WHEEL END KIT - LH REAR ITEM PART NO. DESCRIPTION QTY. 1 * ASSY, BRAKE - LH REAR 1 2 * ASSY, HUB 1 3 0311-00833 SHOE, BRAKE RIGHT 1 4 0311-00834 SHOE, BRAKE LEFT 1 5 0311-00883 SPRING, E-BRAKE RELEASE RH 1 6 * SPINDLE 1 7 * DRUM 1 8 * SHAFT, AXLE 1 9 * TUBE, SPACER - BEARING 1 10 0521-00035 NUT, HEX - TOP LOCK - M16 X 1.5 GRADE 12 1 11 0522-00038 BOLT, HEX - HHCS - M8 X 1.25 X 34.5 GR 8.8 4 12 * SCREW, HEX SOCKET - CNTSK M5 X .8 X 12 LG GR 10.9 2 13 0524-00036 WASHER, FLAT - M16 NARROW 17.52 ID 32 OD 1 14 0611-00203 KIT, CYLINDER - BRAKE - REAR 1 15 * BEARING, ROLLER 1 Designates inter- nal reference number

PARTS ORDER FORM Global Electric Motorcars 1301 39th Street NW # 2 Fargo, ND 58102 PH: 701-232-2500 FAX: 701-446-0108 Order Requested by:___________________________ Date Requested: _______________________ Fax Confirmation to: __________________________ Phone Number _______________________ INVOICE INFORMATION: Bill to: Ship to: Terms: (Circle One ) On Account Visa MC AM EXP Discover Card # ____________________________________ Expiration Date: ________________________ Shipping Terms: (Check One) Minimum shipping/handling of $12.00 Required _________ GROUND (7-10 DAYS) _________ 2-DAY _________ 3-DAY _________ OVERNIGHT _________ Freight Shipment (Minimum Freight Charge of $120.00) Qty Part # Price EA Price Total Warranty Vin # (Last six) SHIPPING INSTRUCTIONS:________________________________________________________________________ SIGNATURE:___________________________________________ DATE: ________________________________ Description
