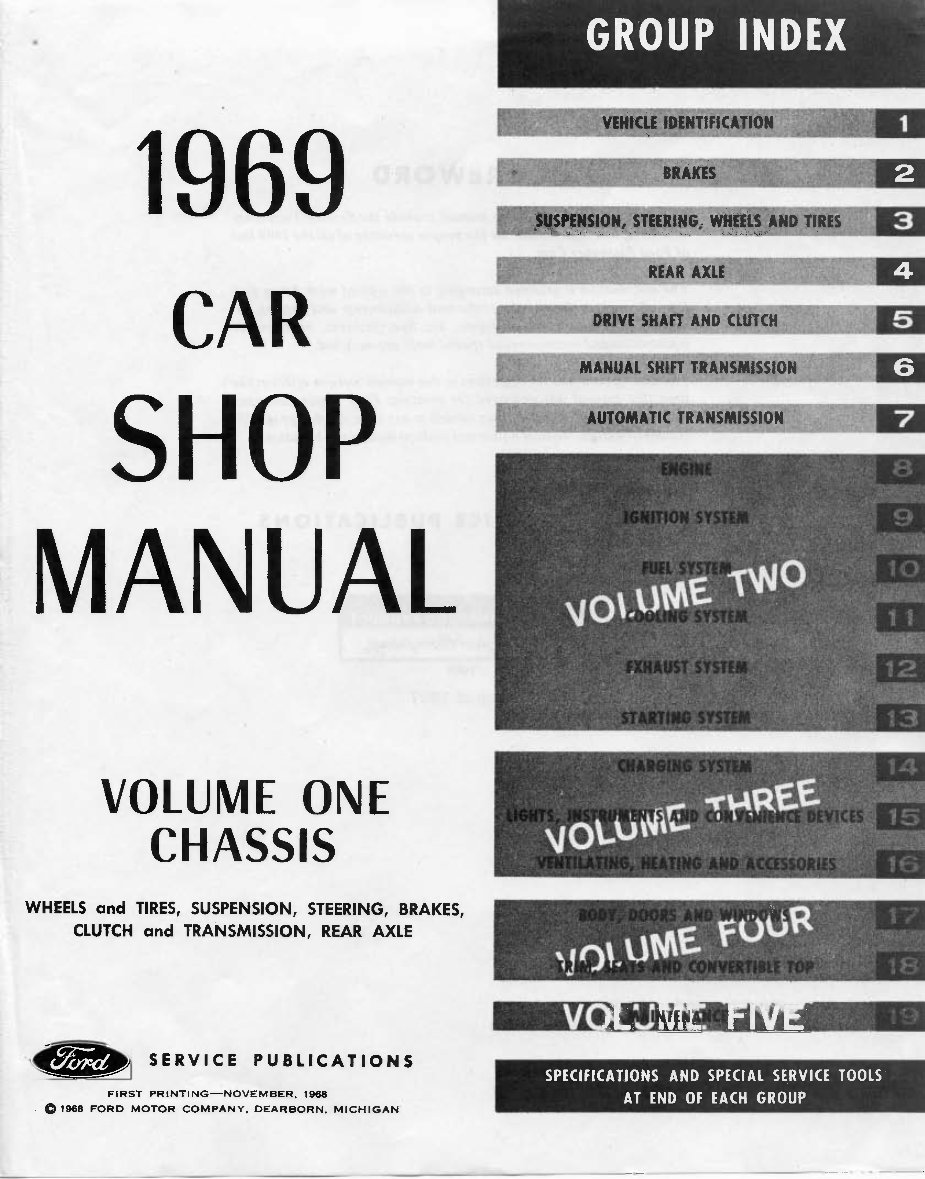

VEHICLE IDENTIFICATION BRAKES 2 SUSPENSION, STEERING WHEELS AND TIRES REAR AXLE 4 DRIVE SHAFT AND CLUTCH MANUAL SHIFT TRANSMISSION 6 AUTOMATIC TRANSMISSION M FIVE GROUP INDEX 1969 CAR SHOP MANUAL VOLUME ONE CHASSIS WHEELS and TIRES, SUSPENSION, STEERING, BRAKES, CLUTCH and TRANSMISSION, REAR AXLE SERVICE PUBLICATIONS FIRST PRINTING-NOVEMBER, 1968 © 1968 FORD MOTOR COMPANY, DEARBORN, MICHIGAN SPECIFICATIONS AND SPECIAL SERVICE TOOLS AT END OF EACH GROUP

Copyright © 2006, Forel Publishing Company, LLC, Woodbridge, Virginia All Rights Reserved. No part of this book may be used or reproduced in any manner whatsoever without written permission of Forel Publishing Company, LLC. For information write to Forel Publishing Company, LLC, 3999 Peregrine Ridge Ct., Woodbridge, VA 22192 1969 Ford Car Shop Manual ISBN: 0-9673211-6-6 EAN: 978-0-9673211-6-5 Forel Publishing Company, LLC 3999 Peregrine Ridge Ct. Woodbridge, VA 22192 Email address: webmaster@ForelPublishing.com Website: http://www.ForelPublishing.com Disclaimer Although every effort was made to ensure the accuracy of this book, no representations or warranties of any kind are made concerning the accuracy, completeness or suitability of the information, either expressed or implied. As a result, the information contained within this book should be used as general information only. The author and Forel Publishing Company, LLC shall have neither liability nor responsibility to any person or entity with respect to any loss or damage caused, or alleged to be caused, directly or indirectly by the information contained in this book. Further, the publisher and author are not engaged in rendering legal or other professional services. If legal, mechanical, electrical, or other expert assistance is required, the services of a competent professional should be sought.

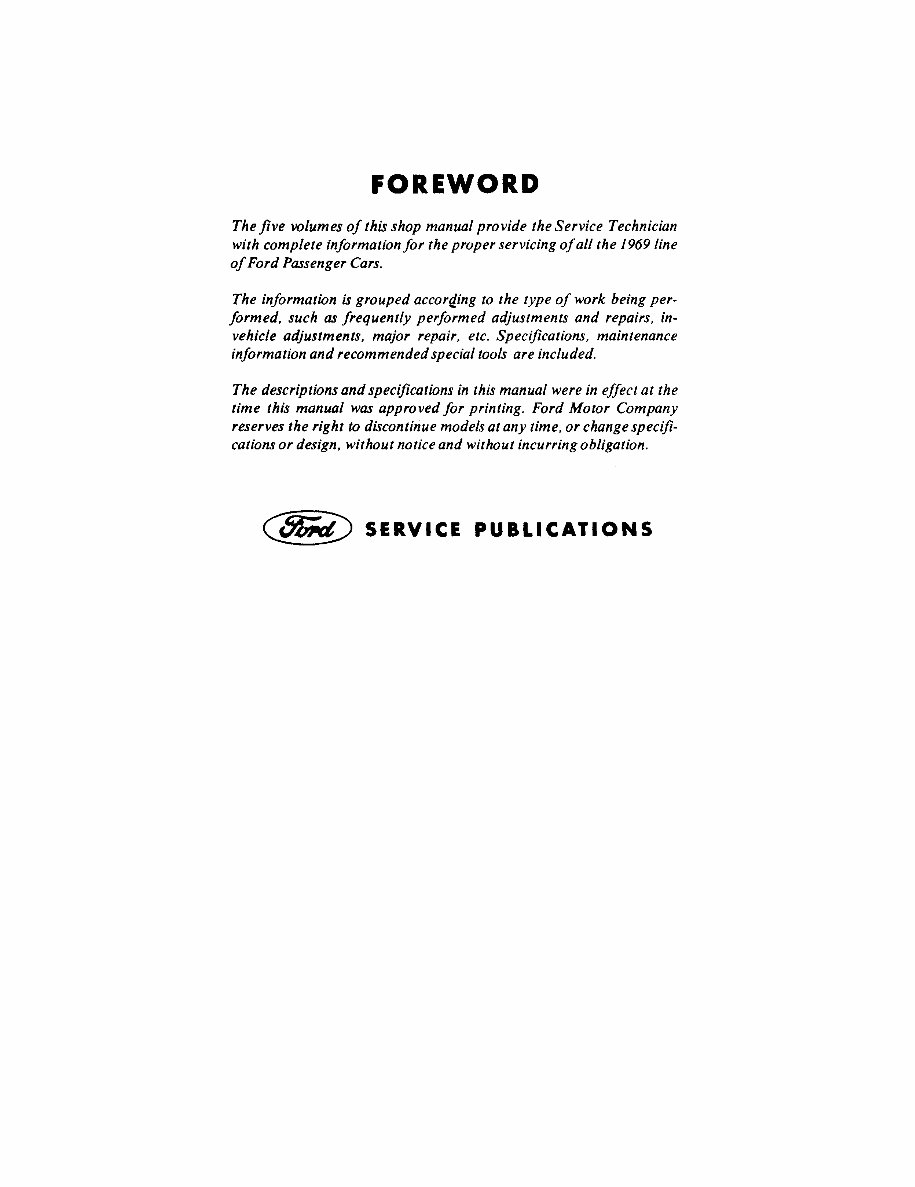

FOREWORD The five volumes of this shop manual provide the Service Technician with complete information for the proper servicing of all the 1969 line of Ford Passenger Cars. The information is grouped according to the type of work being performed, such as frequently performed adjustments and repairs, in- vehicle adjustments, major repair, etc. Specifications, maintenance information and recommended special tools are included. The descriptions and specifications in this manual were in effect at the time this manual was approved for printing. Ford Motor Company reserves the right to discontinue models at any time, or change specifications or design, without notice and without incurring obligation. SERVICE PUBLICATIONS

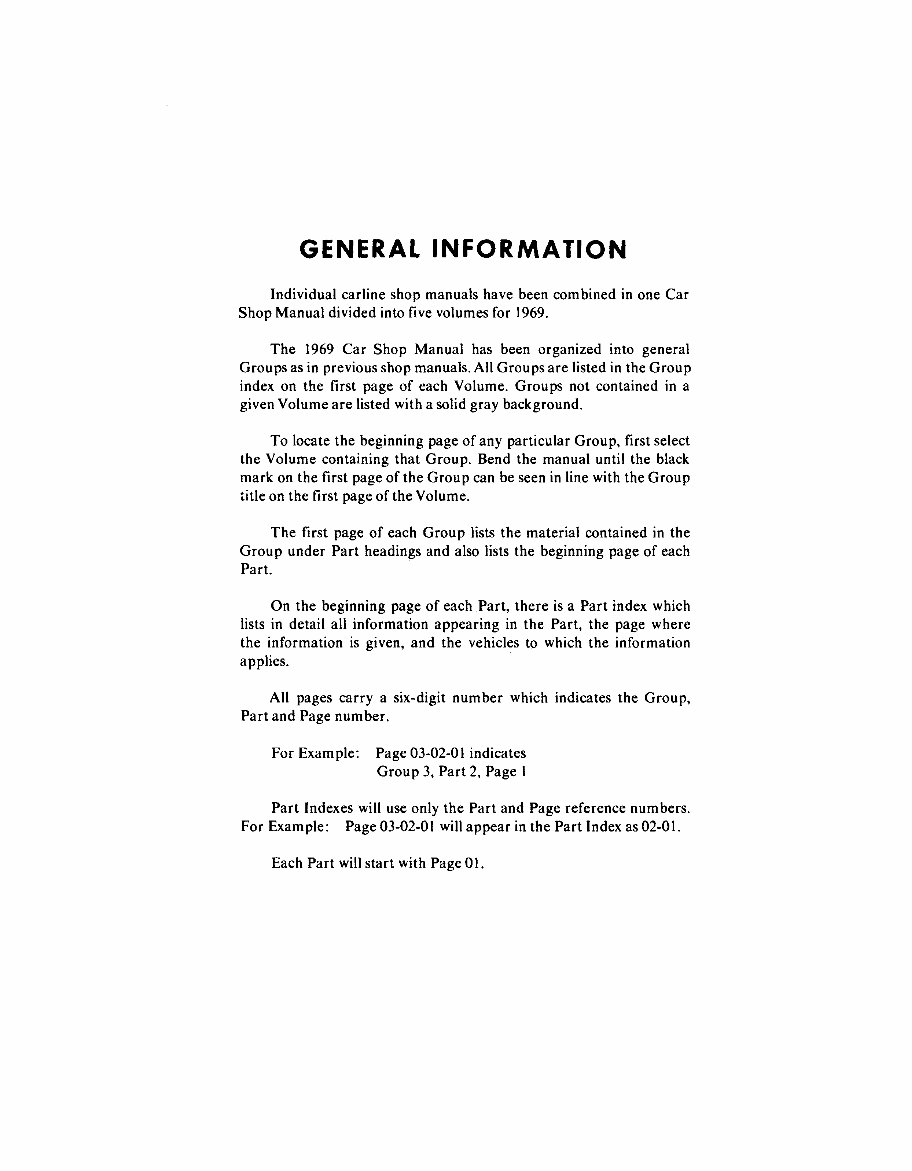

GENERAL INFORMATION Individual carline shop manuals have been combined in one Car Shop Manual divided into five volumes for 1969. The 1969 Car Shop Manual has been organized into general Groups as in previous shop manuals. All Groups are listed in the Group index on the first page of each Volume. Groups not contained in a given Volume are listed with a solid gray background. To locate the beginning page of any particular Group, first select the Volume containing that Group. Bend the manual until the black mark on the first page of the Group can be seen in line with the Group title on the first page of the Volume. The first page of each Group lists the material contained in the Group under Part headings and also lists the beginning page of each Part. On the beginning page of each Part, there is a Part index which lists in detail all information appearing in the Part, the page where the information is given, and the vehicles to which the information applies. All pages carry a six-digit number which indicates the Group, Part and Page number. For Example: Page 03-02-01 indicates Group 3, Part 2, Page 1 Part Indexes will use only the Part and Page reference numbers. For Example: Page 03-02-01 will appear in the Part Index as 02-01. Each Part will start with Page 01.

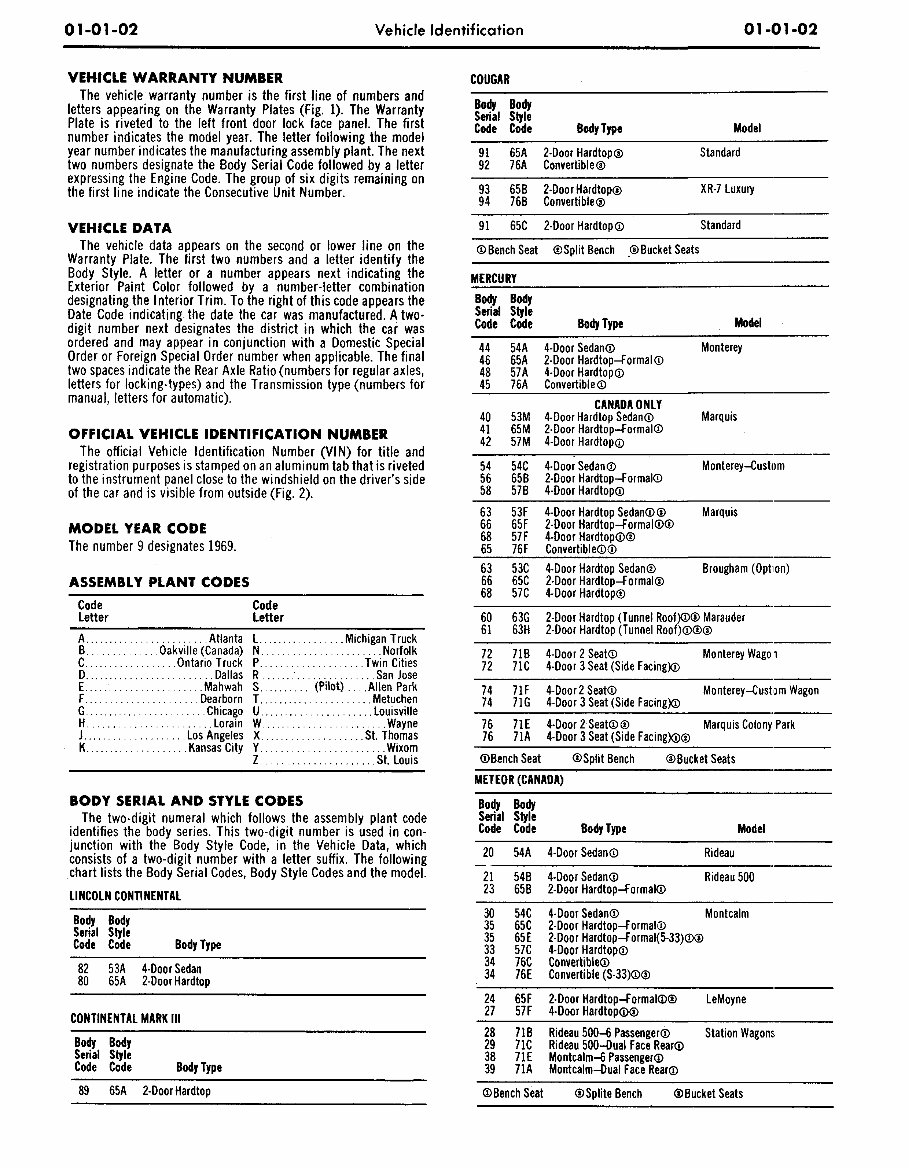

01-01-02 Vehicle Identification 01-01-02 VEHICLE WARRANTY NUMBER The vehicle warranty number is the first line of numbers and letters appearing on the Warranty Plates (Fig. 1). The Warranty Plate is riveted to the left front door lock face panel. The first number indicates the model year. The letter following the model year number indicates the manufacturing assembly plant. The next two numbers designate the Body Serial Code followed by a letter expressing the Engine Code. The group of six digits remaining on the first line indicate the Consecutive Unit Number. VEHICLE DATA The vehicle data appears on the second or lower line on the Warranty Plate. The first two numbers and a letter identify the Body Style. A letter or a number appears next indicating the Exterior Paint Color followed by a number-letter combination designating the Interior Trim. To the right of this code appears the Date Code indicating the date the car was manufactured. A two- digit number next designates the district in which the car was ordered and may appear in conjunction with a Domestic Special Order or Foreign Special Order number when applicable. The final two spaces indicate the Rear Axle Ratio (numbers for regular axles, letters for locking-types) and the Transmission type (numbers for manual, letters for automatic). OFFICIAL VEHICLE IDENTIFICATION NUMBER The official Vehicle Identification Number (VIN) for title and registration purposes is stamped on an aluminum tab that is riveted to the instrument panel close to the windshield on the driver's side of the car and is visible from outside (Fig. 2). MODEL YEAR CODE The number 9 designates 1969. ASSEMBLY PLANT CODES COUGAR Code Letter Code Letter A B C D E F G H J K Atlanta L Oakville (Canada) N Ontario Truck P Dallas R ., Mahwah S Dearborn T Chicago U Lorain W Los Angeles X Kansas City Y Z Michigan Truck Norfolk Twin Cities San Jose . (Pilot) . ... Allen Park Metuchen Louisville Wayne St. Thomas Wixom St. Louis BODY SERIAL AND STYLE CODES The two-digit numeral which follows the assembly plant code identifies the body series. This two-digit number is used in conjunction with the Body Style Code, in the Vehicle Data, which consists of a two-digit number with a letter suffix. The following chart lists the Body Serial Codes, Body Style Codes and the model. LINCOLN CONTINENTAL Body Body Serial Style Code Code Body Type 82 53A 4-Door Sedan 80 65A 2-Door Hardtop CONTINENTAL MARK III Body Body Serial Style Code Code Body Type 89 65A 2-Door Hardtop Body Serial Code 91 92 93 94 91 Body Style Code 65A 76A 65B 76B 65C ® Bench Seat MERCURY Body Serial Code 44 46 48 45 40 41 42 54 56 58 63 66 68 65 63 66 68 60 61 72 72 74 74 76 76 Body Style Code 54A 65A 57A 76A 53M 65M 57M 54C 65B 57B 53F 65F 57 F 76F 53C 65C 57C 63G 63H 71B 71C 71F 71G 71E 71A ©Bench Seat Body Type 2-Door Hardtop© Convertible© 2-Door Hardtop© Convertible® 2-Door Hardtop® Model Standard XR-7 Luxury Standard ©Split Bench ©Bucket Seats Body Type 4-Door Sedan© 2-Door Hardtop-Formal® 4-Door Hardtop® Convertible® CANADA ONLY 4-Door Hardtop Sedan® 2-Door Hardtop-Formal® 4-Door Hardtop® 4-Door Sedan® 2-Door Hardtop-Formal® 4-Door Hardtop® 4-Door Hardtop Sedan®© 2-Door Hardtop-Formal®© 4-Door Hardtop®® Convertible®® 4-Door Hardtop Sedan© 2-Door Hardtop-Formal© 4-Door Hardtop© Model Monterey Marquis Monterey-Custom Marquis Brougham (Option) 2-Door Hardtop (Tunnel Roof)®© Marauder 2-Door Hardtop (Tunnel Roof)®®© 4-Door 2 Seat® 4-Door 3 Seat (Side Facing)® 4-Door 2 Seat® 4-Door 3 Seat (Side Facing)® 4-Door 2 Seat®© 4-Door 3 Seat (Side Facing)®© Monterey Wagoi Monterey-Custom Wagon Marquis Colony Park ©Split Bench ©Bucket Seats METEOR (CANADA) Body Serial Code 20 21 23 Body Style Code 54A 54B 65B Body Type 4-Door Sedan® 4-Door Sedan® 2-Door Hardtop-Formal® Model Rideau Rideau 500 30 54C 4-Door Sedan® 35 65C 2-Door Hardtop-Formal® 35 65E 2-Door Hardtop-Formal{5-33)®® 33 57C 4-Door Hardtop® 34 76C Convertible® 34 76E Convertible (S-33)®® Montcalm 24 65F 2-Door Hardtop-Formal®© 27 57F 4-Door Hardtop®® LeMoyne 28 71B Rideau 500-6 Passenger® 29 71C Rideau 500-Dual Face Rear® 38 71E Mo ntcalm-6 Passenger® 39 71A Montcalm-Dual Face Rear® Station Wagons. ©Bench Seat ©Splite Bench ©Bucket Seats

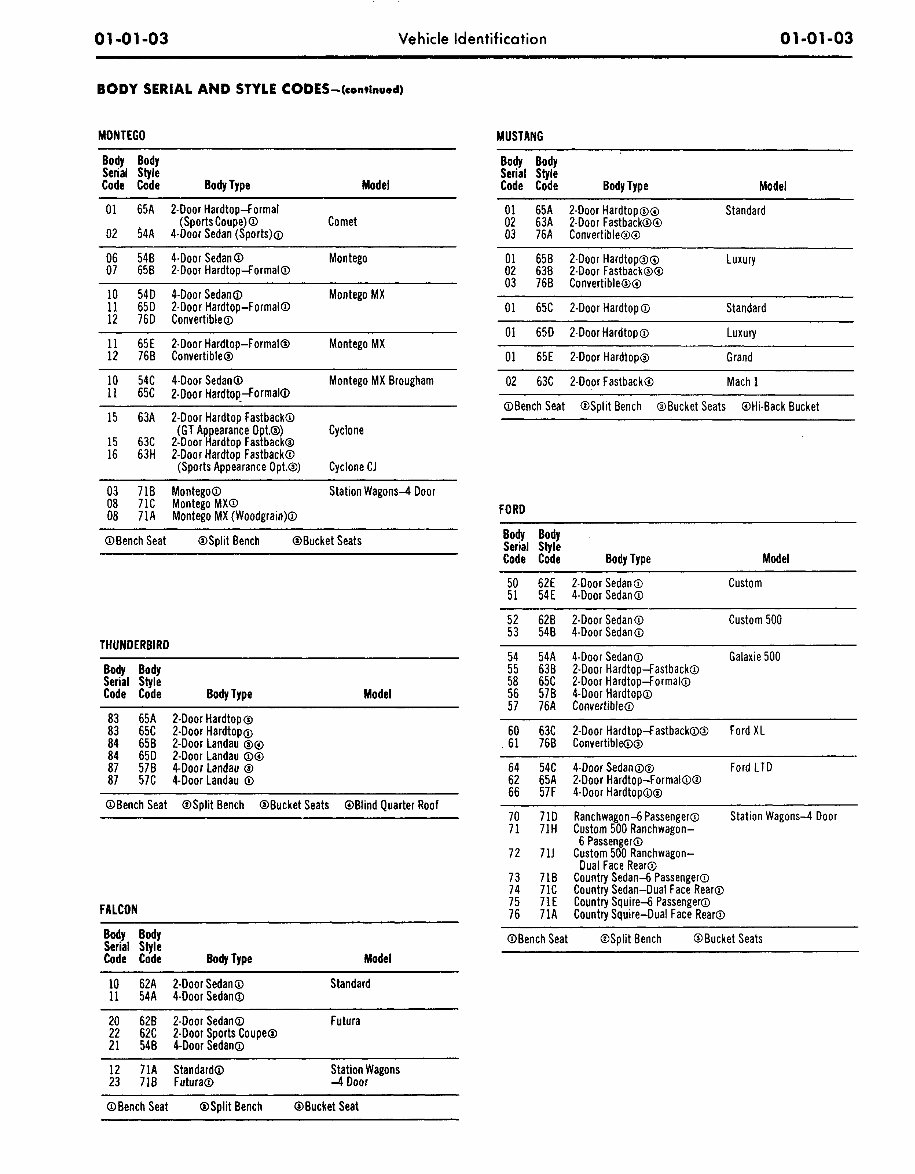

01-01-03 Vehicle Identification 01-01-03 BODY SERIAL AND STYLE CODES-(continued) MONTEGO Body Serial Code 01 02 06 07 10 11 12 11 12 10 11 Body Style Code 65A 54A 54B 65B 54D 65D 76D 65 E 76B 54C 65C Body Type 2-Door Hardtop-formal (Sports Coupe)® 4-Door Sedan (Sports)® 4-Door Sedan® 2-Door Hardtop-Formal® 4-Door Sedan® 2-Door Hardtop-Formal® Convertible® 2-Door Hardtop-Formal© Convertible® 4-Door Sedan® 2-Door Hardtop-Formal® Model Comet Montego Montego MX Montego MX Montego MX Brougham MUSTANG 15 63A 2-Door Hardtop Fastback® (GT Appearance Opt.®) Cyclone 15 63C 2-Door Hardtop Fastback® 16 63H 2-Door Hardtop Fastback® (Sports Appearance Opt.©) Cyclone CJ 03 71B Montego® 08 71C Montego MX® 08 71A Montego MX (Woodgrain)® Station Wagons-4 Door ©Bench Seat ©Split Bench ©Bucket Seats THUNDERBIRD Body Body Serial Style Code Code Body Type Model 83 65A 2-Door Hardtop® 83 65C 2-Door Hardtop® 84 65B 2-Door Landau ® 84 65D 2-Door Landau ® 87 57B 4-Door Landau © 87 57C 4-Door Landau ® ©Bench Seat ©Split Bench ©Bucket Seats ©Blind Quarter Roof FALCON Body Serial Code 10 11 20 22 21 12 23 Body Style Code 62A 54A 62B 62C 54B 71A 71B ©Bench Seat Body Type 2-Door Sedan® 4-Door Sedan® 2-Door Sedan® 2-Door Sports Coupe® 4-Door Sedan© Standard© Futura© ©Split Bench Model Standard Futura Station Wagons - 4 Door ©Bucket Seat Body Serial Code 01 02 03 01 02 03 01 01 01 02 Body Style Code 65A 63A 76A 65B 63B 76B 65C 65D 65E 63C ©Bench Seat Body Type 2-Door Hardtop©© 2-Door Fastback©® Convertible®® 2-Door Hardtop®® 2-Door Fastback®© Convertible©® 2-Door Hardtop® 2-Door Hardtop® 2-Door Hardtop© 2-Door Fastback® Model Standard Luxury Standard Luxury Grand Machl ©Split Bench ©Bucket Seats ©Hi-Back Bucket FORD Body Serial Code 50 51 52 53 Body Style Code 62E 54 E 62B 54B Body Type 2-Door Sedan® 4-Door Sedan® 2-Door Sedan® 4-Door Sedan® Model Custom Custom 500 54 54A 4-Door Sedan® 55 63B 2-Door Hardtop-Fastback® 58 65C 2-Door Hardtop-Formal® Galaxie 500 56 57 60 61 64 62 66 57B 76A 63C 76B 54C 65A 57F 4-Door Hardtop® Convertible® 2-Door Hardtop-Fastback®® Convertible®© 4-Door Sedan®® 2-Door Hardtop-Formal®® 4-Door Hardtop®© Ford XL Ford LTD 70 71D Ranchwagon-6 Passenger© 71 71H Custom 500 Ranchwagon- 6 Passenger© 72 71J Custom 500 Ranchwagon- Dual Face Rear© 73 71B Country Sedan-6 Passenger® 74 71C Country Sedan-Dual Face Rear® 75 71E Country Squire—6 Passenger® 76 71A Country Squire-Dual Face Rear® Station Wagons-4 Door ©Bench Seat ©Split Bench ©Bucket Seats

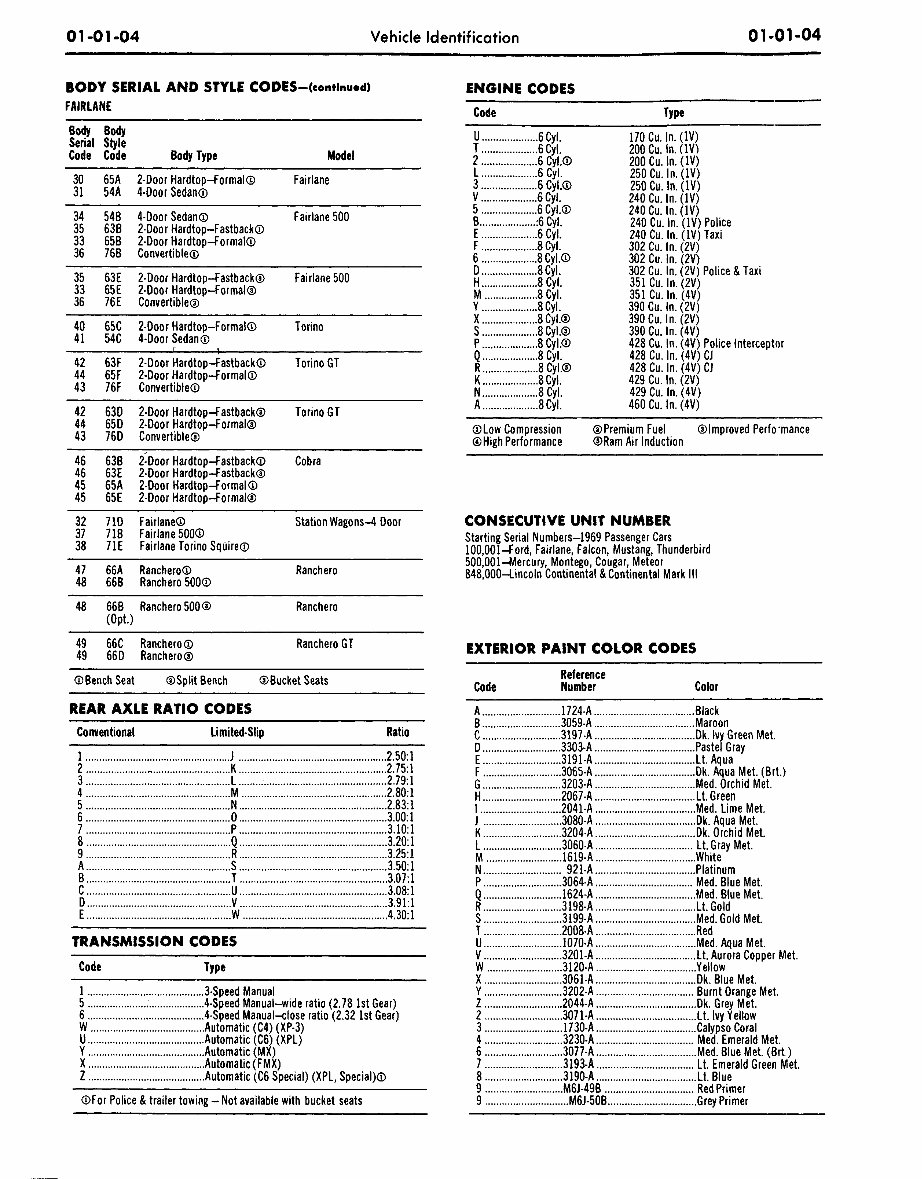

01-01-04 Vehicle Identification 01-01-04 BODY SERIAL AND STYLE CODES-(continued) FAIRLANE Body Serial Code 30 31 34 35 33 36 35 33 36 40 41 42 44 43 42 44 43 46 46 45 45 32 37 38 47 48 48 49 49 Body Style Code 65A 54A 54B 63B 65B 76B 63E 65E 76E 65C 54C 63F 65F 76F 63D 65D 76D 63B 63E 65A 65E 71D 71B 71E 66A 66B 66B (Opt.) 66C 66D ©Bench Seat Body Type 2-Door Hardtop-formal® 4-Door Sedan® 4-Door Sedan® 2-Door Hardtop—Fastback® 2-Door Hardtop-formal® Convertible® 2-Door Hardtop—Fastback© 2-Door Hardtop-Formal© Convertible® 2-Door Hardtop-Formal® 4-Door Sedan® r t 2-Door Hardtop—FastbackCD 2-Door Hardtop-Formal® Convertible® 2-Door Hardtop—Fastback® 2-Door Hardtop-Formal® Convertible® 2-Door Hardtop-Fastback® 2-Door Hardtop-Fastback® 2-Door Hardtop-Formal® 2-Door Hardtop-formal® Fairlane® Fairlane 500® Fairlane Torino Squire® Ranchero® Ranchero 500® Ranchero 500® Ranchero® Ranchero® Model Fairlane Fairlane 500 Fairlane 500 Torino Torino GT Torino GT Cobra Station Wagons-4 Door Ranchero Ranchero Ranchero GT ©Split Bench ©Bucket Seats REAR AXLE RATIO CODES Conventional Limited-Slip Ratio 1 J 2.50:1 2 K 2.75:1 3 L 2.79:1 4 M 2.801 5 N 2.83:1 6 0 3.00:1 7 P 3.10:1 8 Q 3.20:1 9 R 3.25:1 A S 3.50:1 B T 3.07:1 C U 3.08:1 D V 3.91:1 E W 4.30:1 TRANSMISSION CODES Code Type 1 3-Speed Manual 5 4-Speed Manual-wide ratio (2.78 1st Gear) 6 4-Speed Manual-close ratio (2.32 1st Gear) W Automatic (C4) (XP-3) U Automatic (C6) (XPL) Y Automatic (MX) X Automatic (FMX) Z Automatic (C6 Special) (XPL, Special)® ©For Police & trailer towing - Not available with bucket seats ENGINE CODES Code U 6Cyl. T 6Cyl. 2 6 Cyl.® L 6 Cyl. 3 6 Cyl CD V 6 Cyl." 5 . 6 Cyl CD B .6 Cyl. E 6 Cyl. F 8 Cyl. 6 8 Cyl.® D 8 Cyl. H 8 Cyl. M 8 Cyl. Y 8 Cyl. X 8 Cyl.© S 8 Cyl.© P 8 Cyl.® 8 Cyl. 8 Cyl.® K 8 Cyl. N 8 Cyl. A 8 Cyl. ©Low Compression ©High Performance Type 170 Cu. In. (IV) 200 Cu. In. (IV) 200 Cu. In. (IV) 250 Cu. In. (IV) 250 Cu. In. (IV) 240 Cu. In. (IV) 240 Cu. In. (IV) 240 Cu. In. (IV) Police 240 Cu. In. (IV) Taxi 302 Cu. In. (2V) 302 Cu. In. (2V) 302 Cu. In. (2V) Police & Taxi 351 Cu. In. (2V) 351 Cu. In. (4V) 390 Cu. In. (2V) 390Cu.ln.(2V) 390 Cu. In. (4V) 428 Cu. In. (4V) Police Interceptor 428 Cu. In. (4V) CJ 428 Cu. In. (4V) CJ 429 Cu. In. (2V) 429 Cu. In. (4V) 460 Cu. In. (4V) ©Premium Fuel ©Improved Performance ©Ram Air Induction CONSECUTIVE UNIT NUMBER Starting Serial Numbers—1969 Passenger Cars 100,001—Ford, Fairlane, Falcon, Mustang, Thunderbird 500,001 -Mercury, Montego, Cougar, Meteor 848,000—Lincoln Continental & Continental Mark III EXTERIOR PAINT COLOR CODES Code Reference Number Color A B c D E F G H | J K L . . M N p Q R S. .. . T u v W X Y z 2. .. 3 4 6. . . 7 8 .. 1724-A 1 3059-A 3197-A 3303-A 3191-A 3065-A . . 3203-A .. ,.2067-A 2041-A 3080-A 3204-A 3060-A 1619-A .. 921-A 3064-A 1624-A 3198-A . . 3199-A 2008-A 1070-A 3201-A 3120-A 3061-A . . . 3202-A 2044-A 3071-A . . 1730-A 3230-A . 3077-A 3193-A 3190-A ..M6J-49B.. ....M6J-50B. Black Maroon Dk. Ivy Green Met. Pastel Gray Lt. Aqua Dk. Aqua Met. (Brt.) Med. Orchid Met. Lt. Green Med. Lime Met. Dk. Aqua Met. Dk. Orchid Met. Lt. Gray Met. White Platinum Med. Blue Met. Med. Blue Met. Lt. Gold Med. Gold Met. Red Med. Aqua Met. Lt. Aurora Copper IVIet. Yellow Dk. Blue Met. Burnt Orange Met. Dk. Grey Met. Lt. Ivy Yellow Calypso Coral Med. Emerald Met. Med. Blue Met. (Brt) Lt. Emerald Green Met. Lt. Blue Red Primer Grey Primer

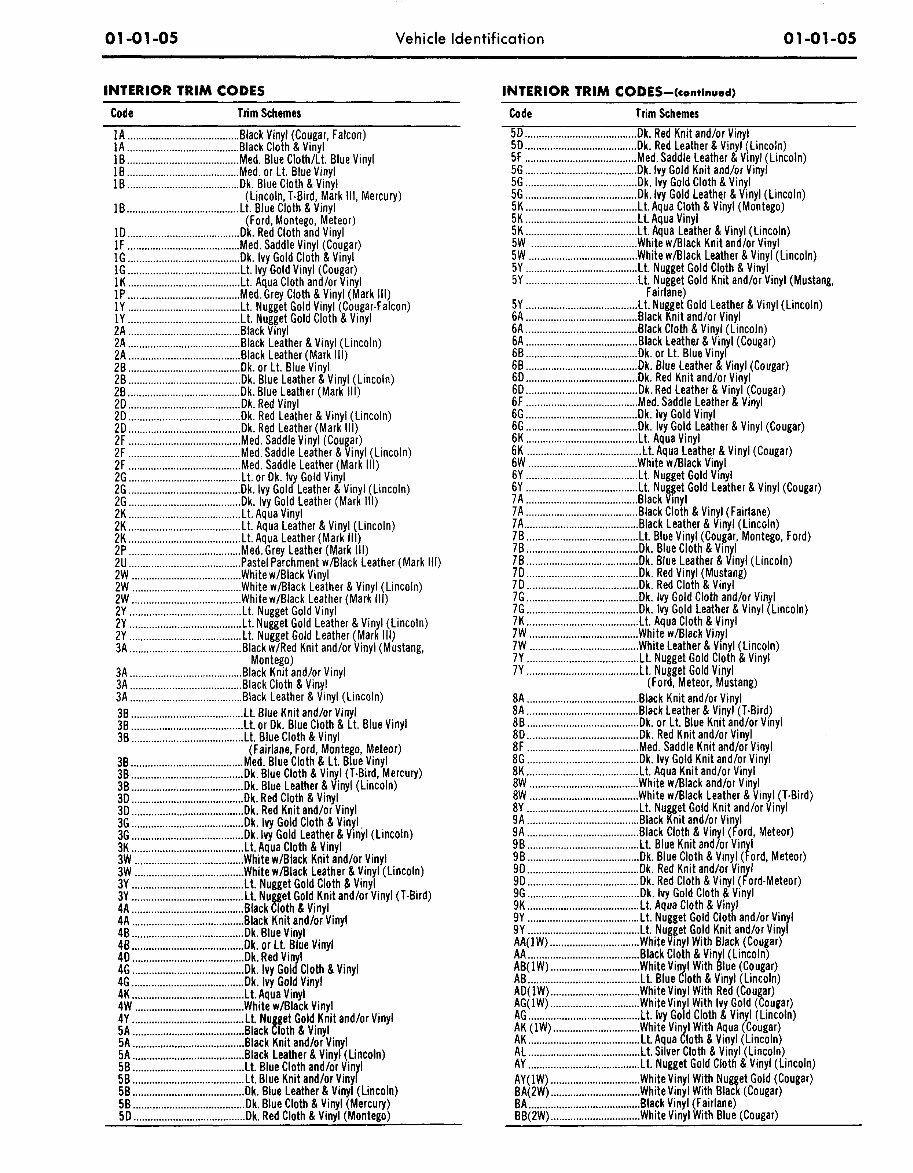

01-01-05 Vehicle Identification 01-01-05 INTERIOR TRIM CODES Code Trim Schemes 1A Black Vinyl (Cougar, Falcon) 1A Black Cloth & Vinyl IB Med. Blue Cloth/Lt. Blue Vinyl IB Med. or Lt. Blue Vinyl IB Dk. Blue Cloth & Vinyl (Lincoln, T-Bird, Mark III, Mercury) IB Lt. Blue Cloth & Vinyl (Ford, Montego, Meteor) ID Dk. Red Cloth and Vinyl IF Med. Saddle Vinyl (Cougar) 1G Dk. Ivy Gold Cloth & Vinyl 1G Lt. Ivy Gold Vinyl (Cougar) IK Lt. Aqua Cloth and/or Vinyl IP Med. Grey Cloth & Vinyl (Mark III) 1Y Lt. Nugget Gold Vinyl (Cougar-Falcon) 1Y Lt. Nugget Gold Cloth & Vinyl 2A Black Vinyl 2A Black Leather & Vinyl (Lincoln) 2A Black Leather (Mark III) 2B Dk. or Lt. Blue Vinyl 2B Dk. Blue Leather & Vinyl (Lincoln) 2B Dk. Blue Leather (Mark III) 2D Dk. Red Vinyl 2D Dk. Red Leather & Vinyl (Lincoln) 2D Dk. Red Leather (Mark III) 2F Med. Saddle Vinyl (Cougar) 2F Med. Saddle Leather & Vinyl (Lincoln) 2F Med. Saddle Leather (Mark III) 2G Lt. or Dk. Ivy Gold Vinyl 2G Dk. Ivy Gold Leather & Vinyl (Lincoln) 2G Dk. Ivy Gold Leather (Mark III) 2K Lt. Aqua Vinyl 2K Lt. Aqua Leather & Vinyl (Lincoln) 2K Lt. Aqua Leather (Mark III) 2P Med. Grey Leather (Mark III) 2U Pastel Parchment w/Black Leather (Mark III) 2W Whitew/Black Vinyl 2W White w/Black Leather & Vinyl (Lincoln) 2W Whitew/Black Leather (Mark III) 2Y Lt. Nugget Gold Vinyl 2Y Lt. Nugget Gold Leather & Vinyl (Lincoln) 2Y Lt. Nugget Gold Leather (Mark III) 3A Black w/Red Knit and/or Vinyl (Mustang, Montego) 3A Black Knit and/or Vinyl 3A Black Cloth & Vinyl 3A Black Leather & Vinyl (Lincoln) 3B Lt. Blue Knit and/or Vinyl 3B Lt. or Dk. Blue Cloth & Lt. Blue Vinyl 3B Lt. Blue Cloth & Vinyl (Fairlane, Ford, Montego, Meteor) 3B Med. Blue Cloth & Lt. Blue Vinyl 3B Dk. Blue Cloth & Vinyl (T-Bird, Mercury) 3B Dk. Blue Leather & Vinyl (Lincoln) 3D Dk.Red Cloth & Vinyl 3D Dk. Red Knit and/or Vinyl 3G Dk. Ivy Gold Cloth & Vinyl 3G Dk. Ivy Gold Leather & Vinyl (Lincoln) 3K Lt. Aqua Cloth & Vinyl 3W White w/Black Knit and/or Vinyl 3W Whitew/Black Leather & Vinyl (Lincoln) 3Y Lt. Nugget Gold Cloth & Vinyl 3Y Lt. Nugget Gold Knit and/or Vinyl (T-Bird) 4A Black Cloth & Vinyl 4A Black Knit and/or Vinyl 4B Dk. Blue Vinyl 4B Dk. or Lt. Blue Vinyl 4D Dk.Red Vinyl 4G Dk. Ivy Gold Cloth & Vinyl 4G Dk. Ivy Gold Vinyl 4K Lt. Aqua Vinyl 4W White w/Black Vinyl 4Y Lt. Nugget Gold Knit and/or Vinyl 5A Black Cloth & Vinyl 5A Black Knit and/or Vinyl 5A Black Leather & Vinyl (Lincoln) 5B Lt. Blue Cloth and/or Vinyl 5B Lt. Blue Knit and/or Vinyl 5B Dk. Blue Leather & Vinyl (Lincoln) 5B Dk. Blue Cloth & Vinyl (Mercury) 5D Dk.Red Cloth & Vinyl (Montego) INTERIOR TRIM CODES-(continued) Code Trim Schemes 5D Dk. Red Knit and/or Vinyl 5D Dk. Red Leather & Vinyl (Lincoln) 5F Med. Saddle Leather & Vinyl (Lincoln) 5G Dk. Ivy Gold Knit and/or Vinyl 5G Dk. Ivy Gold Cloth & Vinyl 5G Dk. Ivy Gold Leather & Vinyl (Lincoln) 5K Lt. Aqua Cloth & Vinyl (Montego) 5K Lt. Aqua Vinyl 5K Lt. Aqua Leather & Vinyl (Lincoln) 5W White w/Black Knit and/or Vinyl 5W White w/Black Leather & Vinyl (Lincoln) 5Y Lt. Nugget Gold Cloth & Vinyl 5Y Lt. Nugget Gold Knit and/or Vinyl (Mustang, Fairlane) 5Y Lt. Nugget Gold Leather & Vinyl (Lincoln) 6A Black Knit and/or Vinyl 6A Black Cloth & Vinyl (Lincoln) 6A Black Leathe; & Vinyl (Cougar) 6B Dk. or Lt. Blue Vinyl 6B Dk. Blue Leather & Vinyl (Cougar) 6D Dk. Red Knit and/or Vinyl 6D Dk.Red Leather & Vinyl (Cougar) 6F Med. Saddle Leather I Vinyl 6G Dk. Ivy Gold Vinyl 6G Dk. Ivy Gold Leather & Vinyl (Cougar) 6K Lt. Aqua Vinyl 6K Lt. Aqua Leather & Vinyl (Cougar) 6W White w/Black Vinyl 6Y Lt. Nugget Gold Vinyl 6Y Lt. Nugget Gold Leather & Vinyl (Cougar) 7A Black Vinyl 7A Black Cloth & Vinyl (Fairlane) 7A Black Leather & Vinyl (Lincoln) 7B Lt. Blue Vinyl (Cougar, Montego, Ford) 7B Dk. Blue Cloth & Vinyl 7B Dk. Blue Leathe; & Vinyl (Lincoln) 7D Dk. Red Vinyl (Mustang) 7D Dk. Red Cloth & Vinyl 7G Dk. Ivy Gold Cloth and/or Vinyl 7G Dk. Ivy Gold Leather & Vinyl (Lincoln) 7K Lt. Aqua Cloth & Vinyl 7W White w/Black Vinyl 7W White Leather & Vinyl (Lincoln) 7Y Lt. Nugget Gold Cloth & Vinyl 7Y Lt. Nugget Gold Vinyl (Ford, Meteor, Mustang) 8A Black Knit and/or Vinyl 8A Black Leather & Vinyl (T-Bird) 8B Dk. or Lt. Blue Knit and/or Vinyl 8D Dk. Red Knit and/or Vinyl 8F Med. Saddle Knit and/or Vinyl 8G Dk. Ivy Gold Knit and/or Vinyl 8K Lt. Aqua Knit and/or Vinyl 8W White w/Black and/or Vinyl 8W White w/Black Leather & Vinyl (T-Bird) 8Y Lt. Nugget Gold Knit and/or Vinyl 9A Black Knit and/or Vinyl 9A Black Cloth & Vinyl (Ford, Meteor) 9B Lt. Blue Knit and/or Vinyl 9B Dk. Blue Cloth & Vinyl (Ford, Meteor) 9D Dk. Red Knit and/or Vinyl 9D Dk. Red Cloth & Vinyl (Ford-Meteor) 9G Dk. Ivy Gold Cloth & Vinyl 9K Lt. Aqua Cloth & Vinyl 9Y Lt. Nugget Gold Cloth and/or Vinyl 9Y Lt. Nugget Gold Knit and/or Vinyl AA(1W) White Vinyl With Black (Cougar) AA Black Cloth & Vinyl (Lincoln) AB(1W) White Vinyl With Blue (Cougar) AB Lt. Blue Cloth & Vinyl (Lincoln) AD(1W) White Vinyl With Red (Cougar) AG(1W) White Vinyl With Ivy Gold (Cougar) AG Lt. Ivy Gold Cloth & Vinyl (Lincoln) AK (1W) White Vinyl With Aqua (Cougar) AK Lt. Aqua Cloth & Vinyl (Lincoln) AL Lt. Silver Cloth & Vinyl (Lincoln) AY Lt. Nugget Gold Cloth & Vinyl (Lincoln) AY(1W) White Vinyl With Nugget Gold (Cougar) BA(2W) White Vinyl With Black (Cougar) BA Black Vinyl (Fairlane) BB(2W) White Vinyl With Blue (Cougar)
