Identification Codes Printable View (507 KB) Vehicle Identification Number (VIN) Vehicle Identification Number (VIN) Locator The vehicle identification number (VIN) is a 17-digit combination of letters and numbers. The VIN is stamped to a metal tab riveted to the instrument panel top, upper left of the dash. The VIN number is also found on the vehicle certification (VC) label. SECTION 100-01: Identification Codes 2007 Taurus Workshop Manual DESCRIPTION AND OPERATION Procedure revision date: 03/28/2006 Item Description 1 World manufacturer identifier (WMI) 2 Restraint-type code 21.09.2002 file://C:\TSO\tsocache\SUPER10-45B629E_1428\S7H~us~en~file=S7H01001.htm~g...

World Manufacturer Identifier The first 3 vehicle identification number (VIN) positions are the world manufacturer code. 1FA — Ford Motor Company, USA, passenger car Restraint Type The fourth VIN position is the vehicle restraint type code. F — Active safety belts — all positions, driver and front passenger air bags H — Active safety belts — all positions, driver and front passenger air bags with driver and front passenger side impact air bags Vehicle Line, Series and Body Type 3 Vehicle line, series, body-type code 4 Engine-type code 5 Computer-generated check digit 6 Model year code 7 Assembly plant code 8 Production sequence number 21.09.2002 file://C:\TSO\tsocache\SUPER10-45B629E_1428\S7H~us~en~file=S7H01001.htm~g...

Positions 5 through 7 indicate vehicle line, series and body type. P53 — Taurus SE, 4-door P56 — Taurus SEL, 4-door Engine Type The eighth VIN position is the engine displacement and number of cylinders. U — 3.0L Vulcan, OHV, EFI, 6-cylinder Check Digit The ninth VIN position is a government-assigned, computer-generated check digit. Model Year 21.09.2002 file://C:\TSO\tsocache\SUPER10-45B629E_1428\S7H~us~en~file=S7H01001.htm~g...

The tenth VIN position is the model year code. 7 — 2007 Assembly Plant The eleventh VIN position is the assembly plant code. A — Atlanta (Hapeville, Georgia) Production Sequence Number The last 6 VIN positions are an alphanumeric code for the vehicle build sequence. This is also the vehicle serial and warranty number. 100001-599999 Vehicle Certification (VC) Label 21.09.2002 file://C:\TSO\tsocache\SUPER10-45B629E_1428\S7H~us~en~file=S7H01001.htm~g...

Vehicle Certification (VC) Label Locator The vehicle certification (VC) label contains the manufacturer name, the month and year of manufacture, the certification statement and the VIN. It also includes gross vehicle weight ratings (GVWR). Item Description 1 Exterior paint code 2 Region code 21.09.2002 file://C:\TSO\tsocache\SUPER10-45B629E_1428\S7H~us~en~file=S7H01001.htm~g...

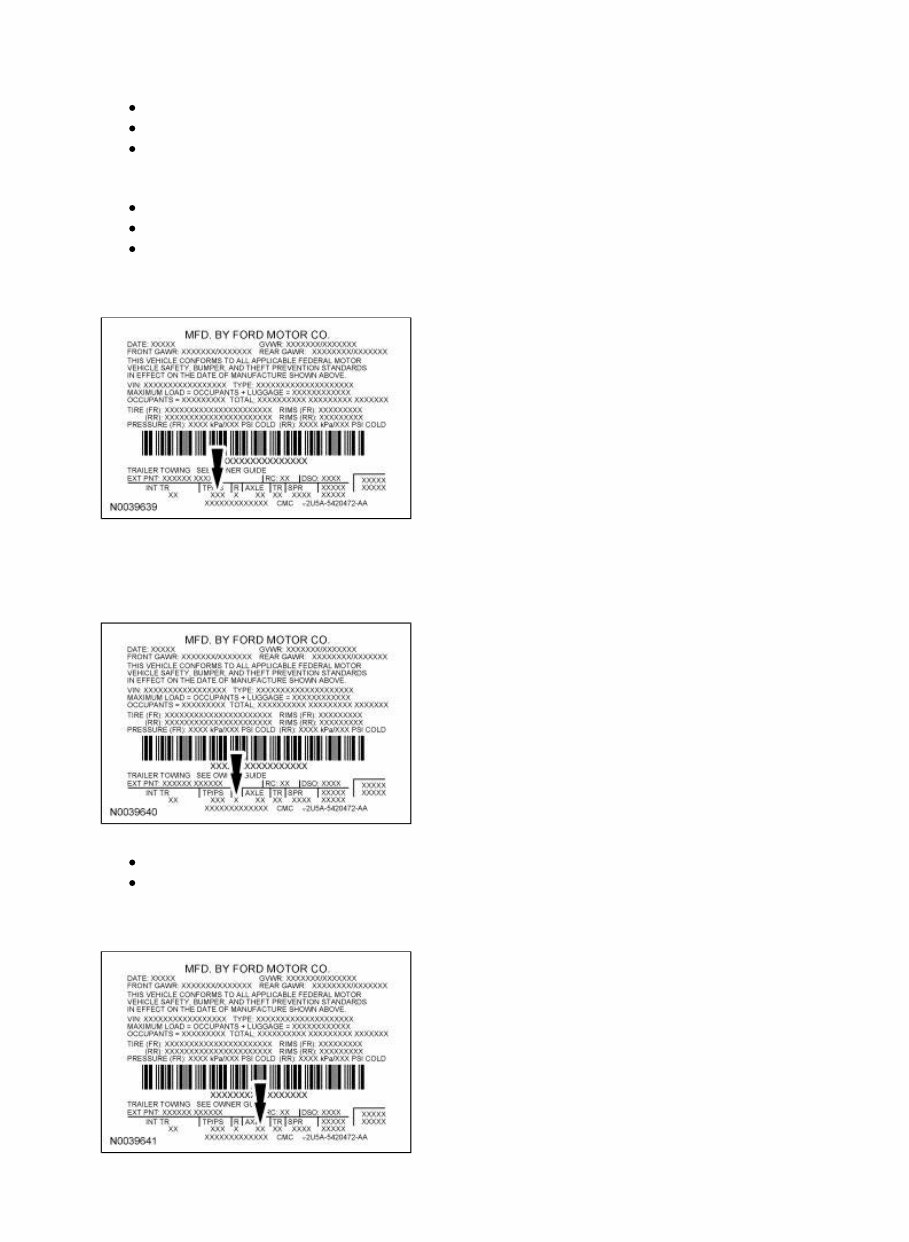

Paint Code Paint codes are listed as a 2-part code. The first set of characters listed indicate the vehicle primary body color. The second set of characters listed (if applicable) indicate a 2-tone or accent body color. All colors are base coat/clear coat. AQ — Arizona Beige C2 — Gold Ash Metallic DV — Light Tundra/Titanium Green FX — Merlot P3 — Windveil Blue T8 — Tungsten Metallic TS — Silver Frost UA — Ebony WT — Performance White Interior Trim Code Interior trim codes are listed as a 2-part code. The first character listed indicates the seat and fabric style. The second character listed indicates the interior trim color. 3 Domestic special order code 4 Interior trim code 5 Tape/paint pinstripe code 6 Radio code 7 Axle code 8 Transmission code 9 Spring code 10 Powertrain calibration information 21.09.2002 file://C:\TSO\tsocache\SUPER10-45B629E_1428\S7H~us~en~file=S7H01001.htm~g...

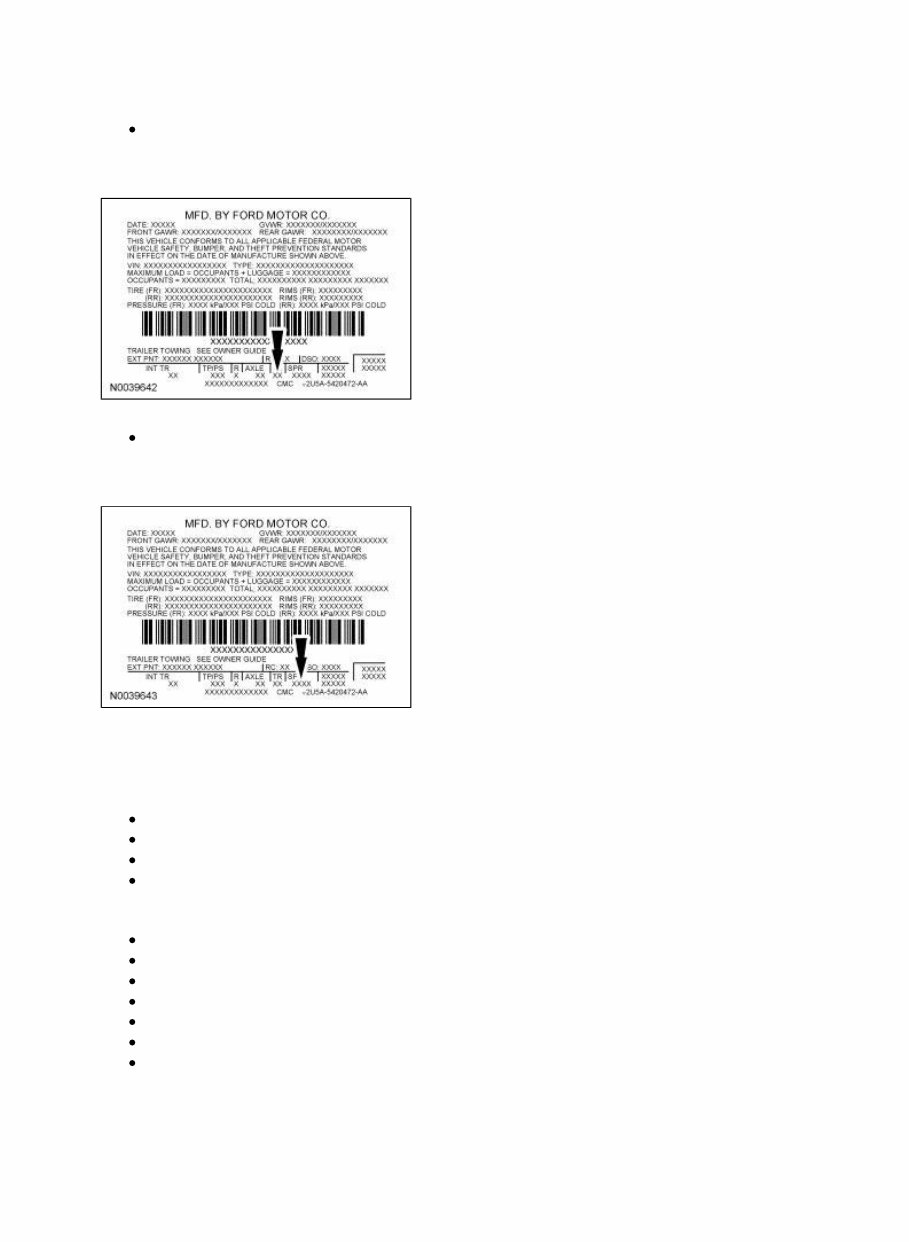

Trim Code K — Fairfax/Kent cloth L — Imola leather N — Split hide leather Interior Trim Color Code 2 — Medium Graphite H — Medium Parchment W — Midnight Black Tape and Paint Stripe Tape and paint pinstripe codes do not apply. Radio Code 5 — Electronic premium AM/FM stereo with compact disc (CD) player H — Electronic AM/FM stereo with cassette Axle Code 21.09.2002 file://C:\TSO\tsocache\SUPER10-45B629E_1428\S7H~us~en~file=S7H01001.htm~g...

The following lists the axle ratio. 6R — 3.96 Transmission Code N — 4-speed automatic overdrive AF50N Spring Code Spring codes are listed as a 2-part code. The first set of characters identify the front springs. The second set of characters identify the rear springs. Front Springs FF — 4F13-5310-AA GG — 4F13-5310-BA HH — 4F13-5310-CA JJ — 4F13-5310-DB Rear Springs KK — 4F13-5560-AA LL — 4F13-5560-BA MM — 4F13-5560-CA NN — 4F13-5560-DA PP — 4F13-5560-EA SS — 4F13-5560-FA TT — 4F13-5560-GA Powertrain Calibration Information 21.09.2002 file://C:\TSO\tsocache\SUPER10-45B629E_1428\S7H~us~en~file=S7H01001.htm~g...

NOTE: Powertrain calibration information is limited to a maximum of 5 characters per line on the Vehicle Certification (VC) label. Because of this, calibration identification consisting of more than 5 characters will wrap to the second line on the VC label. Powertrain calibration information is printed in the lower right corner of the VC label. Only the base calibration information is printed. Revision levels will not appear, however, they can be found in On Line Automotive Service Information System (OASIS). For the current model year, Ford Motor Company is using 3 different protocols which describe powertrain base calibration. These protocols are designed to provide worldwide standardization for vehicle calibration. If the electronic calibration strategy has been used since 1998 and carried into the current model year, Protocol 1 will be used. Refer to Protocol 1 below. If the electronic calibration strategy has been used since 1999 and is carried into the current model year, Protocol 2 will be used. Refer to Protocol 2 below. For electronic calibration strategies introduced in 2000 or later model years, Protocol 3 will be used. Refer to Protocol 3 below. Protocol 1 Protocol 2 Item Description 1 Model year (model year in which calibration strategy was introduced) 2 Engine code 3 Engine revision level 21.09.2002 file://C:\TSO\tsocache\SUPER10-45B629E_1428\S7H~us~en~file=S7H01001.htm~g...
