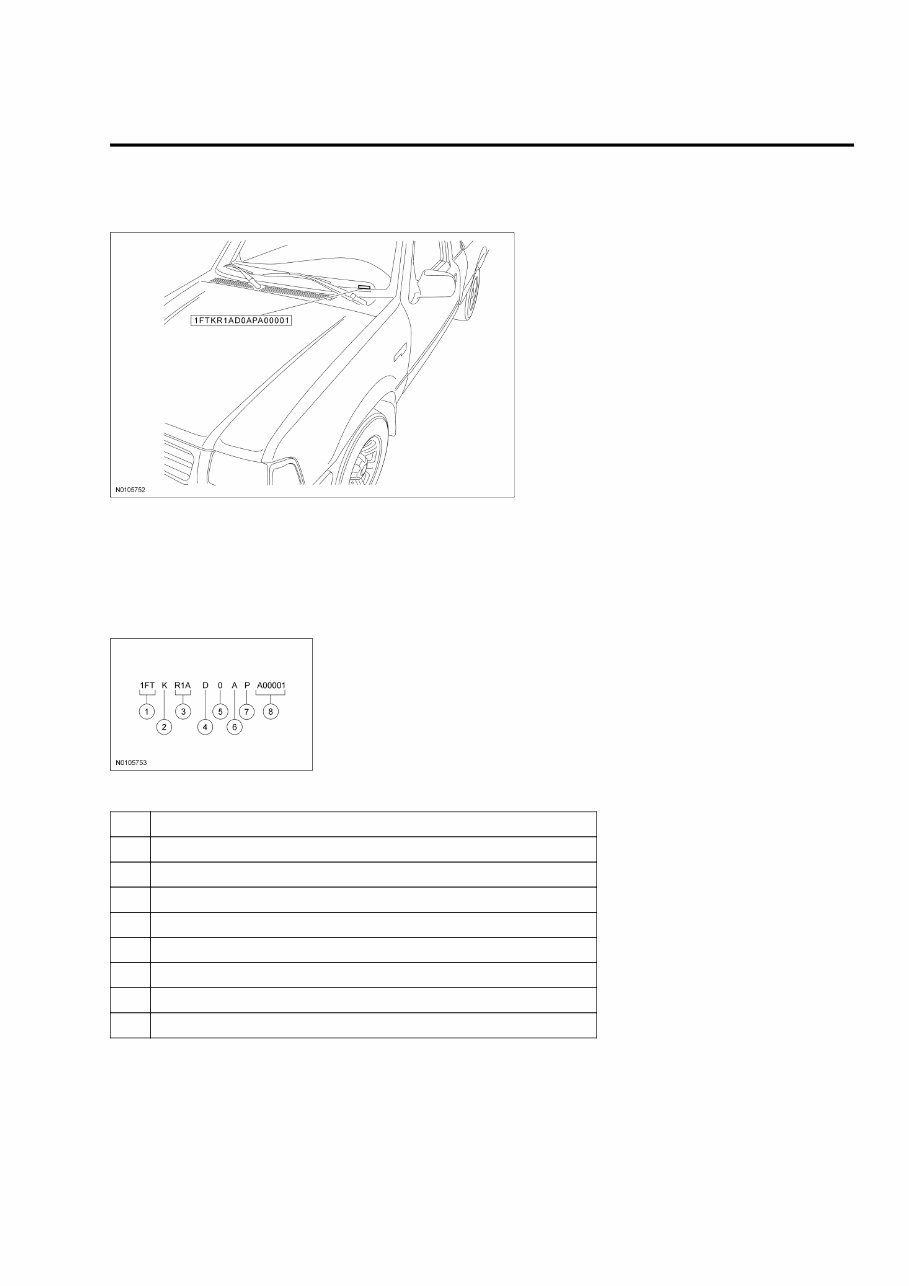

SECTION 100-01: Identification Codes 2010 Ranger Workshop Manual DESCRIPTION AND OPERATION Procedure revision date: 09/01/2009 Identification Codes Vehicle Identification Number (VIN) Locator The Vehicle Identification Number (VIN) is a 17-digit combination of letters and numbers. The VIN is stamped on a metal tab riveted to the instrument panel, top upper left of the instrument panel. The VIN is also found on the Vehicle Certification (VC) label. If the VIN plate requires replacement, authorized dealers must contact their respective regional office. Item Description 1 World Manufacturer Identifier (WMI) 2 Restraint type and Gross Vehicle Weight Rating (GVWR) code 3 Vehicle line, series, body-type code 4 Engine-type code 5 Computer-generated check digit 6 Model year code 7 Assembly plant code 8 Production sequence number Vehicle Identification Number (VIN) 2010 Ranger Workshop Manual Identification Codes 1

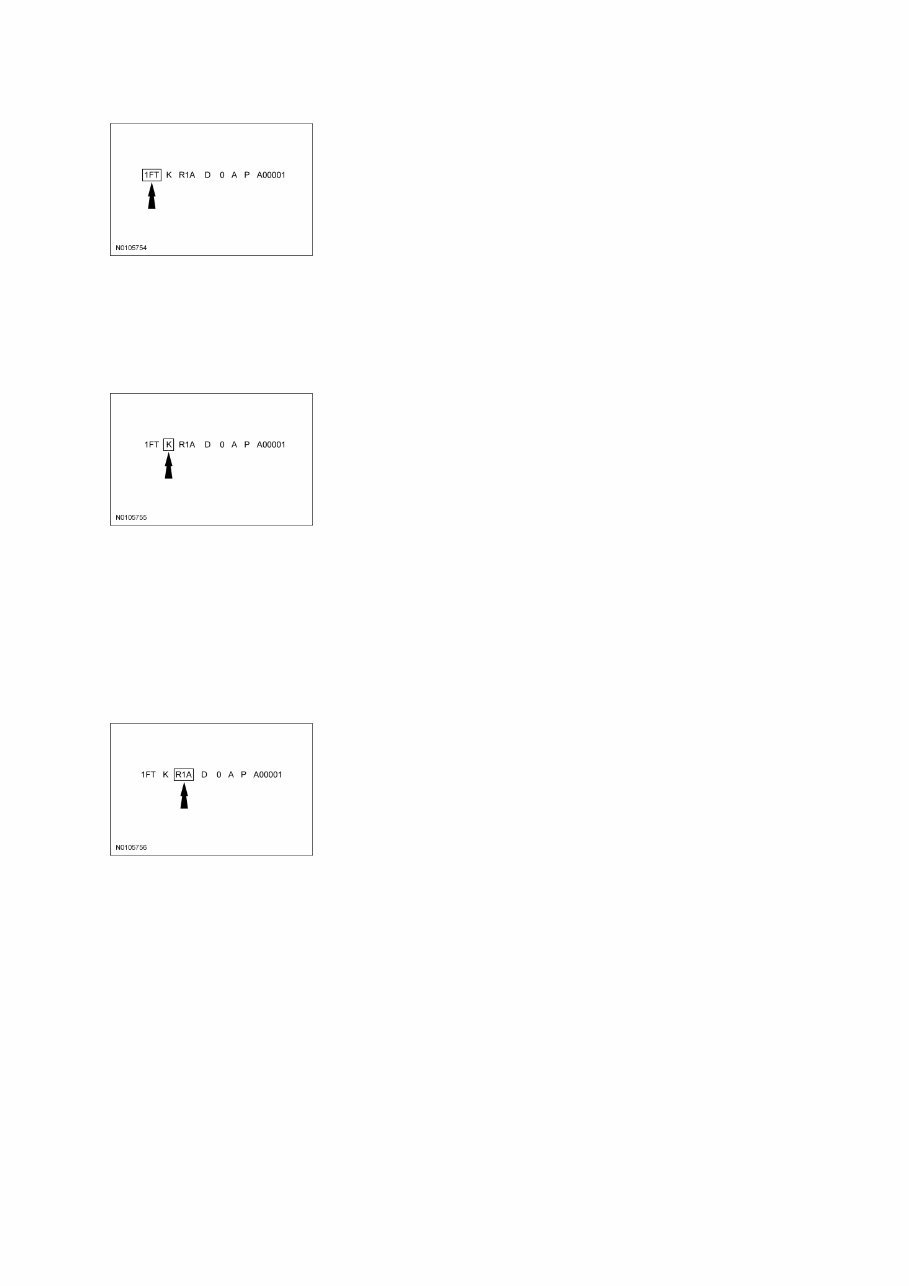

World Manufacturer Identifier (WMI) The first 3 Vehicle Identification Number (VIN) positions are the World Manufacturer Identifier (WMI). 1FT - Ford Motor Company, USA, truck, completed vehicle • Restraint Type and Gross Vehicle Weight Rating (GVWR) The fourth VIN position is the vehicle restraint type and Gross Vehicle Weight Rating (GVWR) code. K - 4,001-5,000 pounds GVWR , active safety belts (all positions) with driver and front passenger air bags • L - 5,001-6,000 pounds GVWR , active safety belts (all positions) with driver and front passenger air bags • Vehicle Line, Series and Body Type Positions 5 through 7 indicate vehicle line, series and body type. R1A - Rear Wheel Drive (RWD), regular cab • R1E - RWD , SuperCab (2-door) • R1F - Four-Wheel Drive (4WD), SuperCab (2-door) • R4E - RWD , SuperCab (4-door) • R4F - 4WD , SuperCab (4-door) • Engine Code 2010 Ranger Workshop Manual World Manufacturer Identifier (WMI) 2

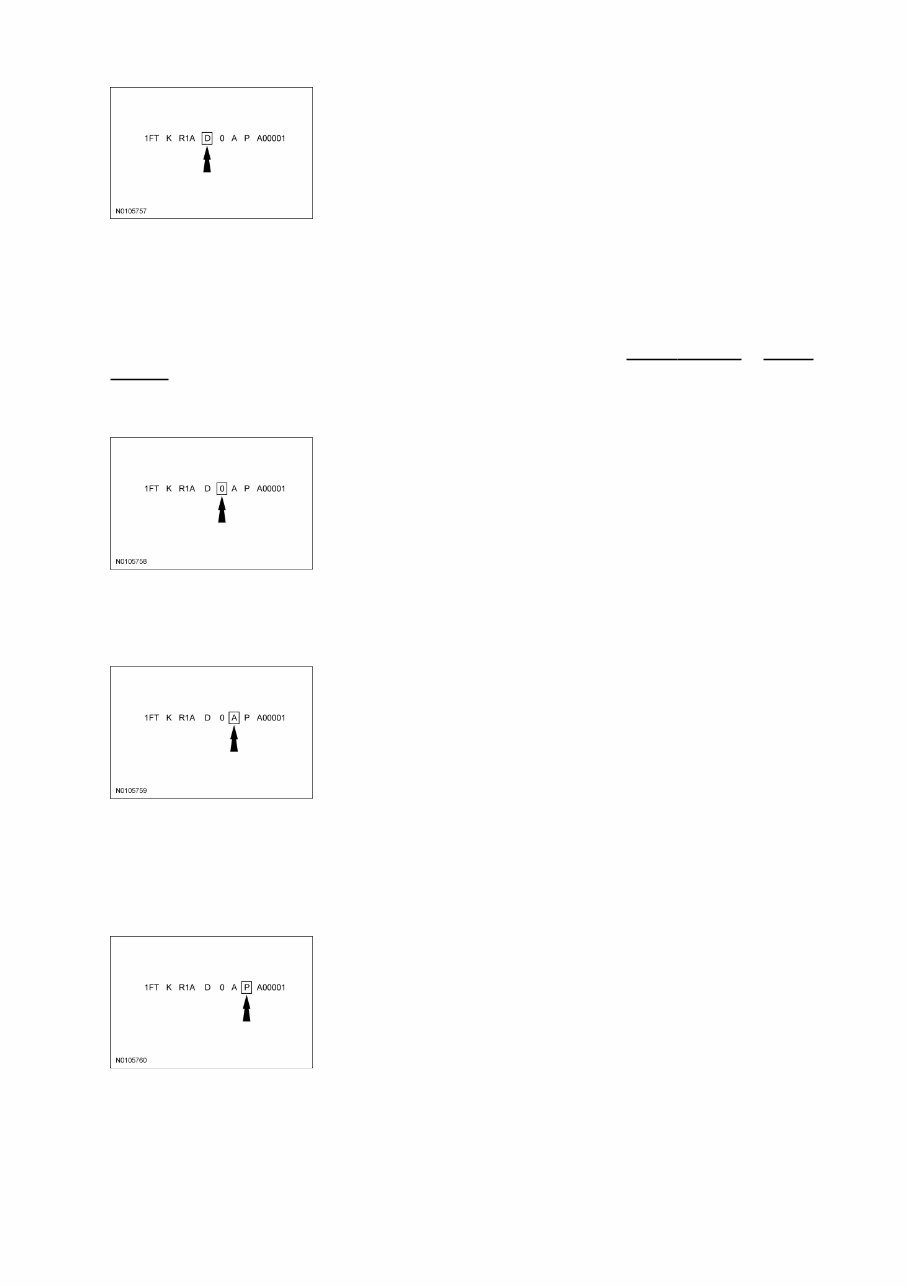

The eighth VIN position identifies the engine type, displacement and number of cylinders. D - 2.3L, electronic fuel injection, 4-cylinder, gas • E - 4.0L, electronic fuel injection, SOHC, V6, gas • Additional engine information can be obtained from the engine tag. Refer to Section 303-01A or Section 303-01B . Check Digit The ninth VIN position is a government-assigned, computer-generated check digit. Model Year The tenth VIN position is the model year code. A - 2010 • Assembly Plant The eleventh VIN position is the assembly plant code. P - Twin Cities (St. Paul, Minnesota) • 2010 Ranger Workshop Manual Engine Code 3
