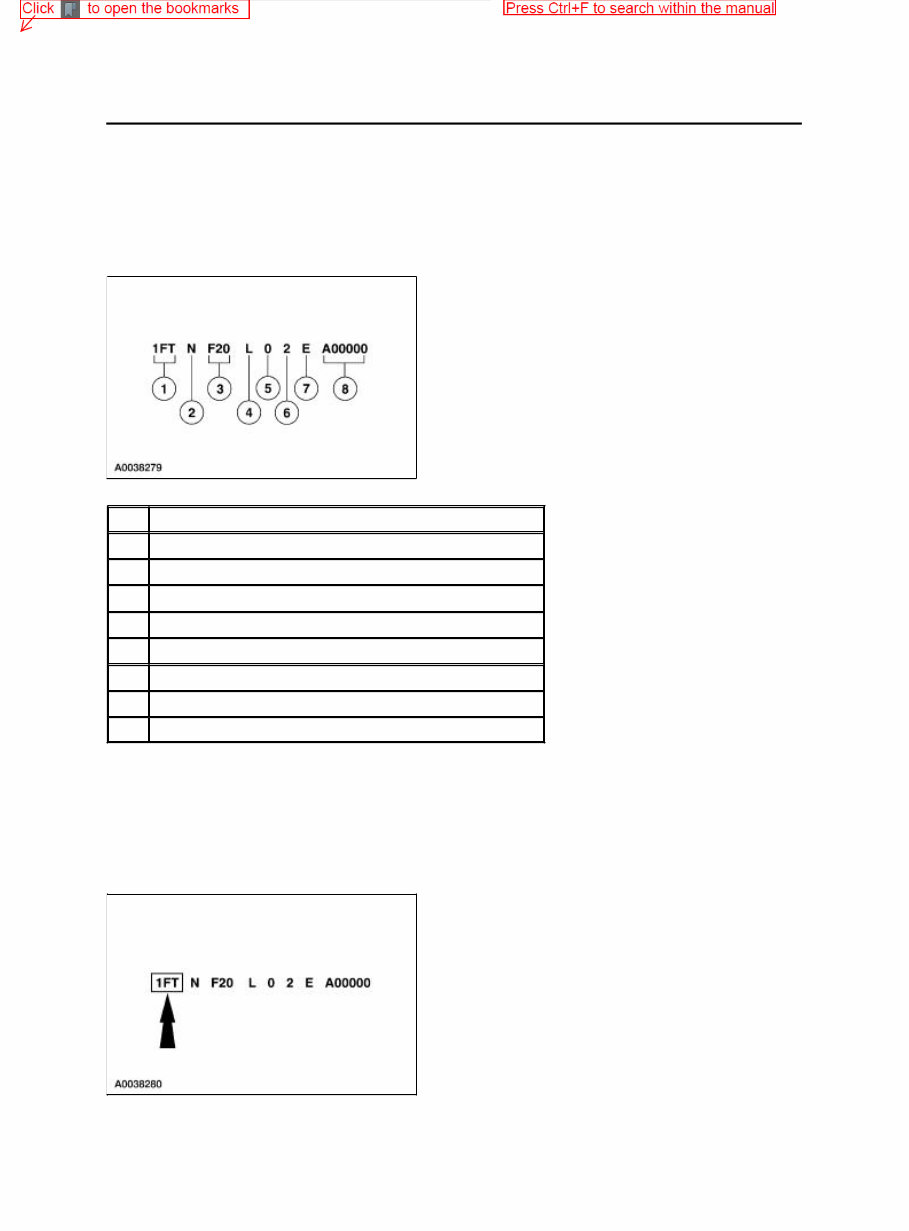

DESCRIPTION AND OPERATION Identification Codes The vehicle identification number (VIN) is a 17-digit combination of letters and numbers. The VIN is stamped on a metal tab riveted to the instrument panel, top upper left of the dash. The VIN number is also found on the vehicle certification (VC) label. Vehicle Identification Number (VIN) World Manufacturer Identifier (WMI) The first three vehicle identification number (VIN) positions are the world manufacturer code. SECTION 100-01: Identification Codes 2002 F-Super Duty/Excursion Workshop Manual Item Description 1 World manufacturer identifier (WMI) 2 Brake type and gross vehicle weight rating (GVWR) code 3 Vehicle line, series and body type code 4 Engine type code 5 Government assigned, computer-generated check digit 6 Model year code 7 Assembly plant code 8 Production sequence number 11.03. 2012 file:///C:/Ford/2000-2004/tsocache/SHEF_3648/S2O~us~en~...

1FD — Ford Motor Company, USA, incomplete vehicle 1FM — Ford Motor Company, USA, multi-purpose vehicle 1FT — Ford Motor Company, USA, truck, completed vehicle 2FM — Ford Motor Company, Canada, multi-purpose vehicle 3FD — Ford Motor Company, Mexico, incomplete vehicle Brake Type and Gross Vehicle Weight Rating (GVWR) The fourth VIN position is the vehicle brake type and GVWR code (all vehicles use hydraulic brakes). N — 8,501-9,000 pounds GVWR with driver and front passenger air bags S — 9,001-10,000 pounds GVWR with driver and front passenger air bags W — 10,001-14,000 pounds GVWR with driver and front passenger air bags X — 14,001-16,000 pounds GVWR with driver and front passenger air bags A — 16,001-19,500 pounds GVWR with driver and front passenger air bags H — 8,501-9,000 pounds GVWR, without air bags (Mexico) J — 9,000-10,000 pounds GVWR, without air bags (Mexico) K — 10,001-14,000 pounds GVWR, without air bags (Mexico) L — 14,001-16,000 pounds GVWR, without air bags (Mexico) M — 16,001-19,500 pounds GVWR, without air bags (Mexico) Vehicle Line, Series, Body Type Positions 5 through 7 indicate vehicle line, series and body type. 11.03. 2012 file:///C:/Ford/2000-2004/tsocache/SHEF_3648/S2O~us~en~...

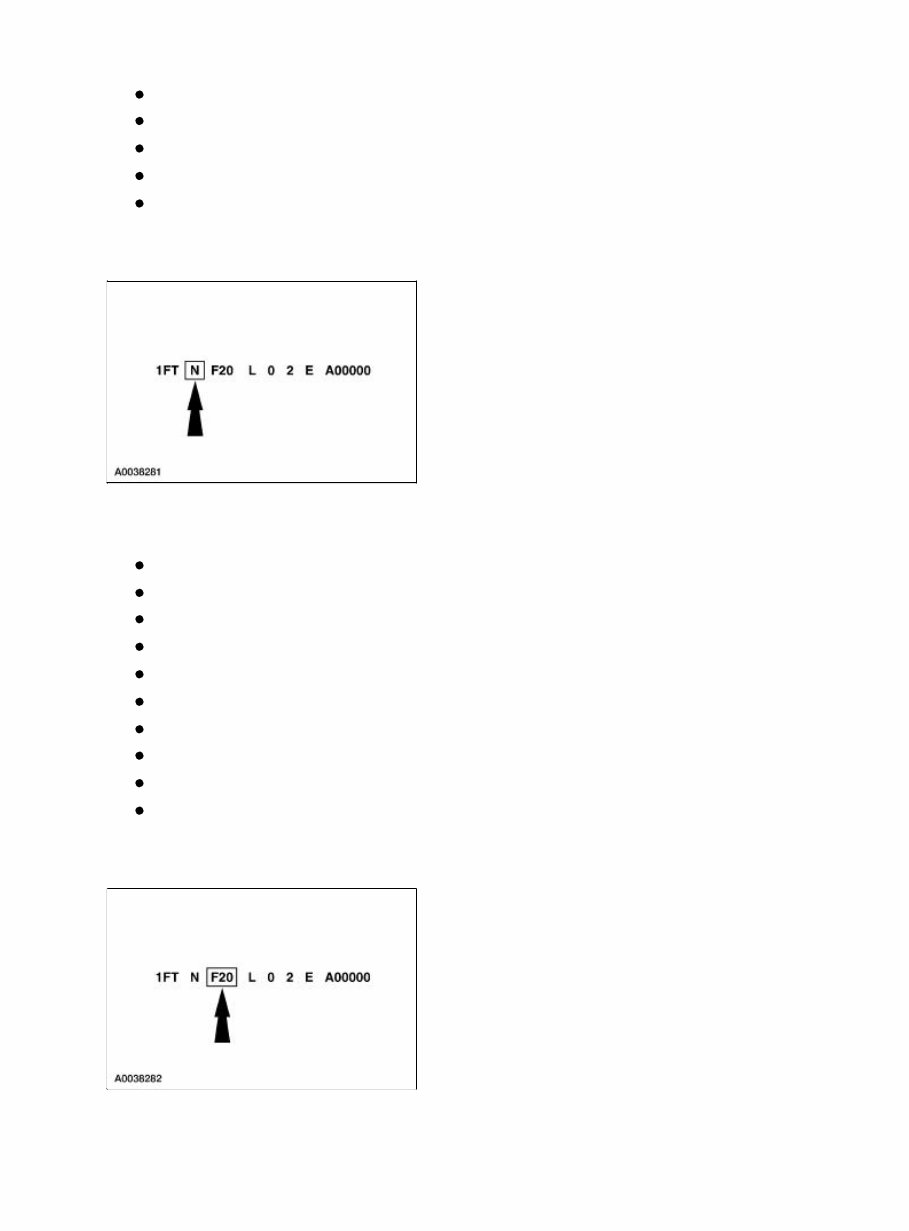

F20 — F-250, Regular Cab, 4x2, single rear wheels X20 — F-250, SuperCab, 4x2, single rear wheels W20 — F-250, Crew Cab, 4x2, single rear wheels F21 — F-250, Regular Cab, 4x4, single rear wheels X21 — F-250, SuperCab, 4x4, single rear wheels W21 — F-250, Crew Cab, 4x4, single rear wheels F30 — F-350, Regular Cab, 4x2, single rear wheels X30 — F-350, SuperCab, 4x2, single rear wheels W30 — F-350, Crew Cab, 4x2, single rear wheels F31 — F-350, Regular Cab, 4x4, single rear wheels X31 — F-350, SuperCab, 4x4, single rear wheels W31 — F-350, Crew Cab, 4x4, single rear wheels F32 — F-350, Regular Cab, 4x2, dual rear wheels X32 — F-350, SuperCab, 4x2, dual rear wheels W32 — F-350, Crew Cab, 4x2, dual rear wheels F33 — F-350, Regular Cab, 4x4, dual rear wheels X33 — F-350, SuperCab, 4x4, dual rear wheels W33 — F-350, Crew Cab, 4x4, dual rear wheels F34 — F-350, Regular Cab (Chassis Cab), 4x2, single rear wheels X34 — F-350, SuperCab (Chassis Cab), 4x2, single rear wheels W34 — F-350, Crew Cab (Chassis Cab), 4x2, single rear wheels F35 — F-350, Regular Cab (Chassis Cab), 4x4, single rear wheels X35 — F-350, SuperCab (Chassis Cab), 4x4, single rear wheels W35 — F-350, Crew Cab (Chassis Cab), 4x4, single rear wheels F36 — F-350, Regular Cab (Chassis Cab), 4x2, dual rear wheels X36 — F-350, SuperCab (Chassis Cab), 4x2, dual rear wheels W36 — F-350, Crew Cab (Chassis Cab), 4x2, dual rear wheels F37 — F-350, Regular Cab (Chassis Cab), 4x4, dual rear wheels X37 — F-350, SuperCab (Chassis Cab), 4x4, dual rear wheels W37 — F-350, Crew Cab (Chassis Cab), 4x4, dual rear wheels F46 — F-450, Regular Cab (Chassis Cab), 4x2 W46 — F-450, Crew Cab (Chassis Cab), 4x2 W42 — F-450, Crew Cab (with box), 4x2, dual rear wheels W43 — F-450, Crew Cab (with box), 4x4, dual rear wheels F47 — F-450, Regular Cab (Chassis Cab), 4x4 W47 — F-450, Crew Cab (Chassis Cab), 4x4 F56 — F-550, Regular Cab (Chassis Cab), 4x2 W56 — F-550, Crew Cab (Chassis Cab), 4x2 F57 — F-550, Regular Cab (Chassis Cab), 4x4 X46 — F-450, SuperCab (Chassis Cab), 4x2 11.03. 2012 file:///C:/Ford/2000-2004/tsocache/SHEF_3648/S2O~us~en~...

X47 — F-450, SuperCab (Chassis Cab), 4x4 X56 — F-550, SuperCab (Chassis Cab), 4x2 X57 — F-550, SuperCab (Chassis Cab), 4x4 W57 — F-550, Crew Cab, (Chassis Cab), 4x4 U40 — Excursion, 4x2, XLT U41 — Excursion, four-door, 4x4, XLT U42 — Excursion, four-door, 4x2, Limited U43 — Excursion, four-door, 4x4, Limited Engine Code The eighth VIN position is the engine displacement and number of cylinders. L — 5.4L, Modular, SOHC, EFI, V8, Gas S — 6.8L, SOHC, EFI, V10, Gas F — 7.3L, OHV, DI Turbo, V8, Diesel Z — 6.8L, gaseous fuel prep (F-Series) D — 6.8L, propane only (F-Series) B — 5.4L, propane only (F-Series) Check Digit Code The ninth VIN position is a government assigned, computer-generated check digit. Model Year Code 11.03. 2012 file:///C:/Ford/2000-2004/tsocache/SHEF_3648/S2O~us~en~...

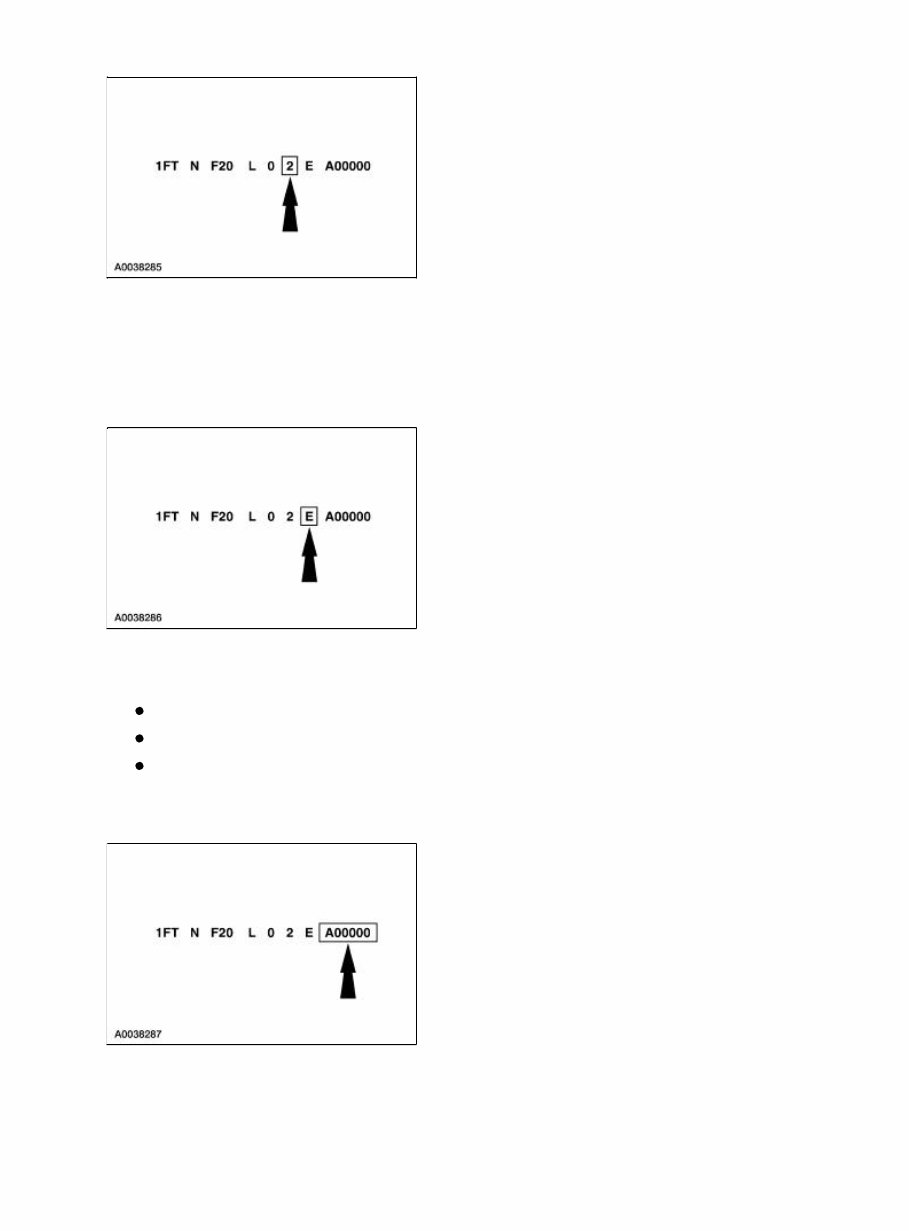

The tenth VIN position is the model year code. · 2 — 2002 Assembly Plant Code The eleventh VIN position is the assembly plant code. S — Allen Park (Allen Park, Michigan) E — Kentucky Truck (Jefferson County, Kentucky) M — Cuautitlan (Cuautitlan, Mexico) Sequential Build Code The last six VIN positions are an alphanumeric code for the vehicle build sequence. This is also the vehicle serial and warranty number. · A0000-E99999 — Ford Division 11.03. 2012 file:///C:/Ford/2000-2004/tsocache/SHEF_3648/S2O~us~en~...

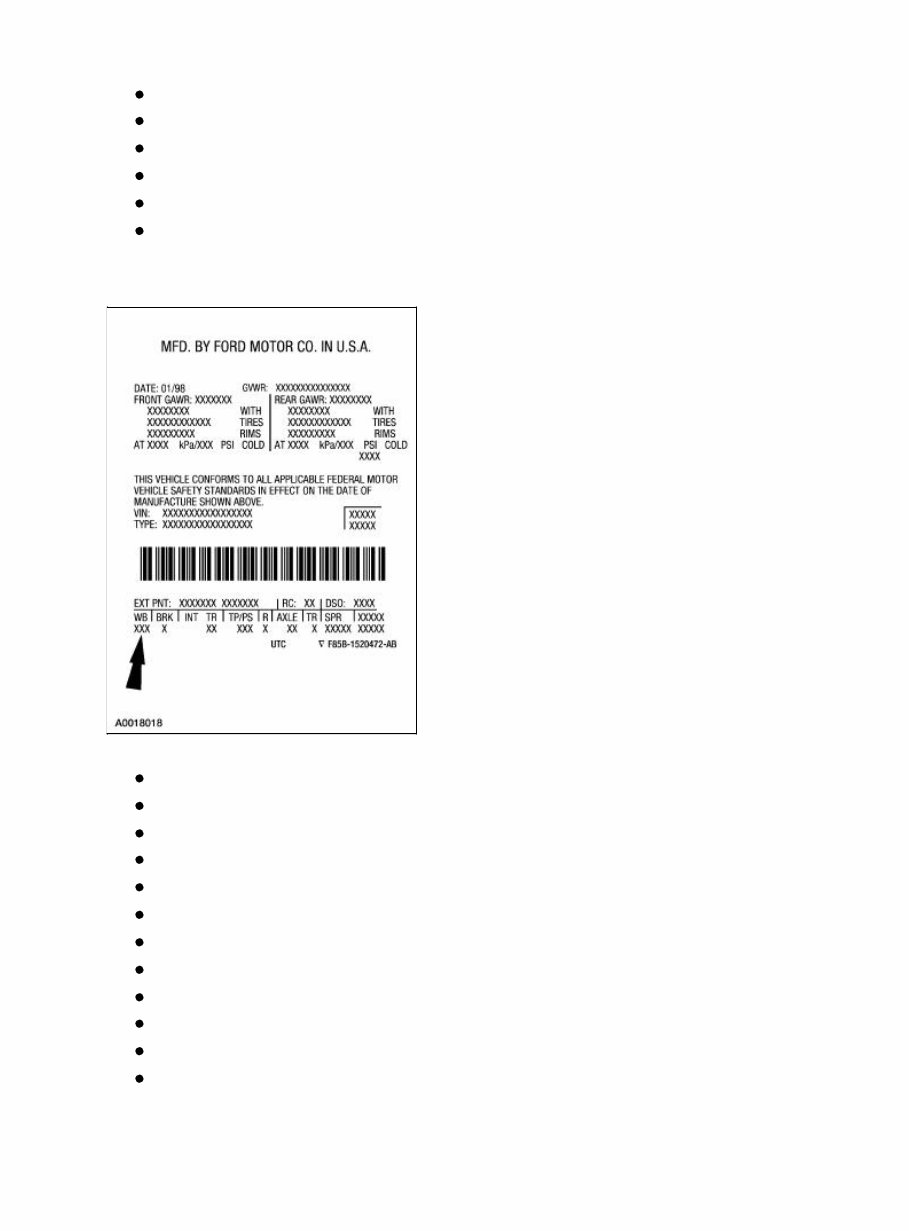

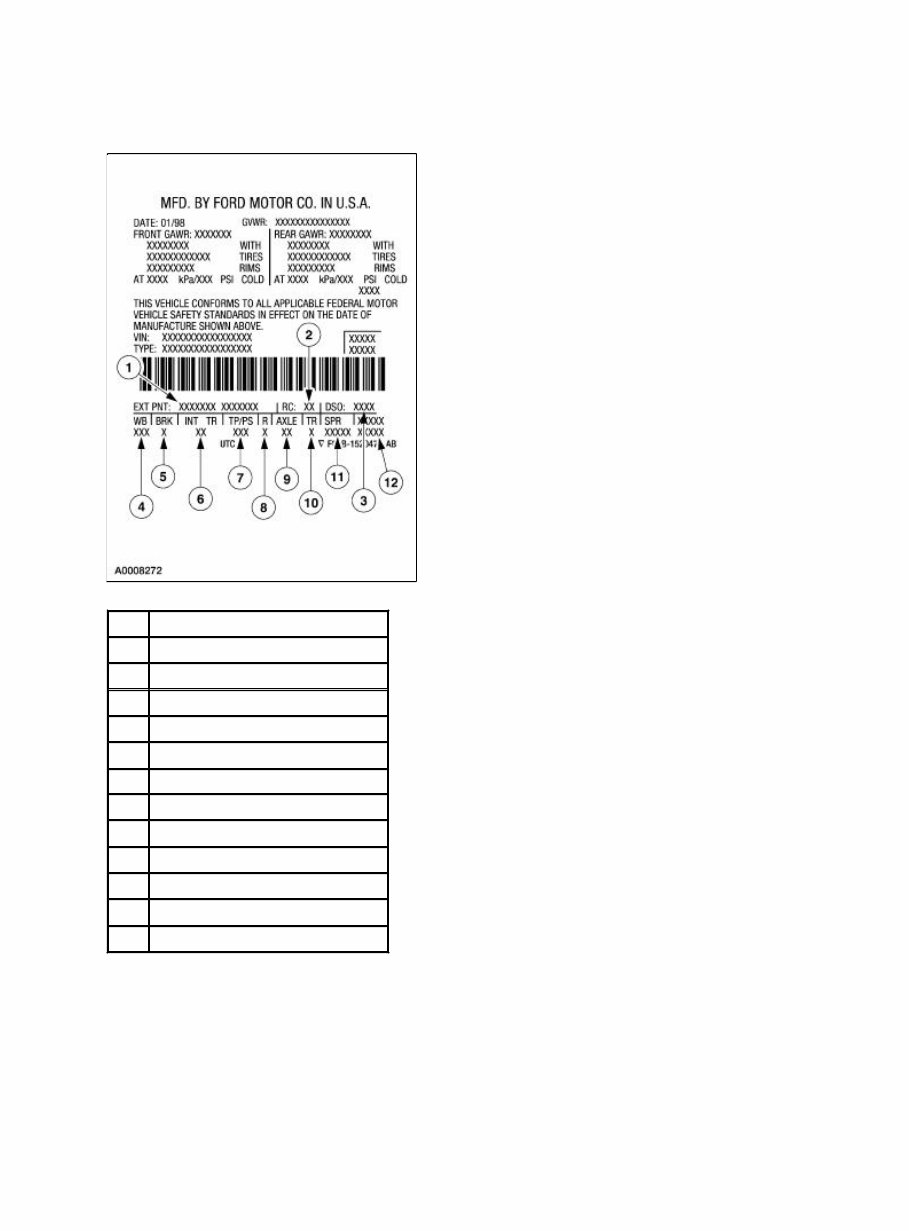

Vehicle Certification (VC) Label The vehicle certification (VC) label contains the manufacturer name, the month and year of manufacture, the certification statement, and the VIN. It also includes gross vehicle weight ratings (GVWR). Vehicle Certification (VC) Label — Mexico (Typical) Item Description 1 Exterior Paint Code 2 Region Code 3 Domestic Special Order Code 4 Wheelbase Code 5 Brake Code 6 Interior Trim Code 7 Tape/Paint Pinstripe Code 8 Radio Code 9 Axle Code 10 Transmission Code 11 Spring Code 12 Powertrain Calibration Information 11.03. 2012 file:///C:/Ford/2000-2004/tsocache/SHEF_3648/S2O~us~en~...

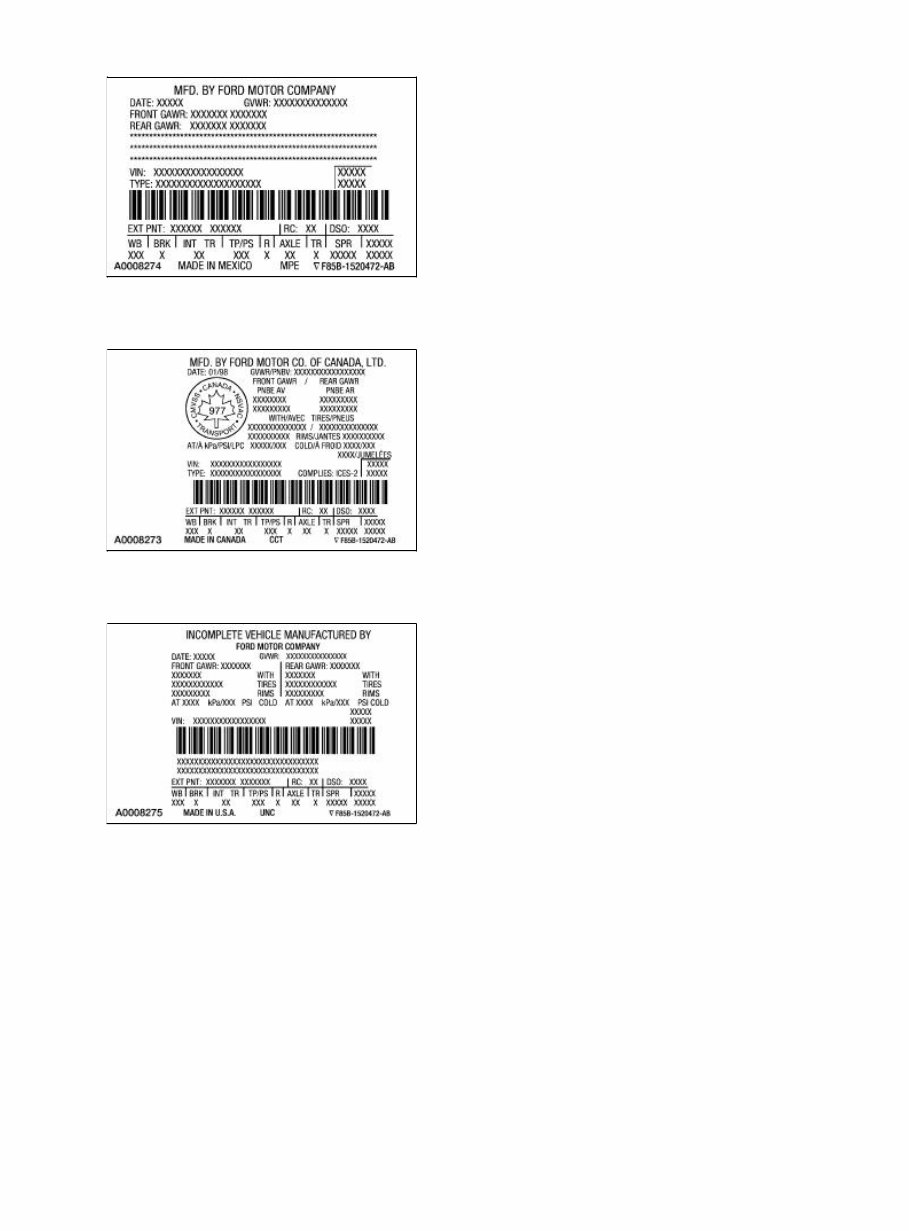

Vehicle Certification (VC) Label — Canada (Typical) Vehicle Certification (VC) Label — Incomplete Vehicle (Typical) Paint Code 11.03. 2012 file:///C:/Ford/2000-2004/tsocache/SHEF_3648/S2O~us~en~...

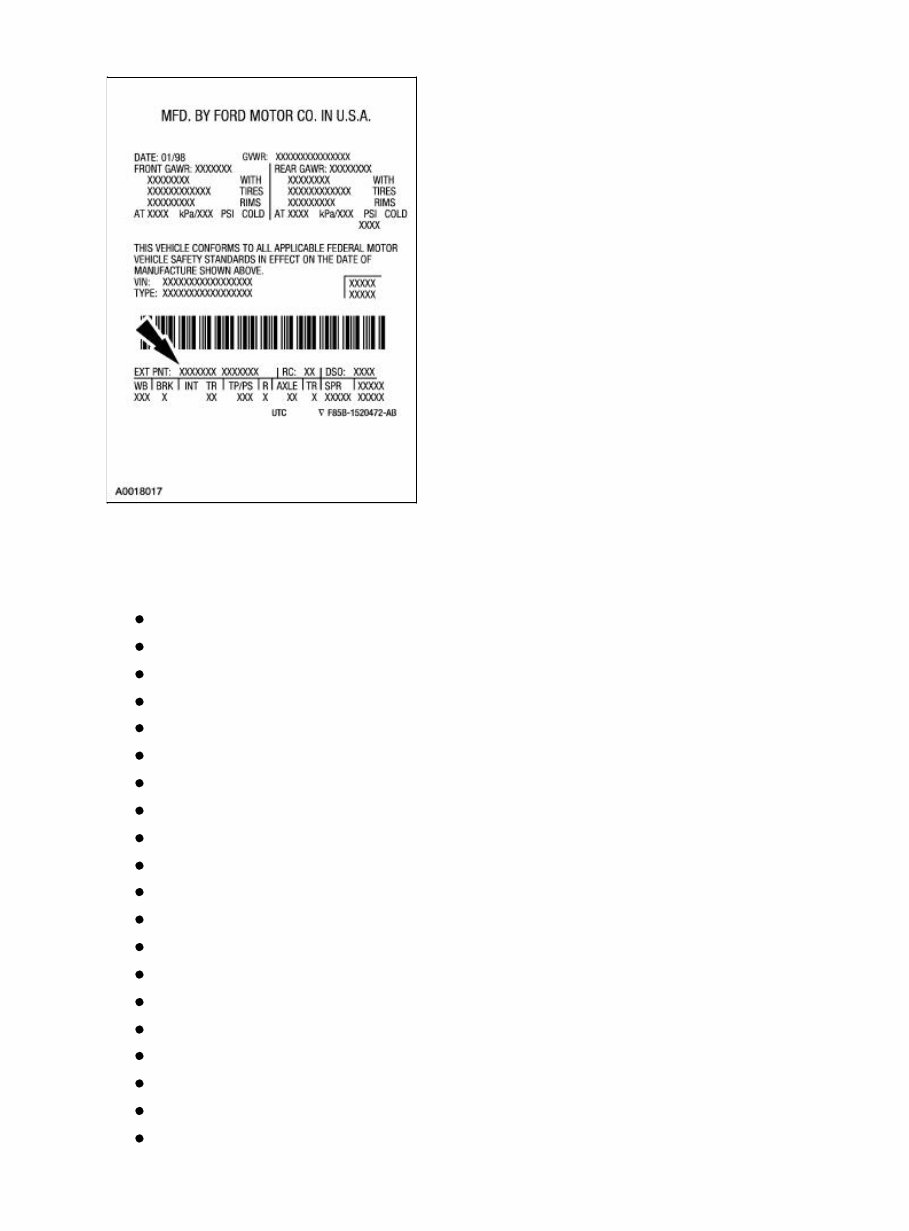

Exterior paint codes may be listed as a two-part code. The first set of characters listed indicate the vehicle primary body color code. The second set of characters listed (if applicable) indicated a two- tone or accent body color code. AQ — Arizona Beige (clear coat), F-Series BY — School Bus Yellow, Mexico sold only, F-Series CX — Dark Shadow Gray (clear coat), F-Series F1 — Vermilion Red (clear coat), F-Series EP — Vermilion Red Solid, Mexico sold only, F-Series FN — Dark Toreador Red, F-Series GX — Dark Toreador Red, Mexico sold only, F-Series L2 — True Blue (clear coat) LR — Sapphire Blue (clear coat), F-Series PB — Jewel Green, Mexico sold only, F-Series PK — Chesapeake Blue, Mexico sold only, F-Series PY — Highland Green (waterborne), F-Series UD — Ebony, F-Series TX — Bright Silver, Mexico sold only, F-Series YO — Oxford White, Mexico sold only, F-Series Z1 — Oxford White, Mexico build U.S. sold, F-Series Z1 — Oxford White (clear coat), F-Series Z3 — Silver Metallic (clear coat), F-Series FL — Toreador Red, Excursion JP — Silver Birch Metallic, Excursion 11.03. 2012 file:///C:/Ford/2000-2004/tsocache/SHEF_3648/S2O~us~en~...

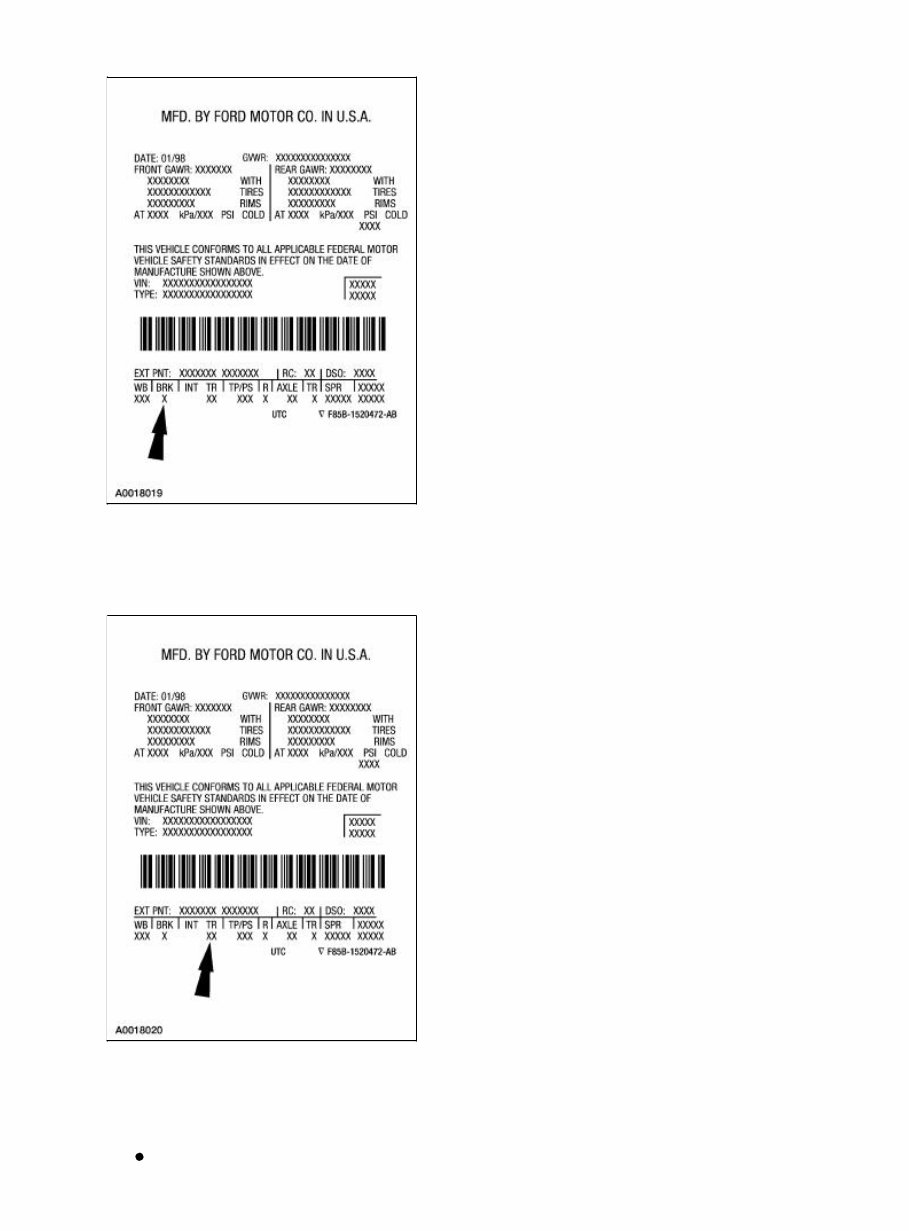

LD — Medium Wedgewood Blue, Excursion P5 — Aspen Green, Excursion ST — Estate Green, Excursion TK — Mineral Gray, Excursion UA — Ebony, Excursion YZ — Oxford White, Excursion Wheelbase 137 — 137-inch wheelbase (F-Series, Excursion) 141 — 141-inch wheelbase (F-Series) 142 — 142-inch wheelbase (F-Series) 156 — 156-inch wheelbase (F-Series) 158 — 158-inch wheelbase (F-Series) 162 — 162-inch wheelbase (F-Series) 165 — 165-inch wheelbase (F-Series) 172 — 172-inch wheelbase (F-Series) 176 — 176-inch wheelbase (F-Series) 189 — 189-inch wheelbase (F-Series) 200 — 200-inch wheelbase (F-Series) 201 — 201-inch wheelbase (F-Series) Brake Type 11.03. 2012 file:///C:/Ford/2000-2004/tsocache/SHEF_3648/S2O~us~en~...

· B — Four-wheel anti-lock brakes system (ABS) Interior Trim Interior trim codes are listed as a two-part code. The first character listed identifies the trim type. The second character listed identifies the interior trim color. Interior Trim Type K — Knitted vinyl bench seat, F-Series 11.03. 2012 file:///C:/Ford/2000-2004/tsocache/SHEF_3648/S2O~us~en~...
