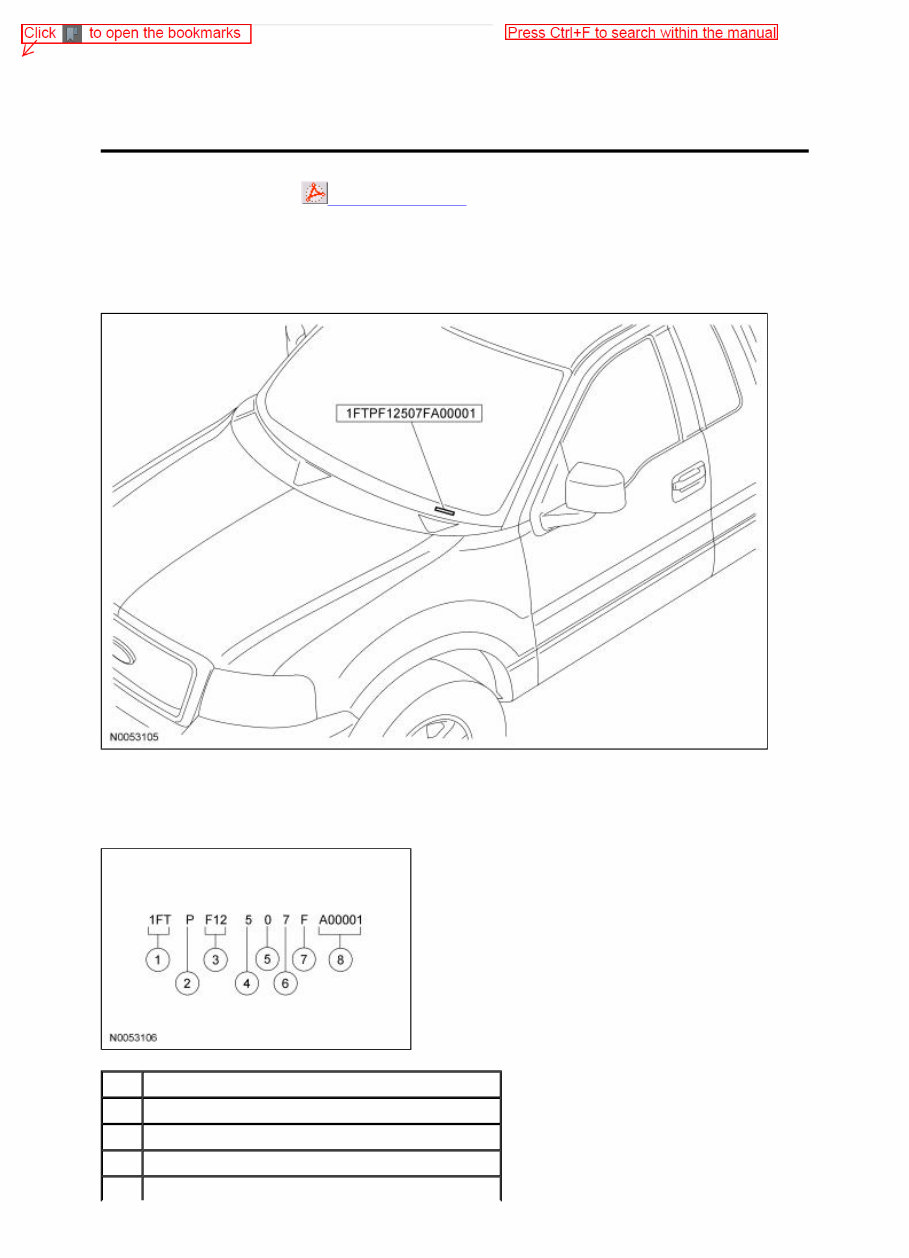

Identification Codes Printable View (648 KB) Vehicle Identification Number Vehicle Identification Number (VIN) Tag Locator The vehicle identification number (VIN) is a 17-digit combination of letters and numbers. The VIN is stamped on a metal tab riveted on the instrument panel, top upper left of the dash. The VIN is also found on the vehicle certification (VC) label. SECTION 100-01: Identification Codes 2007 F-150/Mark LT Workshop Manual DESCRIPTION AND OPERATION Procedure revision date: 07/14/2006 Item Description 1 World manufacturer identifier 2 Brake type and gross vehicle weight rating (GVWR) 3 Vehicle line, series, body type Page 1 of 17 2007 F-150/Mark LT Workshop Manual

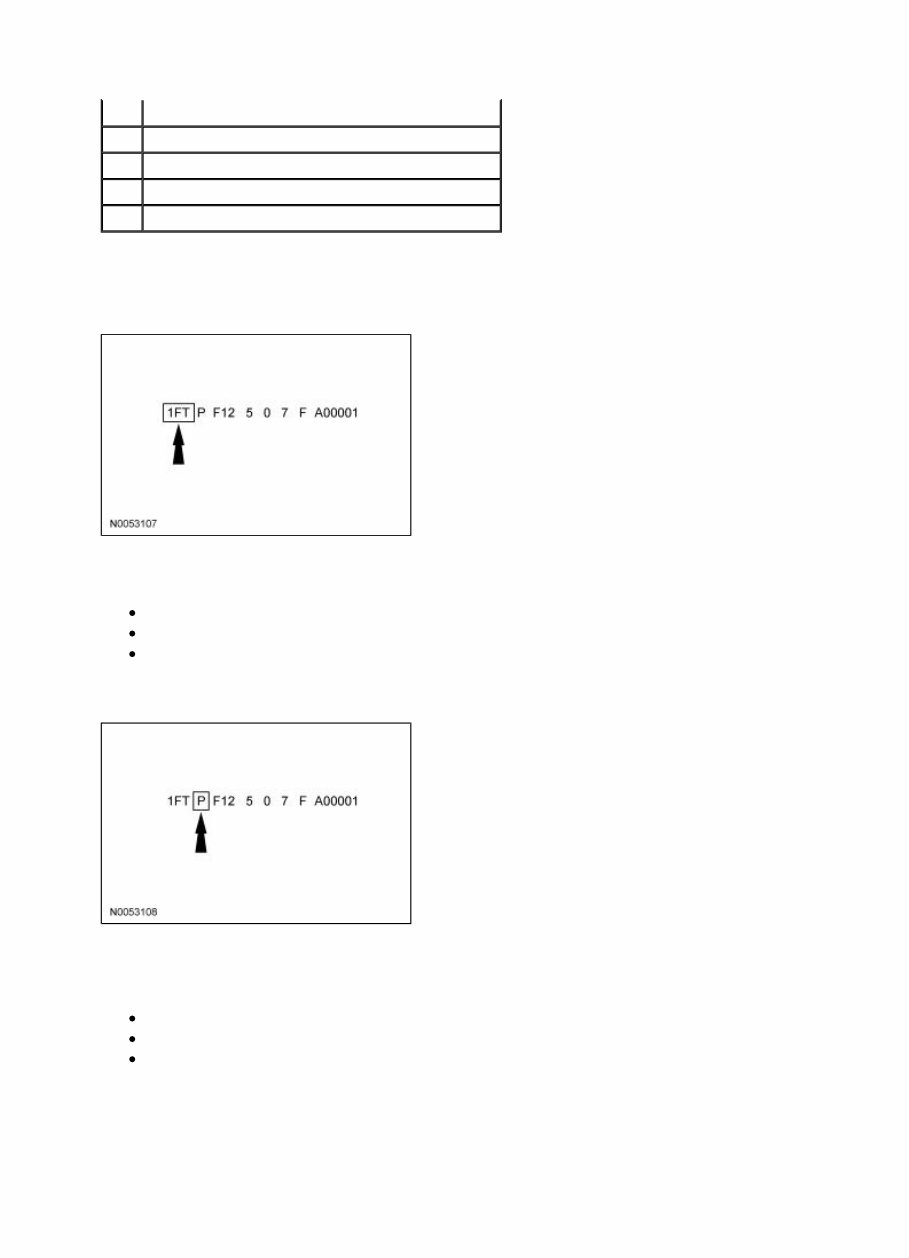

World Manufacturer Identifier The first 3 vehicle identification number (VIN) positions are the world manufacturer identifier. 1FD — Ford Motor Company, USA, truck (incomplete vehicle) 1FT — Ford Motor Company, USA, truck (completed vehicle) 5LT — Ford Motor Company (Lincoln), USA, truck (completed vehicle) Brake Type and Gross Vehicle Weight Rating (GVWR) The fourth VIN position is the vehicle brake type and gross vehicle weight rating (GVWR) code, all vehicles use hydraulic brakes. This code may also identify the vehicle safety restraint system. R — 6,001-7,000 pounds GVWR with driver and front passenger air bags — F-150 P — 7,001-8,000 pounds GVWR with driver and front passenger air bags — F-150/Mark LT V — 8,001-8,500 pounds GVWR with driver and front passenger air bags — F-150 Line, Series and Body Type 4 Engine type 5 Check digit 6 Model year 7 Assembly plant 8 Production sequence number Page 2 of 17 2007 F-150/Mark LT Workshop Manual

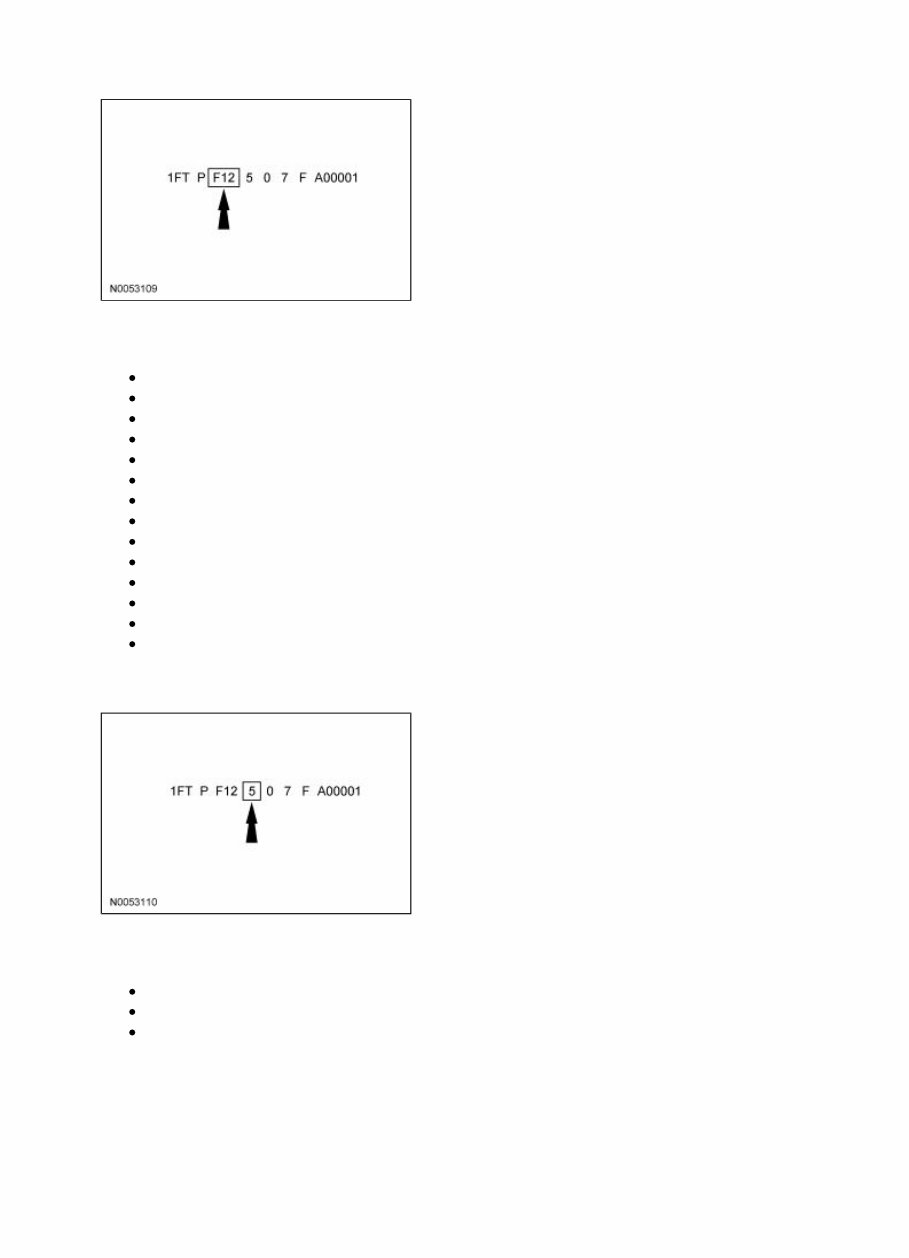

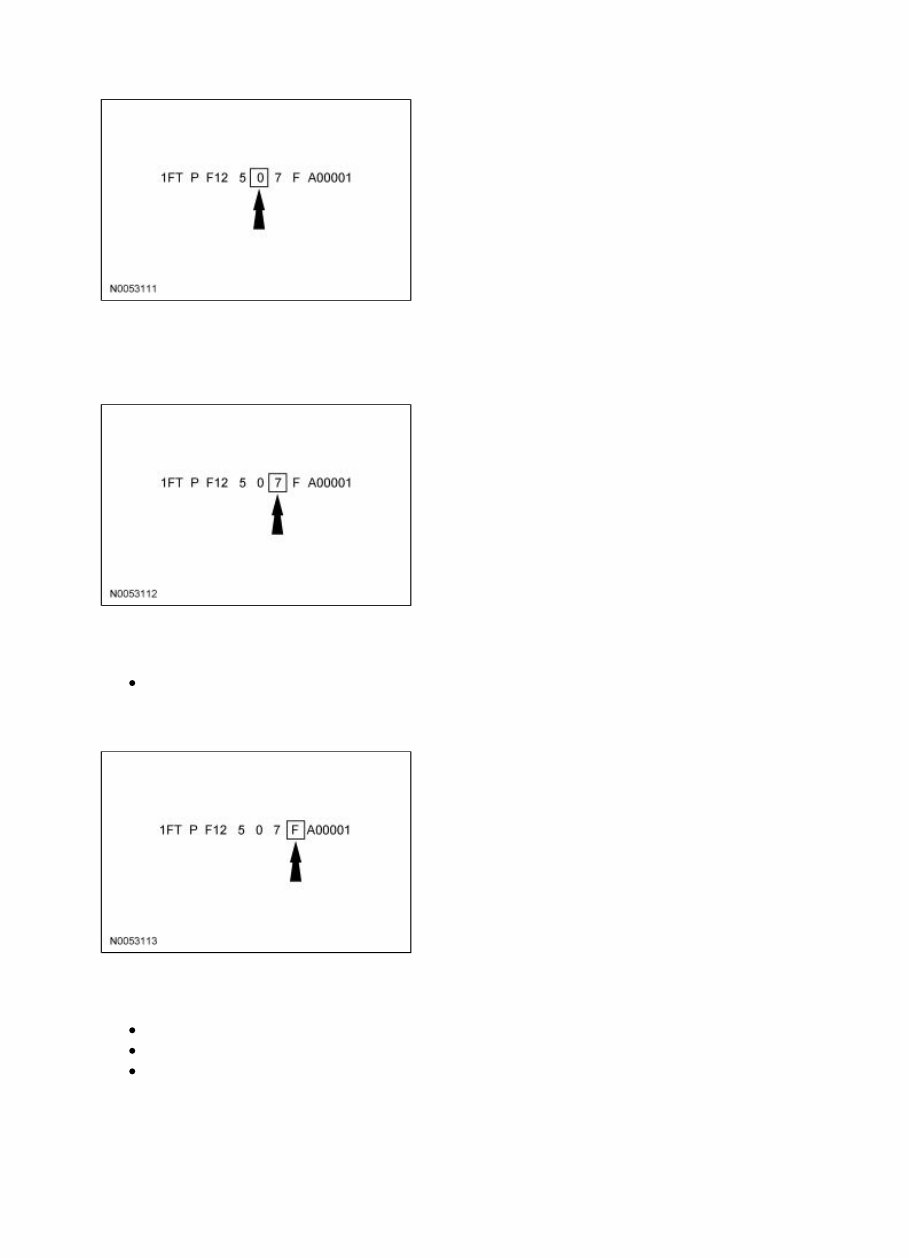

VIN positions 5 through 7 indicate the vehicle line, series and body type. F02 — F-150, rear wheel drive (RWD), regular cab, 6.5 ft. flareside F04 — F-150, four wheel drive (4WD), regular cab, 6.5 ft. flareside F12 — F-150, RWD, regular cab, 6.5 ft. or 8 ft. styleside F14 — F-150, 4WD, regular cab, 6.5 ft. or 8 ft. styleside W02 — F-150, RWD, Crew Cab, 6.5 ft. flareside W04 — F-150, 4WD, Crew Cab, 6.5 ft. flareside W12 — F-150, RWD, Crew Cab, 5.5 ft. or 6.5 ft. styleside W14 — F-150, 4WD, Crew Cab, 5.5 ft. or 6.5 ft. styleside W16 — Mark LT, RWD, Crew Cab, 5.5 ft. styleside W18 — Mark LT, 4WD, Crew Cab, 5.5 ft. styleside X02 — F-150, RWD, SuperCab, 6.5 ft. flareside X04 — F-150, 4WD, SuperCab, 6.5 ft. flareside X12 — F-150, RWD, SuperCab, 8 ft. styleside, 5.5 ft. styleside or 6.5 ft. styleside X14 — F-150, 4WD, SuperCab, 8 ft. styleside, 5.5 ft. styleside or 6.5 ft. styleside Engine Type The eighth VIN position is the engine type (displacement and number of cylinders). 2 — 4.2L, OHV, V6, EFI — F-150 5 — 5.4L, 3-valve, SOHC, V8, EFI — F-150/Mark LT W — 4.6L, SOHC, V8, EFI — F-150 Check Digit Page 3 of 17 2007 F-150/Mark LT Workshop Manual
The ninth VIN position is a government-assigned, computer-generated check digit. Model Year The tenth VIN position is the model year code. 7 — 2007 Assembly Plant The eleventh VIN position is the assembly plant code. F — Dearborn — Dearborn, Michigan, USA — F-150/Mark LT K — Kansas City — Claycomo, Missouri, USA — F-150 N — Norfolk — Norfolk, Virginia, USA — F-150 Build Sequence Page 4 of 17 2007 F-150/Mark LT Workshop Manual
VIN positions 12 through 17 are an alphanumeric code for the vehicle build sequence. This is also the vehicle serial and warranty number. The serial number can also be found on the engine block, transmission and frame. A00001-F99999 — F-150 J00001-L99999 — Mark LT Vehicle Certification (VC) Codes Vehicle Certification (VC) Label Locator Page 5 of 17 2007 F-150/Mark LT Workshop Manual

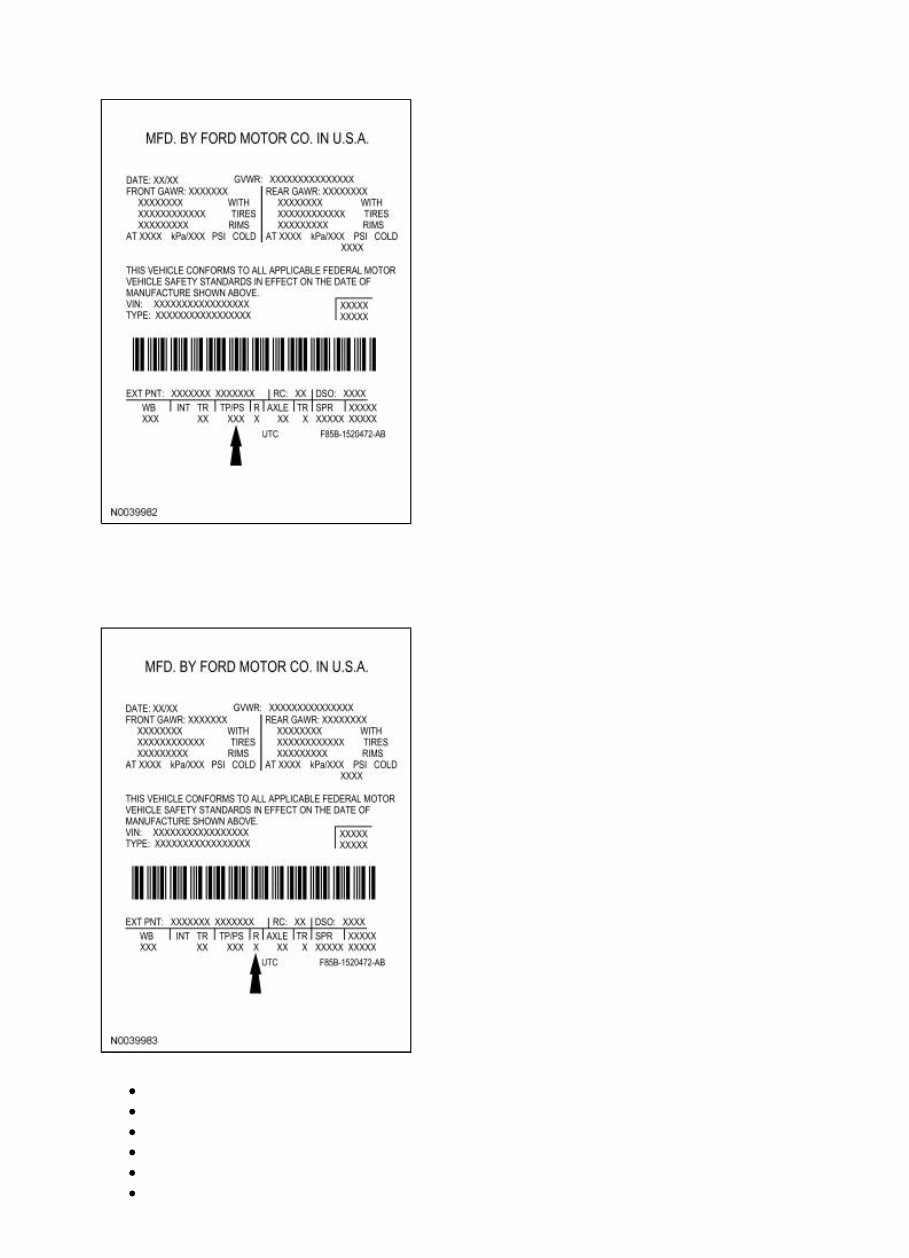

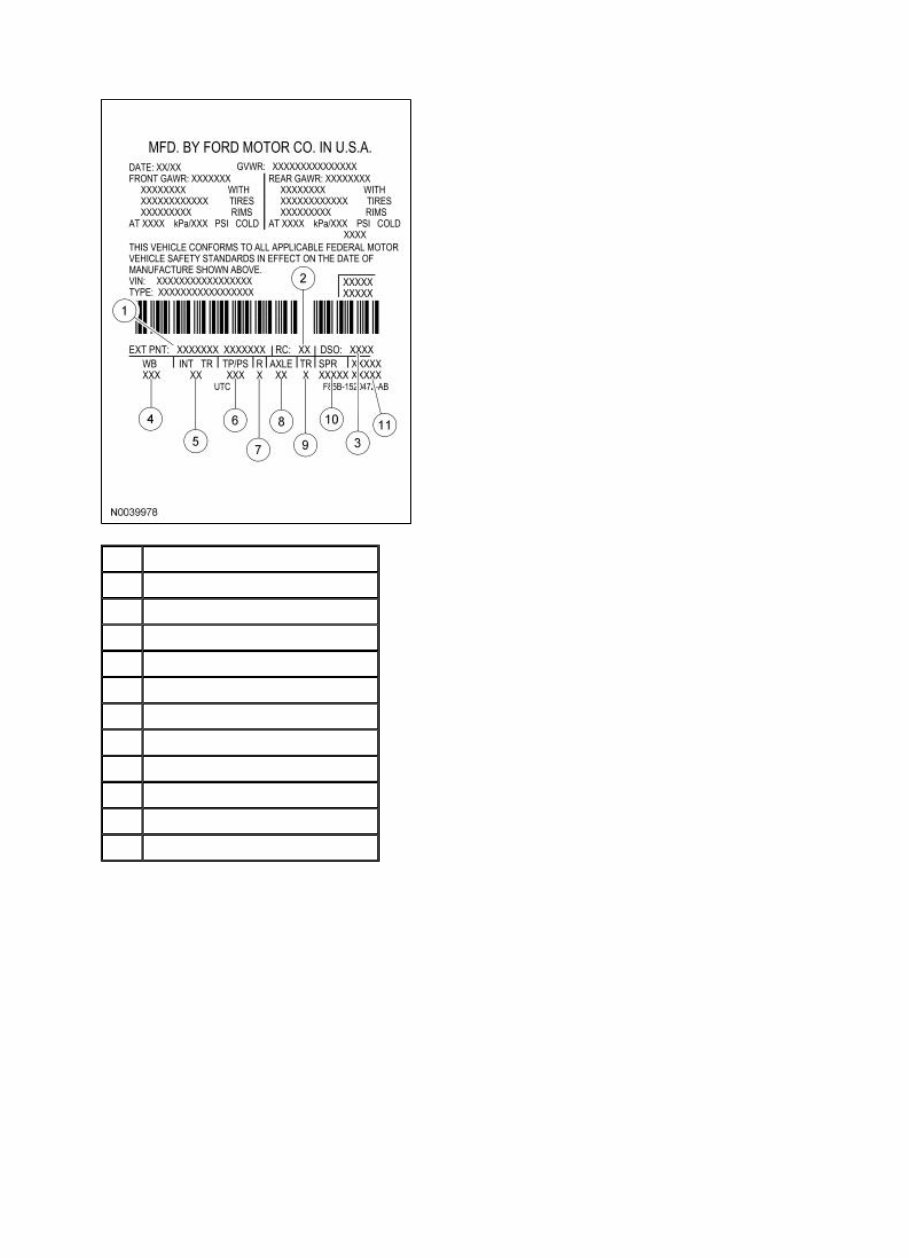

The vehicle (VC) label contains information on the manufacturer name, the month and year of manufacture, the certification statement and the VIN. This label also includes gross vehicle weight (GVWR) information. Exterior Paint Item Description 1 Exterior paint code 2 Region code 3 Domestic special order 4 Wheelbase code 5 Interior trim code 6 Tape/paint stripe code 7 Radio code 8 Axle code 9 Transmission code 10 Spring code 11 Powertrain calibration information Page 6 of 17 2007 F-150/Mark LT Workshop Manual

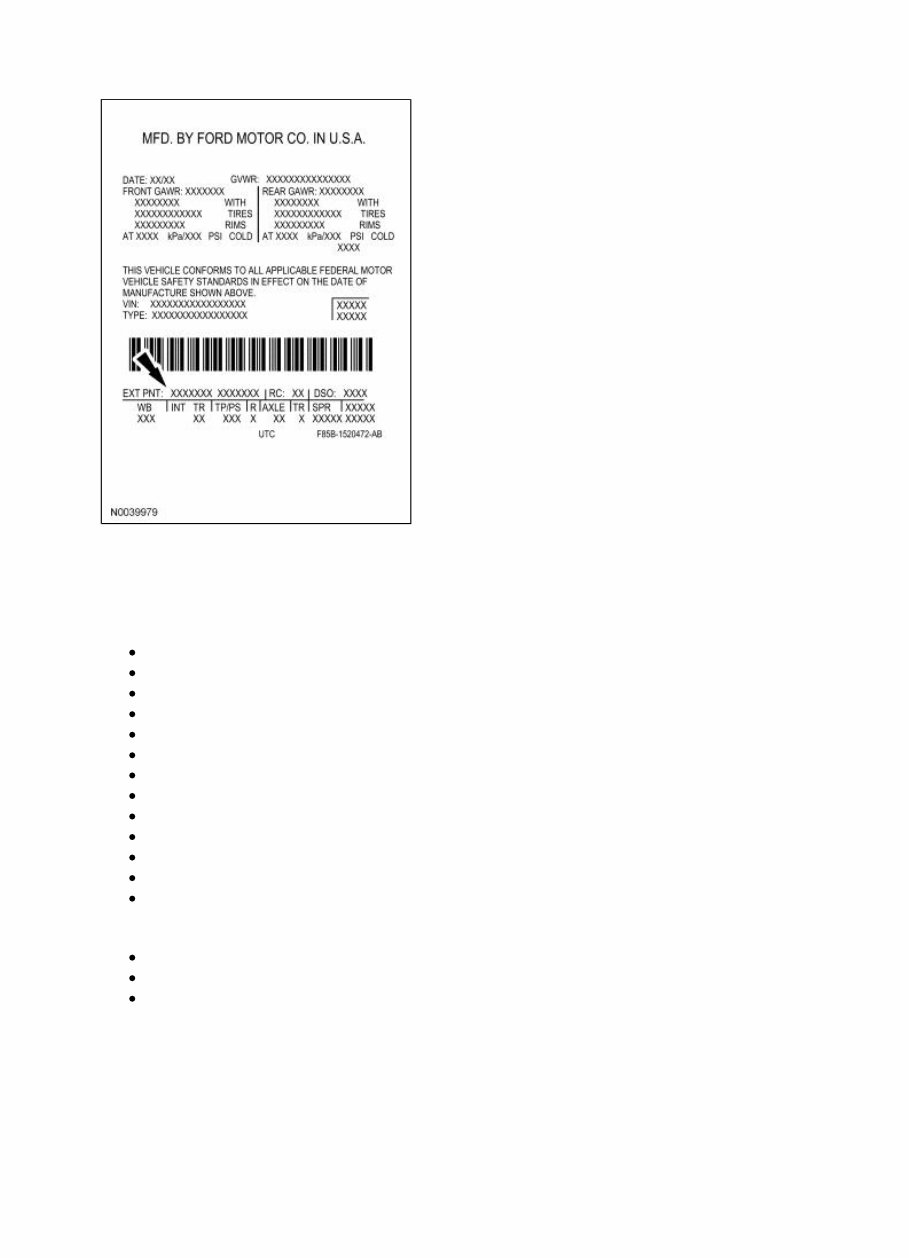

Exterior paint codes may be listed as a 2-part code. The first set of characters identify the primary body color. The second set of characters (if applicable) identify the vehicle accent or 2-tone body color. All colors are base coat/clear coat. Primary Exterior Color Codes CX — Dark Shadow Gray — F-150/Mark LT DX — Dark Blue Pearl — F-150/Mark LT E4 — Vermilion — F-150 G2 — Redfire — F-150/Mark LT G3 — Pueblo Gold — F-150 GG — Forest Green — F-150 PG — Dark Amethyst — F-150 PV — White Chocolate (tri-coat) — F-150/Mark LT T5 — Dark Copper — F-150 T7 — Charcoal Beige — F-150 UA — Ebony — F-150/Mark LT YN — Silver Metallic — F-150/Mark LT YZ — Oxford White — F-150/Mark LT Exterior Accent Color Codes CX — Dark Shadow Gray — F-150 G3 — Pueblo Gold — F-150 YN — Silver Metallic — F-150 Wheelbase Page 7 of 17 2007 F-150/Mark LT Workshop Manual

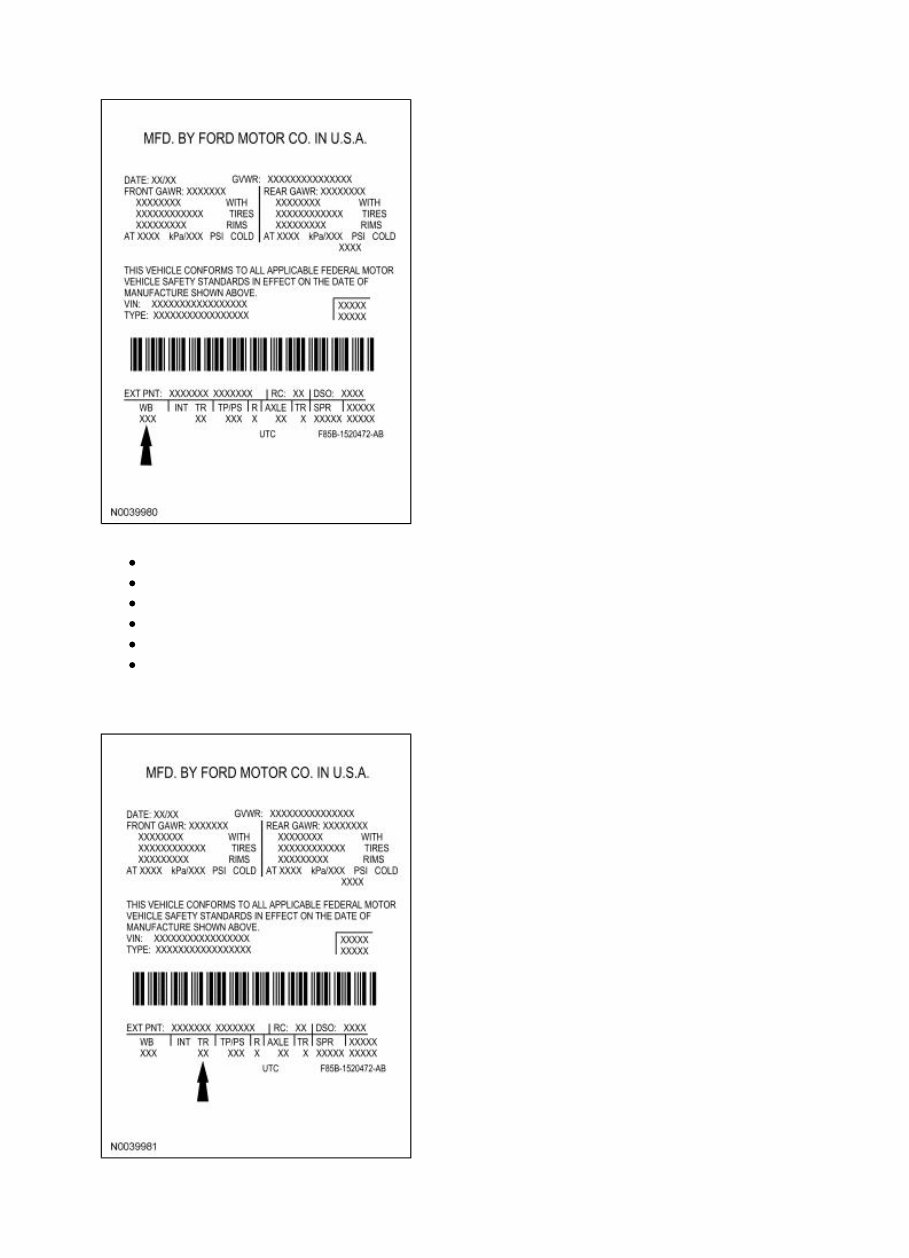

126 — 126 inches (3,200 mm) — F-150 133 — 133 inches (3,378 mm) — F-150 139 — 139 inches (3,531 mm) — F-150/Mark LT 145 — 145 inches (3,675 mm) — F-150 150 — 150 inches (3,810 mm) — F-150 163 — 163 inches (4,140 mm) — F-150 Interior Trim Interior trim codes are listed as a 2-part code. The first character identifies the interior trim type. The Page 8 of 17 2007 F-150/Mark LT Workshop Manual
second character identifies the interior trim color. Interior Trim Type A — Cenery vinyl, 40/20/40 — F-150 B — Tech cloth, 40/20/40 — F-150 C — Speck cloth, 40/20/40 — F-150 D — Harley Davidson leather, 40/console/40 — F-150 E — Imola leather, 40/20/40 — F-150 F — Marta cloth, captain chairs — F-150 G — Tech (2-tone), 40/20/40 — F-150 H — Imola leather, captain chairs — F-150 J — Link Weave leather captain chairs — F-150 K — Antiline leather, 40/console/40 — F-150 (King Ranch) L — Tech (2-tone), bucket seats — F-150 M — Marta cloth, 40/20/40 — F-150 N — Marta cloth (2-tone), 40/20/40 — F-150 P — Marta cloth (2-tone), captain chairs — F-150 Q — Link Weave leather (2-tone), bucket seats — F-150 R — Tech cloth, captain chairs — F-150 S — Speck cloth, 40/20/40 — F-150 T — Cenery vinyl, captain chairs — F-150 U — Speck cloth, 40/console/40 — F-150 V — Nudo leather, 40/console/40 — Mark LT X — Impulse cloth, captain chairs — F-150 Y — Link Weave leather, captain chairs — F-150 Interior Trim Color B — Ebony — F-150 B — Ebony/Gray — Mark LT E — Medium Flint — F-150 L — Ebony — Mark LT W — Medium Pebble Tan — F-150/Mark LT Tape/Paint Stripe Page 9 of 17 2007 F-150/Mark LT Workshop Manual
Tape and paint stripe codes do not apply. Radio Type 5 — Electronic AM/FM stereo with compact disc (CD) player — F-150 6 — Premium electronic AM/FM stereo with CD changer, clock and MP3 — F-150 7 — Electronic AM/FM stereo clock — F-150 B — AM/FM stereo with CD changer, clock and MP3 — F-150/Mark LT N — AM/FM stereo with CD player, clock and navigation system — F-150 X — AM/FM stereo with CD changer and navigation system — Mark LT Page 10 of 17 2007 F-150/Mark LT Workshop Manual
