2003 Ford F-150 Service & Repair Manual

DESCRIPTION AND OPERATION Identification Codes Vehicle Identification Number (VIN) Locator The vehicle identification number (VIN) is a 17-digit combination of letters and numbers. The VIN is stamped on a metal tab riveted to the instrument panel, top upper left of the dash. The VIN number is also found on the vehicle certification (VC) label. SECTION 100-01: Identification Codes 2003 F-150 Workshop Manual Item Description 1 World manufacturer identifier (WMI) 2 Brake type and gross vehicle weight rating (GVWR), may also include the vehicle restraint type code 3 Vehicle line, series, body type code 4 Engine type code 05.10. 2012 file:///C:/Ford/2000-2004/tsocache/SHEF_5896/S31~us~en~...

Vehicle Identification Number World Manufacturer Identifier The first three vehicle identification number (VIN) positions are the world manufacturer identifier. 1FT — Ford Motor Company, USA, truck, completed vehicle 2FT — Ford Motor Company, Canada, truck, completed vehicle 3FT — Ford Motor Company, Mexico, truck, completed vehicle Brake and Gross Vehicle Weight Code The fourth VIN position is the vehicle brake type and GVWR code (all vehicles use hydraulic brakes). Z — 5,001-6,000 pounds GVWR with driver and front passenger air bags R — 6,001-7,000 pounds GVWR with driver and front passenger air bags P — 7,001-8,000 pounds GVWR with driver and front passenger air bags Line, Series and Body Type 5 Computer-generated check digit 6 Model year code 7 Assembly plant code 8 Production sequence number 05.10. 2012 file:///C:/Ford/2000-2004/tsocache/SHEF_5896/S31~us~en~...

Positions 5 through 7 indicate vehicle line, series and body type. F07 — Regular Cab, 4x2, Flareside F08 — Regular Cab, 4x4, Flareside F17 — Regular Cab, 4x2, Styleside F18 — Regular Cab, 4x4, Styleside W07 — Crew Cab, 4x2, Flareside W08 — Crew Cab, 4x4, Flareside X07 — SuperCab, 4x2, Flareside X08 — SuperCab, 4x4, Flareside X17 — SuperCab, 4x2, Styleside X18 — SuperCab, 4x4, Styleside Engine Code The eighth VIN position is the engine displacement and number of cylinders. 2 — 4.2L, OHV, EFI, V6, Gas 3 — 5.4L, SOHC, SFI, V8, Gas 6 — 4.6L, SOHC, EFI, V8, Gas L — 5.4L, SOHC, EFI, V8, Gas M — 5.4L, SOHC, EFI, V8, Compressed Natural Gas W — 4.6L, SOHC, EFI, V8, Gas Z — 5.4L, Bi-Fuel, V8, Compressed Natural Gas/Propane 05.10. 2012 file:///C:/Ford/2000-2004/tsocache/SHEF_5896/S31~us~en~...

Check Digit The ninth VIN position is a government assigned, computer-generated check digit. Model Year The tenth VIN position is the model year code. 3 — 2003 Assembly Plant Code The eleventh VIN position is the assembly plant code. C — Ontario Truck (Oakville, Ontario) K — Kansas City (Claycomo, Missouri) M — Cuautitlan (Cuautitlan, Mexico) N — Norfolk (Norfolk, Virginia) 05.10. 2012 file:///C:/Ford/2000-2004/tsocache/SHEF_5896/S31~us~en~...

Vehicle Serial Number The last six VIN positions are an alphanumeric code for the vehicle build sequence. This is also the vehicle serial and warranty number. Vehicle Certification (VC) Label Vehicle Certification (VC) Label Locator The vehicle certification (VC) label contains the manufacturer name, the month and year of manufacture, the certification statement, and the VIN. It also includes gross vehicle weight ratings (GVWR). 05.10. 2012 file:///C:/Ford/2000-2004/tsocache/SHEF_5896/S31~us~en~...

Vehicle Certification (VC) Label — Canada (Typical) Item Description 1 Exterior paint code 2 Region code 3 Domestic special order (DSO) code 4 Wheelbase code 5 Brake type code 6 Interior trim code 7 Tape/paint stripe code 8 Radio code 9 Axle code 10 Transmission code 11 Spring code 12 Powertrain calibration information 05.10. 2012 file:///C:/Ford/2000-2004/tsocache/SHEF_5896/S31~us~en~...

Vehicle Certification (VC) Label — Mexico (Typical) Exterior Paint Paint Codes Exterior paint color codes may be listed as a two-part code. The first set of paint code characters indicate the primary body color. The second set of paint code characters (if applicable), indicate a two- tone body color or accent body color. Primary Body Color AQ — Arizona Beige B4 — Chestnut, clear coat CX — Dark Shadow Gray, clear coat E4 — Vermilion, clear coat FX — Merlot KW — Charcoal Blue, clear coat L2 — True Blue Pearl, clear coat 05.10. 2012 file:///C:/Ford/2000-2004/tsocache/SHEF_5896/S31~us~en~...

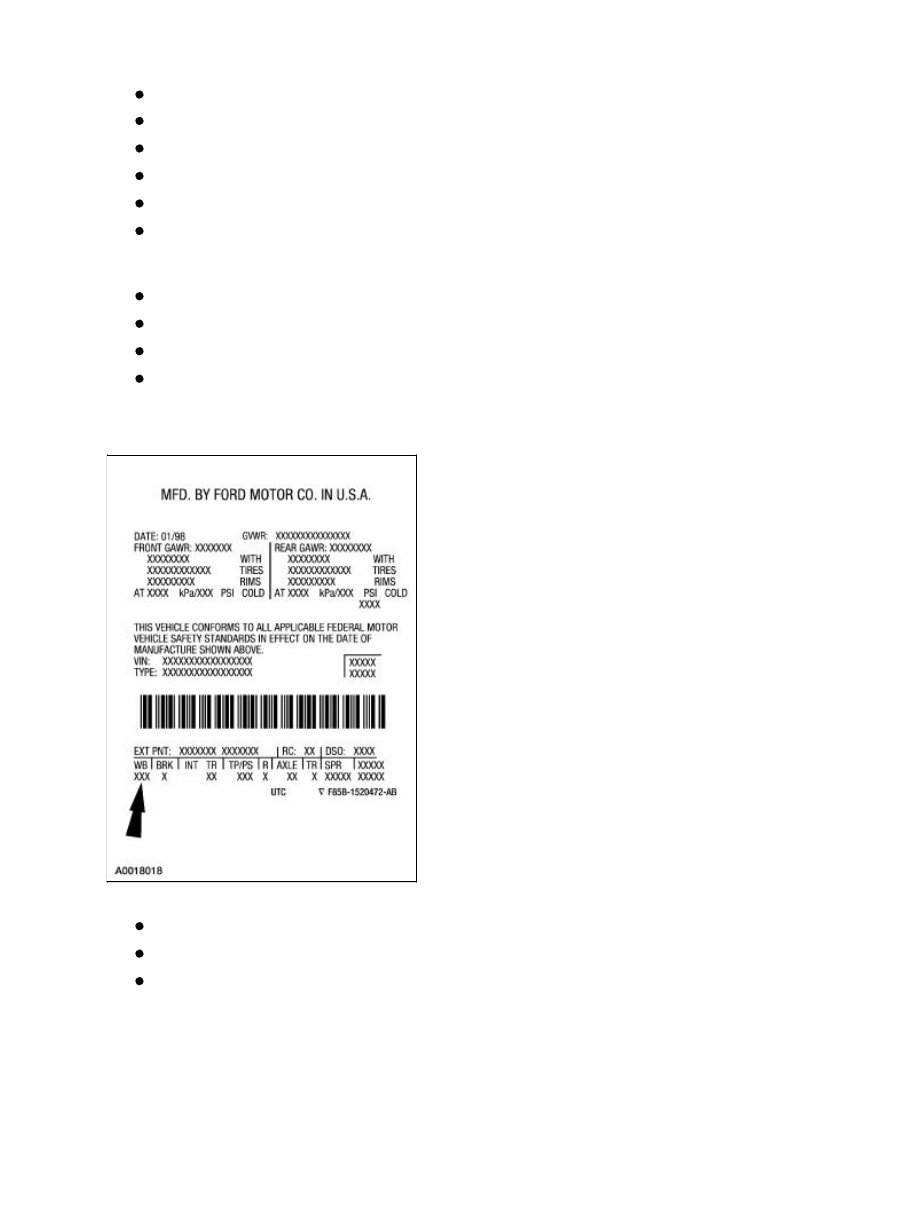

PX — Dark Highland Green, clear coat SN — Sonic Blue ST — Estate Green, clear coat UA — Ebony, clear coat YN — Silver Metallic, clear coat YZ — Oxford White, clear coat Two-Tone or Accent Color AQ — Arizona Beige CX — Dark Shadow Gray FX — Merlot YN — Silver Metallic Wheelbase 120 — 120-inch (3,048 mm) wheelbase 139 — 139-inch (3,531 mm) wheelbase 157 — 157-inch (3,989 mm) wheelbase Brake Type 05.10. 2012 file:///C:/Ford/2000-2004/tsocache/SHEF_5896/S31~us~en~...

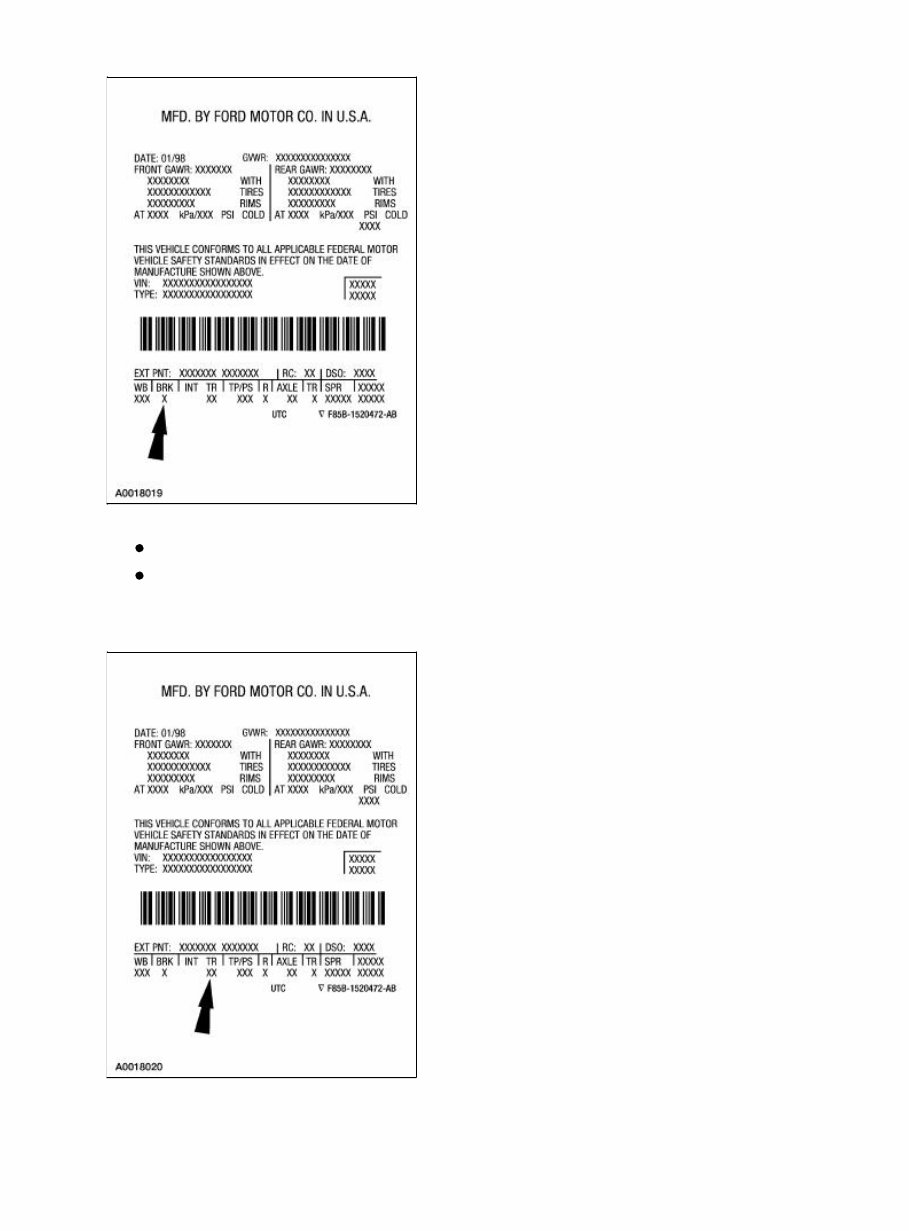

2 — Four-wheel disc, four-wheel anti-lock brake system (ABS) D — Disc/drum brakes (rear ABS only) Interior Trim Interior trim codes are listed as a two-part code. The first character identifies the interior trim type. The second character identifies the interior trim color. 05.10. 2012 file:///C:/Ford/2000-2004/tsocache/SHEF_5896/S31~us~en~...

Interior Trim Type A — Vinyl full bench, regular cab B — Cloth full bench, regular cab C — 40/60 cloth split bench, regular cab D — 40/60 Nudo leather split bench, regular cab E — Cloth captains chairs, regular cab F — Leather captains chairs, regular cab L — Leather 40/60 split bench, regular cab (Lightning) S — Cloth 40/60 split bench, regular cab (Sport/STX) T — Cloth captains chairs, regular cab (Sport) R — Cloth full bench, regular cab (Mexico) M — Cloth captains chairs, SuperCab (Heritage) P — Cloth captains chairs, SuperCab (Heritage) G — Cloth captains chairs, SuperCab (Heritage) J — Cloth 40/60 split bench, SuperCab (Heritage) N — Cloth 40/60 split bench, SuperCab (Heritage) Y — Cloth captains chairs, SuperCab (Heritage) W — Leather captains chairs/rear bench, Crew Cab (King Ranch) 1 — Cloth captains chairs, SuperCab (Heritage) 2 — Cloth full bench, SuperCab 3 — Cloth 40/60 split bench, SuperCab, Crew Cab 4 — Leather 40/60 split bench, SuperCab 5 — Cloth captains chairs, SuperCab, Crew Cab 6 — Leather captains chairs, SuperCab 7 — Cloth 40/60 split bench, SuperCab (Sport/STX) 8 — Cloth captains chairs, SuperCab (Sport) X — Leather captains chairs, SuperCab (King Ranch) K — Leather captains chairs, Crew Cab (King Ranch) H — Leather captains chairs, Crew Cab (Harley) Q — Leather 40/60 split bench, Crew Cab (Lariat) 9 — Leather captains chairs, Crew Cab (Lariat) Interior Color Code 2 — Medium Graphite B — Ebony H — Medium Parchment T — Dark Graphite Tape/Paint Stripe 05.10. 2012 file:///C:/Ford/2000-2004/tsocache/SHEF_5896/S31~us~en~...
