2007 Ford Explorer Sport Trac - UK (P251 NA) Service & Repair Manual

100-01 Identification Codes 2007 Explorer/Mountaineer/Explorer Sport Trac DESCRIPTION AND OPERATION Procedure revision date: 08/02/2006 Identification Codes Vehicle Identification Number Vehicle Identification Number (VIN) Tag Locator The vehicle identification number (VIN) is a 17-digit combination of letters and numbers. The VIN is stamped on a metal tab riveted on the instrument panel, top upper left of the dash. The VIN is also found on the vehicle certification (VC) label. Item Description 1 World manufacturer identifier 2 Brake type and gross vehicle weight rating (GVWR) 3 Vehicle line, series, body type 4 Engine type 5 Check digit 6 Model year

Item Description 7 Assembly plant 8 Production sequence number World Manufacturer Identifier The first 3 vehicle identification number (VIN) positions are the world manufacturer identifier. 1FM — Ford Motor Company, USA, multi-purpose vehicle (MPV) 4M2 — Ford Motor Company (Mercury), USA, MPV Brake Type and Gross Vehicle Weight Rating (GVWR) The fourth VIN position is the vehicle brake type and gross vehicle weight rating (GVWR) code, all vehicles use hydraulic brakes. This code may also identify the vehicle safety restraint system. E — 6,001-7,000 pounds GVWR with driver and front passenger air bags and side impact air canopy R — 6,001-7,000 pounds GVWR with driver and front passenger air bags Line, Series and Body Type VIN positions 5 through 7 indicate the vehicle line, series and body type. U31 — Explorer Sport Trac, rear wheel drive (RWD), XLT

U33 — Explorer Sport Trac, RWD, Limited U51 — Explorer Sport Trac, four wheel drive (4WD), XLT U53 — Explorer Sport Trac, 4WD, Limited U63 — Explorer, RWD, XLT U64 — Explorer, RWD, Eddie Bauer U65 — Explorer, RWD, Limited U73 — Explorer, 4WD, XLT U74 — Explorer, 4WD, Eddie Bauer U75 — Explorer, 4WD, Limited U37 — Mountaineer, RWD, Luxury U38 — Mountaineer, RWD, Premier U47 — Mountaineer, all wheel drive (AWD), Luxury U48 — Mountaineer, AWD, Premier Engine Type The eighth VIN position is the engine type (displacement and number of cylinders). E — 4.0L, SOHC, V6, EFI (Cologne) 8 — 4.6L, 3-valve, V8, EFI K — 4.0L, SOHC, V6, EFI Check Digit The ninth VIN position is a government-assigned, computer-generated check digit. Model Year The tenth VIN position is the model year code.

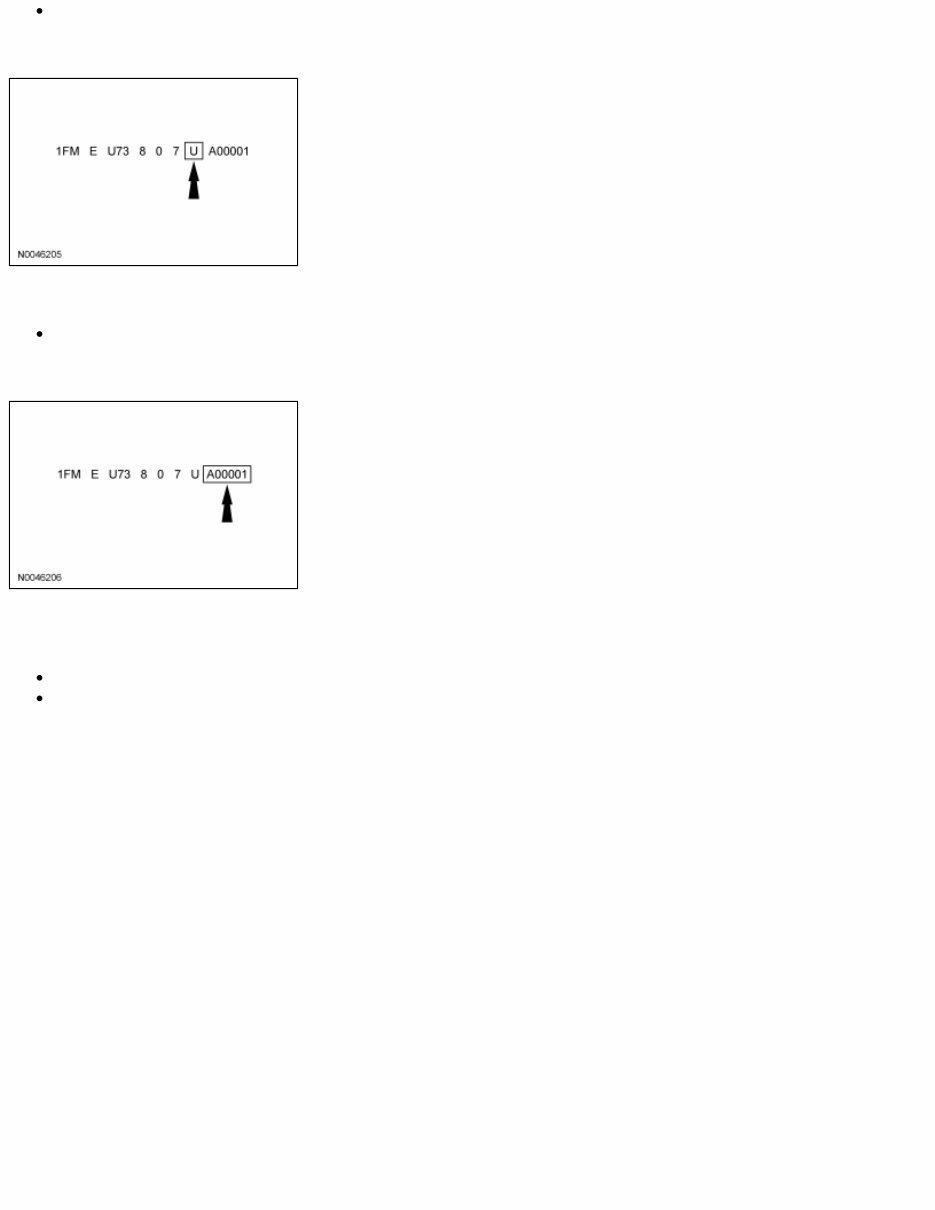

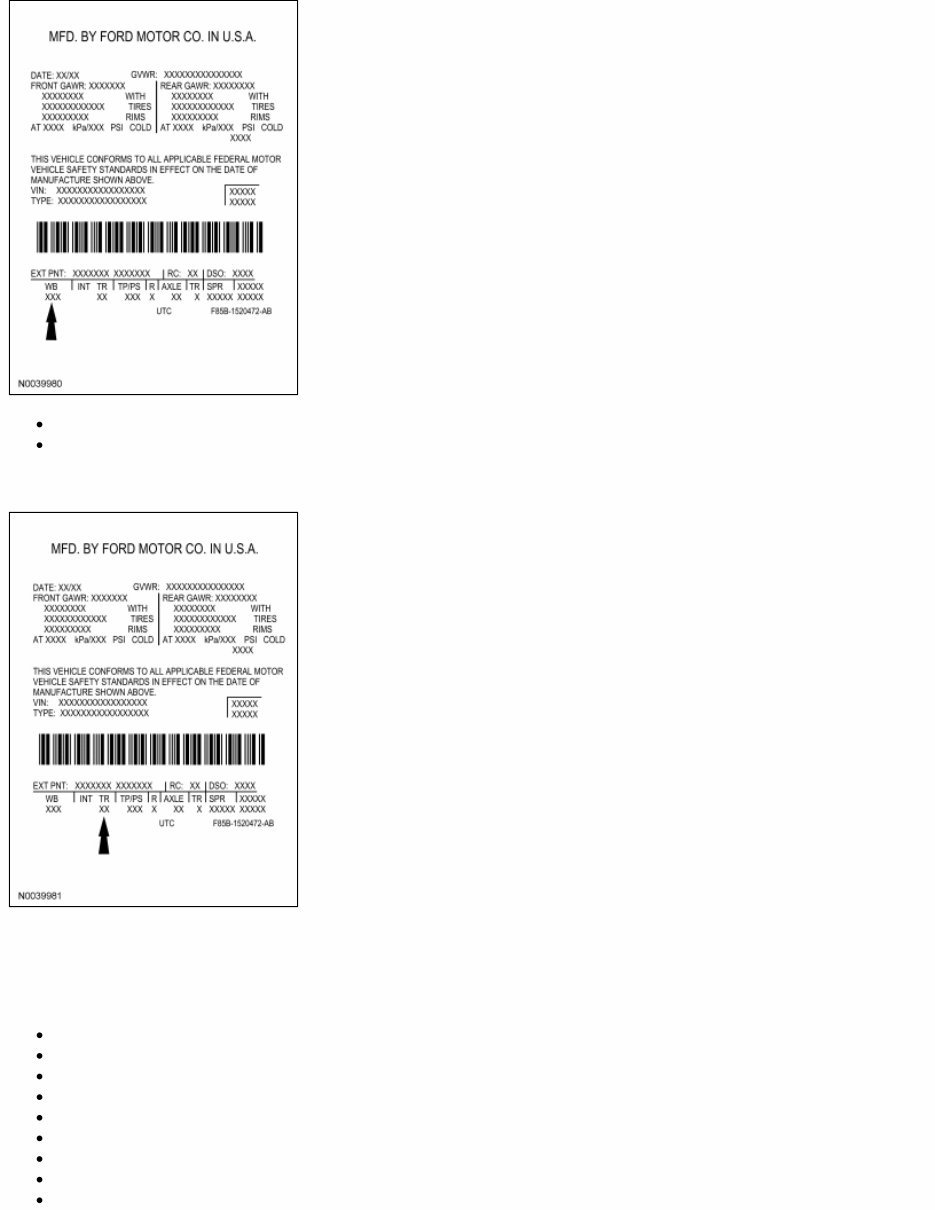

7 — 2007 Assembly Plant The eleventh VIN position is the assembly plant code. U — Louisville, Kentucky Build Sequence VIN positions 12 through 17 are an alphanumeric code for the vehicle build sequence. This is also the vehicle serial and warranty number. This serial number can also be found on the engine block, transmission and frame. A00001-E99999 — Ford J00001-L99999 — Mercury Vehicle Certification (VC) Codes Vehicle Certification (VC) Label Locator

Item Description 1 Exterior paint code 2 Region code 3 Domestic special order 4 Wheelbase code 5 Interior trim code 6 Tape/paint stripe code 7 Radio code 8 Axle code 9 Transmission code

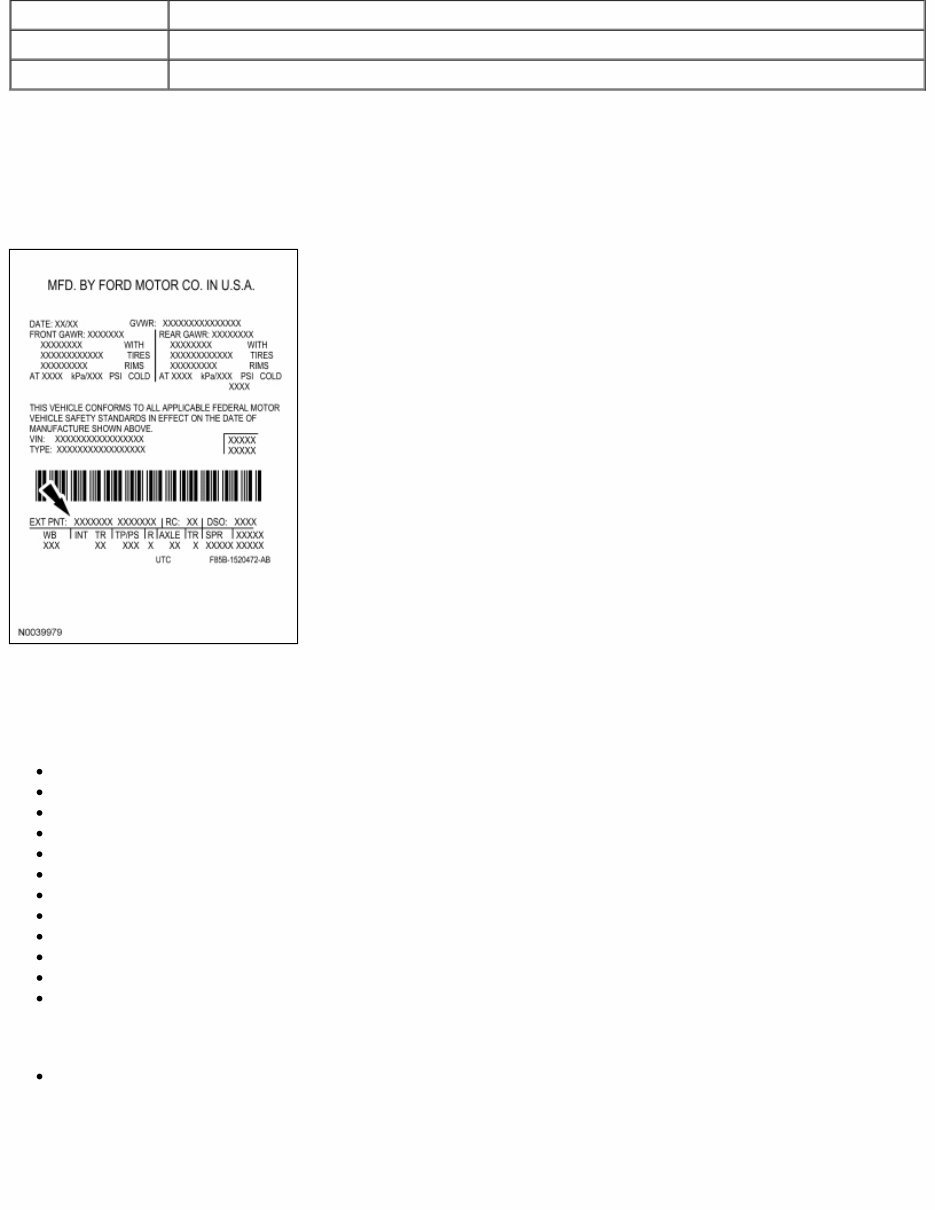

Item Description 10 Spring code 11 Powertrain calibration information The vehicle certification (VC) label contains information on the manufacturer name, the month and year of manufacture, the certification statement and the VIN. This label also includes gross vehicle weight (GVWR) information. Exterior Paint Exterior paint codes may be listed as a 2-part code. The first set of characters identify the primary body color. The second set of characters (if applicable) identify the vehicle accent or 2-tone body color. All colors are base coat/clear coat. Primary Exterior Color Codes DX — Dark Blue Pearl — Explorer/Explorer Sport Trac G2 — Redfire — Explorer/Mountaineer/Explorer Sport Trac G3 — Pueblo Gold — Explorer/Mountaineer/Explorer Sport Trac G5 — Alloy Gray — Explorer/Mountaineer/Explorer Sport Trac HH — Dark Cherry — Explorer/Mountaineer/Explorer Sport Trac JP — Silver Birch Metallic — Explorer/Mountaineer/Explorer Sport Trac NL — Orange Frost — Explorer/Explorer Sport Trac PV — White Chocolate (tri-coat) — Explorer/Mountaineer T7 — Dark Stone — Explorer/Mountaineer/Explorer Sport Trac TK — Mineral Gray Metallic — Explorer Sport Trac UA — Ebony — Explorer/Mountaineer/Explorer Sport Trac YZ — Oxford White — Explorer/Mountaineer/Explorer Sport Trac Exterior Accent Color Codes G3 — Pueblo Gold — Explorer Wheelbase

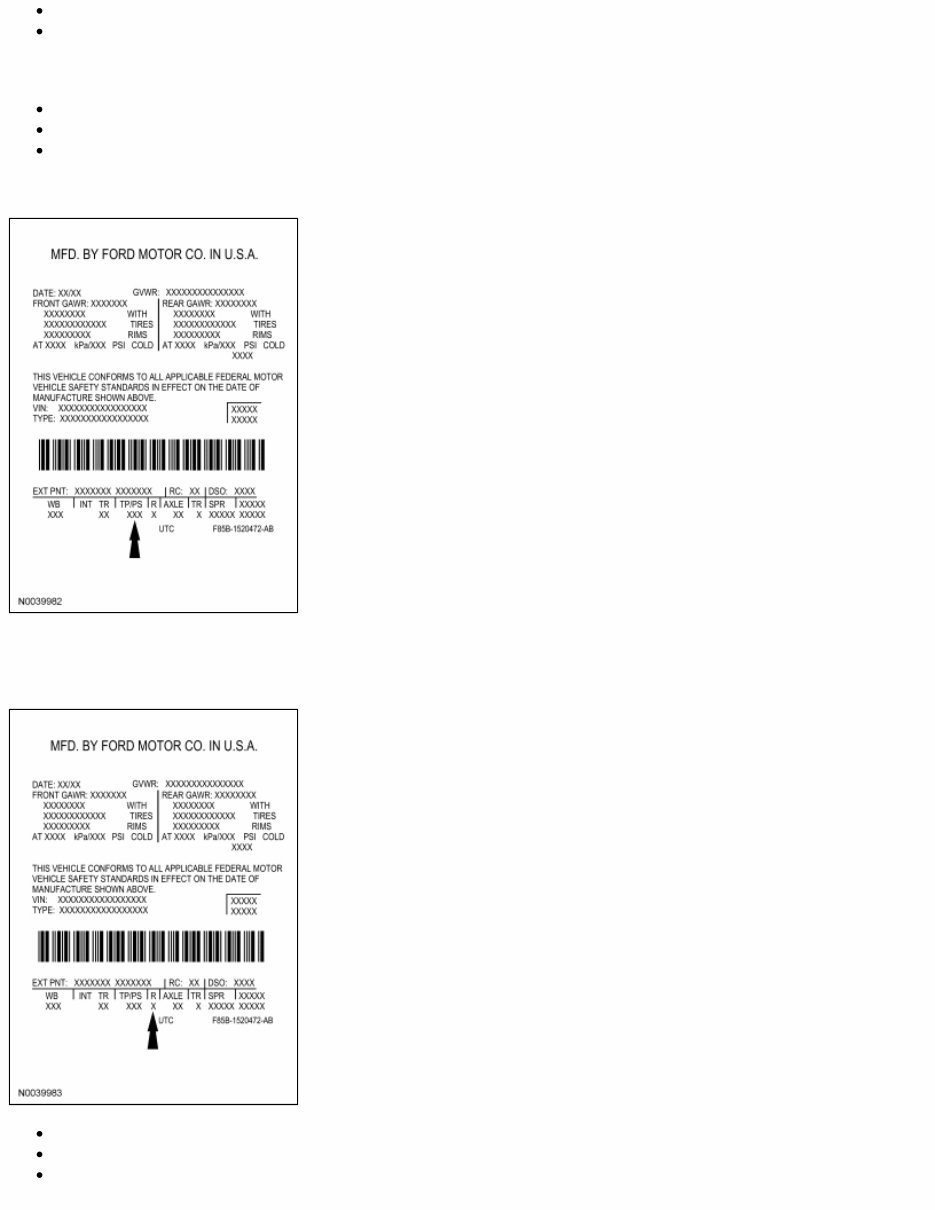

114 — 114 inches (2,896 mm) 131 — 131 inches (3,314 mm) Interior Trim Interior trim codes are listed as a 2-part code. The first character identifies the interior trim type. The second character identifies the interior trim color. Interior Trim Type 3 — Imola perforated leather seats — Mountaineer 4 — Imola perforated leather with heated driver seat — Mountaineer 8 — Embossed leather with preferred suede insert seats — Mountaineer I — Imola/Milled Pebble leather with power, heated driver and passenger seats — Explorer R — Treads cloth seats — Explorer/Explorer Sport Trac S — Treads cloth with power driver seat — Explorer/Mountaineer/Explorer Sport Trac T — Imola/Milled Pebble leather with power, heated driver seat and memory — Explorer/Explorer Sport Trac V — Imola/Milled Pebble leather with power driver seat — Explorer W — Leather trim with Preferred smooth suede inserts and power driver seat — Explorer

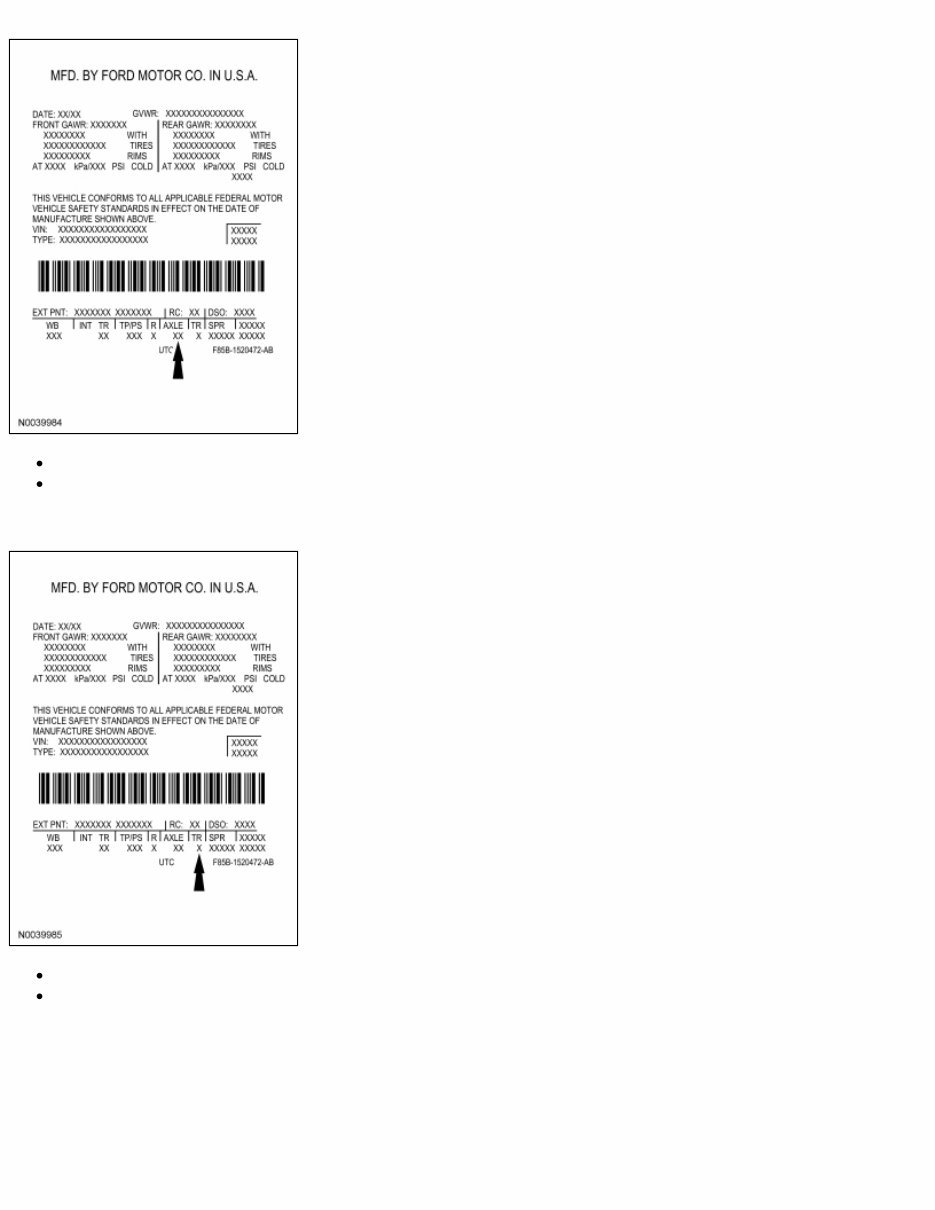

X — Leather trim with Preferred smooth suede inserts and power/heated/memory driver seat — Explorer Z — Imola/Milled Pebble leather with power/heated/memory driver seat — Explorer Interior Trim Color C — Camel — Explorer/Mountaineer/Explorer Sport Trac L — Medium Light Stone — Explorer/Mountaineer/Explorer Sport Trac W — Charcoal Black — Explorer/Mountaineer/Explorer Sport Trac Tape/Paint Stripe Tape and paint stripe codes do not apply. Radio Type 3 — AM/FM stereo, 6-disc in-dash compact disc (CD) changer with MP3 capability A — AM/FM stereo (dual media), CD player with MP3 capability Q — AM/FM stereo, 6-disc in-dash CD changer and navigation system

Axle Type 45 — 3.55 non-limited slip 46 — 3.73 non-limited slip Transmission Type V — 5-speed automatic, 5R55S X — 6-speed automatic, 6R60 Spring Code

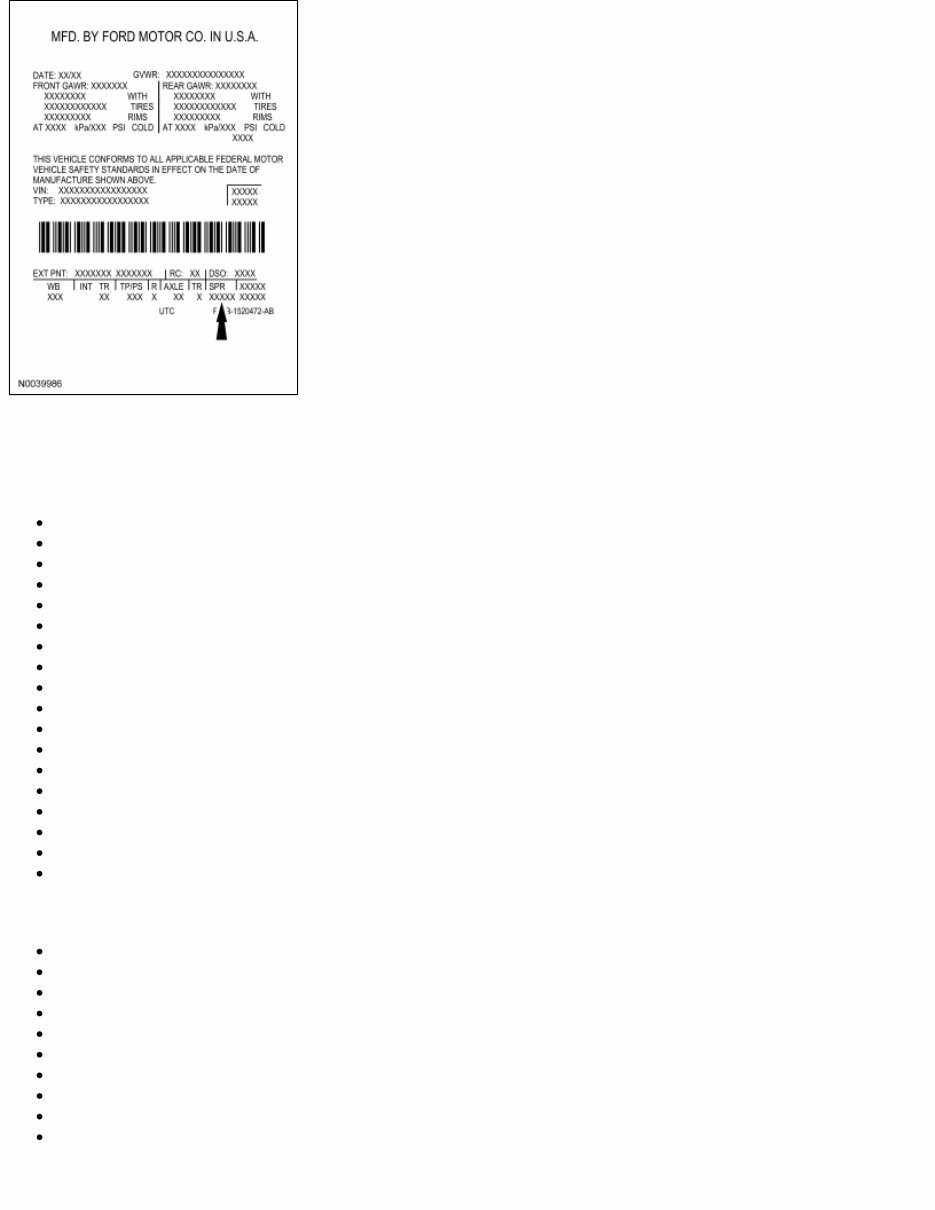

Spring codes are listed as a 2-part code. The first characters listed identifies the front springs. The second character listed identifies the rear springs. Front Springs A — 7L24-18B036-A — Explorer/Mountaineer B — 7L24-18B036-B — Explorer/Mountaineer C — 7L24-18B036-C — Explorer/Mountaineer D — 7L24-18B036-D — Explorer/Mountaineer E — 7L24-18B036-E — Explorer/Mountaineer F — 7L24-18B036-F — Explorer/Mountaineer A — 7A24-18B036-A — Explorer Sport Trac B — 7A24-18B036-B — Explorer Sport Trac C — 7A24-18B036-C — Explorer Sport Trac D — 7A24-18B036-D — Explorer Sport Trac E — 7A24-18B036-E — Explorer Sport Trac F — 7A24-18B036-F — Explorer Sport Trac G — 7A24-18B036-G — Explorer Sport Trac H — 7A24-18B036-H — Explorer Sport Trac J — 7A24-18B036-J — Explorer Sport Trac K — 7A24-18B036-K — Explorer Sport Trac L — 7A24-18B036-L — Explorer Sport Trac M — 7A24-18B036-M — Explorer Sport Trac Rear Springs A — 7L24-18W002-A — Explorer/Mountaineer B — 7L24-18W002-B — Explorer/Mountaineer C — 7L24-18W002-C — Explorer/Mountaineer D — 7L24-18W002-D — Explorer/Mountaineer A — 7A24-18W002-A — Explorer Sport Trac B — 7A24-18W002-B — Explorer Sport Trac C — 7A24-18W002-C — Explorer Sport Trac D — 7A24-18W002-D — Explorer Sport Trac E — 7A24-18W002-E — Explorer Sport Trac F — 7A24-18W002-F — Explorer Sport Trac Powertrain Calibration Information
