2006 Ford Expedition Repair Manual

Identification Codes Printable View (558 KB) Vehicle Identification Number (VIN) Locator The vehicle identification number (VIN) is a 17-digit combination of letters and numbers. The VIN is stamped on a metal tab riveted to the instrument panel, top upper left of the dash. The VIN number is also found on the vehicle certification (VC) label. SECTION 100-01: Identification Codes 2006 Expedition/Navigator Workshop Manual DESCRIPTION AND OPERATION Procedure revision date: 03/31/2005 Item Description 1 World manufacturer identifier (WMI) 2 Brake type and gross vehicle weight rating (GVWR) 3 Vehicle line and series 4 Engine type 5 Computer-generated check digit 22.07.2002 file://C:\TSO\tsocache\SUPER10-45B629E_1376\S6J~us~en~file=S6J01001.htm~ge...

Vehicle Identification Number (VIN) World Manufacturer Identifier (WMI) The first 3 vehicle identification number (VIN) positions are the world manufacturer identifier. 1FM — Ford Motor Company, USA, multi-purpose vehicle 1F1 — Ford Motor Company, USA, multi-purpose vehicle (limousine) 5LM — Lincoln, USA, multi-purpose vehicle 5L1 — Lincoln, USA, multi-purpose vehicle (limousine) Brake Type and Gross Vehicle Weight Rating (GVWR) The fourth VIN position is the vehicles brake type and gross vehicle weight rating (GVWR) code. All vehicle use hydraulic brakes. F — 7,001-8,000 pounds GVWR with driver and front passenger air bags and driver and front passenger side impact air curtains P — 7,001-8,000 pounds GVWR with driver and front passenger air bags Vehicle Line and Series 6 Model year 7 Assembly plant 8 Production sequence number 22.07.2002 file://C:\TSO\tsocache\SUPER10-45B629E_1376\S6J~us~en~file=S6J01001.htm~ge...

Positions 5 through 7 indicate vehicle line and series. U13 — Expedition, 4x2, XLS U14 — Expedition, 4x4, XLS U15 — Expedition, 4x2, XLT U16 — Expedition, 4x4, XLT U17 — Expedition, 4x2, Eddie Bauer U18 — Expedition, 4x4, Eddie Bauer U19 — Expedition, 4x2, Limited U20 — Expedition, 4x4, Limited U27 — Navigator, 4x2 U28 — Navigator, 4x4 Engine Type The eighth VIN position is the engine displacement and number of cylinders. 5 — 5.4L, SOHC, EFI, 3V, V-8, gas Computer-Generated Check Digit 22.07.2002 file://C:\TSO\tsocache\SUPER10-45B629E_1376\S6J~us~en~file=S6J01001.htm~ge...

The ninth VIN position is a government assigned, computer-generated check digit. Model Year The tenth VIN position is the model year code. · 6 — 2006 Assembly Plant The eleventh VIN position is the assembly plant code. · L — Michigan Truck (Wayne, Michigan) Vehicle Build Sequence The last 6 VIN positions are an alphanumeric code for the vehicle build sequence. This is also the vehicle serial and warranty number. A00001-F99999 — Ford Division J00001-L99999 — Lincoln Division 22.07.2002 file://C:\TSO\tsocache\SUPER10-45B629E_1376\S6J~us~en~file=S6J01001.htm~ge...

Vehicle Certification (VC) Label Vehicle Certification (VC) Label Locator The vehicle certification (VC) label contains the manufacturer name, the month and year of manufacture, the certification statement and the VIN. It also includes gross vehicle weight ratings (GVWR). Item Description 1 Exterior paint code 22.07.2002 file://C:\TSO\tsocache\SUPER10-45B629E_1376\S6J~us~en~file=S6J01001.htm~ge...

Exterior Paint Code Paint codes may be listed as a 2-part code. The first set of characters listed indicate the vehicle primary body color. The second set of characters listed (if applicable) indicate a 2-tone or accent body color. All colors are base coat/clear coat. DV — Light Tundra/Titanium Green G2 — Redfire G3 — Pueblo Gold G4 — Cashmir (tri-coat) HJ — Pewter Metallic JP — Silver Birch Metallic LD — Medium Wedgewood Blue T5 — Dark Copper T7 — Charcoal Beige UA — Ebony YZ — Oxford White 2 Region code 3 Domestic special order code 4 Wheelbase code 5 Brake code 6 Interior trim code 7 Tape/paint pinstripe code 8 Radio code 9 Axle code 10 Transmission code 11 Spring code 12 Powertrain calibration information 22.07.2002 file://C:\TSO\tsocache\SUPER10-45B629E_1376\S6J~us~en~file=S6J01001.htm~ge...

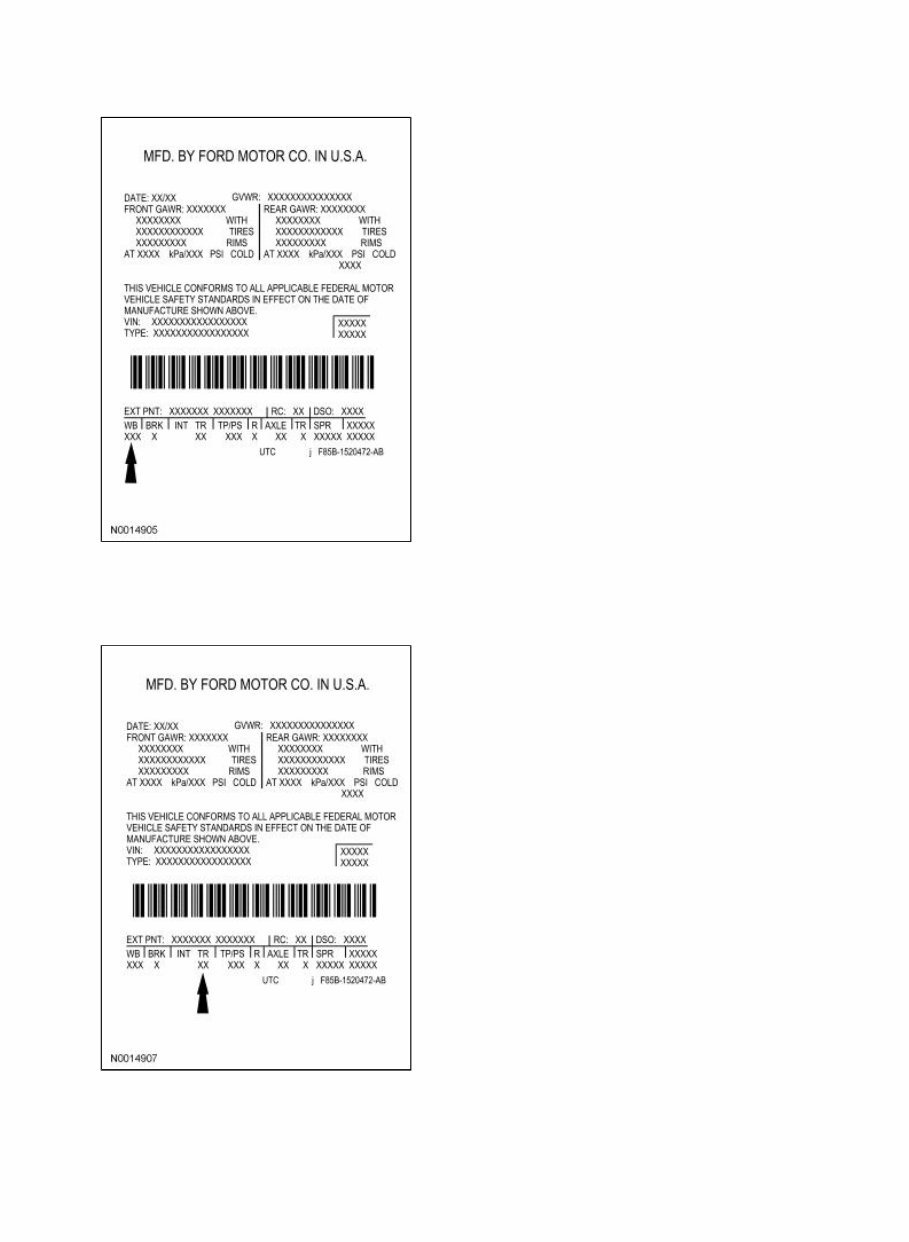

Wheelbase · 119 — 119-inch (3,023-mm) wheelbase Interior Trim Interior trim codes are listed as a 2-part code. The first character identifies the trim type. The second character identifies the interior trim color. Trim Type 22.07.2002 file://C:\TSO\tsocache\SUPER10-45B629E_1376\S6J~us~en~file=S6J01001.htm~ge...

1 — Milled Pebble/Toscana leather captain's chairs 1 — Milled Pebble/Imola leather captain's chairs 1 — Aniline cloth captain's chairs 2 — Milled Pebble/Imola low-back bucket seats F — Port cloth captain's chairs K — Milled Pebble/Imola leather captain's chairs M — Cloth — 60/40 front (split bench) Interior Trim Color C — Camel Tan D — Dove Gray E — Medium Flint H — Medium Parchment W — Charcoal Black Tape/Paint Stripe Tape and paint stripe codes do not apply. Radio Type 22.07.2002 file://C:\TSO\tsocache\SUPER10-45B629E_1376\S6J~us~en~file=S6J01001.htm~ge...

1 — AM/FM stereo with in-dash compact disc (CD) changer and clock F — AM/FM stereo with compact disc (CD) player, navigation system and clock K — Premium electronic AM/FM stereo with compact disc (CD), cassette player and clock T — Premium AM/FM stereo with in-dash compact disc (CD) changer and clock X — AM/FM stereo with 6-disc, in-dash compact disc (CD) changer and navigation system Axle Code 15 — 3.31 final drive ratio 22.07.2002 file://C:\TSO\tsocache\SUPER10-45B629E_1376\S6J~us~en~file=S6J01001.htm~ge...

16 — 3.73 ratio, non-limited slip H6 — 3.73 ratio, limited slip Transmission Code G — 6-speed automatic (ZF 6HP26) Q — 4-speed automatic (4R75E) Spring Codes 22.07.2002 file://C:\TSO\tsocache\SUPER10-45B629E_1376\S6J~us~en~file=S6J01001.htm~ge...
