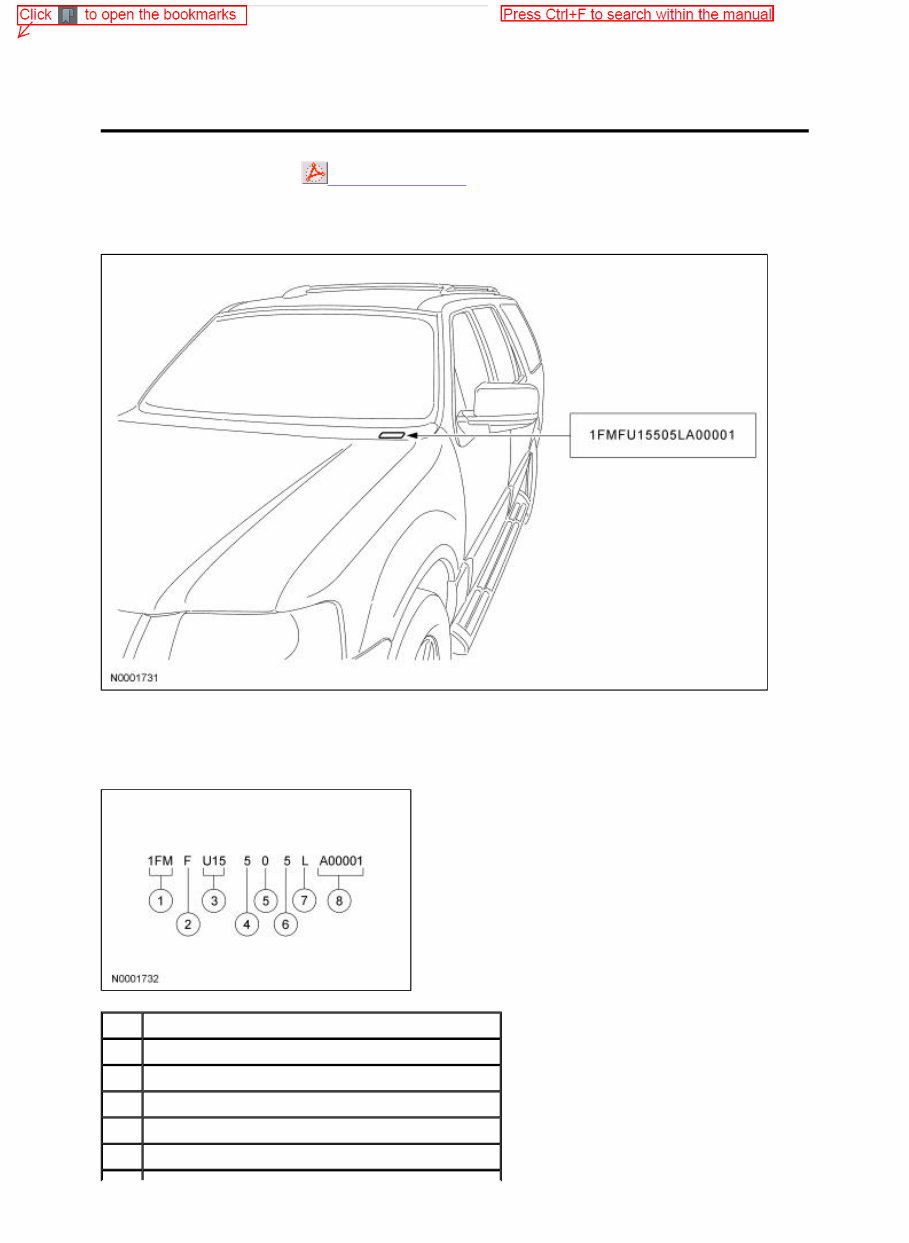

Identification Codes Printable View (422 KB) Vehicle Identification Number (VIN) Locator The vehicle identification number (VIN) is a seventeen-digit combination of letters and numbers. The VIN is stamped on a metal tab riveted to the instrument panel, top upper left of the dash. The VIN number is also found on the vehicle certification (VC) label. SECTION 100-01: Identification Codes 2005 Expedition/Navigator Workshop Manual DESCRIPTION AND OPERATION Procedure revision date: 07/02/2004 Item Description 1 World manufacturer identifier (WMI) 2 Brake type and gross vehicle weight rating (GVWR) 3 Vehicle line and series 4 Engine type 5 Computer-generated check digit 07.03.2002 file://C:\TSO\tsocache\SUPER10-45B629E_996\S5J~us~en~file=S5J01001.htm~gen...

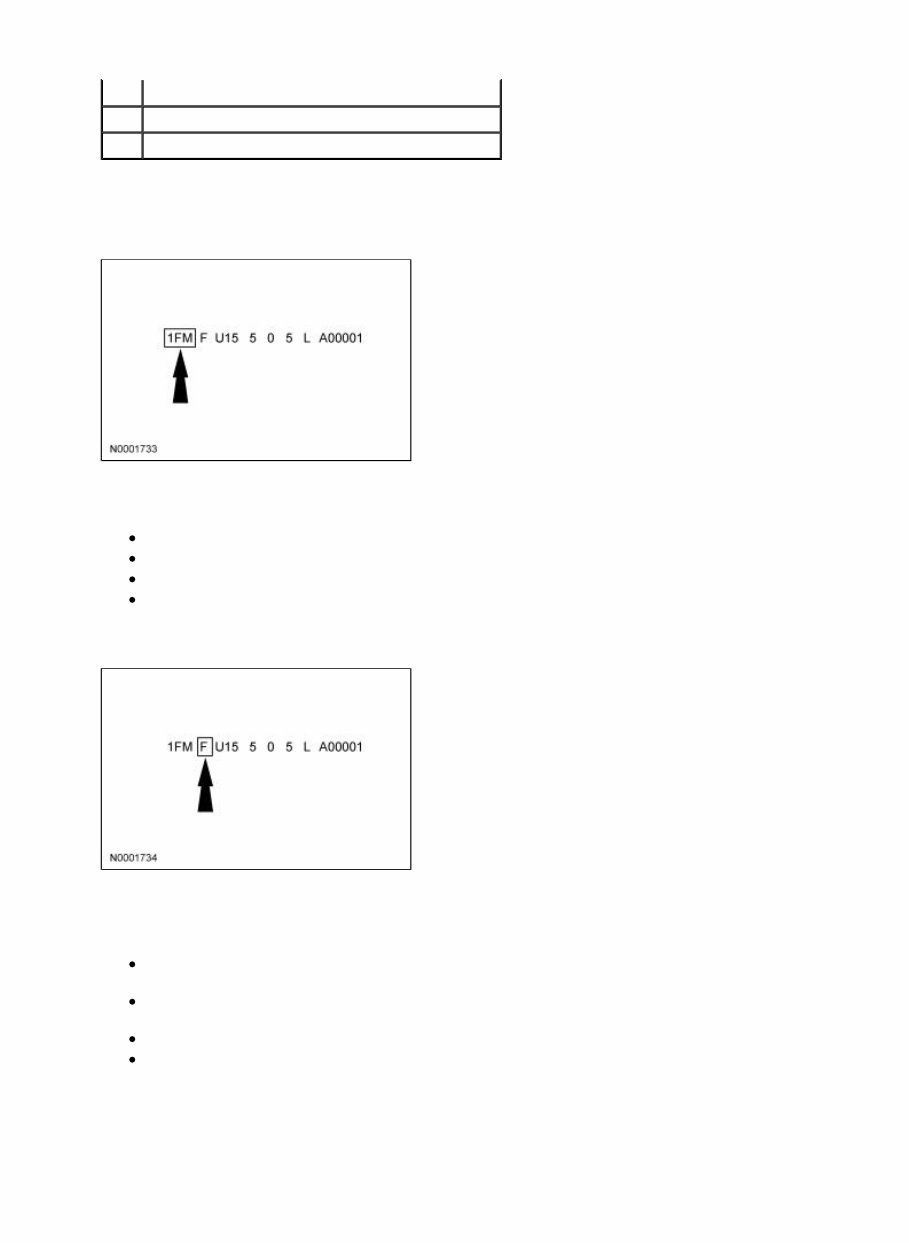

Vehicle Identification Number (VIN) World Manufacturer Identifier (WMI) The first three vehicle identification number (VIN) positions are the world manufacturer identifier. 1FM — Ford Motor Company, USA, multi-purpose vehicle 1F1 — Ford Motor Company, USA, multi-purpose vehicle (limousine) 5LM — Lincoln, USA, multi-purpose vehicle 5L1 — Lincoln, USA, multi-purpose vehicle (limousine) Brake Type and Gross Vehicle Weight Rating (GVWR) The fourth VIN position is the vehicles brake type and gross vehicle weight rating (GVWR) code. All vehicle use hydraulic brakes. E — 6,001-7,000 pounds GVWR with driver and front passenger air bags and driver and front passenger side impact air curtains F — 7,001-8,000 pounds GVWR with driver and front passenger air bags and driver and front passenger side impact air curtains R — 6,001-7,000 pounds GVWR with driver and front passenger air bags P — 7,001-8,000 pounds GVWR with driver and front passenger air bags Vehicle Line and Series 6 Model year 7 Assembly plant 8 Production sequence number 07.03.2002 file://C:\TSO\tsocache\SUPER10-45B629E_996\S5J~us~en~file=S5J01001.htm~gen...

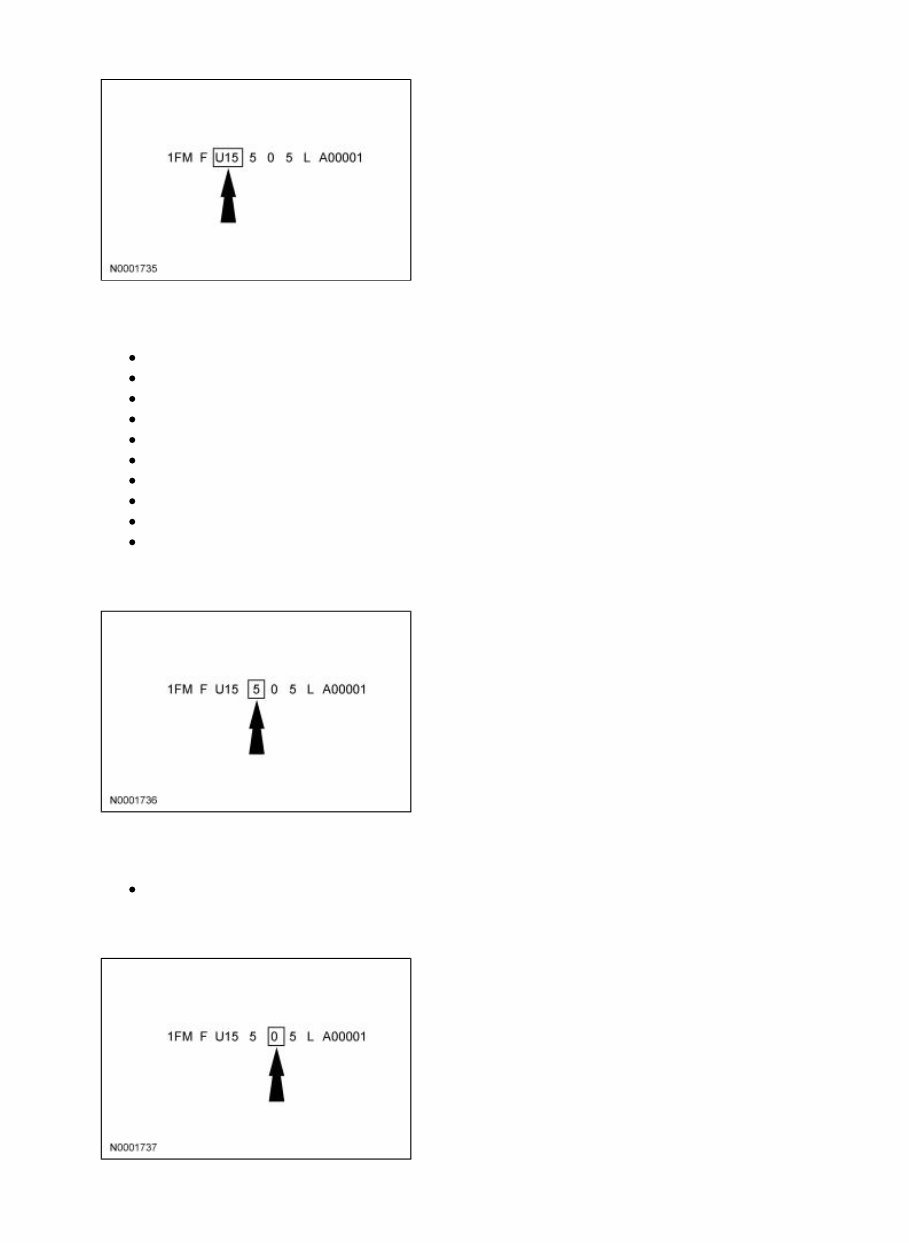

Positions 5 through 7 indicate vehicle line and series. U13 — Expedition, 4x2, XLS U14 — Expedition, 4x4, XLS U15 — Expedition, 4x2, XLT U16 — Expedition, 4x4, XLT U17 — Expedition, 4x2, Eddie Bauer U18 — Expedition, 4x4, Eddie Bauer U19 — Expedition, 4x2, Limited U20 — Expedition, 4x4, Limited U27 — Navigator, 4x2 U28 — Navigator, 4x4 Engine Type The eighth VIN position is the engine displacement and number of cylinders. 5 — 5.4L, SOHC, EFI, 3V, V-8, gas Computer-Generated Check Digit 07.03.2002 file://C:\TSO\tsocache\SUPER10-45B629E_996\S5J~us~en~file=S5J01001.htm~gen...

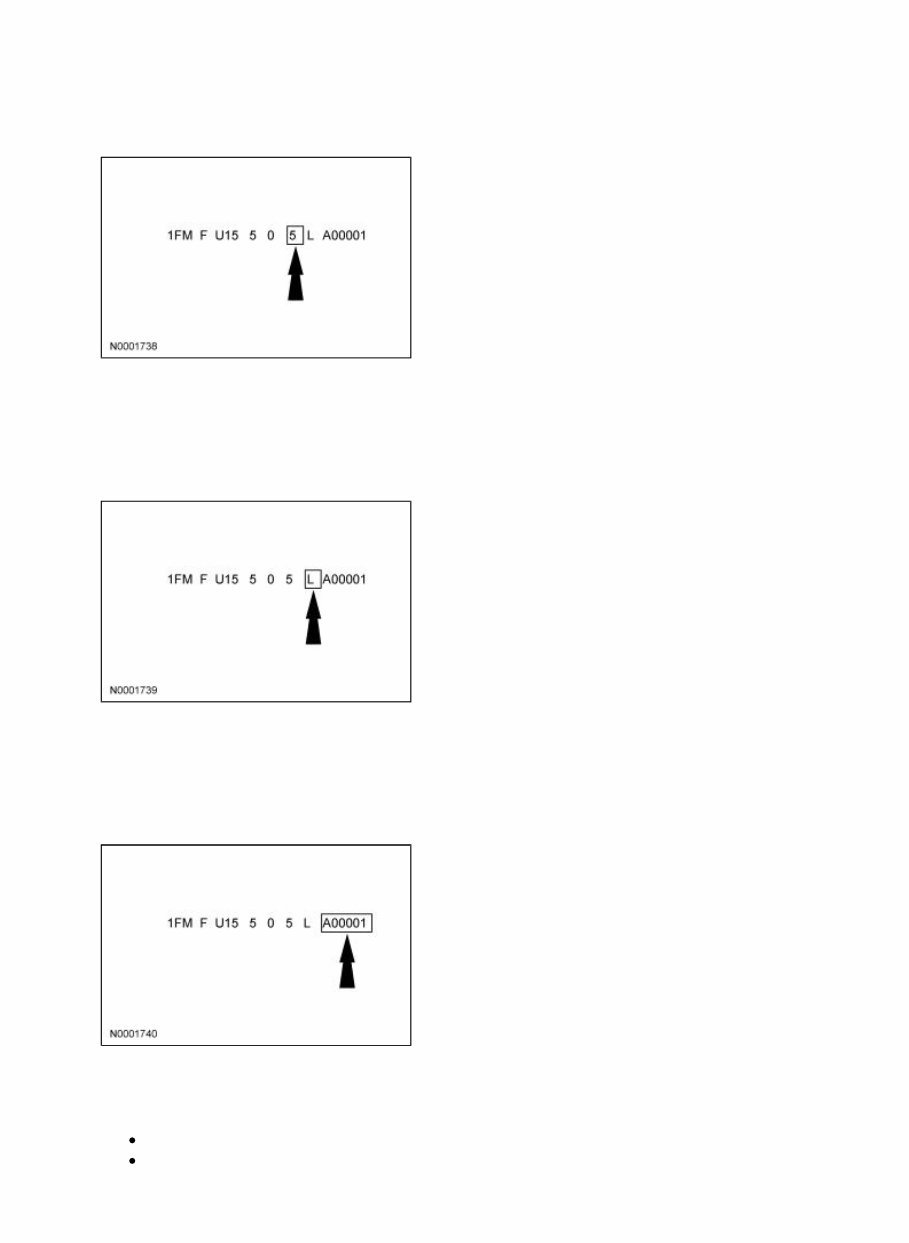

The ninth VIN position is a government assigned, computer-generated check digit. Model Year The tenth VIN position is the model year code. · 5 — 2005 Assembly Plant The eleventh VIN position is the assembly plant code. · L — Michigan Truck (Wayne, Michigan) Vehicle Build Sequence The last six VIN positions are an alphanumeric code for the vehicle build sequence. This is also the vehicle serial and warranty number. A00001-F99999 — Ford Division J00001-L99999 — Lincoln Division 07.03.2002 file://C:\TSO\tsocache\SUPER10-45B629E_996\S5J~us~en~file=S5J01001.htm~gen...

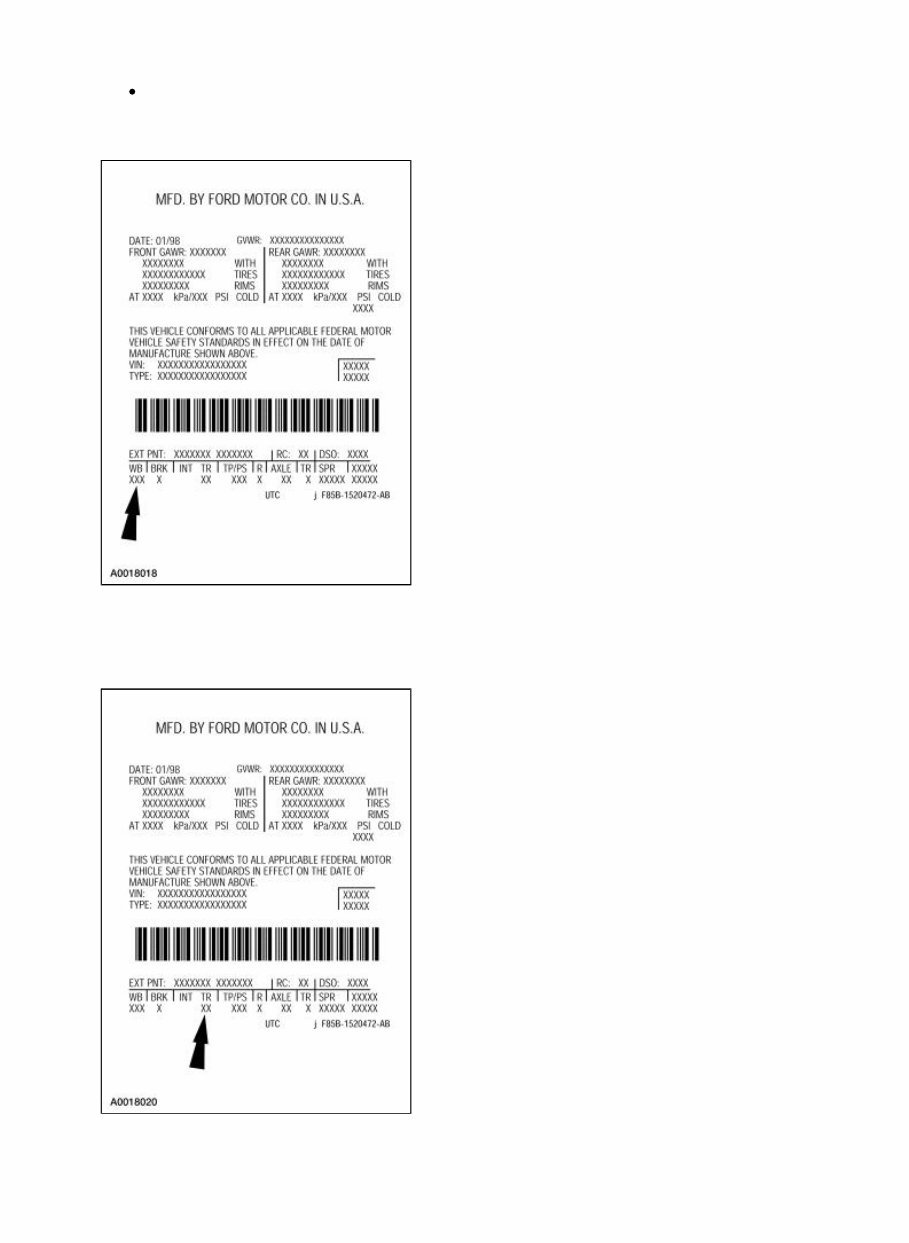

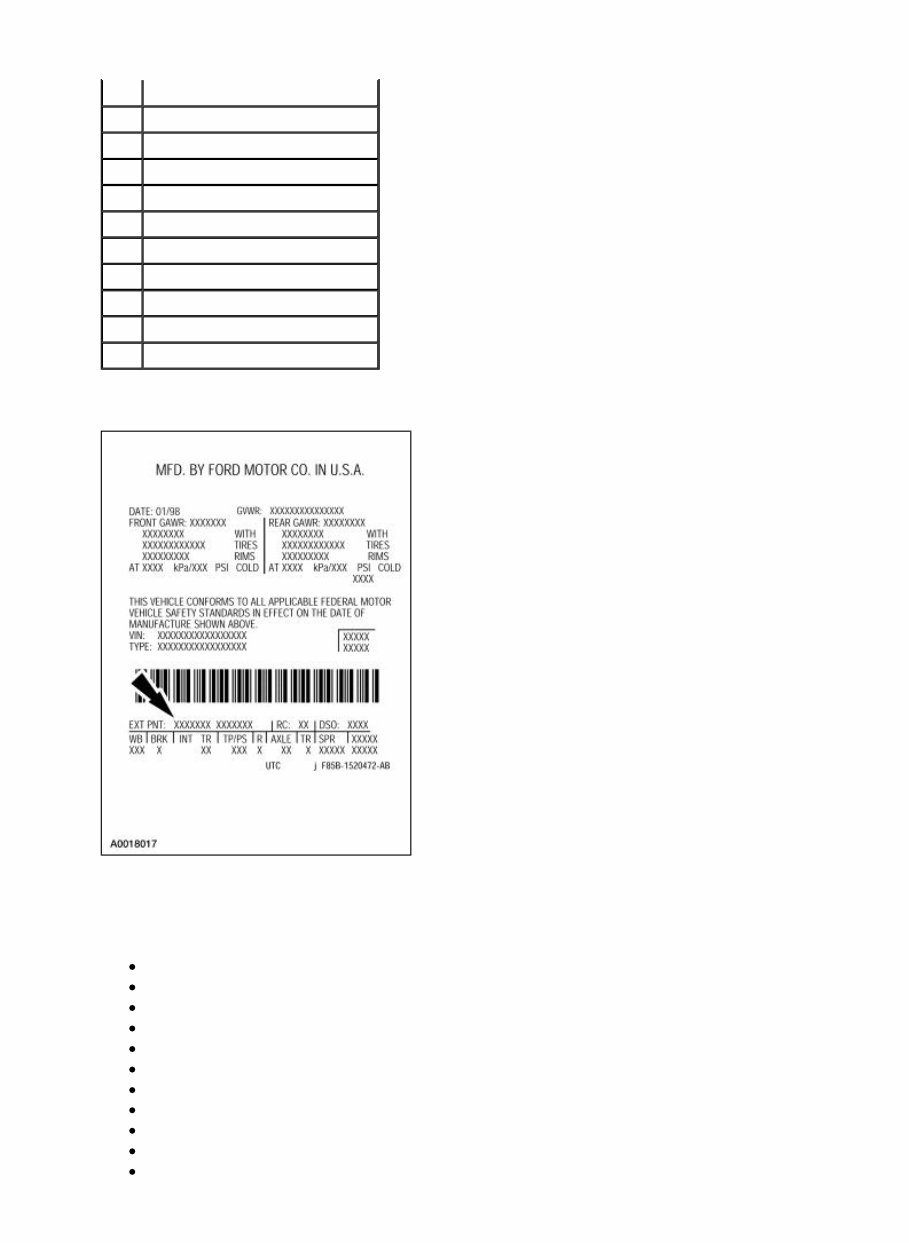

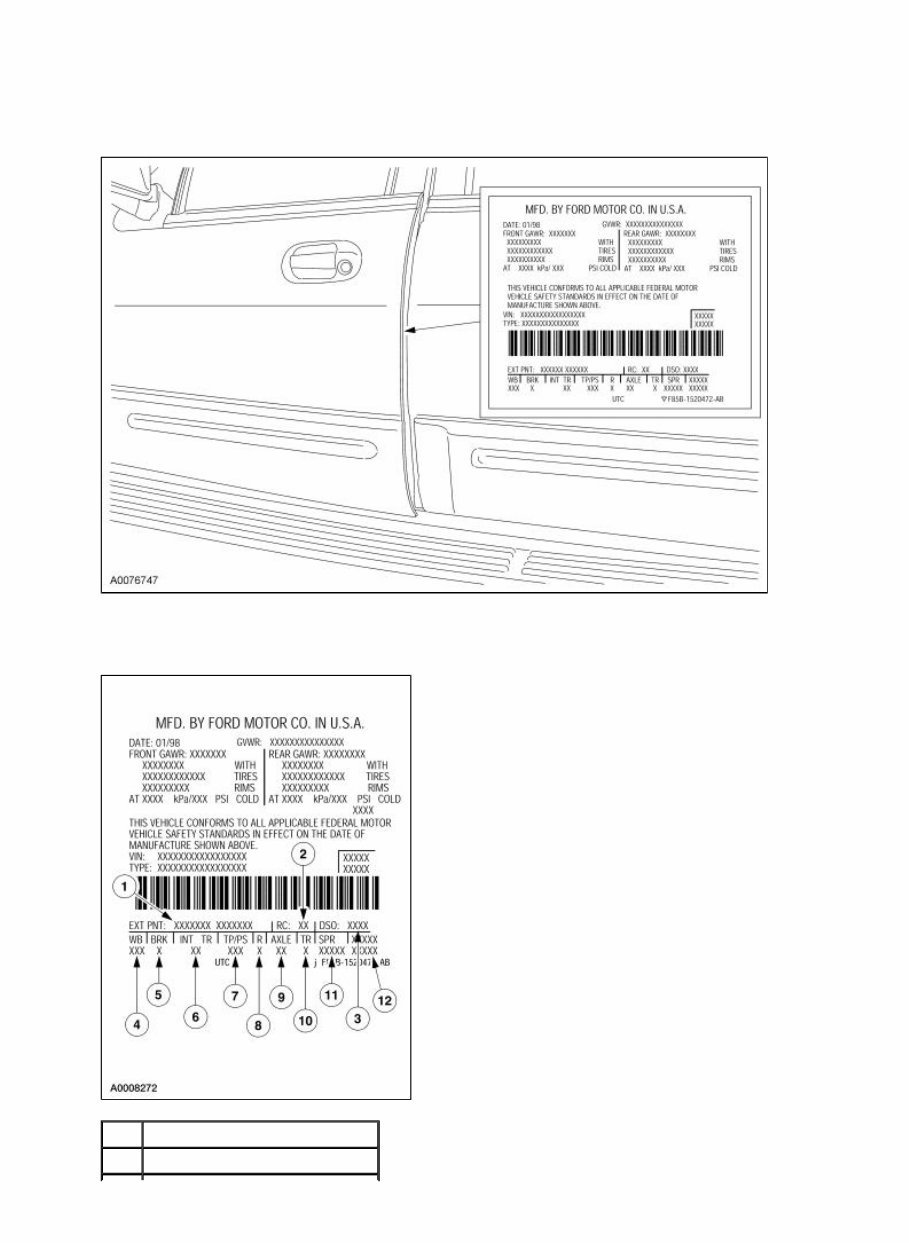

Vehicle Certification (VC) Label Vehicle Certification (VC) Label Locator The vehicle certification (VC) label contains the manufacturer name, the month and year of manufacture, the certification statement, and the VIN. It also includes gross vehicle weight ratings (GVWR). Item Description 1 Exterior paint code 07.03.2002 file://C:\TSO\tsocache\SUPER10-45B629E_996\S5J~us~en~file=S5J01001.htm~gen...

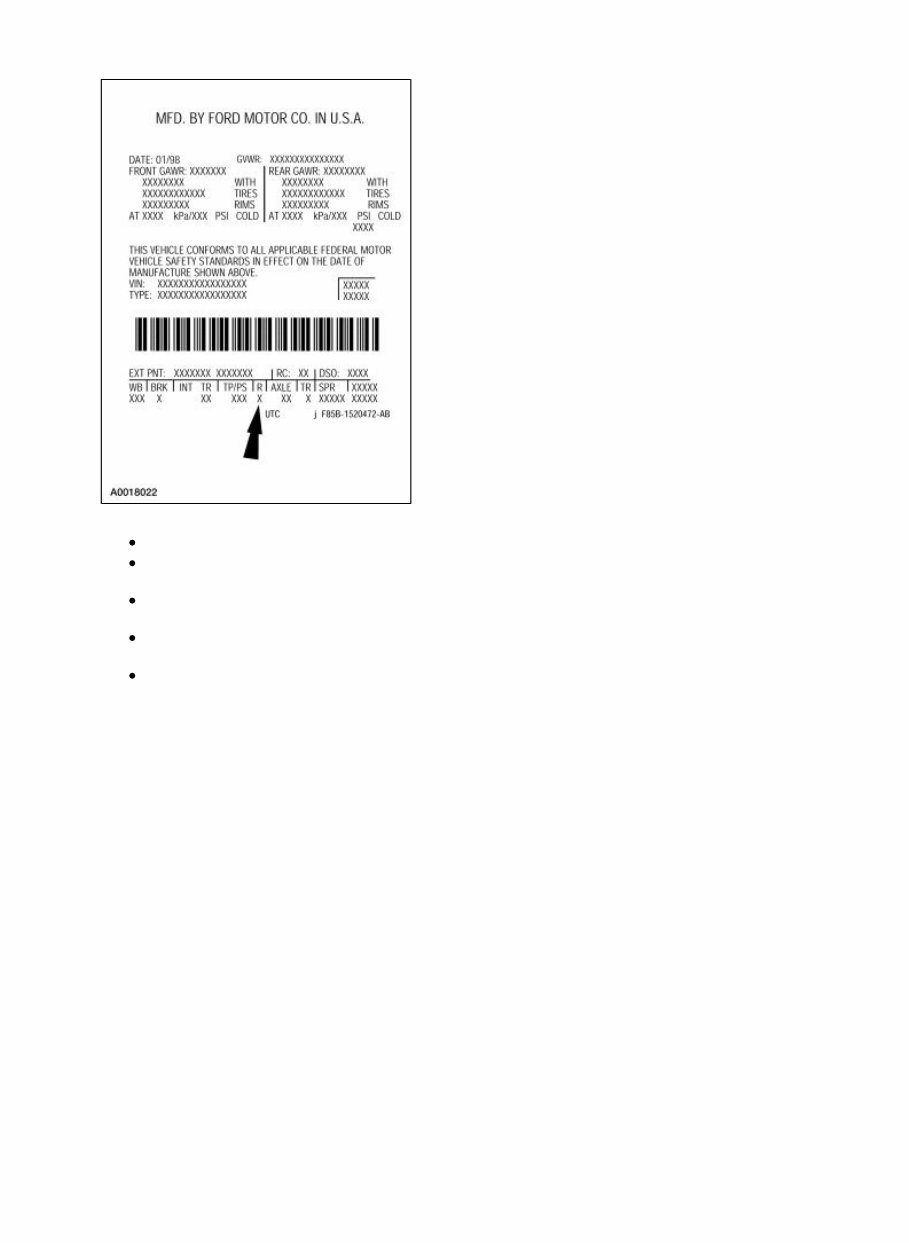

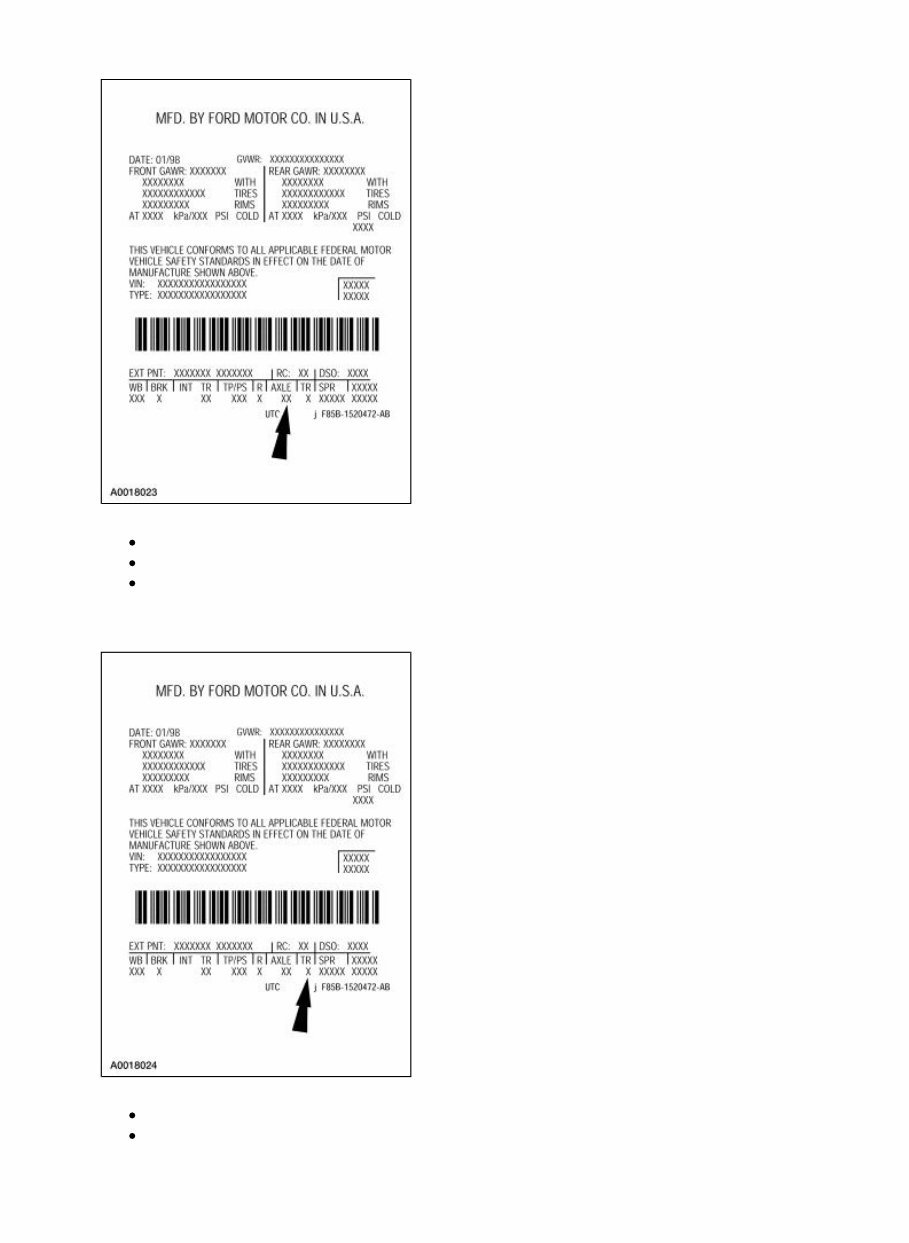

Exterior Paint Code Paint codes may be listed as a two-part code. The first set of characters listed indicate the vehicle primary body color. The second set of characters listed (if applicable) indicate a two-tone or accent body color. All colors are base coat/clear coat. CX — Dark Shadow Gray — Expedition DV — Light Tundra/Titanium Green — Navigator G2 — Redfire — Expedition/Navigator G3 — Pueblo Gold — Expedition/Navigator G4 — Cashmir (tri-coat) — Expedition/Navigator JP — Silver Birch Metallic — Expedition/Navigator LD — Medium Wedgewood Blue — Expedition ST — Estate Green — Expedition T3 — Satellite Silver — Navigator T7 — Charcoal Beige — Expedition/Navigator UA — Ebony — Expedition/Navigator 2 Region code 3 Domestic special order code 4 Wheelbase code 5 Brake code 6 Interior trim code 7 Tape/paint pinstripe code 8 Radio code 9 Axle code 10 Transmission code 11 Spring code 12 Powertrain calibration information 07.03.2002 file://C:\TSO\tsocache\SUPER10-45B629E_996\S5J~us~en~file=S5J01001.htm~gen...

YZ — Oxford White — Expedition/Navigator Wheelbase · 119 — 119-inch (3,023 mm) wheelbase Interior Trim Interior trim codes are listed as a two-part code. The first character identifies the trim type. The second character identifies the interior trim color. 07.03.2002 file://C:\TSO\tsocache\SUPER10-45B629E_996\S5J~us~en~file=S5J01001.htm~gen...

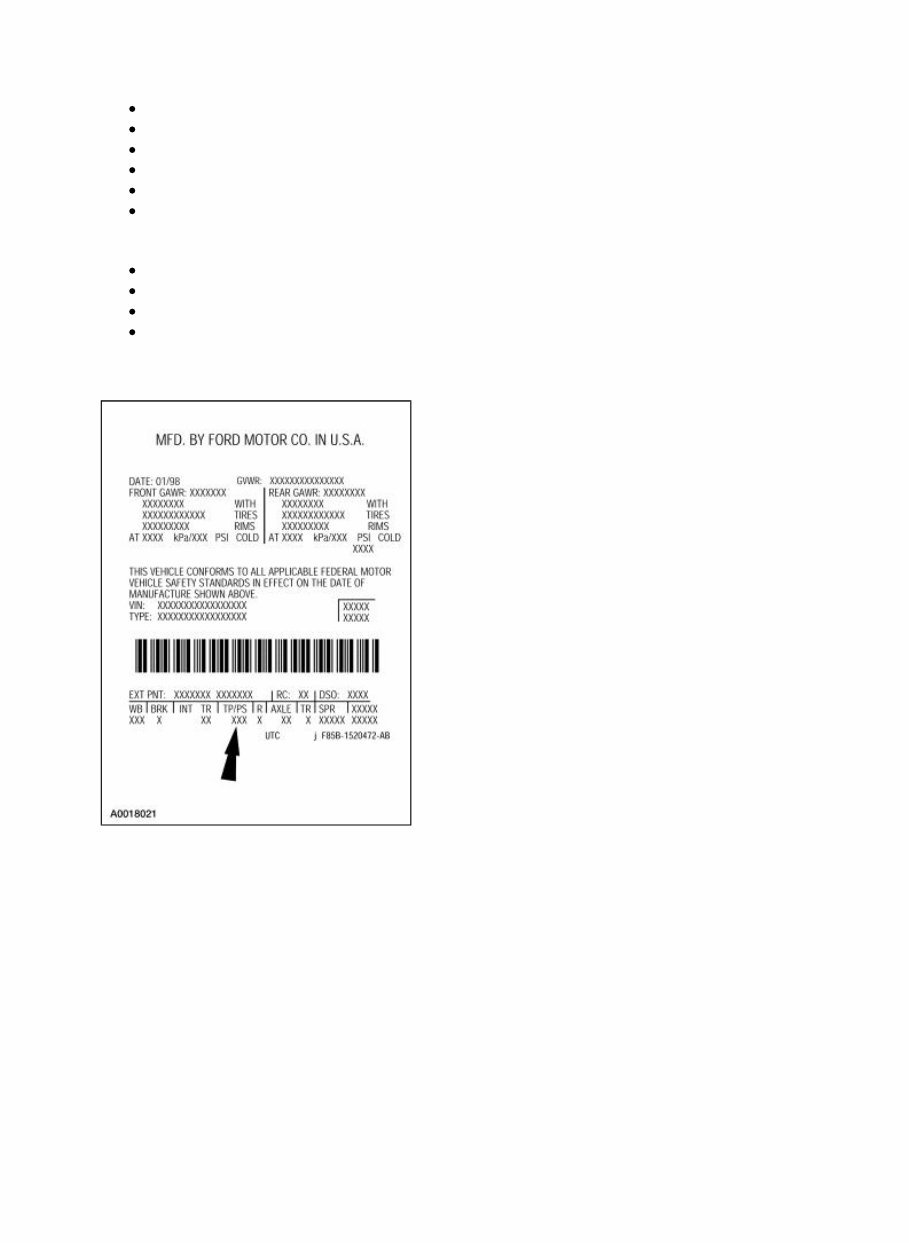

Trim Type 1 — Milled Pebble/Toscana leather captains chairs — Expedition 1 — Milled Pebble/Imola leather captains chairs — Expedition 2 — Milled Pebble/Imola low-back bucket seats — Expedition F — Port cloth captain's chairs — Expedition K — Milled Pebble/Imola leather low-back bucket seats — Navigator M — Cloth — 60/40 front (split bench) — Expedition Interior Trim Color C — Camel Tan — Navigator D — Dove Gray — Navigator E — Medium Flint — Expedition H — Medium Parchment — Expedition Tape/Paint Stripe Tape and paint stripe codes do not apply. Radio Type 07.03.2002 file://C:\TSO\tsocache\SUPER10-45B629E_996\S5J~us~en~file=S5J01001.htm~gen...

1 — AM/FM stereo with six-disc, in-dash compact disc (CD) changer and clock — Expedition F — AM/FM stereo with six-disc, in-dash compact disc (CD) changer, navigation system and clock — Expedition K — Premium electronic AM/FM stereo with compact disc (CD), cassette player and clock — Expedition/Navigator T — Premium AM/FM stereo with six-disc, in-dash compact disc (CD) changer and clock — Expedition/Navigator X — AM/FM stereo with six-disc, in-dash compact disc (CD) changer and navigation system — Navigator Axle Code 07.03.2002 file://C:\TSO\tsocache\SUPER10-45B629E_996\S5J~us~en~file=S5J01001.htm~gen...

15 — 3.31 final drive ratio — Expedition 16 — 3.73 ratio, non-limited slip — Expedition/Navigator H6 — 3.73 ratio, limited slip — Expedition/Navigator Transmission Code B — Four-speed automatic (4R75E) — Expedition F — Six-speed automatic (6HP26) — Navigator 07.03.2002 file://C:\TSO\tsocache\SUPER10-45B629E_996\S5J~us~en~file=S5J01001.htm~gen...
