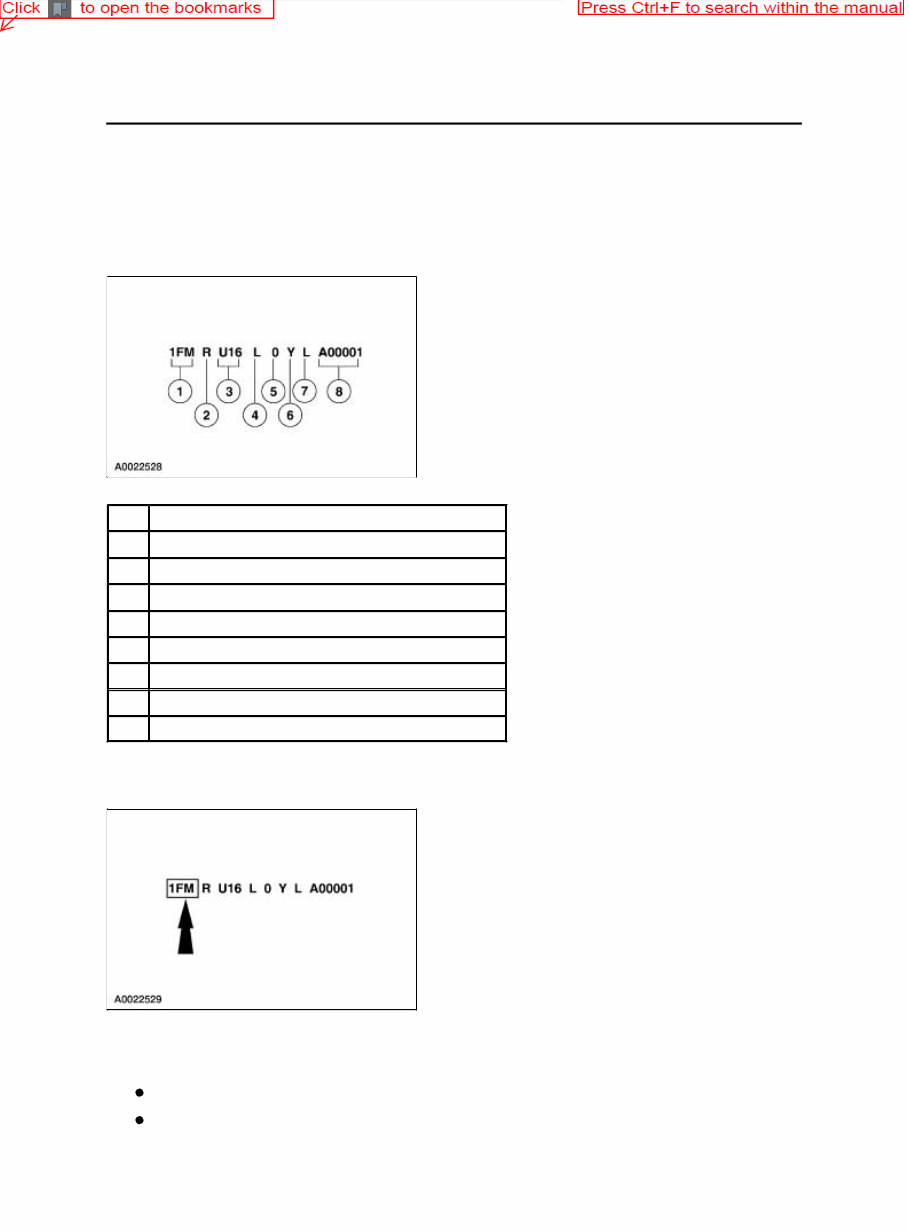

DESCRIPTION AND OPERATION Identification Codes The vehicle identification number (VIN) is a seventeen-digit combination of letters and numbers. The VIN is stamped on a metal tab riveted on the instrument panel, top upper left of the dash. The VIN number is also found on the vehicle certification (VC) label. Vehicle Identification Number The first three vehicle identification number (VIN) positions are the world manufacturer identifier. 1FM — Ford Motor Company, USA, multi-purpose vehicle 5LM — Lincoln, USA, multi-purpose vehicle SECTION 100-01: Identification Codes 2000 Expedition/Navigator Workshop Manual Item Description 1 World manufacturer identifier 2 Brake type and gross vehicle weight rating (GVWR) 3 Vehicle line, series, body type 4 Engine type 5 Check digit 6 Model year 7 Assembly plant 8 Production sequence number 14.10. 2012 file:///C:/Ford/2000-2004/tsocache/SHEF_3852/SYJ~us~en~...

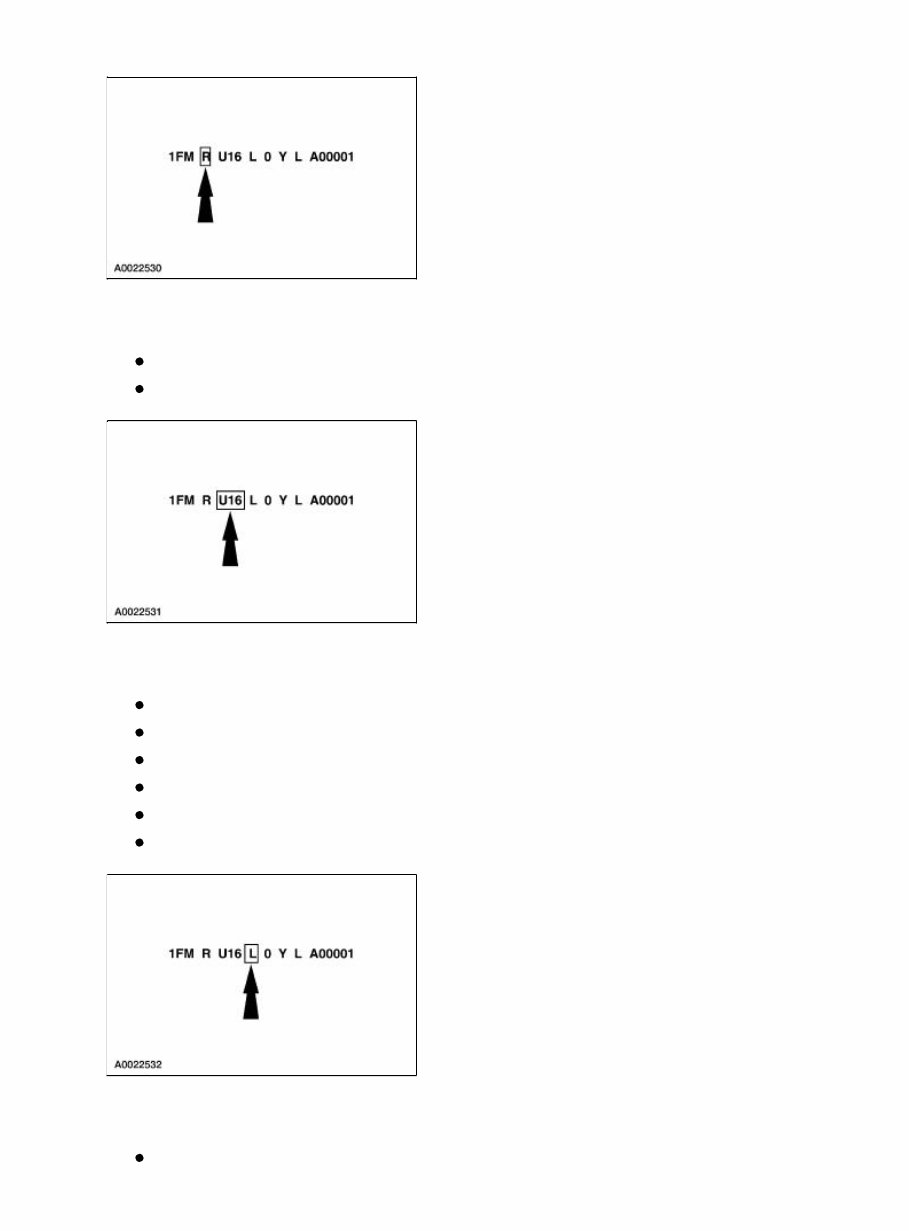

The fourth VIN position is the vehicle brake type and GVW code (all vehicles use hydraulic brakes). R — 6,001-7,000 pounds GVWR with second generation air bags P — 7,001-8,000 pounds GVWR with second generation air bags Positions 5 through 7 indicate vehicle line, series and body type. U15 — Expedition, 4x2, XLT U16 — Expedition, 4x4, XLT U17 — Expedition, 4x2, Eddie Bauer U18 — Expedition, 4x4, Eddie Bauer U27 — Navigator, 4x2 U28 — Navigator, 4x4 The eighth VIN position is the engine displacement and number of cylinders. 6 — 4.6L, SOHC, EFI, V-8, gas, Romeo Modular 14.10. 2012 file:///C:/Ford/2000-2004/tsocache/SHEF_3852/SYJ~us~en~...

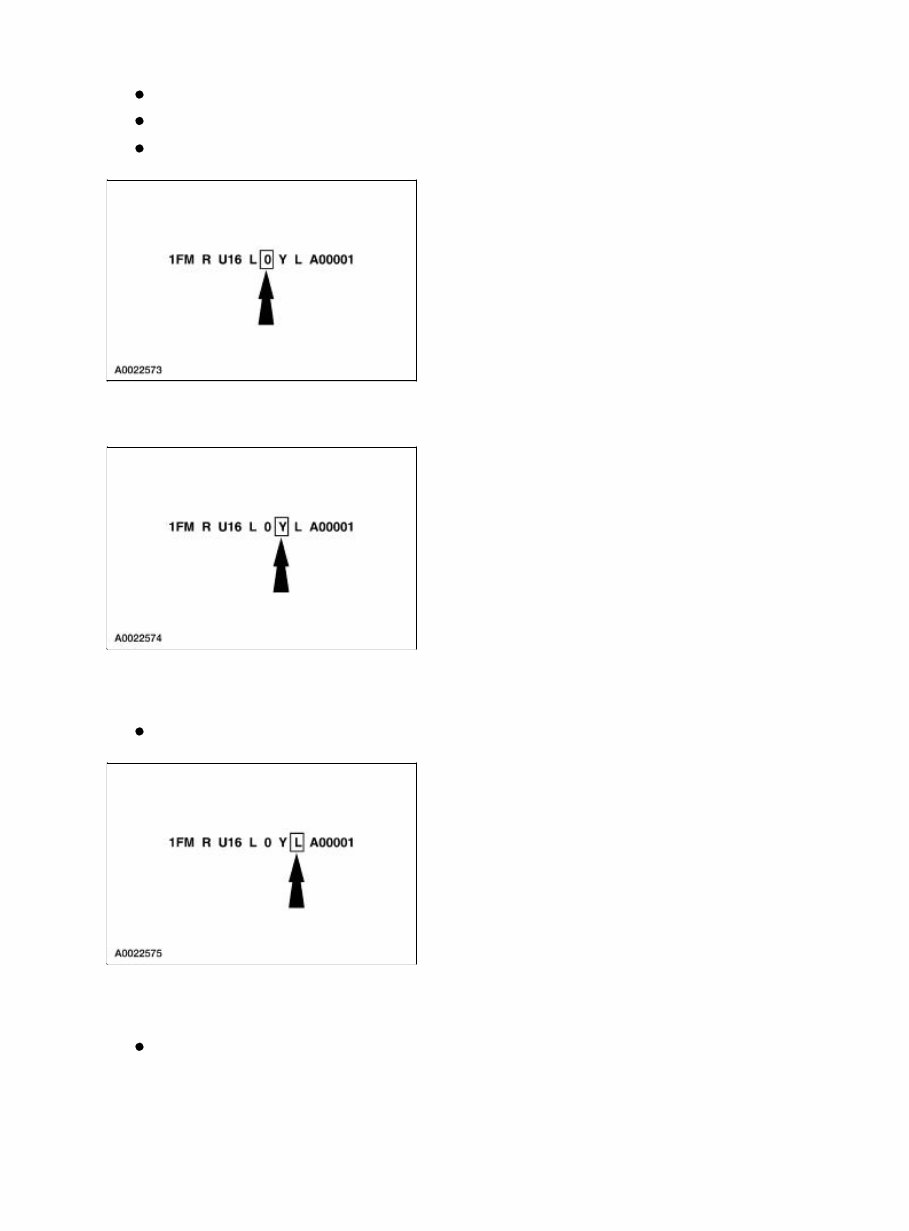

L — 5.4L, SOHC, EFI, 2V, V-8, gas A — 5.4L, DOHC, EFI, 4V, V-8, gas M — 5.4L, SOHC, 2V, compressed natural gas (CNG) The ninth VIN position is a check digit. The tenth VIN position is the model year code. Y — 2000 The eleventh VIN position is the assembly plant code. L — Michigan Truck (Wayne, Michigan) 14.10. 2012 file:///C:/Ford/2000-2004/tsocache/SHEF_3852/SYJ~us~en~...

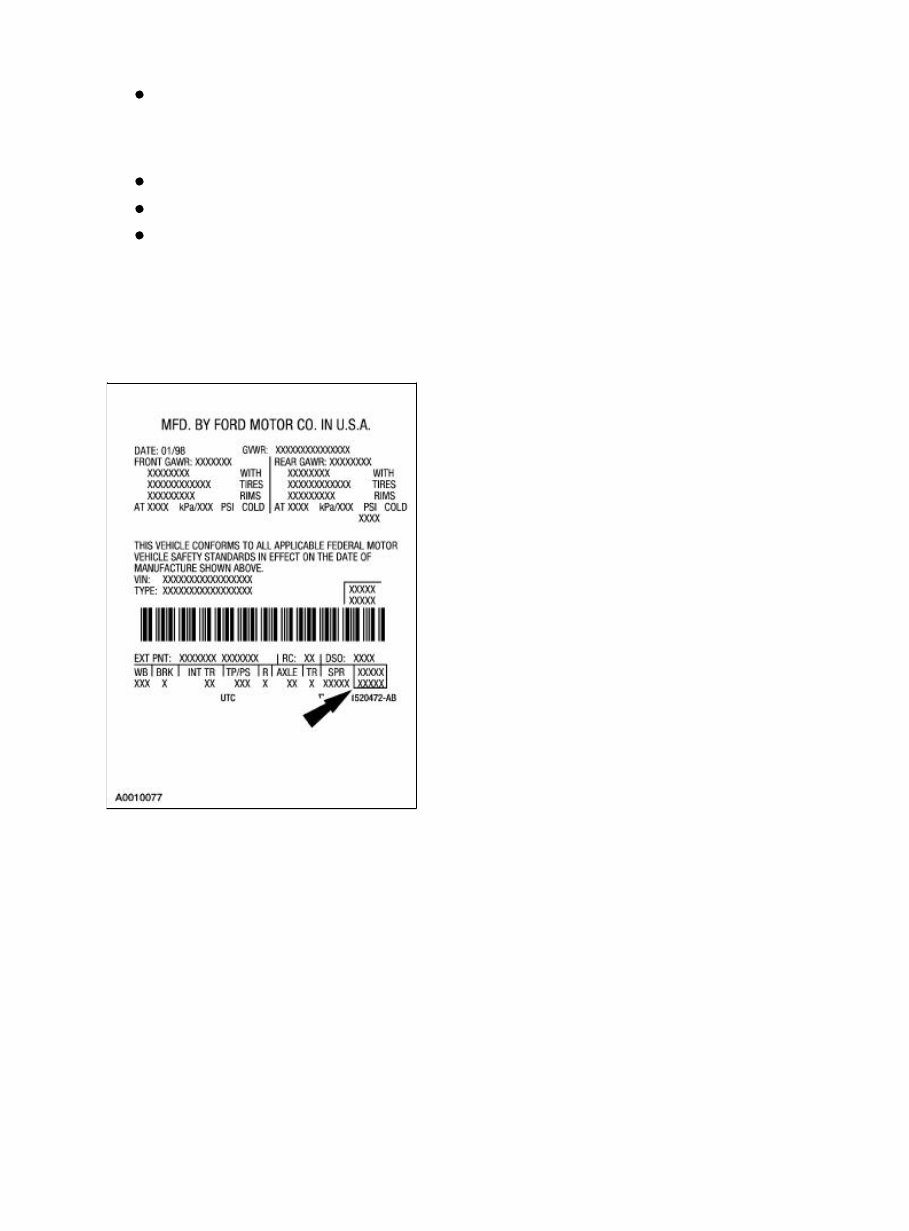

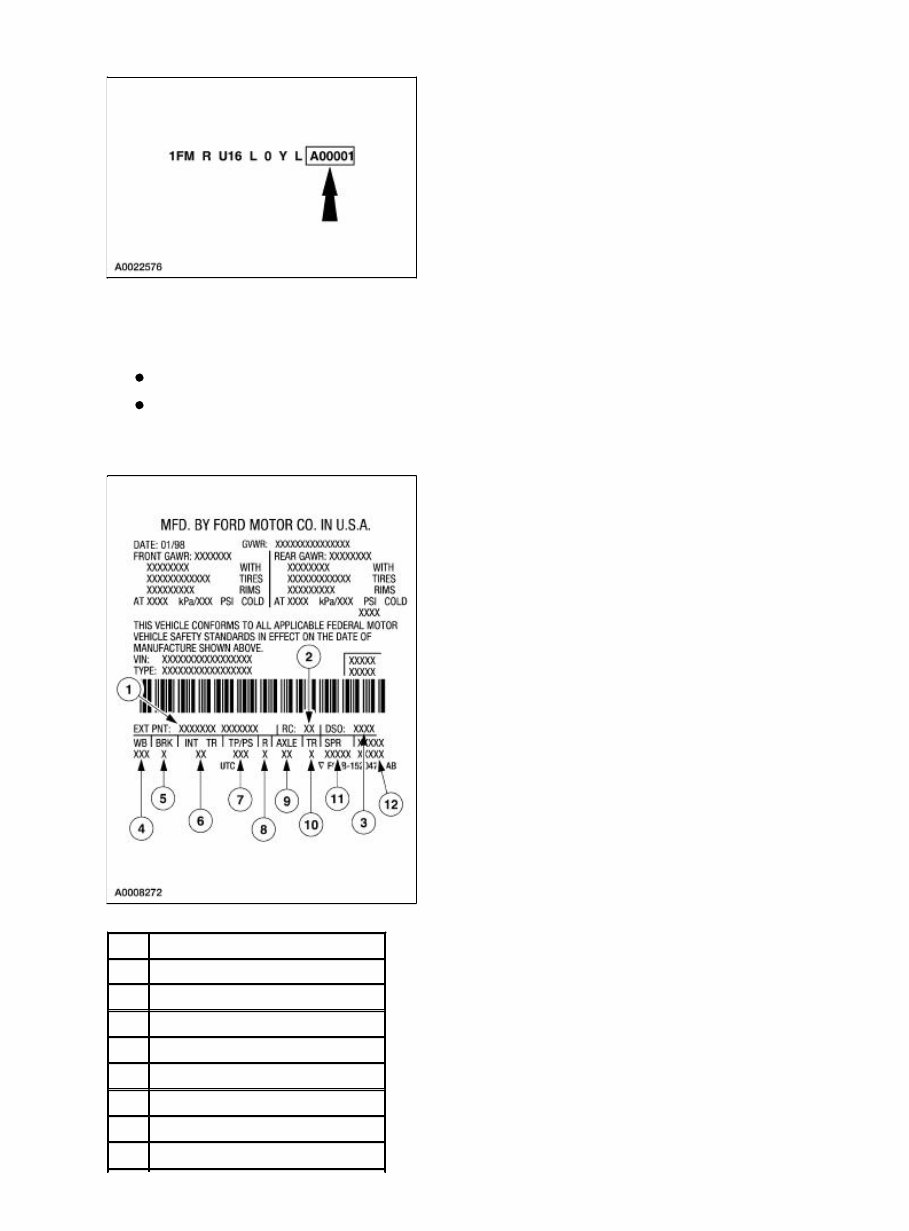

The last six VIN positions are an alphanumeric code for the vehicle build sequence. This is also the vehicle serial and warranty number. A00001-E99999 — Ford Division J00001-L99999 — Lincoln Division Vehicle Certification (VC) Label Item Description 1 Exterior paint code 2 Region code 3 Domestic special order code 4 Wheelbase code 5 Brake code 6 Interior trim code 7 Tape/paint pinstripe code 8 Radio code 14.10. 2012 file:///C:/Ford/2000-2004/tsocache/SHEF_3852/SYJ~us~en~...

The vehicle certification (VC) label contains the manufacturer name, the month and year of manufacture, the certification statement, and the VIN. It also includes gross vehicle weight ratings (GVWR). Paint Codes The first set of letters/numbers listed indicate the vehicle primary body color. The second set of letters/numbers listed (if applicable) indicate a two-tone or accent body color. All colors are base coat/clear coat. B2 — Harvest Gold — Expedition ST — Estate Green — Expedition LL — Deep Wedgewood Blue — Expedition LD — Medium Wedgewood Blue — Expedition FS — Spruce Green — Navigator SU — Amazon Green — Expedition BQ — Light Parchment Gold — Navigator E9 — Laser Red Tint — Expedition/Navigator JL — Dark Toreador Red — Expedition UA — Ebony — Expedition/Navigator YZ — Oxford White — Expedition/Navigator YN — Silver Metallic — Expedition KW — Charcoal Blue — Navigator FT — Charcoal Green — Navigator Y1 — Prime Radio Codes 8 — Premium AM/FM stereo with cassette 5 — Premium AM/FM stereo with compact disc player D — Delete radio chassis only, all other components installed Axle Codes The following lists the gear ratios on axles. 19 — 3.55 non-limited slip 17 — 3.31 non-limited slip H9 — 3.55 limited slip H7 — 3.31 limited slip 9 Axle code 10 Transmission code 11 Spring code 12 Powertrain calibration information 14.10. 2012 file:///C:/Ford/2000-2004/tsocache/SHEF_3852/SYJ~us~en~...

H6 — 3.73 limited slip Transmission Codes U — Automatic AOD, 4.6L engine E — Automatic E4OD, 5.4L engine Spring Codes The following lists available spring codes. Front Springs Base part number — 5310 (RH/LH) 2 — Suffix KA 3 — Suffix LA Torsion Bars Base part number — 5B326 (RH), 5B327 (LH) 1 — Suffix AMA 4 — Suffix AJA Load Leveling Suspension P — 4x4 (front/rear suspension) L — 4x2 (rear suspension only) Rear Springs 6 — Base part number, 5534, suffix CA 5 — Base part number, 5534, suffix DA 7 — Base part number, 5534, suffix FA 8 — Base part number, 5A891, suffix BE 9 — Base part number, 5A891, suffix AC Interior Trim Codes The following lists the interior trim and interior color codes. Interior Trim M — Manitou cloth split bench seat F — Manitou cloth captains chairs (XLT) S — Vinyl captains chairs (XLT) 1 — Leather captains chairs (Eddie Bauer, XLT) K — Super-soft leather captains chairs (Navigator) 14.10. 2012 file:///C:/Ford/2000-2004/tsocache/SHEF_3852/SYJ~us~en~...

7 — Woven cloth captains chairs (XLT Sport) Interior Color Codes H — Medium Parchment 2 — Medium Graphite T — Dark Graphite Tape Stripe Codes Tape and paint stripe codes do not apply. Powertrain Calibration Information NOTE: Powertrain calibration information is limited to a maximum of five characters per line on the Vehicle Certification Label. Because of this, calibration identification consisting of more than five characters will wrap to the second line on the VC label. Powertrain calibration information is printed in the lower right corner of the Vehicle Certification Label. Only the base calibration information is printed. Revision levels will not appear, however, they can be found in On Line Automotive Service Information System (OASIS). For the current model year, Ford Motor Company is using three different protocols which describe powertrain base calibration. These protocols are designed to provide worldwide standardization for vehicle calibration. If the electronic calibration strategy has been used since 1998 and carried into the current model year, protocol 1 will be used. Refer to Protocol 1 below. If the electronic calibration strategy has been used since 1999 and is carried into the current model year, protocol 2 will be used. Refer to Protocol 2 below. For new electronic calibration strategies for the current model year, use protocol 3. Refer to Protocol 3 below. Protocol 1 14.10. 2012 file:///C:/Ford/2000-2004/tsocache/SHEF_3852/SYJ~us~en~...

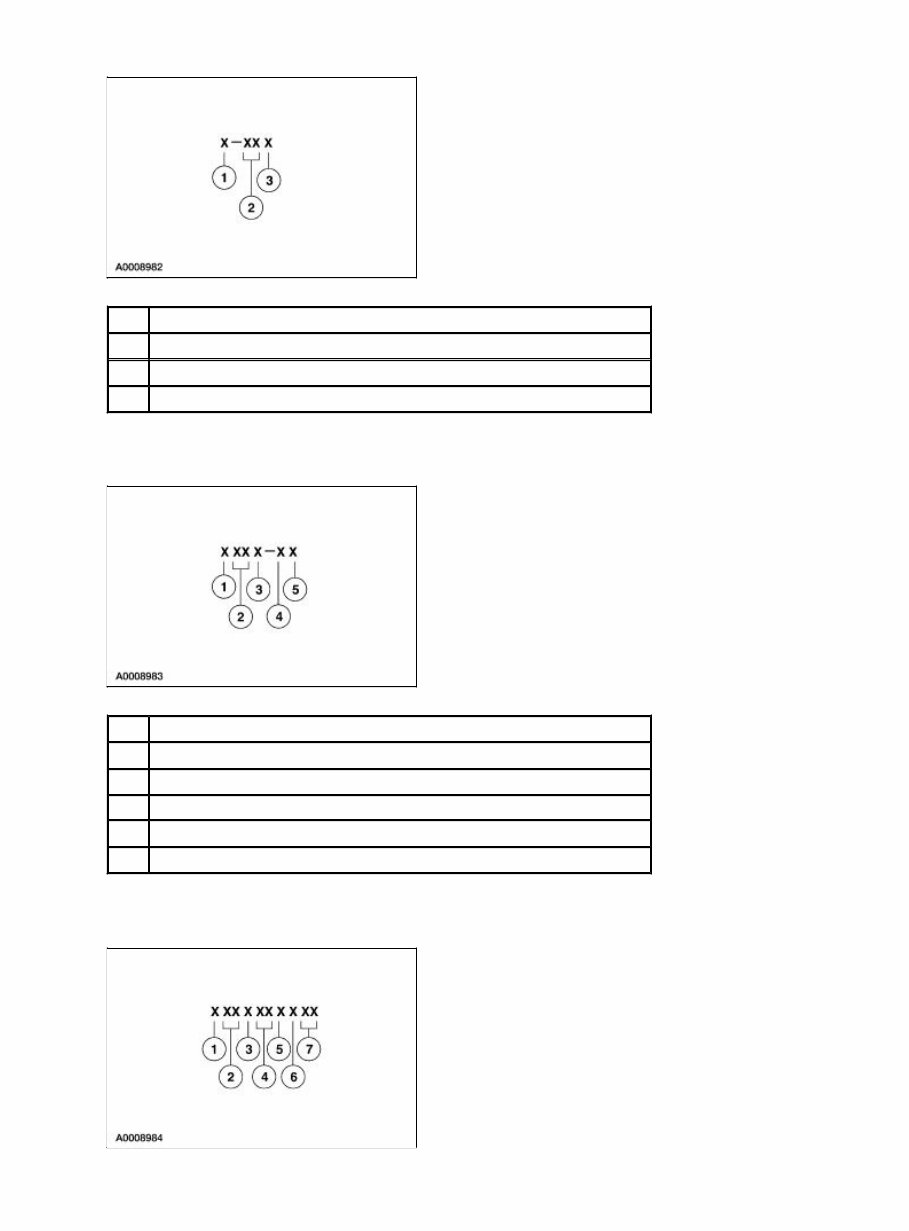

Protocol 2 Protocol 3 Item Description 1 Model year (model year in which calibration strategy was first introduced) 2 Engine code 3 Engine revision level Item Description 1 Model year (model year in which calibration strategy was first introduced) 2 Engine code 3 Transmission code 4 Emission standard (designates the specific country emission standard) 5 Design level (design level assigned to the engine) 14.10. 2012 file:///C:/Ford/2000-2004/tsocache/SHEF_3852/SYJ~us~en~...

Item Description 1 Model year (model year in which calibration strategy was first introduced) 2 Vehicle code 3 Transmission code 4 Unique calibration (designates different hardware to similar vehicles). Example: tires, drive ratios, etc. 5 Fleet code (describes fleet to which the vehicle belongs). Example: 6 – evaporative emissions 6 Certification region (lead region where multiple regions are included in one calibration). Example: A – U.S. federal 7 Revision level (will advance as revisions occur). Not printed on label 14.10. 2012 file:///C:/Ford/2000-2004/tsocache/SHEF_3852/SYJ~us~en~...

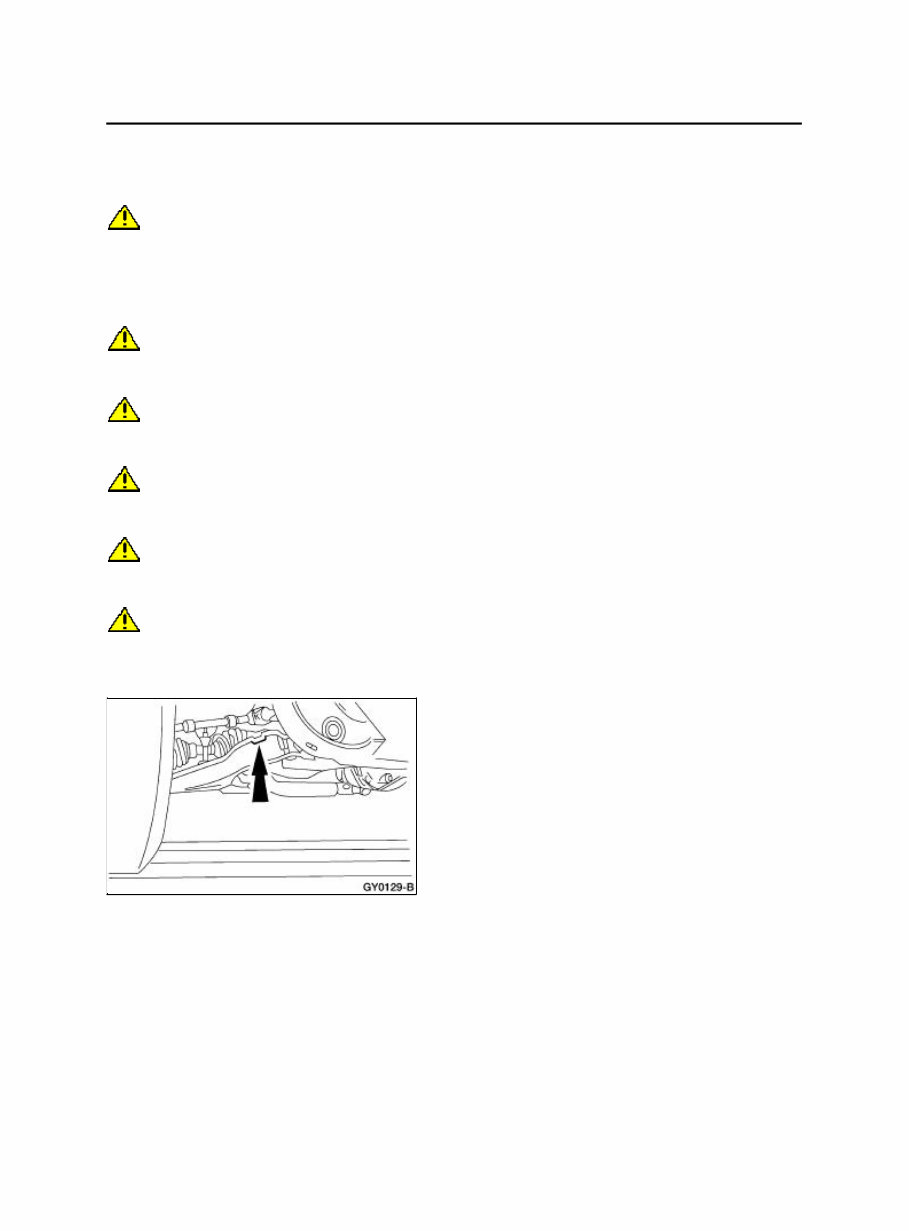

DESCRIPTION AND OPERATION Jacking WARNING: The electrical power to the air suspension system must be shut down prior to hoisting, jacking or towing an air suspension vehicle. This can be accomplished by turning off the air suspension switch located in the RH kick panel area. Failure to do so may result in unexpected inflation or deflation of the air springs which may result in shifting of the vehicle during these operations. WARNING: Do not run the engine when jacking the vehicle. The wheels contacting the ground could cause the vehicle to move. WARNING: Support the vehicle prior to performing any procedure requiring the vehicle to be jacked off the ground. WARNING: Make sure the jack and jack stands are properly located to prevent the vehicle from falling. WARNING: Wheel chocks should be used to prevent the vehicle from rolling and falling off the jack. CAUTION: Never use a halfshaft as a lifting point. Jacking Points — Front, 4x4 The jacking point is a raised boss located on the front suspension lower arm (3079). Jacking Points — Front, 4x2 SECTION 100-02: Jacking and Lifting 2000 Expedition/Navigator Workshop Manual 14.10. 2012 file:///C:/Ford/2000-2004/tsocache/SHEF_5592/SYJ~us~en~...
