Identification Codes Vehicle Identification Number Vehicle Identification Number (VIN) Tag Locator The vehicle identification number (VIN) is a 17-digit combination of letters and numbers. The VIN is stamped on a metal tab riveted on the instrument panel, top upper left of the dash. The VIN is also found on the vehicle certification (VC) label. If the VIN plate requires replacement, authorized dealers must contact their respective regional office. SECTION 100-01: Identification Codes 2008 Edge/MKX Workshop Manual DESCRIPTION AND OPERATION Procedure revision date: 09/14/2007 01.12. 2014 file:///C:/TSO-2008/tsocache/SHEF- _6724/S8V~us~en~fi...

World Manufacturer Identifier The first 3 VIN positions are the world manufacturer identifier (WMI). 2FM — Ford Motor Company, Canada, multi-purpose vehicle (MPV) 2LM — Lincoln, Canada, MPV Gross Vehicle Weight Rating (GVWR) and Restraint System Type Item Description 1 World manufacturer identifier (WMI) 2 Gross vehicle weight rating (GVWR) and restraint system type 3 Vehicle line, series, body type 4 Engine type 5 Check digit 6 Model year 7 Assembly plant 8 Production sequence number 01.12. 2014 file:///C:/TSO-2008/tsocache/SHEF- _6724/S8V~us~en~fi...

The fourth VIN position identifies the gross vehicle weight rating (GVWR) and restraint system used. D — 5,001-6,000 pounds GVWR, driver and front passenger air bags and driver and front passenger side impact restraints Line, Series and Body Type VIN positions 5 through 7 indicate the vehicle line, series and body type. K36 — Ford Edge, front wheel drive (FWD), SE K38 — Ford Edge, FWD, SEL K39 — Ford Edge, FWD, SEL Plus K46 — Ford Edge, all wheel drive (AWD), SE K48 — Ford Edge, AWD, SEL K49 — Ford Edge, AWD, SEL Plus U68 — Lincoln MKX, FWD, Premium U88 — Lincoln MKX, AWD, Premium Engine Type The eighth VIN position is the engine type (displacement and number of cylinders). C — 3.5L, DOHC, EFI, V-6 01.12. 2014 file:///C:/TSO-2008/tsocache/SHEF- _6724/S8V~us~en~fi...

Check Digit The ninth VIN position is a government-assigned, computer-generated check digit. Model Year The tenth VIN position is the model year code. 8 — 2008 Assembly Plant The eleventh VIN position is the assembly plant code. 01.12. 2014 file:///C:/TSO-2008/tsocache/SHEF- _6724/S8V~us~en~fi...

B — Oakville Assembly — Oakville, Ontario, Canada Build Sequence VIN positions 12 through 17 are an alphanumeric code for the vehicle build sequence. This is also the vehicle serial and warranty number. The serial number can also be found on the engine block and transmission. A00001-F99999 — Ford J00001-L99999 — Lincoln Vehicle Certification (VC) Codes Vehicle Certification (VC) Label Locator 01.12. 2014 file:///C:/TSO-2008/tsocache/SHEF- _6724/S8V~us~en~fi...

The upper portion of the VC label contains the manufacturer's name, the month and year of manufacture, the certification statement and the VIN. It also includes the GVWR. The VC label is located on the left-hand door jamb. If a vehicle requires replacement of the VC label and is 4 years old or less, an authorized dealer must submit the VIN to their respective regional office. The regional office will submit a web form to the assembly plant for the replacement label. Once the label has been printed, a representative from the regional office will deliver the label to the dealer and witness installation on the vehicle. If a vehicle is more than 4 years old and requires a replacement label, the dealer must submit a request to the Department of Motor Vehicles. Item Description 1 Exterior paint code 2 Region code 3 Domestic special order (DSO) 4 Wheelbase code 5 Interior trim code 6 Tape/paint stripe code 7 Radio code 8 Axle code 9 Transmission code 10 Spring code 11 Powertrain calibration information 01.12. 2014 file:///C:/TSO-2008/tsocache/SHEF- _6724/S8V~us~en~fi...

Exterior Paint Exterior paint codes may be listed as a 2-part code. The first set of characters identify the primary body color. The second set of characters (if applicable) identify the vehicle accent or 2-tone body color. All colors are base coat/clear coat. Exterior Color Codes DI — Dark Ink Blue — Ford Edge, Lincoln MKX G2 — Redfire — Ford Edge, Lincoln MKX GW — Orange Crush — Ford Edge, Lincoln MKX LS — Light Ice Blue Metallic — Ford Edge, Lincoln MKX ND — Dune Pearl — Ford Edge, Lincoln MKX PH — Creme Brulee — Ford Edge, Lincoln MKX PV — White Chocolate (tri-coat) — Ford Edge, Lincoln MKX UA — Ebony — Ford Edge, Lincoln MKX ZY — Silver Vapor Pearl — Ford Edge, Lincoln MKX Wheelbase 01.12. 2014 file:///C:/TSO-2008/tsocache/SHEF- _6724/S8V~us~en~fi...

113 — 2,870.2 mm (113 in) Interior Trim 01.12. 2014 file:///C:/TSO-2008/tsocache/SHEF- _6724/S8V~us~en~fi...

Interior trim codes are listed as a 2-part code. The first character identifies the interior trim type. The second character identifies the interior trim color. Interior Trim Type 1 — Milliken Hirise cloth bucket seats, manual adjust — Ford Edge 2 — Milliken Metro cloth bucket seats, power driver side — Ford Edge 3 — Fury leather bucket seats, power driver side — Ford Edge 4 — Red leather bucket seats, power driver side — Ford Edge A — Soho leather bucket seats, power driver and passenger side — Lincoln MKX B — Soho perforated leather bucket seats, power driver and passenger side — Lincoln MKX Interior Trim Color C — Camel Tan — Ford Edge D — Light Camel Tan — Lincoln MKX L — Medium Light Stone — Ford Edge, Lincoln MKX W — Charcoal Black — Ford Edge, Lincoln MKX Tape/Paint Stripe 01.12. 2014 file:///C:/TSO-2008/tsocache/SHEF- _6724/S8V~us~en~fi...

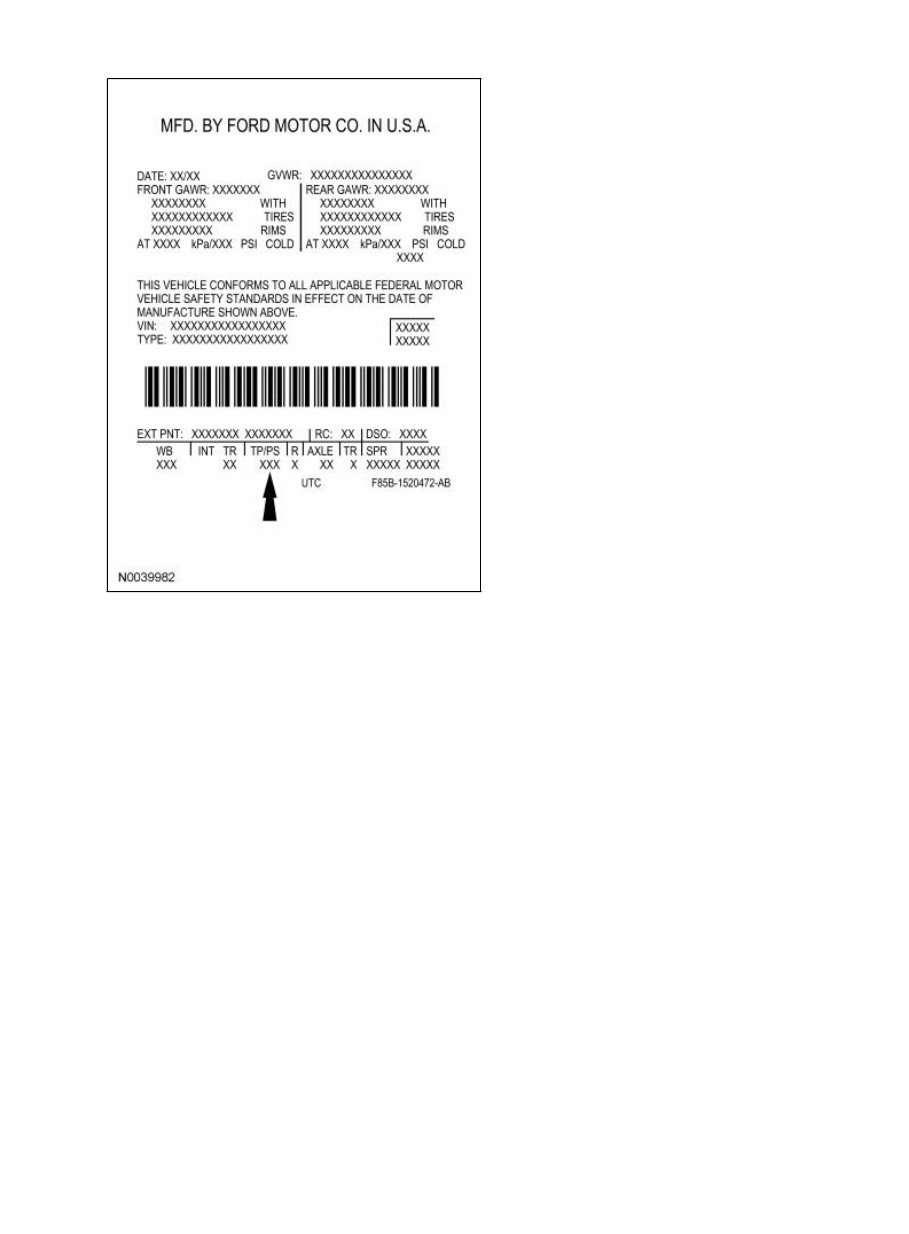

Tape and paint stripe codes do not apply. Radio Type 01.12. 2014 file:///C:/TSO-2008/tsocache/SHEF- _6724/S8V~us~en~fi...
