DESCRIPTION AND OPERATION
Identification Codes
The vehicle identification number (VIN) is a seventeen-digit combination of letters and numbers. The VIN
is stamped on a metal tab riveted on the instrument panel top upper left of the dash. The VIN number is
also found on the vehicle certification (VC) label.

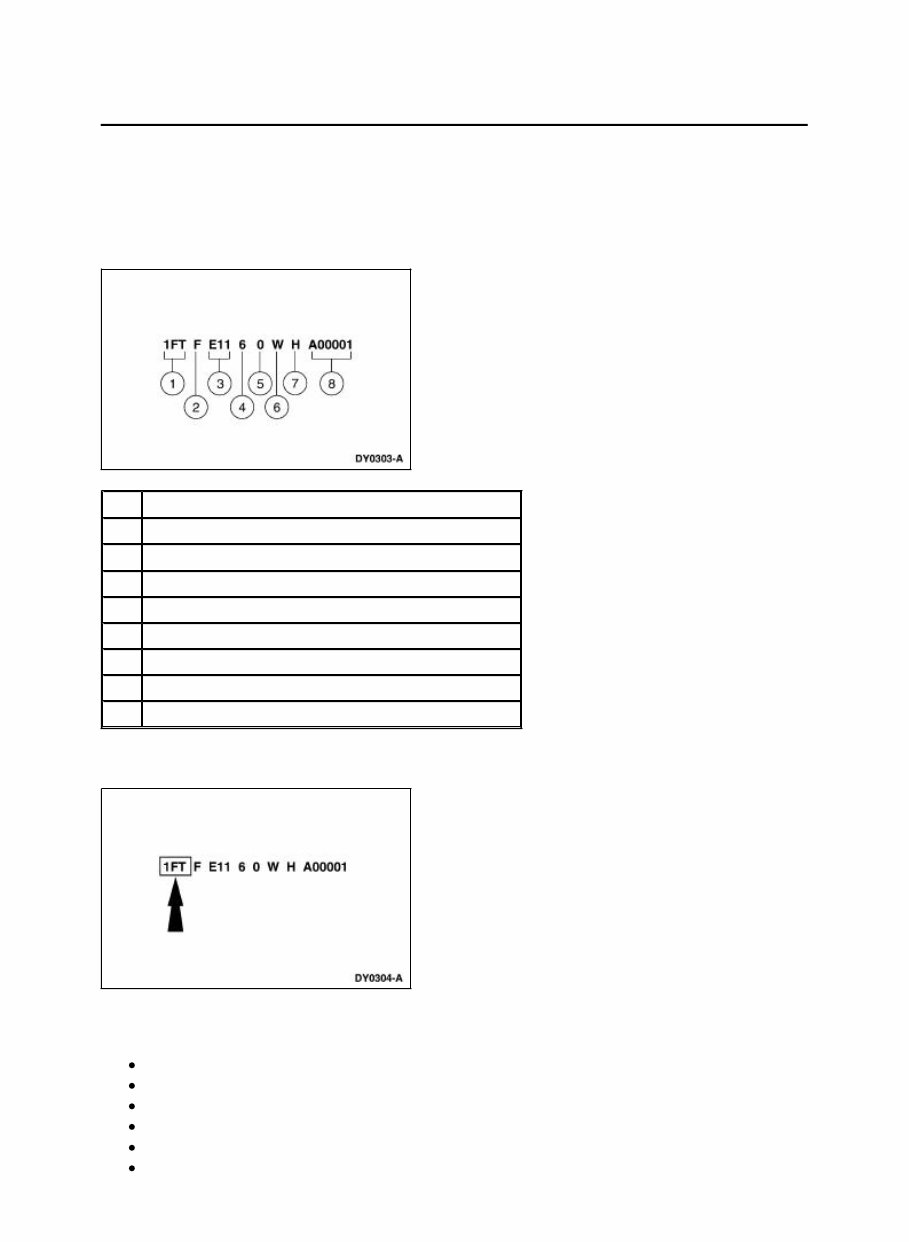

Vehicle Identification Number
The first three vehicle identification number (VIN) positions are the world manufacturer code.
1FM — Ford Motor Company, USA, multi-purpose vehicle
1FT — Ford Motor Company, USA, truck, completed vehicle
1FD — Ford Motor Company, USA, incomplete vehicle
1FC — Ford Motor Company, USA, basic (stripped) chassis
1FB — Ford Motor Company, USA, bus
1FF — Ford Motor Company, USA, motor vehicle equipment without engine/powertrain (Glider)
SECTION 100-01: Identification Codes 1998 Econoline Workshop Manual
Item Description
1 World Manufacturer Identifier
2 Brake Type and Gross Vehicle Weight Rating (GVWR)
3 Vehicle Line, Series, Body Type
4 Engine Type
5 Check Digit
6 Model Year
7 Assembly Plant
8 Production Sequence Number
11.03.2013 file:///C:/TSO%201996/tsocache/SHEF- _4180/SWM~us~en~file=SWM01001.ht...
1MH — Mercury, USA, incomplete vehicle
2FM — Ford Motor Company, Canada, multi-purpose vehicle
2FT — Ford Motor Company, Canada, truck, completed vehicle
2FD — Ford Motor Company, Canada, incomplete vehicle
2FC — Ford Motor Company, Canada, basic (stripped) chassis
2FB — Ford Motor Company, Canada, bus
2FF — Ford Motor Company, Canada, motor vehicle equipment without engine/powertrain
(Glider)
2MH — Mercury, Canada, incomplete vehicle
3FB — Ford Motor Company, Mexico, bus
3FC — Ford Motor Company, Mexico, basic (stripped) chassis
3FE — Ford Motor Company, Mexico, incomplete vehicle
3FM — Ford Motor Company, Mexico, multi-purpose vehicle
3FT — Ford Motor Company, Mexico, truck, completed vehicle
4M2 — Mercury, USA, multi-purpose vehicle
4M3 — Mercury, USA, incomplete vehicle
4M4 — Mercury, USA, truck, completed vehicle

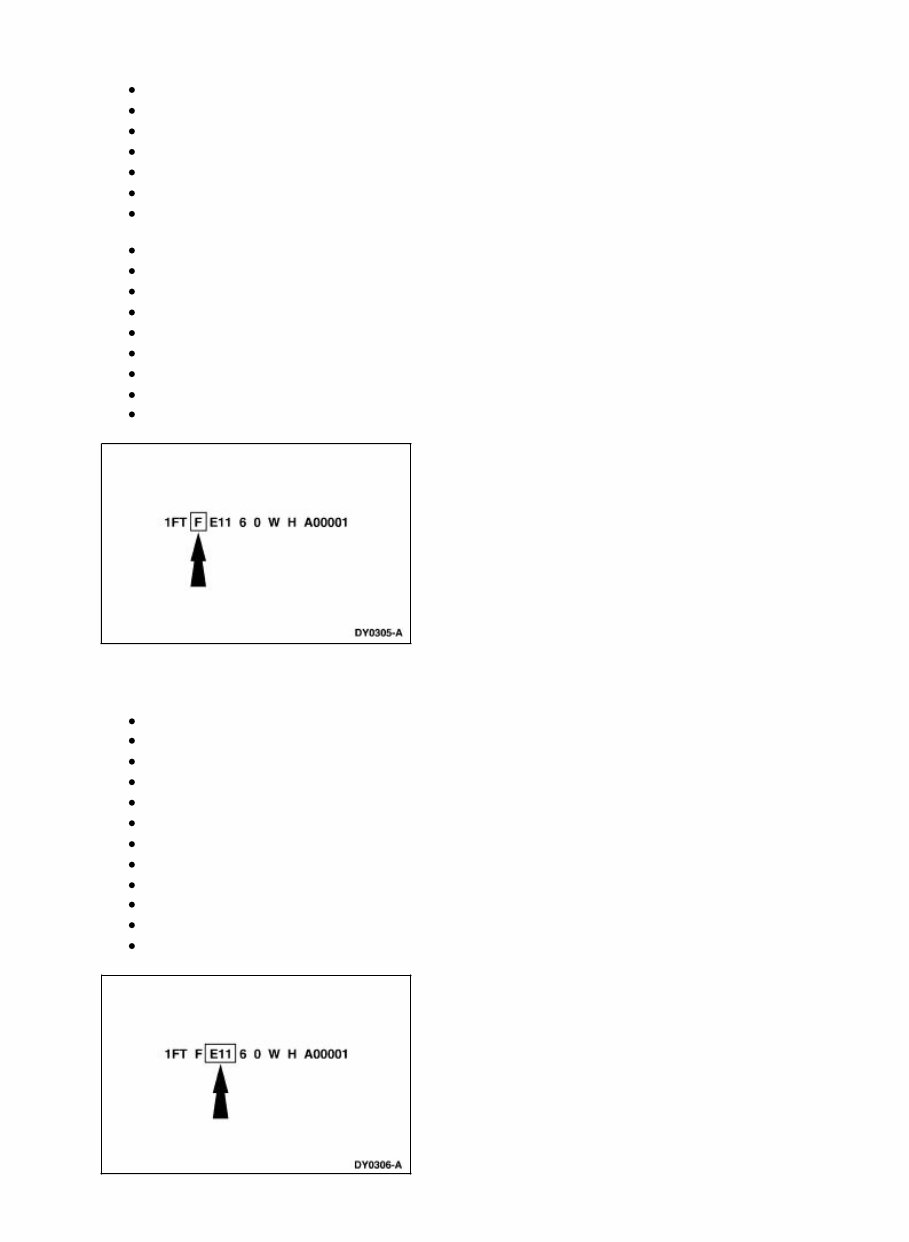

The fourth VIN position is the vehicle brake type and GVW code (all vehicles use hydraulic brakes).
A — 0-3000 Pounds
B — 3,001-4,000 Pounds
C — 4,001-5,000 Pounds
D — 5,001-6,000 Pounds
E — 6,001-7,000 Pounds
F — 7,001-8,000 Pounds
G — 8,001-8,500 Pounds
H — 8,501-9,000 Pounds
J — 9,001-10,000 Pounds
K — 10,001-14,000 Pounds
L — 14,001-16,000 Pounds
M — 16,001-19,500 Pounds
11.03.2013 file:///C:/TSO%201996/tsocache/SHEF- _4180/SWM~us~en~file=SWM01001.ht...
Positions 5 through 7 indicate vehicle line, series and body type.
E11 — Econoline Club Wagon
E31 — Econoline Club Wagon (Heavy Duty)
S31 — Econoline Club Wagon (Super Club Wagon)
E14 — Econoline E-150 (Cargo Van)
E24 — Econoline E-250 (Cargo Van)
E27 — Econoline E-250 (Commercial Cutaway)
E29 — Econoline E-250 (Commercial Basic)
E30 — Econoline E-350 (RV Cutaway)
E34 — Econoline E-350 (Cargo Van)
E37 — Econoline E-350 (Commercial Cutaway)
E39 — Econoline E-350 (Commercial Basic)
S24 — Econoline E-250 (Super Van)
S34 — Econoline E-350 (Super Van)
E40 — E-Super Duty (RV Cutaway)
E47 — E-Super Duty (Commercial Cutaway)
F07 — F-150 Flareside, 4x2
X07 — F-150 (SuperCab) Flareside, 4x2
F08 — F-150 Flareside, 4x4
X08 — F-150 (SuperCab) Flareside, 4x4
F17 — F-150 Styleside, 4x2
X17 — F-150 (SuperCab) Styleside, 4x2
F18 — F-150 Styleside, 4x4
X18 — F-150 (SuperCab) Styleside, 4x4
F27 — F-250 Styleside, 4x2
X27 — F-250 (SuperCab) Styleside, 4x2
F28 — F-250 Styleside, 4x4
X28 — F-250 (SuperCab) Styleside, 4x4
U22 — Explorer (2-door), 4x2
U32 — Explorer (4-door), 4x2
U24 — Explorer (2-door), 4x4
U34 — Explorer (4-door), 4x4
U35 — Explorer (4-door), AWD
U52 — Mountaineer (4-door) 4x2
U54 — Mountaineer (4-door) 4x4
U55 — Mountaineer (4-door) AWD
R10 — Ranger 4x2
R11 — Ranger 4x4
R14 — Ranger 4x2 (2-door SuperCab)
R15 — Ranger 4x4 (2-door SuperCab)
R18 — Ranger 4x2 (4-door SuperCab)
R19 — Ranger 4x4 (4-door SuperCab)
11.03.2013 file:///C:/TSO%201996/tsocache/SHEF- _4180/SWM~us~en~file=SWM01001.ht...

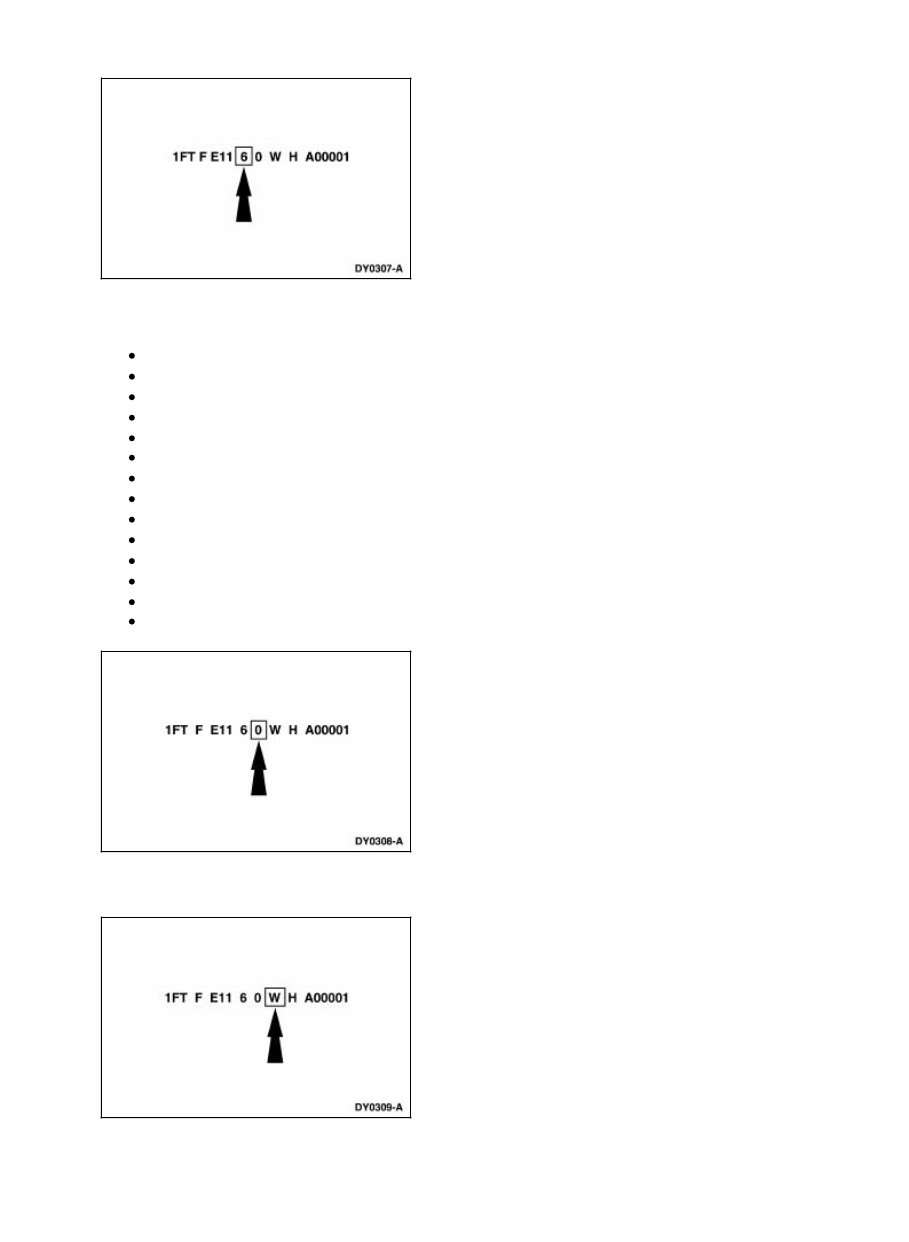

The eighth VIN position is the engine displacement and number of cylinders.
6 — 4.6L EFI-SOHC (Windsor), eight cylinder (Econoline, F-150, F-250)
W — 4.6L EFI-SOHC, eight cylinder (F-150, F-250)
L — 5.4L EFI-SOHC, eight cylinder (Econoline, F-150, F-250)
S — 6.8L EFI-SOHC, ten cylinder (Econoline)
F — 7.3L Turbo-Diesel, eight cylinder (Econoline)
2 — 4.2L EFI-OHV, six cylinder (Econoline, F-150, F-250)
Z — 5.4L SOHC, gaseous fuel prep, eight cylinder (Econoline, F-150, F-250)
M — 5.4L SOHC natural gas, eight cylinder (Econoline, F-150, F-250)
X — 4.0L EFI-OHV, six cylinder (Explorer, Ranger)
E — 4.0L EFI-SOHC, six cylinder (Explorer, Mountaineer)
P — 5.0L EFI, eight cylinder (Explorer/Mountaineer)
B — 2.5L OHV-DI diesel, four cylinder (Ranger)
C — 2.5L EFI-SOHC, four cylinder (Ranger)
U — 3.0L, six cylinder (Ranger)

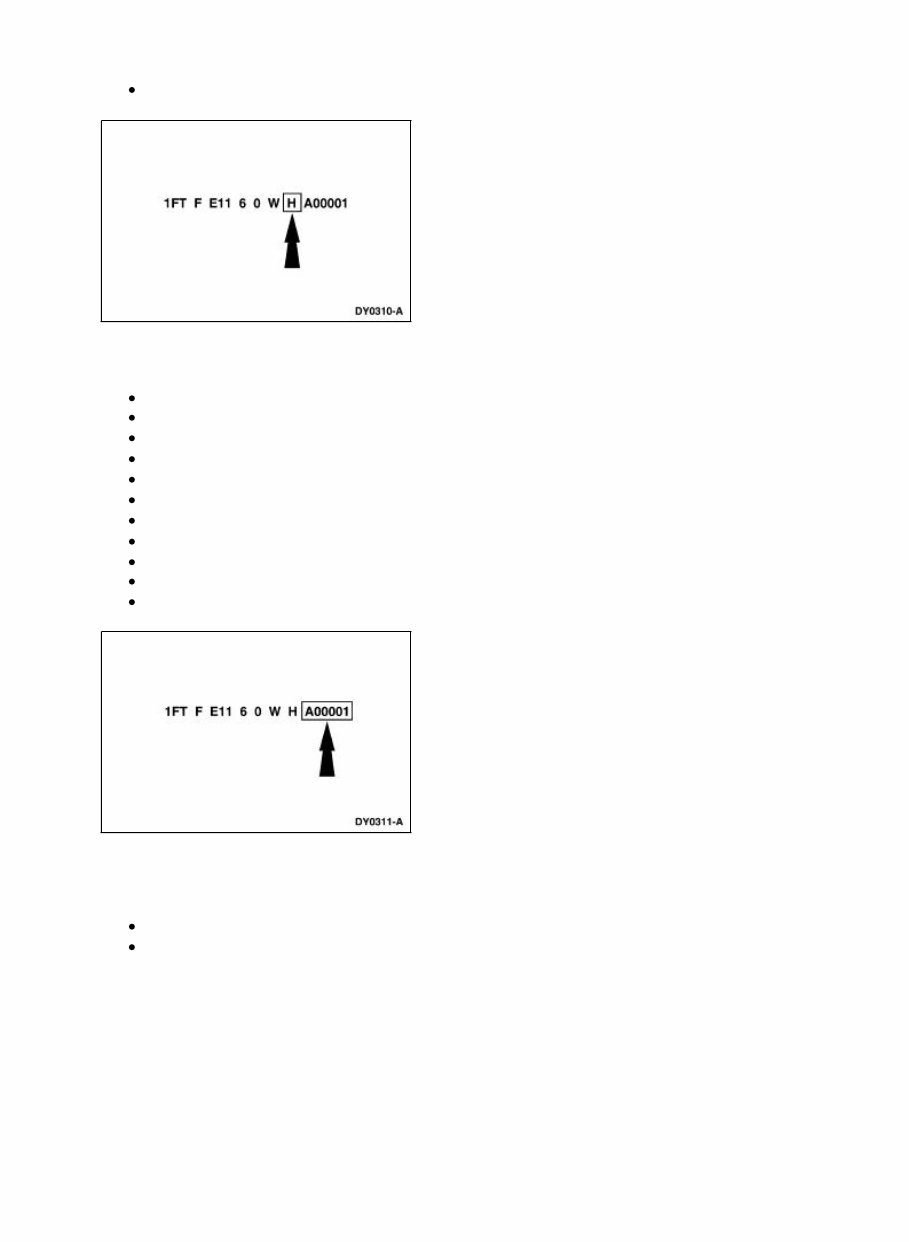

The ninth VIN position is a check digit.
The tenth VIN position is the model year code.
11.03.2013 file:///C:/TSO%201996/tsocache/SHEF- _4180/SWM~us~en~file=SWM01001.ht...
W — 1998
The eleventh VIN position is the assembly plant code.
L — Michigan Truck (Wayne, Michigan)
S — Allen Park (Allen Park, Michigan)
H — Lorain (Lorain, Ohio)
C — Ontario Truck (Oakville, Ontario)
E — Kentucky Truck (Jefferson County, Kentucky)
K — Kansas City (Claycomo, Missouri)
N — Norfolk (Norfolk, Virginia)
U — Louisville (Louisville, Kentucky)
Z — St. Louis (Hazlewood, Missouri)
P — Twin Cities (St. Paul, Minnesota)
T — Edison (Edison, New Jersey)
The last six VIN positions are an alphanumeric code for the vehicle build sequence. This is also the
vehicle serial and warranty number.
A00001-E99999 — Ford Division
J00001-L99999 — Lincoln-Mercury Division
Vehicle Certification (VC) Label
11.03.2013 file:///C:/TSO%201996/tsocache/SHEF- _4180/SWM~us~en~file=SWM01001.ht...

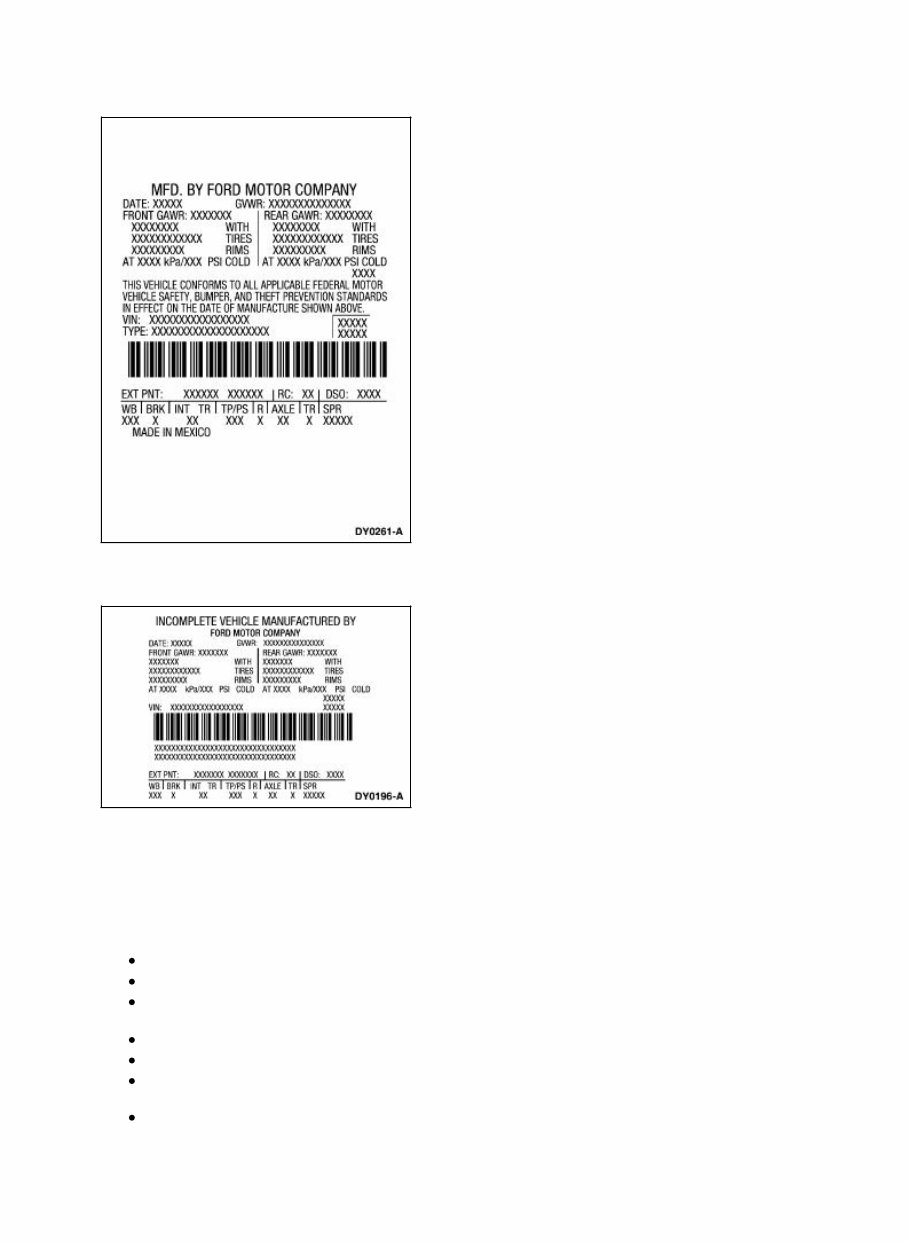

The vehicle certification (VC) label contains the manufacturer name, the month and year of manufacture,
the certification statement, and the VIN. It also includes gross vehicle weight ratings (GVWR).
Vehicle Certification (VC) Label — Canada (Typical)
Item Description
1 Exterior Paint Code
2 Region Code
3 Domestic Special Order Code
4 Wheel Base Code
5 Brake Code
6 Interior Trim Code
7 Tape/Paint Pinstripe Code
8 Radio Code
9 Axle Code
10 Transmission Code
11 Spring Code
11.03.2013 file:///C:/TSO%201996/tsocache/SHEF- _4180/SWM~us~en~file=SWM01001.ht...
Vehicle Certification (VC) Label — Mexico (Typical)
Vehicle Certification (VC) Label — Incomplete Vehicle (Typical)
Paint Codes
Refer to the paint manufacturer code book for information.
Radio Codes
8 — AM/FM stereo with cassette, Premium Sound (Econoline, F-150, F-250)
7 — AM/FM stereo with clock (Econoline, F-150, F-250, Ranger)
9 — AM/FM stereo with cassette and clock (Econoline, F-150, F-250, Explorer/Mountaineer,
Ranger)
3 — AM radio with clock (Econoline)
2 — AM/FM stereo with compact disk player (Explorer/Mountaineer)
K — AM/FM stereo with cassette, compact disk player and digital sound processing
(Explorer/Mountaineer, Ranger)
Z — AM/FM stereo with compact disk player (Ranger)
Axle Codes
11.03.2013 file:///C:/TSO%201996/tsocache/SHEF- _4180/SWM~us~en~file=SWM01001.ht...
The following lists the gear ratios on rear axles.
19 — 3.55 non-limited slip (Econoline, F-150)
18 — 3.08 non-limited slip (F-150)
17 — 3.31 non-limited slip (Econoline)
H9 — 3.55 limited slip (F-150, F-250)
B6 — 3.73 limited slip (F-150, F-250)
24 — 3.73 (Econoline)
32 — 4.10 (Econoline)
35 — 4.09 (Econoline)
34 — 3.73 (Econoline)
39 — 3.55 (Econoline)
52 — 4.10 (Econoline)
56 — 4.10 (Econoline)
81 — 4.63 (Econoline)
27 — 3.31 non-limited slip (F-250)
26 — 3.73 non-limited slip (F-250)
41 — 3.27 non-limited slip (Explorer/Mountaineer)
45 — 3.55 non-limited slip (Explorer/Mountaineer)
46 — 3.73 non-limited slip (Explorer/Mountaineer)
42 — 4.10 non-limited slip (Explorer/Mountaineer)
D1 — 3.27 limited slip (Explorer/Mountaineer)
D4 — 3.73 limited slip (Explorer/Mountaineer)
D2 — 4.10 limited slip (Explorer/Mountaineer)
84 — 3.45 non-limited slip (Ranger)
86 — 3.73 non-limited slip (Ranger)
87 — 4.10 non-limited slip (Ranger)
89 — 4.56 non-limited slip (Ranger)
F6 — 3.73 limited slip (Ranger)
F7 — 4.10 limited slip (Ranger)
92 — 3.08 non-limited slip (Ranger)
R5 — 3.55 limited slip (Ranger)
91 — 3.27 non-limited slip (Ranger)
96 — 3.73 non-limited slip (Ranger)
R6 — 3.73 limited slip (Ranger)
Transmission Codes
U — automatic 4R70W-AOD (Econoline, F-150, F-250, Explorer/Mountaineer)
E — automatic E4OD (Econoline, F-150, F-250)
M — five-speed manual overdrive (F-150, F-250, Explorer/Mountaineer, Ranger)
D — automatic five-speed (Explorer/Mountaineer, Ranger)
T — Automatic four-speed (Ranger)
Spring Codes
The following lists available spring codes.
Front Springs
1 — 5B326 (RH), 5B327 (LH) torsion bar (F-150, F-250, Explorer/Mountaineer)
2 — 5B326 (RH), 5B327 (LH) torsion bar (F-150, F-250, Explorer/Mountaineer)
3 — 5B326 (RH), 5B327 (LH) torsion bar (F-150, F-250)
4 — 5B326 (RH), 5B327 (LH) torsion bar (F-150, F-250)
11.03.2013 file:///C:/TSO%201996/tsocache/SHEF- _4180/SWM~us~en~file=SWM01001.ht...
G — 5B326 (RH), 5B327 (LH) torsion bar (F-150, F-250)
8 — 5B326 (RH), 5B327 (LH) torsion bar (F-150, F-250)
9 — 5B326 (RH), 5B327 (LH) torsion bar (F-150, F-250)
Z — 5B326 (RH), 5B327 (LH) torsion bar (F-150, F-250)
T — 5B326 (RH), 5B327 (LH) torsion bar (F-150, F-250)
U — 5B326 (RH), 5B327 (LH) torsion bar (F-150, F-250)
6 — 5B326 (RH), 5B327 (LH) torsion bar (F-150, F-250)
C — 5B326 (RH), 5B327 (LH) torsion bar (F-150, F-250)
E — 5B326 (RH), 5B327 (LH) torsion bar (F-150, F-250)
F — 5B326 (RH), 5B327 (LH) torsion bar (F-150, F-250)
B — 5B326 (RH), 5B327 (LH) torsion bar (Explorer/Mountaineer)
D — 5B326 (RH), 5B327 (LH) torsion bar (Explorer/Mountaineer)
E — 5B326 (RH), 5B327 (LH) torsion bar (Explorer/Mountaineer)
F — 5B326 (RH), 5B327 (LH) torsion bar (Explorer/Mountaineer)
G — 5B326 (RH), 5B327 (LH) torsion bar (Explorer/Mountaineer)
H — 5B326 (RH), 5B327 (LH) torsion bar (Explorer/Mountaineer)
J — 5B326 (RH), 5B327 (LH) torsion bar (Explorer/Mountaineer)
L — 5B326 (RH), 5B327 (LH) torsion bar (Explorer/Mountaineer)
P — automatic ride control (Explorer/Mountaineer)
A — 5310 spring (Econoline, F-150, F-250, Ranger)
B — 5310 spring (Econoline, F-150, F-250)
C — 5310 spring (Econoline, Ranger)
D — 5310 spring (Econoline, Ranger)
E — 5310 spring (Econoline, Ranger)
F — 5310 spring (Econoline, Ranger)
G — 5310 spring (Econoline, Ranger)
H — 5310 spring (Econoline, Ranger)
J — 5310 spring (Econoline, F-150, F-250)
K — 5310 spring (Econoline, F-150, F-250, Ranger)
L — 5310 spring (Econoline, F-150, F-250)
M — 5310 spring (Econoline, F-150, F-250, Ranger)
N — 5310 spring (Econoline, F-150, F-250, Ranger)
P — 5310 spring (Econoline, F-150, F-250)
R — 5310 spring (Econoline, F-150, F-250)
S — 5310 spring (Econoline, F-150, F-250)
T — 5310 spring (Econoline, Ranger)
U — 5310 spring (Econoline)
V — 5310 spring (Econoline)
W — 5310 spring (Ranger)
Z — 5310 spring (Econoline)
Rear Springs
6 — 5560 spring (Econoline)
7 — 5560 spring (Econoline)
C — 5560 spring (Econoline, F-150, Ranger)
E — 5560 spring (Ranger)
N — 5560 spring (Econoline, F-150)
P — 5560 spring (Econoline, F-150)
R — 5560 spring (Econoline, Ranger)
S — 5560 spring (Econoline, Ranger)
T — 5560 spring (Ranger)
X — 5560 spring (Ranger)
11.03.2013 file:///C:/TSO%201996/tsocache/SHEF- _4180/SWM~us~en~file=SWM01001.ht...
G — 5560 spring (Econoline, F-150)
K — 5560 spring (Econoline, F-150, Ranger)
A — 5560 spring (F-150)
B — 5560 spring (F-150)
D — 5560 spring (F-150)
F — 5560 spring (F-150, Explorer/Mountaineer)
H — 5560 spring (F-150, Explorer/Mountaineer)
J — 5560 spring (F-150)
L — 5560 spring (F-150, Explorer/Mountaineer)
1 — 5560 spring (F-250)
2 — 5560 spring (F-250)
3 — 5560 spring (F-250, Ranger)
4 — 5560 spring (F-250)
X — 5580 spring, load-leveling suspension (F-250)
Y — 5580 spring, load-leveling suspension (F-250)
Interior Trim Codes
The following lists the interior trim and interior color codes.
Interior Trim
A — Hampton vinyl bucket seats — Econoline
E — Camden cloth captain chairs — Econoline
C — Stockton vinyl bucket seats — Econoline
F — Kirk cloth captain chairs — Econoline
A — vinyl full bench seat (split back), vinyl full bench (Mexico) — F-150, F-250
C — polyknit full bench seat (split back), polyknit full bench (Mexico) — F-150, F-250
F — cloth captains chairs with console — F-150, F-250
H — leather captains chairs with console — F-150, F-250
M — cloth 40/60 bench seat — F-150, F-250
E — leather 40/60 bench seat — F-150, F-250
A — vinyl bucket seats (Explorer)
J — cloth premium bucket seats (Explorer/Mountaineer)
Z — cloth sport bucket seats (Explorer/Mountaineer)
G — cloth sport bucket seats — less power (Explorer)
F — leather sport bucket seats (Explorer/Mountaineer)
M — cloth split bench seat (Explorer)
1 — limited leather sport bucket seats (Explorer)
H — simulated split vinyl bench seat (Ranger)
E — Cirrus cloth 60/40 split bench seat (Ranger)
G — Triad luxury sport bucket seats (Ranger)
Interior Color Codes
X — Medium Prairie Tan (F-150, F-250, Explorer/Mountaineer, Ranger)
2 — Medium Graphite (Econoline, F-150, F-250, Explorer/Mountaineer, Ranger)
S — Willow Green (F-150, F-250, Explorer/Mountaineer, Ranger)
D — Denim Blue (Econoline)
P — Mocha (Econoline)
N — Cordovan (F-150, F-250)
E — Dark Denim Blue (Explorer/Mountaineer, Ranger)
Tape Stripe Codes
11.03.2013 file:///C:/TSO%201996/tsocache/SHEF- _4180/SWM~us~en~file=SWM01001.ht...
You're Reading a Preview
What's Included?
Lifetime Access
Fast Download Speeds
Online & Offline Access
Access PDF Contents & Bookmarks
Full Search Facility
Print one or all pages of your manual
$36.99
Viewed 44 Times Today
Secure transaction
What's Included?
Lifetime Access
Fast Download Speeds
Online & Offline Access
Access PDF Contents & Bookmarks
Full Search Facility
Print one or all pages of your manual
$36.99
If you are in need of a repair manual for your 1998 Ford E-150 Econoline, look no further. Our accessible repair manual software provides comprehensive coverage for the Ford E-150 Econoline, making it ideal for both professional mechanics and DIY enthusiasts.
Gone are the days of purchasing traditional service manuals in book format at a higher cost. Our repair manual software offers the same valuable information at a more affordable price and in a more convenient digital format.
Whether you are looking to address brake repairs, suspension component replacements, engine issues, or standard maintenance tasks, this repair manual software for the Ford E-150 Econoline has got you covered.
With this software, you will have access to a wealth of service information, including guidance on brakes, engine, suspension, steering, drivetrain, electrical systems, heating, air conditioning, and more. It equips you with the knowledge to tackle any repair or maintenance task.
By utilizing this 1998 Ford E-150 Econoline repair manual software, you can save a significant amount of money on vehicle repairs. Instead of relying on costly mechanics, empower yourself to handle the repairs with confidence.
Our repair manual software is designed for ease of use and is compatible with Windows, Mac computers, smartphones, and tablets, ensuring accessibility across various devices.
