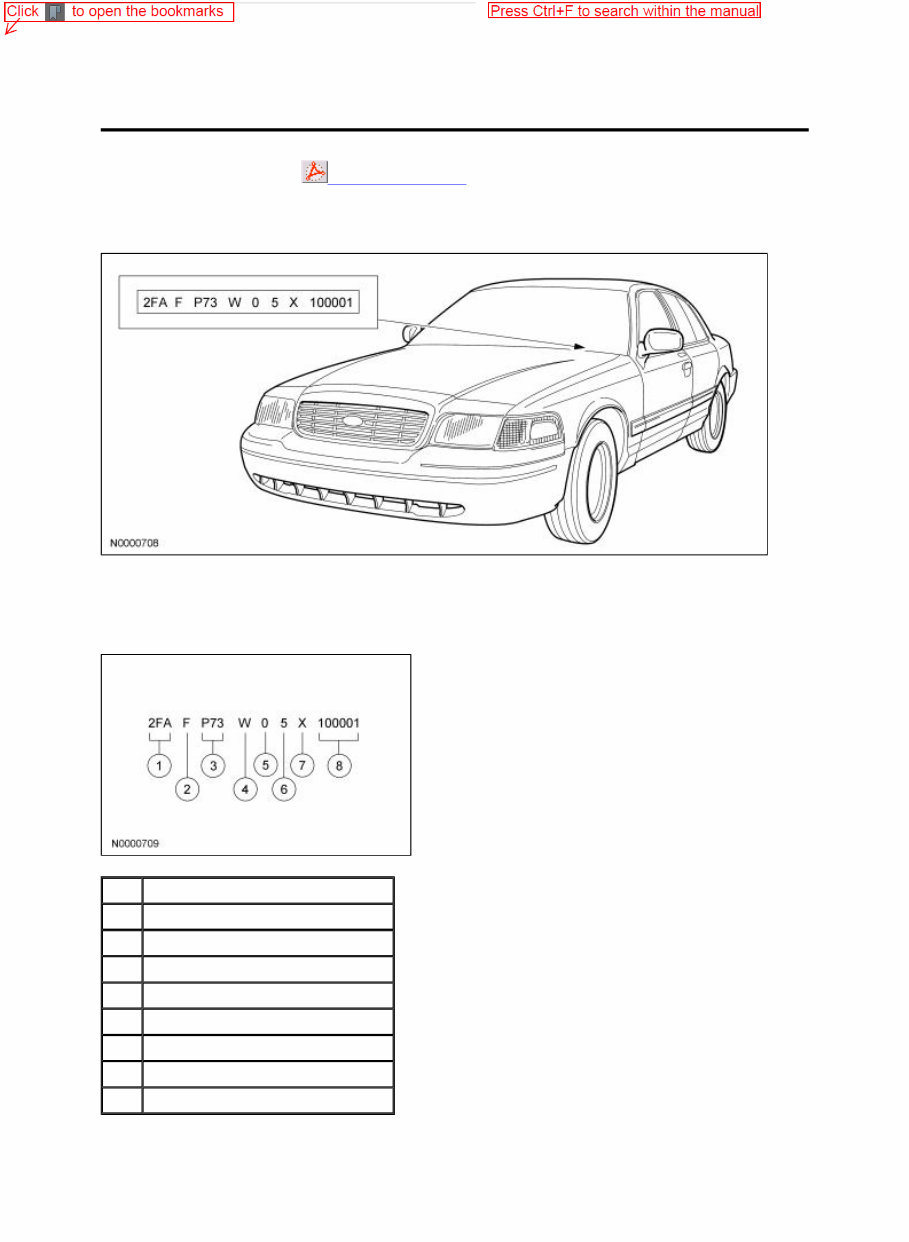

Identification Codes Printable View (379 KB) Vehicle Identification Number (VIN) Location The vehicle identification number (VIN) is a seventeen-digit combination of letters and numbers. The VIN is stamped on a metal tab riveted to the instrument panel, top upper left of the dash. The VIN number is also found on the vehicle certification (VC) label. SECTION 100-01: Identification Codes 2005 Crown Victoria/Grand Marquis Workshop Manual DESCRIPTION AND OPERATION Procedure revision date: 07/01/2004 Item Description 1 World manufacturer identifier (WMI) 2 Restraint type code 3 Vehicle line and series code 4 Engine code 5 VIN check digit 6 Model year code 7 Assembly plant code 8 Production sequence number 26.02.2002 file://C:\TSO\tsocache\SUPER10-45B629E_1540\S5A~us~en~file=S5A01001.htm~g...

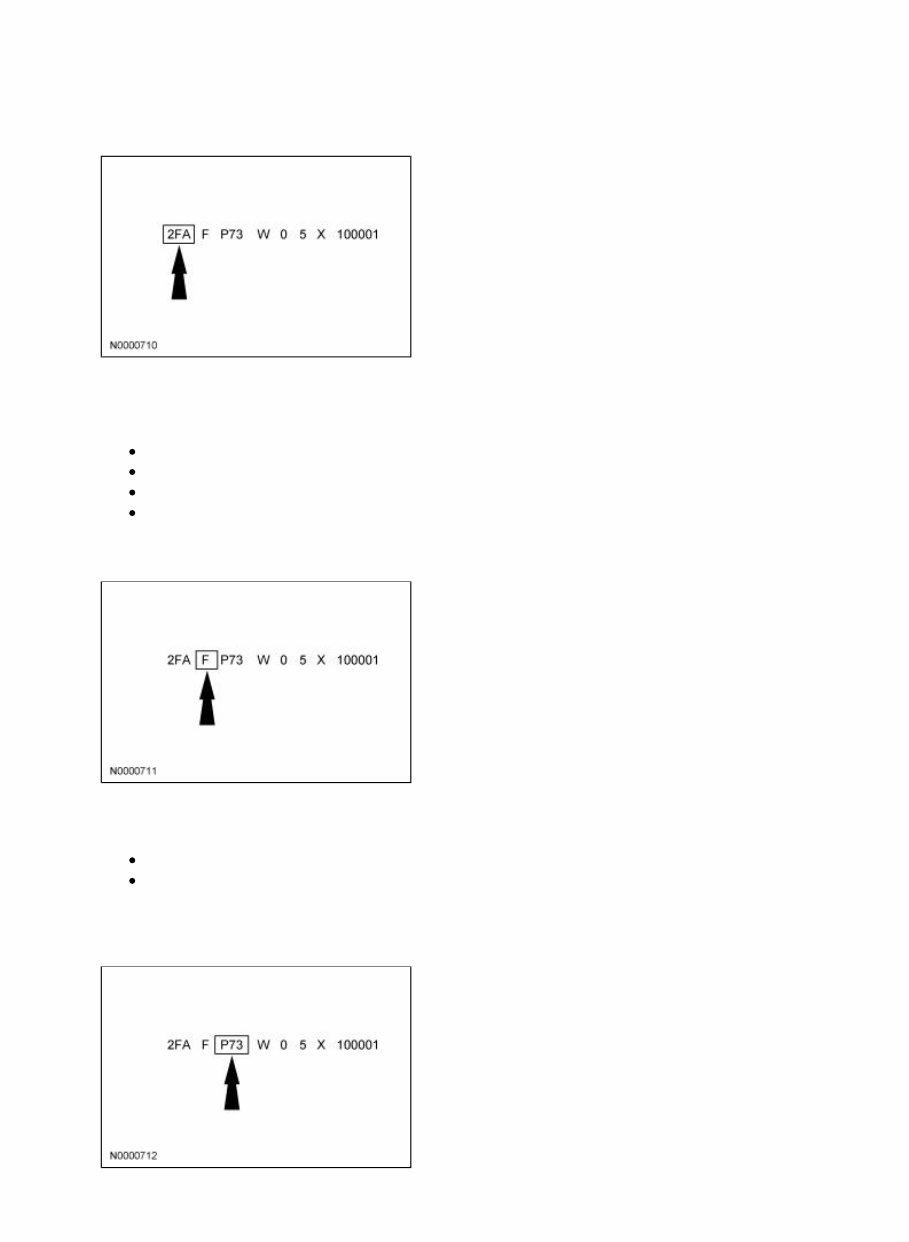

Vehicle Identification Number (VIN) World Manufacturer Identifier (WMI) The first three vehicle identification number (VIN) positions are the world manufacturer identifier (WMI) code. 2FA — Ford Motor Company of Canada Ltd., passenger car 2FD — Ford Motor Company of Canada Ltd., passenger car (incomplete vehicle) 2ME — Ford Motor Company of Canada Ltd., Mercury, passenger car 2MH — Ford Motor Company of Canada Ltd., Mercury, passenger car (incomplete vehicle) Restraint Type Code The fourth VIN position is the vehicle restraint system type code. F — Active safety belts — all positions, driver and front passenger air bags H — Active safety belts — all positions, driver and front passenger air bags and driver and front passenger side impact air bags Vehicle Line and Series Code 26.02.2002 file://C:\TSO\tsocache\SUPER10-45B629E_1540\S5A~us~en~file=S5A01001.htm~g...

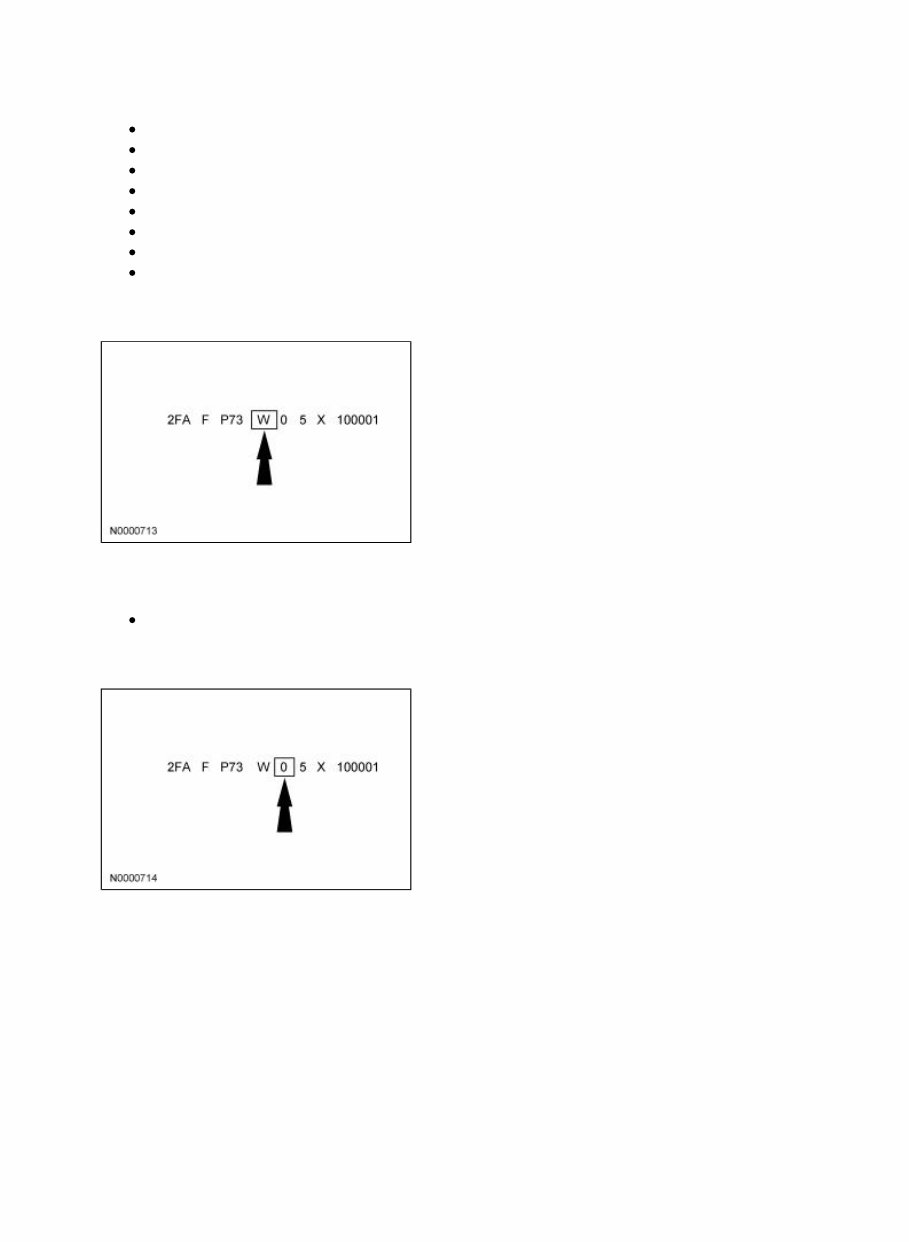

Positions 5 through 7 indicate vehicle line, series and body type. P70 — Crown Victoria (Long wheel base) P71 — Crown Victoria (Police Interceptor) P72 — Crown Victoria (Base fleet vehicle) P73 — Crown Victoria (Base four-door) P74 — Crown Victoria (LX four-door) M70 — Grand Marquis (Long wheel base) M74 — Grand Marquis (GS four-door) M75 — Grand Marquis (LS four-door) Engine Code The eighth VIN position is the engine displacement and number of cylinders code. W — 4.6L EFI (SOHC), eight cylinder, gasoline Check Digit Code The ninth VIN position is the check digit code (0-9). Model Year Code 26.02.2002 file://C:\TSO\tsocache\SUPER10-45B629E_1540\S5A~us~en~file=S5A01001.htm~g...

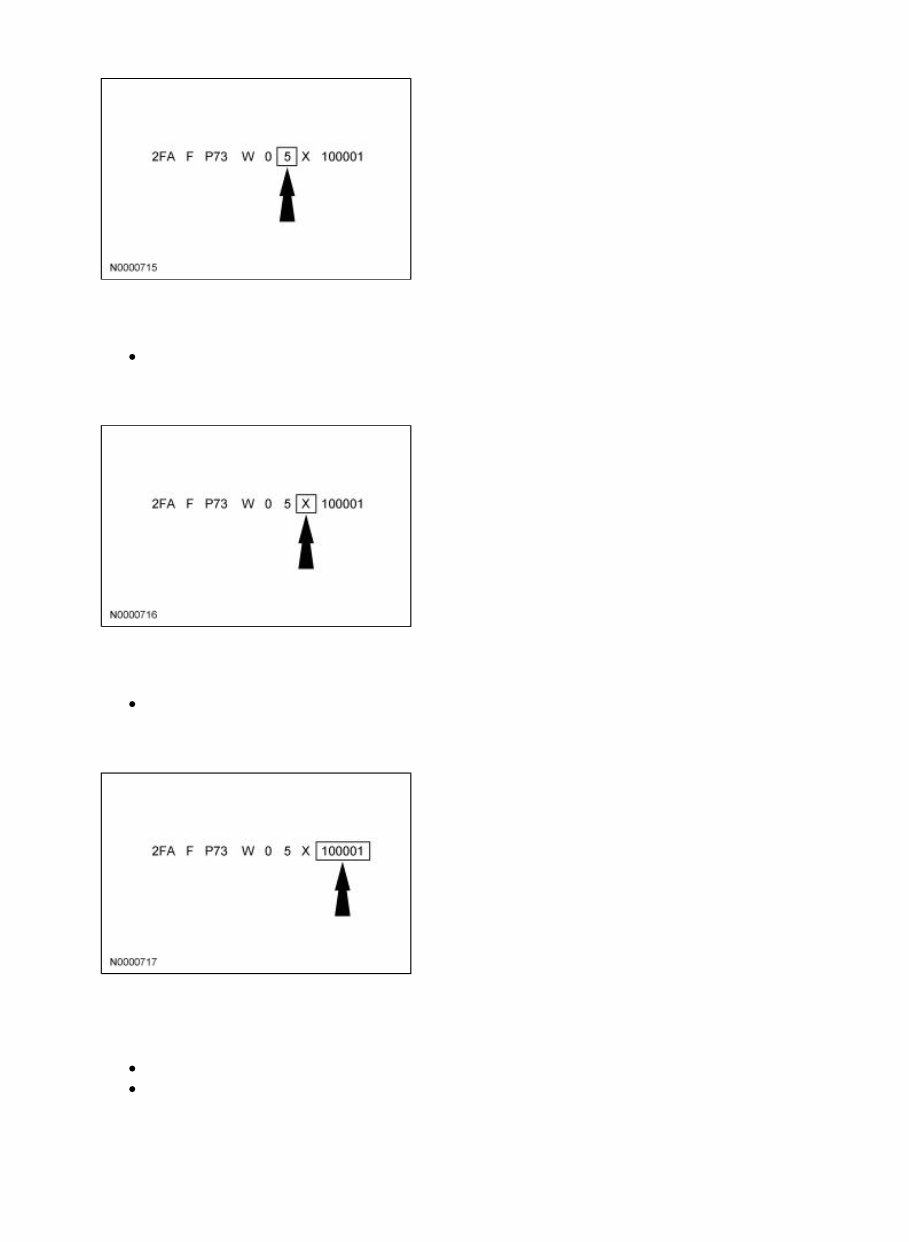

The tenth VIN position is the model year code. 5 — 2005 Assembly Plant Code The eleventh VIN position is the assembly plant code. X — St. Thomas, Talbotville, Ontario (Canada) Production Sequence Code The last six VIN positions are the production sequence number. These six digits also are used as the vehicle serial and warranty number. Ford — 100000-599999 Lincoln/Mercury — 600000-999999 Vehicle Certification (VC) Label 26.02.2002 file://C:\TSO\tsocache\SUPER10-45B629E_1540\S5A~us~en~file=S5A01001.htm~g...

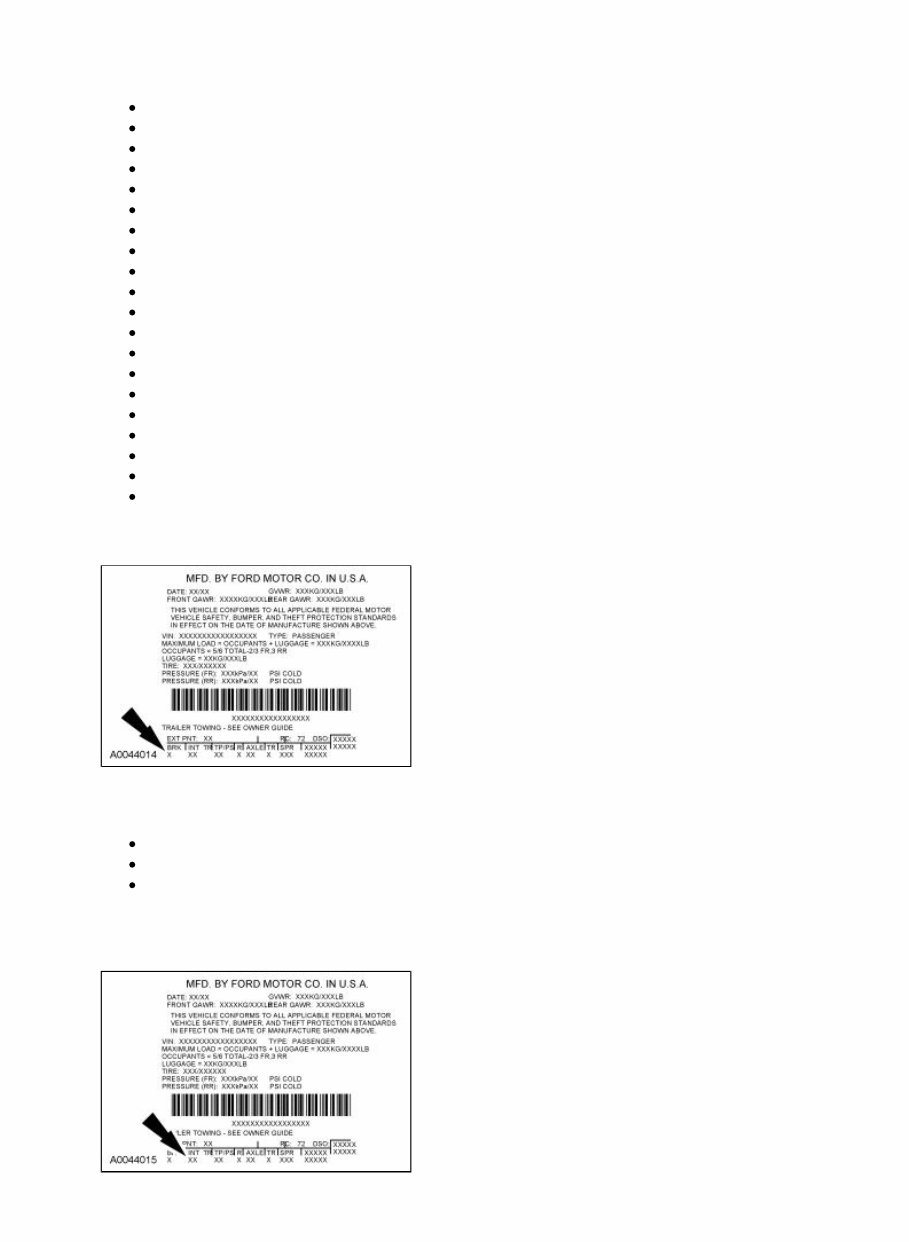

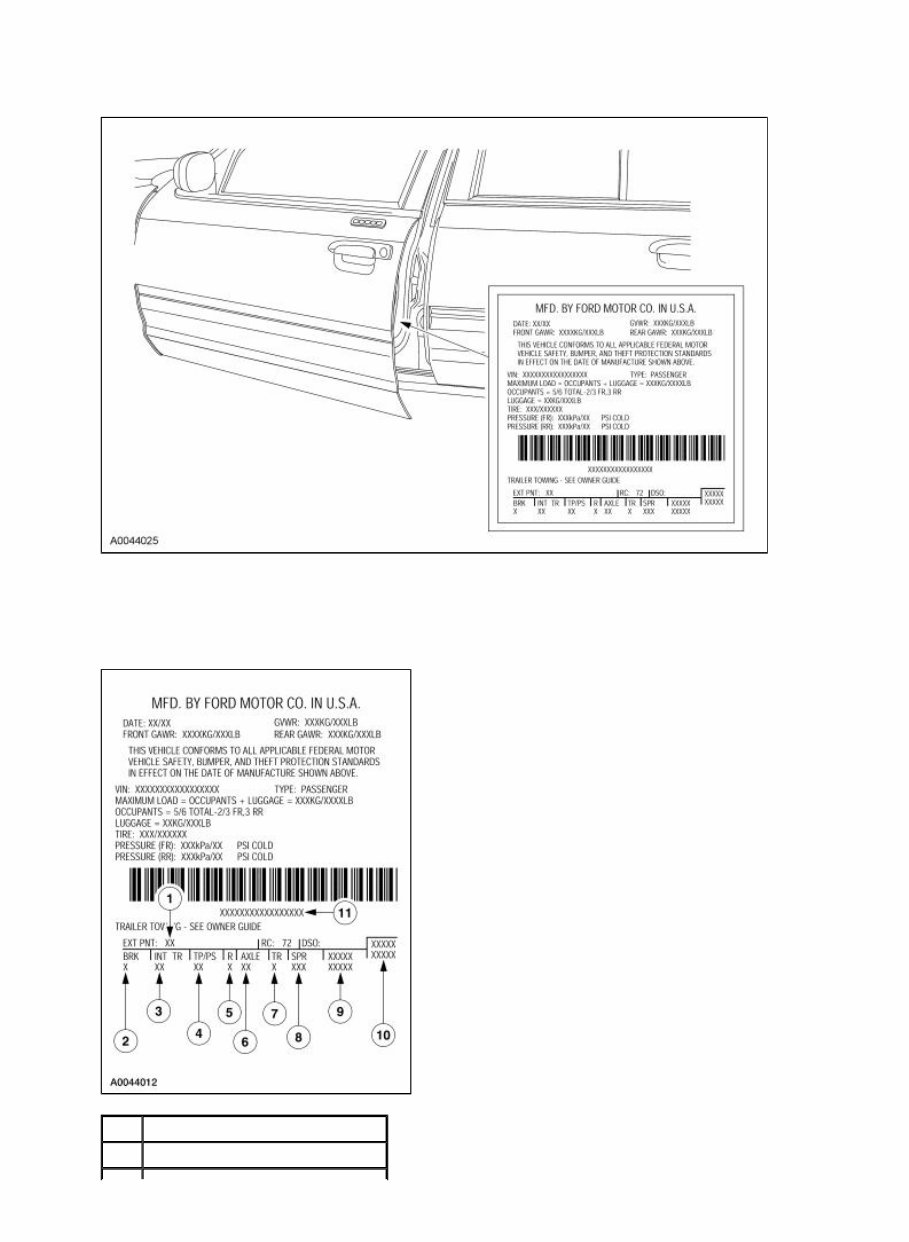

Vehicle Certification (VC) Label Location The upper portion of the vehicle certification (VC) label contains the manufacturer name, the month and year of manufacture, the certification statement and the VIN. It also includes gross vehicle weight ratings (GVWR) as well as tire size and pressure ratings. The VC label is located on the left-hand front door edge. Item Description 1 Exterior paint color code 26.02.2002 file://C:\TSO\tsocache\SUPER10-45B629E_1540\S5A~us~en~file=S5A01001.htm~g...

Vehicle Certification (VC) Label Reference Paint Code The first set of numbers/letters listed indicate the vehicle primary body color code. The second set of letters/numbers listed (if applicable), indicate a two-tone or accent body color code. Primary Body Color AQ — Arizona Beige (clear coat), Mercury/Ford BU — Medium Brown Metallic, Ford BY — School Bus Yellow, Ford C2 — Gold Ash Metallic (clear coat), Mercury/Ford DV — Light Tundra/Titanium Green (clear coat), Mercury, Ford DX — Dark Blue Pearl (clear coat), Mercury/Ford JL — Dark Toreador Red (clear coat), Mercury/Ford JP — Silver Birch Metallic (clear coat), Mercury/Ford LK — Dark Blue, Ford LM — Royal Blue, Ford LN — Light Blue Metallic, Ford LS — Light Ice Blue Metallic (clear coat), Mercury/Ford MM — Ultra Blue (clear coat), Ford TM — Light Gray, Ford TN — Silver Gray Metallic, Ford TV — Midnight Gray, Mercury/Ford UA — Ebony, Mercury/Ford WT — Performance White (clear coat), Mercury/Ford YG — Medium Titanium (clear coat), Ford 2 Brake type code 3 Interior trim code 4 Tape/paint stripe code 5 Radio type code 6 Axle ratio code 7 Transmission code 8 Spring code 9 Engine calibration information 10 Powertrain calibration information 11 Vehicle identification number (VIN) 26.02.2002 file://C:\TSO\tsocache\SUPER10-45B629E_1540\S5A~us~en~file=S5A01001.htm~g...

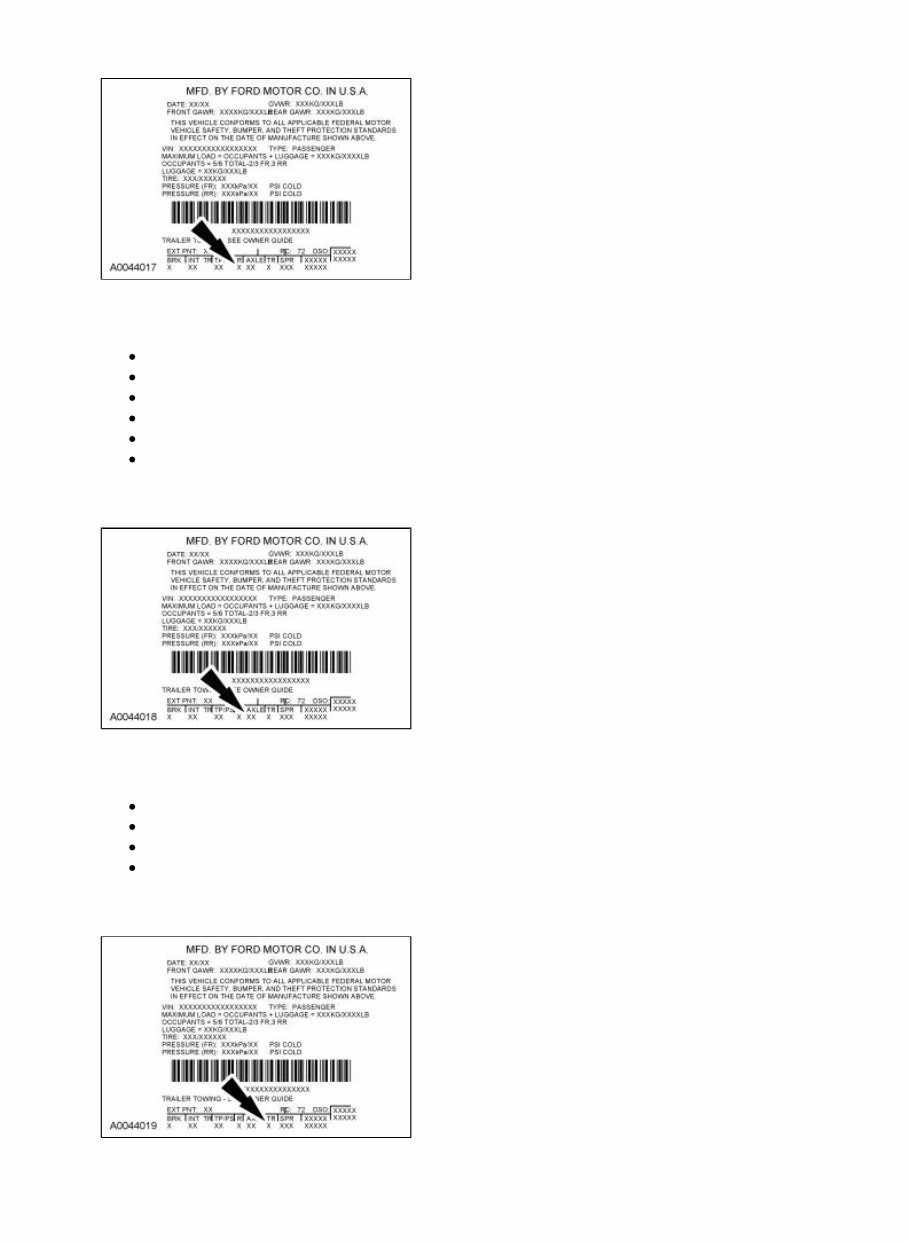

Accent Body Color AQ — Arizona Beige, Ford BU — Medium Brown Metallic, Ford BY — School Bus Yellow, Ford C2 — Gold Ash Metallic, Mercury/Ford DV — Light Tundra/Titanium Green (clear coat), Mercury/Ford DX — Dark Blue Pearl, Mercury/Ford JL — Dark Toreador Red, Mercury/Ford JP — Silver Birch Metallic, Mercury/Ford LK — Dark Blue, Ford LM — Royal Blue, Ford LN — Light Blue Metallic, Ford LS — Light Ice Blue Metallic, Ford MM — Ultra Blue, Ford TM — Light Gray, Ford TN — Silver Gray Metallic, Ford TS — Silver Frost, Ford TV — Midnight Gray, Mercury/Ford UA — Ebony, Mercury/Ford WT — Performance White, Mercury/Ford YG — Medium Titanium, Ford Brake Code The brake type codes are: 3 — Electronic traction control system (includes anti-lock brake system [ABS]) H — Police package C — Police package with electronic traction control system (includes anti-lock brake system [ABS]) Interior Trim Code 26.02.2002 file://C:\TSO\tsocache\SUPER10-45B629E_1540\S5A~us~en~file=S5A01001.htm~g...

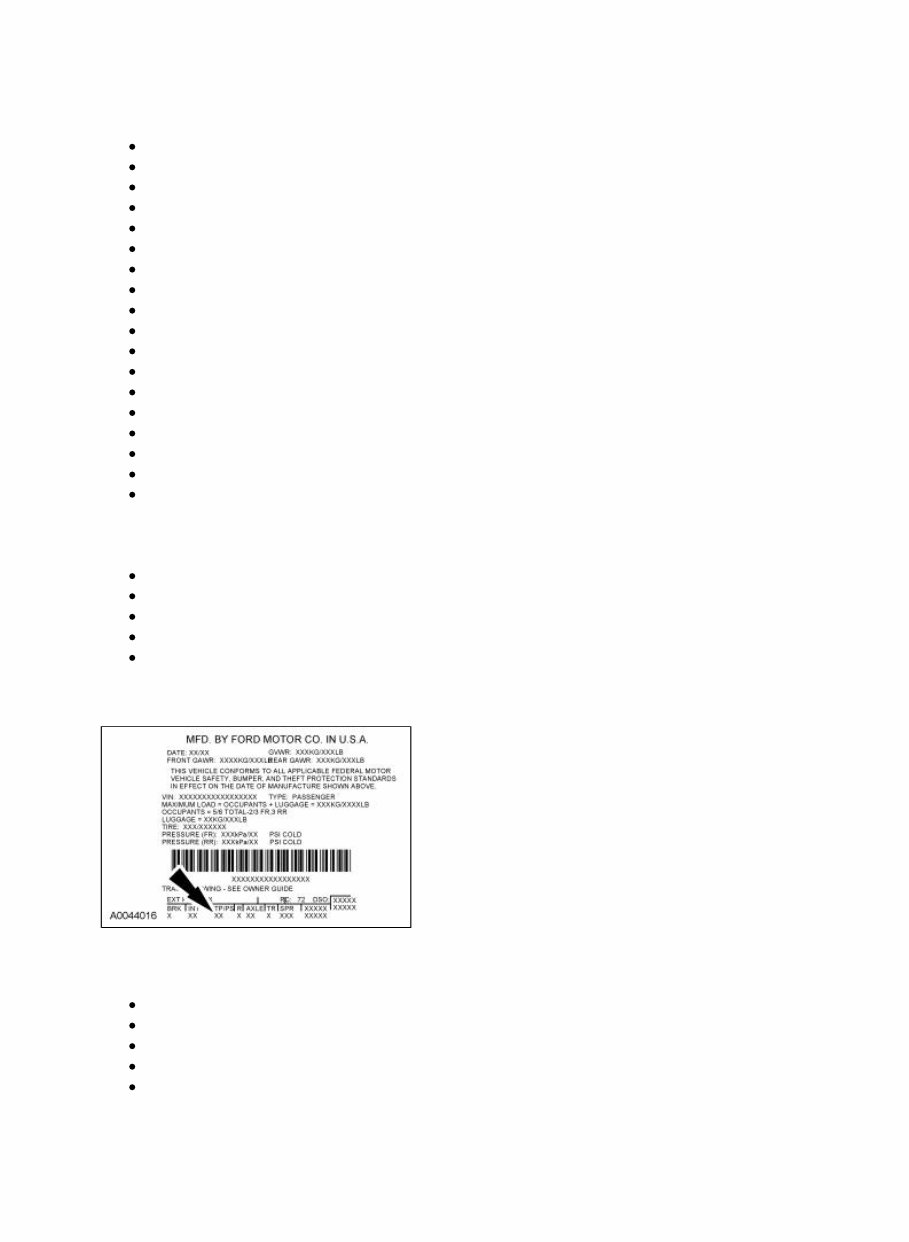

The interior trim codes are listed below. The first letter/number is for the interior fabric. The second letter is for the interior color. A — Dalton cloth (split bench), Ford B — Atmore cloth (split bench), Mercury C — Vinyl 40/20/40 bench, Ford D — Luxury Laura cloth (split bench), Ford H — Stockton cloth (front bucket seats), Ford I — Stockton cloth (front bucket seats), Ford K — Milled Pebble leather (5-passenger seating), Ford M — Luxury Laura cloth (split bench), Mercury P — Laura cloth (split bench), Ford Q — Dalton cloth 40/20/04 (split bench), Ford R — G-Grain Vinyl (split bench), Ford Y — Milled Pebble leather (split bench), Ford Z — G-Grain Super Soft leather (split bench), Ford 2 — Milled Pebble leather (front bucket seats), Mercury 3 — Milled Pebble leather twin comfort seats, Mercury 4 — Milled Pebble Super-Soft leather (split bench), Mercury 5 — Milled Pebble leather two-tone (split bench), Mercury 6 — Imola leather two-tone (split bench), Mercury Limited The interior trim colors are: C — Light Flint E — Flint/Medium Flint H — Medium Parchment K — Parchment/Medium Parchment W — Midnight Black Tape and Paint Stripe Code Tape and paint stripe codes do not apply to all vehicles. If applicable, the code(s) is as follows: B — Black C — Light Chestnut J — Medium Red P — Light Charcoal Q — Dark Blue Radio Code 26.02.2002 file://C:\TSO\tsocache\SUPER10-45B629E_1540\S5A~us~en~file=S5A01001.htm~g...

The radio type codes are: B — Luxury electronic AM/FM stereo with cassette and clock (pre-equipment package 1) F — Electronic AM/FM stereo H — Electronic AM/FM stereo with cassette K — Premium electronic AM/FM stereo with cassette, compact disc (CD) and clock Y — Radio delete Z — Electronic AM/FM stereo with compact disc (CD) player and clock Axle Ratio Code The axle ratios are: 1 — 2.73 conventional (non-limited slip) 4 — 2.73 conventional (non-limited slip) 5 — 3.55 conventional (limited slip) C — 3.27 (limited slip) Transmission Code 26.02.2002 file://C:\TSO\tsocache\SUPER10-45B629E_1540\S5A~us~en~file=S5A01001.htm~g...

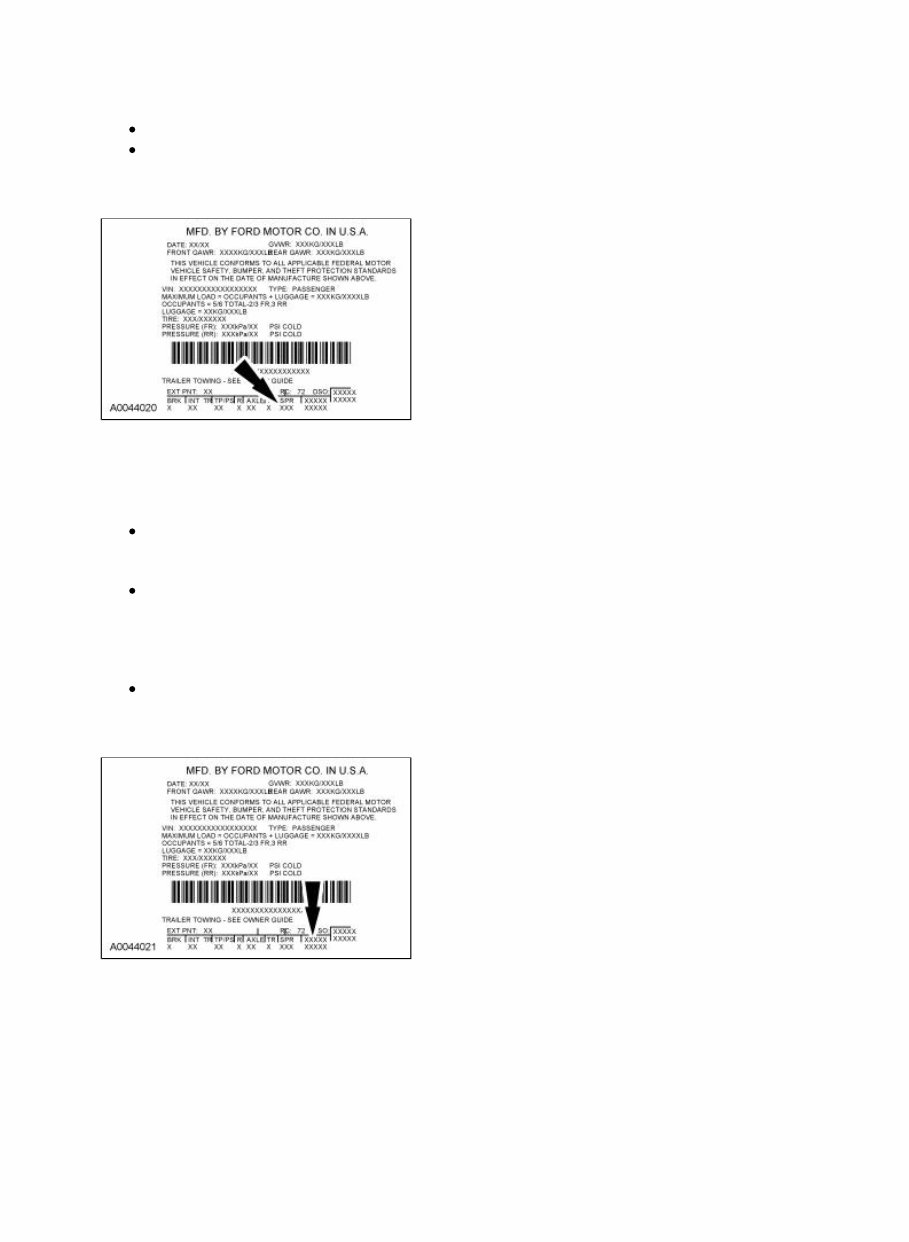

The transmission codes are: W — Four-speed automatic overdrive, (4R75E) Livonia U — Four-speed automatic overdrive, (4R75E) Sharonville Spring Code The first number/letter listed identifies the front spring codes. The second number/letter listed identifies the rear spring codes. Front Springs Base part number — 5310 Rear Springs Base part number — 5560 Rear air suspension codes are: Rear Air Suspension Base part number — 5A891 Engine Calibration Information Engine calibration information is located on the VC label lower right corner between the spring code field and the powertrain calibration information. Engine calibration information is limited to a maximum of five characters per line (two lines maximum). Calibration information more than five characters long will wrap to the second line of this field. Powertrain Calibration Information 26.02.2002 file://C:\TSO\tsocache\SUPER10-45B629E_1540\S5A~us~en~file=S5A01001.htm~g...
