O W N E R H A N D B O O K F I A T D U C A T O

We really know your vehicle because we invented, designed and built it: we really know every single detail. At Fiat Professional Service authorised workshops you can find technicians directly trained by us, offering quality and professionalism for all service operations. Fiat Professional workshops are always close to you for the regular servicing operations, season checks and practical recommendations by our experts. With Fiat Professional Genuine Parts you keep the reliability, comfort and performance features of your new vehicle unchanged in time: that's why you bought it for. Always ask for Genuine Parts for the components used on our vehicles; we recommend them because they come from our steady commitment in research and development of highly innovative technologies. For all these reasons: rely on Genuine Parts, because they are the only ones designed by Fiat Professional for your vehicle. SAFETY: BRAKING SYSTEM ENVIRONMENT: PARTICULATE FILTERS, CLIMATE CONTROL SYSTEM MAINTENANCE COMFORT: SUSPENSION AND WINDSCREEN WIPERS PERFORMANCE: SPARK PLUGS, INJECTORS AND BATTERIES LINEACCESSORI: ROOF RACK BARS, WHEEL RIMS WHY CHOOSING GENUINE PARTS

CHOOSING GENUINE PARTS IS THE MOST NATURAL CHOICE PERFORMANCE GENUINE PARTS COMFORT GENUINE PARTS SAFETY GENUINE PARTS AMBIENT GENUINE PARTS VALUES GENUINE PARTS ACCESSORIES GENUINE PARTS

HOW TO RECOGNISE GENUINE PARTS All Genuine Parts undergo strict controls, both during design and manufacturing stages, by specialists using vanguard materials, to test the component reliability. This to guarantee performance and safety for you and your passengers on board, for a long time. Always ask for and make sure a Genuine Part has been used.

Dear customer, Thank you for choosing Fiat and congratulations on your choice of a Fiat Ducato. We have written this handbook to help you get to know all the features of your vehicle and use it in the best possible way. You are recommended to read it right through before taking to the road for the first time. You will find information, tips and important warnings regarding the use of your vehicle to help you get the most from the technical features of your Fiat Ducato. Read the warnings and indications, marked with the following symbols: personal safety; vehicle integrity; environmental protection. The enclosed Warranty Booklet lists the services that Fiat offers to its Customers: ❒ the Warranty Certificate with terms and conditions for maintaining its validity; ❒ the range of additional services available to Fiat Customers. Enjoy reading. Happy motoring! This Owner Handbook describes all the versions of the Fiat Ducato. As a consequence, you should only consider the information which is related to the trim level,engine and version that you have purchased.

VERY IMPORTANT REFUELLING Only refuel with automotive diesel conforming to the European specification EN590. The use of other products or mixtures may damage the engine beyond repair and consequently invalidate the warranty, due to the damage caused. STARTINGTHE ENGINE Make sure that the handbrake is engaged; set the gear lever to neutral; fully depress the clutch without pressing the accelerator, then turn the ignition key to MAR-ON and wait for the warning lights and to switch off; turn the ignition key to AVV and release it as soon as the engine has started. PARKING ON FLAMMABLE MATERIAL The catalytic converter develops high temperatures during operation. Do not park on grass, dry leaves, pine needles or other flammable material: fire hazard. RESPECTING THE ENVIRONMENT The vehicle is fitted with a system that allows continuous diagnosis of the emission-related components in order to help protect the environment. ELECTRICAL ACCESSORIES If, after buying the vehicle, you decide to add electrical accessories (with the risk of gradually draining the battery), visit a Fiat Dealership. They can calculate the overall electrical requirement and check that the vehicle's electrical system can support the required load. SCHEDULED SERVICING Correct maintenance enables the vehicle to perfectly maintain performance and safety characteristics, its environmental friendliness and low running costs over time. THE OWNER MANUAL CONTAINS… ... important information, advice and warnings for correct use, driving safety and maintenance of your vehicle over time. Special attention must be paid to the symbols (safety of persons) (environmental protection) (vehicle integrity).

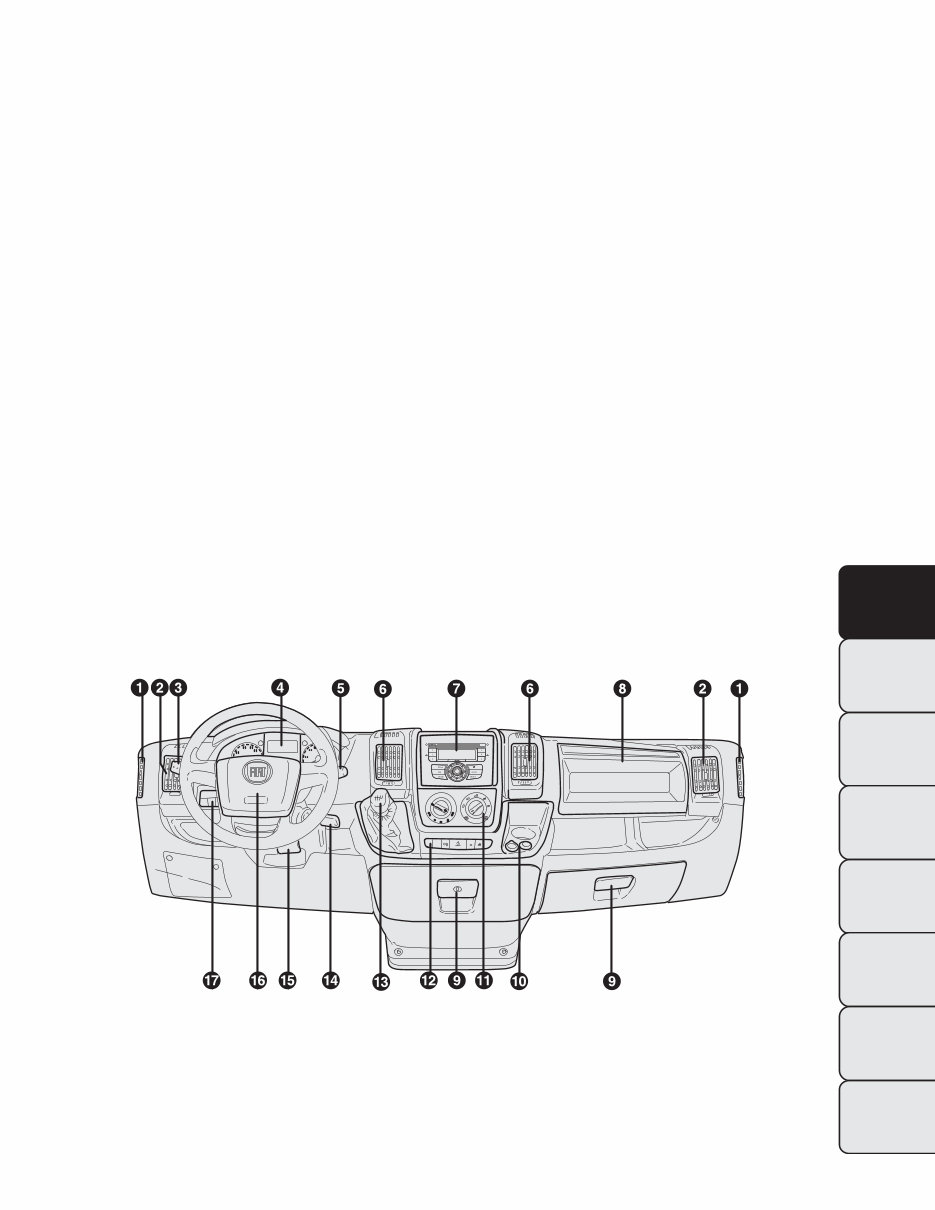

KNOW YOUR VEHICLE INSTRUMENT PANEL The presence and position of the controls, instruments and indicators may vary according to the different versions. 1. Fixed side air vents – 2. Adjustable side air vents – 3. Left stalk: external light control – 4. Instrument panel and warning lights – 5. Right stalk: windscreen wiper, rear window wiper, trip computer controls – 6. Adjustable centre air vents – 7. Car radio (for versions/markets, where provided) – 8. Passenger side glove compartment/front air bag (for versions/markets, where provided) – 9. Glove compartment – 10. Cigar lighter/12 V socket – 11. Heating/ventilation/climate control system controls – 12. Controls in the dashboard – 13. Gear lever – 14. Ignition device – 15. Steering wheel adjustment lever – 16. Driver's front air bag/Horn – 17. Control plate: lamp/headlamp alignment adjustment/digital display/multifunction display. fig. 1 F0N0510M 3 KNOW YOUR VEHICLE SAFETY STARTING AND DRIVING WARNING LIGHTS AND MESSAGES IN AN EMERGENCY SERVICING AND MAINTENANCE TECHNICAL SPECIFICATIONS INDEX

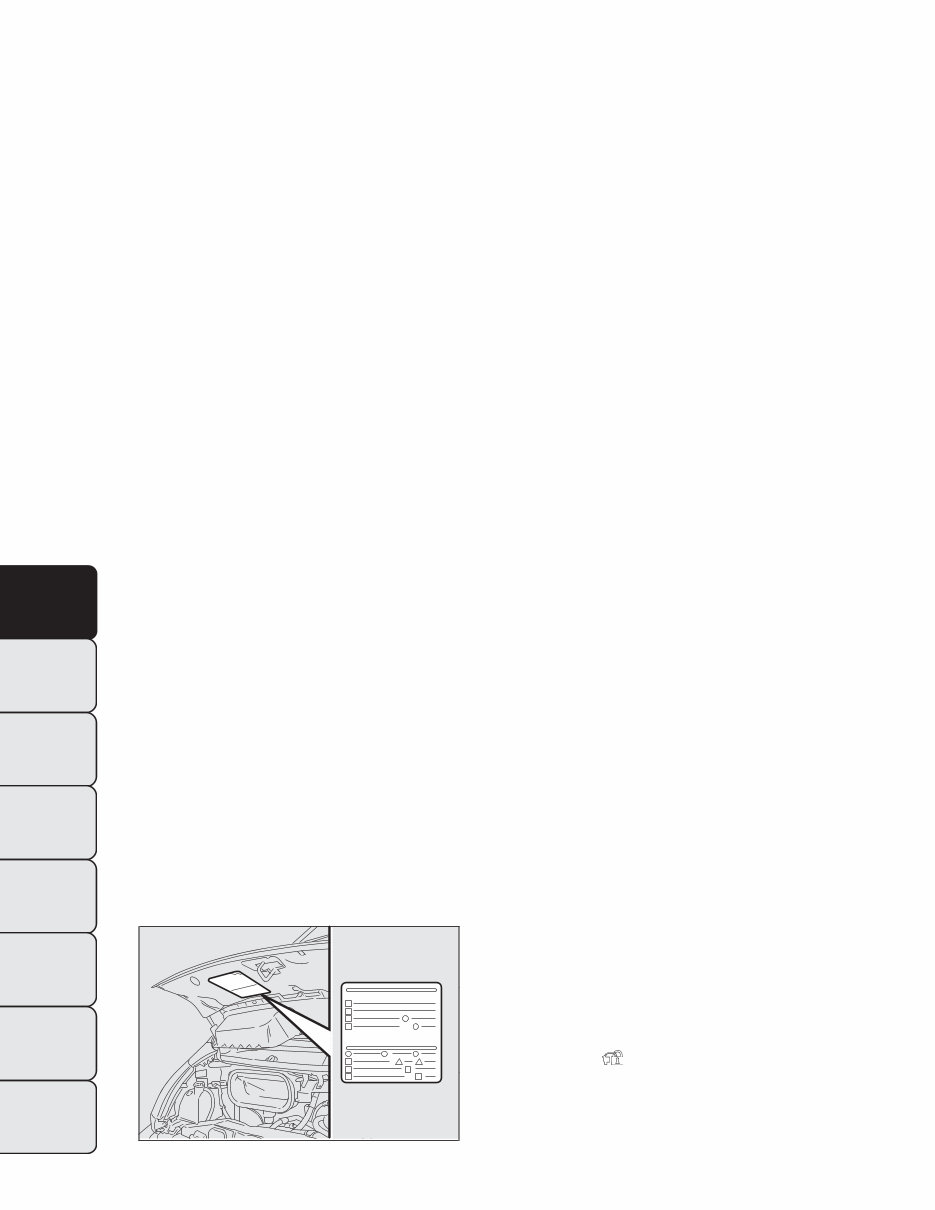

SYMBOLS Special coloured labels have been attached near or on some of the components of your vehicle. These labels bear symbols that draw your attention to the precautions required when handling the component in question. A plate summarising these symbols can be found under the bonnet fig. 2. THE FIAT CODE SYSTEM This is an electrical engine immobiliser system which increases protection against attempted theft of the vehicle. It is automatically activated when the ignition key is removed. Each key contains an electronic device which modulates the signal emitted during ignition by an antenna built into the ignition device. The modulated signal, which changes each time the engine is started, is the “password”, by means of which the control unit recognises the key and enables to start the engine. OPERATION Each time the vehicle is started turning the ignition key to MAR-ON, the Fiat CODE system control unit sends a recognition code to the engine control unit to deactivate the inhibitor. The recognition code is sent only if the Fiat CODE system control unit has recognised the code transmitted from the key. Each time the ignition key is turned to STOP, the Fiat CODE system deactivates the functions of the engine management control unit. If the code has not been recognised correctly, the warning light turns on accompanied by the related message on the display (see section “Warning lights and messages”). fig. 2 F0N0002 4 KNOW YOUR VEHICLE SAFETY STARTING AND DRIVING WARNING LIGHTS AND MESSAGES IN AN EMERGENCY SERVICING AND MAINTENANCE TECHNICAL SPECIFICATIONS INDEX

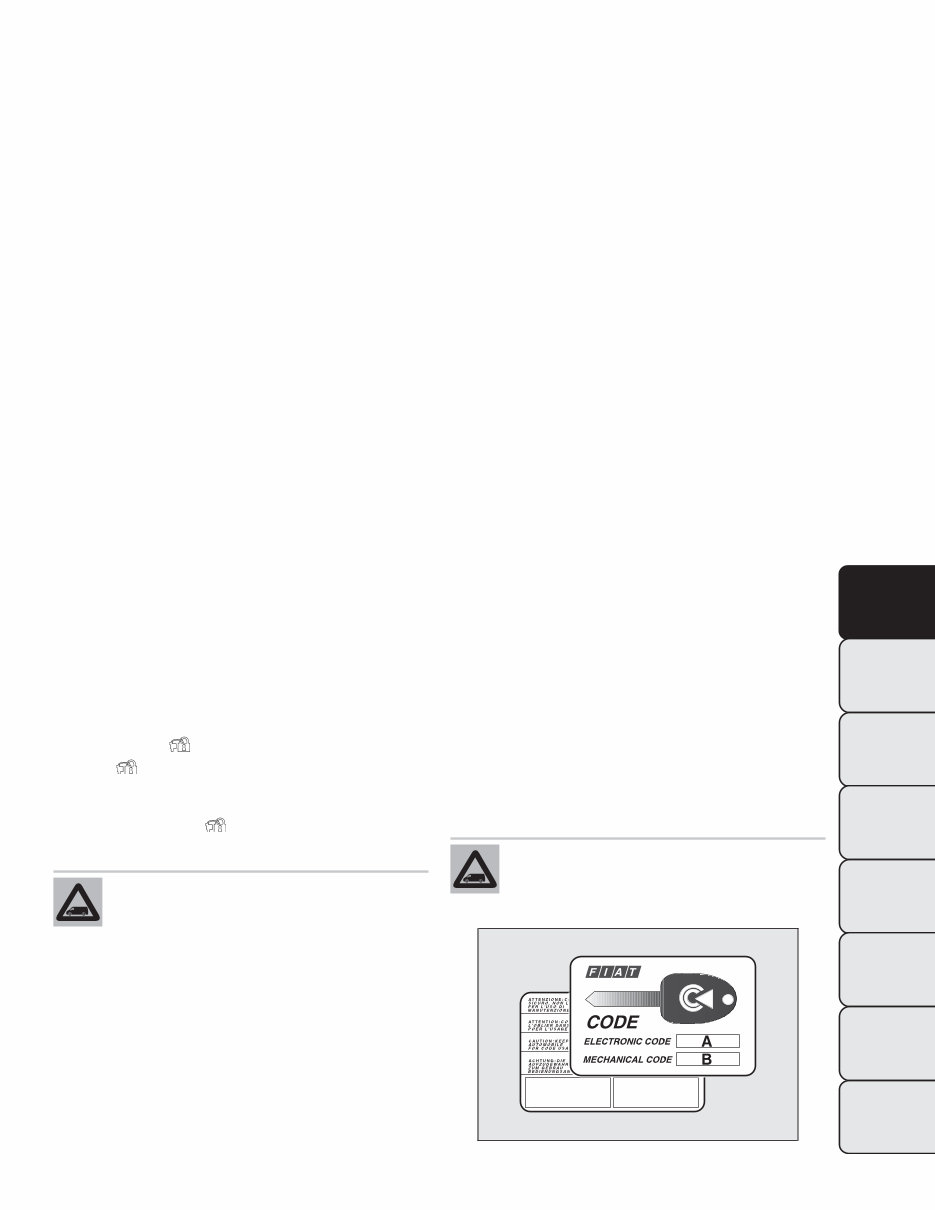

In this case, turn the key to STOP and then to MAR-ON; if it is still locked, try again with the other keys that come with the vehicle. Contact a Fiat Dealership if you still cannot start the engine. IMPORTANT Each key has its own code which must be stored by the system's electronic control unit. Contact the Fiat Dealership to have new keys (up to eight) stored with the code. Warning light switching on while driving ❒ If the warning light switches on, this means that the system is running a self-diagnosis (for example for a voltage drop). ❒ If the warning light stays on, contact a Fiat Dealership. The electronic components inside the key may be damaged if the key is subjected to strong shocks. THE KEYS CODE CARD The vehicle is delivered with two copies of the ignition key and with the CODE card fig. 3, which bears the following: A the electronic code; B the mechanical key code to be given to the Fiat Dealership when ordering duplicate keys. IMPORTANT In order to ensure complete efficiency of the electronic devices inside the keys, they should never be exposed to direct sunlight. All the keys and the CODE card must be handed over to the new owner when selling the vehicle. fig. 3 F0N0003 5 KNOW YOUR VEHICLE SAFETY STARTING AND DRIVING WARNING LIGHTS AND MESSAGES IN AN EMERGENCY SERVICING AND MAINTENANCE TECHNICAL SPECIFICATIONS INDEX

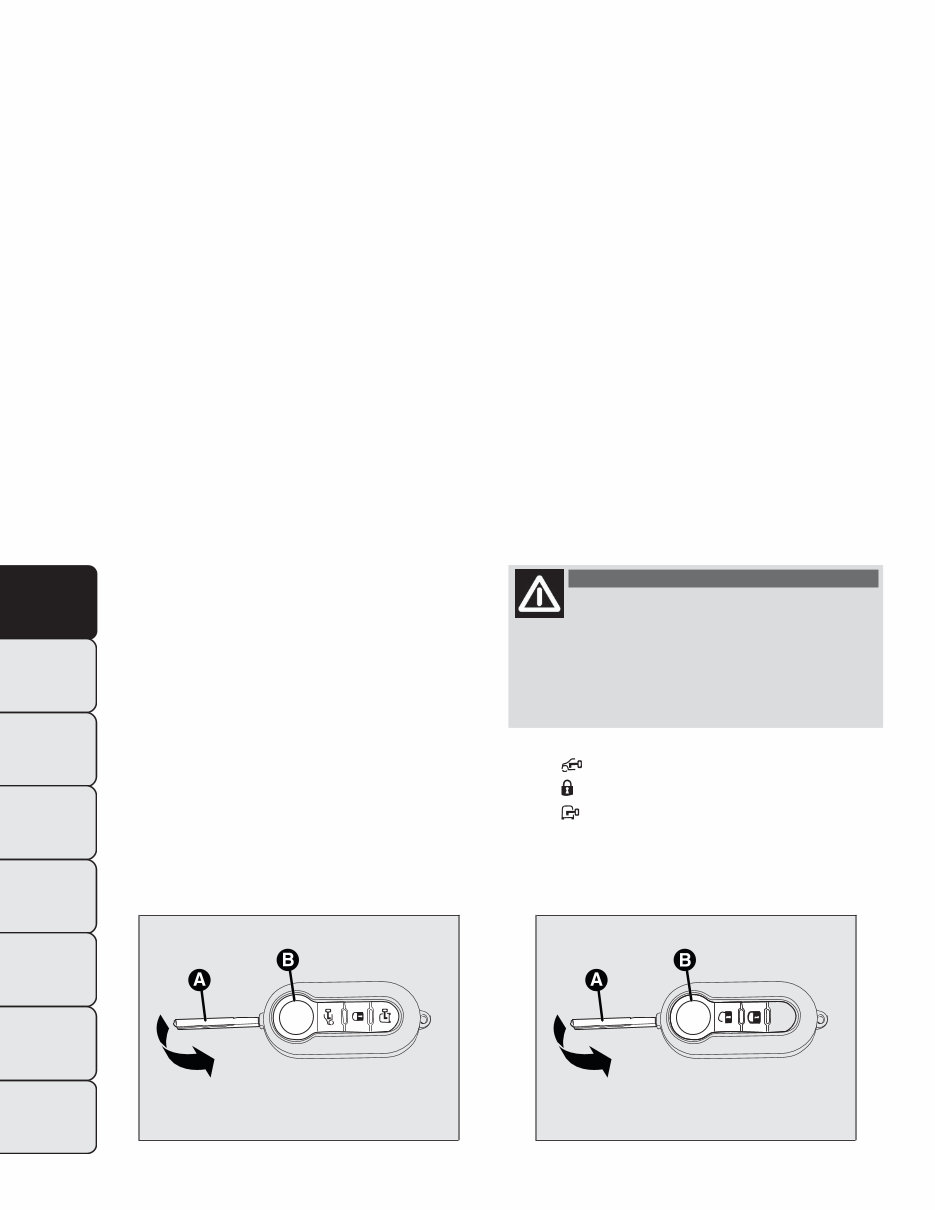

KEY WITH REMOTE CONTROL The metal insert A fig. 4 fig. 5 is retractable in the grip and it operates: ❒ the ignition switch; ❒ the door locks; ❒ opening and closing of the fuel tank cap. To extract the metal insert, press button B fig. 4 fig. 5. To refit it in the grip proceed as follows: ❒ hold down button B and turn the metal insert A; ❒ release button B and turn the metal insert A completely until the locking click is heard to ensure correct closure. WARNING Button B should only be pressed when the key is away from the body, in particular from the eyes and from objects that can be spoilt (e.g. clothes). Do not leave the key unattended to avoid the button being accidentally pressed while it is being handled, e.g. by a child. Button is used for unlocking the front doors. Button is used for locking all the doors. Button is used for unlocking the load compartment doors. When unlocking the doors, the internal lights will come on for a preset time. fig. 4 F0N0800 fig. 5 F0N0801 6 KNOW YOUR VEHICLE SAFETY STARTING AND DRIVING WARNING LIGHTS AND MESSAGES IN AN EMERGENCY SERVICING AND MAINTENANCE TECHNICAL SPECIFICATIONS INDEX
