14 - Fuel System / Fuel Injection, Gas / PEDAL, Accelerator / Removal and Installation
REMOVAL AND INSTALLATION
REMOVAL
CAUTION:
Do not attempt to separate or remove the Accelerator Pedal Position Sensor (APPS) from the accelerator pedal assembly. The APPS
and the accelerator pedal is replaced as an assembly. If the sensor is removed from the pedal, the electronic calibration may be
destroyed.

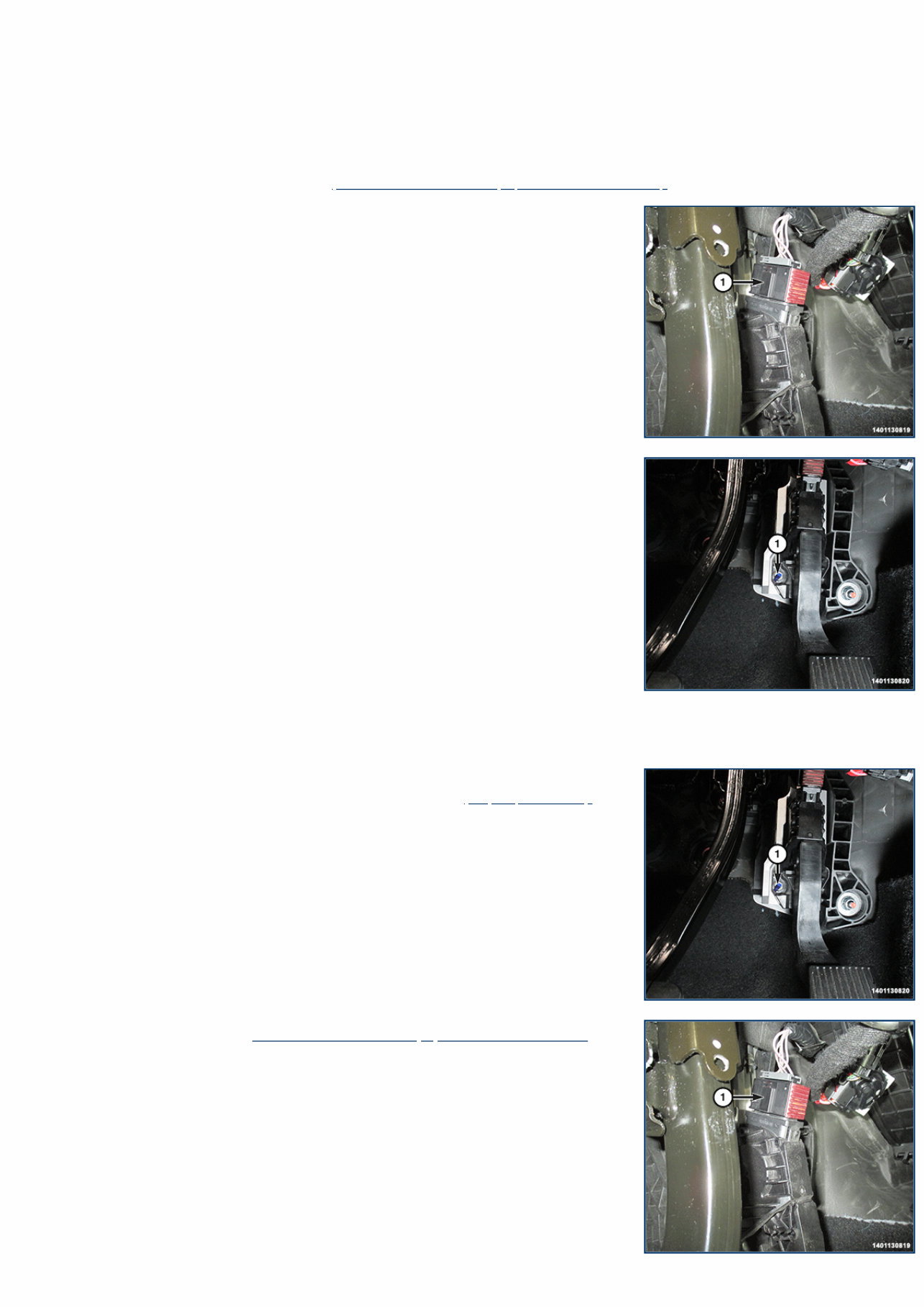

1. Disconnect and isolate the negative battery cable(s) (Refer to 08 - Electrical/Battery System/Standard Procedure) .
2. Disconnect the wire harness electrical connector at the APPS (1).
3. Remove the accelerator pedal mounting fastener (1).
4. Remove the accelerator pedal assembly from the vehicle.
INSTALLATION
1. Position the accelerator pedal assembly on the pedal sled.
2. Install the accelerator pedal mounting fastener (1) and tighten to the proper (Torque Speciļ¬cations) .
3. Connect the wire harness connector at the APPS (1).
4. Connect the negative battery cable(s) (Refer to 08 - Electrical/Battery System/Standard Procedure) .
5. If necessary, use a Scan Tool to erase any Diagnostic Trouble Codes (DTCs).
17 - Rear Suspension / Description
DESCRIPTION AND OPERATION
The rear suspension system uses air springs or coil springs. The suspension system consists of the following major components:

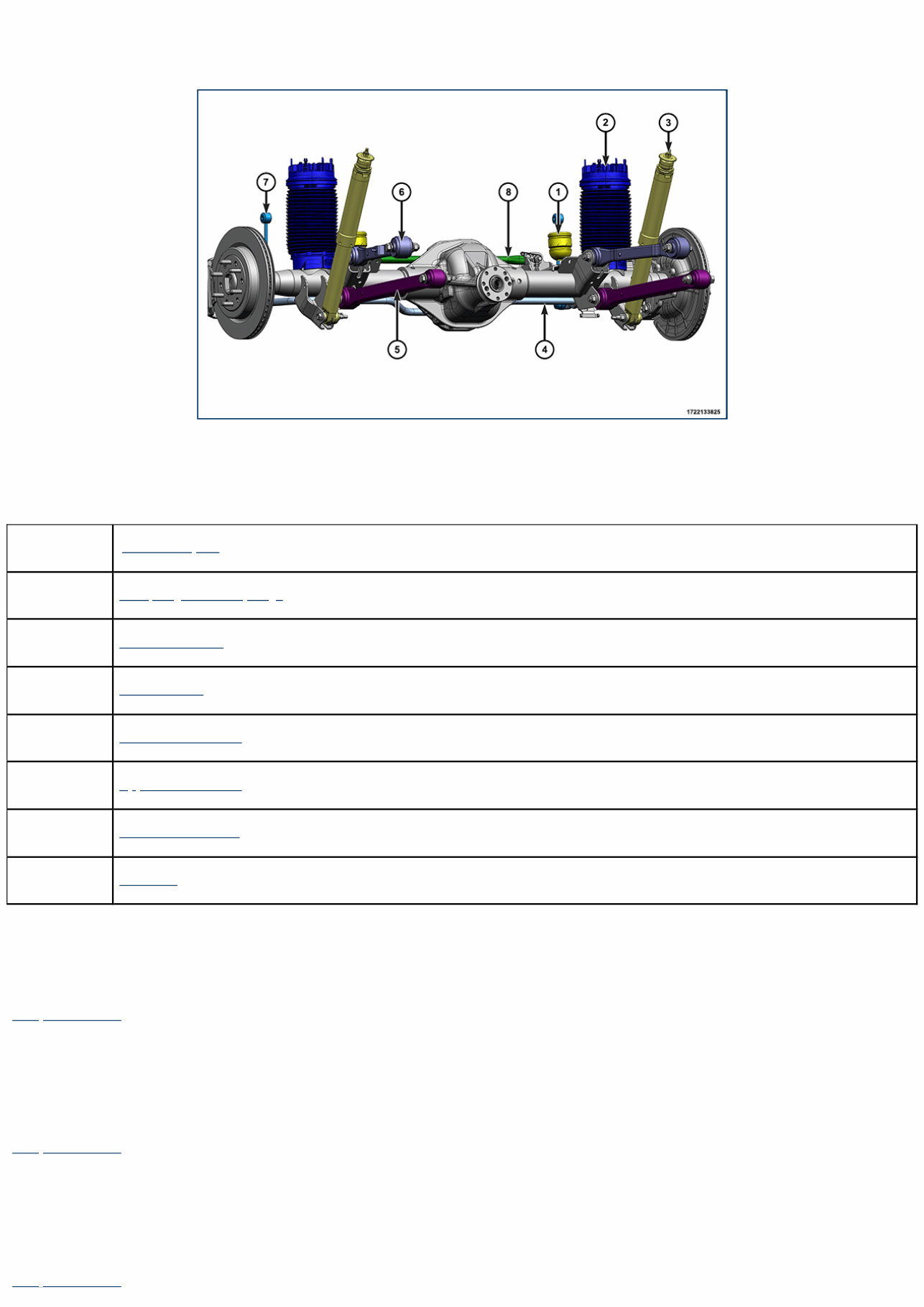

Component Index
1. Jounce Bumpers
2. Air Springs or Coil Springs
3. Shock Absorbers
4. Stabilizer Bar
5. Lower Control Arms
6. Upper Control Arms
7. Stabilizer Bar Links
8. Track Bar
OPERATION
Jounce Bumpers
Component Index
Foam rubber jounce bumpers are housed in the frame above the rear axle assembly. Jounce bumpers limit the suspension travel at the fully compressed state.
Air Springs or Coil Springs
Component Index
Air springs (or coil springs) support the vehicle weight.
Shock Absorbers
Component Index
Shock absorbers dampen suspension travel and provide stability and control while driving. The shock absorbers limit the suspension travel at the fully rebounded
state.
Stabilizer Bar
Component Index
The stabilizer bar is constructed from steel. The bar mounts to the axle housing through two rubber/urethane bushings and two steel mounting brackets. Stabilizer
links are connected at each end. The stabilizer bar minimizes body roll during cornering.
Lower Control Arms
Component Index
The lower control arms are constructed from steel and use rubber/urethane bushings for isolation and arching motion.
Upper Control Arms
Component Index
The upper control arms are constructed from steel and use rubber/urethane bushings for isolation and arching motion. The upper control arms feature a height
sensor ball stud.
Stabilizer Bar Links
Component Index
The stabilizer bar links provide a physical connection between the stabilizer bar and the lower control arm.
Track Bar
Component Index
A steel track bar is mounted behind the rear axle and is position laterally between the axle housing and the frame. The track bar has rubber/urethane bushings at
each end. The track bar keeps the rear axle centered during cornering.
NOTE:
In any instance where a bolt is through a rubber bushing, the bolt must be torqued with the vehicle at normal ride height.
17 - Rear Suspension / Technical Speciļ¬cations
TORQUE SPECIFICATIONS
TORQUE SPECIFICATIONS - REAR SUSPENSION

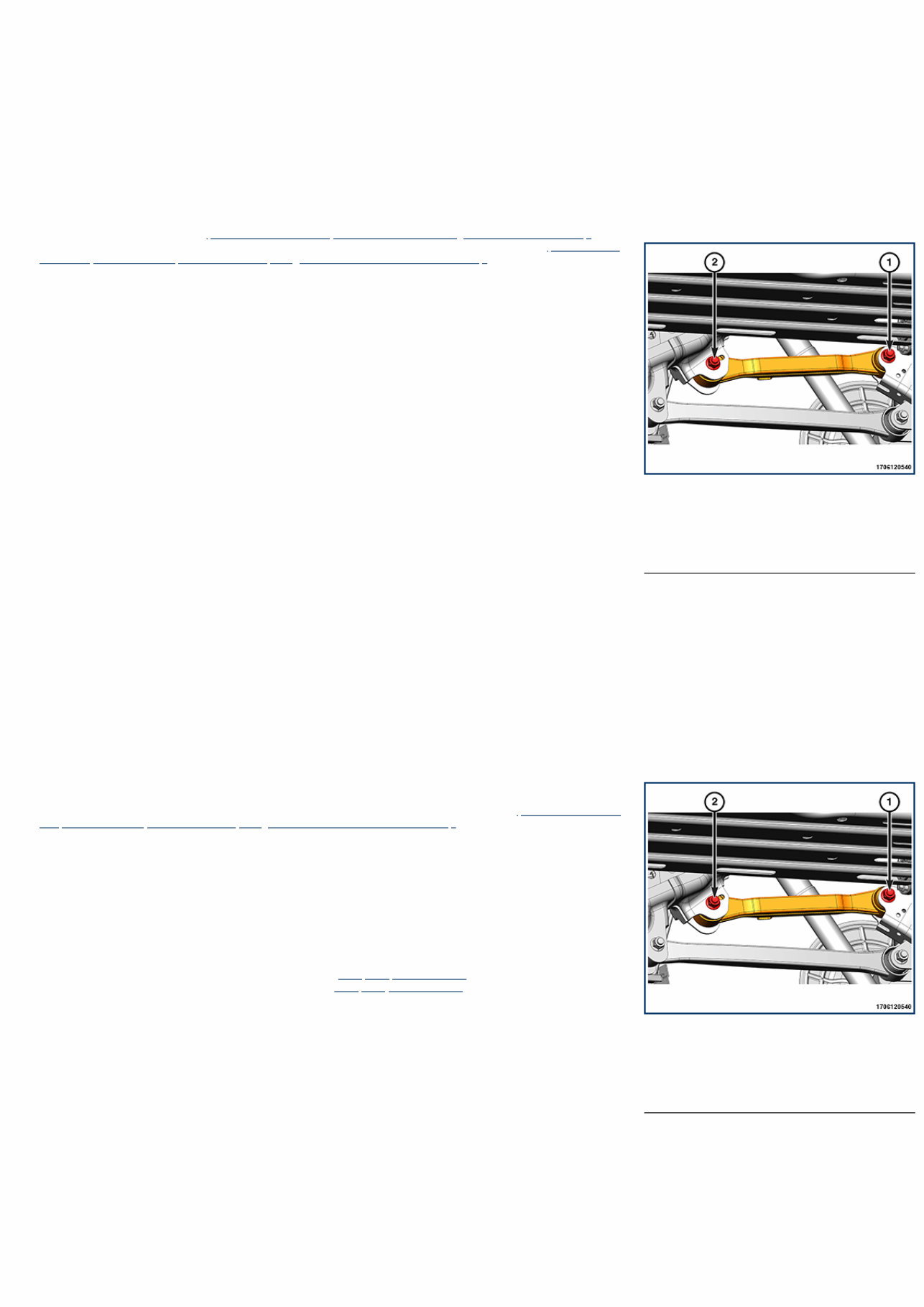

1 - Lower Control Arm Rear Bolt
2 - Lower Control Arm Front Bolt
1 - Lower Control Arm Rear Bolt
2 - Lower Control Arm Front Bolt
17 - Rear Suspension / ARM, Lower Control / Removal and Installation
LOWER CONTROL ARM WITHOUT TRX
REMOVAL
1. Raise and support the vehicle (Refer to 04 - Vehicle Quick Reference/Hoisting - Standard Procedure) .
2. Remove the lower control arm front bolt and DISCARD the nut and bolt.
3. Remove the lower control arm rear bolt and DISCARD the nut and bolt.
4. Remove the lower control arm.
INSTALLATION
NOTE:
All rear control arms are stamped with labels indicating the orientation in which the arms should be installed. The word āFRAMEā must
be installed at the frame end facing outward.
NOTE:
In any instance where a bolt is through a rubber bushing, the bolt must be torqued with the vehicle at normal ride height.
1. Position the lower control arm to the frame and to the axle bracket.
2. Install a NEW lower control arm front bolt with a NEW nut but do not tighten at this time.
3. Install a NEW lower control arm rear bolt with a NEW nut but do not tighten at this time.
4. Remove the support and lower the vehicle.
5. Tighten the lower control arm front bolt to the proper (Torque Speciļ¬cations) .
6. Tighten the lower control arm rear bolt to the proper (Torque Speciļ¬cations) .

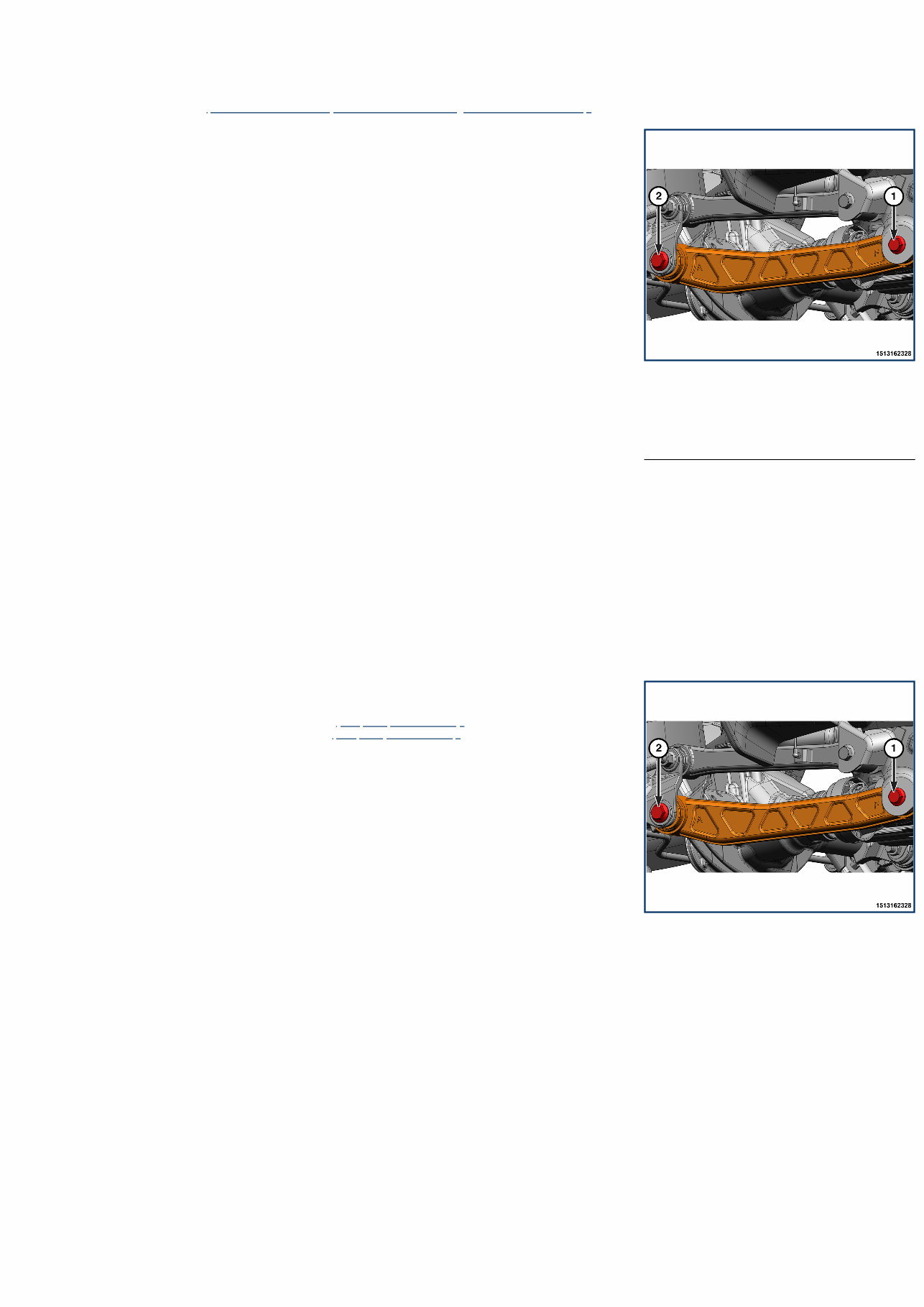

1 - Lower Control Arm Front Bolt
2 - Lower Control Arm Rear Bolt
17 - Rear Suspension / ARM, Lower Control / Removal and Installation
LOWER CONTROL ARM WITH TRX
REMOVAL
1. Raise and support the vehicle (Refer to 04 - Vehicle Quick Reference/Hoisting - Standard Procedure) .
2. Remove the lower control arm front bolt and DISCARD the nut and bolt.
3. Remove the lower control arm rear bolt and DISCARD the nut and bolt.
4. Remove the lower control arm.
INSTALLATION
NOTE:
All rear control arms are stamped with labels indicating the orientation in which the arms should be installed. The letter āFā must be
installed at the frame end facing outward.
NOTE:
In any instance where a bolt is through a rubber bushing, the bolt must be torqued with the vehicle at normal ride height.
1. Position the lower control arm to the frame and to the axle bracket.
2. Install a NEW lower control arm front bolt with a NEW nut but do not tighten at this time.
3. Install a NEW lower control arm rear bolt with a NEW nut but do not tighten at this time.
4. Remove the support and lower the vehicle.
5. Tighten the lower control arm front bolt to the proper (Torque Speciļ¬cations) .
6. Tighten the lower control arm rear bolt to the proper (Torque Speciļ¬cations) .
1 - Upper Control Arm Rear Bolt
2 - Upper Control Arm Front Bolt
1 - Upper Control Arm Rear Bolt
2 - Upper Control Arm Front Bolt
17 - Rear Suspension / ARM, Upper Control / Removal and Installation
UPPER CONTROL ARM WITHOUT TRX
REMOVAL
NOTE:
The air suspension system can be disabled and enabled by using the Display Screen Module (DSM) in the vehicle under tire jack mode,
which is the preferred method. If the disable level control routine in the scan tool is used it will only disable the level control (automatic
and manual) for that ignition cycle. The air suspension system can also be enabled by driving the vehicle above 8 km/h (5 mph). The air
suspension should be disabled prior to lifting or performing any work.
1. Disable the air suspension system.
2. Raise and support the vehicle (Refer to 04 - Vehicle Quick Reference/Hoisting - Standard Procedure) .
3. If equipped, disconnect the rear ride height sensor rod from the upper control arm ball stud (Refer to 02 -
Front Suspension/Air Suspension/SENSOR, Height/Rear/Removal and Installation) .
4. Remove the upper control arm front bolt and DISCARD the nut and bolt.
5. Remove the upper control arm rear bolt and DISCARD the nut and bolt.
6. Remove the upper control arm.
INSTALLATION
NOTE:
All rear control arms are stamped with labels indicating the orientation in which the arms should be installed. The word āFRAMEā must
be installed at the frame end facing outward. The upper control arms must be installed with the height sensor ball stud outboard.
NOTE:
In any instance where a bolt is through a rubber bushing, the bolt must be torqued with the vehicle at normal ride height.
1. Position the upper control arm to the frame and to the axle bracket.
2. Install a NEW upper control arm front bolt with a NEW nut but do not tighten at this time.
3. Install a NEW upper control arm rear bolt with a NEW nut but do not tighten at this time.
4. If equipped, connect the rear ride height sensor rod to the upper control arm ball stud (Refer to 02 - Front
Suspension/Air Suspension/SENSOR, Height/Rear/Removal and Installation) .
5. Remove the support and lower the vehicle.
6. Enable the air suspension system.
NOTE:
The air suspension system can be disabled and enabled by using the Display Screen
Module (DSM) in the vehicle under tire jack mode, which is the preferred method. If the
disable level control routine in the scan tool is used it will only disable the level control
(automatic and manual) for that ignition cycle. The air suspension system can also be
enabled by driving the vehicle above 8 km/h (5 mph). The air suspension should be
disabled prior to lifting the vehicle or performing any work.
7. Tighten the upper control arm front bolt to the proper (Torque Speciļ¬cations) .
8. Tighten the upper control arm rear bolt to the proper (Torque Speciļ¬cations) .
1 - Upper Control Arm Front Bolt
2 - Sensor Rod
3 - Upper Control Arm Rear Bolt
1 - Upper Control Arm Front Bolt
2 - Sensor Rod
3 - Upper Control Arm Rear Bolt
17 - Rear Suspension / ARM, Upper Control / Removal and Installation
UPPER CONTROL ARM WITH TRX
REMOVAL
1. Raise and support the vehicle (Refer to 04 - Vehicle Quick Reference/Hoisting - Standard Procedure) .
2. If equipped, disconnect the rear ride height sensor rod from the upper control arm ball stud (Refer to 02 -
Front Suspension/Air Suspension/SENSOR, Height/Rear/Removal and Installation) .
3. Remove the upper control arm front bolt and DISCARD the nut and bolt.
4. Remove the upper control arm rear bolt and DISCARD the nut and bolt.
5. Remove the upper control arm.
INSTALLATION
NOTE:
All rear control arms are stamped with labels indicating the orientation in which the arms should be installed. The word āFRAMEā must
be installed at the frame end facing outward. The upper control arms must be installed with the height sensor ball stud outboard.
NOTE:
In any instance where a bolt is through a rubber bushing, the bolt must be torqued with the vehicle at normal ride height.
1. Position the upper control arm to the frame and to the axle bracket.
2. Install a NEW upper control arm front bolt with a NEW nut but do not tighten at this time.
3. Install a NEW upper control arm rear bolt with a NEW nut but do not tighten at this time.
4. If equipped, connect the rear ride height sensor rod to the upper control arm ball stud (Refer to 02 - Front
Suspension/Air Suspension/SENSOR, Height/Rear/Removal and Installation) .
5. Remove the support and lower the vehicle.
6. Tighten the upper control arm front bolt to the proper (Torque Speciļ¬cations) .
7. Tighten the upper control arm rear bolt to the proper (Torque Speciļ¬cations) .

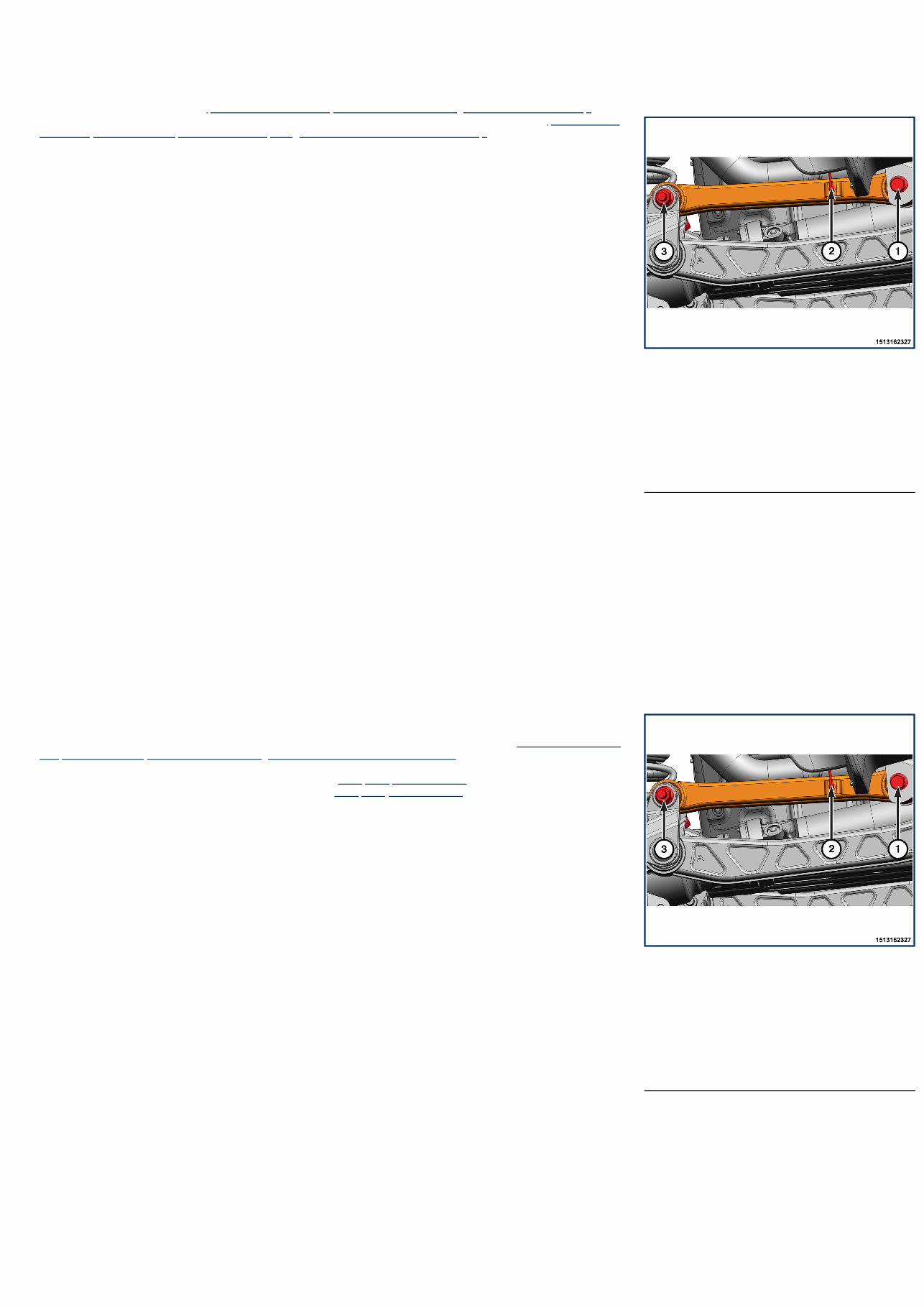

1 - Hose Routing Clip
2 - Jounce Bumper Nuts
3 - Jounce Bumper
17 - Rear Suspension / BUMPER, Jounce / Removal and Installation
JOUNCE BUMPER
REMOVAL
1. Raise and support the vehicle (Refer to 04 - Vehicle Quick Reference/Hoisting/Standard Procedure) .
2. Remove the coil spring (Refer to 17 - Rear Suspension/SPRING(S) /Removal and Installation).
3. If equipped, disengage the hose routing clip.
4. Remove the jounce bumper nuts.
5. Remove the jounce bumper.
INSTALLATION
Follow the removal procedure in reverse for general reassembly of the components on the vehicle. The steps listed below are calling out speciļ¬c procedures that
should be followed during installation.
Install the jounce bumper nuts and tighten to the proper (Torque Speciļ¬cations) .

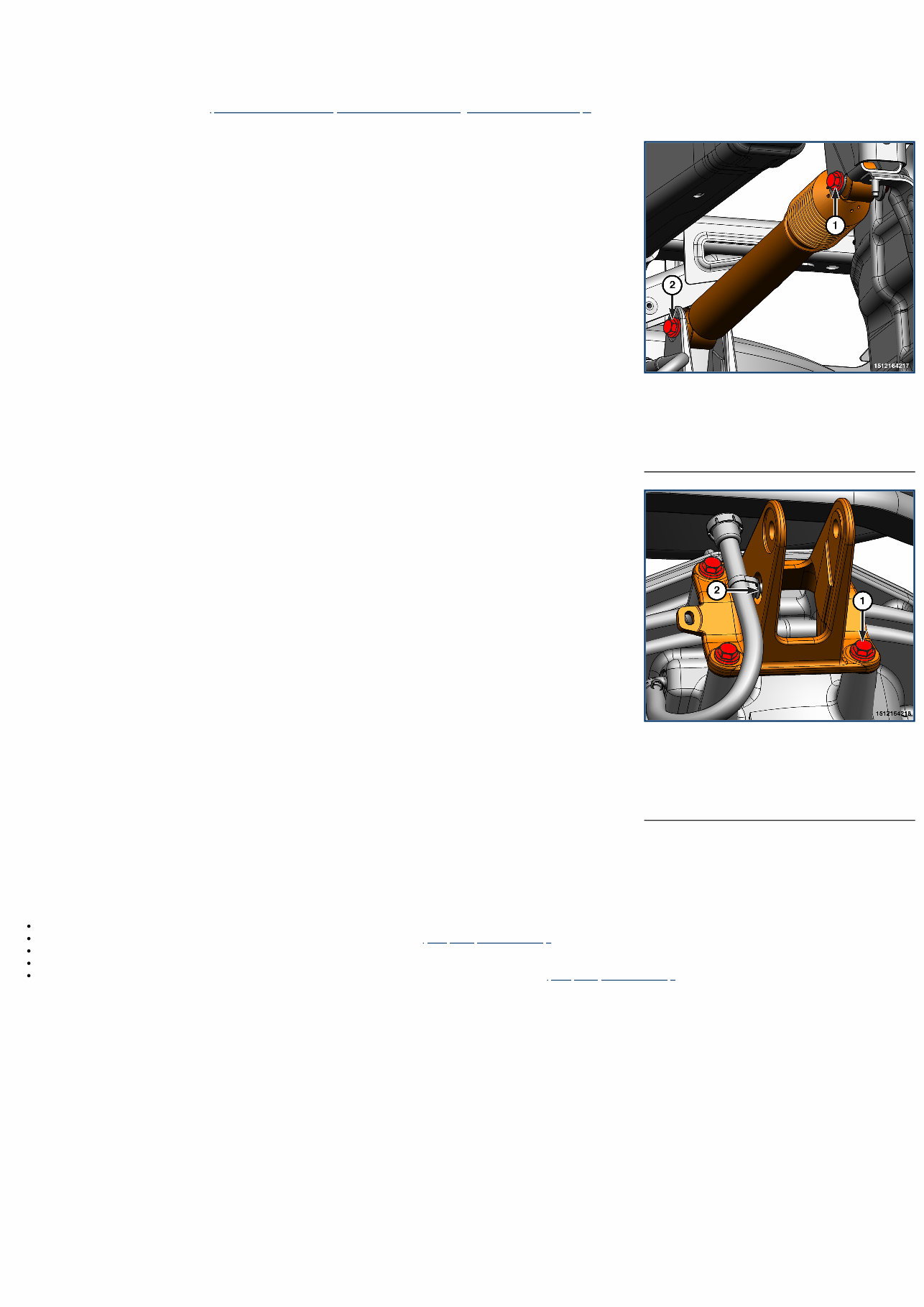

1 - Power Hop Damper Front Bolt
2 - Power Hop Damper Rear Bolt
1 - Power Hop Damper Bracket Bolts
2 - Vent Hose Routing Clip
17 - Rear Suspension / DAMPER, Power Hop / Removal and Installation
POWER HOP DAMPER
REMOVAL
1. Raise and support the vehicle. (Refer to 04 - Vehicle Quick Reference/Hoisting/Standard Procedure) .
2. Support the rear axle with a suitable holding ļ¬xture.
3. Remove the power hop damper rear bolt and nut.
4. Remove the power hop damper front bolt and nut.
5. Remove the rear suspension power hop damper.
6. Disengage the vent hose routing clip from the bracket.
7. Remove the power hop damper bracket bolts.
8. Remove the power hop damper bracket.
INSTALLATION
Follow the removal procedure in reverse for general reassembly of the components on the vehicle. The steps listed below are calling out speciļ¬c procedures that
should be followed during installation.
In any instance where a bolt is through a rubber bushing, the bolt must be torqued with the vehicle at normal ride height.
Install the power hop damper bracket bolts and tighten to the proper (Torque Speciļ¬cations) .
Position the power hop damper to the power hop damper bracket, then install the power hop damper rear bolt and nut loosely.
Position the power hop damper to the frame, then install the power hop damper front bolt and nut loosely.
Tighten the power hop damper front bolt and the power hop damper rear bolt to the proper (Torque Speciļ¬cations) .
You're Reading a Preview
What's Included?
Lifetime Access
Fast Download Speeds
Online & Offline Access
Access PDF Contents & Bookmarks
Full Search Facility
Print one or all pages of your manual
$97.99
2023 RAM 1500 TRX Service & Repair Manual (incl. Parts Catalog)
Viewed 20 Times Today
What's Included?
Lifetime Access
Fast Download Speeds
Online & Offline Access
Access PDF Contents & Bookmarks
Full Search Facility
Print one or all pages of your manual
$97.99
Secure transaction
What's Included?
Lifetime Access
Fast Download Speeds
Online & Offline Access
Access PDF Contents & Bookmarks
Full Search Facility
Print one or all pages of your manual
Description
2023 RAM 1500 TRX Service & Repair Manual (incl. Parts Catalog)
Engine covered:
- 6.2L HEMI V8 SRT (Supercharged)
Manuals included in this bundle:
- 2023 RAM 1500 TRX Service & Repair Manual
- 2023 RAM 1500 TRX Parts Catalog
The 2023 RAM 1500 TRX Service & Repair Manual is the all-encompassing factory guide for what is arguably the most powerful production pickup truck ever made. This two-in-one package delivers the complete, unabridged service manual alongside the official OEM parts catalog, giving you the same master-level documentation used within RAM dealership service centers. It focuses on the legendary 6.2L Supercharged V8 and the exclusive high-performance systems that define the TRX.
Whether you're a professional technician or a dedicated owner, this manual package empowers you with the knowledge to do the job right. It contains thousands of pages of detailed repair procedures, advanced diagnostic strategies, complete electrical schematics, and exploded-view parts diagrams. This is the single source of truth for keeping a 2023 RAM TRX in factory-perfect condition.
What’s Inside This RAM 1500 TRX Manual Collection
Comprehensive Repair Procedures
Get factory-approved, step-by-step instructions for every maintenance and repair task. From basic services to the most complex component overhauls, this manual provides the official, correct methodology.
Supercharged 6.2L HEMI Powertrain
Dedicated, in-depth information for the TRX's powertrain. Includes full service details for the 6.2L Supercharged HEMI engine, its high-flow intake and cooling systems, and all related components required to maintain its 702-horsepower output.
Transmission, Driveline & Axles
Complete overhaul and service information for the TRX's entire driveline, including the high-torque 8-speed automatic transmission, the full-time 4x4 transfer case, and the heavy-duty Dana 60 solid rear axle.
High-Performance Suspension & Chassis
Master the TRX's unique chassis with detailed guides for the Bilstein® Black Hawk® e² active suspension system. This includes diagnostics for the active damping controls, alignment specifications, and service for all reinforced chassis components.
Advanced Diagnostics and Wiring Schematics
Troubleshoot with confidence using official DTC flowcharts and step-by-step diagnostic guides. The complete, color-coded wiring schematics for every circuit make it possible to trace and resolve even the most complex electrical issues.
Complete Exploded-View Parts Diagrams
The integrated OEM Parts Catalog provides exploded views of every assembly on the truck. Use it to identify the exact component you need and find the correct Mopar part number, preventing costly ordering errors and saving time.
Accuracy and Safety for a High-Performance Vehicle
Working on a high-output vehicle like the TRX requires precision. Aftermarket guides often lack the specific torque sequences, diagnostic parameters, and safety procedures needed for its specialized systems. This factory manual ensures every repair is performed correctly and safely, protecting the integrity of your truck and your investment.
Digital Format & Compatibility
Delivered as a fully bookmarked and searchable PDF, this comprehensive manual is easy to navigate on any device. It works seamlessly on Windows, macOS, iOS, Android, and Linux, making it perfect for use on a workshop computer, tablet, or for printing specific pages for use at the vehicle.
Invest in Factory-Correct Documentation
Equip yourself with the most detailed resource available for the 2023 RAM TRX. This is the same information trusted by Mopar dealerships, providing everything you need to tackle any job, big or small, with confidence and precision. Download your complete TRX manual and parts catalog today.
Printable: Yes
Language: English
Compatibility: Windows, macOS, Linux, iOS, Android
Requirements: PDF Reader
