1959 mopar parts catalog Dodge Plymouth Desoto

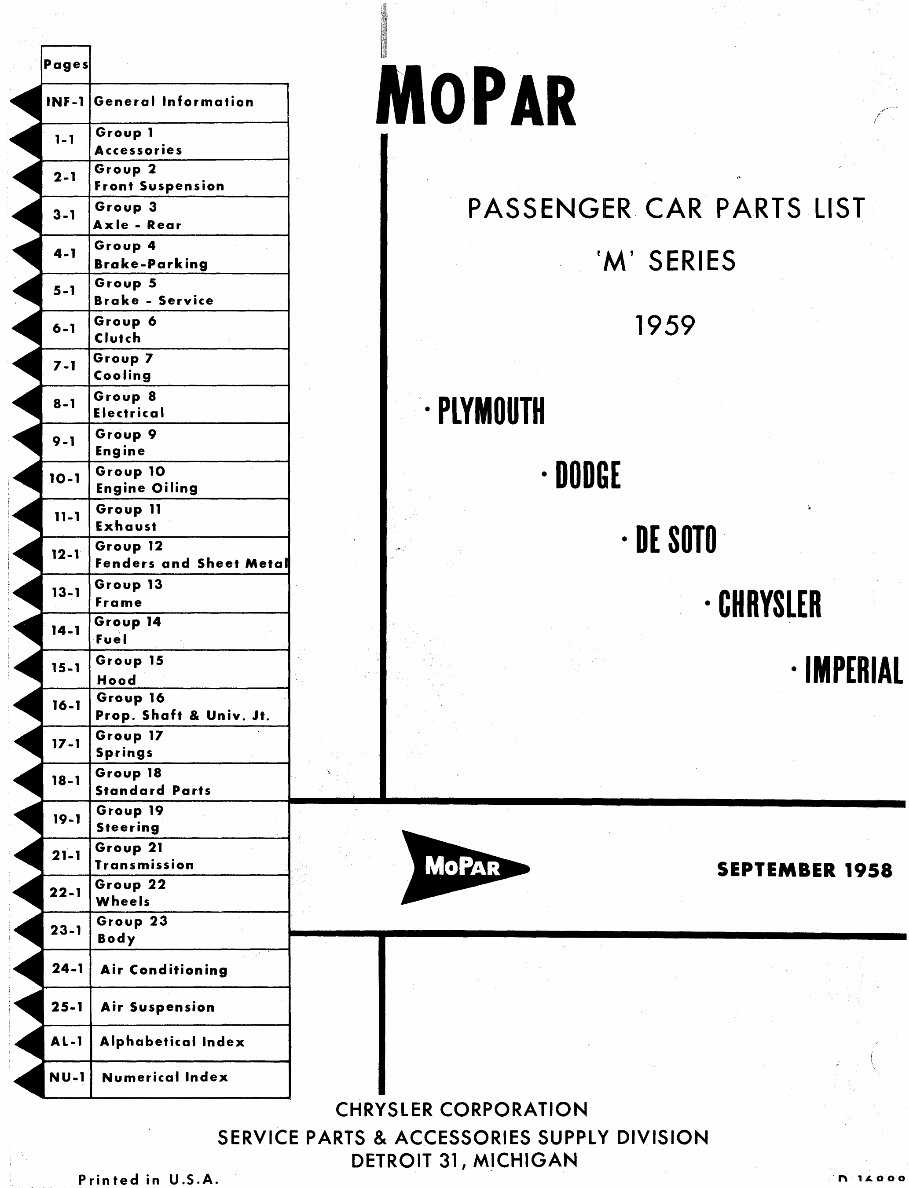

Pages INF-1 1-1 2-1 3-1 4-1 5-1 6-1 7-1 8-1 9-1 10-1 11-1 12-1 13-1 14-1 15-1 16-1 17-1 18-1 General Information Group 1 Accessories Group 2 Front Suspension Group 3 Axle - Rear Group 4 Brake-Parking Group 5 Brake - Service Group 6 Clutch Group 7 Cooling Group 8 Electrical Group 9 Engine Group 10 Engine Oiling Group 11 Exhaust Group 12 Fenders and Sheet Metal Group 13 Frame Group 14 Fuel Group 15 Hood Group 16 Prop. Shaft & Univ. Jt. Group 17 Springs Group 18 Standard Parts Mo PAR PASSENGER CAR PARTS LIST M' SERIES 1959 PLYMOUTH DODGE DESOTO CHRYSLER IMPERIAL 19-1 oroup iy Steering 21-1 Group 21 Transmission 22-1 Group 22 Wheels 23-1 Group 23 Body 24-1 Air Conditioning 25-1 Air Suspension AL-1 Alphabetical Index NU-1 Numerical Index SEPTEMBER 1958 CHRYSLER CORPORATION SERVICE PARTS & ACCESSORIES SUPPLY DIVISION DETROIT 31, MICHIGAN Printed in U.S.A. n I JL o o o MyMopar.com

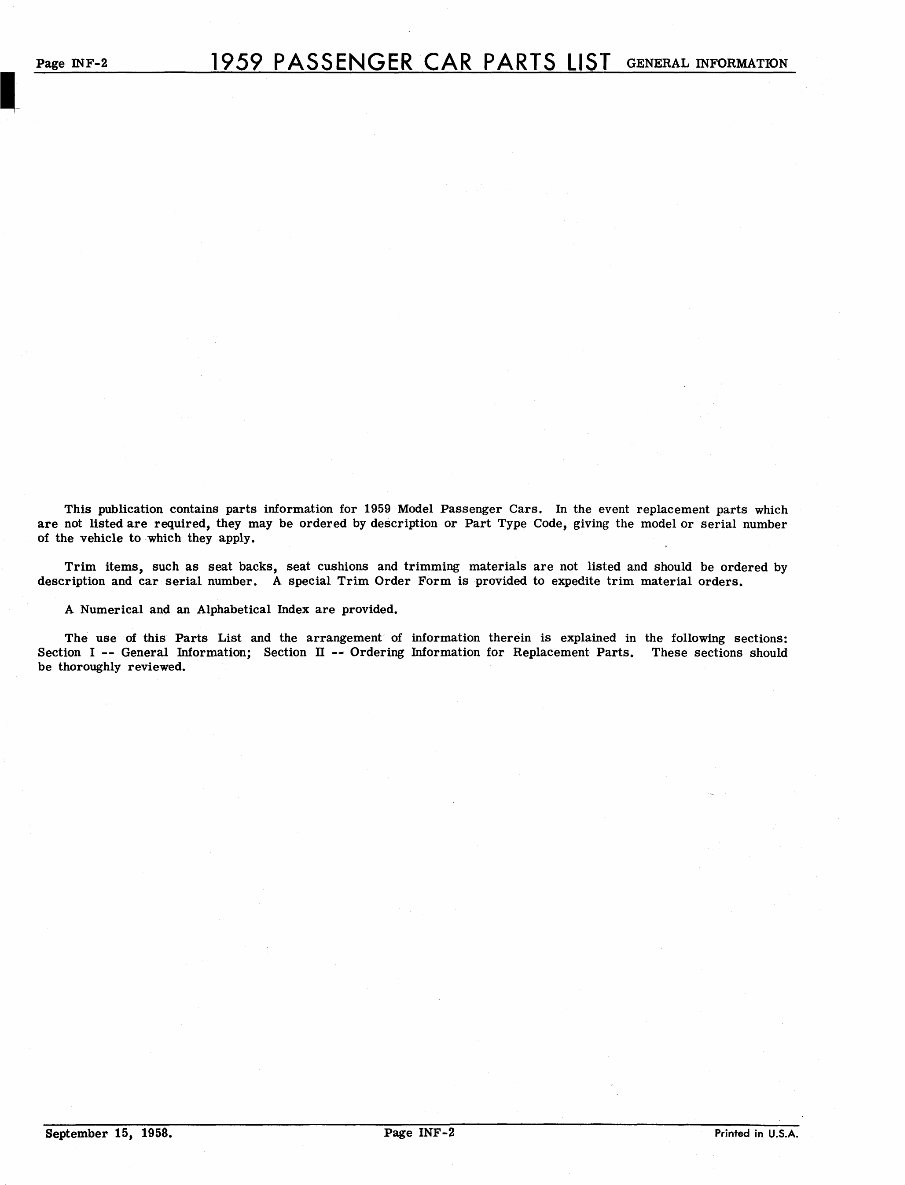

I PageINF-2 1959 PASSENGER CAR PARTS LIST GENERAL INFORMATION This publication contains parts information for 1959 Model Passenger Cars. In the event replacement parts which are not listed are required, they may be ordered by description or Part Type Code, giving the model or serial number of the vehicle to which they apply. Trim items, such as seat backs, seat cushions and trimming materials are not listed and should be ordered by description and car serial number. A special Trim Order Form is provided to expedite trim material orders. A Numerical and an Alphabetical Index are provided. The use of this Parts List and the arrangement of information therein is explained in the following sections: Section I — General Information; Section II — Ordering Information for Replacement Parts. These sections should be thoroughly reviewed. September 15, 1958. Page INF-2 Printed in U.S.A. MyMopar.com

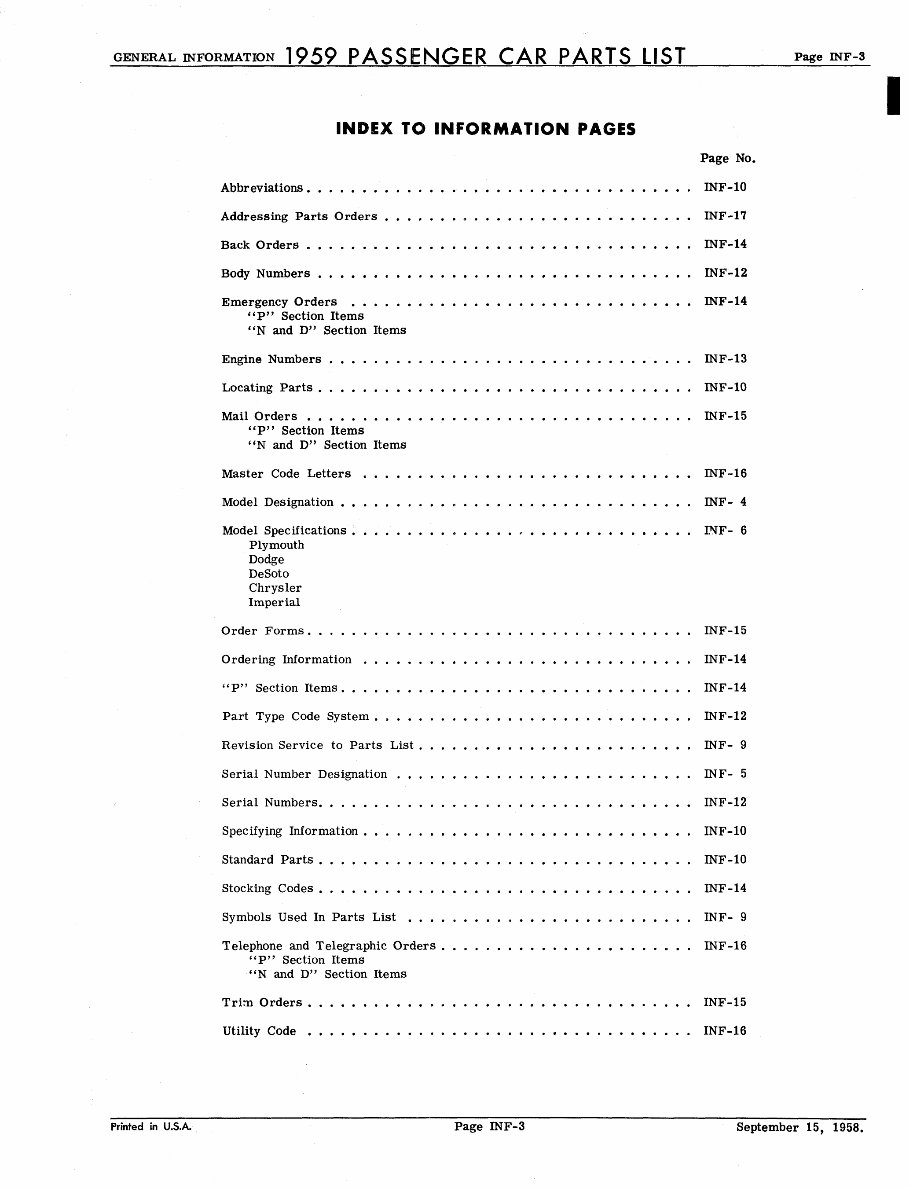

GENERAL INFORMATION 1959 PASSENGER CAR PARTS LIST Page INF-3 INDEX TO INFORMATION PAGES Page No. Abbreviations INF-10 Addressing Parts Orders INF-17 Back Orders INF-14 Body Numbers INF-12 Emergency Orders INF-14 "P" Section Items "N and D" Section Items Engine Numbers INF-13 Locating Parts INF-10 Mail Orders INF-15 "P" Section Items "N and D" Section Items Master Code Letters INF-16 Model Designation INF- 4 Model Specifications INF- 6 Plymouth Dodge DeSoto Chrysler Imperial Order Forms INF-15 Ordering Information INF-14 "P" Section Items INF-14 Part Type Code System INF-12 Revision Service to Parts List INF- 9 Serial Number Designation INF- 5 Serial Numbers INF-12 Specifying Information INF-10 Standard Parts INF-10 Stocking Codes INF-14 Symbols Used In Parts List INF- 9 Telephone and Telegraphic Orders INF-16 "P" Section Items "N and D" Section Items Trim Orders INF-15 Utility Code INF-16 Printed in U.S.A. Page INF-3 September 15, 1958. MyMopar.com

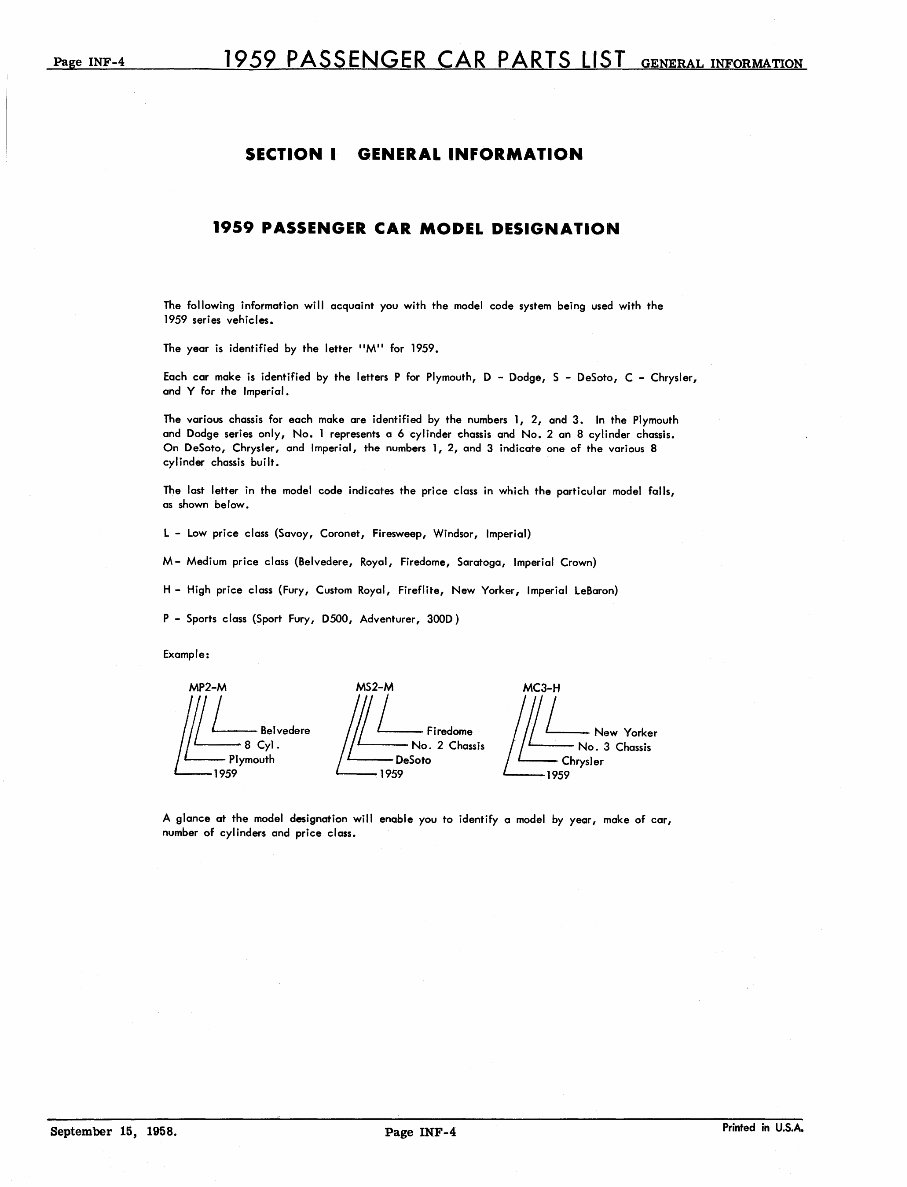

Page INF-4 1959 PASSENGER CAR PARTS LIST GENERAL INFORMATION SECTION I GENERAL INFORMATION 1959 PASSENGER CAR MODEL DESIGNATION The following information will acquaint you with the model code system being used with the 1959 series vehicles. The year is identified by the letter " M " for 1959. Each car make is identified by the letters P for Plymouth, D - Dodge, S - DeSoto, C - Chrysler, and Y for the Imperial. The various chassis for each make are identified by the numbers 1, 2, and 3. In the Plymouth and Dodge series only, No. 1 represents a 6 cylinder chassis and No. 2 an 8 cylinder chassis. On DeSoto, Chrysler, and Imperial, the numbers 1, 2, and 3 indicate one of the various 8 cylinder chassis built. The last letter in the model code indicates the price class in which the particular model falls, as shown below. L - Low price class (Savoy, Coronet, Firesweep, Windsor, Imperial) M - Medium price class (Belvedere, Royal, Firedome, Saratoga, Imperial Crown) H - High price class (Fury, Custom Royal, Fireflite, New Yorker, Imperial LeBaron) P - Sports class (Sport Fury, D500, Adventurer, 300D) MC3-H III -Firedome / / / L New Yorker // / No. 2 Chassis / / L No. : / L DeSoto / t Chrysler L ^1959 L 1959 A glance at the model designation will enable you to identify a model by year, make of car, number of cylinders and price class. September 15, 1958. Page INF-4 PrFnted in USA * MyMopar.com

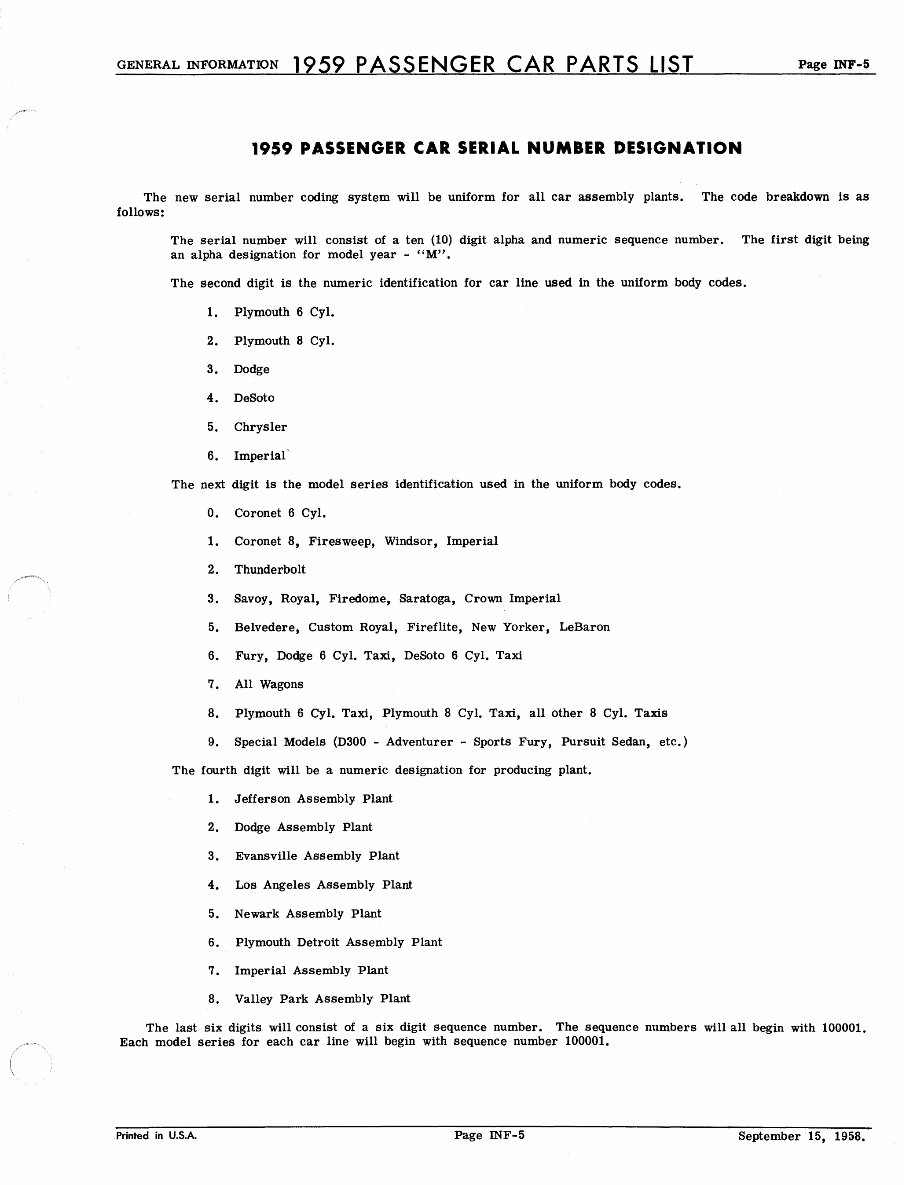

GENERAL INFORMATION 1959 PASSENGER CAR PARTS LIST Page INF-5 1959 PASSENGER CAR SERIAL NUMBER DESIGNATION The new serial number coding system will be uniform for all car assembly plants. The code breakdown is as follows: The serial number will consist of a ten (10) digit alpha and numeric sequence number. The first digit being an alpha designation for model year - "M". The second digit is the numeric identification for car line used in the uniform body codes. 1. Plymouth 6 Cyl. 2. Plymouth 8 Cyl. 3. Dodge 4. DeSoto 5. Chrysler 6. Imperial The next digit is the model series identification used in the uniform body codes. 0. Coronet 6 Cyl. 1. Coronet 8, Fires weep, Windsor, Imperial 2. Thunderbolt 3. Savoy, Royal, Firedome, Saratoga, Crown Imperial 5. Belvedere, Custom Royal, Fireflite, New Yorker, LeBaron 6. Fury, Dodge 6 Cyl. Taxi, DeSoto 6 Cyl. Taxi 7. All Wagons 8. Plymouth 6 Cyl. Taxi, Plymouth 8 Cyl. Taxi, all other 8 Cyl. Taxis 9. Special Models (D300 - Adventurer - Sports Fury, Pursuit Sedan, etc.) The fourth digit will be a numeric designation for producing plant. 1. Jefferson Assembly Plant 2. Dodge Assembly Plant 3. Evansville Assembly Plant 4. Los Angeles Assembly Plant 5. Newark Assembly Plant 6. Plymouth Detroit Assembly Plant 7. Imperial Assembly Plant 8. Valley Park Assembly Plant The last six digits will consist of a six digit sequence number. The sequence numbers will all begin with 100001. Each model series for each car line will begin with sequence number 100001. Printed in U.S.A. Page INF-5 September 15, 1958. MyMopar.com

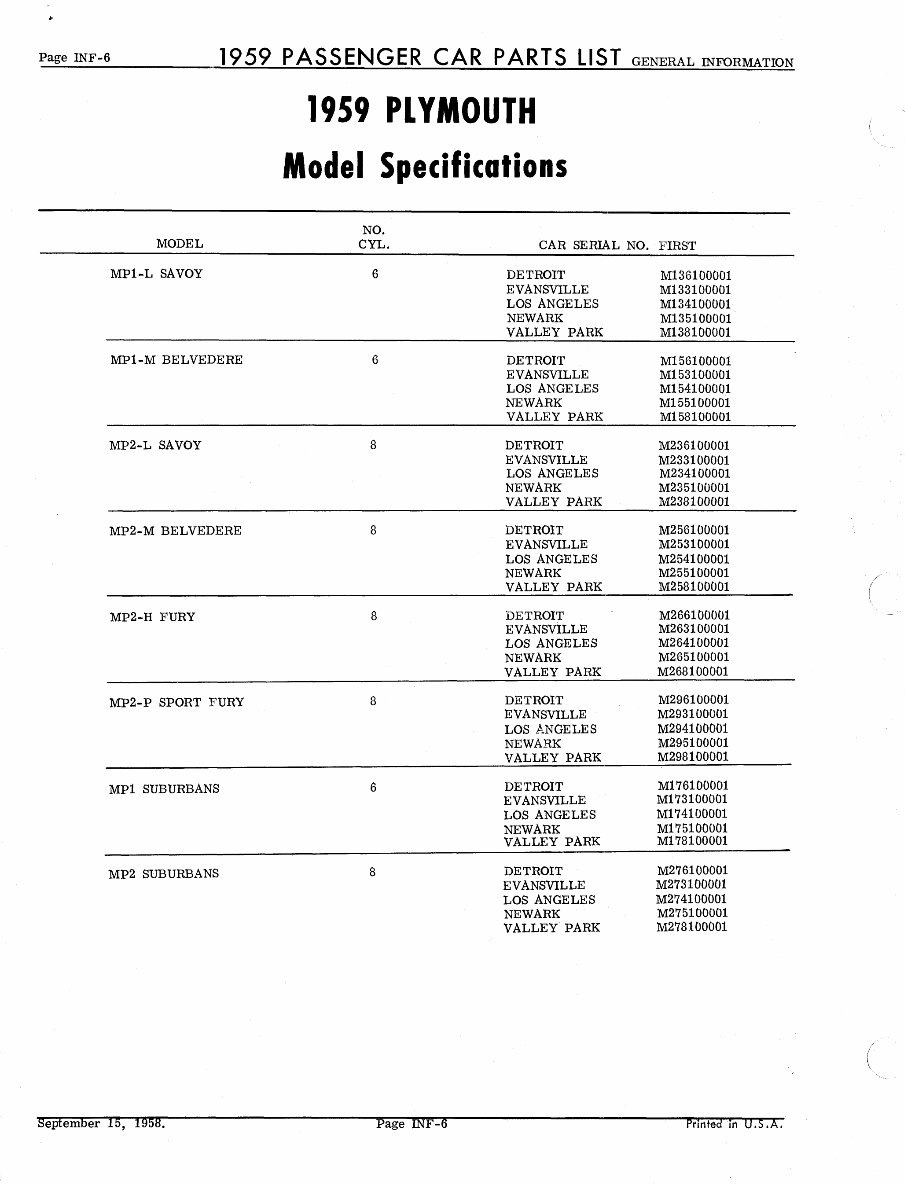

Page INF-6 1959 PASSENGER CAR PARTS LIST GENERAL INFORMATION 1959 PLYMOUTH Model Specifications MODEL NO. CYL. CAR SERIAL NO. FIRST M P l - L SAVOY DETROIT EVANSVILLE LOS ANGELES NEWARK VALLEY PARK M136100001 M133100001 M134100001 M135100001 M138100001 MP1-M BELVEDERE DETROIT EVANSVILLE LOS ANGELES NEWARK VALLEY PARK Ml56100001 Ml53100001 Ml 54100001 M155100001 Ml 58100001 MP2-L SAVOY DETROIT EVANSVILLE LOS ANGELES NEWARK VALLEY PARK M236100001 M233100001 M234100001 M235100001 M238100001 MP2-M BELVEDERE DETROIT EVANSVILLE LOS ANGELES NEWARK VALLEY PARK M256100001 M253100001 M254100001 M255100001 M258100001 MP2-H FURY DETROIT EVANSVILLE LOS ANGELES NEWARK VALLEY PARK M266100001 M263100001 M264100001 M265100001 M268100001 MP2-P SPORT FURY DETROIT EVANSVILLE LOS ANGELES NEWARK VALLEY PARK M296100001 M293100001 M294100001 M295100001 M298100001 MPl SUBURBANS DETROIT EVANSVILLE LOS ANGELES NEWARK VALLEY PARK M176100001 M173100001 M174100001 M175100001 Ml 78100001 MP2 SUBURBANS DETROIT EVANSVILLE LOS ANGELES NEWARK VALLEY PARK M276100001 M273100001 M274100001 M275100001 M278100001 September lo, I9b». Page INF-6 Printed in U.S.A. MyMopar.com

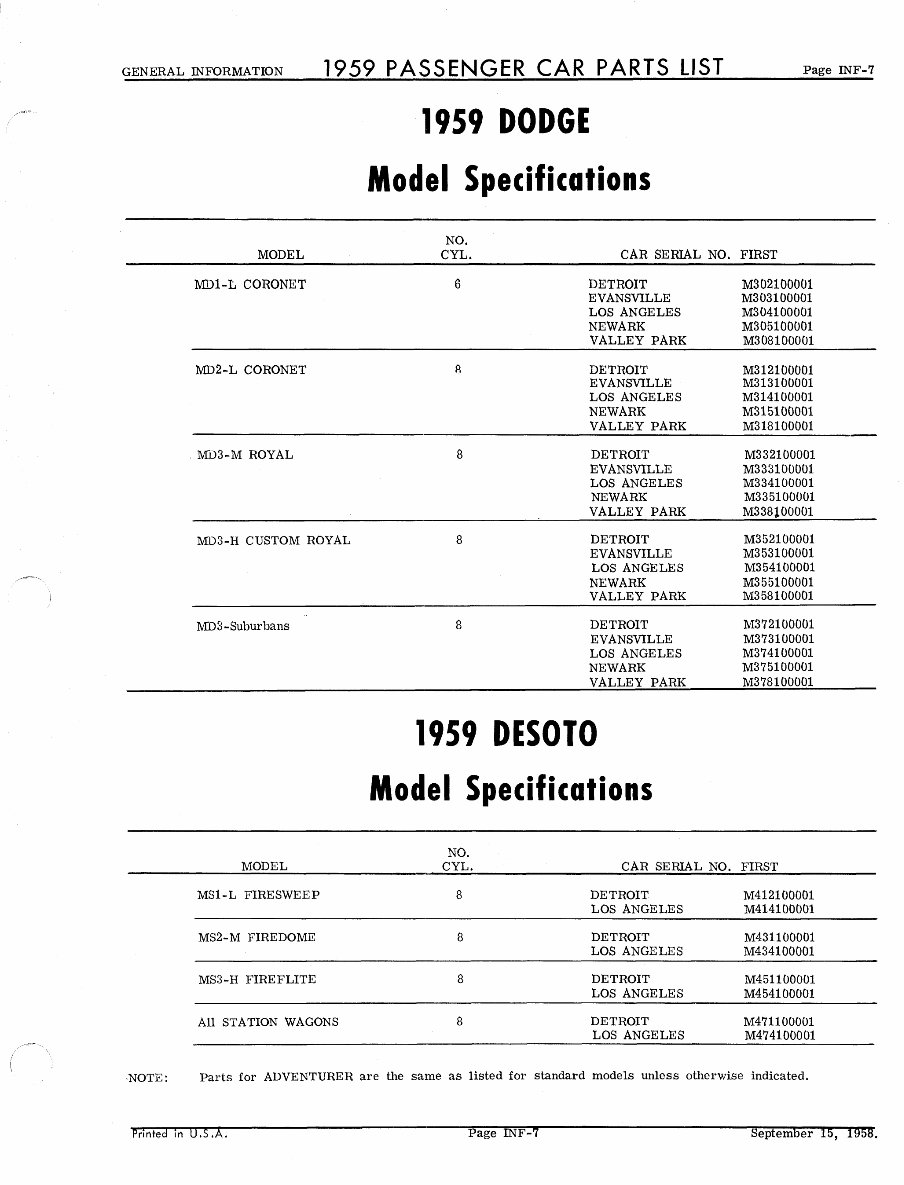

GENERAL 1959 PASSENGER CAR PARTS LIST Page INF-7 1959 DODGE Model Specifications MODEL NO. CYL. CAR SERIAL NO. FIRST MD1-L CORONET DETROIT EVANSVILLE LOS ANGELES NEWARK VALLEY PARK M302100001 M303100001 M304100001 M305100001 M308100001 MD2-L CORONET DETROIT EVANSVILLE LOS ANGELES NEWARK VALLEY PARK M312100001 M313100001 M314100001 M315100001 M318100001 MD3-M ROYAL DETROIT EVANSVILLE LOS ANGELES NEWARK VALLEY PARK M332100001 M333100001 M334100001 M335100001 M338J00001 MD3-H CUSTOM ROYAL DETROIT EVANSVILLE LOS ANGELES NEWARK VALLEY PARK M352100001 M353100001 M354100001 M355100001 M3 58100001 MD 3-Suburbans DETROIT EVANSVILLE LOS ANGELES NEWARK VALLEY PARK M372100001 M373100001 M374100001 M375100001 M378100001 1959 DESOTO Model Specifications MODEL MS1-L FIRESWEEP MS2-M FIREDOME MS3-H FIREFLITE All STATION WAGONS NO. CYL. 8 8 8 8 CAR SERIAL NO. DETROIT LOS ANGELES DETROIT LOS ANGELES DETROIT LOS ANGELES DETROIT LOS ANGELES FIRST M412100001 M414100001 M431100001 M434100001 M451100001 M454100001 M471100001 M474100001 ^NOTE: Parts for ADVENTURER are the same as listed for standard models unless otherwise indicated. Printed in U.S.A. Page INF-7 September 15, 1958. MyMopar.com

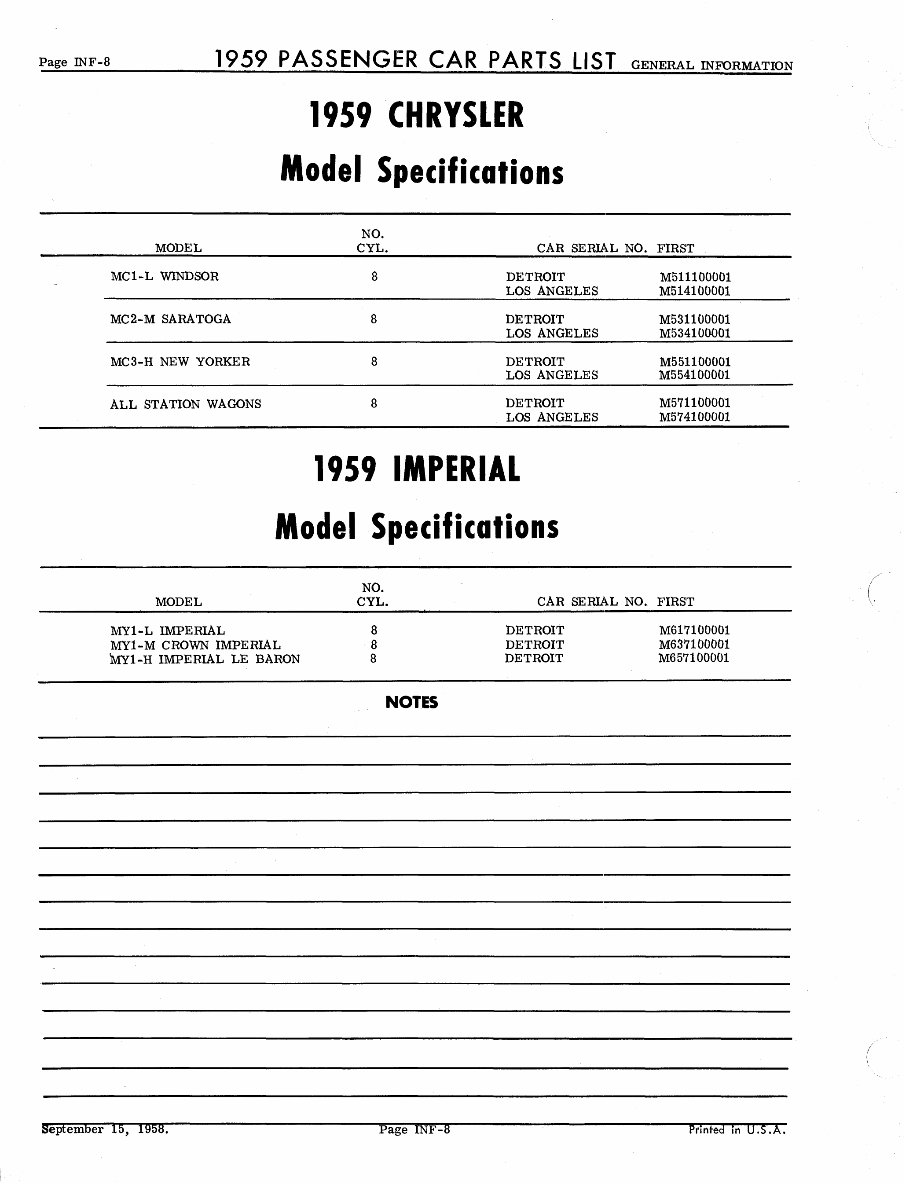

Page INF-8 1959 PASSENGER CAR PARTS LIST GENERAL INFORMATION 1959 CHRYSLER Model Specifications MODEL MC1-L WINDSOR MC2-M SARATOGA MC3-H NEW YORKER ALL STATION WAGONS NO. CYL. 8 8 8 8 CAR SERIAL NO. DETROIT LOS ANGELES DETROIT LOS ANGELES DETROIT LOS ANGELES DETROIT LOS ANGELES FIRST M511100001 M514100001 M531100001 M534100001 M551100001 M554100001 M571100001 M574100001 1959 IMPERIAL Model Specifications MODEL NO. CYL. CAR SERIAL NO. FIRST MY1-L IMPERIAL MY1-M CROWN IMPERIAL MY1-H IMPERIAL LE BARON DETROIT DETROIT DETROIT M617100001 MQ31100001 M657100001 NOTES September 15, 195b. Page INF-8 Printed in U.S.A. MyMopar.com

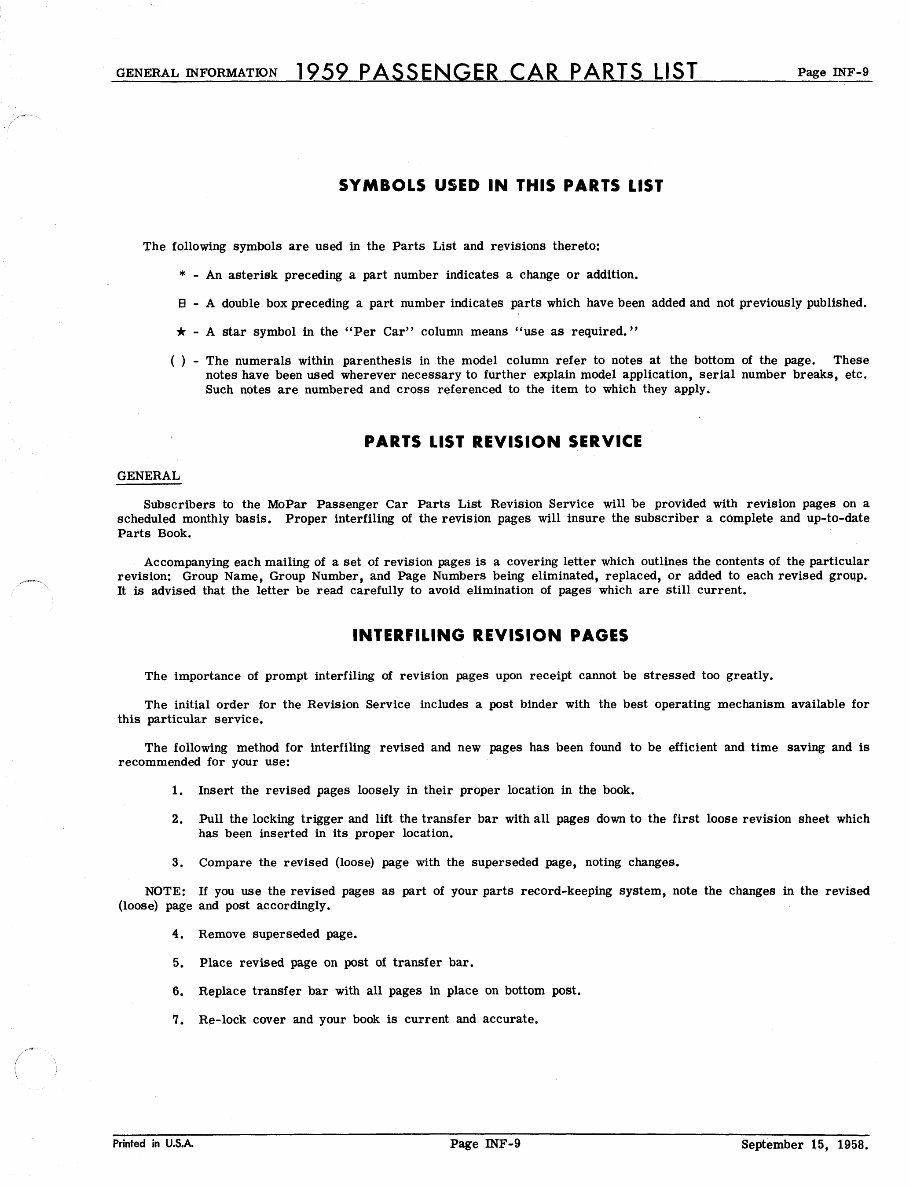

GENERAL INFORMATION 1959 PASSENGER CAR PARTS LIST Page MF-9 SYMBOLS USED IN THIS PARTS LIST The following symbols are used in the Parts List and revisions thereto: * - An asterisk preceding a part number indicates a change or addition. B - A double box preceding a part number indicates parts which have been added and not previously published. * - A star symbol in the "Per Car" column means "use as required." ( ) - The numerals within parenthesis in the model column refer to notes at the bottom of the page. These notes have been used wherever necessary to further explain model application, serial number breaks, etc. Such notes are numbered and cross referenced to the item to which they apply. PARTS LIST REVISION SERVICE GENERAL Subscribers to the MoPar Passenger Car Parts List Revision Service will be provided with revision pages on a scheduled monthly basis. Proper interfiling of the revision pages will insure the subscriber a complete and up-to-date Parts Book. Accompanying each mailing of a set of revision pages is a covering letter which outlines the contents of the particular revision: Group Name, Group Number, and Page Numbers being eliminated, replaced, or added to each revised group. It is advised that the letter be read carefully to avoid elimination of pages which are still current. INTERFILING REVISION PAGES The importance of prompt interfiling of revision pages upon receipt cannot be stressed too greatly. The initial order for the Revision Service includes a post binder with the best operating mechanism available for this particular service. The following method for interfiling revised and new pages has been found to be efficient and time saving and is recommended for your use: 1. Insert the revised pages loosely in their proper location in the book. 2. Pull the locking trigger and lift the transfer bar with all pages down to the first loose revision sheet which has been inserted in its proper location. 3. Compare the revised (loose) page with the superseded page, noting changes. NOTE: If you use the revised pages as part of your parts record-keeping system, note the changes in the revised (loose) page and post accordingly. 4. Remove superseded page. 5. Place revised page on post of transfer bar. 6. Replace transfer bar with all pages in place on bottom post. 7. Re-lock cover and your book is current and accurate. Printed in U.SA Page INF-9 September 15, 1958. MyMopar.com

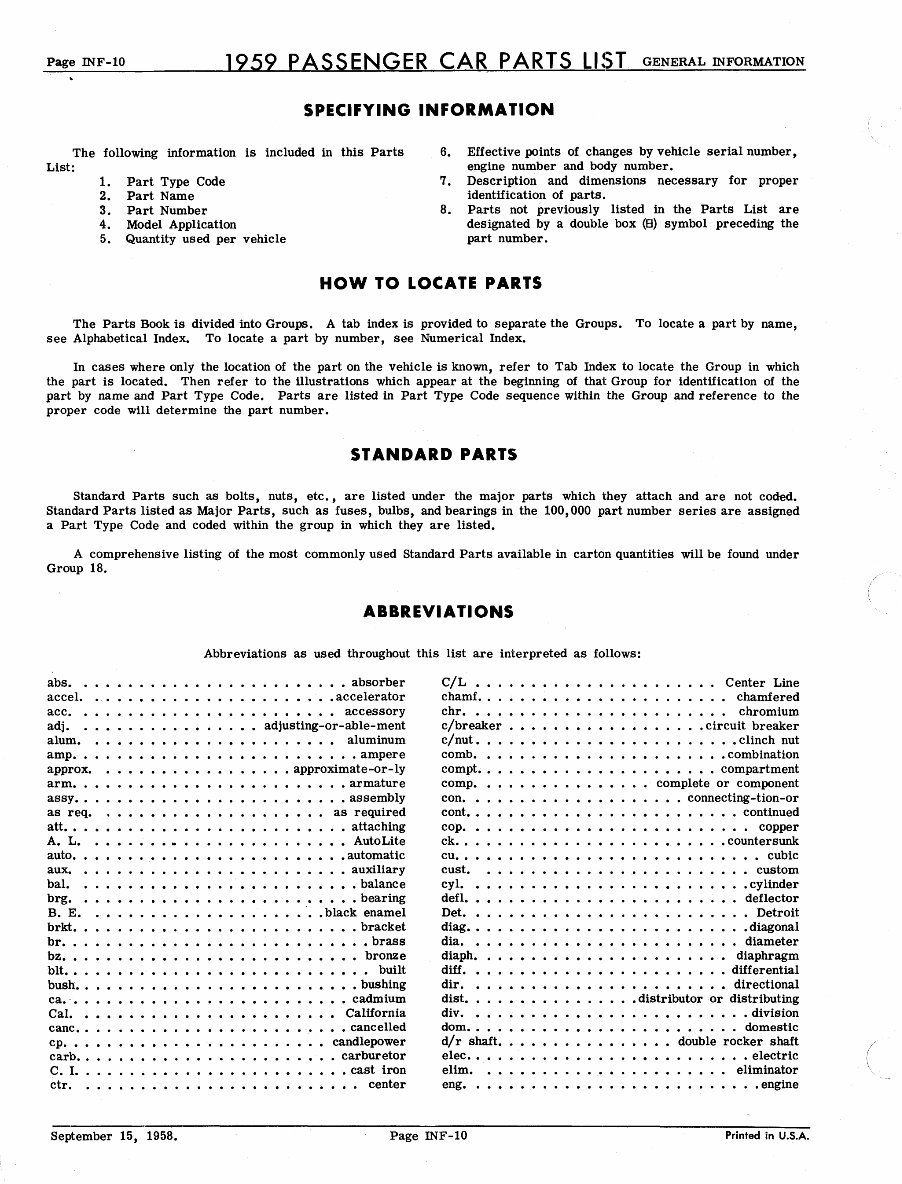

Page INF-10 1959 PASSENGER CAR PARTS LIST GENERAL INFORMATION SPECIFYING INFORMATION The following information is included in this Parts List: 1. Part Type Code 2. Part Name 3. Part Number 4. Model Application 5. Quantity used per vehicle Effective points of changes by vehicle serial number, engine number and body number. Description and dimensions necessary for proper identification of parts. Parts not previously listed in the Parts List are designated by a double box (B) symbol preceding the part number. HOW TO LOCATE PARTS The Parts Book is divided into Groups. A tab index is provided to separate the Groups, see Alphabetical Index. To locate a part by number, see Numerical Index. To locate a part by name, In cases where only the location of the part on the vehicle is known, refer to Tab Index to locate the Group in which the part is located. Then refer to the illustrations which appear at the beginning of that Group for identification of the part by name and Part Type Code. Parts are listed in Part Type Code sequence within the Group and reference to the proper code will determine the part number. STANDARD PARTS Standard Parts such as bolts, nuts, etc., are listed under the major parts which they attach and are not coded. Standard Parts listed as Major Parts, such as fuses, bulbs, and bearings in the 100,000 part number series are assigned a Part Type Code and coded within the group in which they are listed. A comprehensive listing of the most commonly used Standard Parts available in carton quantities will be found under Group 18. ABBREVIATIONS Abbreviations as used throughout this list are interpreted as follows: abs absorber accel. accelerator ace accessory adj adjusting-or-able-ment alum aluminum amp ampere approx approximate-or-ly arm armature assy assembly as req. as required att attaching A. L AutoLite auto automatic aux auxiliary bal balance brg bearing B. E. . .black enamel brkt. . bracket br brass bz bronze bit built bush bushing ca. cadmium Cal California cane cancelled cp candlepower carb carburetor C. I cast iron ctr center C/L Center Line chamf chamfered chr chromium c/breaker circuit breaker c/nut. . . clinch nut comb combination compt. compartment comp complete or component con connecting-tion-or cont continued cop copper ck countersunk cu. cubic cust. custom cyl cylinder defl deflector Det Detroit diag diagonal dia diameter diaph diaphragm diff differential dir directional dist distributor or distributing div. division dom domestic d/r shaft . double rocker shaft elec electric elim eliminator eng engine September 15, 1958. Page INF-10 Printed in U.S.A. MyMopar.com
