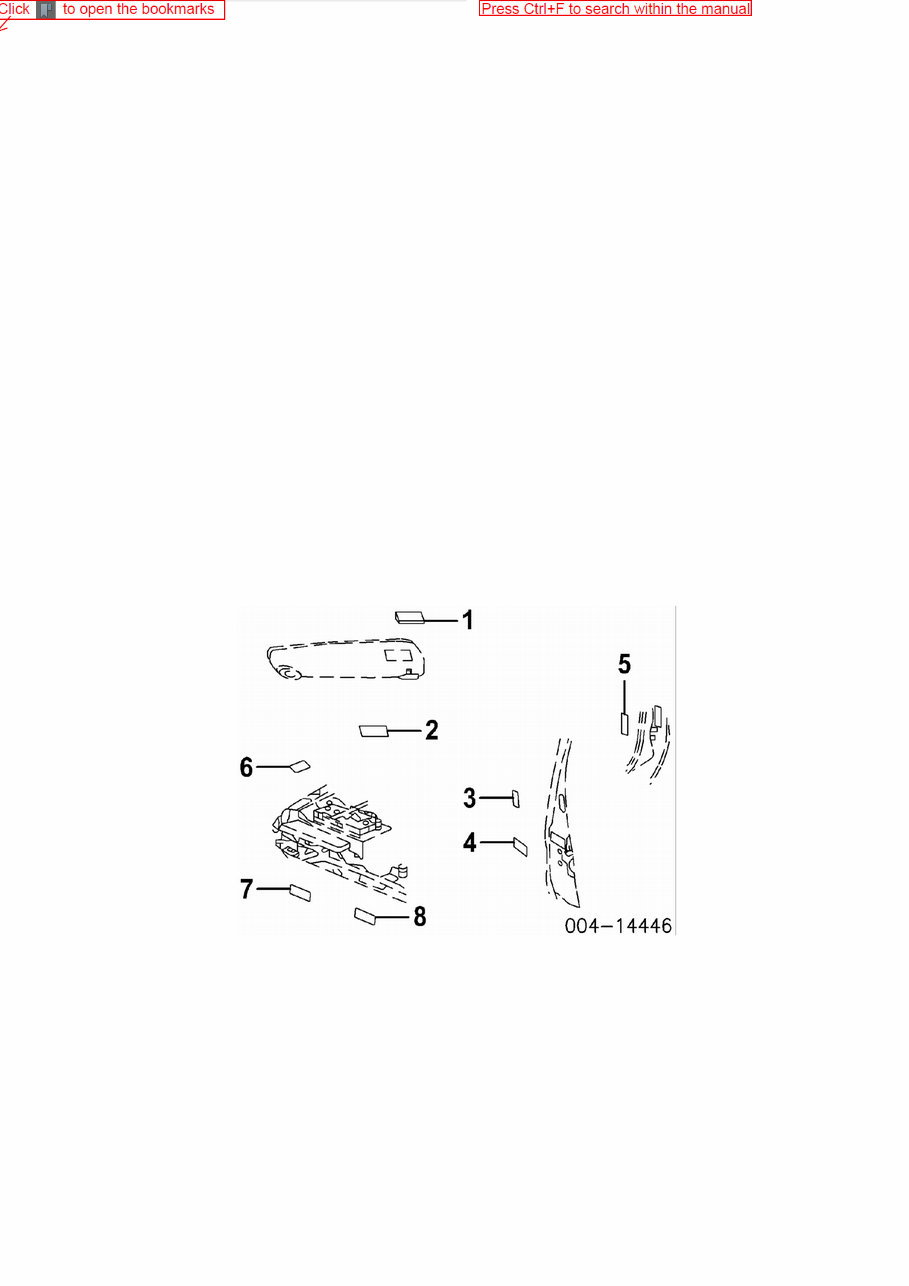

SPECIAL CAUTIONS SUSPENSION Manufacturer advises that some new fasteners must be used whenever old fasteners are loosened or removed. AIR BAGS Refer to Procedure Explanation 29 for Supplemental Restraint/Air Bag Special Cautions. PAINT CODE LOCATION Paint code located on left front door jamb. CLEAR COAT IDENTIFICATION All colors are clear coat. Arctic Tricoat (Codes KWH & PWH) are three stage. INFORMATION LABELS 1 Label, Air Bag Warning R 4680610AA $5.00 L 4680610AA $5.00 2 Label, Battery 4606799AA $5.60 3 Label, Child Protection R 5056072AA $3.20 L 5056072AA $3.20 4 Label, Lifting Instruction 5256594AB $4.45 5 Label, Mercury Disposal 5020527AC $2.45 6 Label, Emission 2.4L Eng 09-10 4578511AA $0.90 11 68085121AA $9.75 12 52014668AA $6.00 13-14 4722040AA $5.00 3.5L Eng 09-10 4578513AA $0.90 2009-2014 Dodge Journey Page 1 of 161

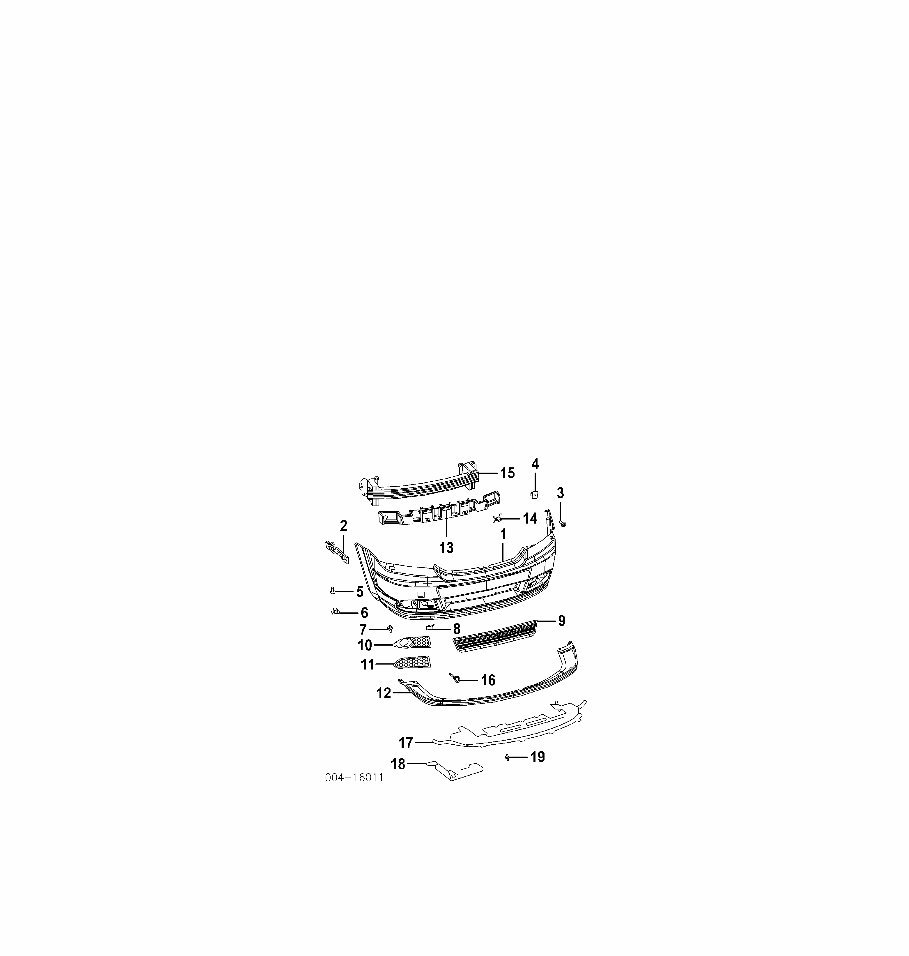

3.6L Eng 11 68085122AA $2.60 12 52014646AA $6.00 13-14 4722047AA $5.00 7 Label, A/C Caution 09 5028873AA $3.10 10-12 5058594AA $19.00 13-14 68160964AA $4.45 8 Label, Belt Routing 5058112AD $4.65 Label, Spare Tire Caution 09-10 4472491AC $8.70 11-14 5273515AB $8.70 Label, Fuel Caution w/Flex Fuel 68041679AB $1.00 w/o Flex Fuel 68141114AA $1.35 Order by Application Label, Tire Pressure 5056245AB $6.70 FRONT BUMPER Use Procedure Explanations 1 and 28 with the following text. W/FASCIA W/FASCIA TYPE 1 2014 Refinish Upper Fascia 2.8 Refinish Tow Hook Cover .3 R&I Bumper Cover Assy 1.5 O/H Bumper Cover Assy (Includes R&I) #3.0 #Includes R&I/R&R Grille Add to R&R or O/H Bumper Cover Assy w/Fog Lamps .3 w/Headlamp Washer .4 NOTE: All Parts in this section are included in overhaul unless noted otherwise. 1 Fascia, Upper (P) 5QZ97TZZAA $279.00 #3.0 (P) Paint to Match Page 2 of 161

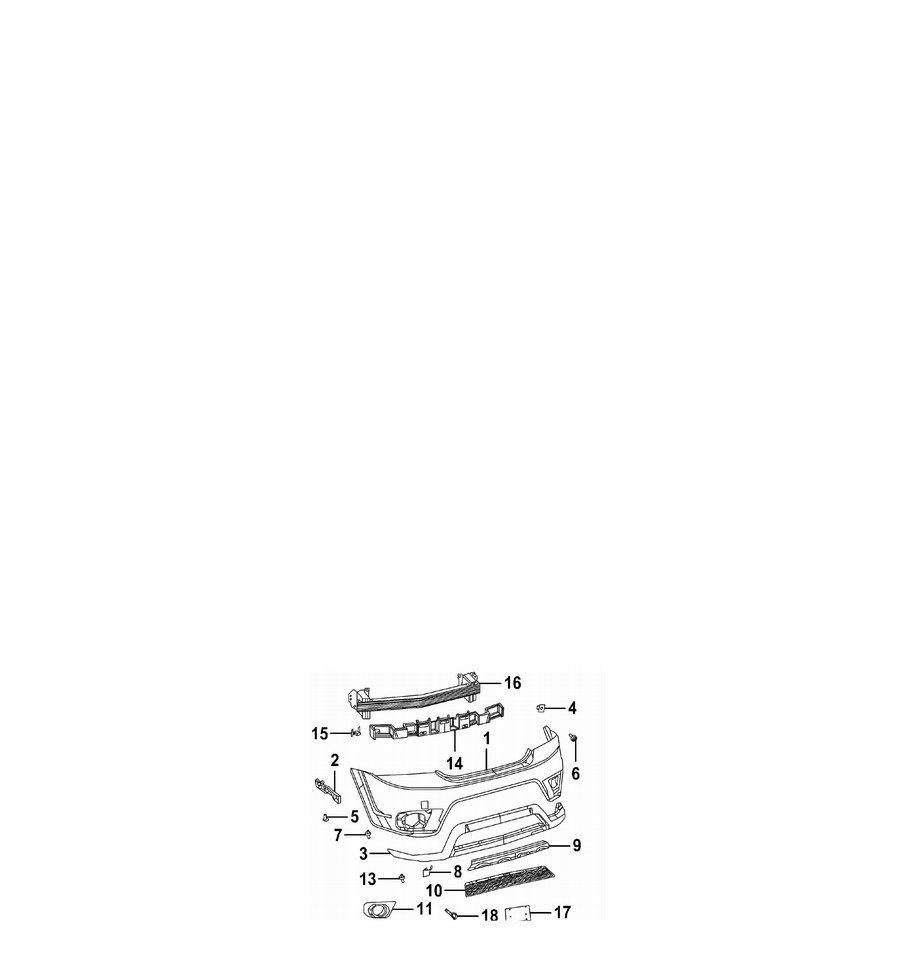

#Includes R&I/R&R Grille 2 Bracket, Upper R 5178410AD $3.85 #.1 L 5178411AD $5.95 #.1 #w/Bumper Cover Assy Removed, Not Included in O/H, Included in R&R Fender 3 Fascia, Lower 68223777AA $121.00 #1.2 #w/Bumper Cover Assy Removed 4 Grommet (a) 6035401 $3.20 5 Clip, Attaching (a) 6504521 $4.70 (a) As Required 6 Cover, Tow Hook (P) L 5RA07TZZAA $15.35 .1 (P) Paint to Match 7 Trim, Center 68223776AA $309.00 #.4 Applique 8 Upper N.A. #.2 9 Lower 68225714AA $124.00 #.3 10 Grille, Bumper 55000808AB $63.50 #.3 #w/Bumper Cover Assy Removed, Included in R&R Lower Fascia 11 Bezel, Fog Lamp R 68223778AA $64.35 .2 L 68223779AA $64.35 .2 12 Absorber, Impact 68225704AA $62.00 IOH 13 Clip, Attaching (a) 5303389AA $2.85 (a) As Required 14 Reinforcement, Bumper 5116280AD $322.00 #.4 #w/Bumper Cover Assy Removed, Not Included in O/H 15 Screw, Reinf (a) 6508496AA $1.60 (a) As Required 16 Hook, Tow-See Wheel Section Panel, Closeout 17 1 Piece 68087244AA $57.85 .4 18 2 Piece R 5116282AB $17.00 .2 L 5116283AB $16.10 .2 19 Screw, Mounting (a) 6505628AA $3.60 (a) As Required Sensor, Ambient Temp 5149264AB $16.50 #.2 #Not Included in O/H W/FASCIA W/FASCIA TYPE 2 2011-14 Page 3 of 161

Refinish Upper Fascia 2.8 Refinish Tow Hook Cover .3 Refinish Bumper Applique .8 R&I Bumper Cover Assy 1.5 O/H Bumper Cover Assy (Includes R&I) #3.0 #Includes R&I/R&R Grille Add to R&R or O/H Bumper Cover Assy w/Fog Lamps .3 w/Headlamp Washer .4 NOTE: All Parts in this section are included in overhaul unless noted otherwise. 1 Fascia, Upper (P) w/Fog Lamps w/Headlamp Washer 11 1TX82TZZAC $240.00 #3.0 w/o Headlamp Washer 1TX73TZZAC $240.00 #3.0 w/o Fog Lamps 1SW02TZZAB $280.00 #3.0 (P) Paint to Match #Includes R&I/R&R Grille 2 Bracket, Cover R 5178410AD $3.85 #.1 L 5178411AD $5.95 #.1 #w/Bumper Cover Assy Removed, Not Included in O/H, Included in R&R Fender 3 Fascia, Lower 68088688AA $117.00 #.4 #w/Bumper Cover Assy Removed 4 Clip, Lower (a) 6508746AA $5.50 (a) As Required 5 Screw, Cover (2/Side) R 6505628AA $3.60 L 6505628AA $3.60 6 Grommet, Cover (2/Side) R 6035401 $3.20 L 6035401 $3.20 7 Screw, Mounting (a) R 6506161AA $4.45 L 6506161AA $4.45 (a) As Required 8 Cover, Tow Hook (P) R 1TX87TZZAA $17.95 .1 (P) Paint to Match 9 Applique FWD 55001049AA $64.25 #.3 AWD (P) 1TY33TZZAA $99.25 #.3 Order by Application (P) Paint to Match 10 Grille, Center Cover w/Fog Lamps 55000808AB $63.50 #.3 w/o Fog Lamps 68079839AB $52.00 #.3 #R&R Complete, w/Bumper Cover Assy Removed, Included in R&R Lower Fascia 11 Bezel, Fog Lamp Type 1 R 68079850AA $15.45 .2 L 68079851AA $20.45 .2 Type 2 R 68088686AA $13.60 .2 L 68088687AA $13.60 .2 Page 4 of 161

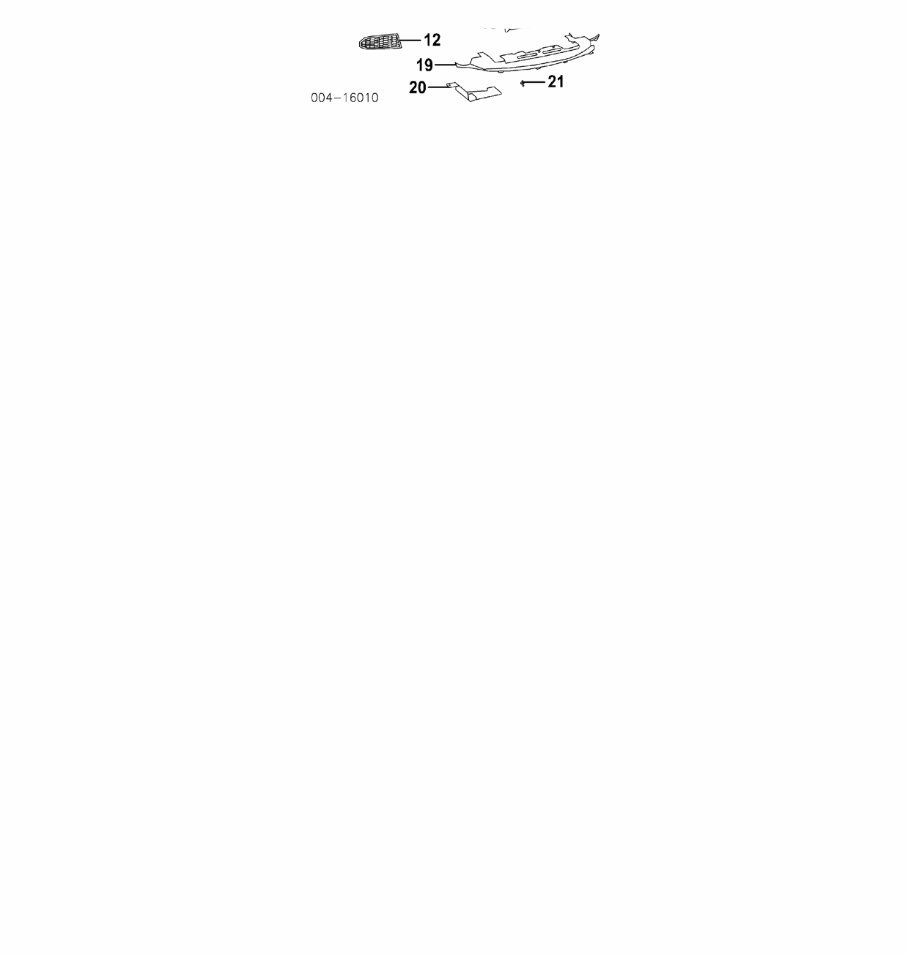

Order by Application 12 Grille, Outer Cover R 68079852AA $20.10 .2 L 68079853AA $20.25 .2 13 Clip, Mounting (6) 6504521 $4.70 14 Absorber, Energy w/Fog Lamps 68088684AA $49.25 IOH w/o Fog Lamps 68079840AB $34.20 IOH 15 Clip, Absorber R 5303389AA $2.85 L 5303389AA $2.85 16 Reinf, Bumper 5116280AD $322.00 #.4 #w/Bumper Cover Assy Removed, Not Included in O/H Pad, Inner (2) 5109628AA $2.85 17 Bracket, License Plate Code MCX 5288487AB $66.35 .2 Code MCZ 68140112AB $23.45 .2 18 Hook, Tow-See Wheel Section Panel, Closeout 19 1 Piece 68068301AB $84.70 .4 20 2 Piece R 5116282AB $17.00 .2 L 5116283AB $16.10 .2 21 Screw, Mounting (a) 6505628AA $3.60 (a) As Required Sensor, Ambient Temp 5149264AB $16.50 #.2 #Not Included in O/H W/O FASCIA Refinish Bumper Cover 3.4 Refinish Tow Hook Cover .3 R&I Bumper Cover Assy 1.5 O/H Bumper Cover Assy (Includes R&I) #3.0 #Includes R&I/R&R Grille Add to R&R or O/H Bumper Cover Assy w/Fog Lamps .3 w/Headlamp Washer .4 Page 5 of 161
