2008 - 2010 Dodge Grand Caravan Parts LIST CATALOG

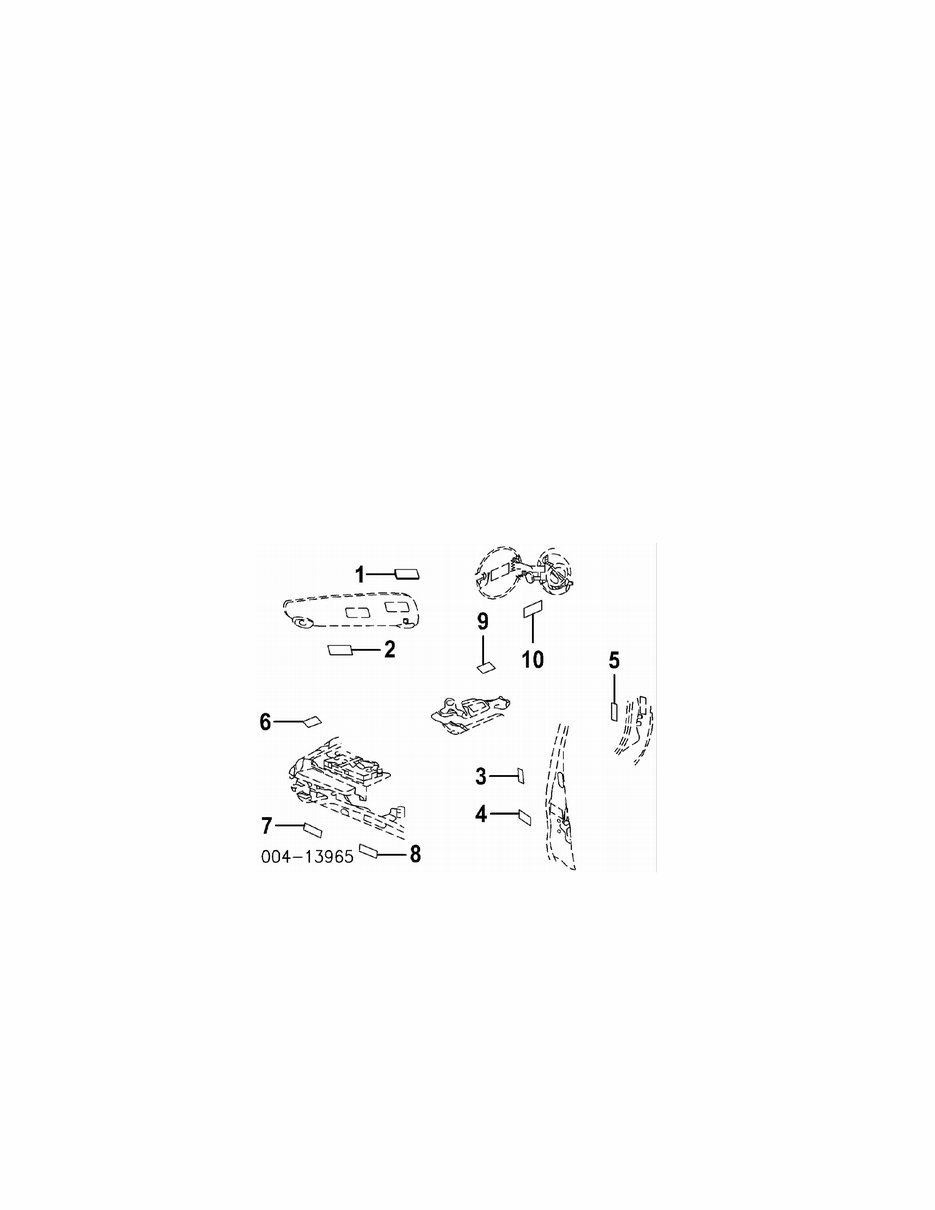

SPECIAL CAUTIONS AIR BAGS Refer to Procedure Explanation 29 for Supplemental Restraint/Air Bag Special Cautions. PAINT CODE LOCATION Paint code located driver door. CLEAR COAT IDENTIFICATION All colors are clear coat. INFORMATION LABELS Label, Air Bag Warning 1 No. 1 08 5108001AB $5.45 09-10 4680610AA $4.60 2 No. 2 R 5108000AA $1.80 L 5108000AA $1.80 Order by Application Label, Child Protection Lock 2008 R 4894097AB $4.00 L 4894097AB $4.00 2009 To 3-19-09 R 4894097AB $4.00 L 4894097AB $4.00 2008-2010 Dodge GrandCaravan , TOWN & COUNTRY Page 1 of 142

From 3-19-09 R 4589866AA $1.75 L 4589866AA $1.75 2010 R 4589866AA $1.75 L 4589866AA $1.75 3 Label, Mercury Disposal 08-09 5020533AA $5.00 10 5020533AC $5.00 4 Label, Tire Pressure 5056245AB $6.70 5 Label, Seat Belt 4680556AB $1.75 Label, Brake Fluid Info 4721892AA $3.10 6 Label, Emission 4877035AA $1.30 Order by Application Label, Belt Routing 4677621AB $4.00 7 Label, Battery 4606799AA $5.10 8 Label, A/C Refrigerant 5058519AA $4.00 9 Label, Jack & Tire Storage 52110392AB $4.45 Order by Application 10 Label, Unleaded Fuel Only N.A. FRONT BUMPER Use Procedure Explanations 1 and 28 with the following text. GRAND CARAVAN Refinish Front Cover 2.6 Refinish Headlamp Washer Cover R .2 L .2 R&I Front Cover 1.4 O/H Front Bumper Assy (Includes R&I) #2.5 Page 2 of 142

#Includes R&I/R&R Grille Assy Add to R&R Front Cover or O/H Front Bumper Assy w/Fog Lamps .3 w/Headlamp Washer .3 NOTE: All Parts in this section are included in overhaul unless noted otherwise. 1 Cover, Front (P) w/Fog Lamps 1AG02TZZAA $352.00 #2.5 w/o Fog Lamps 1AG01TZZAA $374.00 #2.5 (P) Paint to Match #Includes R&I/R&R Grille Assy Cover, Lower 2 w/Fog Lamps R 5113232AA $21.25 .2 L 5113233AA $21.25 .2 3 w/o Fog Lamps R 5113146AA $21.25 .2 L 5113147AA $21.25 .2 4 Retainer, Bumper R 5113222AA $7.35 #.2 L 5113223AA $7.35 #.2 #w/Front Cover Removed, Not Included in O/H 5 Dam, Air 08-09 5113133AA $48.60 .3 10 5113133AB $49.70 .3 6 Retainer, Air Dam (2/Side) R 6501916 $3.10 L 6501916 $3.10 7 Absorber, Impact 5113168AA $66.00 #.2 #w/Front Cover Removed, Not Included in O/H 8 Reinforcement, Bumper 5113162AA $217.00 #.5 #w/Front Cover Removed, Includes R&R Impact Absorber, Not Included in O/H 9 Sensor, Ambient 5149025AA $8.75 #.2 #Not Included in O/H TOWN & COUNTRY Page 3 of 142

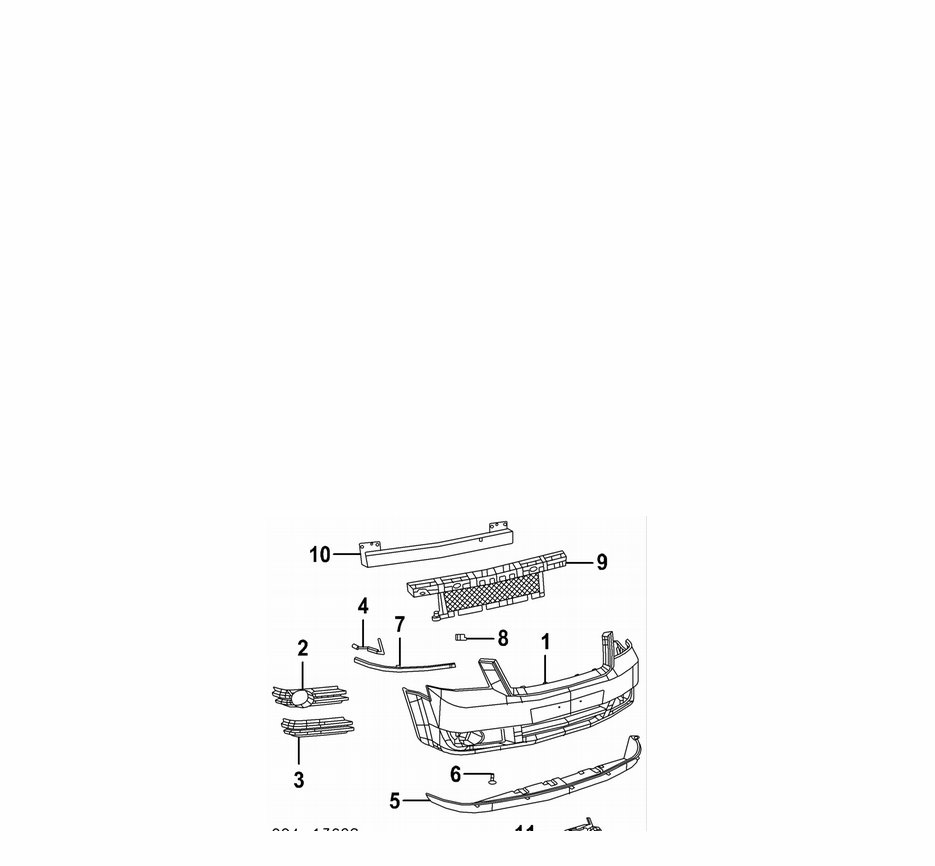

Refinish Front Cover 2.6 Refinish Headlamp Washer Cover R .2 L .2 R&I Front Cover 1.4 O/H Front Bumper Assy (Includes R&I) #2.5 #Includes R&I/R&R Grille Add to R&R Front Cover or O/H Front Bumper Assy w/Chrome Insert .4 w/Fog Lamps .3 w/Headlamp Washer .3 NOTE: All Parts in this section are included in overhaul unless noted otherwise. 1 Cover, Front (P) w/Chrome Insert w/Headlamp Washer 08-09 1KG12TZZAA $712.00 #2.5 10 1KG12TZZAB $749.00 #2.5 w/o Headlamp Washer 1KG09TZZAA $712.00 #2.5 w/o Chrome Insert w/Headlamp Washer 08-09 1KG11TZZAA $712.00 #2.5 10 1KG11TZZAB $712.00 #2.5 w/o Headlamp Washer 1BG23TZZAA $387.00 #2.5 (P) Paint to Match #Includes R&I/R&R Grille Cover, Lower 2 w/Fog Lamps R 5113234AA $21.25 .2 L 5113235AA $21.25 .2 3 w/o Fog Lamps R 5113220AA $21.25 .2 L 5113221AA $21.25 .2 4 Retainer, Bumper R 5113136AA $5.75 #.2 L 5113137AA $5.75 #.2 #w/Front Cover Removed, Not Included in O/H 5 Dam, Air 08-09 5113133AA $48.60 .3 10 5113133AB $49.70 .3 6 Retainer, Air Dam (2/Side) R 6501916 $3.10 L 6501916 $3.10 7 Insert, Chrome R 5113148AA $53.20 .2 L 5113149AA $53.20 .2 8 Cover, Headlamp Washer (P) R 1KF06TZZAA $31.85 .1 L 1KF07TZZAA $31.85 .1 (P) Paint to Match 9 Absorber, Impact 5113168AA $66.00 #.2 #w/Front Cover Removed, Not Included in O/H 10 Reinforcement, Bumper 5113162AA $217.00 #.5 #w/Front Cover Removed, Includes R&R Impact Absorber, Not Included in O/H 11 Sensor, Ambient 5149025AA $8.75 #.2 #Not Included in O/H Page 4 of 142

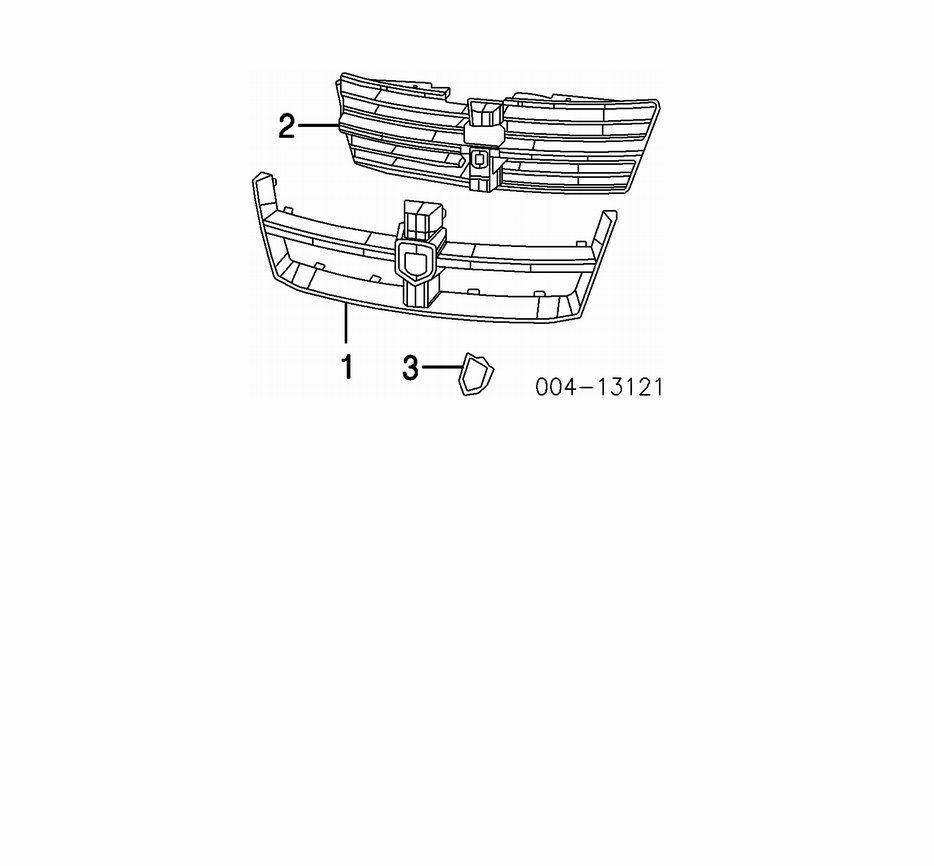

GRILLE GRAND CARAVAN R&I Grille Assy #1.9 #Includes R&I Front Cover Add to R&R Grille Assy w/Chrome Grille .2 1 Surround, Grille 5113151AA $156.00 #1.9 #Includes R&I Front Cover, Included in R&R Grille Assy, Included in R&R Front Cover or O/H Front Bumper Assy 2 Grille 5113126AA $46.85 #1.9 #Includes R&I Front Cover, Included in R&R Front Cover or O/H Front Bumper Assy 3 Medallion, Grille w/Chrome Grille 5113408AA $48.35 #1.9 #Includes R&I Front Cover, Included in R&R Grille Surround w/o Chrome Grille 5113408AA $48.35 #1.9 #Includes R&I Front Cover, Included in R&R Front Cover or O/H Front Bumper Assy Rivet, Grille R 34201621 $6.00 L 34201621 $6.00 Bolt, Grille R 6104368AA $2.95 L 6104368AA $2.95 TOWN & COUNTRY Page 5 of 142

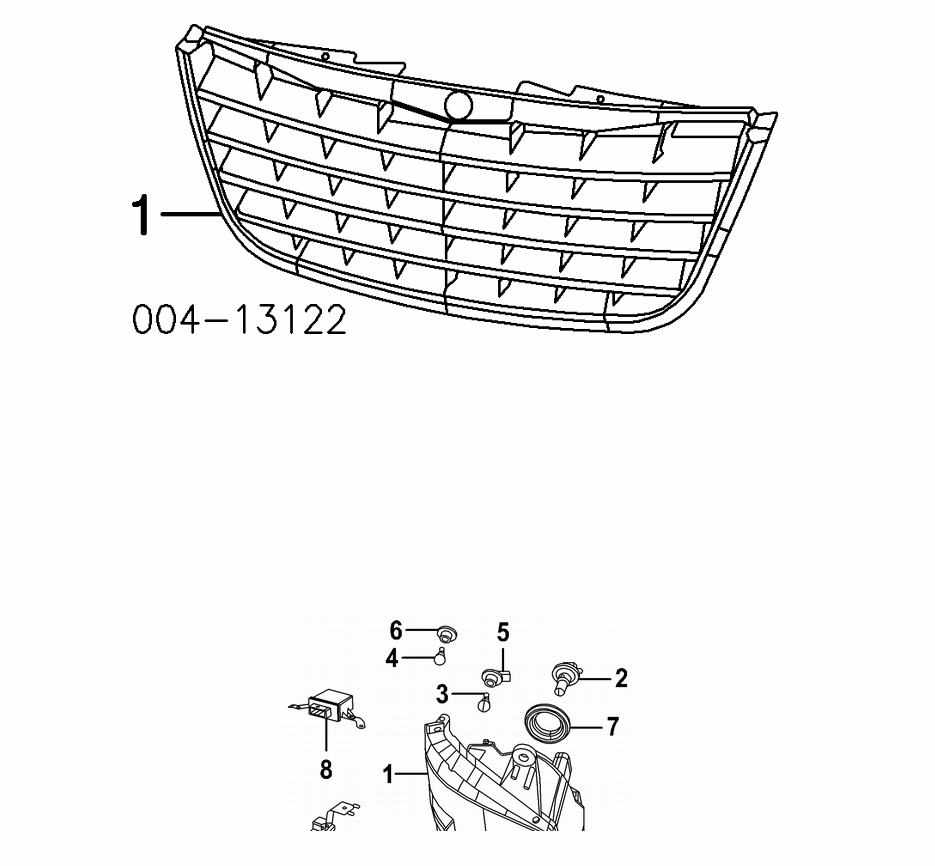

R&I Grille #1.7 #Includes R&I Front Cover 1 Grille Chrome Center 5113228AA $282.00 #1.7 Black Center 5113127AA $260.00 #1.7 #Includes R&I Front Cover Rivet, Grille R 34201621 $6.00 L 34201621 $6.00 Bolt, Grille R 6104368AA $2.95 L 6104368AA $2.95 FRONT LAMPS COMBINATION LAMP COMBINATION LAMP GRAND CARAVAN Page 6 of 142

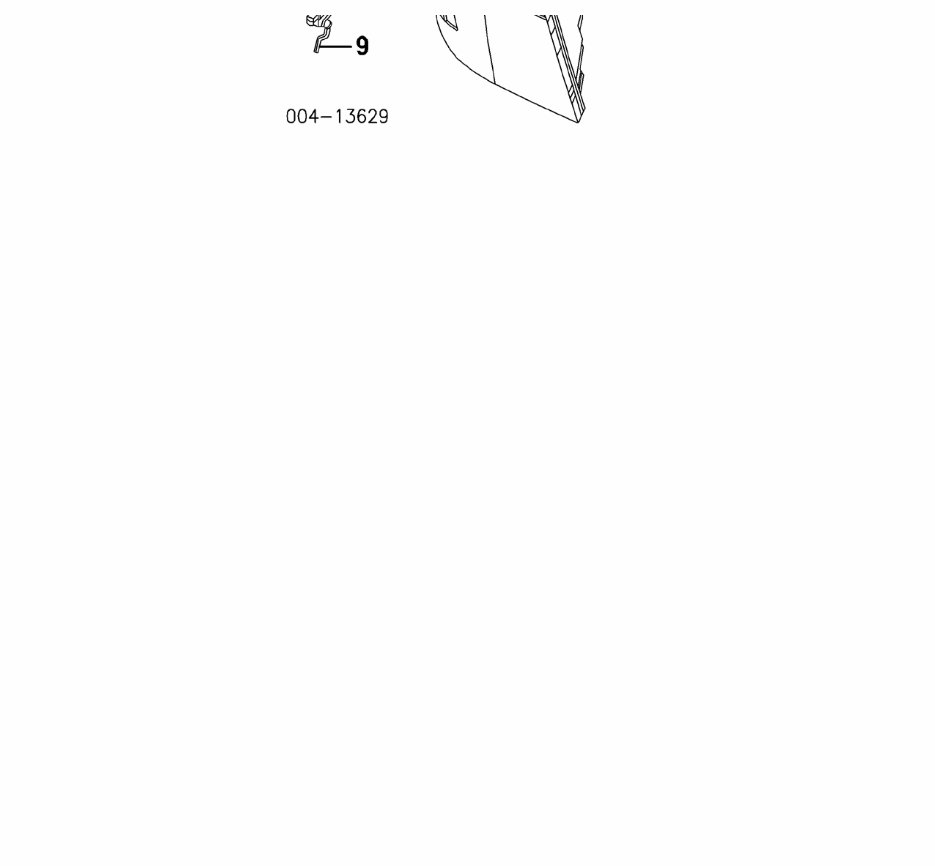

Aim Combination Lamps .4 R&I Combination Lamp R #.3 L #.3 #w/Front Cover Removed NOTE: R&R Does Not include aim lamps. 1 Lamp, Combination R 5113332AD $200.00 #.3 L 5113333AD $200.00 #.3 #w/Front Cover Removed 2 Bulb, Headlamp R L0000H13 $22.20 #.2 L L0000H13 $22.20 #.2 3 Bulb, Park/Signal 08 R L0003157 $2.95 #.2 L L0003157 $2.95 #.2 09-10 R L00003157A $2.60 #.2 L L00003157A $2.60 #.2 4 Bulb, Side Marker R L003757A $4.10 #.2 L L003757A $4.10 #.2 #R&R One Side Complete, Included in R&I/R&R Combination Lamp Assy 5 Socket, Park/Signal R 4857327AA $3.60 L 4857327AA $3.60 6 Socket, Side Marker R 68030800AA $3.25 L 68030800AA $3.25 7 Boot, Headlamp R 5139057AA $33.95 L 5139057AA $33.95 8 Module, H/Lamp Adj 5113392AB $139.00 #.2 #w/Combination Lamp Removed, Included in R&R Combination Lamp Assy 9 Sensor, Lamp Cont R 5113390AA $129.00 L 5113391AA $165.00 Vent, Headlamp R 68030802AA $0.80 L 68030802AA $0.80 Harness, Headlamp 4869741AF $102.00 Order by Application COMBINATION LAMP COMBINATION LAMP TOWN & COUNTRY Page 7 of 142

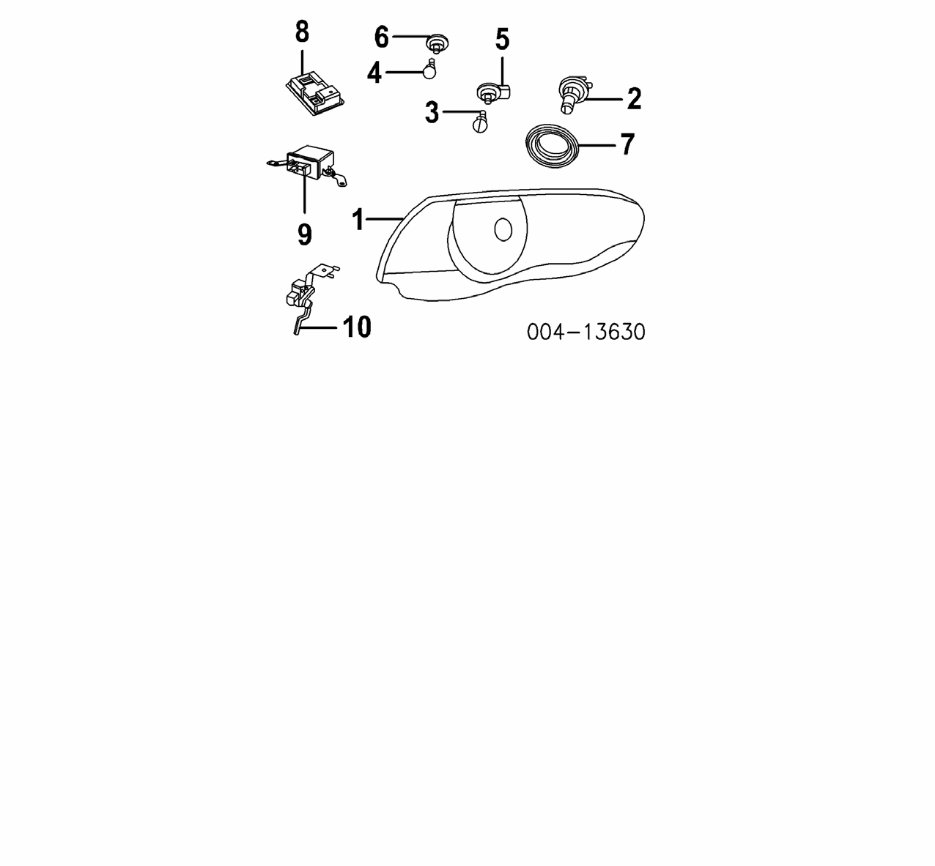

Aim Lamps .4 R&I Combination Lamp R #.3 L #.3 #w/Front Cover Removed NOTE: R&R Does Not include aim lamps. 1 Lamp, Combination Halogen Code LME R 5113336AE $160.00 #.3 L 5113337AE $160.00 #.3 Code LMH R 5113340AD $379.00 #.3 L 5113341AD $379.00 #.3 Xenon Code LMP R 5113334AD $512.00 #.5 L 5113335AD $499.00 #.5 Code LMV R 5113338AD $565.00 #.5 L 5113339AD $537.00 #.5 #w/Front Cover Removed 2 Bulb, Headlamp Halogen R L0000H11 $15.10 #.2 L L0000H11 $15.10 #.2 Xenon R 4865941AC $189.00 #.2 L 4865941AC $189.00 #.2 3 Bulb, Park/Signal R L002825W5W $2.35 #.2 L L002825W5W $2.35 #.2 4 Bulb, Side Marker R L003757A $4.10 #.2 L L003757A $4.10 #.2 #R&R One Side Complete, Included in R&I/R&R Combination Lamp Assy Page 8 of 142

5 Socket, Park/Signal R 68030801AA $32.00 L 68030801AA $32.00 6 Socket, Side Marker R 68030800AA $3.25 L 68030800AA $3.25 7 Boot, Headlamp Halogen R 68030814AA $33.85 L 68030814AA $33.85 Xenon R 68030813AA $33.85 L 68030813AA $33.85 Order by Application 8 Ballast, Headlamp R 68030815AA $300.00 #.2 L 68030815AA $300.00 #.2 #w/Combination Lamp Removed, Included in R&R Combination Lamp Assy 9 Module, H/Lamp Adj 5113392AB $139.00 10 Sensor, Lamp Cont R 5113390AA $129.00 L 5113391AA $165.00 Vent, Headlamp R 68030802AA $0.80 L 68030802AA $0.80 Harness, Headlamp 4868757AH $180.00 Order by Application HEADLAMP WASHER HEADLAMP WASHER TOWN & COUNTRY 1 Nozzle, Headlamp Washer R 5113370AA $48.50 #.2 L 5113369AA $48.50 #.2 #w/Front Cover Removed, Included in R&R Front Cover or O/H Front Bumper Assy Page 9 of 142

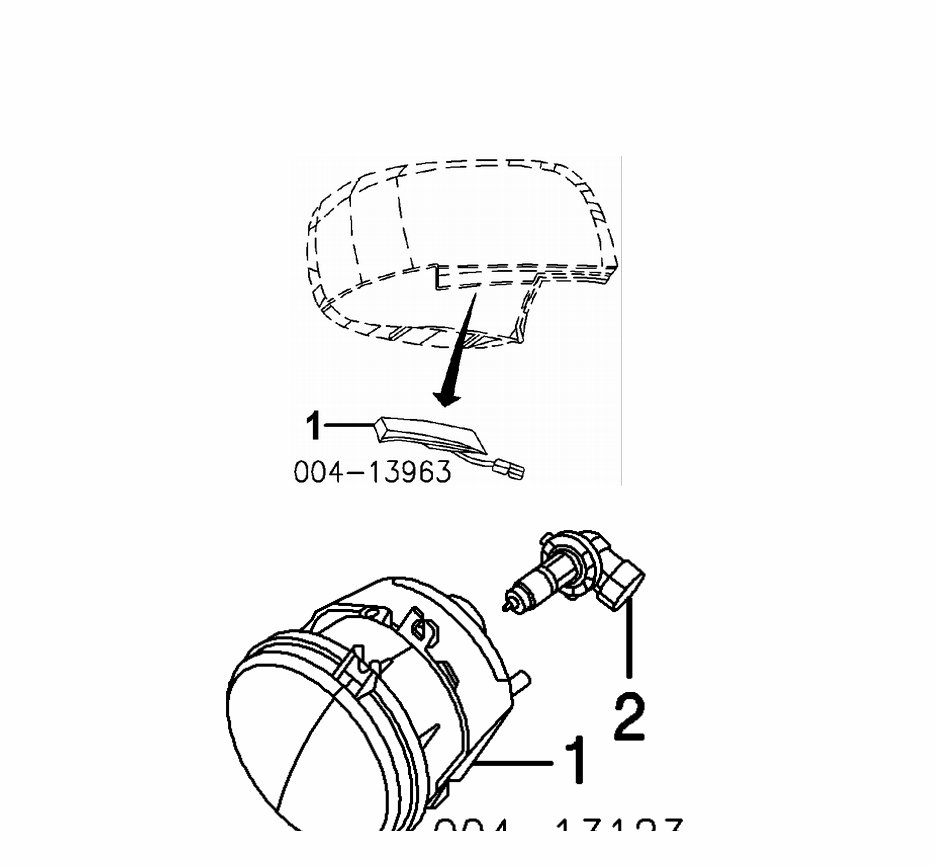

Cover, Headlamp Washer-See Front Bumper Section 2 Hose, Washer N.A. Cut to Fit Reservoir, Washer-See Windshield Section Pump, Headlamp Washer-See Windshield Section SIDE SIGNAL LAMP 1 Lamp, Turn Signal-See Front Door Section FOG LAMP Page 10 of 142
