2001 - 2007 Dodge Grand Caravan Parts LIST CATALOG

SPECIAL CAUTIONS AIR BAGS Refer to Procedure Explanation 29 for Supplemental Restraint/Air Bag Special Cautions. PAINT CODE LOCATION Paint code located on left door jamb. CLEAR COAT IDENTIFICATION All colors are clear coat. White Pearl (Code SWP), Red Tinted Pearl (Code WEL) and Candy Apple Red (Code PH2) are three stage. INFORMATION LABELS Label, Air Bag Warning On Glove Box 4678230 $5.35 On Visor R 4897875AA $2.10 L 4897875AA $2.10 Order by Application Label, Child Protection Lock 01-02 R 4894097AA $2.85 L 4894097AA $2.85 03-07 R 4894097AB $4.00 L 4894097AB $4.00 Label, Coolant Warning 4809378AA $7.60 Label, A/C Belt Routing-See Grille Section Label, Emission 4809726AA $1.10 Order by Application Label, Equip Identification 4215966 $2.85 Label, Exhaust Gas Warning 4716878 $5.00 Label, Jack & Tire Storage 01-03 4860703AA $2.35 04-07 5028621AB $7.35 Label, Tire Pressure/Air Bag 4472551AC $5.50 Label, Unleaded Fuel Only 4860620AB $5.00 Order by Application FRONT BUMPER Use Procedure Explanations 1 and 28 with the following text. CARAVAN, GRAND CARAVAN CARAVAN, GRAND CARAVAN 2001-04 2001-2007 Dodge Caravan, GrandCaravan Page 1 of 223

Refinish Front Cover Caravan Base, SE Model w/SXT Pkg 2.6 w/o SXT Pkg 1.4 ES, Sport Model 2.6 Grand Caravan 2.6 R&I Front Cover #1.9 #Includes R&I/R&R Combination Lamps O/H Front Bumper Assy (Includes R&I) #2.7 #Includes R&I/R&R Combination Lamps & Grille Add to R&R Front Cover or O/H Front Bumper Assy w/Fog Lamps .3 NOTE: All Parts in this section are included in overhaul unless noted otherwise. 1 Cover, Front Caravan Base, SE Model w/SXT Pkg (P) 5018608AA $530.00 #2.5 w/o SXT Pkg Code BE UB321BEAA $587.00 #2.5 Code B7 01-02 UB321B7AA $579.00 #2.5 03-04 UB322B7AA $510.00 #2.5 Code GR 01 UB321GRAA $509.00 #2.5 Code JR UB322JRAA $597.00 #2.5 Code KJ 04 UB322B7AA $510.00 #2.5 Code P4 03-04 UB322JRAA $597.00 #2.5 Code QW 01 UB321QWAA $535.00 #2.5 02 UB322QWAA $579.00 #2.5 Page 2 of 223

Code RV 01 UB321RVAA $529.00 #2.5 02-04 UB322RVAA $597.00 #2.5 Code R8 N.A. #2.5 Code S2 UB321S2AA $509.00 #2.5 Code W1 01 UB321W1AA $509.00 #2.5 02-04 N.A. #2.5 Code XR 04 UB322B7AA $510.00 #2.5 Paint to Match UB322W1AA $597.00 #2.5 ES Model (P) 01 5018609AA $530.00 #2.5 02 5080612AA $462.00 #2.5 Sport Model (P) w/Fog Lamps 5018609AA $530.00 #2.5 w/o Fog Lamps 5018608AA $530.00 #2.5 Grand Caravan (P) EL, EX, SE Model 5018608AA $530.00 #2.5 ES Model 5018609AA $530.00 #2.5 Sport Model w/Fog Lamps 5018609AA $530.00 #2.5 w/o Fog Lamps 5018608AA $530.00 #2.5 Replacement Part may Require Refinishing, Contact Dealer for Available Colors (P) Paint to Match #Includes R&I/R&R Combination Lamps & Grille 2 Medallion, Grille (Adhesive) 4725546AA $29.50 .2 3 Retainer, Front Cover R 4857610AA $7.35 L 4857611AA $7.35 4 Deflector, Air 4857250AB $43.50 5 Plate Kit, License 4857351AB $27.70 .2 6 Reinforcement Assy 01 4857455AA $129.00 IOH 02 4857691AA $224.00 IOH 03-04 4857882AA $295.00 IOH Absorber, Impact (a) 4857433AA $200.00 Retainer, Absorber (4) (a) 4857182AA $6.85 (a) Included w/Reinforcement Assy 7 Shield Assy, Air 82205903AB $91.85 .2 Spacer Kit, Shield (b) 5014754AA $7.85 (b) Included w/Air Shield Assy Bra Kit, Front Dealer Installed Caravan w/License Cut-Out 82206379 $140.00 # w/o License Cut-Out 82206377 $140.00 # Grand Caravan w/SE Model w/License Cut-Out 82206379 $140.00 # w/o License Cut-Out 82206377 $140.00 # w/o SE Model Page 3 of 223

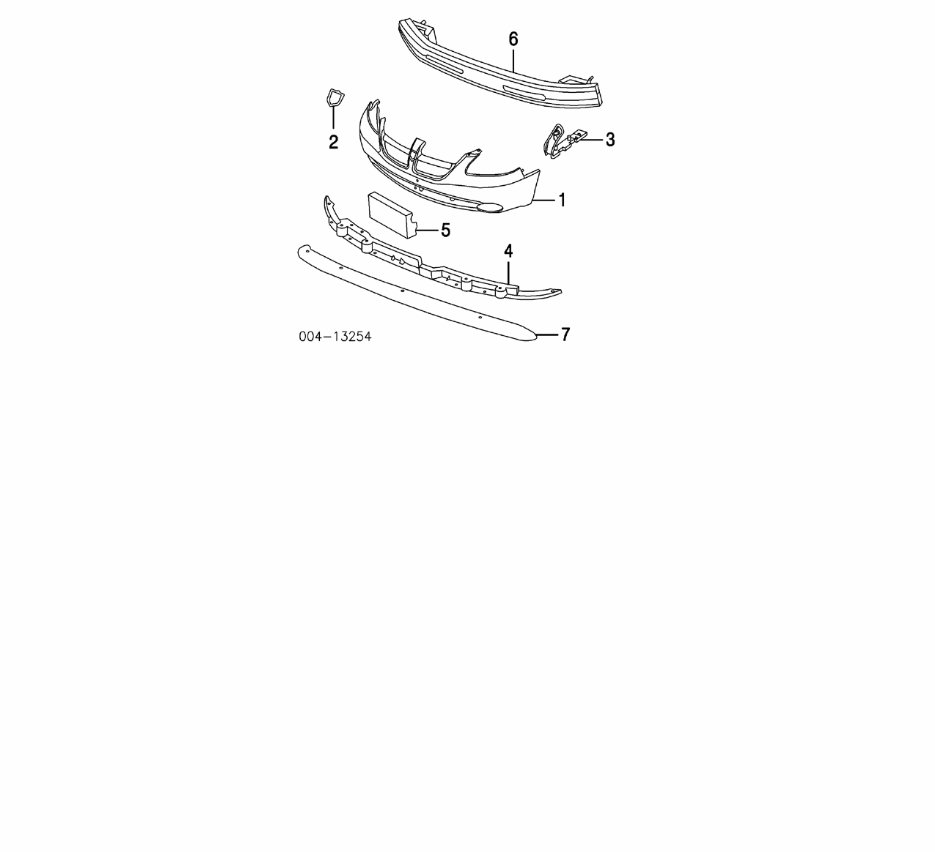

w/License Cut-Out 82206380 $140.00 # w/o License Cut-Out 82206381 $142.00 # #Not Included in O/H CARAVAN, GRAND CARAVAN CARAVAN, GRAND CARAVAN 2005-07 Refinish Front Cover Complete 2.6 Refinish Front Upper Cover 1.4 Add to Refinish Front Lower Cover 1.6 R&I Front Cover #1.9 #Includes R&I/R&R Combination Lamps O/H Front Bumper Assy (Includes R&I) #2.7 #Includes R&I/R&R Combination Lamps & Grille Add to R&R Front Cover or O/H Front Bumper Assy w/Fog Lamps .3 NOTE: All Parts in this section are included in overhaul unless noted otherwise. 1 Cover, Front (P) 2005 Caravan SE Model To 5-04 1AK392B8AA $382.00 #2.5 From 5-04 1AK392S2AA $382.00 #2.5 SXT Model w/Fog Lamps 5139118AA $359.00 #2.5 w/o Fog Lamps 5139117AA $294.00 #2.5 Grand Caravan w/Fog Lamps 5139118AA $359.00 #2.5 Page 4 of 223

w/o Fog Lamps 5139117AA $294.00 #2.5 2006-07 Caravan SE Model 1AK392S2AA $382.00 #2.5 SXT Model w/Fog Lamps 5139118AA $359.00 #2.5 w/o Fog Lamps 5139117AA $294.00 #2.5 Grand Caravan w/Fog Lamps 5139118AA $359.00 #2.5 w/o Fog Lamps 5139117AA $294.00 #2.5 (P) Paint to Match #Includes R&I/R&R Combination Lamps & Grille 2 Retainer, Cover R 4857610AA $7.35 L 4857611AA $7.35 3 Medallion, Grille (Adhesive) 05 4805899AB $25.95 .2 06-07 5113194AA $28.85 .2 4 Deflector, Air 4857250AB $43.50 5 Plate Kit, License 4857923AA $3.10 .2 6 Reinforcement Assy 05 4857882AA $295.00 IOH 06-07 4857882AB $285.00 IOH Absorber, Impact (a) 4857883AA $254.00 Retainer, Absorber (3) (a) 4857182AA $6.85 (a) Included w/Reinforcement Assy Bra Kit, Front Dealer Installed w/License Cut-Out 82208851 $172.00 # w/o License Cut-Out 82208850AB $172.00 # #Not Included in O/H TOWN & COUNTRY TOWN & COUNTRY 2001-04 Page 5 of 223

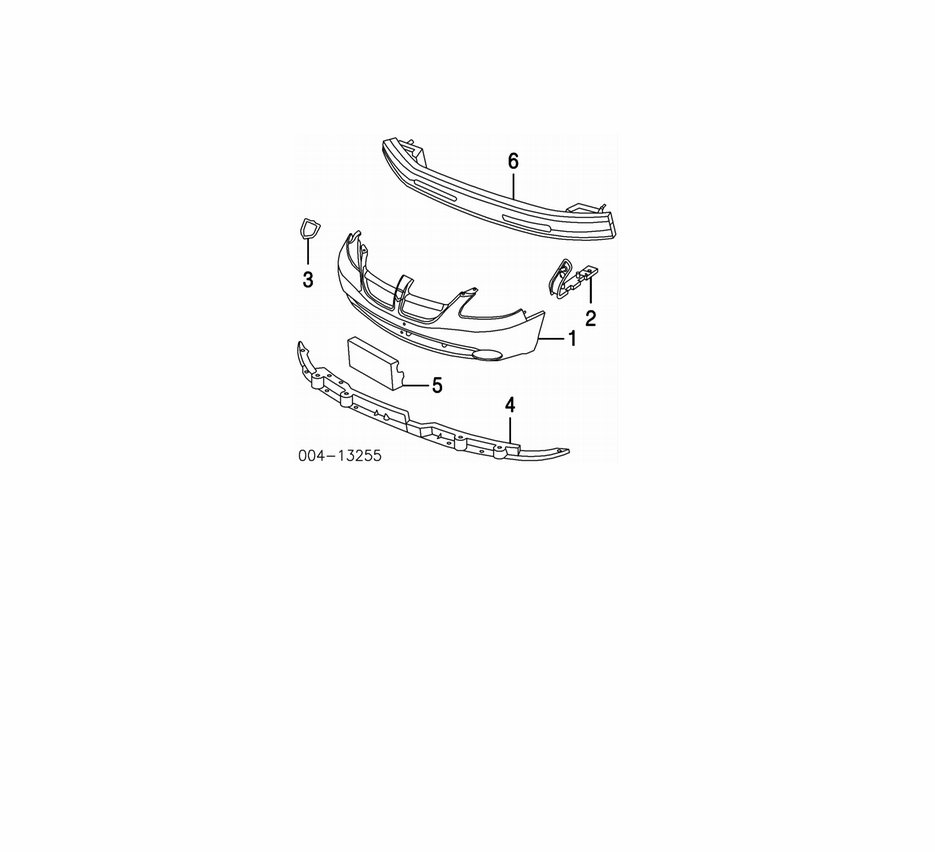

Refinish Front Cover 2.6 R&I Front Cover #1.9 #Includes R&I/R&R Combination Lamps O/H Front Bumper Assy (Includes R&I) #2.7 #Includes R&I/R&R Combination Lamps & Grille Add to R&R Front Cover or O/H Front Bumper Assy w/Fog Lamps .3 NOTE: All Parts in this section are included in overhaul unless noted otherwise. 1 Cover, Front (P) EL, EX, LX Model 5018611AA $497.00 #2.5 LXi, Limited Model 5018610AA $509.00 #2.5 (P) Paint to Match #Includes R&I/R&R Combination Lamps & Grille 2 Retainer, Front Cover R 4857610AA $7.35 L 4857611AA $7.35 3 Deflector, Air 4857250AB $43.50 4 Plate Kit, License 4857350AB $27.70 .2 5 Reinforcement Assy 01 4857455AA $129.00 IOH 02 4857691AA $224.00 IOH 03-04 4857882AA $295.00 IOH Absorber, Impact 4857433AA $200.00 Retainer, Absorber (4) 4857182AA $6.85 Included w/Reinforcement Assy 6 Shield Assy, Air 82205903AB $91.85 .2 Spacer Kit, Shield (a) 5014754AA $7.85 (a) Included w/Air Shield Assy Bra Kit, Front Dealer Installed FWD w/License Cut-Out 82206384 $140.00 # w/o License Cut-Out 82206385 $162.00 # AWD 82206384 $140.00 # #Not Included in O/H TOWN & COUNTRY TOWN & COUNTRY 2005-07 Page 6 of 223

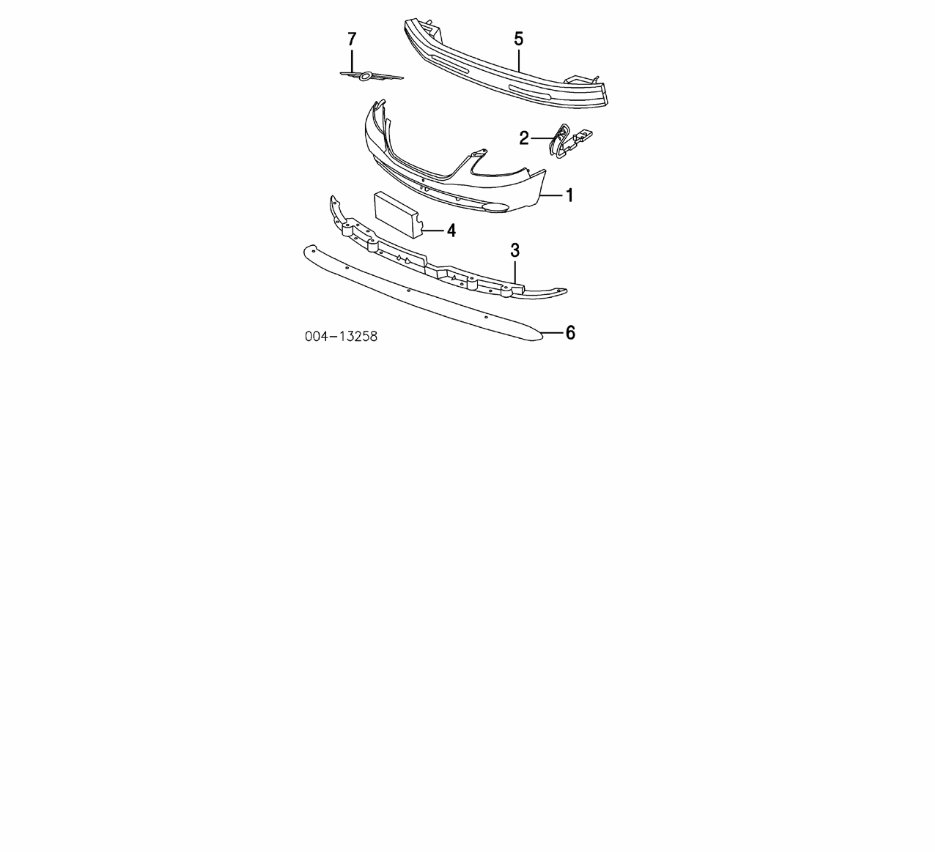

Refinish Front Cover 2.6 R&I Front Cover #1.9 #Includes R&I/R&R Combination Lamps O/H Front Bumper Assy (Includes R&I) #2.7 #Includes R&I/R&R Combination Lamps & Grille Add to R&R Front Cover or O/H Front Bumper Assy w/Fog Lamps .3 NOTE: All Parts in this section are included in overhaul unless noted otherwise. 1 Cover, Front (P) 113" WB 5139119AA $304.00 #2.5 119" WB w/Fog Lamps 5139121AA $359.00 #2.5 w/o Fog Lamps 5139120AA $359.00 #2.5 (P) Paint to Match #Includes R&I/R&R Combination Lamps & Grille 2 Retainer, Cover R 4857610AA $7.35 L 4857611AA $7.35 3 Moulding, Chrome 119" WB R 4857903AA $50.10 L 4857903AA $50.10 4 Deflector, Air 4857250AB $43.50 5 Reinforcement Assy 05 4857882AA $295.00 IOH 06-07 4857882AB $285.00 IOH Absorber, Impact (a) 4857883AA $254.00 Retainer, Absorber (3) (a) 4857182AA $6.85 (a) Included w/Reinforcement Assy 6 Plate Kit, License 4857923AA $3.10 .2 Bra Kit, Front Dealer Installed w/License Cut-Out 82208852 $172.00 # w/o License Cut-Out 82208853 $172.00 # #Not Included in O/H VOYAGER Page 7 of 223

Refinish Front Cover Base Model 1.4 LX Model 2.6 R&I Front Cover #1.9 #Includes R&I/R&R Combination Lamps O/H Front Bumper Assy (Includes R&I) #2.7 #Includes R&I/R&R Combination Lamps & Grille Add to R&R Front Cover or O/H Front Bumper Assy w/Fog Lamps .3 NOTE: All Parts in this section are included in overhaul unless noted otherwise. 1 Cover, Front Base Model Aquamarine 01 UC751QWAA $560.00 #2.5 02 UC752QWAA $579.00 #2.5 Bright Silver UC751S2AA $597.00 #2.5 Blue Metallic UC751BEAA $569.00 #2.5 Emerald Green UC751GRAA $597.00 #2.5 Garnet Red UC751RVAA $597.00 #2.5 Patriot Blue UC751B7AA $597.00 #2.5 Satin Jade UC752JRAA $597.00 #2.5 Paint to Match UC752W1AA $597.00 #2.5 LX Model (P) 5018612AA $512.00 #2.5 Replacement Part may Require Refinishing, Contact Dealer for Available Colors (P) Paint to Match #Includes R&I/R&R Combination Lamps & Grille 2 Retainer, Front Cover R 4857610AA $7.35 L 4857611AA $7.35 3 Deflector, Air 4857250AB $43.50 Page 8 of 223

4 Plate Kit, License 4857352AB $27.70 .2 5 Reinforcement Assy 01 4857455AA $129.00 IOH 02 4857691AA $224.00 IOH 03 4857882AA $295.00 IOH Absorber, Impact (a) 4857433AA $200.00 Retainer, Absorber (4) (a) 4857182AA $6.85 (a) Included w/Reinforcement Assy 6 Shield Assy, Air 82205903AB $91.85 .2 Spacer Kit, Shield (a) 5014754AA $7.85 (a) Included w/Air Shield Assy 7 Medallion, Grille (Adhesive) 4857406AA $98.75 .2 Bra Kit, Front Dealer Installed w/License Cut-Out 82206383 $139.00 # w/o License Cut-Out 82206382 $142.00 # #Not Included in O/H GRILLE CARAVAN, GRAND CARAVAN CARAVAN, GRAND CARAVAN 2001-04 R&I Grille Assy #2.1 #Includes R&I Front Cover Grille 1 1 Piece 4857296AA $130.00 #2.1 4 Piece 2 Upper R 4857746AA $72.10 #2.1 Page 9 of 223

L 4857747AA $72.10 #2.1 3 Lower R 4857748AA $72.10 #2.1 L 4857749AA $72.10 #2.1 #R&R Complete, Includes R&I Front Cover 4 Support Assy, Grille 01-02 4857217AB $62.00 #.3 03-04 4857217AC $64.35 #.3 #Included in R&I/R&R Front Cover & O/H Front Bumper Assy Label, A/C Belt Routing 5005500AE $2.00 Included w/Grille Support Assy 5 Medallion, Grille-See Front Bumper Section 6 Clip, Grille (6) 4805570AA $3.50 CARAVAN, GRAND CARAVAN CARAVAN, GRAND CARAVAN 2005-07 R&I Grille #2.1 #Includes R&I Front Cover 1 Grille 4857821AA $149.00 #2.1 #Includes R&I Front Cover 2 Support Assy, Grille 4857217AD $64.35 #.3 #Included in R&I/R&R Front Cover & O/H Front Bumper Assy Label, A/C Belt Routing 5005501AF $2.00 Included w/Grille Support Assy 3 Medallion, Grille-See Front Bumper Section 4 Clip, Grille (6) 4805570AA $3.50 TOWN & COUNTRY TOWN & COUNTRY 2001-04 Page 10 of 223
