SPECIAL CAUTIONS CUTAWAY VAN Cutaway vehicles are supplied incomplete to aftermarket specialty manufacturers, which may have special options not available on regular production (complete) vehicles. Extra care should be exercised when estimating these vehicles. It may be necessary to consult the OEM dealer or particular specialty manufacturer for specific information. AIR BAGS Refer to Procedure Explanation 29 for Supplemental Restraint/Air Bag Special Cautions. ABS If welding is to be performed using an electric welder, ABS Control Module, located under the battery tray, should be disconnected. PAINT CODE LOCATION Paint code located on left door jamb or on upper tie bar. CLEAR COAT IDENTIFICATION All colors are clear coat. White Pearl (Code SWP), Red Tinted Pearl (Code WEL) and Candy Apple Red (Code PH2) are three stage. INFORMATION LABELS Label, Air Bag/Tire Pressure 4472551AB $7.45 Label, Belt Routing 2.4L Eng 4861044 $5.00 3.0L Eng 4663971 $5.00 3.3L, 3.8L Eng 4663972 $5.00 Label, Emission Control 2.4L Eng 1996 4612962 $4.80 1997-00 w/Calif Emission 4861101AB $0.70 w/o Calif Emission 4861100 $4.00 3.0L Eng 1996 w/Calif Emission 4861020 $5.00 w/o Calif Emission 4861019 $4.80 1997 w/Calif Emission 4861105 $4.80 w/o Calif Emission 4861107 $2.80 1998-00 w/Calif Emission 4861167AA $5.00 1996-2000 Dodge Caravan,GrandCaravan Page 1 of 184

w/o Calif Emission 4861168AB $2.53 3.3L Eng 1996 Gas w/Calif Emission 4861018 $4.00 w/o Calif Emission 4612964 $4.00 CNG w/Calif Emission 4612963 $2.95 w/o Calif Emission 4861779 $3.70 1997 Gas w/Calif Emission 4861109 $4.80 w/o Calif Emission 4861108 $4.80 CNG w/Calif Emission 4861112AB $3.95 w/o Calif Emission 4861113 $2.47 1998-00 Gas w/Calif Emission 4861138AA $5.00 w/o Calif Emission 4861139AA $4.80 3.8L Eng 1996 Gas w/Calif Emission 4612987 $4.00 w/o Calif Emission 4861102 $4.00 1997 FWD w/Calif Emission 4861118 $4.00 w/o Calif Emission 4861117 $4.00 AWD w/Calif Emission 4861115 $4.00 w/o Calif Emission 4861114 $4.80 1998-00 FWD w/Calif Emission 4861142AA $4.45 w/o Calif Emission 4861141AA $4.80 AWD w/Calif Emission 4861145AA $3.20 w/o Calif Emission 4861144AA $4.45 Order by Application Label, Equipment ID 4215966 $2.85 Label, Fan Caution 4592114 $6.70 Label, Headlamp Level 4576360 $3.30 Label, Service Label 4673102 $17.00 Label, Unleaded Fuel Only 4206059 $5.10 Label, CNG Man Shut-Off Valve 55274676 $10.10 Page 2 of 184

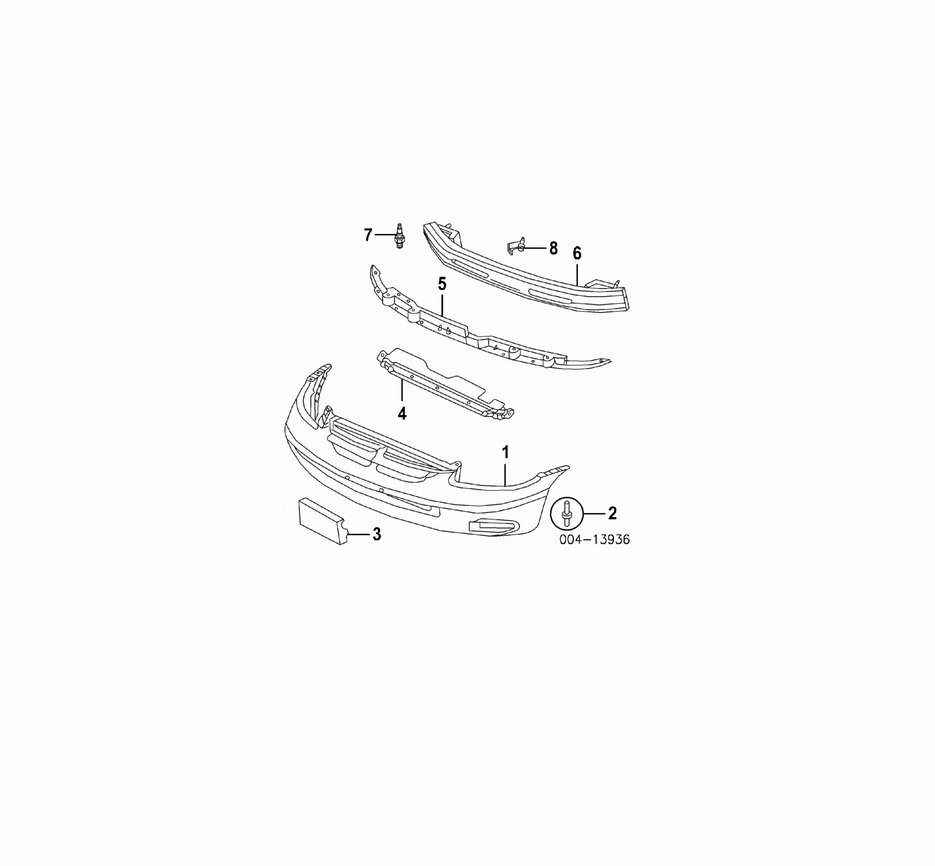

Label, Child Locks R 4615729 $17.50 L 4717192 $3.95 Label, Door Mtg 96-99 R 4615722 $2.50 L 4615722 $2.50 00 R 4615722AB $2.85 L 4615722AB $2.85 FRONT BUMPER Use Procedure Explanations 1 and 28 with the following text. CARAVAN Refinish Front Cover w/Fog Lamps 2.6 w/o Fog Lamps 1.6 R&I Bumper Assy #1.9 #Includes R&I/R&R H/Lamp Assemblies & Fender Liners O/H Bumper Assy (Includes R&I) #2.9 #Includes R&I/R&R H/Lamp Assemblies, Fender Liners & Grille Add to O/H Bumper Assy w/Fog Lamps .3 NOTE: All Parts in this section are included in overhaul unless noted otherwise. 1 Cover, Front (P) Base Model, SE Model w/Fog Lamps 96-98 4797586 $437.00 #2.9 99-00 5013042AA $442.00 #2.9 w/o Fog Lamps Cool Gray 97-98 4883841AA $449.00 #2.9 Page 3 of 184

99-00 5013484AA $497.00 #2.9 Dark Gray 97-98 4883840AA $449.00 #2.9 99-00 5013487AA $477.00 #2.9 Gray Green 97-98 4883842AA $449.00 #2.9 99-00 5013485AA $497.00 #2.9 Teal 97-98 4883843AA $445.00 #2.9 99-00 5013486AA $510.00 #2.9 LE Model w/Fog Lamps 96-98 4797586 $437.00 #2.9 99-00 5013042AA $442.00 #2.9 w/o Fog Lamps Cool Gray 96-98 5013484AA $497.00 #2.9 99-00 5013895AA $564.00 #2.9 Dark Gray 96-98 5013487AA $477.00 #2.9 99-00 5013894AA $537.00 #2.9 Dark Gray/Green 96-98 5013485AA $497.00 #2.9 99-00 5013896AA $582.00 #2.9 Dark Teal 96-98 5013486AA $510.00 #2.9 99-00 5015111AA $487.90 #2.9 ES, Sport Model 97-98 4797586 $437.00 #2.9 99-00 5013042AA $442.00 #2.9 Contact Dealer for Core Charge & Exchange Information (P) Paint to Match #Includes R&I/R&R H/Lamp Assemblies, Fender Liners & Grille 2 Rivet, Cover 96 6500911 $5.75 97-00 6501916 $3.10 As Required 3 Bracket, License Base Model, SE Model 96-98 4676316 $44.50 .2 99-00 4576850AB $41.60 .2 LE, ES Model w/Sport Pkg 96-98 4676316 $44.50 .2 99-00 4576850AB $41.60 .2 w/o Sport Pkg 4576850 $44.50 .2 4 Support, Upr Crossmember 4676878 $28.60 Seal, Support/Condenser 4676880 $33.45 5 Deflector, Air w/LE Model 4576950 $52.50 IOH w/o LE Model 4576947 $63.45 IOH 6 Reinforcement Assy 1996-97 5011110AA $357.00 IOH 1998-00 w/Sport Pkg 4857178AA $380.00 IOH w/o Sport Pkg 5011110AA $357.00 IOH Absorber, Impact 1996-97 4576687 $152.00 IOH 1998-00-Serviced w/Reinforcement Assy Page 4 of 184

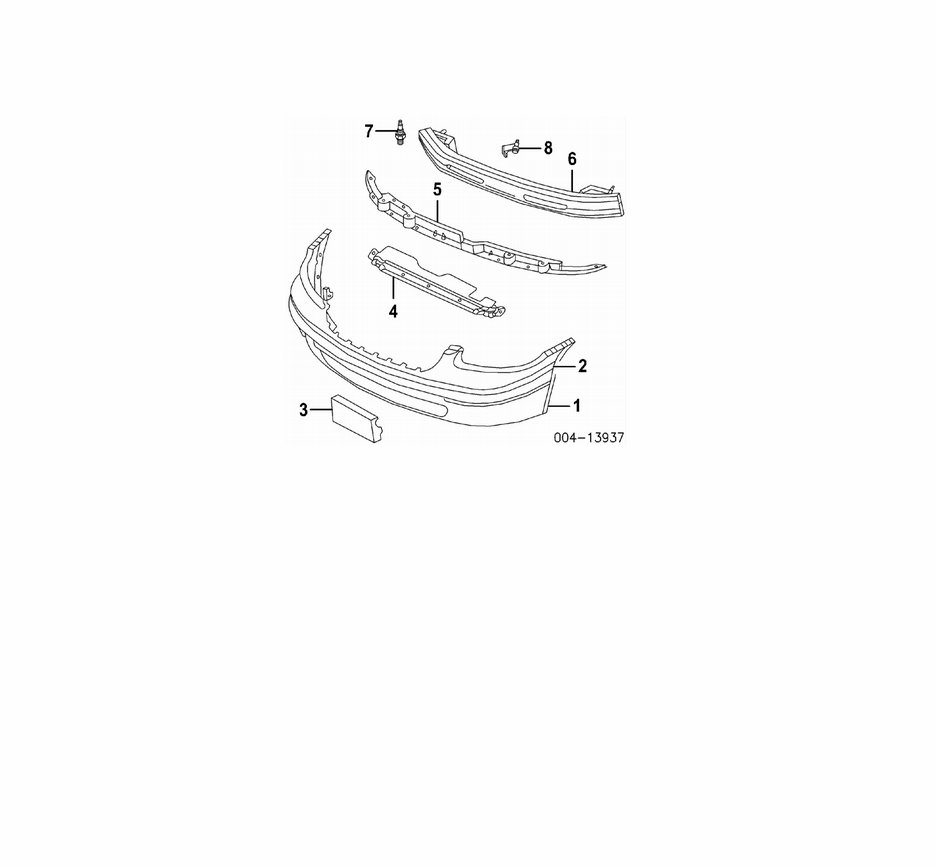

Included w/Reinforcement Assy Retainer, Absorber/Reinf (3) 6502586 $3.35 7 Sensor, Air Temp-See Cooling Section 8 Sensor, Ambient Air Temp 4685606 $26.95 #.2 #Not Included in O/H TOWN & COUNTRY, VOYAGER Refinish Front Cover Town & Country 2.6 Voyager 1.6 R&I Bumper Assy #1.9 #Includes R&I/R&R H/Lamp Assemblies & Fender Liners O/H Bumper Assy (Includes R&I) #2.9 #Includes R&I/R&R H/Lamp Assemblies, Fender Liners & Grille Add to R&R/O/H Bumper Assy w/Fog Lamps .3 NOTE: All Parts in this section are included in overhaul unless noted otherwise. 1 Cover, Front (P) Town & Country 96-97 4797587 $437.00 #2.9 98-00 4857073 $497.00 #2.9 Voyager Cool Gray 4883857AA $440.00 #2.9 Dark Neutral Gray 4883848AA $372.00 #2.9 Dark Teal 4883860AA $372.00 #2.9 Gray Green 4883849AA $372.00 #2.9 White JY55SW5 $330.00 #2.9 Contact Dealer for Core Charge & Exchange Information (P) Paint to Match #Includes R&I/R&R H/Lamp Assemblies, Fender Liners & Grille Rivet, Cover 96-97 6500911 $5.75 Page 5 of 184

98-00 6501916 $3.10 As Required 2 Strip, Impact Town & Country 4676346 $101.00 3 Bracket, License Town & Country 96-97 4676324 $44.50 .2 98-00 4857105 $44.60 .2 Voyager 4676273 $45.85 .2 4 Support, Upr Crossmember 4676878 $28.60 Seal, Support/Condenser 4676880 $33.45 5 Deflector, Air 4576950 $52.50 IOH 6 Reinforcement Assy 1996-97 5011110AA $357.00 IOH 1998-00 Town & Country 4857178AA $380.00 IOH Voyager 5011110AA $357.00 IOH Absorber, Impact 1996-97 4576687 $152.00 IOH 1998-00-Serviced w/Reinforcement Assy Included w/Reinforcement Assy Retainer, Absorber/Reinf (3) 6502586 $3.35 7 Sensor, Air Temp-See Cooling Section 8 Sensor, Ambient Air Temp 4685606 $26.95 #.2 #Not Included in O/H GRILLE CARAVAN R&I Grille Assy #2.2 Page 6 of 184

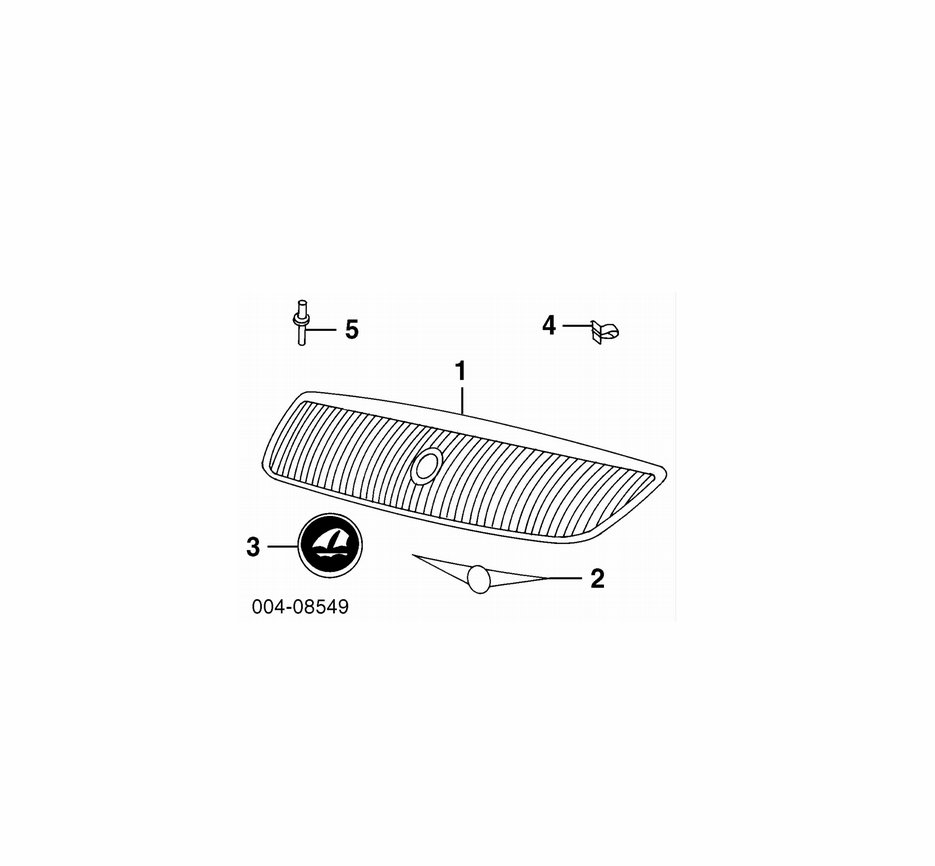

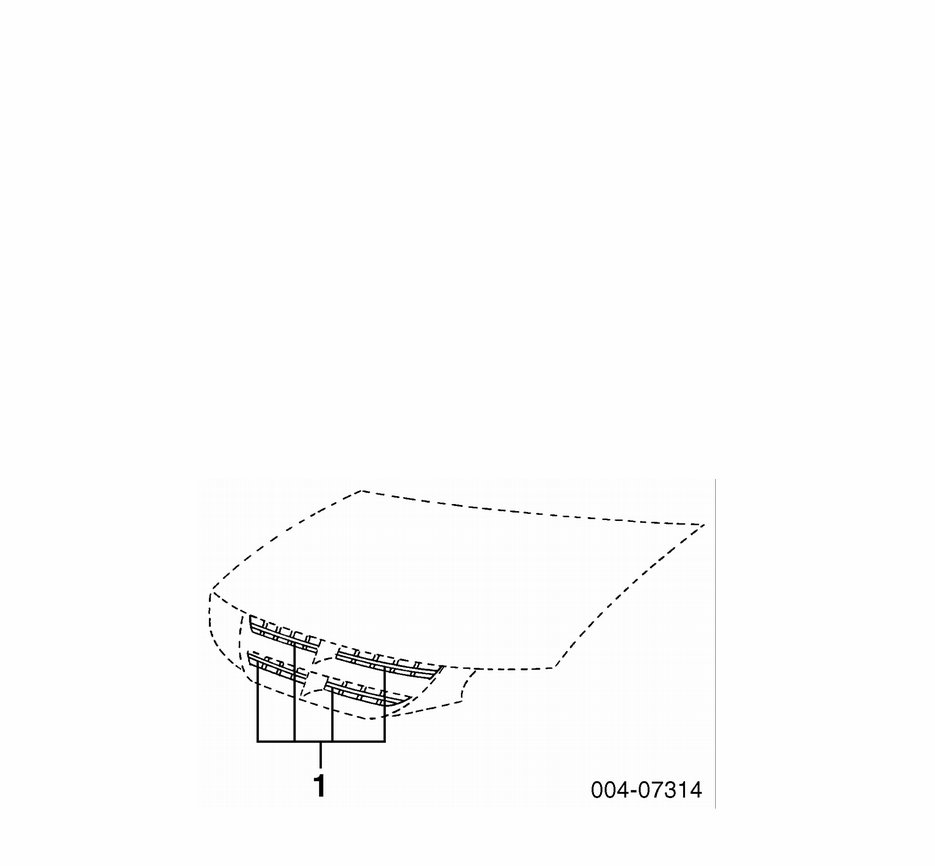

#Includes R&I Bumper Assy 1 Grille 1996-98 4576955 $58.20 #2.2 1999-00 Base, SE Model 4576955 $58.20 #2.2 ES, LE, Sport Model Black QU12DX9AA $112.00 #2.2 Cool Gray QU12RS8AA $113.65 #2.2 Dark Gray QU12HS5AA $112.00 #2.2 Dark Teal QU12SPNAA $88.25 #2.2 Gray Green QU12RJ3AA $120.00 #2.2 #Includes R&I Bumper Assy Clip, Grille R 6101956 $4.00 L 6101956 $4.00 Sensor, Air Temp-See Front Bumper Section TOWN & COUNTRY, VOYAGER Refinish Grille 1.5 R&I Grille Assy #2.2 #Includes R&I Bumper Assy 1 Grille 1996-97 Town & Country 4576896 $332.00 #2.2 Voyager w/Rally Pkg Banzai Blue/Bright White 5003001AA $130.00 #2.2 Bright White 5003001AA $130.00 #2.2 Dark Green 5003001AA $130.00 #2.2 w/o Rallye Pkg Page 7 of 184

Dark Charcoal UB94SS8AA $112.00 #2.2 Dark Gray UB94SS5AA $127.00 #2.2 Dark Teal UB94SPNAA $123.00 #2.2 Dark Gray UB94SJ3AA $112.00 #2.2 Deep Amethyst Pearl 5003001AA $130.00 #2.2 1998-00 Town & Country 4676928 $325.00 #2.2 Voyager w/Rally Pkg Bright White 5003001AA $130.00 #2.2 Dark Green 5003001AA $130.00 #2.2 w/o Rallye Pkg w/Expresso Pkg (P) 5003001AA $130.00 #2.2 w/o Expresso Pkg Dark Charcoal UB94SS8AA $112.00 #2.2 Dark Gray UB94SS5AA $127.00 #2.2 Dark Teal UB94SPNAA $123.00 #2.2 Dark Gray UB94SJ3AA $112.00 #2.2 (P) Paint to Match #Includes R&I Bumper Assy Emblem (Adhesive) 2 Town & Country 96-97 4676568 $30.00 .2 98-00 4857103 $30.00 .2 3 Voyager w/Expresso Pkg 4857187AA $21.35 .2 w/o Expresso Pkg 4676989 $21.95 .2 4 Clip, Grille/Frt Cover Town & Country 96-97 4676356 $6.70 98-00 4805570AA $3.50 Voyager 4676356 $6.70 5 Rivet 6500911 $5.75 As Required Tape, Stripe Town & Country 1996 Banzai Blue R LC68SCW $8.75 .2 L LC69SCW $8.75 .2 Bright White R LC68SW7 $7.70 .2 L LC69SW7 $7.70 .2 Candy Apple Red R LC68SHC $8.00 .2 L LC69SHC $8.00 .2 Dark Green R LC68SG8 $8.60 .2 L LC69SG8 $8.60 .2 Dark Rosewood R LC68SEG $7.70 .2 L LC69SEG $7.70 .2 Iris Blue R LC68SC5 $7.50 .2 L LC69SC5 $8.00 .2 Page 8 of 184

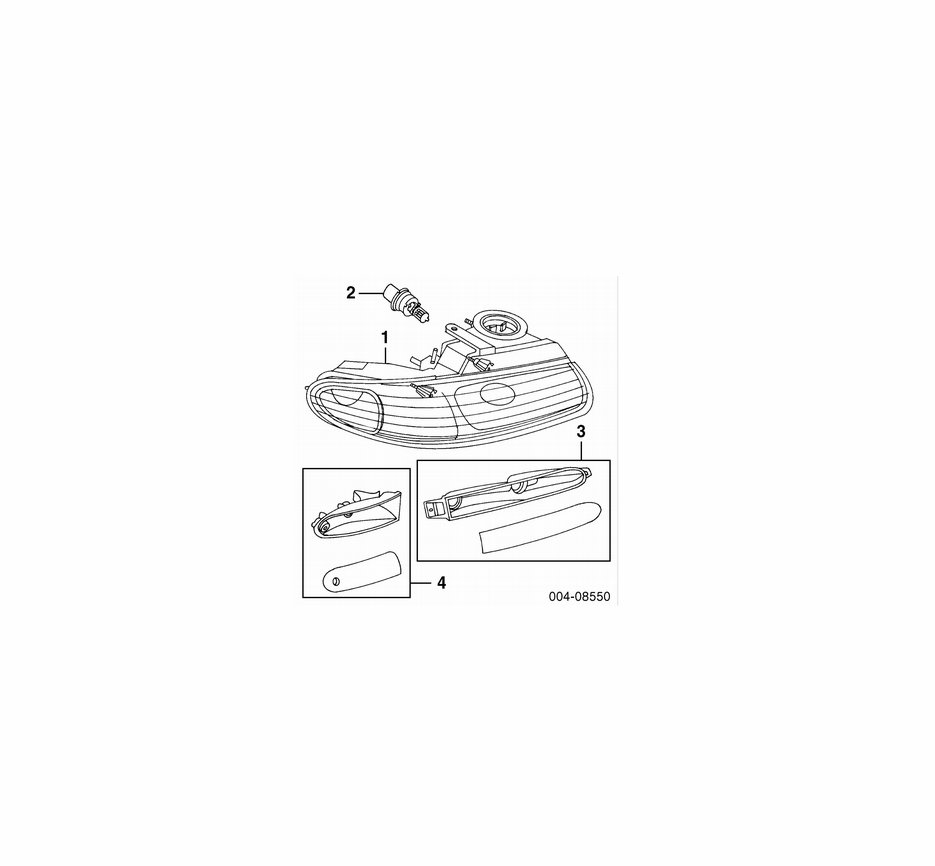

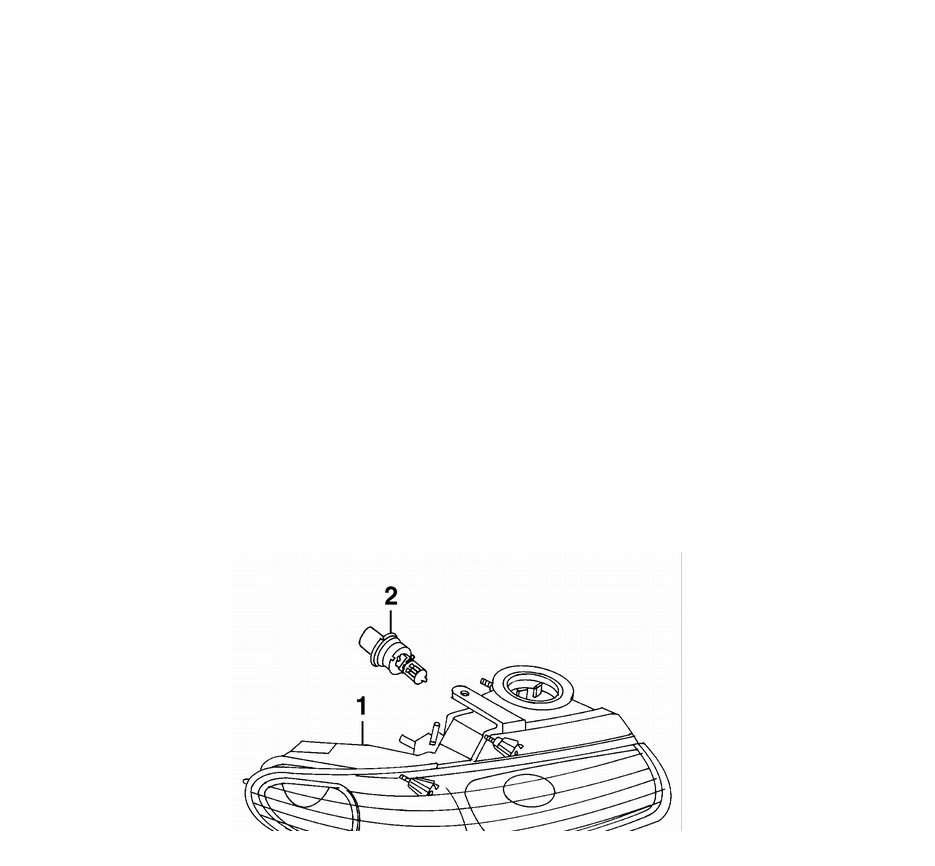

Island Teal R LC68SPJ $6.95 .2 L LC69SPJ $6.95 .2 Light Gold Metallic R LC68SYL $9.50 .2 L LC69SYL $9.50 .2 Light Silverfern R LC68SJM $8.60 .2 L LC69SJM $8.60 .2 White/Blue R LC68SWP $6.95 .2 L LC69SWP $6.95 .2 Sensor, Air Temp-See Front Bumper Section FRONT LAMPS COMBINATION LAMP COMBINATION LAMP W/QUAD LAMPS Aim Lamps .4 R&I Combination Lamp Assy R .3 L .3 R&I Park/Signal Lamp R .2 L .2 R&I Side Marker Lamp R .2 L .2 NOTE: R&R Does Not include aim lamps. 1 Lamp, Combination 96-99 R 4857150AC $504.00 .3 L 4857151AC $504.00 .3 00 R 4857150AD $512.00 .3 L 4857151AD $512.00 .3 2 Bulb Page 9 of 184

w/Long Life Bulb R L09005XSLL $14.35 #.1 L L09005XSLL $14.35 #.1 w/o Long Life Bulb R L0009005 $14.95 #.1 L L0009005 $14.95 #.1 #Included in R&I/R&R Lamp Assy Retainer, Bulb 96-99 R 4576352 $5.25 L 4576352 $5.25 00 R 4857141AA $6.20 L 4857141AA $6.20 Window, Adjusting R 4576358 $20.49 L 4576358 $20.49 Screw, Adjusting R 4676511 $1.35 L 4676511 $1.35 Vent, Lamp R 4857156AA $3.20 L 4857156AA $3.20 3 Lamp, Park/Signal R 5003366AA $81.00 .2 L 5003367AA $81.00 .2 4 Lamp, Side Marker R 4857076AB $61.95 .2 L 4857077AB $66.45 .2 Bulb, Park/Signal R L004157NAK $4.00 #.1 L L004157NAK $4.00 #.1 Bulb, Side Marker R L00003157A $2.60 #.1 L L00003157A $2.60 #.1 #Included in R&I/R&R Lamp Assy Socket, Park/Signal R 4707837AA $212.00 L 4707837AA $212.00 Module, DRL N.A. COMBINATION LAMP COMBINATION LAMP W/O QUAD LAMPS Page 10 of 184
